Section 15.1 Local Extrema

Section 15.1 Local Extrema. Definition of Local Extrema. Let P be a point in the domain of f . Then f has a local maximum at the point P 0 if f ( P 0 ) ≥ f ( P ) for all points P near P 0

ash
Télécharger la présentation

Section 15.1 Local Extrema

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

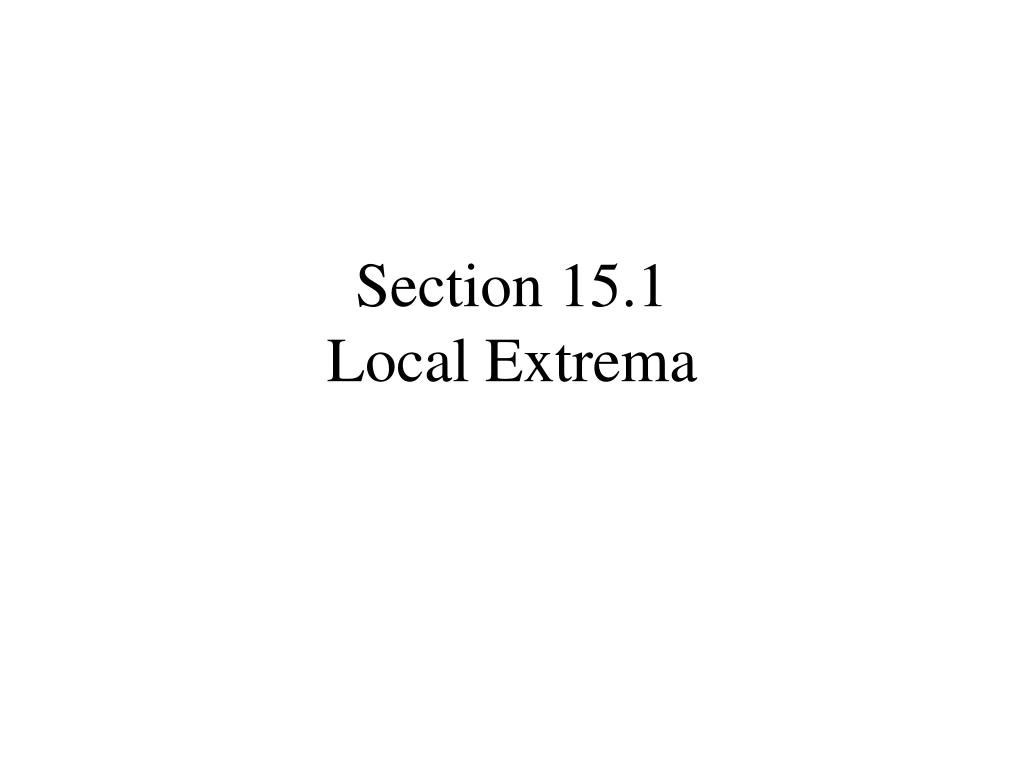

  1. Section 15.1Local Extrema

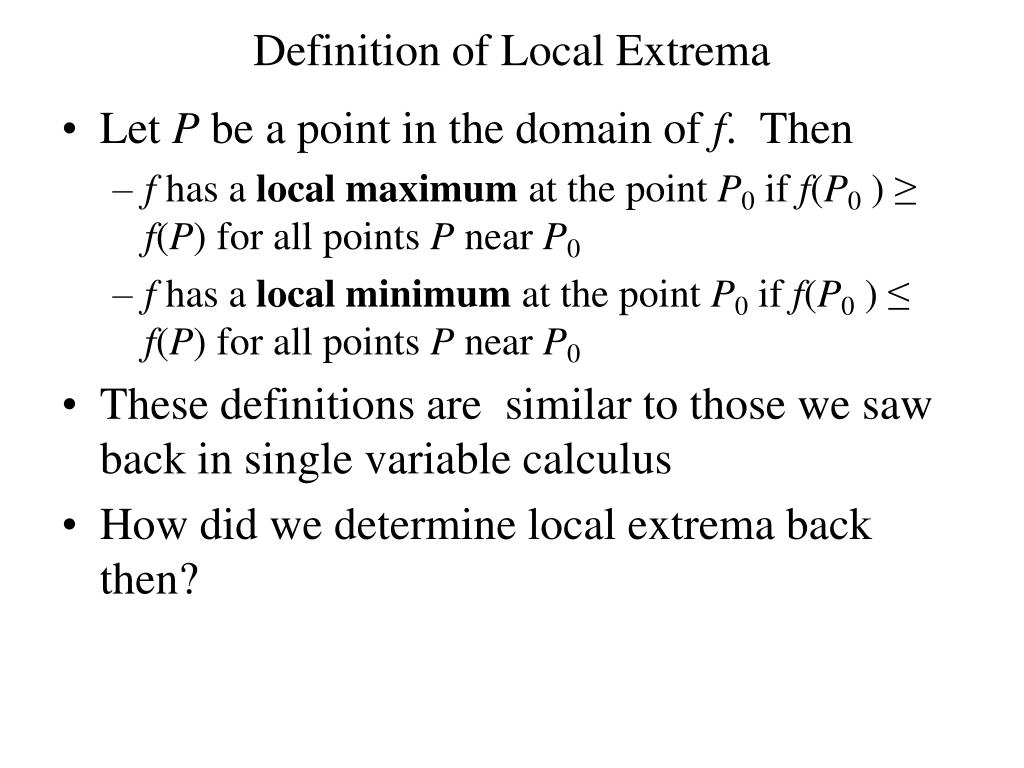

  2. Definition of Local Extrema • Let P be a point in the domain of f. Then • f has a local maximum at the point P0 if f(P0 ) ≥ f(P) for all points P near P0 • f has a local minimum at the point P0 if f(P0 ) ≤ f(P) for all points P near P0 • These definitions are similar to those we saw back in single variable calculus • How did we determine local extrema back then?

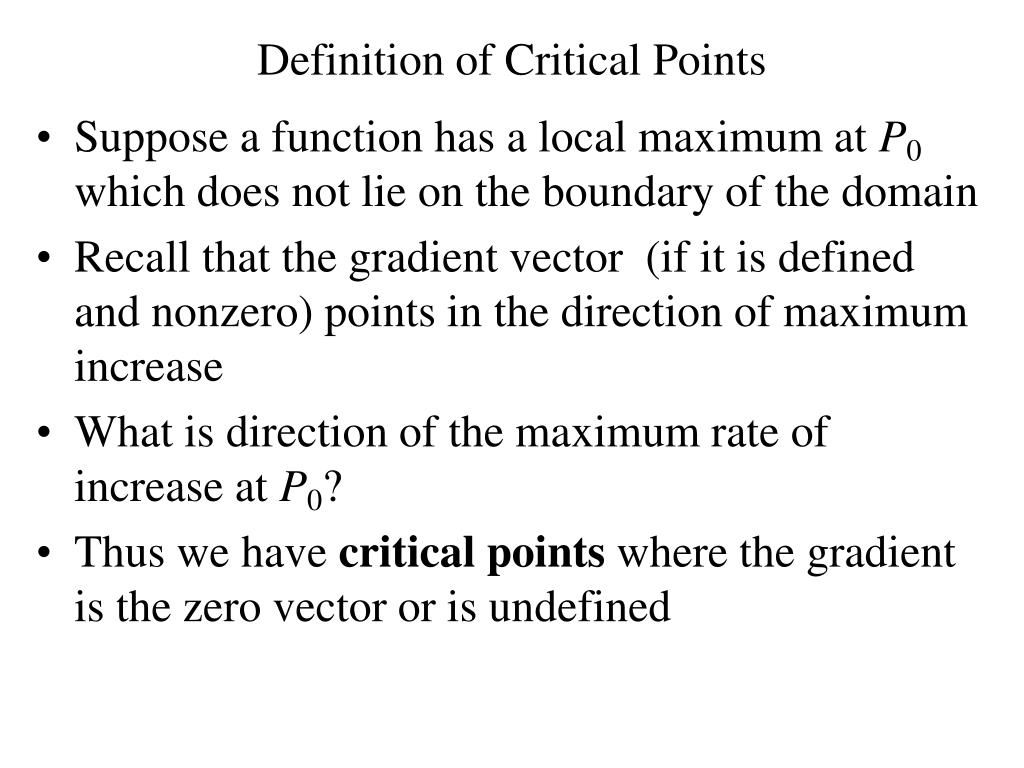

  3. Definition of Critical Points • Suppose a function has a local maximum at P0 which does not lie on the boundary of the domain • Recall that the gradient vector (if it is defined and nonzero) points in the direction of maximum increase • What is direction of the maximum rate of increase at P0? • Thus we have critical points where the gradient is the zero vector or is undefined

  4. Definition of Critical Points • P0 is a critical point of f if

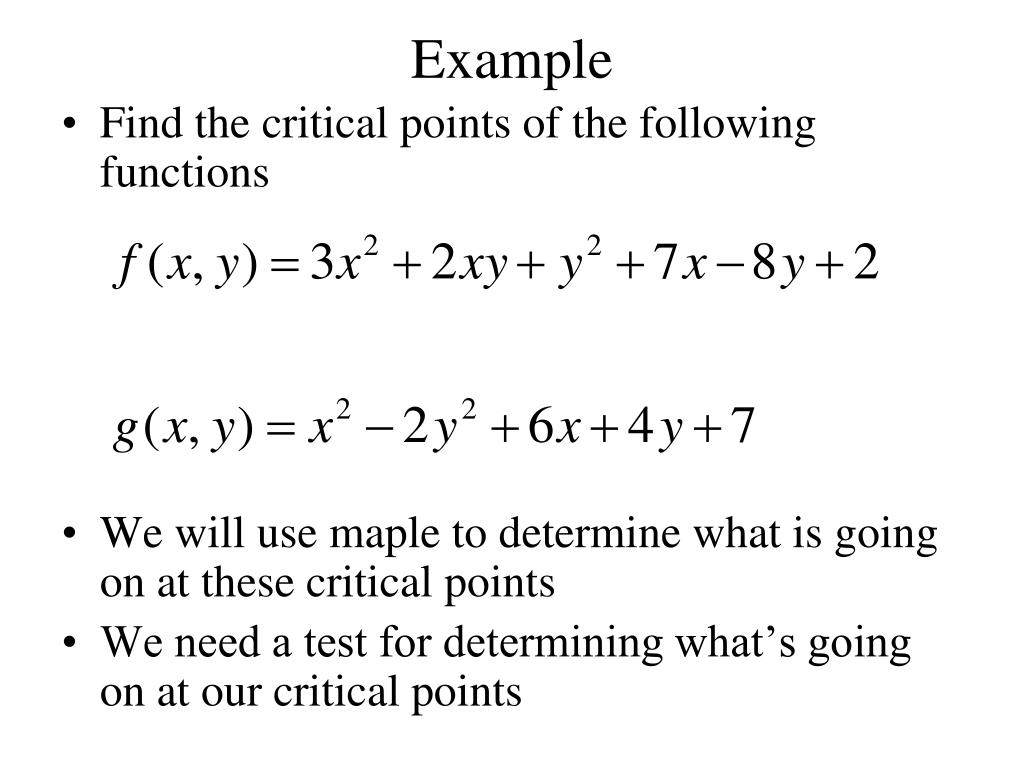

  5. Example • Find the critical points of the following functions • We will use maple to determine what is going on at these critical points • We need a test for determining what’s going on at our critical points

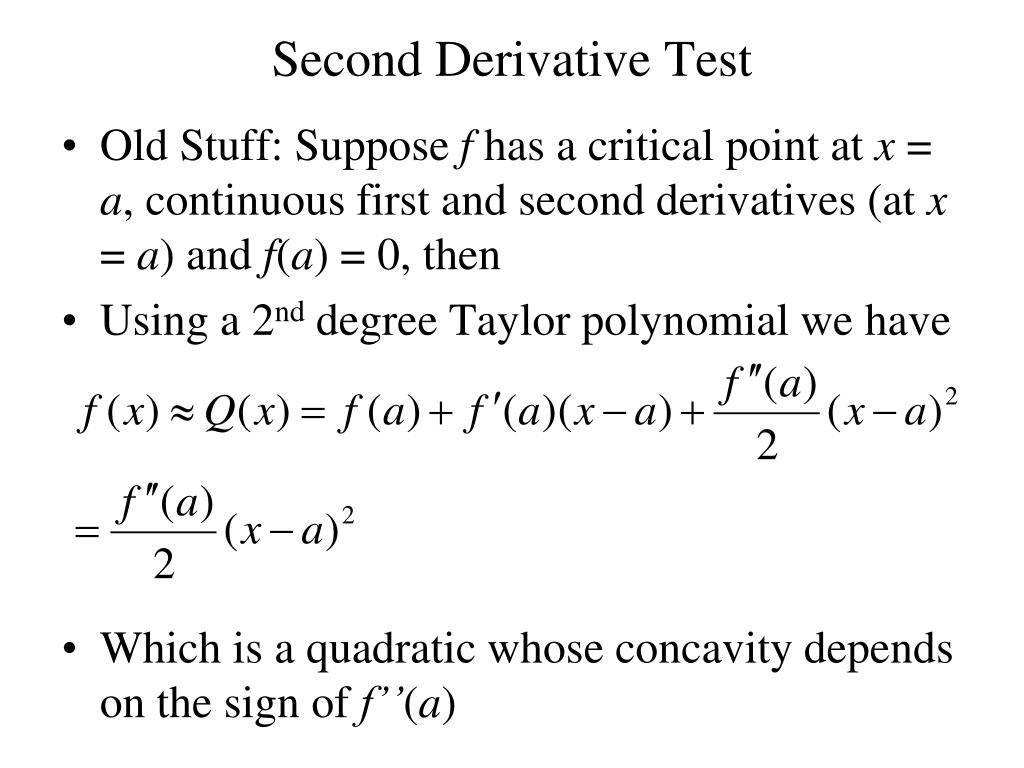

  6. Second Derivative Test • Old Stuff: Suppose f has a critical point at x = a, continuous first and second derivatives (at x = a) and f(a) = 0, then • Using a 2nd degree Taylor polynomial we have • Which is a quadratic whose concavity depends on the sign of f’’(a)

  7. Second Derivative Test for y = f(x) • Suppose f has a critical point at x = a, continuous first and second derivatives (at x = a) and f(a) = 0, then • f’’(a) > 0 → f(a) is a local minimum • f’’(a) < 0 → f(a) is a local maximum • f’’(a) = 0 → no conclusion can be drawn

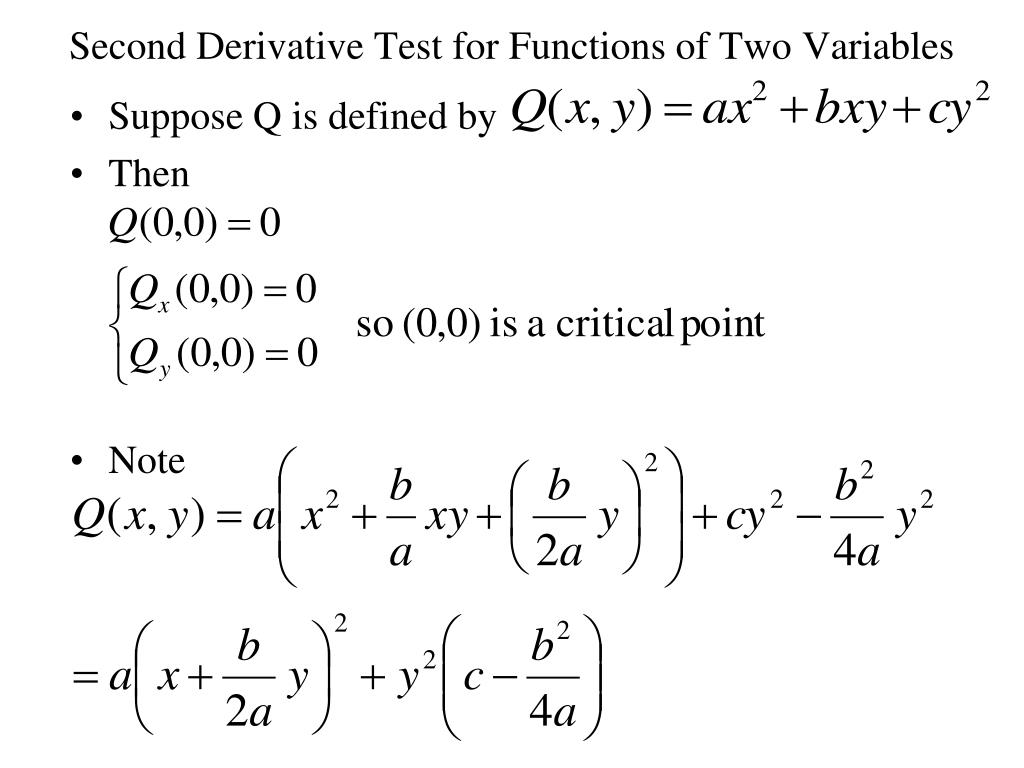

  8. Second Derivative Test for Functions of Two Variables • Suppose Q is defined by • Then • Note

  9. Based on this form, what do you think we need in order to have our graph be concave up in the x direction? y direction?

  10. Given • If a > 0 and 4ac-b2 > 0 → Q has a local min at (0,0) • If a < 0 and 4ac-b2 > 0 → Q has a local max at (0,0) • If a > 0 and 4ac-b2 < 0 → Q has a saddle point at (0,0) • If a < 0 and 4ac-b2 < 0 → Q has a saddle point at (0,0) • If 4ac-b2 = 0 no conclusion can be drawn

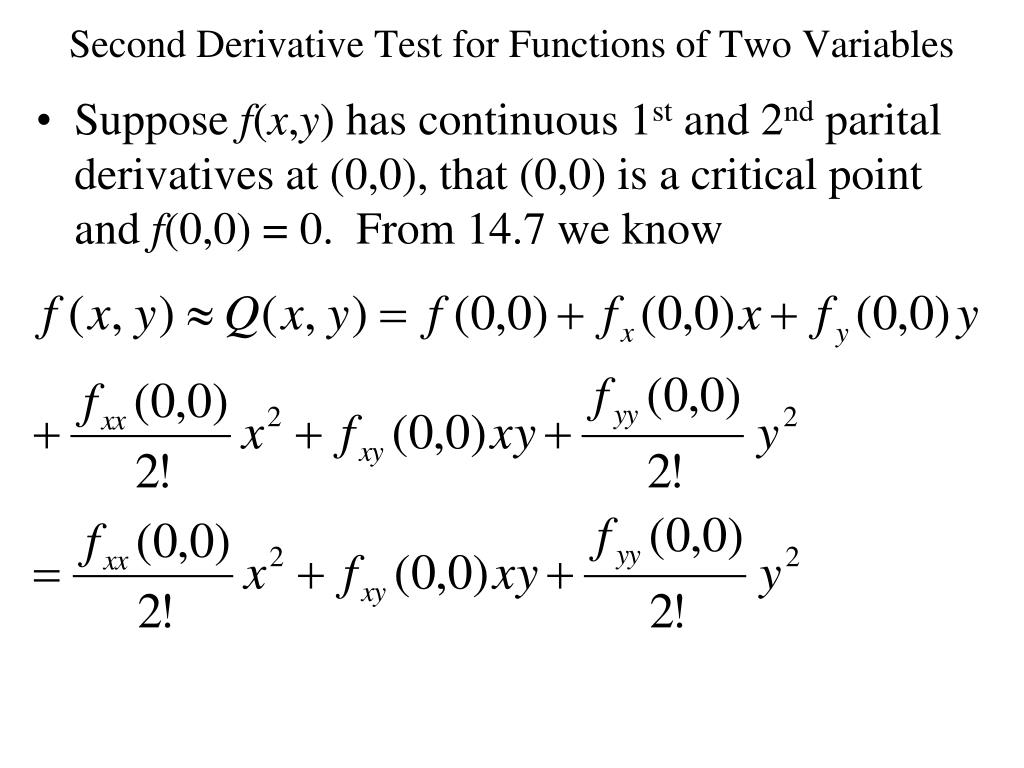

  11. Second Derivative Test for Functions of Two Variables • Suppose f(x,y) has continuous 1st and 2nd parital derivatives at (0,0), that (0,0) is a critical point and f(0,0) = 0. From 14.7 we know

  12. Given • we have • So • Thus we have our discriminant and we can restate our previous conclusions

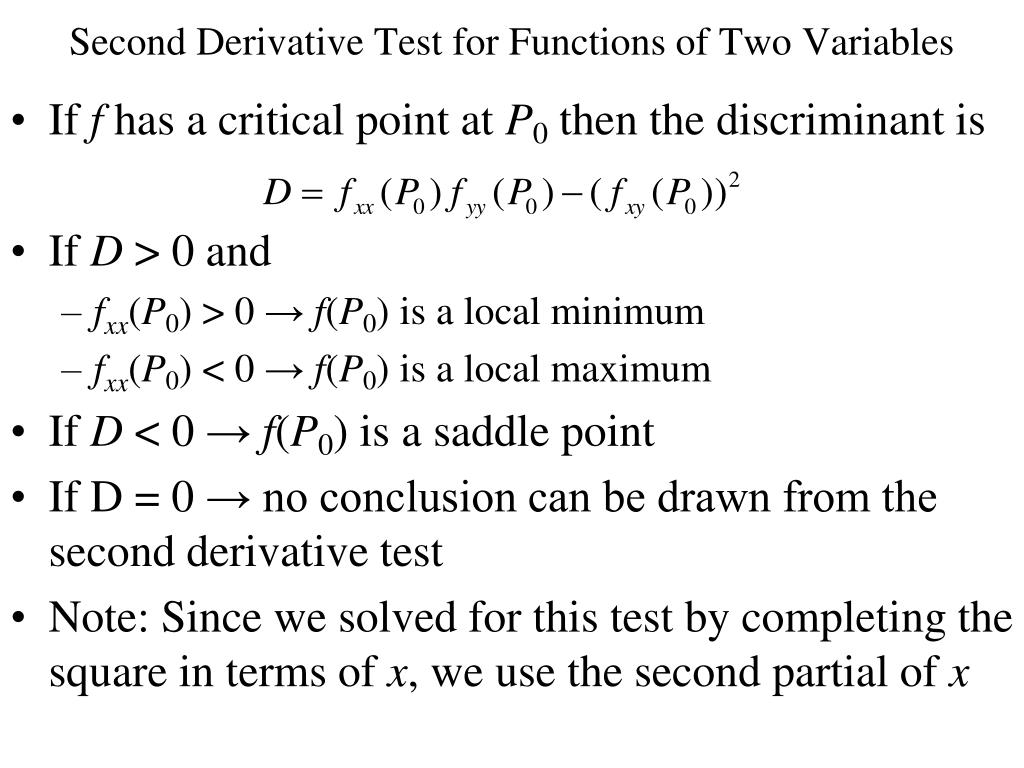

  13. Second Derivative Test for Functions of Two Variables • If f has a critical point at P0 then the discriminant is • If D > 0 and • fxx(P0) > 0 → f(P0) is a local minimum • fxx(P0) < 0 → f(P0) is a local maximum • If D < 0 →f(P0) is a saddle point • If D = 0 → no conclusion can be drawn from the second derivative test • Note: Since we solved for this test by completing the square in terms of x, we use the second partial of x

  14. Examples • Classify the critical points you found earlier
