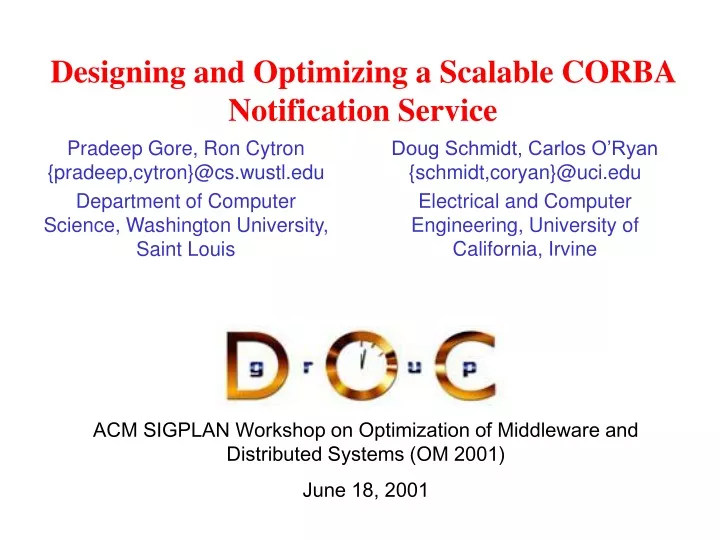

1. Designing and Optimizing a Scalable CORBA Notification Service Doug Schmidt, Carlos O’Ryan {schmidt,coryan}@uci.edu Electrical and Computer Engineering, University of California, Irvine Pradeep Gore, Ron Cytron {pradeep,cytron}@cs.wustl.edu Department of Computer Science, Washington University, Saint Louis

2. Overview • CORBA Notification Service • CORBA Event Service and drawbacks • Structured Events, Filtering and QoS properties. • Design Challenges • Handling multiple event, supplier and consumer types uniformly. • Efficiently propagating different event types to differentconsumers. • Minimizing interference between channel participants. • Fairness in Event Processing • Optimizing the performance of Any's. • Footprint reduction. • Customizing for particular deployment environments. • Performance Measurements • Event Channel Scalability (per consumer throughput). • Effect of different thread configurations on consumerthroughput. • Filtering overhead. • Concluding Remarks

3. CORBA invocation • Standard "CORBA" method invocations result in synchronous execution of an operation provided by an object • Both requestor (client) and provider (server) must be present • Client blocks until operation returns • Only supports uni-cast communication

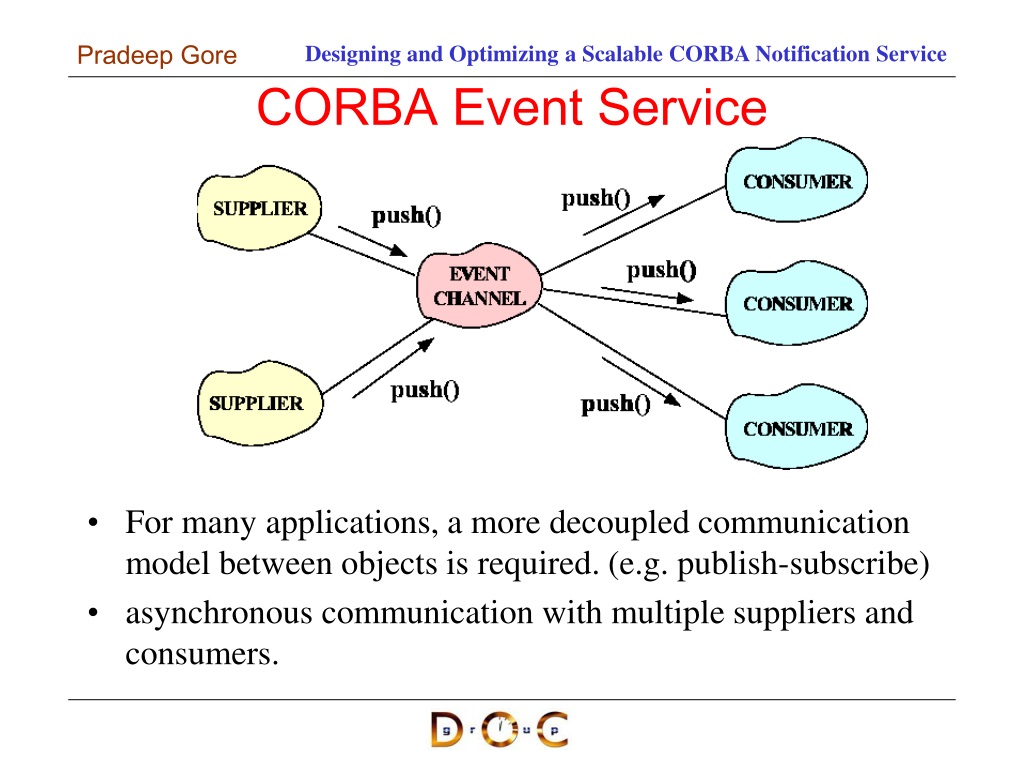

4. CORBA Event Service • For many applications, a more decoupled communication model between objects is required. (e.g. publish-subscribe) • asynchronous communication with multiple suppliers and consumers.

5. Common Event Service Collaborations

6. Benefits of the OMG Event Service • Anonymous consumers/suppliers • Publish and subscribe model • Group communication • Supplier(s) to consumer(s) • Decoupled communication • Asynchronous delivery • Abstraction for distribution • Can help draw the lines of distribution in thesystem • Abstraction for concurrency • Can facilitate concurrent event handling

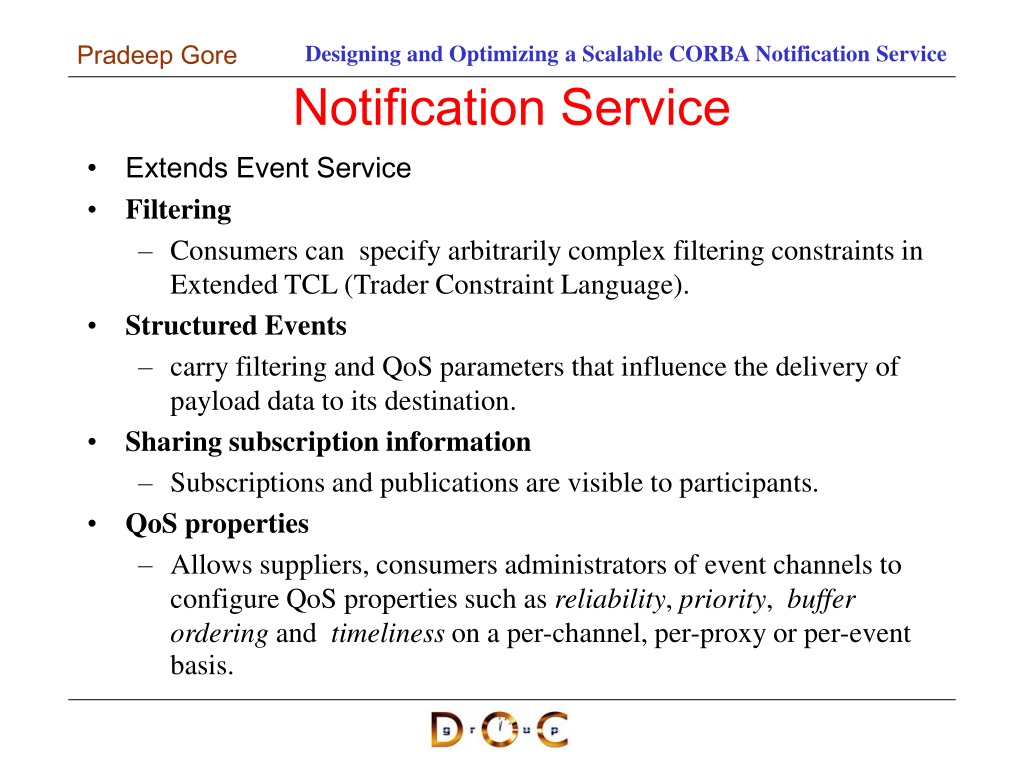

7. Notification Service • Extends Event Service • Filtering • Consumers can specify arbitrarily complex filtering constraints in Extended TCL (Trader Constraint Language). • Structured Events • carry filtering and QoS parameters that influence the delivery of payload data to its destination. • Sharing subscription information • Subscriptions and publications are visible to participants. • QoS properties • Allows suppliers, consumers administrators of event channels to configure QoS properties such as reliability, priority, buffer ordering and timeliness on a per-channel, per-proxy or per-event basis.

8. Component Structure of the CORBA Notification Service

9. Structured Events • Defines a standard data structure into which a wide variety of event messages can be stored. • Fixed event header contains type information - • Domain (e.g.Telecom, Health Care, Financial) • Type ( e.g. Communication Alarm, VitalSigns, StockQuote) • Event Name (e.g. heartrate, ECG reading) • Variable header has per event QoS properties as (name, value) pairs. • Event Body has filterable body fields that are used by filters,and the payload data.

10. Example use case of Notification Service

11. Design Challenges

12. Challenge 1: Handling Multiple Event, Supplier and Consumer types uniformly • Context • Events can have different representations - e.g. Any, StructuredSequence or custom • Corresponding Consumers and Suppliers can have different representations e.g. StructuredConsumer • Problem • Event Channel must propogate events in one form to consumers that require it in another form. • Do not want to convert to a cannonical format or make many copies. • For similar IDL interfaces, do not want to duplicate code in implementation.

13. Solution1 : Adapter Pattern • Adapter converts the interface of a class to another interface that a client expects. • Adapter object implements a Target interface and delegates operations to the Adaptee. • Notify_Event = target interface • Any_Event, Structured_Event = Adapters • CORBA::Any, CosNotification::StructuredEvent = Adaptee

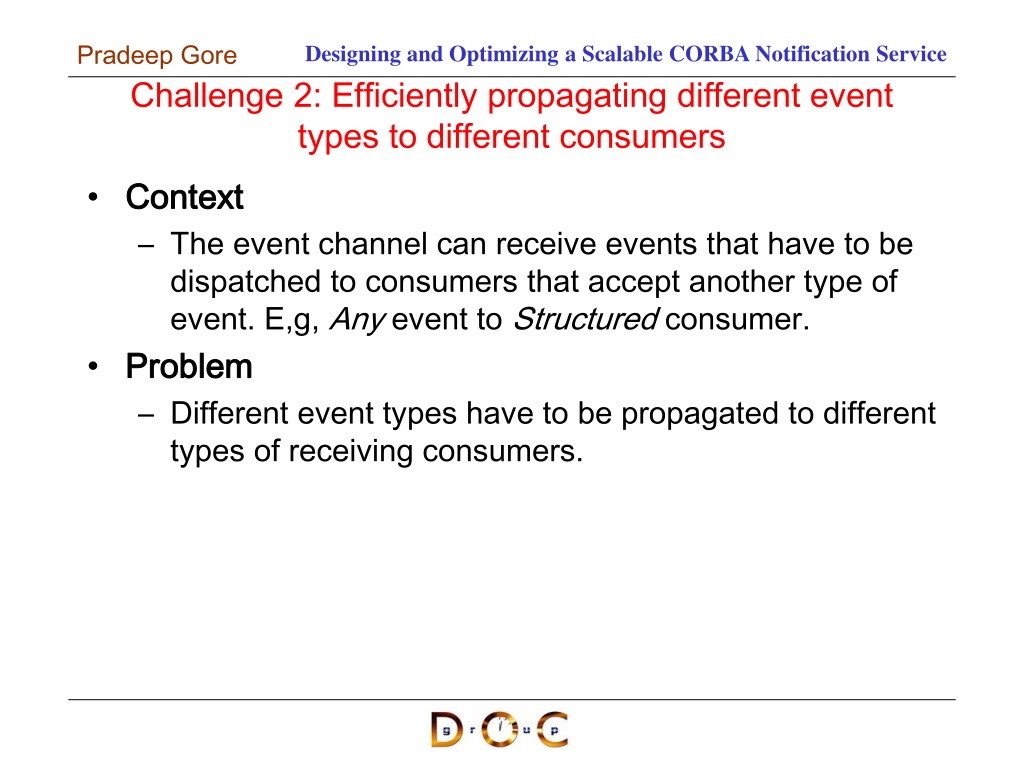

14. Challenge 2: Efficiently propagating different event types to different consumers • Context • The event channel can receive events that have to be dispatched to consumers that accept another type of event. E,g, Any event to Structured consumer. • Problem • Different event types have to be propagated to different types of receiving consumers.

15. Solution 2: Visitor pattern • Visitor allows to represent an operation to be performed on the elements of an object structure • “Double Dispatching” • Channel invokes dispatch_event method that in turn invokes push_event on the event.

16. Challenge 3: minimizing “interference” between channel participants • Context • Event Channel must receive requests, apply filtering and dispatch events to consumers. • Some suppliers might not want to be blocked in a CORBA 2-way while event channel delivers the event to consumers. • Filter evaluation might be a lengthy operation (e.g. A remote filter that needs to consult a database) • A consumer might be arbitrarily slow hence causing the event channel to block in the dispatching 2-way • Problem • A reasonable implementation should strive to minimize this “interference” between channel participants.

17. Solution: 3, Active Object pattern • Active object pattern decouples method execution from method invocation. • Events and operations required on them are encapsulated as command objects. • An enqueuing thread places events in the queue as per the buffering policy. • Worker thread(s) dequeue each event and applies the operation.

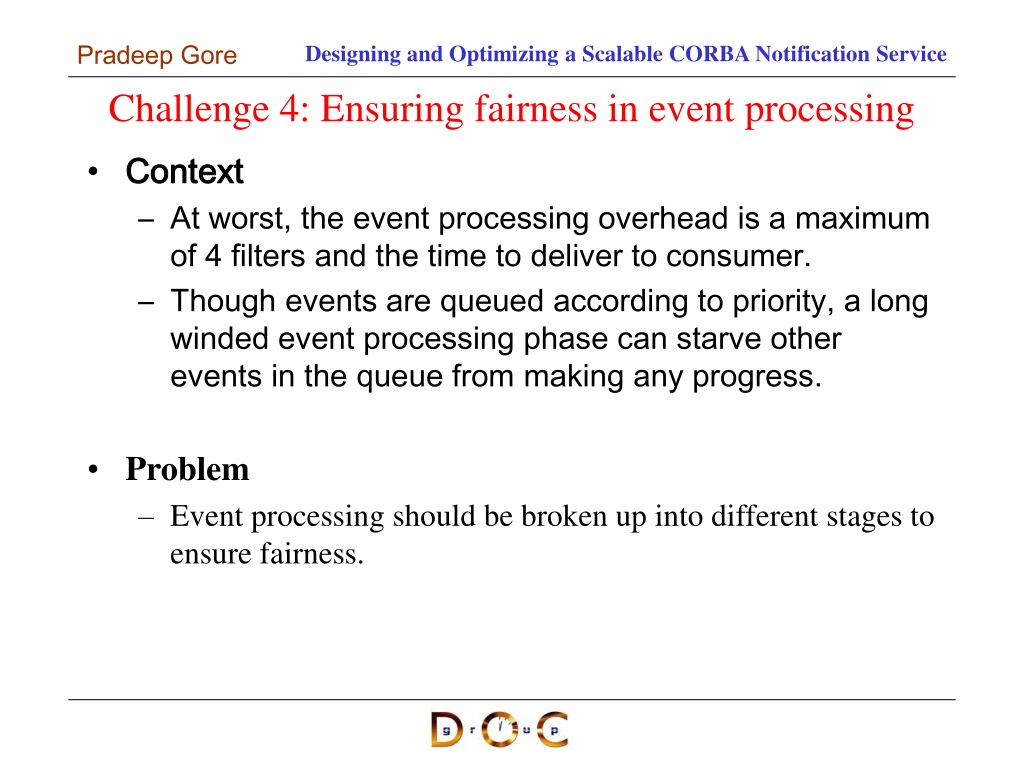

18. Challenge 4: Ensuring fairness in event processing • Context • At worst, the event processing overhead is a maximum of 4 filters and the time to deliver to consumer. • Though events are queued according to priority, a long winded event processing phase can starve other events in the queue from making any progress. • Problem • Event processing should be broken up into different stages to ensure fairness.

19. Solution 4: Command Object Pattern • A command object encapsulates a request as an object, thereby allowing parameterization of different requests. • Filter processing, subscription lookup and event dispatching are encapsulated as command objects.

20. Challenge 5: Optimizing the performance of Anys • Context • A CORBA compliant Notification Service must be able to process events containing Anys. • An Any is an expensive data type that can have many levels of nesting. E.g. an Any that contains a sequence of Anys and so on. • The ORB demarshalling engine makes copies of the entire data buffer used to represent the Any. • Problem • Any intensive CORBA services such as Notification can benefit from reduced data copies of this expensive type.

21. Solution 5: Reference Counting • A reference counted object can be shared by multiple objects and destroyed when it is not in use. • Client applications rather than the ORB can be make to release a ref. counted Any. • Very well suited for Notification as the service itself does not modify the event. • As the event can be logically multicast to multiple recipients, the ownership can be shared via a reference count.

22. Other design challenges • Footprint Reduction • A use case might want a subset of the Notification Service. • The builder pattern can be used to make the service “composable” by users. • Customizing event channels for particular deployment environments. • A developer might want to extend the service implementation. • Need a way to specify options and properties for a configuration • The Component Configurator pattern decouples the behavior of component services from the time the service is configured into an application.

23. Performance measurements • Experimental Testbed • QuadCPU PC with 400MHz pentiumII processors • Linux 2.2.18, GCC 2.95.4 • TAO 1.1.15, all optimizations enabled.

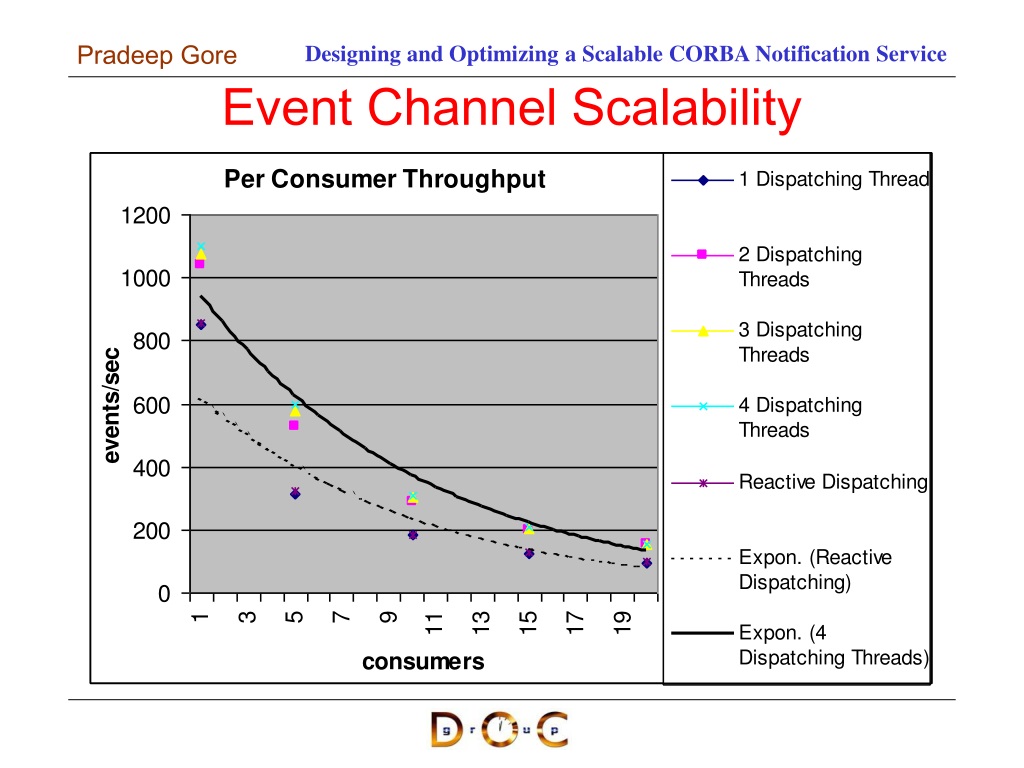

24. Event Channel Scalability

25. Effect of Thread configuration • 2 consumers, 1 supplier • “slow” consumer has a 1 sec. delay in push. • Case 1: reactive • Case 2: 2 threads, 1 shared queue. • Case 3: Thread an queue per proxy supplier.

26. Filtering overhead • Filter attached to Consumer Admin, 2 dispatching threads. • Filtering drops average throughput of 15% and picks up slightly by 2% with 2 more dispatching threads.

27. Concluding remarks • Notification Service allows decoupled, anonymous communication between consumers and suppliers. • Filtering and QoS properties • Suitable Design patterns and reusable framework components were utilized to implement TAO’s Notification Service. • Critical path of event propagation was optimized. • Configurable and extensible implementation.
