  1. Search Query Log Analysis Kristina Lerman

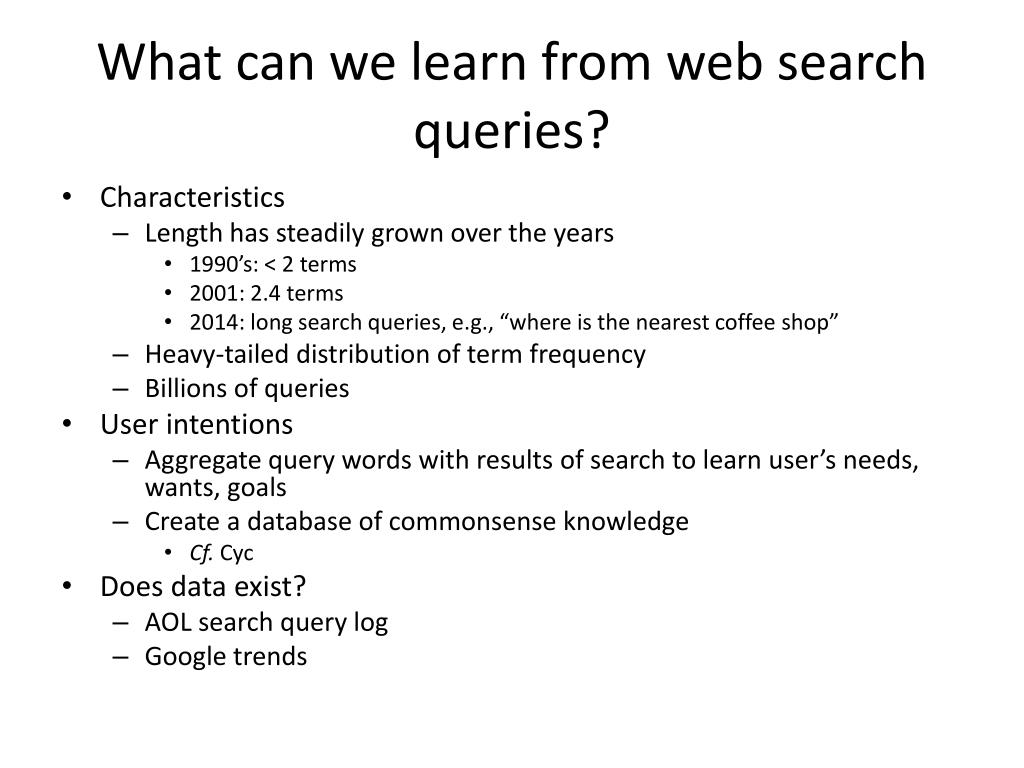

  2. What can we learn from web search queries? • Characteristics • Length has steadily grown over the years • 1990’s: < 2 terms • 2001: 2.4 terms • 2014: long search queries, e.g., “where is the nearest coffee shop” • Heavy-tailed distribution of term frequency • Billions of queries • User intentions • Aggregate query words with results of search to learn user’s needs, wants, goals • Create a database of commonsense knowledge • Cf. Cyc • Does data exist? • AOL search query log • Google trends

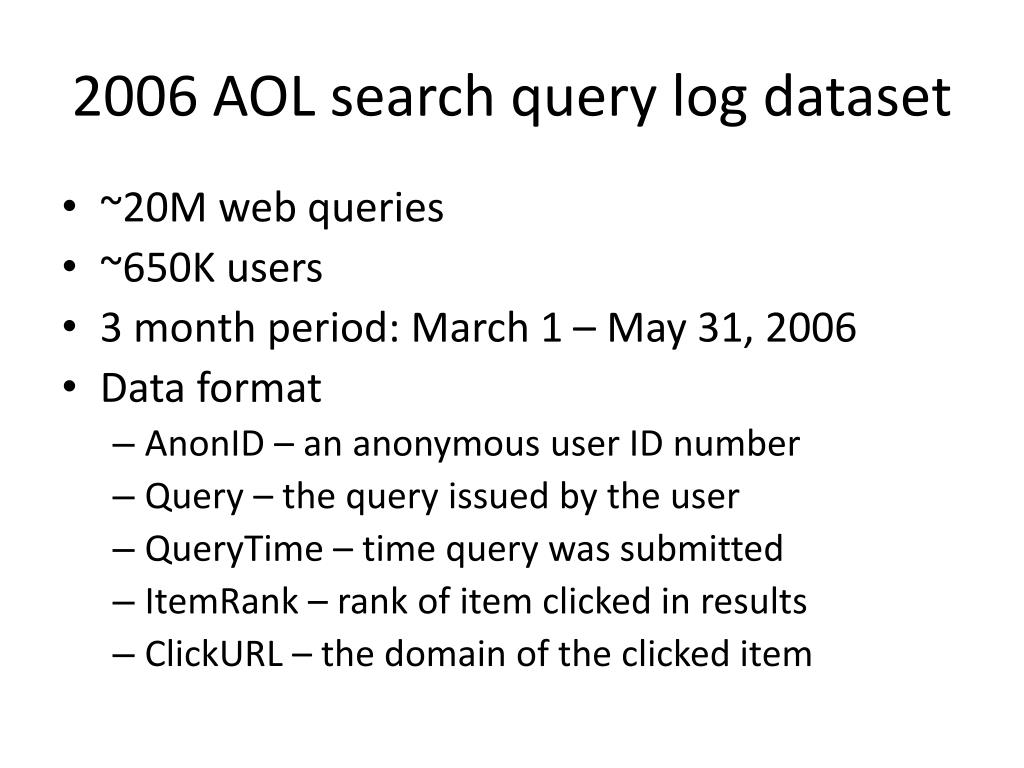

  3. 2006 AOL search query log dataset • ~20M web queries • ~650K users • 3 month period: March 1 – May 31, 2006 • Data format • AnonID – an anonymous user ID number • Query – the query issued by the user • QueryTime – time query was submitted • ItemRank – rank of item clicked in results • ClickURL – the domain of the clicked item

  4. Timeline • 8/4/06: Announcement to SIG-IRList from AOL • 8/6/06: TechCrunch slams AOL over privacy • 8/7/06: Dataset removed • 8/9/06: NYTimes identifies user 4417749 • Thelma Arnold, 62, from Lilbum, Georgia • 8/21/06: AOL CTO Maureen Govern resigns • AOL researcher and supervisor are fired

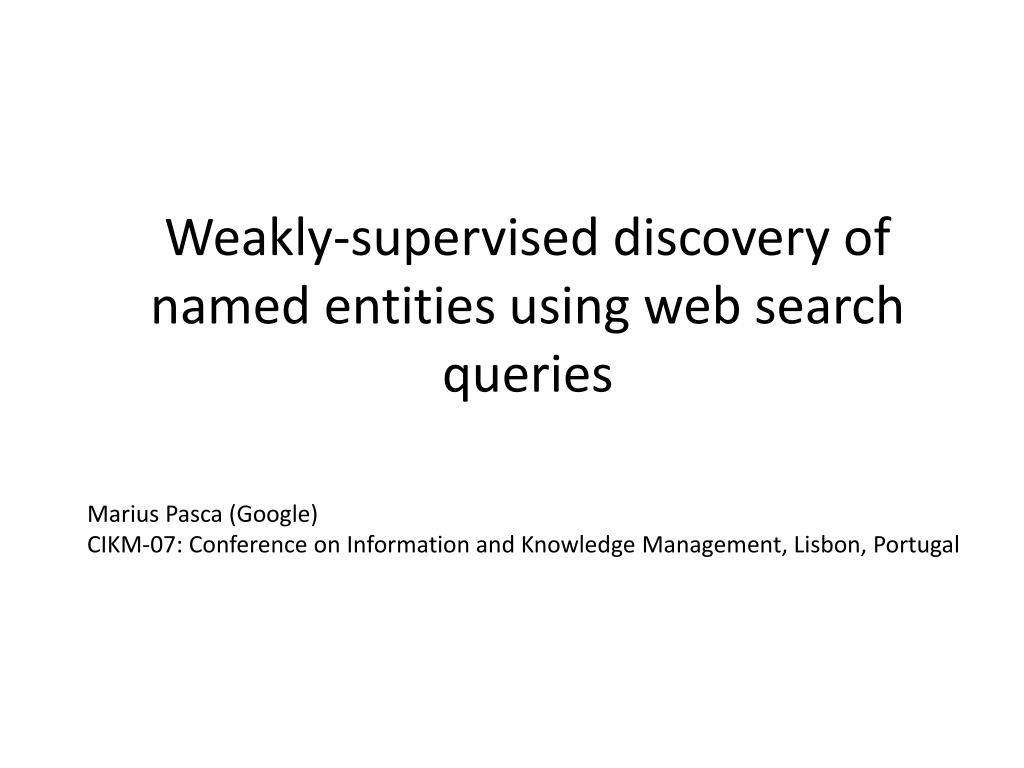

  5. Weakly-supervised discovery of named entities using web search queries Marius Pasca (Google) CIKM-07: Conference on Information and Knowledge Management, Lisbon, Portugal

  6. Weakly Supervised Discovery of Named Entities using Web Search (2007) • Goal: Automatically extract knowledge (entities) from texts created by many people • Discover new instances of classes • Red Alert is videogame • Lilbum is a town • Lorazepam is a drug • For what purpose? • Cataloging human knowledge • Understanding searching users • #399392 in Lilbum takes Lorazepam, plays Red Alert

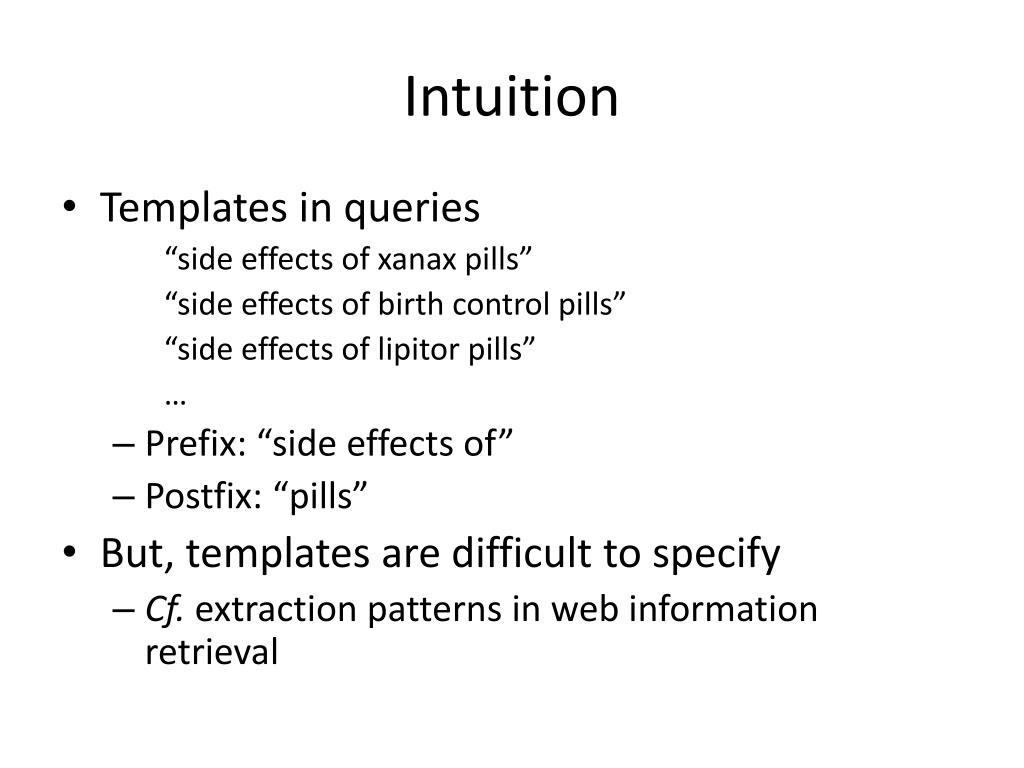

  7. Intuition • Templates in queries “side effects of xanax pills” “side effects of birth control pills” “side effects of lipitor pills” … • Prefix: “side effects of” • Postfix: “pills” • But, templates are difficult to specify • Cf. extraction patterns in web information retrieval

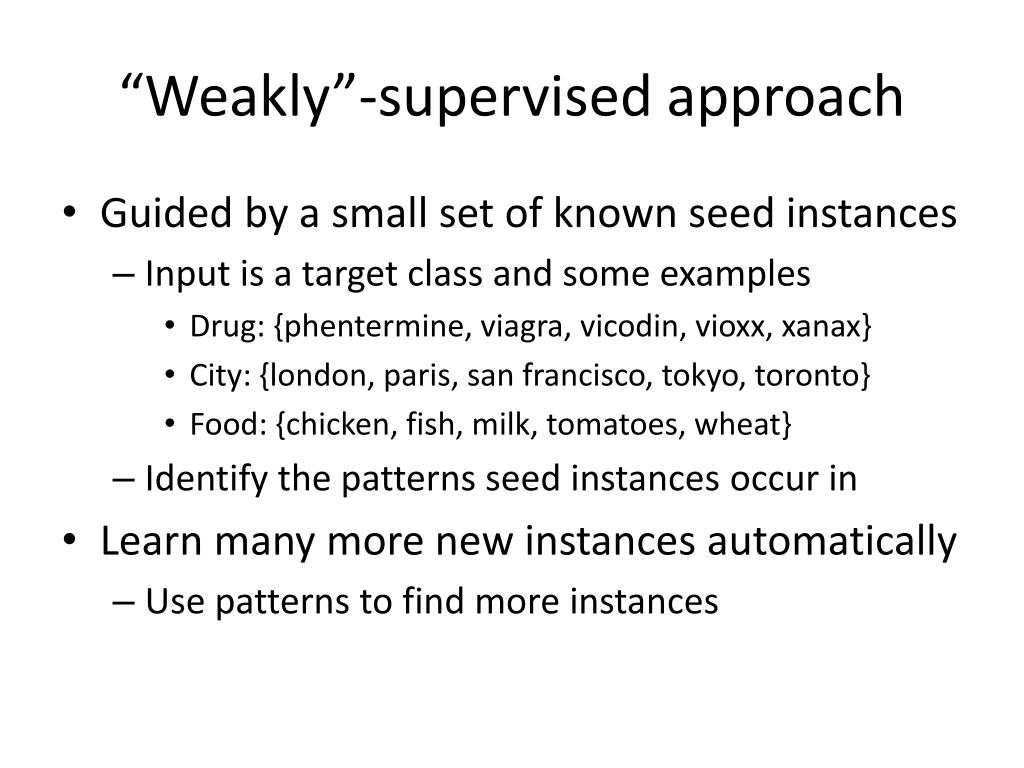

  8. “Weakly”-supervised approach • Guided by a small set of known seed instances • Input is a target class and some examples • Drug: {phentermine, viagra, vicodin, vioxx, xanax} • City: {london, paris, san francisco, tokyo, toronto} • Food: {chicken, fish, milk, tomatoes, wheat} • Identify the patterns seed instances occur in • Learn many more new instances automatically • Use patterns to find more instances

  9. Step 1: Identify query templates • Identify all queries that contain each known class instance • vioxx • Extract left and right context • “long term vioxx use” • Prefix: “long term” • Postfix: “use” • Infix: “vioxx”

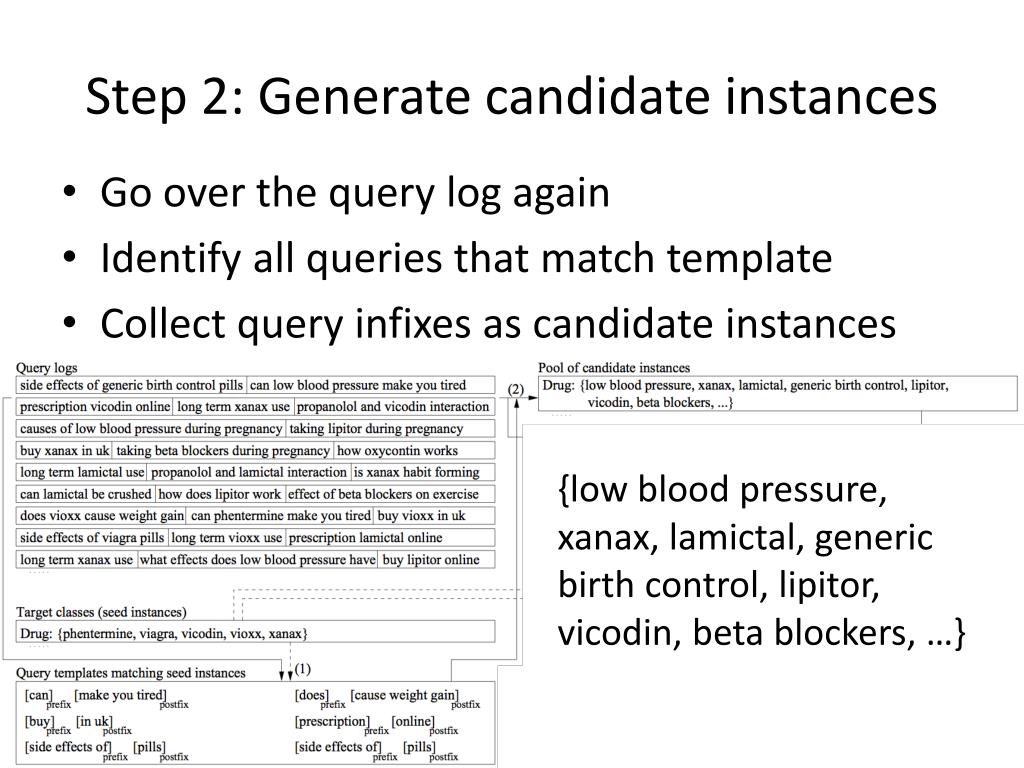

  10. Step 2: Generate candidate instances • Go over the query log again • Identify all queries that match template • Collect query infixes as candidate instances {low blood pressure, xanax, lamictal, generic birth control, lipitor, vicodin, beta blockers, …}

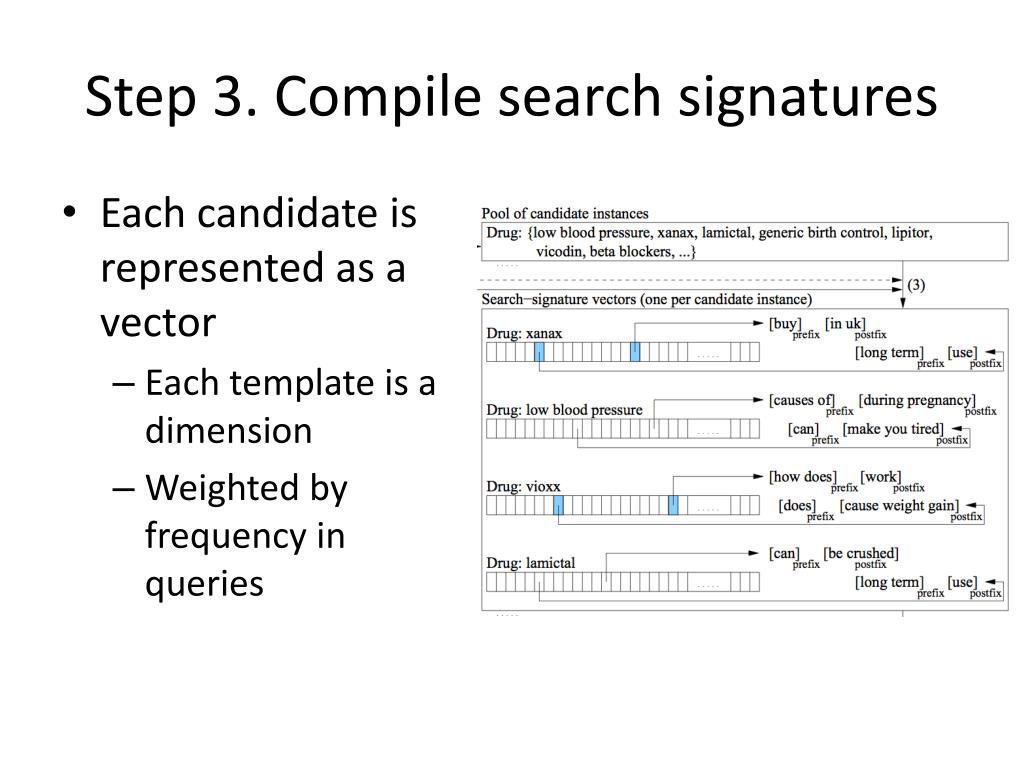

  11. Step 3. Compile search signatures • Each candidate is represented as a vector • Each template is a dimension • Weighted by frequency in queries

  12. Step 4. Reference signatures • Vectors for example class instances are combined • Prototype of search signature for the class

  13. Example

  14. Step 5. Compute signature similarity • Vector similarity between reference signature and candidate signature • Jensen-Shannon similarity function • Output is rank-ordered list Drug: {viagra, phentermine, ambien, adderall, vicodin, hydrocodone, xanax, vioxx, oxycontin, cialis, valium, lexapro, ritalin, zoloft, percocet, …}

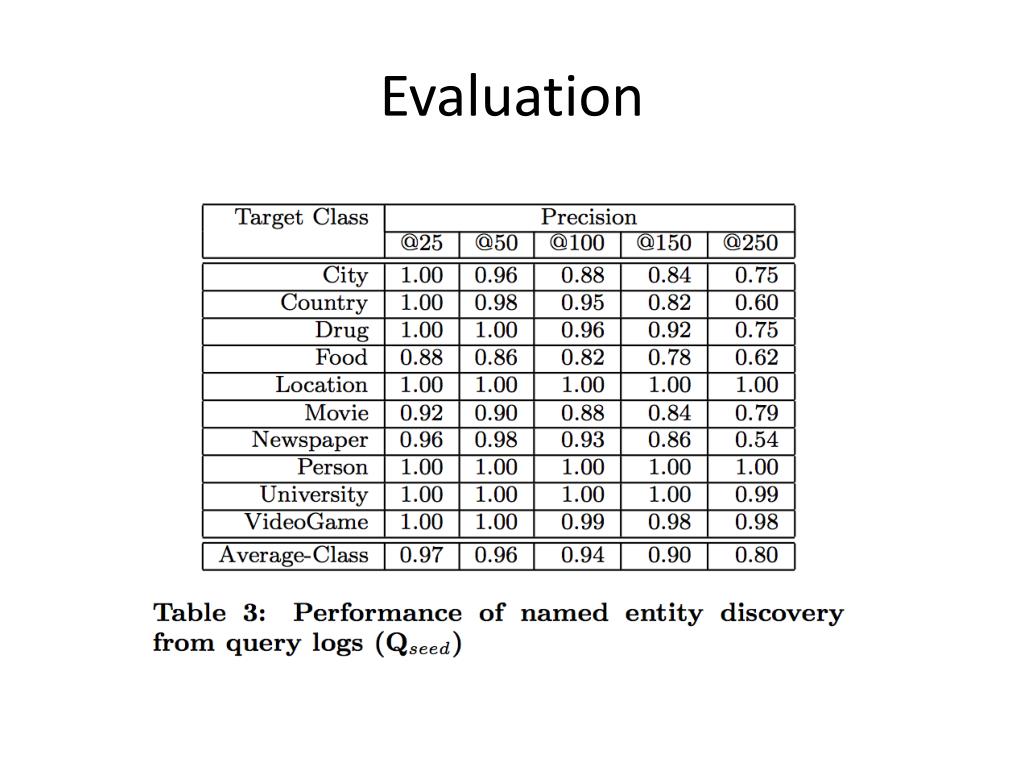

  15. Evaluation

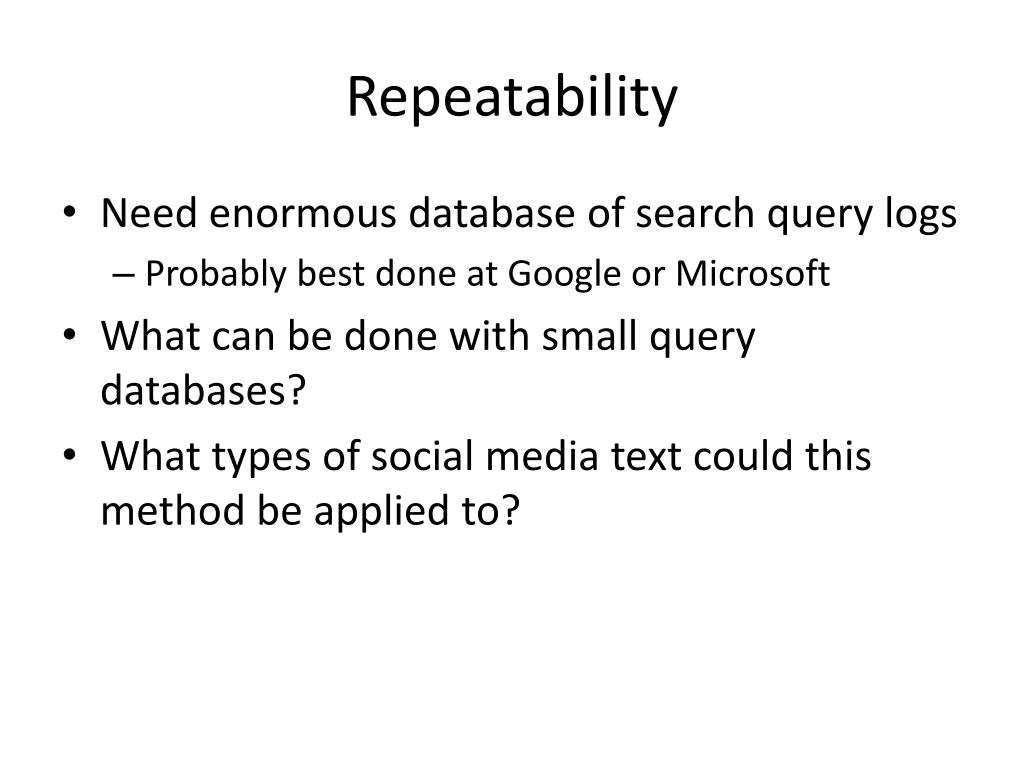

  16. Repeatability • Need enormous database of search query logs • Probably best done at Google or Microsoft • What can be done with small query databases? • What types of social media text could this method be applied to?

  17. Classifying the user intent ofweb queries using k-meansclusteringAshishKathuria, Bernard J. Jansen and Carolyn Hafernik, Amanda Spink

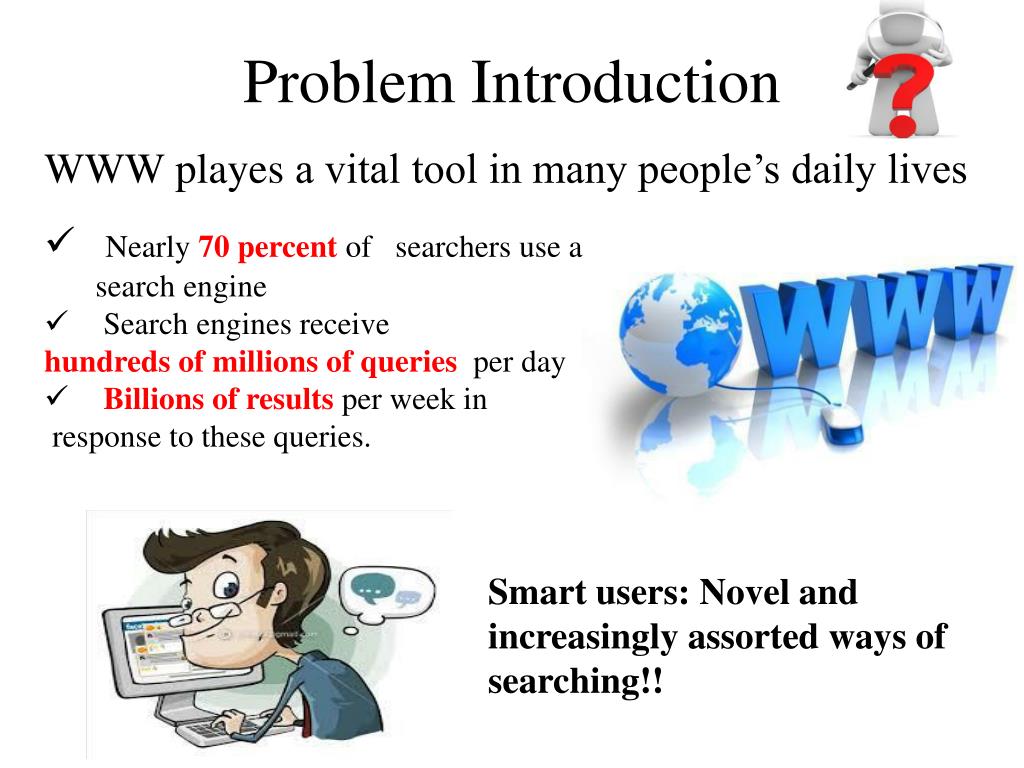

  18. Problem Introduction WWW playes a vital tool in many people’s daily lives • Nearly 70 percent of searchers use a search engine • Search engines receive • hundreds of millions of queriesper day • Billions of results per week in • response to these queries. Smart users: Novel and increasingly assorted ways of searching!!

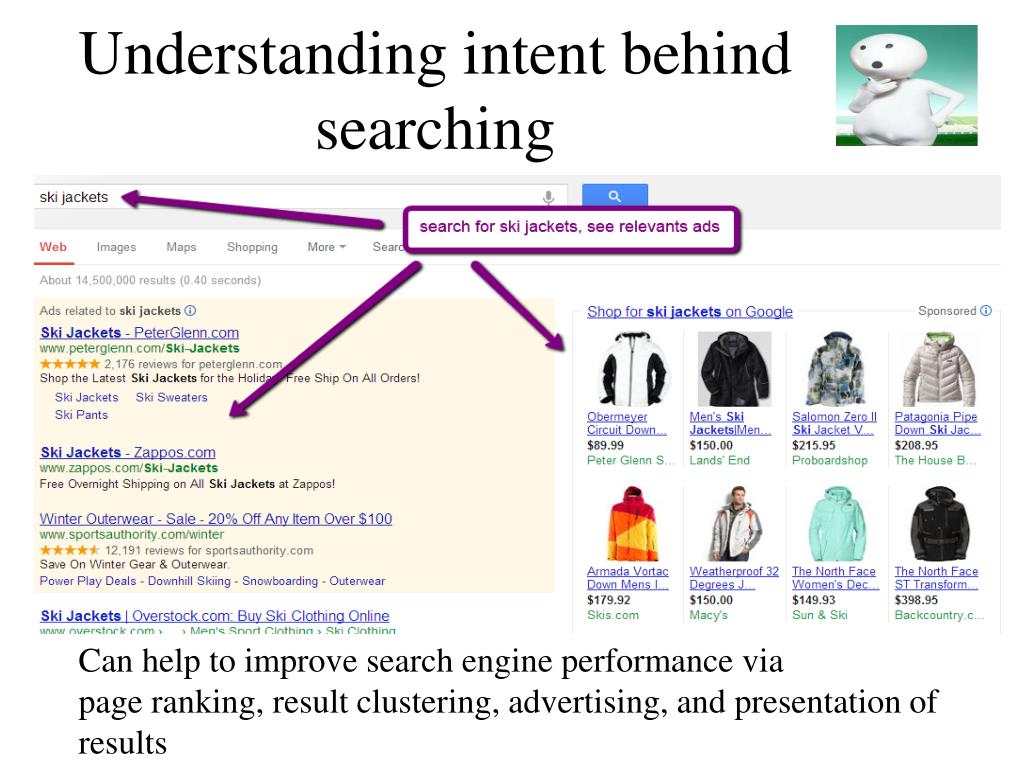

  19. Understanding intent behind searching Can help to improve search engine performance via page ranking, result clustering, advertising, and presentation of results

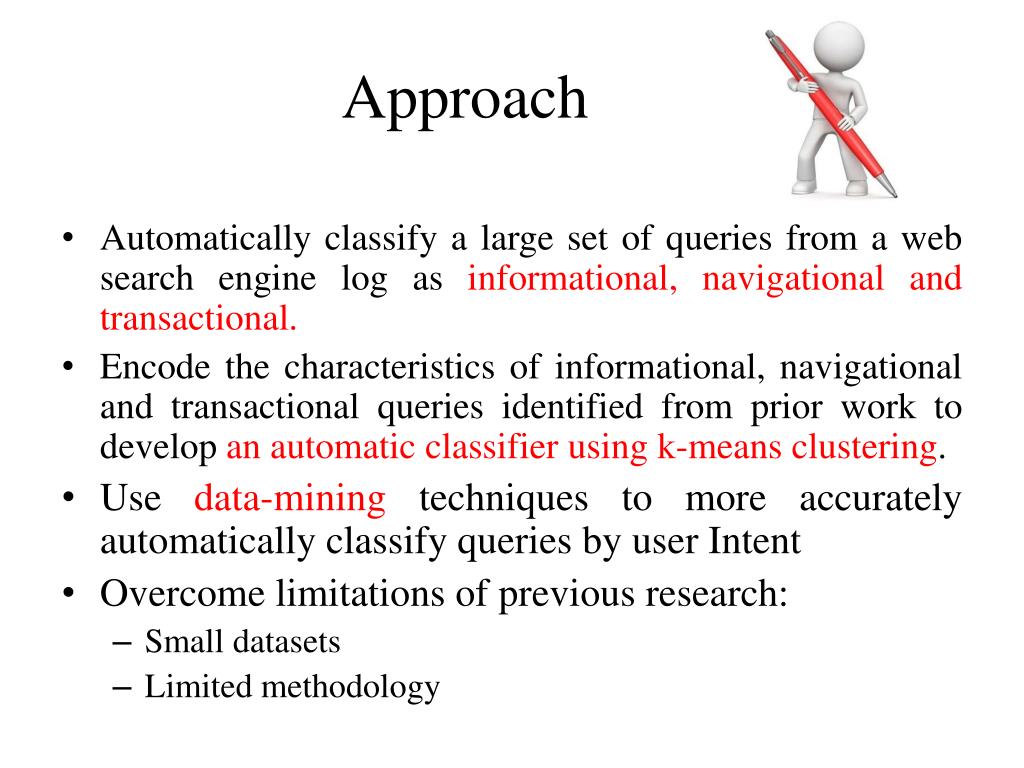

  20. Approach • Automatically classify a large set of queries from a web search engine log as informational, navigational and transactional. • Encode the characteristics of informational, navigational and transactional queries identified from prior work to develop an automatic classifier using k-means clustering. • Use data-miningtechniques to more accurately automatically classify queries by user Intent • Overcome limitations of previous research: • Small datasets • Limited methodology

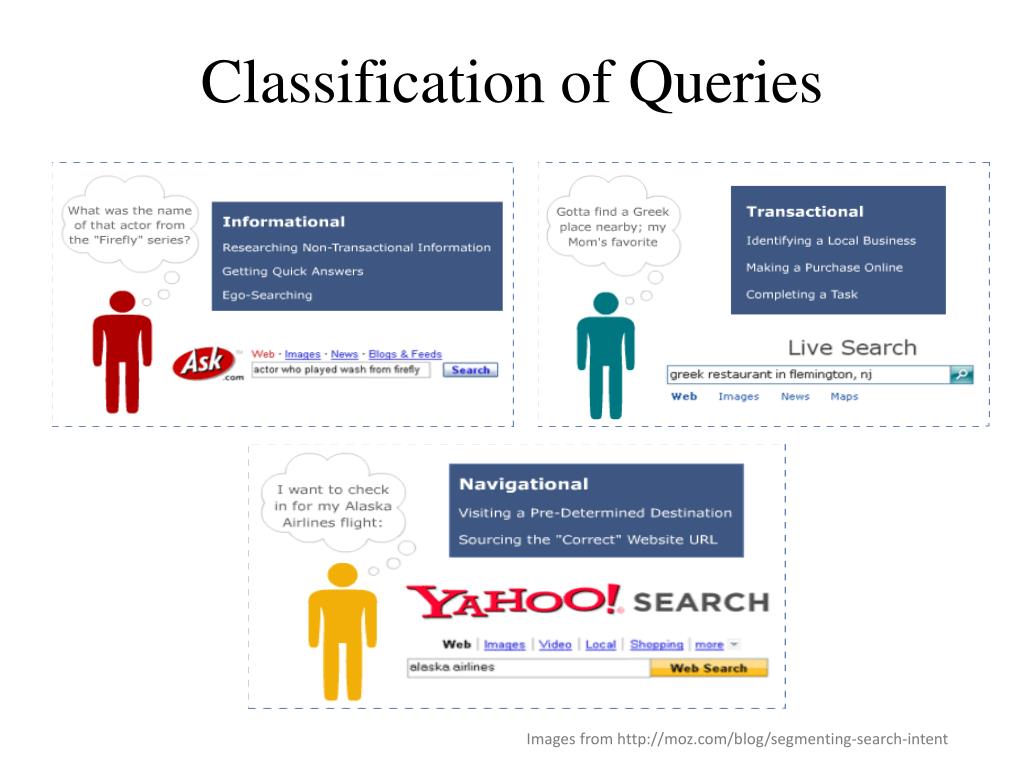

  21. Classification of Queries Images from

  22. Research methodology • Dataset: Transaction log from Dogpile. Each record has fields like: User identification, cookie, Time of day, Query terms, source Step 1: Creating sessions and removing duplicates • The fields of Time of day, User identification, Cookie, and Querywere used to locate the initial query of a session and then recreate the series of actions in the session. • Collapsed the search using user identification, cookie, and query to eliminate duplicates of result and null queries

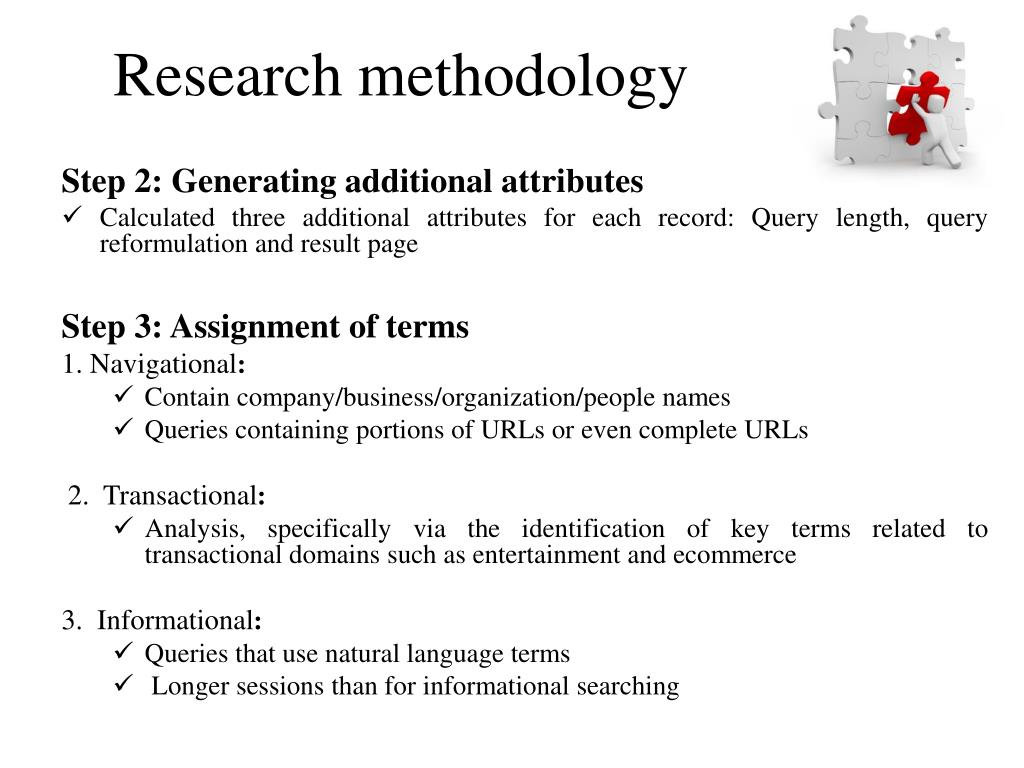

  23. Research methodology Step 2: Generating additional attributes • Calculated three additional attributes for each record: Query length, query reformulation and result page Step 3: Assignment of terms 1. Navigational: • Contain company/business/organization/people names • Queries containing portions of URLs or even complete URLs 2. Transactional: • Analysis, specifically via the identification of key terms related to transactional domains such as entertainment and ecommerce 3. Informational: • Queries that use natural language terms • Longer sessions than for informational searching

  24. Research methodology Step 4 : Textual data to numerical data Step 5: Converting string to vector

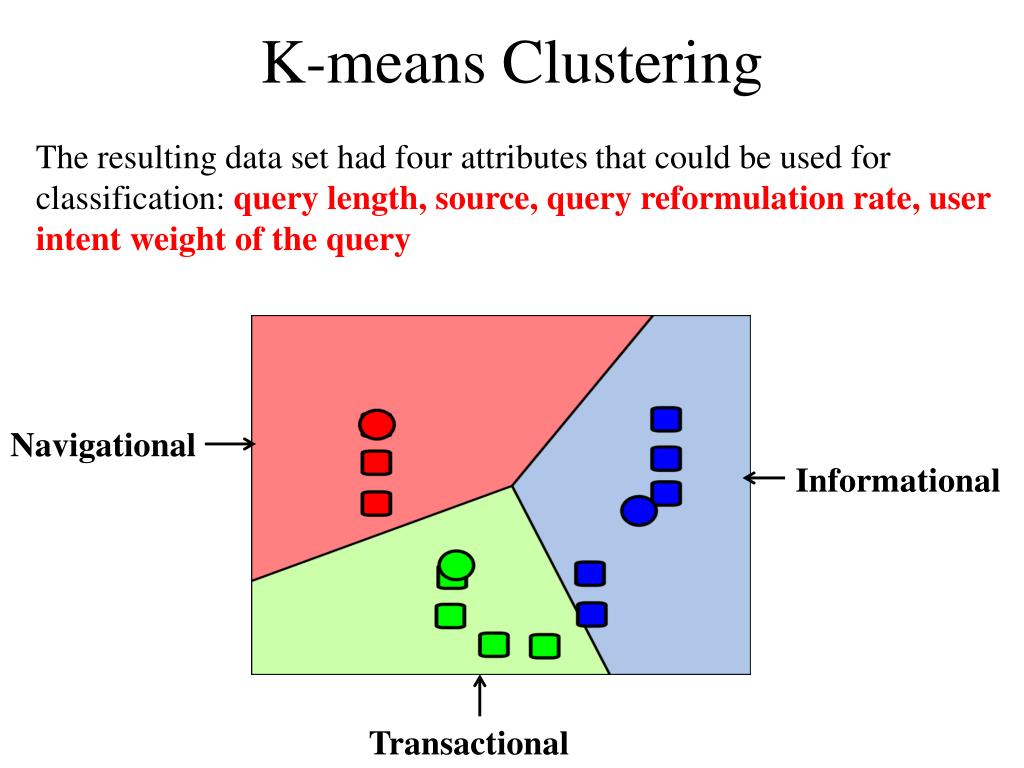

  25. K-means Clustering The resulting data set had four attributes that could be used for classification: query length, source, query reformulation rate, user intent weight of the query Navigational Informational Transactional

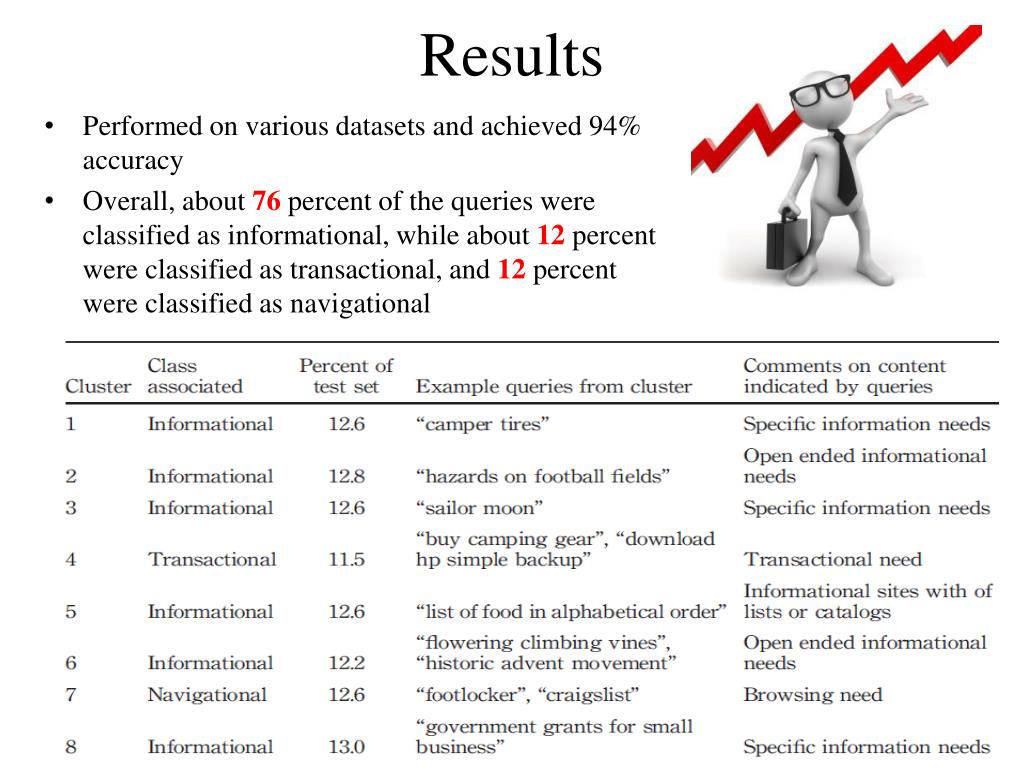

  26. Results • Performed on various datasets and achieved 94% accuracy • Overall, about 76 percent of the queries were classified as informational, while about 12percent were classified as transactional, and 12 percent were classified as navigational

  27. Results • Navigational queries: Low rates of reformulation, typically sessions of just one query. • Informational queries: Low occurrences of query reformulation, indicating probably relatively easy informational needs, such as fact finding • Transactional queries: Shorter queries

  28. Discussion of approach The approach has a high success rate, it uses a large data set of queries and does not depend on external content, thereby making it implementable in real time. • Limitations: • The Dogpile user population representative of web search engine users in general? • What if a prototype has multiple user intents associated with it ? • Is relying solely on transactional logs sufficient ? • Future Scope: • Investigate in subcategories • A laboratory study on how searchers express their underlying intent • Devlope algorithmic approaches for more in-depth analysis of individual queries

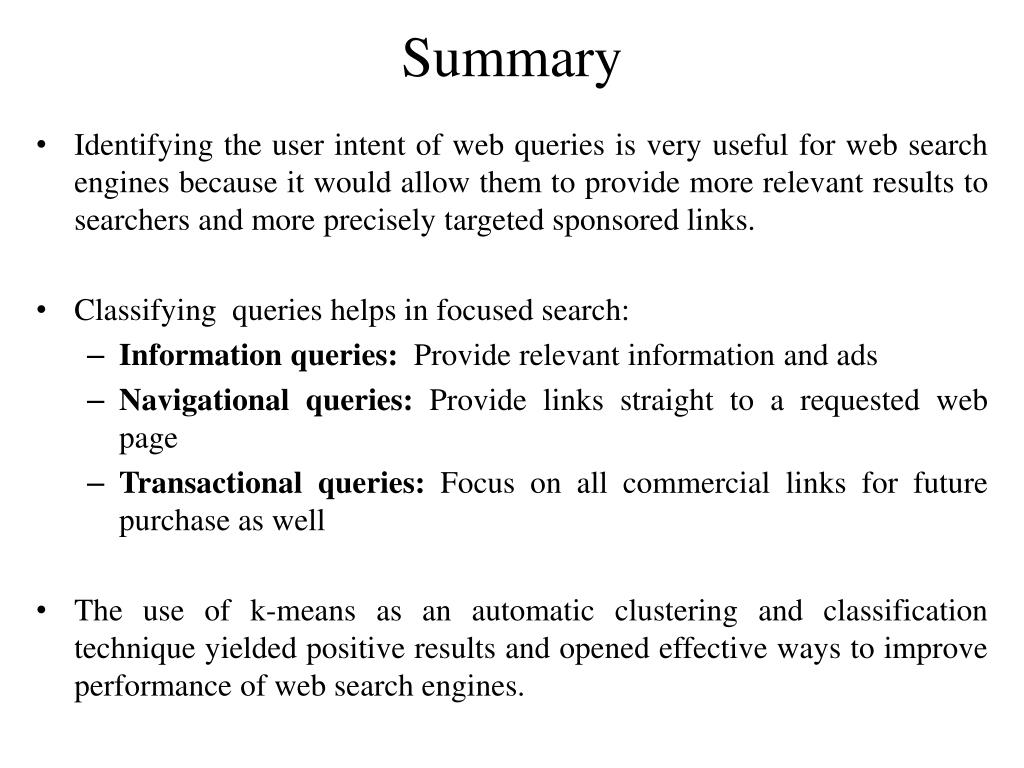

  29. Summary • Identifying the user intent of web queries is very useful for web search engines because it would allow them to provide more relevant results to searchers and more precisely targeted sponsored links. • Classifying queries helps in focused search: • Information queries: Provide relevant information and ads • Navigational queries: Provide links straight to a requested web page • Transactional queries: Focus on all commercial links for future purchase as well • The use of k-means as an automatic clustering and classification technique yielded positive results and opened effective ways to improve performance of web search engines.

  30. -NehaMundada

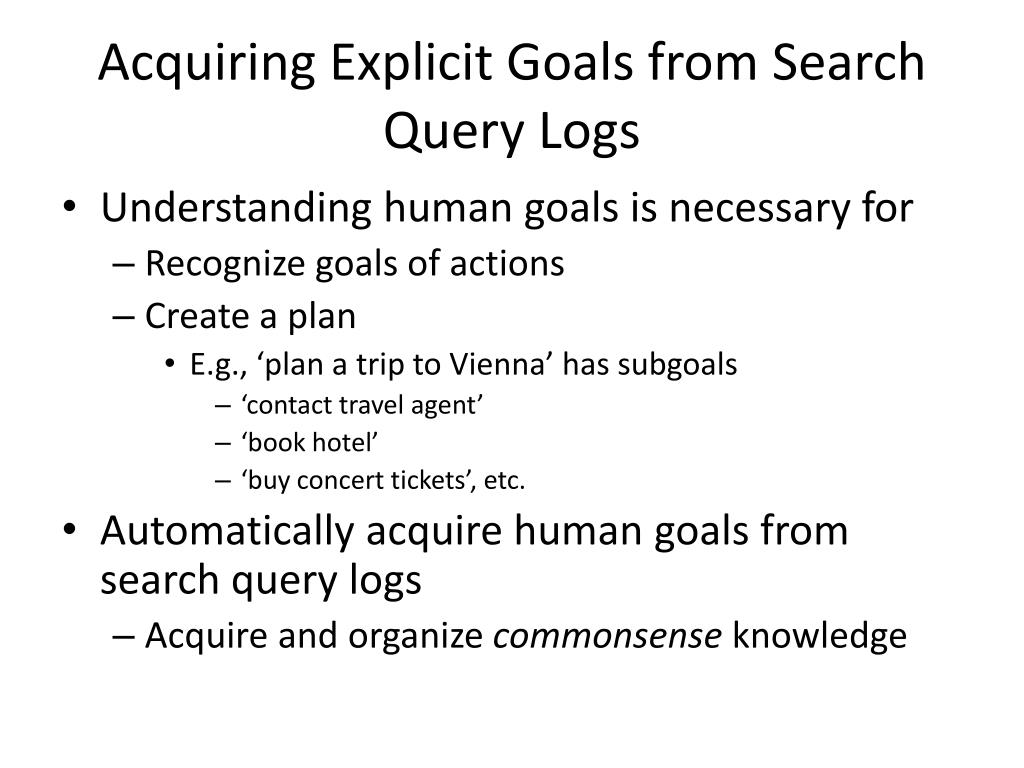

  31. Acquiring Explicit Goals from Search Query Logs • Understanding human goals is necessary for • Recognize goals of actions • Create a plan • E.g., ‘plan a trip to Vienna’ has subgoals • ‘contact travel agent’ • ‘book hotel’ • ‘buy concert tickets’, etc. • Automatically acquire human goals from search query logs • Acquire and organize commonsense knowledge

  32. Research overview • Research Question: • If and How search query logs can be utilized to overcome the problem of acquiring knowledge about human goals? • Following an exploratory research style, we intend to show: • contain a small but interesting number of user goals • Separation by automatic methods • Results: • Knowledge about the automatic acquisition of goals out of search query logs • Knowledge about the nature of goals extracted from search query logs

  33. Results of Human Subject Study • 4 independent raters • labeled 3000 queries • Examples • bug killing devices • mothers working from home • how to lose weight • Classes appear to be separable

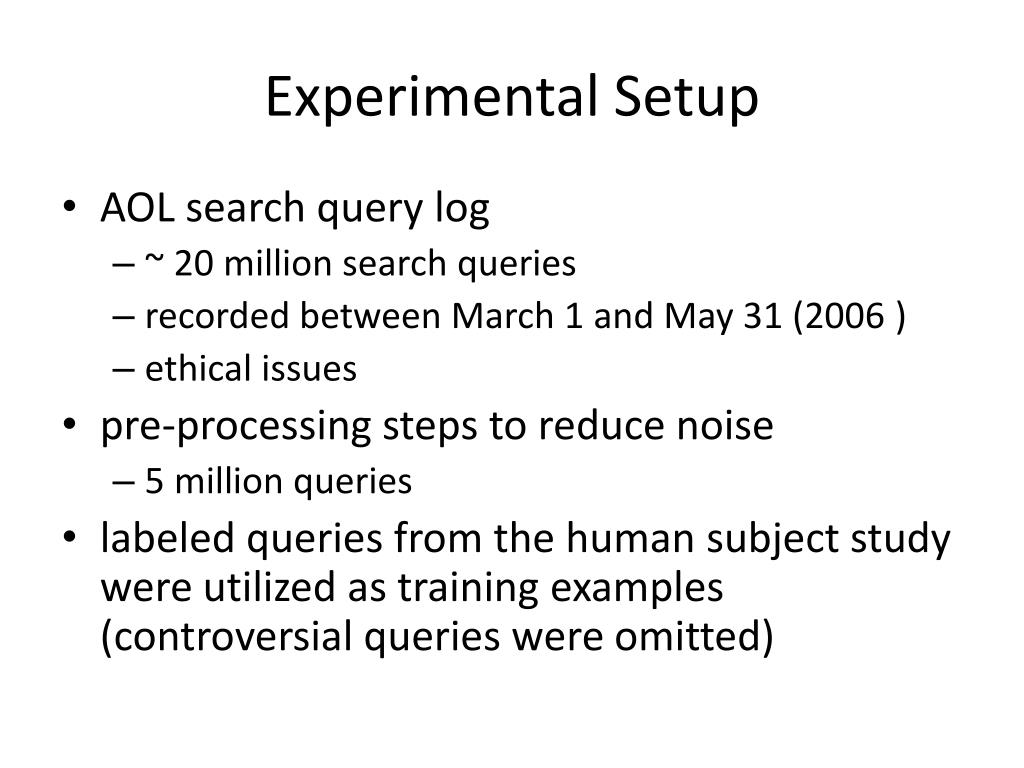

  34. Experimental Setup • AOL search query log • ~ 20 million search queries • recorded between March 1 and May 31 (2006 ) • ethical issues • pre-processing steps to reduce noise • 5 million queries • labeled queries from the human subject study were utilized as training examples (controversial queries were omitted)

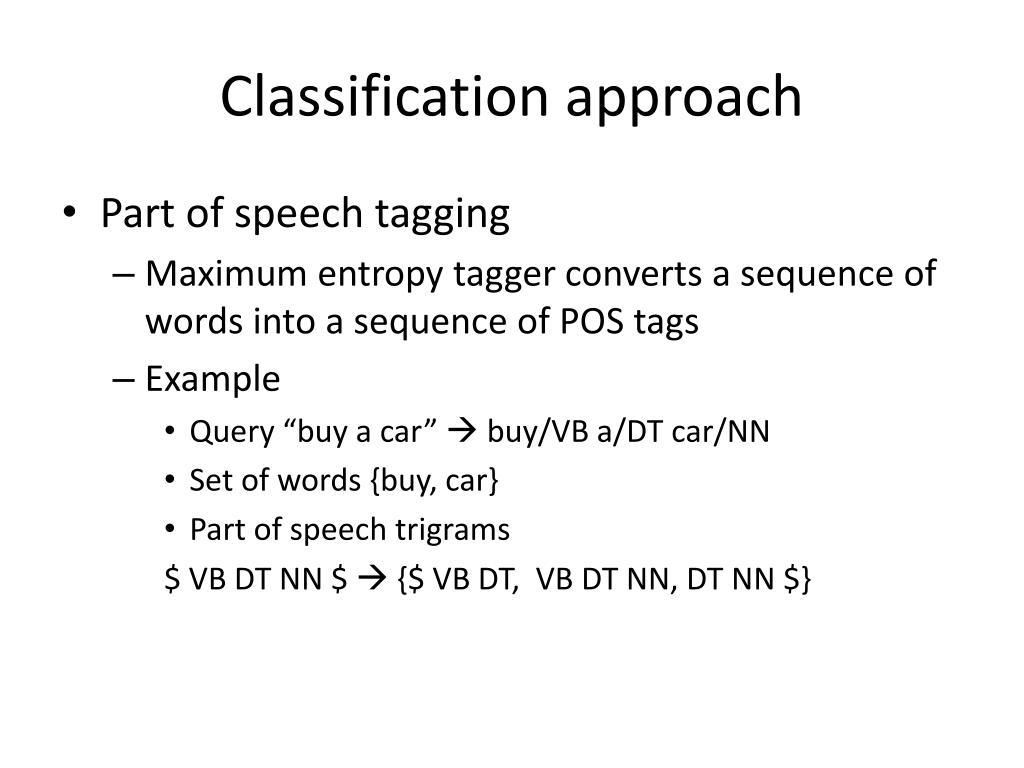

  35. Classification approach • Part of speech tagging • Maximum entropy tagger converts a sequence of words into a sequence of POS tags • Example • Query “buy a car”  buy/VB a/DT car/NN • Set of words {buy, car} • Part of speech trigrams $ VB DT NN $  {$ VB DT, VB DT NN, DT NN $}

  36. Classification approach (2) • Linear Support Vector Machine [Dumais98] • Robust and effective in the area of text classification • WekaMachine Learning Toolkit • Performance: • 10 trials – 3-fold Cross Validation • Precision, Recall and F1-Measure for the class: “queries containing goals” • Precision = 0.77 • Recall = 0.63 • F1-Measure = 0.69

  37. N-fold cross validation • Problem: limited amount of labeled data • Solution: N-fold cross validation • Divide data into N equal segments (folds) • Training data: N-1 folds • Testing data: remaining fold • Repeat for remaining test folds and average results

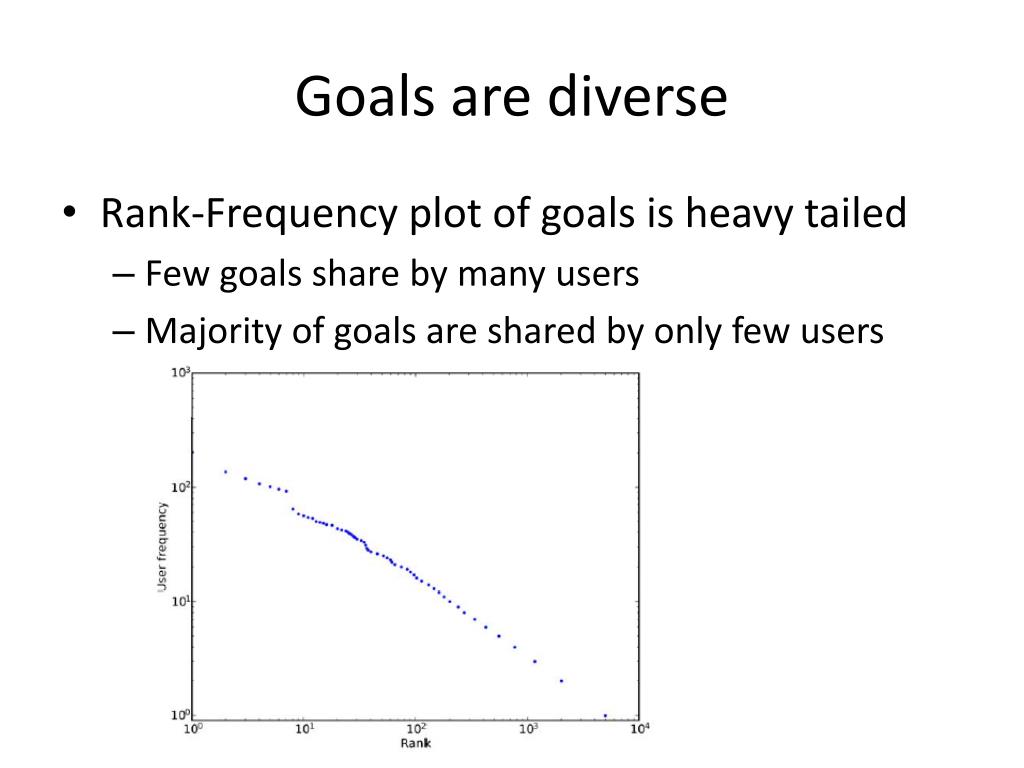

  38. Goals are diverse • Rank-Frequency plot of goals is heavy tailed • Few goals share by many users • Majority of goals are shared by only few users

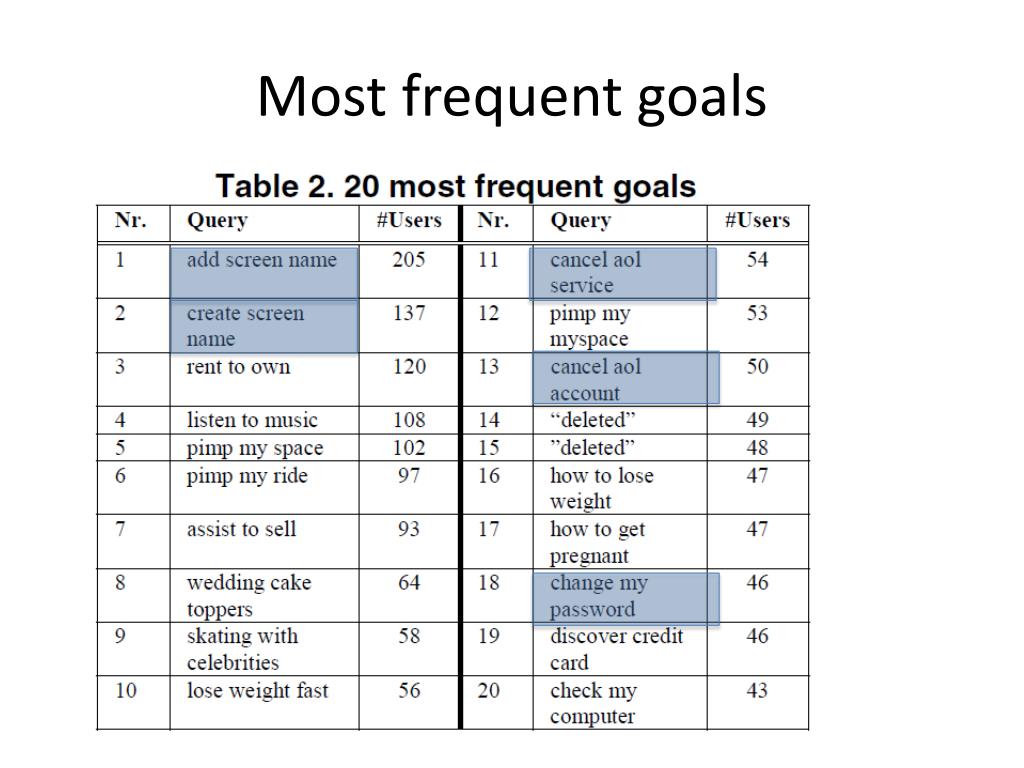

  39. Most frequent goals

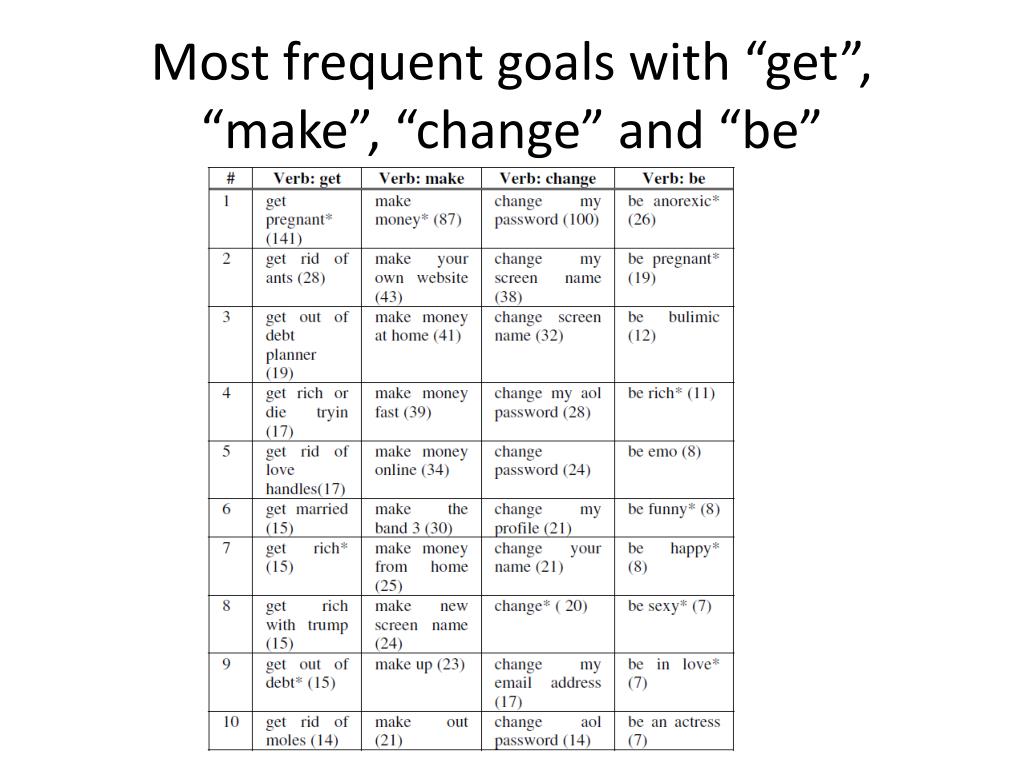

  40. Most frequent goals with “get”, “make”, “change” and “be”

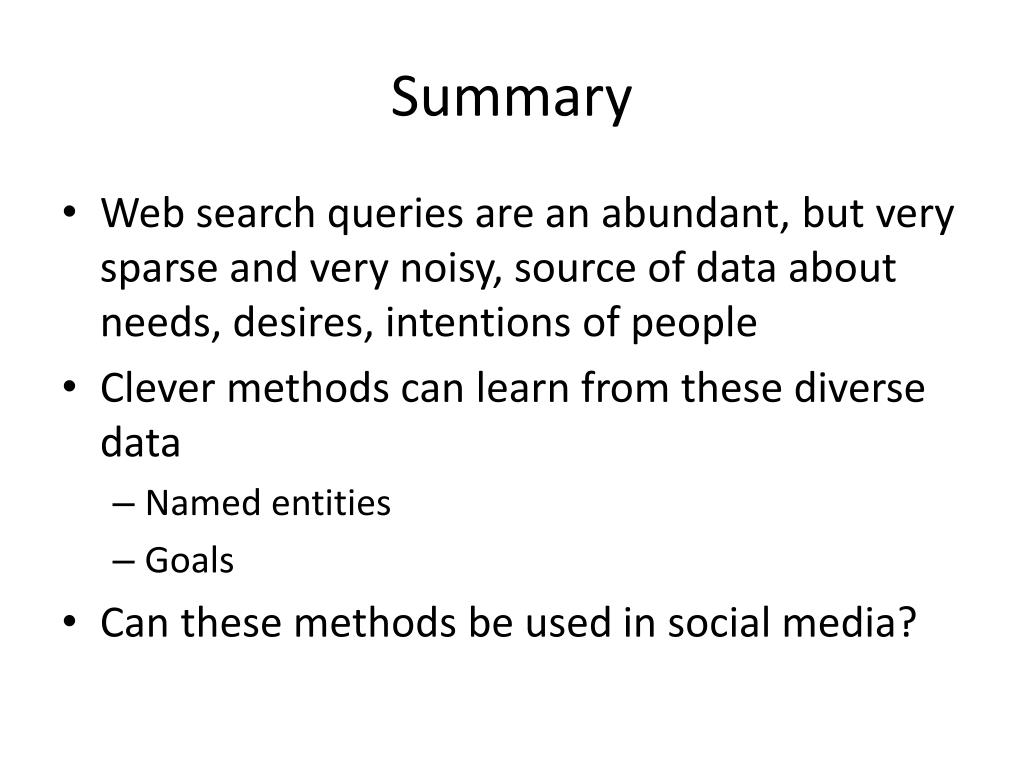

  41. Summary • Web search queries are an abundant, but very sparse and very noisy, source of data about needs, desires, intentions of people • Clever methods can learn from these diverse data • Named entities • Goals • Can these methods be used in social media?
