LIGHT. WHAT IS LIGHT?. Light is a form of energy that travels away from the source producing it at a speed of 3 x 10 8 m s -1. Transparent: allows light to pass through it, and can see clearly through it e.g. glass

aspen
Télécharger la présentation

LIGHT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. LIGHT

  2. WHAT IS LIGHT? • Light is a form of energy that travels away from the source producing it at a speed of 3 x 108 m s-1

  3. Transparent: allows light to pass through it, and can see clearly through it e.g. glass • Translucent: allows light to pass through it, but cannot see clearly through it e.g. frosted glass • Opaque: does not allow light to pass through it e.g. wood

  4. Light Travels in Straight Lines • This can be seen in the following examples: • Laser • Beam of light from a searchlight • It can also be shown using pieces of cardboard with a small hole in the middle and a length of thread

  5. Plane Mirror Normal Incident ray Reflected ray Angle ofincidence Angle ofreflection i r Plane Mirror

  6. LAWS OF REFLECTION OF LIGHT • 1. The incident ray, the normal and the reflected ray all lie in the same plane • 2. The angle of incidence is equal to the angle of reflection (i = r)

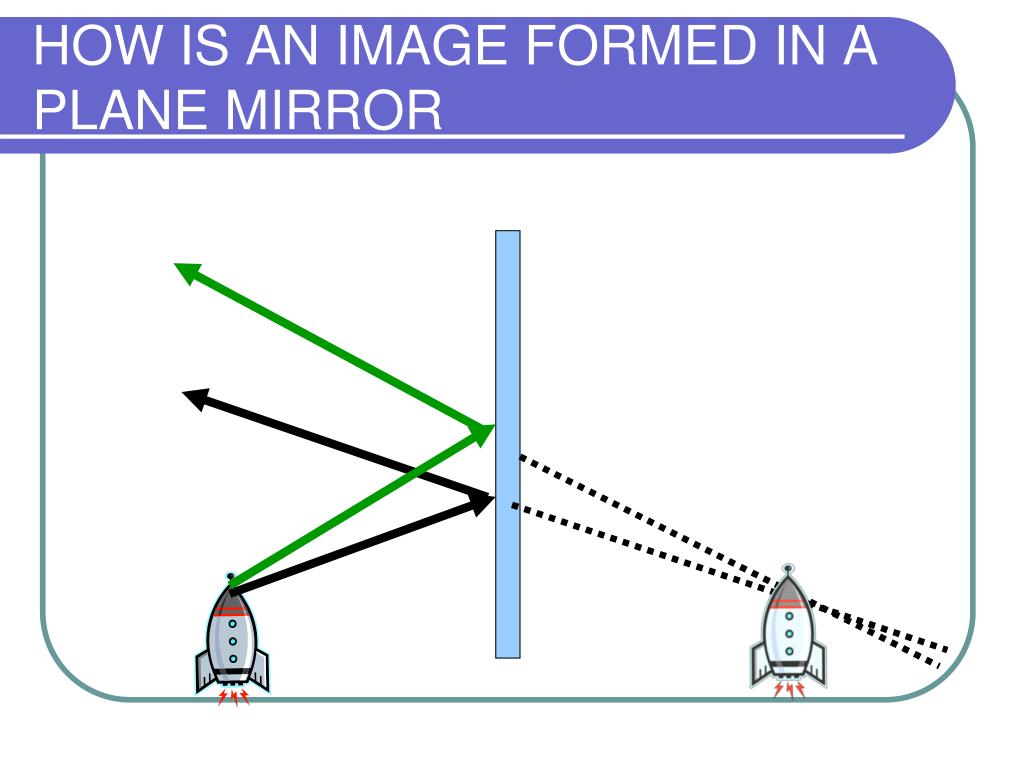

  7. HOW IS AN IMAGE FORMED IN A PLANE MIRROR

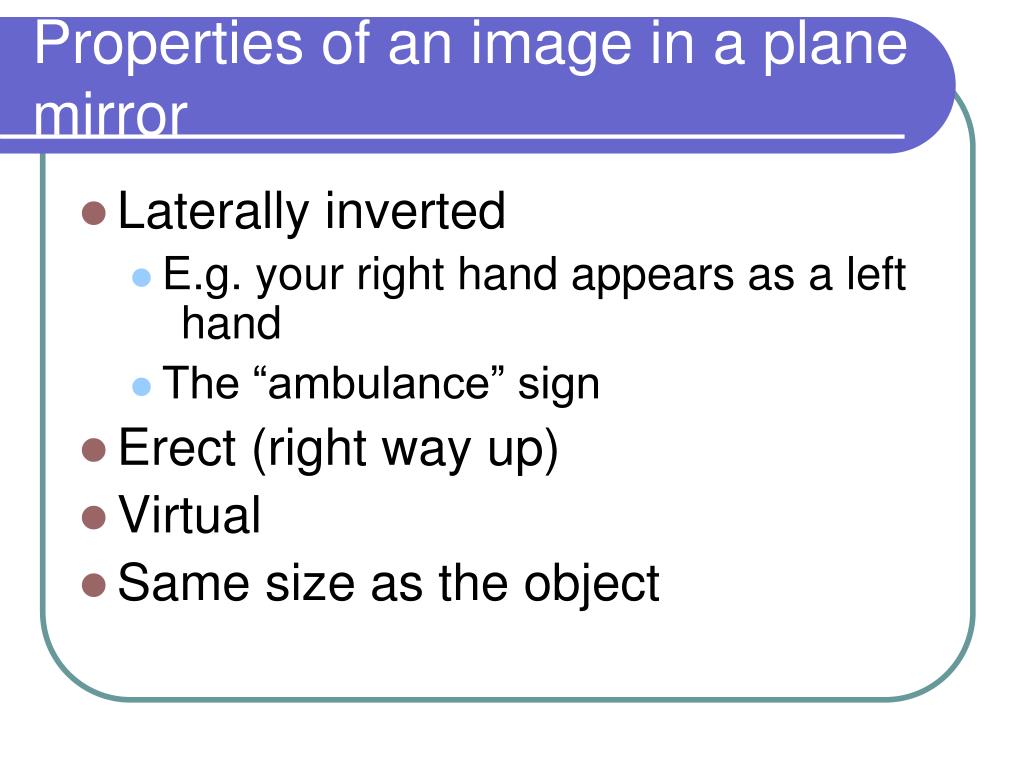

  8. Properties of an image in a plane mirror • Laterally inverted • E.g. your right hand appears as a left hand • The “ambulance” sign • Erect (right way up) • Virtual • Same size as the object

  9. Uses of Plane Mirrors • Make up mirror • The periscope

  10. A virtual image cannot be formed on a screen • A real image can be formed on a screen

  11. Experiment to prove the angle of incidence equals the angle of reflection

  12. Diagram Plane mirror Sheet of paper r i Pins

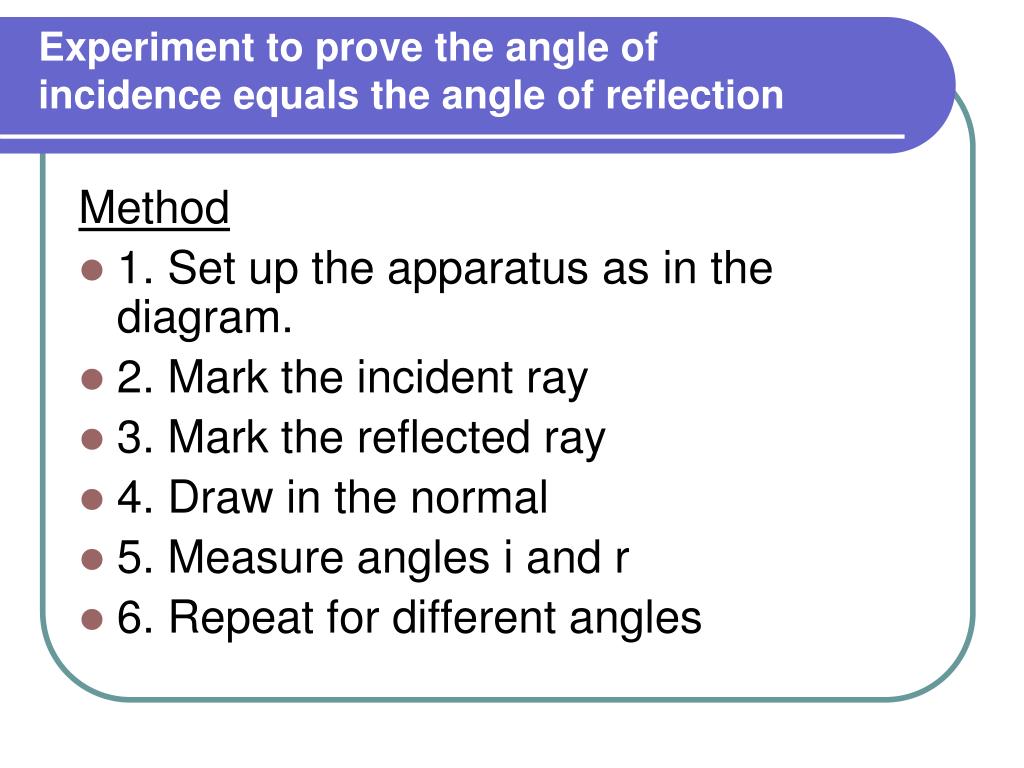

  13. Experiment to prove the angle of incidence equals the angle of reflection Method • 1. Set up the apparatus as in the diagram. • 2. Mark the incident ray • 3. Mark the reflected ray • 4. Draw in the normal • 5. Measure angles i and r • 6. Repeat for different angles

  14. Conclusion Angle i = angle r Precaution Make sure the mirror is perpendicular to the page Mark the back of the mirror on the paper Use a sharp pencil

  15. Reflection of light is when light bounces off a surface

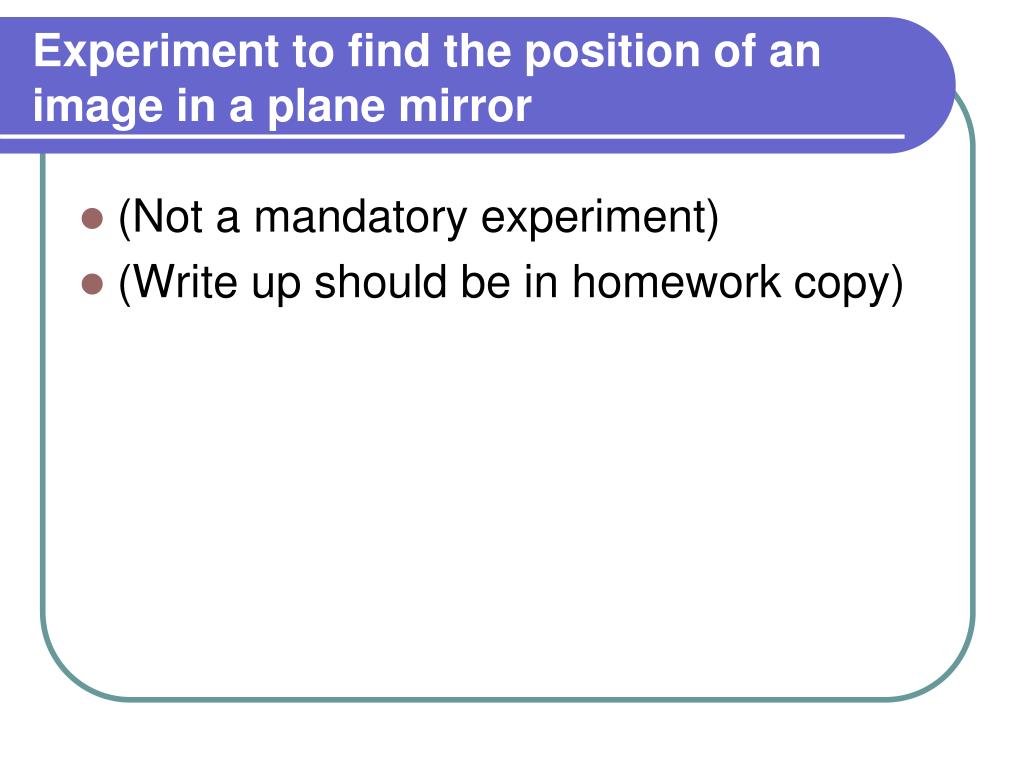

  16. Experiment to find the position of an image in a plane mirror • (Not a mandatory experiment) • (Write up should be in homework copy)

  17. Image (Object pin) Plane mirror Object pin O M I

  18. Method • Set up the apparatus as in the diagram • Move the tall finder pin in and out behind the mirror until there is no parallax between the finder pin and the image of the object pin in the mirror

  19. 3. Measure the distance from the object pin to the mirror (OM), and the distance from the mirror to the finder pin (MI) Result OM and MI are equal Conclusion The image is as far behind the mirror as the object is in front of it

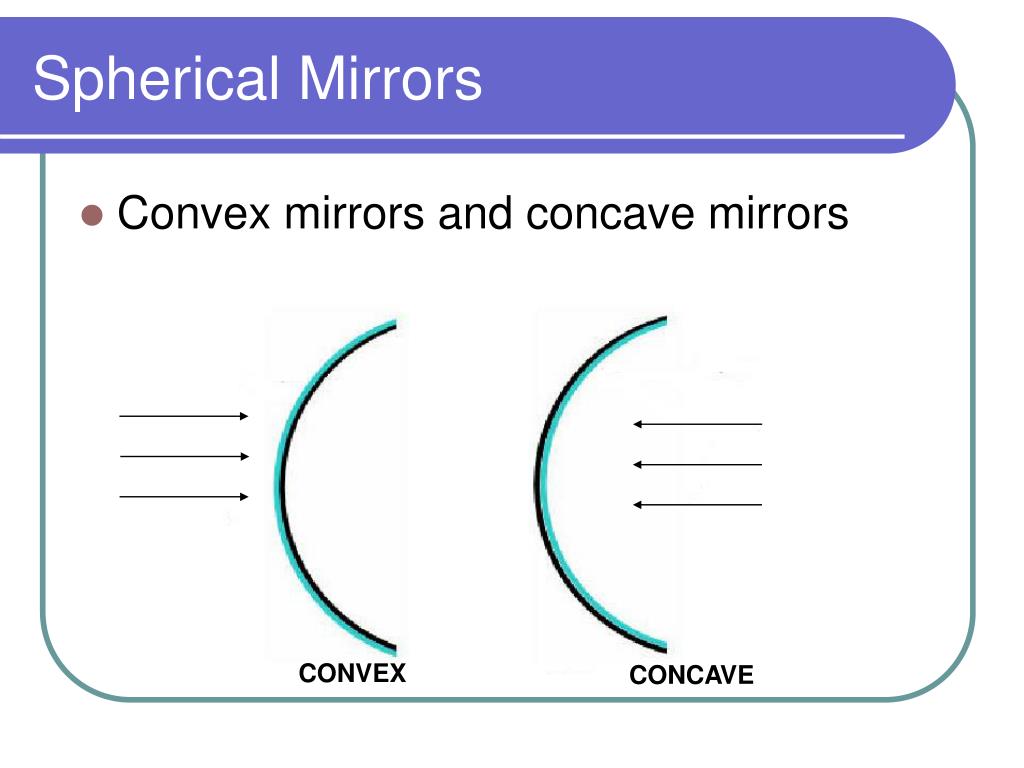

  20. Spherical Mirrors • Convex mirrors and concave mirrors CONVEX CONCAVE

  21. Radius of curvature Pole Centre of curvature Focal length Focus point Diagram of concave mirror

  22. The line from the centre of curvature to the pole is called the principal axis

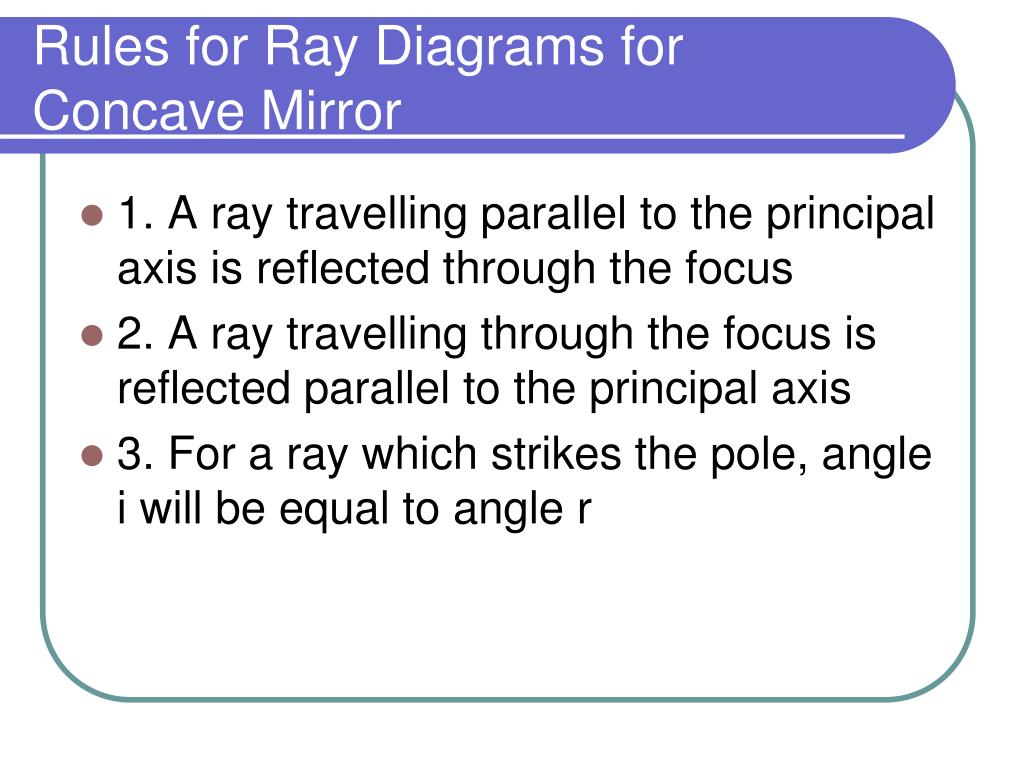

  23. Rules for Ray Diagrams for Concave Mirror • 1. A ray travelling parallel to the principal axis is reflected through the focus • 2. A ray travelling through the focus is reflected parallel to the principal axis • 3. For a ray which strikes the pole, angle i will be equal to angle r

  24. “In parallel, out through the focus” • “In through the focus, out parallel”

  25. Uses of concave mirrors • Spotlights • Reflectors in car headlights • Shaving and make-up mirrors

  26. Diagram of convex mirror Centre of curvature Pole SHINY SIDE Focus point

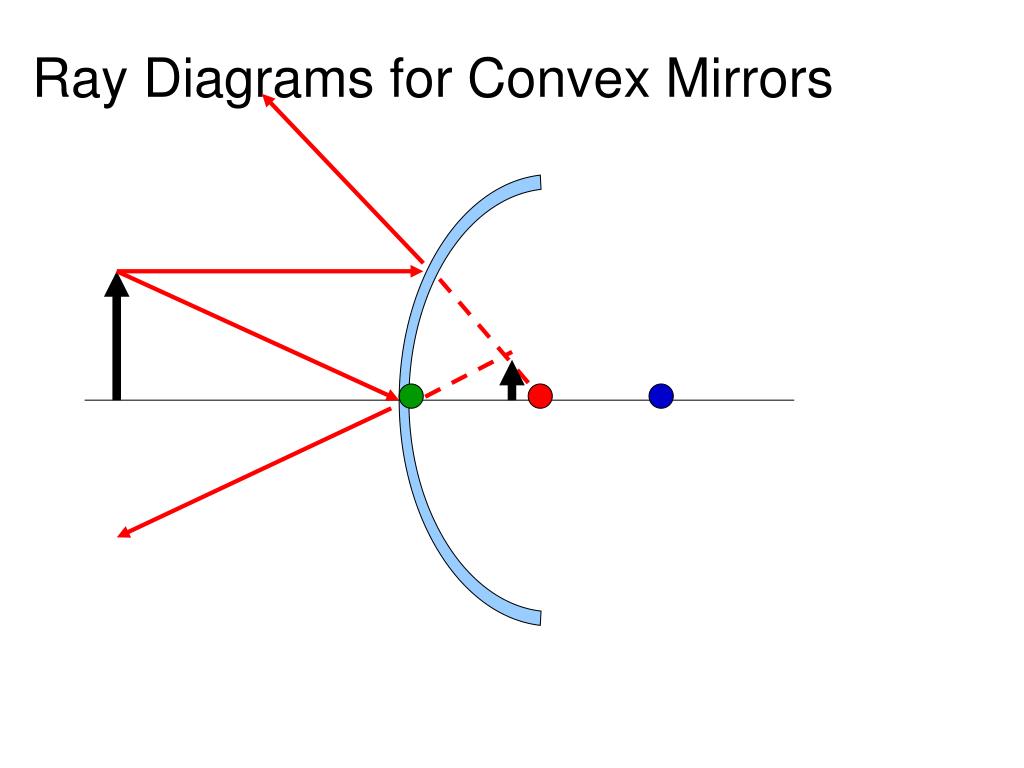

  27. Ray Diagrams for Convex Mirrors

  28. Uses of convex mirrors • Shops (to deter shoplifters) • Buses • Dangerous bends in roads • They give a wide field of view

  29. The Mirror FormulaeThe focal length of a spherical mirror may be found using the formula: u = distance from object to mirror v = distance from image to mirror f = focal length

  30. Example 1 • An object is placed 15cm in front of a concave mirror, of focal length 12cm. Find the position and nature of the image

  31. v = 60 cm

  32. It is a real image since the object is outside f

  33. Example 2 • When an object is placed 16 cm in front of a concave mirror of focal length 8 cm, an image is formed. Find the distance of the image from the mirror and say whether it is real or virtual.

  34. v = 16 cm

  35. It is a real image since the object is outside f

  36. (HL) Magnification • m = • m =

  37. Example 3 (HL) • An object is placed 20 cm from a concave mirror of focal length 25 cm. Find the position, magnification and nature of the image.

  38. v = 100 cm

  39. It is a virtual image since the object is inside f

  40. m = • m = • m = 5

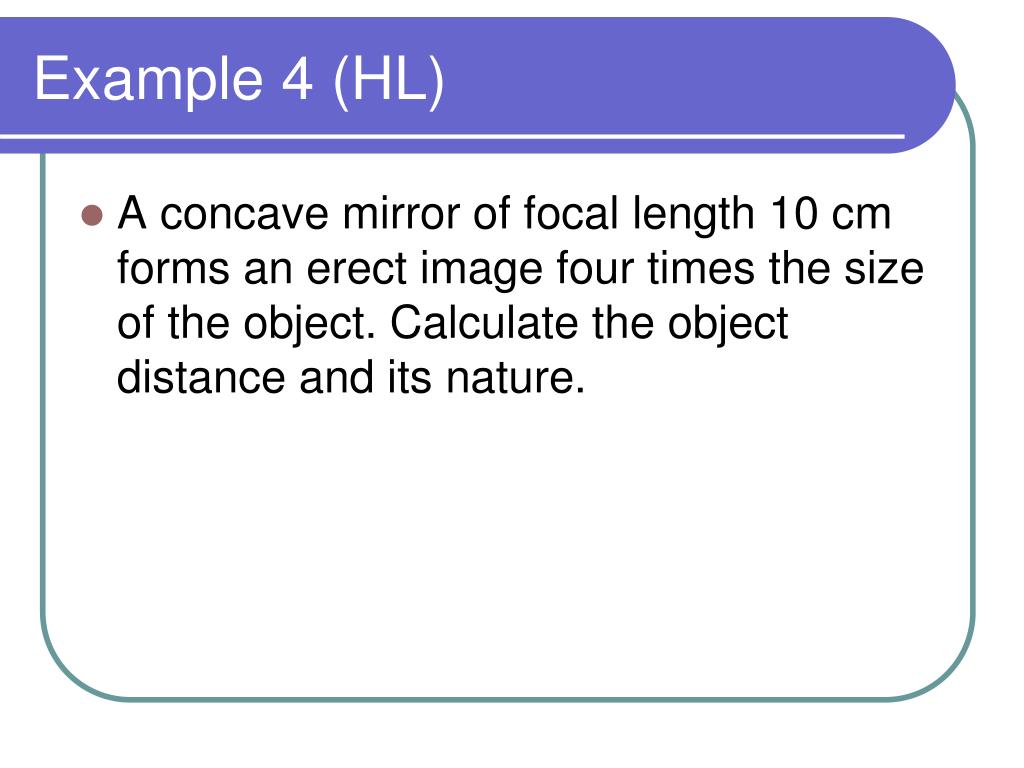

  41. Example 4 (HL) • A concave mirror of focal length 10 cm forms an erect image four times the size of the object. Calculate the object distance and its nature.

  42. u = 7.5 cm

  43. It is a virtual image since the object is inside f

  44. Experiment to Measure the Focal Length of a Concave Mirror

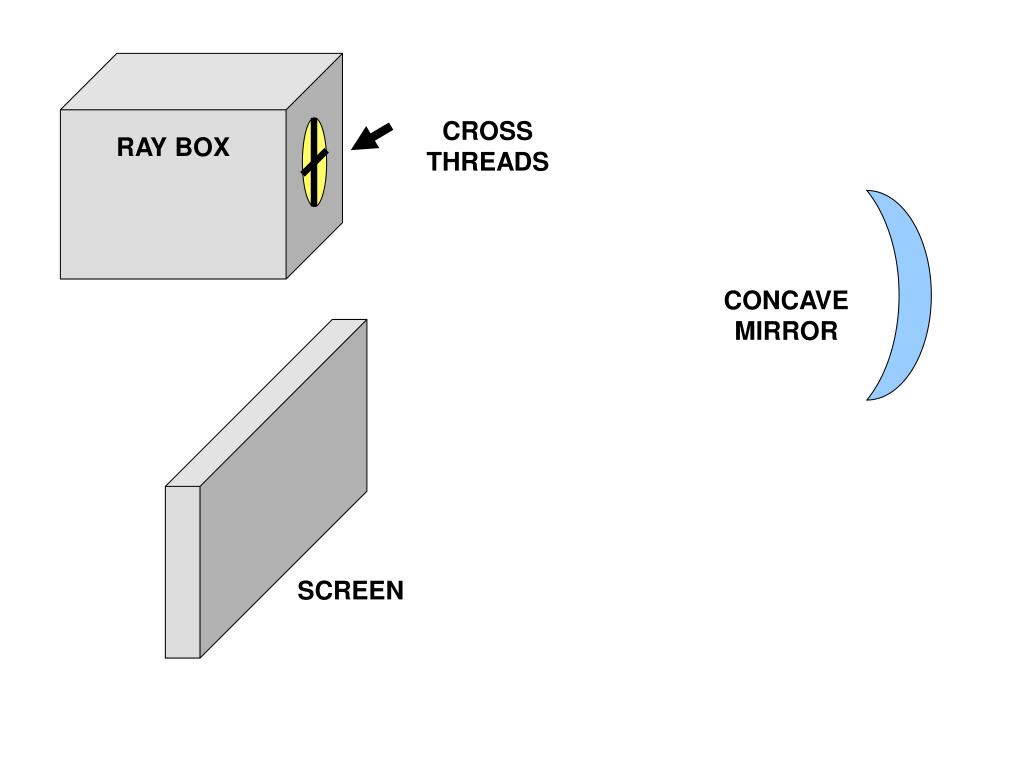

  45. CROSS THREADS RAY BOX CONCAVE MIRROR SCREEN

  46. Method • (An approximate value for the focal length can be found by focusing the image of a distant object on a sheet of paper (e.g. a tree or window))

  47. Set up the apparatus as in the diagram • Move the screen in and out until the image of the cross threads is in sharpest focus

  48. Measure object distance (u) and image distance (v) • Repeat and calculate an average value of f using
