  1. Vector Components

  2. Vector Components In past lessons we learned how to add two vectors. For example a boy walks 9m north than 12m east. His displacement turnsout to be 15m @ 53º E of N. 12 m Finish 9 m Θ = 53º 15 m Start

  3. Vector Components Now, could the boy end up with the same displacement by taking a different path? Finish 15 m 9 m Θ = 37º Start 12 m As you can see, the boy traveled in different directions, but ended up in the same spot as before.

  4. Vector Components As it turns out, the boy could have taken an infinite number of routes to endup in the same spot. This implies a resultant (the addition of two or more vectors) can be resolved into an infinite number of components or parts. Luckily for us, engineers are mostly concerned with only two of these components or parts: Horizontal and Vertical Components

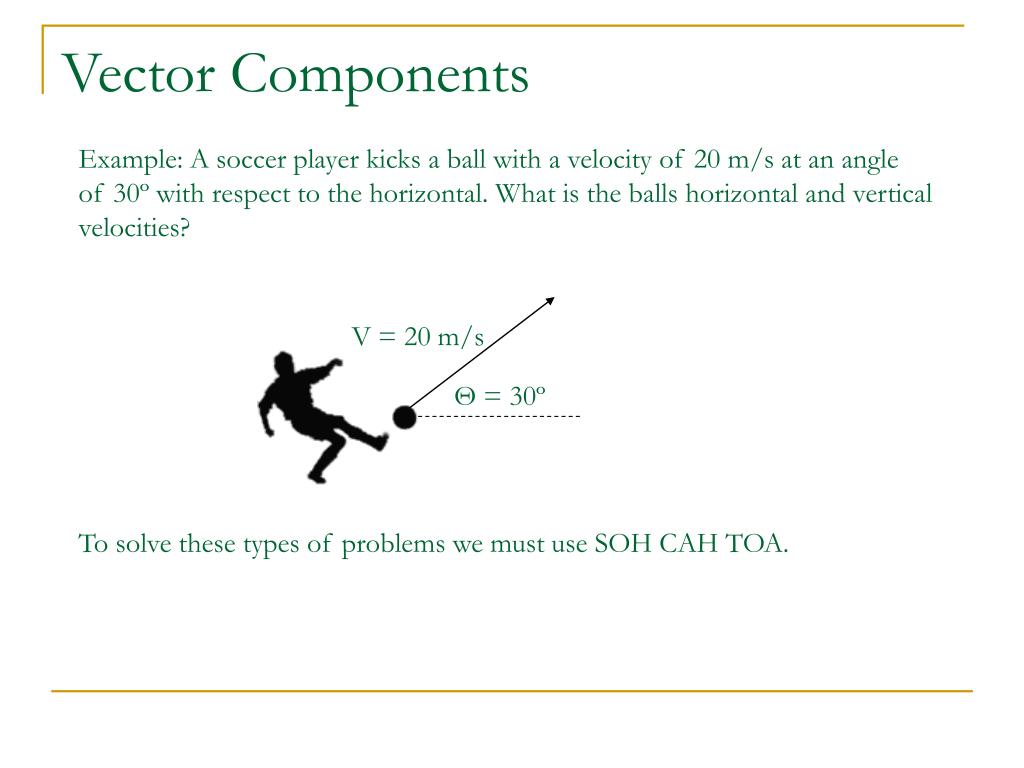

  5. Vector Components Example: A soccer player kicks a ball with a velocity of 20 m/s at an angleof 30º with respect to the horizontal. What is the balls horizontal and verticalvelocities? V = 20 m/s Θ = 30º To solve these types of problems we must use SOH CAH TOA.

  6. Vector Components To find Vx (Horizontal Component) hyp Cos Θ = adj / hyp Cos 30º = Vx / 20 m/s V = 20 m/s Vy = 10 m/s Vx = 17.3 m/s opp To find Vy (Vertical Component) Θ = 30º adj Vx = 17.3 m/s Sin Θ = opp / hyp Sin 30º = Vy / 20 m/s Vx = 10 m/s

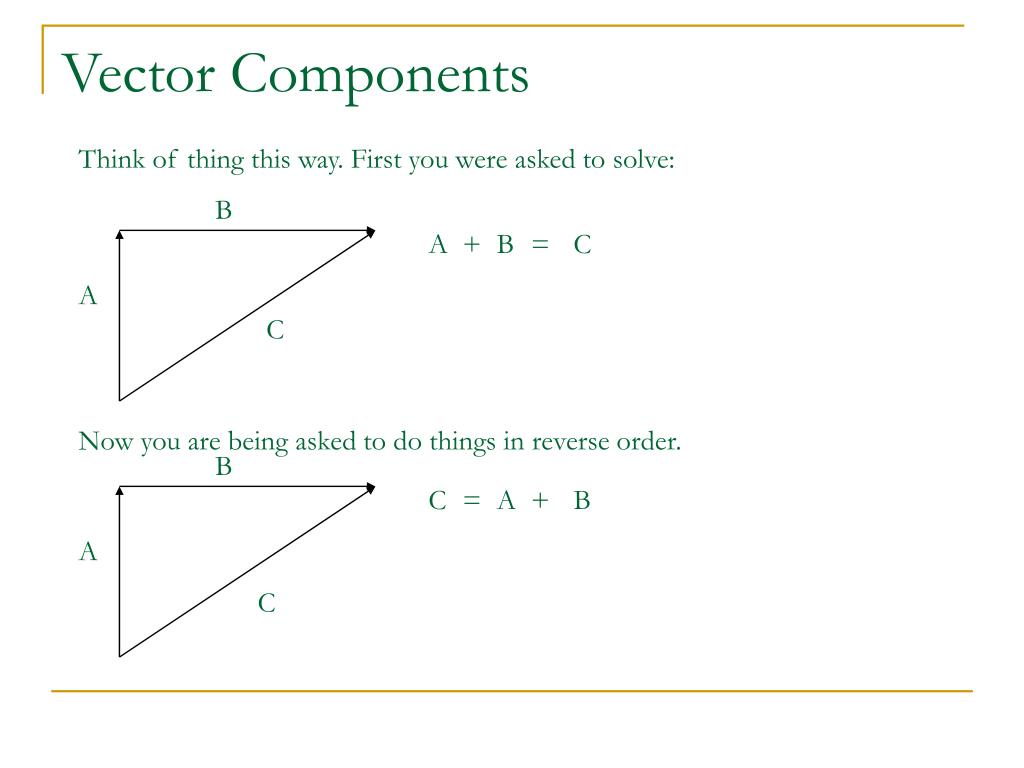

  7. Vector Components Think of thing this way. First you were asked to solve: B A + B = C A C Now you are being asked to do things in reverse order. B C = A + B A C
