  1. XHTML Steven Pemberton CWI, Amsterdam Chair, W3C HTML Working Group

  2. Overview • History • Philosophy • XML and related technologies • XHTML 1.0 • Modularisation • XHTML Basic • XHTML 1.1 • The Future

  3. HTML 1 • The original HTML was designed in the early 1990’s for scientific reports • Each document was a single resource (not even <IMG>) • (This explains much about HTTP by the way)

  4. (HTML 1) • It is amazing how much we have been able to do with a language with such beginnings • It was described using SGML

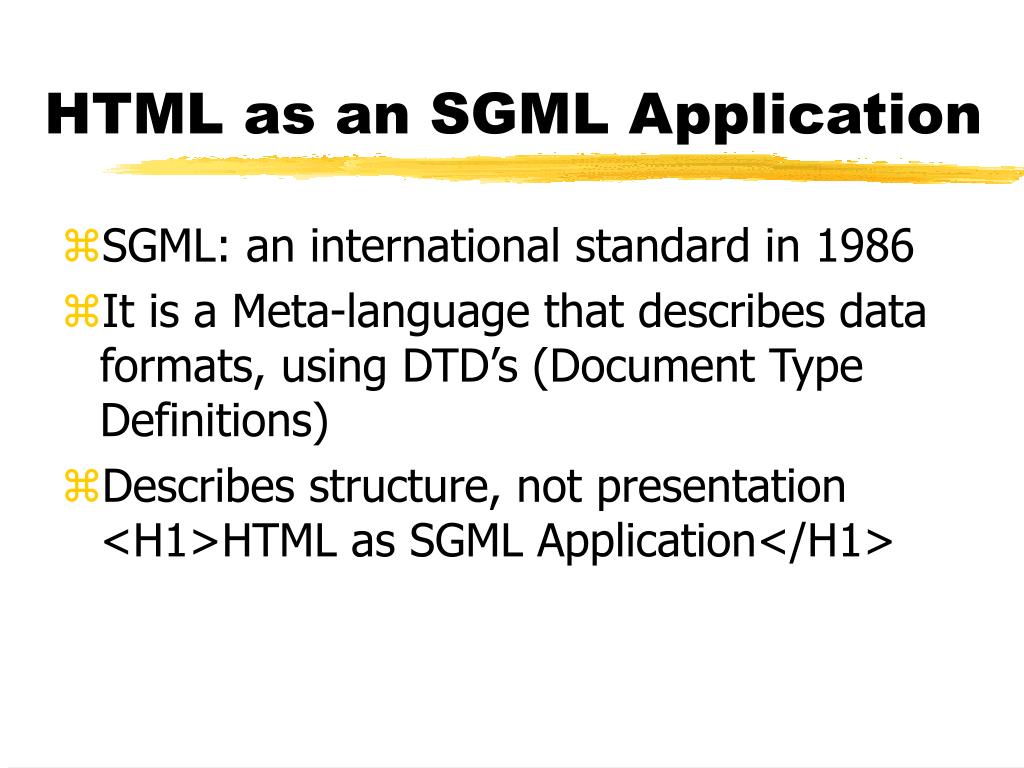

  5. HTML as an SGML Application • SGML: an international standard in 1986 • It is a Meta-language that describes data formats, using DTD’s (Document Type Definitions) • Describes structure, not presentation<H1>HTML as SGML Application</H1>

  6. Example of a DTD fragment <!ELEMENT table (caption?, (col*|colgroup*), thead?, tfoot?, (tbody+|tr+))> <!ELEMENT caption %Inline;> <!ELEMENT thead (tr)+> ...

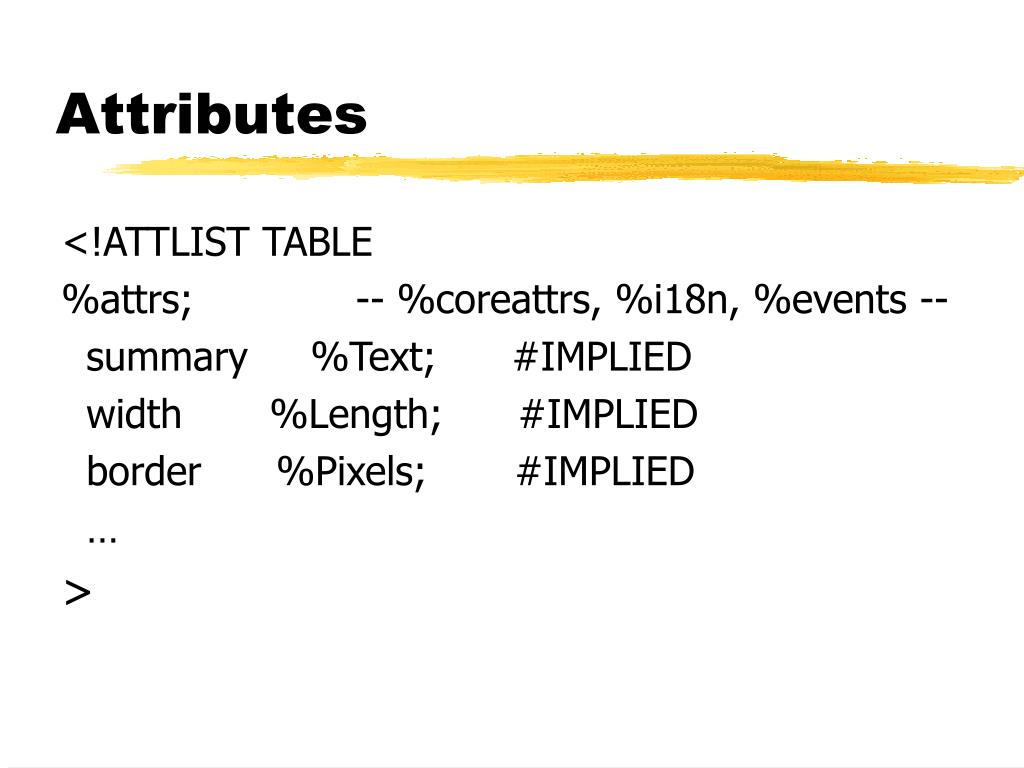

  7. Attributes <!ATTLIST TABLE %attrs; -- %coreattrs, %i18n, %events -- summary %Text; #IMPLIED width %Length; #IMPLIED border %Pixels; #IMPLIED … >

  8. Entities <!ENTITY % fontstyle "TT | I | B | BIG | SMALL"> <!ENTITY % inline "#PCDATA | %fontstyle; | %phrase; | %special; | %formctrl;"> <!ENTITY % Length "CDATA" -- nn for pixels or nn% for percentage length -->

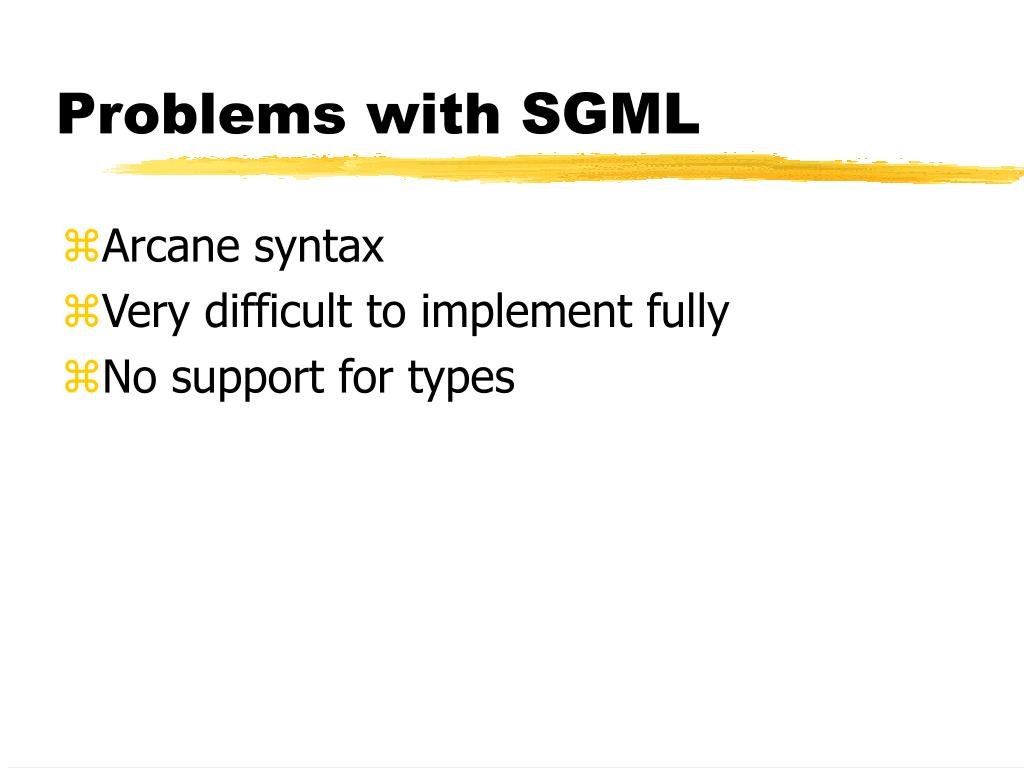

  9. Problems with SGML • Arcane syntax • Very difficult to implement fully • No support for types

  10. Changes to HTML • Netscape and Microsoft start adding to HTML: mostly presentation-oriented tags (like <BLINK>, <CENTER>), and frames • The World Wide Web Consortium (W3C) started effort to: • Keep HTML Pure • Do presentation via Style Sheets

  11. Separating content and presentation • HTML was designed as a data-structuring language, but the later changes undermined this. • Separating content from presentation has distinct advantages

  12. For the author • Easier to write your documents • Easier to change your documents • Easy to change the look of your documents • Access to professional designs • Your documents are smaller • Visible on more devices • Visible to more people

  13. For the webmaster • Separation of concerns • Simpler HTML, less training • Cheaper to produce, easier to manage • Easy to change house style • Reach more people • Search engines find your stuff easier • Visible on more devices

  14. For the reader • Faster download (one of the top 4 reasons for liking a site) • Easier to find information • You can actually read the information if you are sight-impaired • Information more accessible • You can use more devices

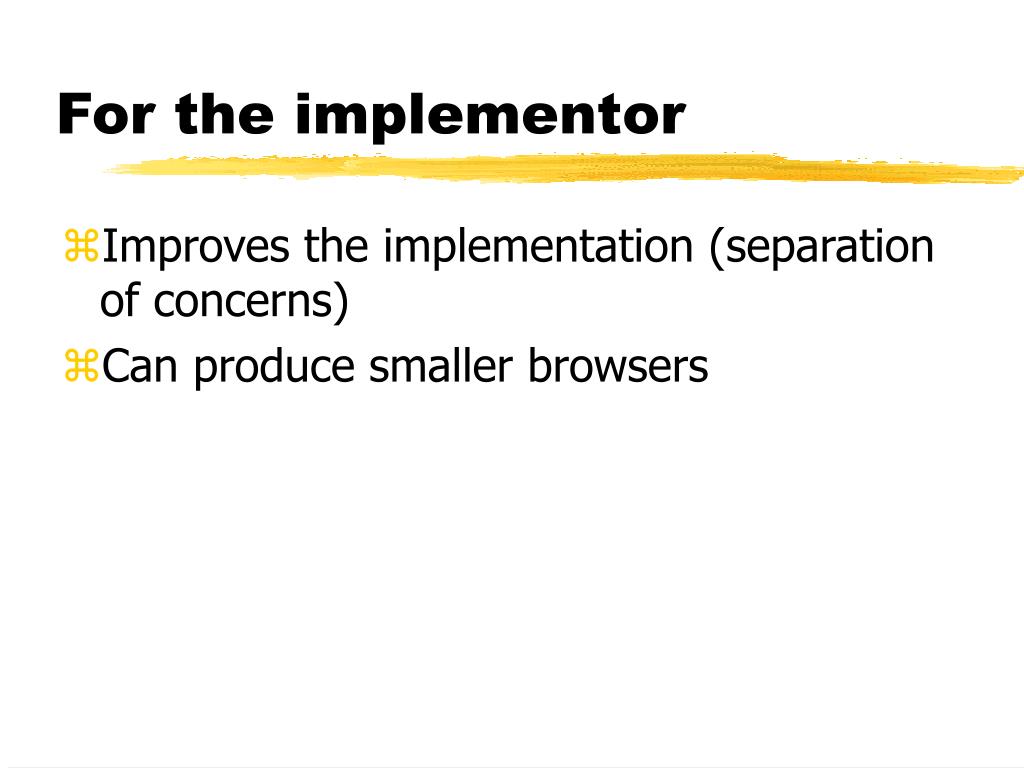

  15. For the implementor • Improves the implementation (separation of concerns) • Can produce smaller browsers

  16. Changes to HTML (2) • Another change that Netscape made, with insufficient thought was Frames • Frames create significant problems with web pages

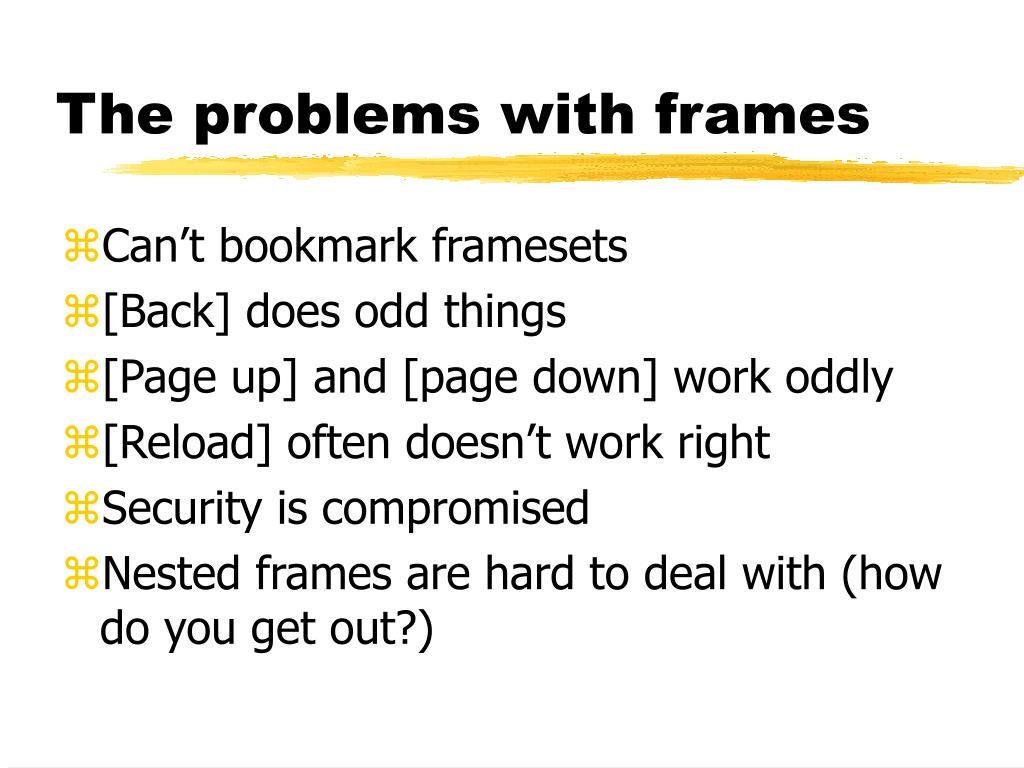

  17. The problems with frames • Can’t bookmark framesets • [Back] does odd things • [Page up] and [page down] work oddly • [Reload] often doesn’t work right • Security is compromised • Nested frames are hard to deal with (how do you get out?)

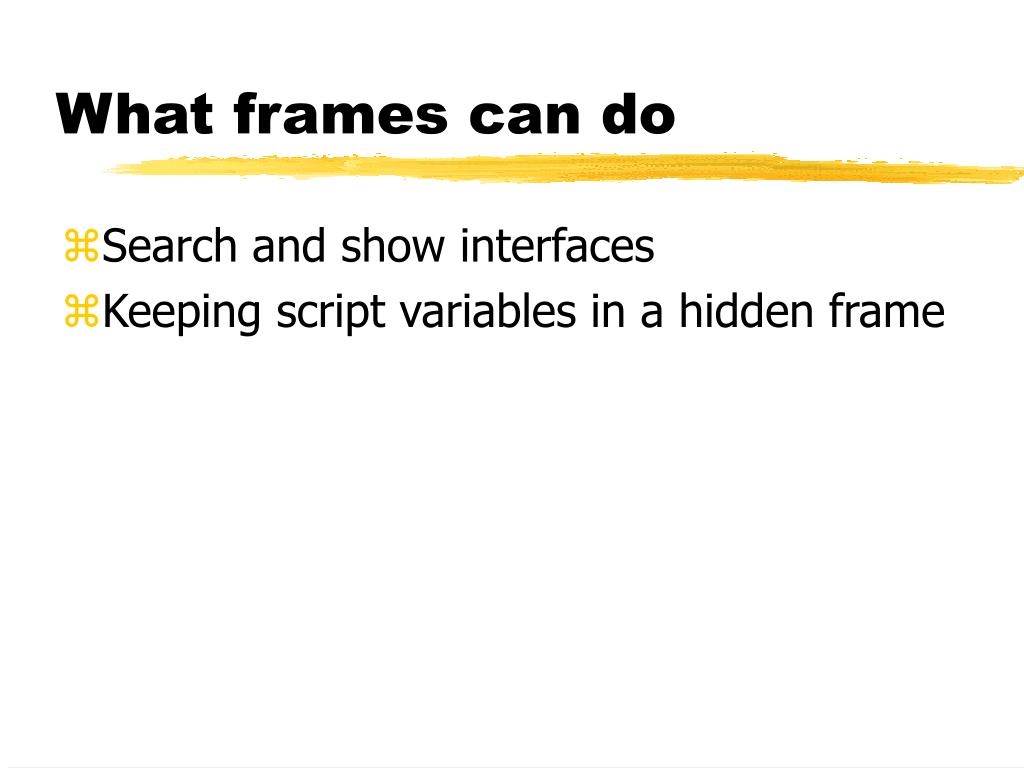

  18. What frames can do • Search and show interfaces • Keeping script variables in a hidden frame

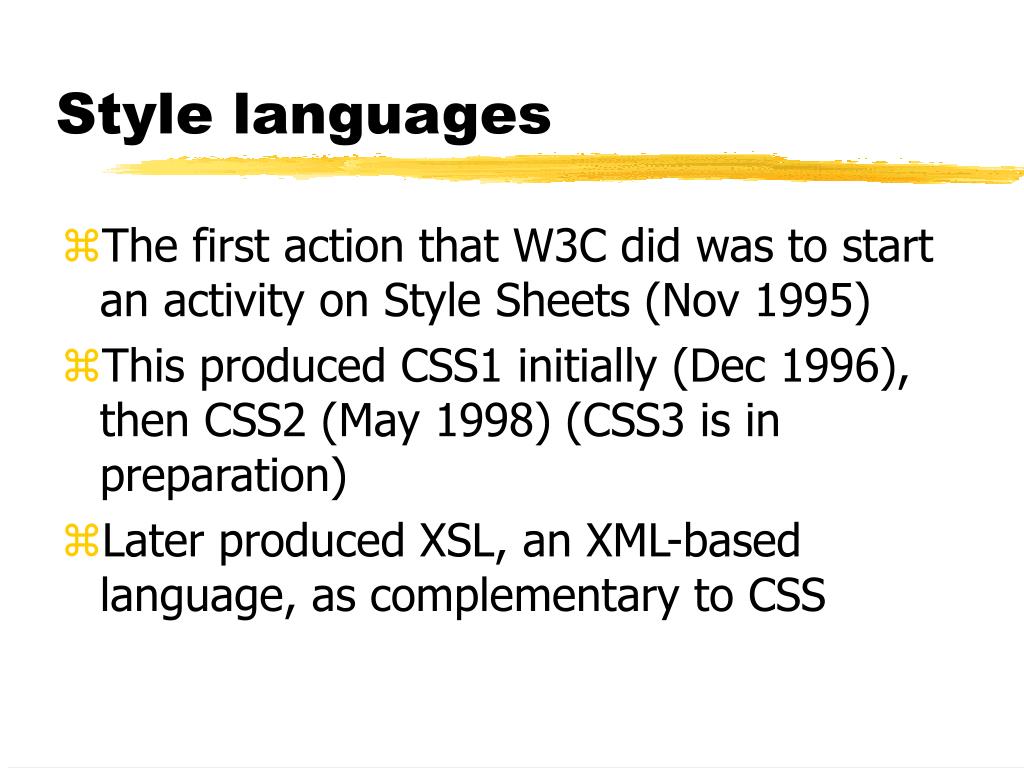

  19. Style languages • The first action that W3C did was to start an activity on Style Sheets (Nov 1995) • This produced CSS1 initially (Dec 1996), then CSS2 (May 1998) (CSS3 is in preparation) • Later produced XSL, an XML-based language, as complementary to CSS

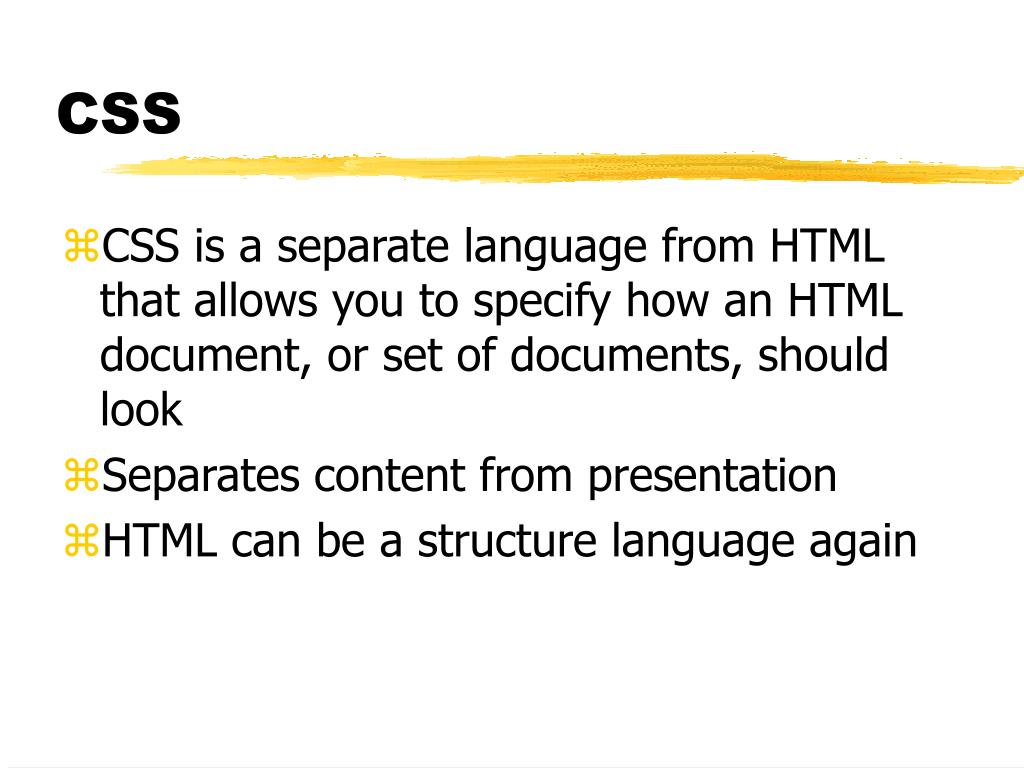

  20. CSS • CSS is a separate language from HTML that allows you to specify how an HTML document, or set of documents, should look • Separates content from presentation • HTML can be a structure language again

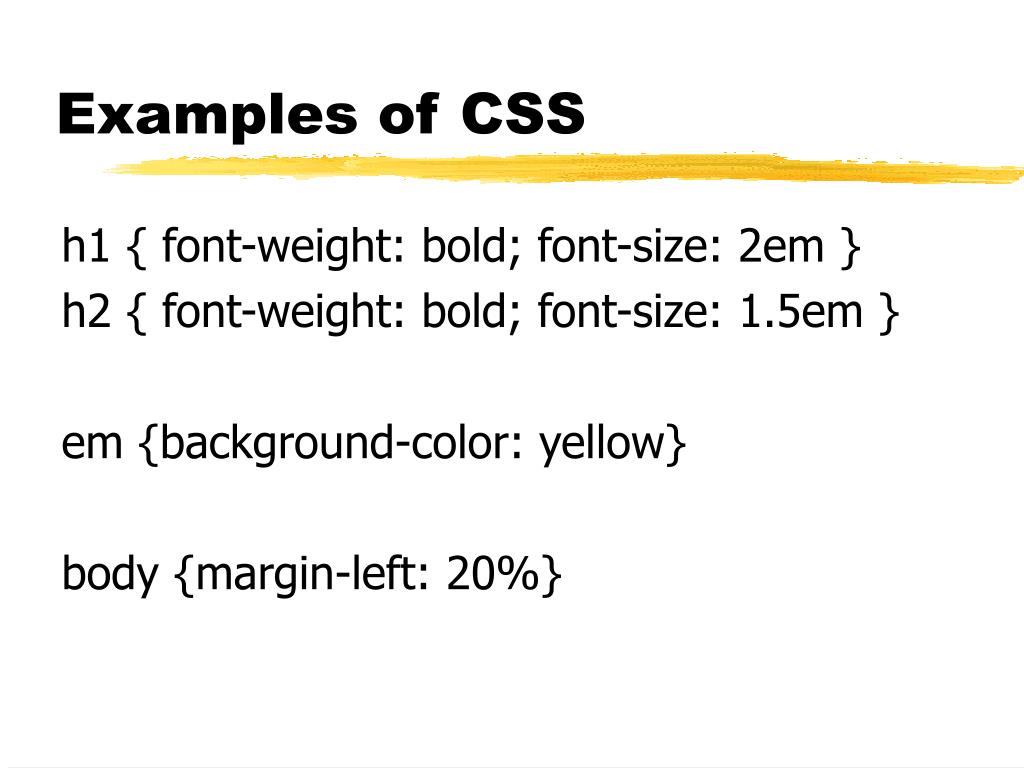

  21. Examples of CSS h1 { font-weight: bold; font-size: 2em } h2 { font-weight: bold; font-size: 1.5em } em {background-color: yellow} body {margin-left: 20%}

  22. Using CSS • Use the following at the top of an XML document: <?xml-stylesheet type='text/css' href=’mystyle.css'?> • Or this in the <head> of an HTML document: <link rel="stylesheet" type="text/css" href=”mystyle.css" />

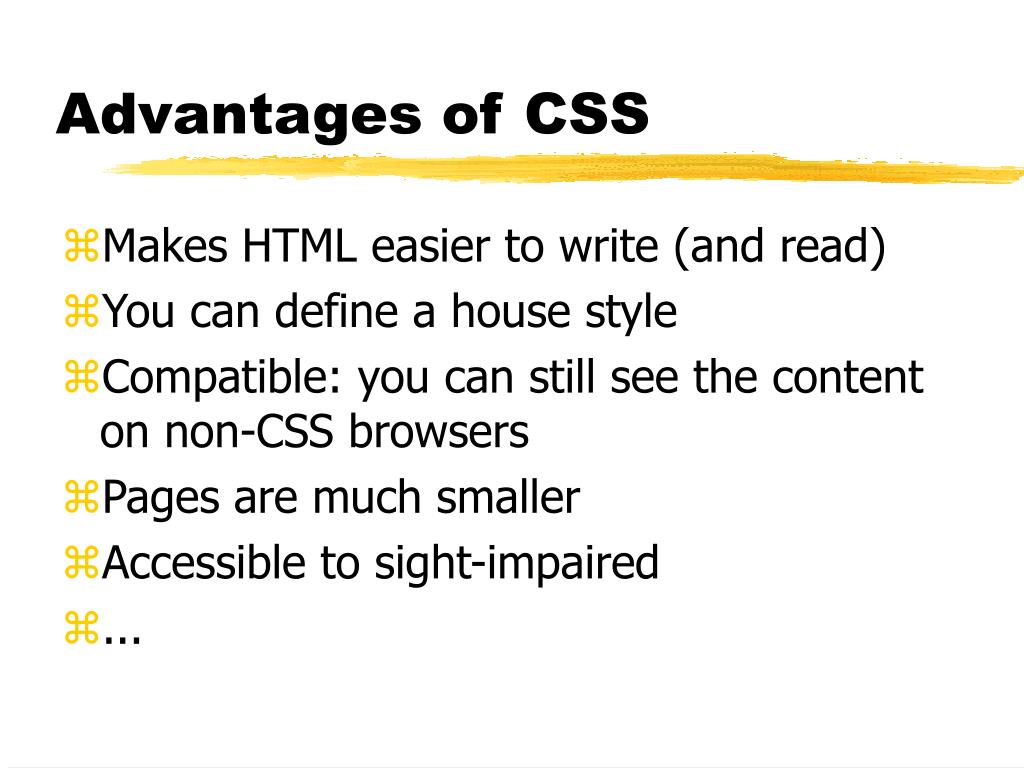

  23. Advantages of CSS • Makes HTML easier to write (and read) • You can define a house style • Compatible: you can still see the content on non-CSS browsers • Pages are much smaller • Accessible to sight-impaired • ...

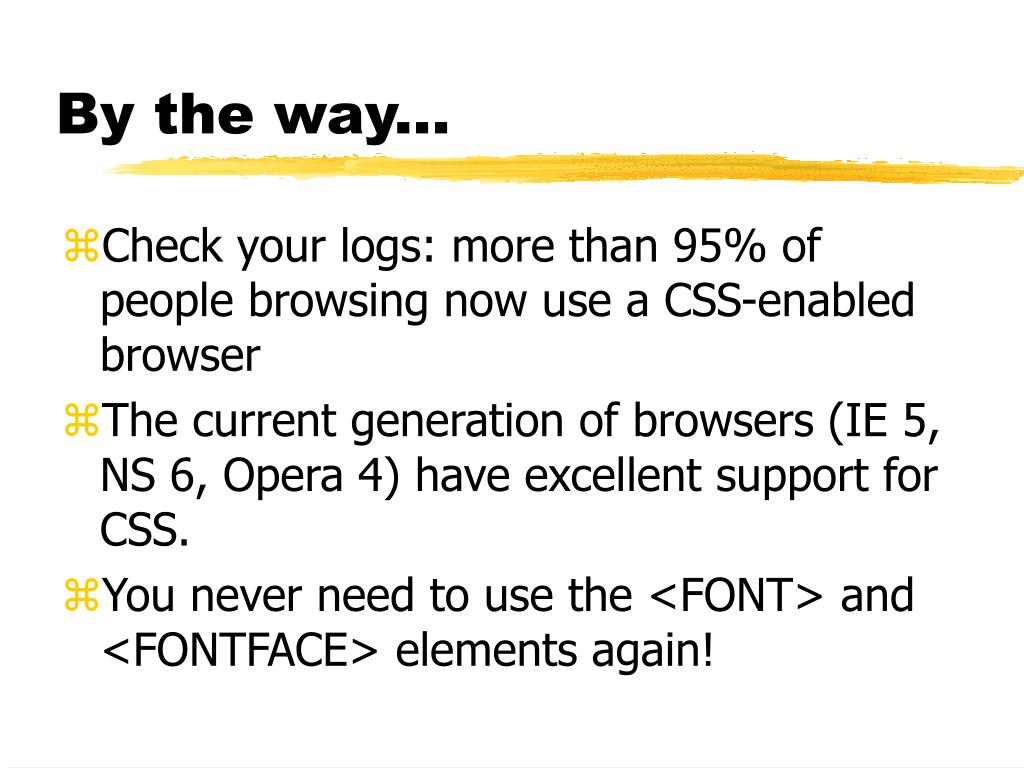

  24. By the way... • Check your logs: more than 95% of people browsing now use a CSS-enabled browser • The current generation of browsers (IE 5, NS 6, Opera 4) have excellent support for CSS. • You never need to use the <FONT> and <FONTFACE> elements again!

  25. Documents • As mentioned, HTML was designed for just one sort of document (scientific reports), but is now being used for all sorts of different documents • You could use SGML to define other sorts of document, but SGML is notoriously hard to fully implement • Enter XML

  26. Enter XML • XML is a W3C effort to simplify SGML • It is a meta-language: a language for defining languages • It is a subset of SGML • One of the aims is to allow everyone to invent their own tags • DTD is optional: a DTD can be inferred from a document

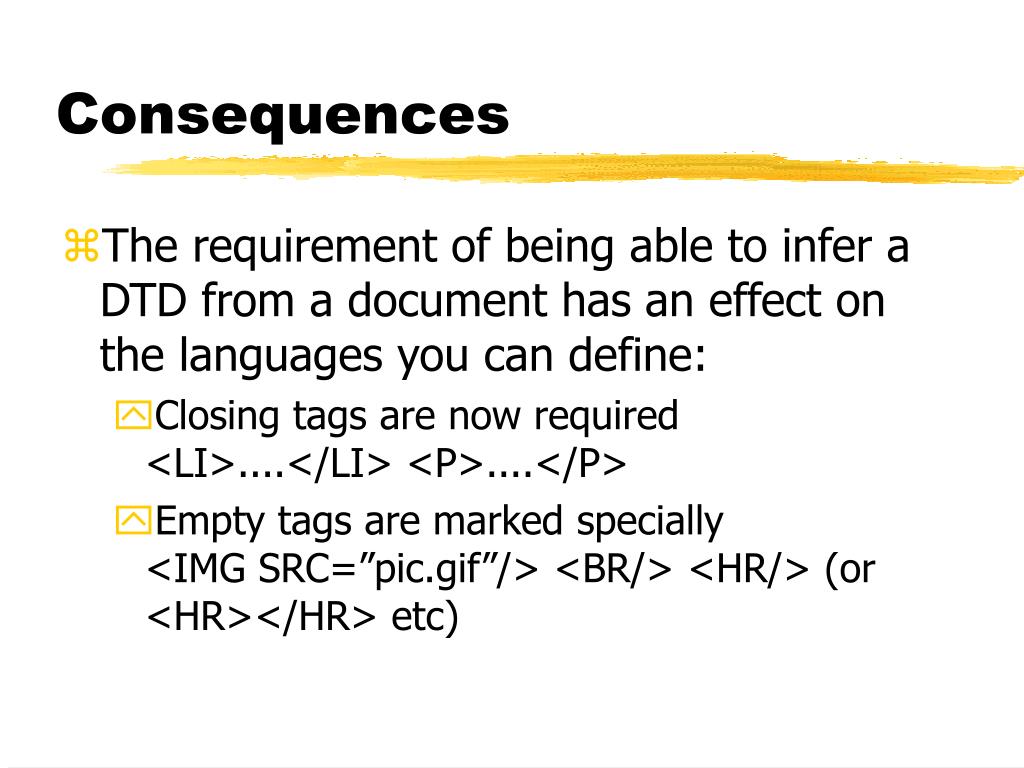

  27. Consequences • The requirement of being able to infer a DTD from a document has an effect on the languages you can define: • Closing tags are now required<LI>....</LI> <P>....</P> • Empty tags are marked specially <IMG SRC=”pic.gif”/> <BR/> <HR/> (or <HR></HR> etc)

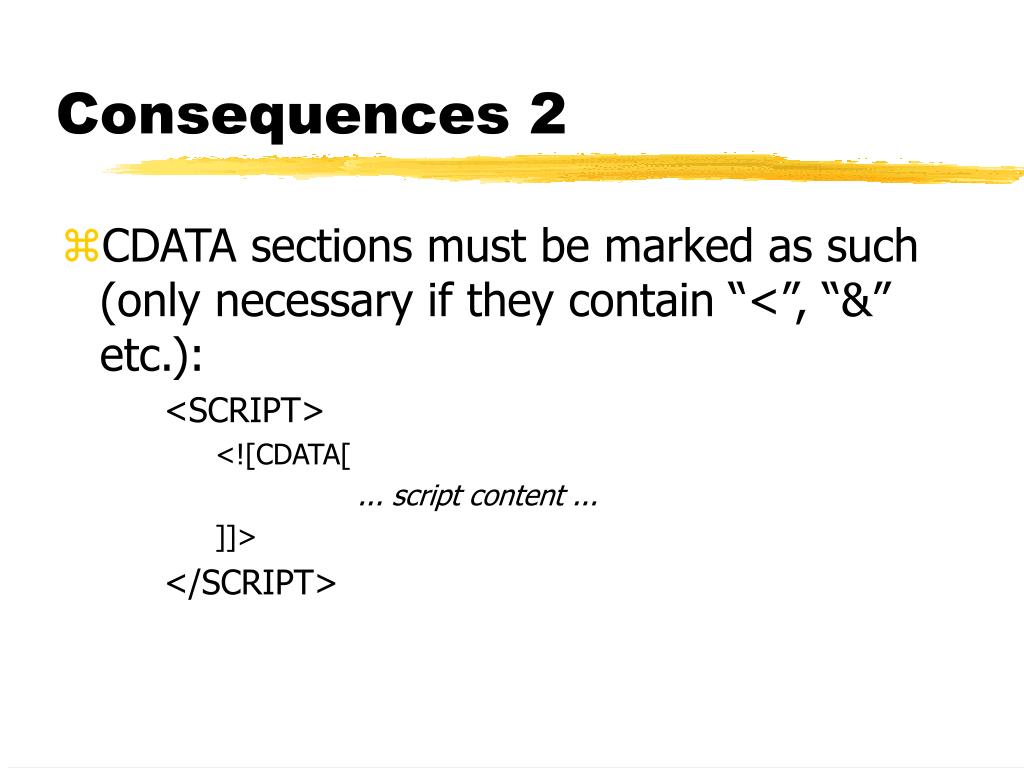

  28. Consequences 2 • CDATA sections must be marked as such (only necessary if they contain “<”, “&” etc.): <SCRIPT> <![CDATA[ ... script content ... ]]> </SCRIPT>

  29. Not Like This <H1>XML</H1> An underlying problem with HTML is that ... <P> You could use SGML to define ... But Like This <H1>XML</H1> <P> An underlying problem with HTML is that … </P> <P> You could use SGML to define ...</P> By the way: <P> is not like <BR>

  30. Consequence of XML • Anyone can now design their own (Web-delivered) languages • CSS makes them viewable <address> <name>Steven Pemberton</name> <company>CWI</company> <street>Kruislaan 413</street> <postcode>1098 SJ</postcode> <city>Amsterdam</city> <speaker/> </address>

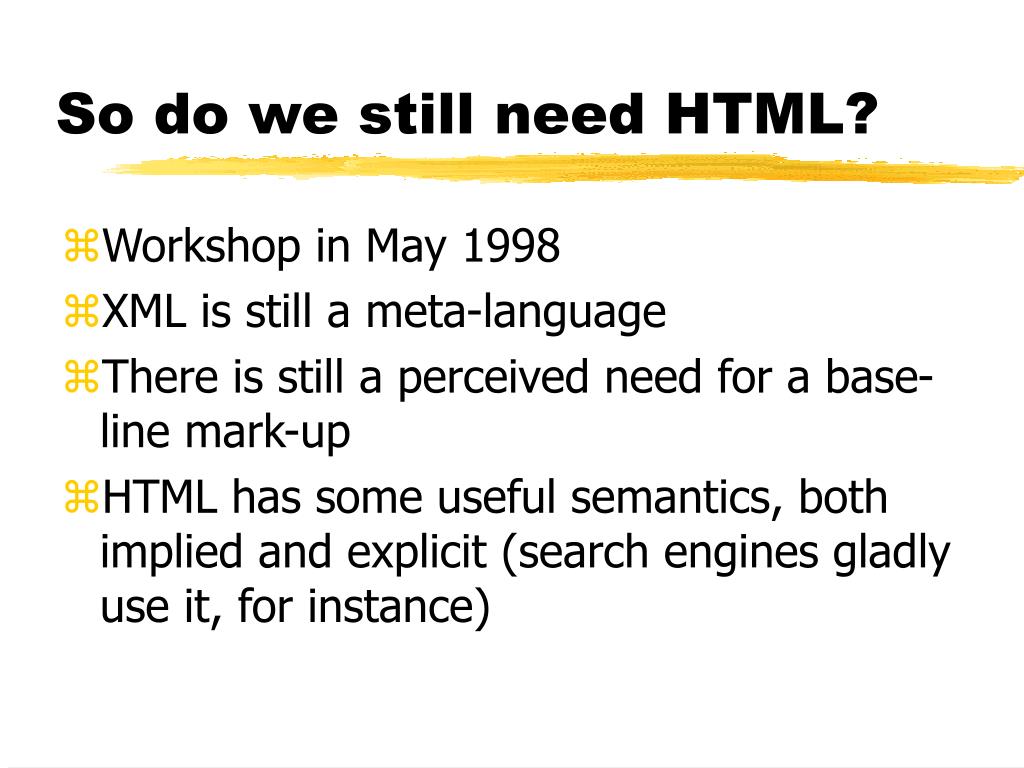

  31. So do we still need HTML? • Workshop in May 1998 • XML is still a meta-language • There is still a perceived need for a base-line mark-up • HTML has some useful semantics, both implied and explicit (search engines gladly use it, for instance)

  32. HTML as XML application • Clean up (get rid of historical flotsam) • Modularise – split into separate parts • Allows other XML applications to use parts • Allows special purpose devices to use subset • Add any required new functionality (forms, better event handling, Ruby)

  33. The HTML Working group • International membership, around 20 members • Many major players (IBM, Microsoft, Netscape, etc) • Meets weekly by phone, quarterly face-to-face

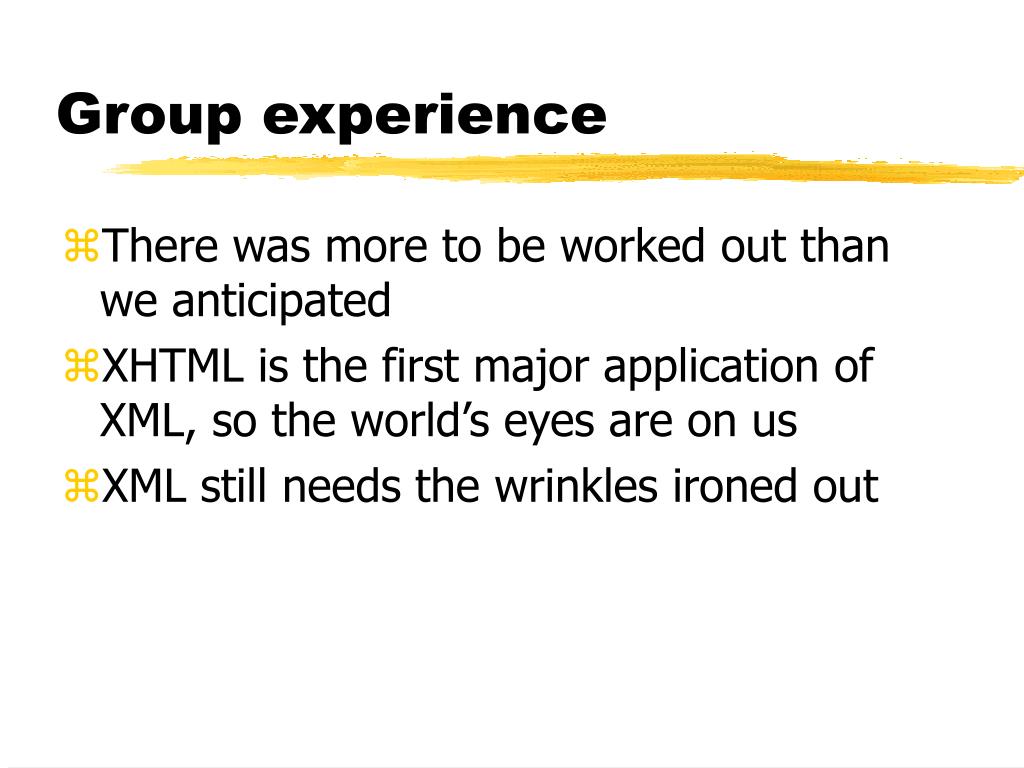

  34. Group experience • There was more to be worked out than we anticipated • XHTML is the first major application of XML, so the world’s eyes are on us • XML still needs the wrinkles ironed out

  35. Philosophy of XHTML • Transition from ‘old world’ to XML • Clean up the language • Return to structure only • Use generic XML as much as possible • Modularise • Address wider needs (International, Accessibility) • Add new functionality

  36. Plan of action • HTML 4.01: corrected version • XHTML 1.0: transitional version of HTML 4.01 in 3 flavours • Modularisation: agreement on split and methodology • XHTML Basic: Small devices • XHTML 1.1: clean version of 1.0 strict

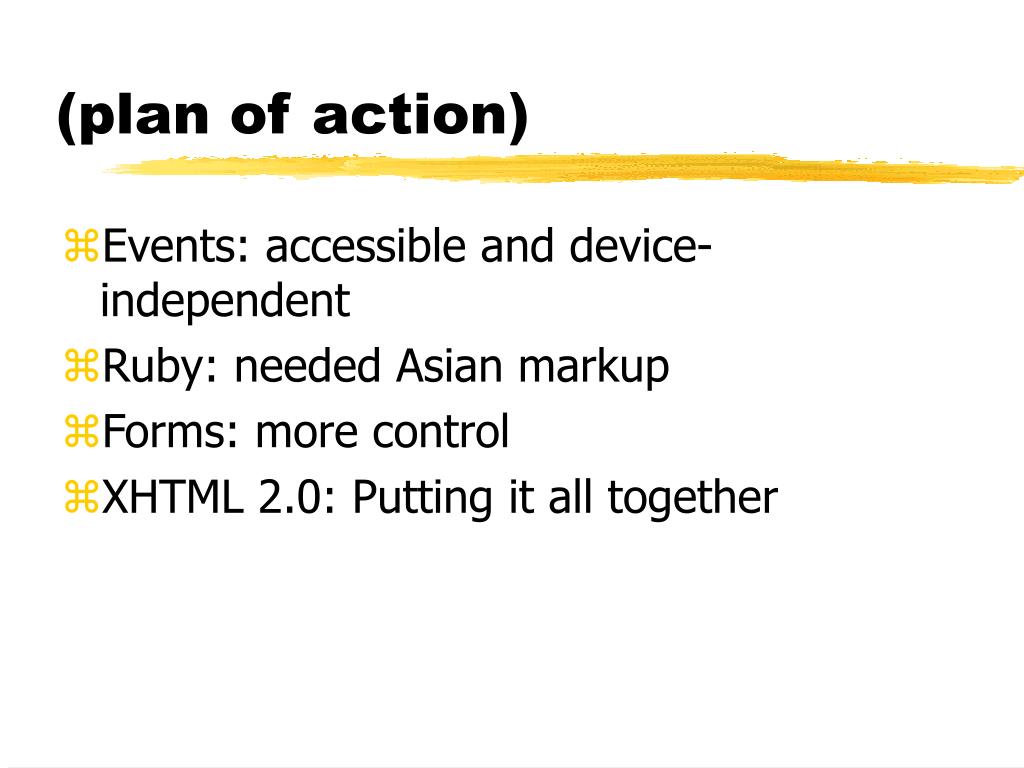

  37. (plan of action) • Events: accessible and device-independent • Ruby: needed Asian markup • Forms: more control • XHTML 2.0: Putting it all together

  38. Differences HTML:XHTML • Because of the difference between SGML and XML, there are some necessary differences, for instance: • Use lower case: <p> not <P> • Attributes are always quoted: <th colspan=”2”> • Anchors use id attribute not name (and not just on <a> by the way):<a id=”index”> <p id=”top”>

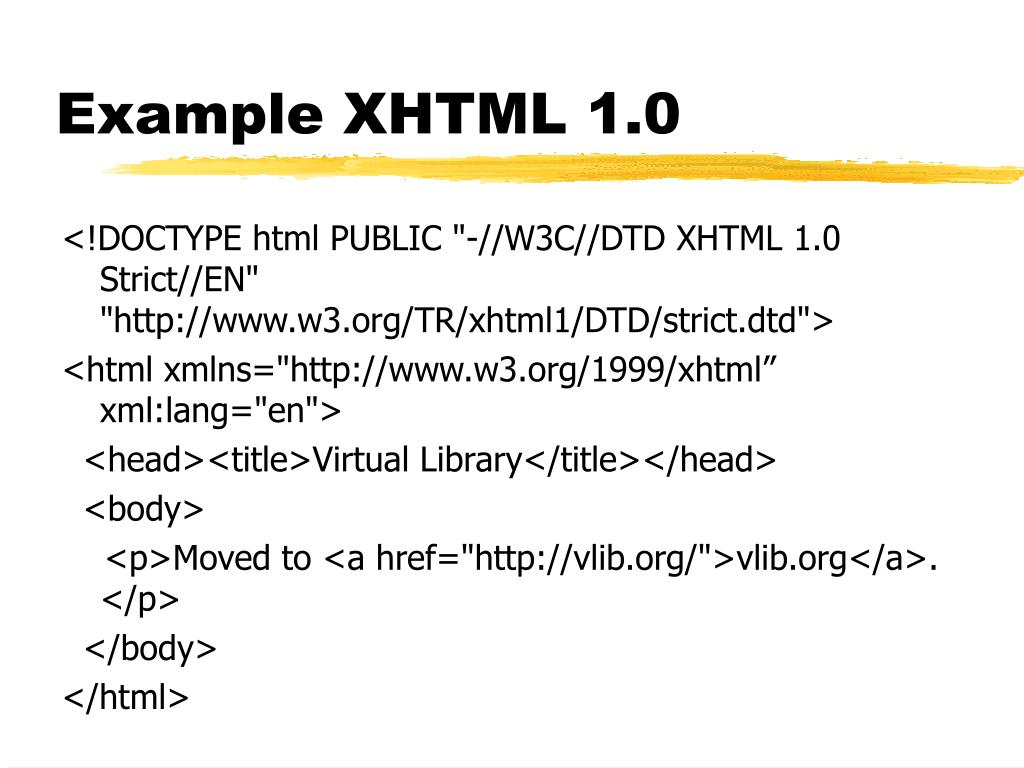

  39. Example XHTML 1.0 <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml” xml:lang="en"> <head><title>Virtual Library</title></head> <body> <p>Moved to <a href="http://vlib.org/">vlib.org</a>. </p> </body> </html>

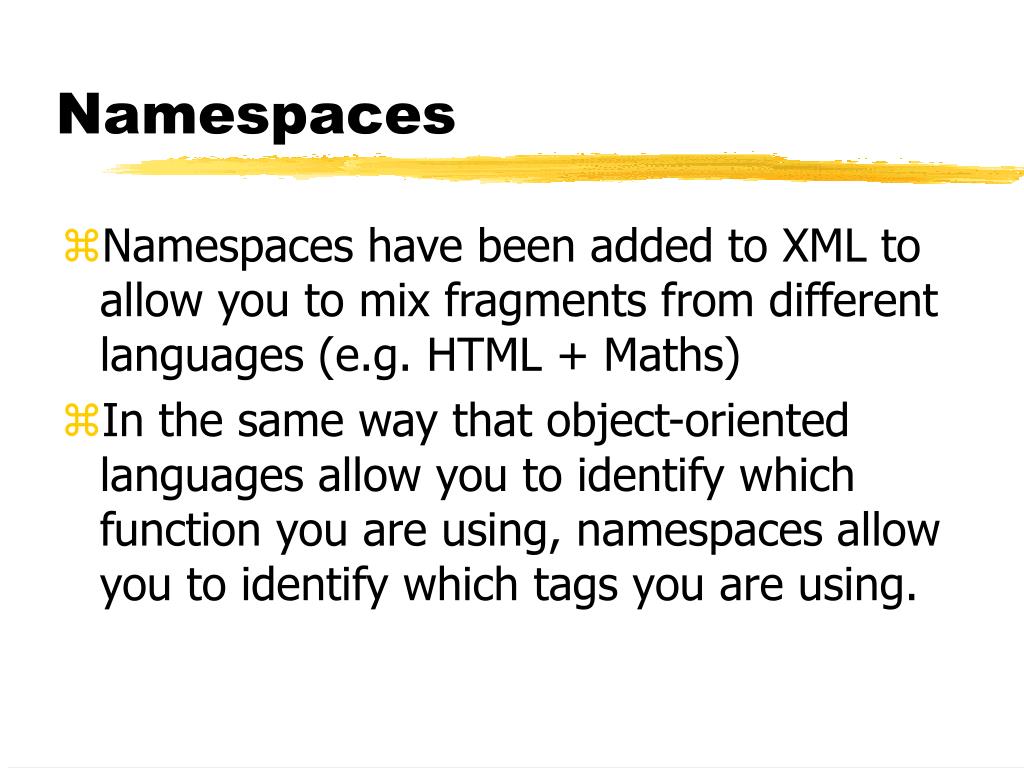

  40. Namespaces • Namespaces have been added to XML to allow you to mix fragments from different languages (e.g. HTML + Maths) • In the same way that object-oriented languages allow you to identify which function you are using, namespaces allow you to identify which tags you are using.

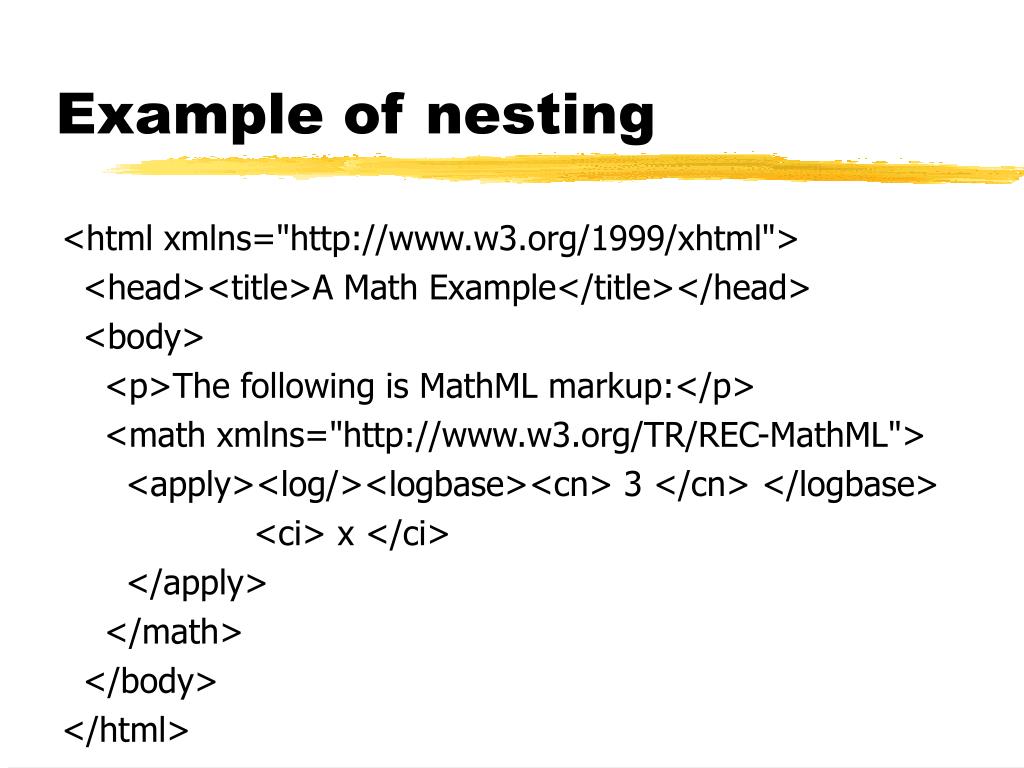

  41. Example of nesting <html xmlns="http://www.w3.org/1999/xhtml"> <head><title>A Math Example</title></head> <body> <p>The following is MathML markup:</p> <math xmlns="http://www.w3.org/TR/REC-MathML"> <apply><log/><logbase><cn> 3 </cn> </logbase> <ci> x </ci> </apply> </math> </body> </html>

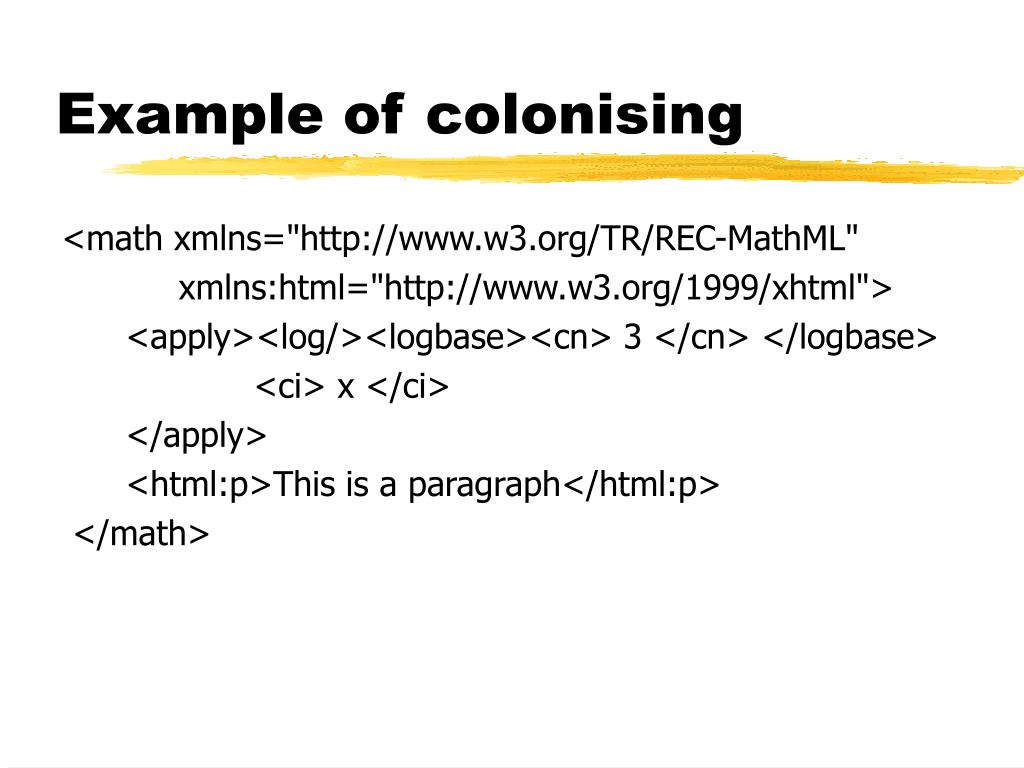

  42. Example of colonising <math xmlns="http://www.w3.org/TR/REC-MathML" xmlns:html="http://www.w3.org/1999/xhtml"> <apply><log/><logbase><cn> 3 </cn> </logbase> <ci> x </ci> </apply> <html:p>This is a paragraph</html:p> </math>

  43. Namespaced attributes • Attributes normally come from the element itself: <html:a href="next.xml"> • But you may also use ‘global’ attributes from a namespace: <pointer html:href="x.xml"> <music style="classical" html:style="color: red">Beethoven’s 5th</music>

  44. XML ‘namespace’ • XML also has its own pseudo-namespace for reserved attributes: <para xml:lang="en">

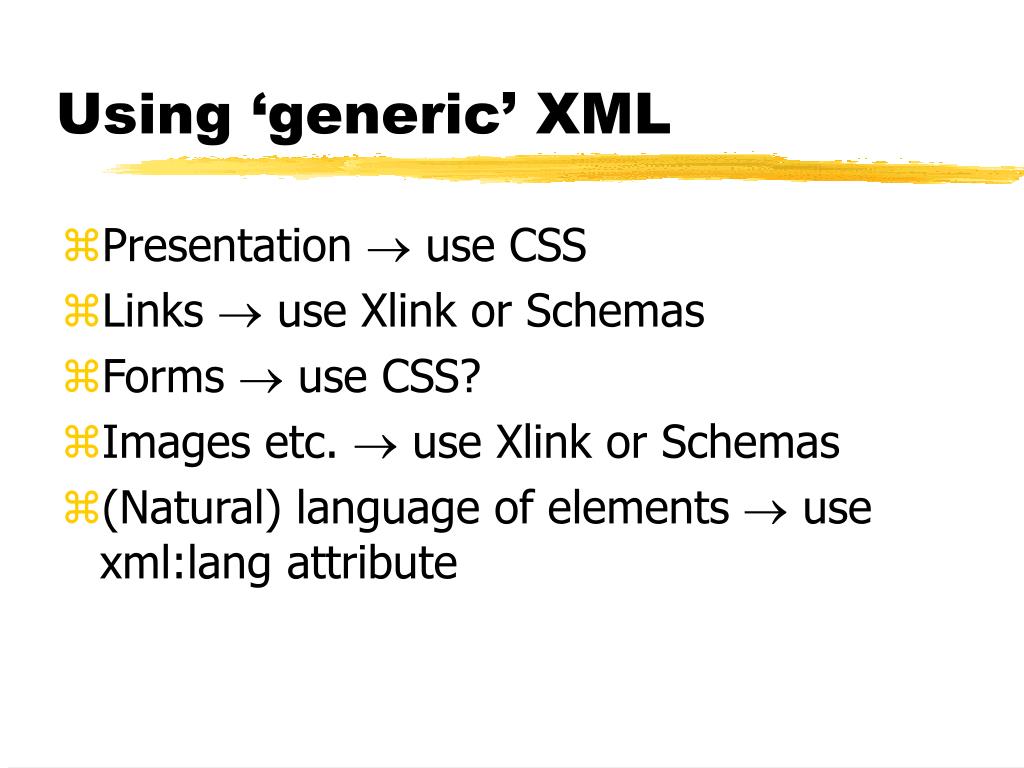

  45. Using ‘generic’ XML • Presentation  use CSS • Links  use Xlink or Schemas • Forms  use CSS? • Images etc.  use Xlink or Schemas • (Natural) language of elements  use xml:lang attribute

  46. Xlink? • HTML has several ‘built-in’ hyperlinks: <a>, <img>, <object>, <link>, etc. • Since XML allows you to define your own elements, a browser doesn’t know which are links • Xlink was started to solve this problem.

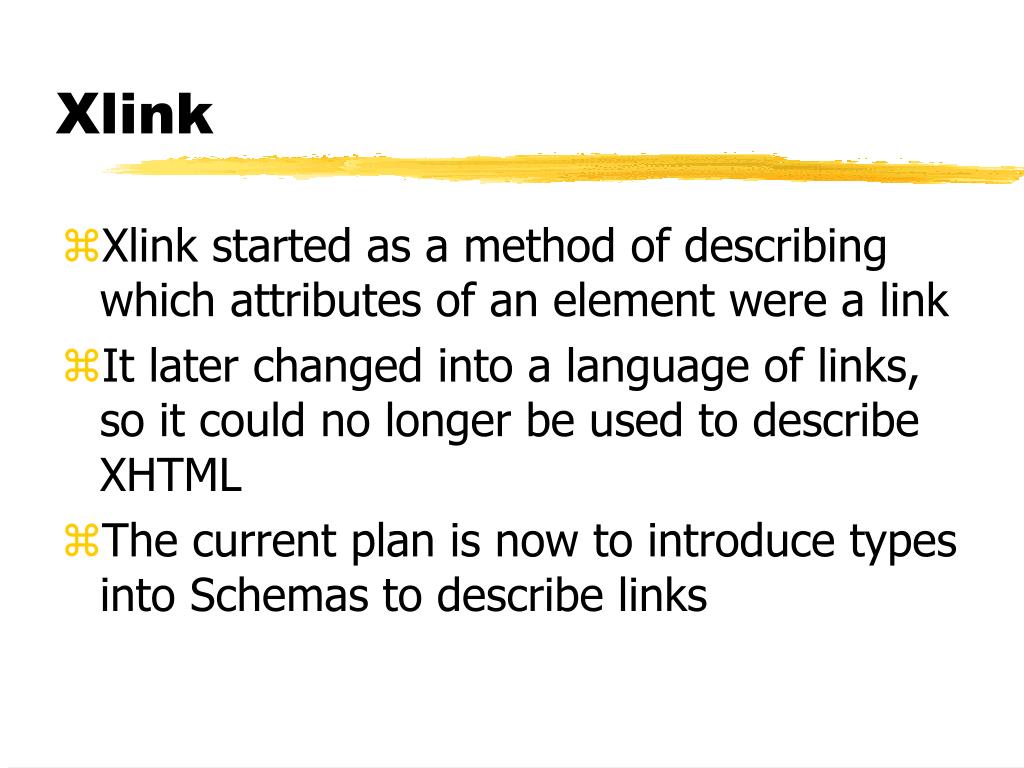

  47. Xlink • Xlink started as a method of describing which attributes of an element were a link • It later changed into a language of links, so it could no longer be used to describe XHTML • The current plan is now to introduce types into Schemas to describe links

  48. Example of Xlink <crossReference xmlns:xlink="http://www.w3.org/1999/xlink" xlink:type="simple" xlink:href="students.xml" xlink:role="studentlist" xlink:title="Student List" xlink:show="new" xlink:actuate="onRequest"> Current List of Students </crossReference>

  49. Schemas • Schemas are a new technology to replace much of DTDs. • Schemas are expressed in XML • They have support for data types • Much easier to parse and implement than DTDs

  50. Schemas: but • They don’t support the definition of entities (&eacute;) • Not easy to read (or write)
