Understanding Usable Distributed Computing Power: Insights and Strategies

This presentation delves into the concept of usable distributed computing power and its implications for enterprise efficiency. With insights from Bradford Camp and Christopher Lynn of Safeway, the discussion covers average CPU utilization, optimal levels for various server types, and factors contributing to underutilization. The analysis includes strategies for clarifying actual usable computing power, understanding high availability configurations, and reducing legacy incompatibility issues. Ultimately, organizations can discover ways to optimize resource usage, moving beyond traditional notions of capacity and efficiency.

astrid
Télécharger la présentation

Understanding Usable Distributed Computing Power: Insights and Strategies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

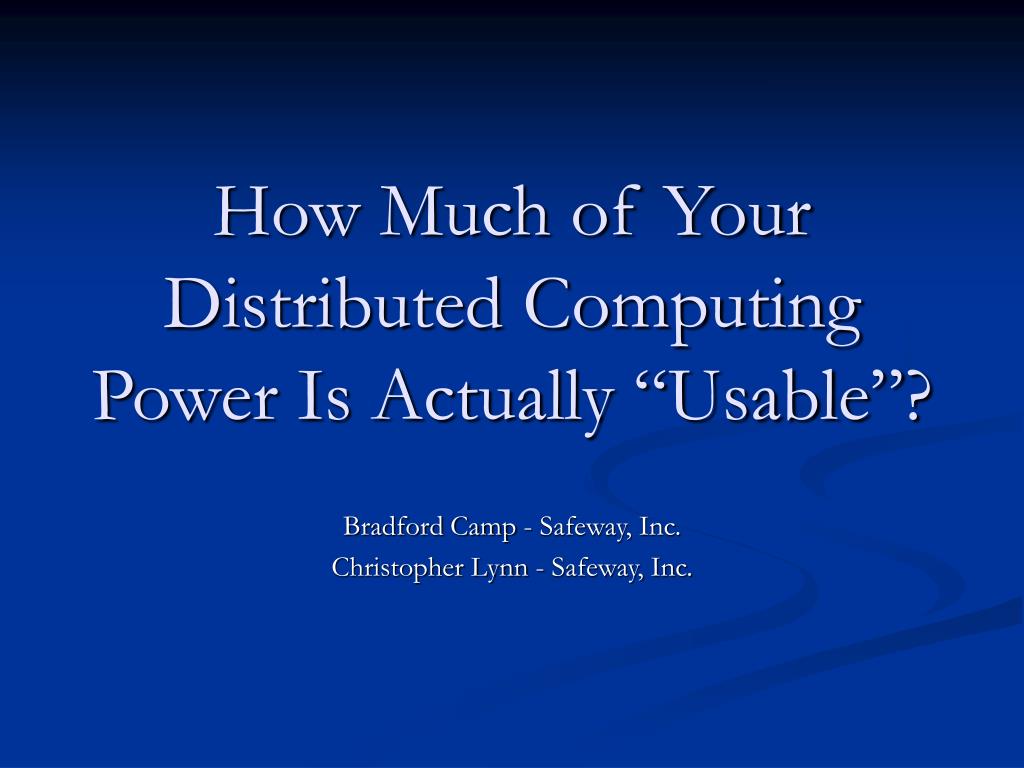

  1. How Much of Your Distributed Computing Power Is Actually “Usable”? Bradford Camp - Safeway, Inc. Christopher Lynn - Safeway, Inc.

  2. Who is the audience? • How many years have participated in CMG 1, 3, 5, 10? • How many of you focus on distributed servers (unix, windows), mainframe, EDW, tandem, network? • What is your enterprise overall average CPU utilization? (5%, 10%, 20%, 30%)

  3. Disclaimers • There will be no Greek letters in this presentation. • The most sophisticated math in this presentation is an average.

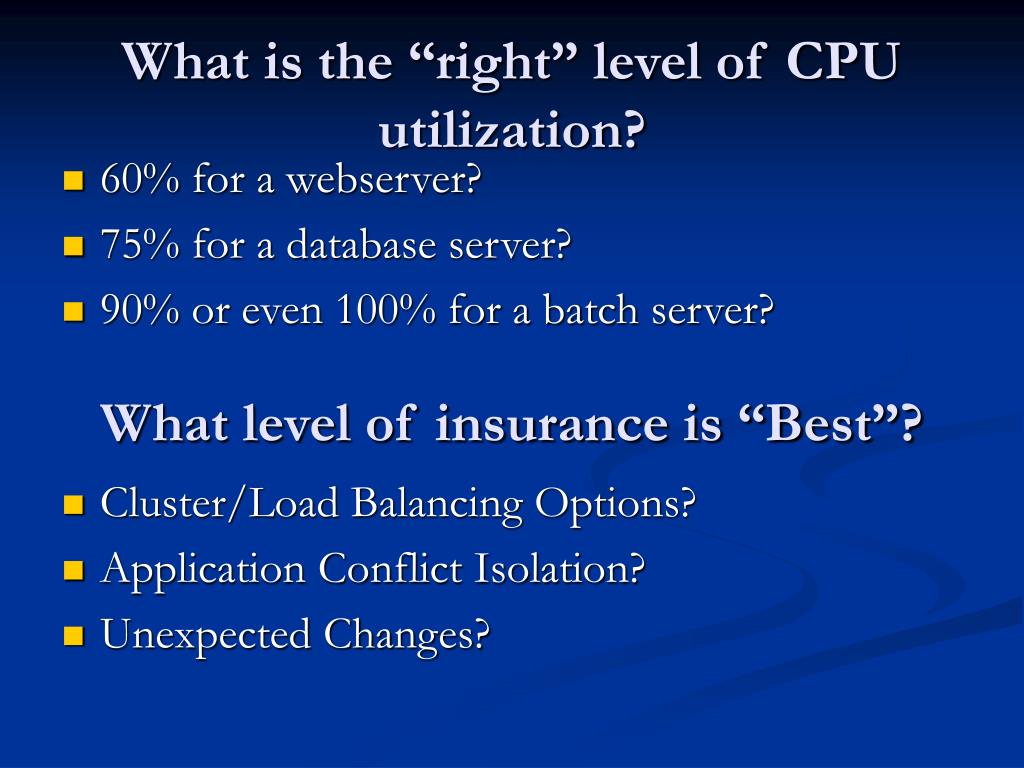

  4. What is the “right” level of CPU utilization? • 60% for a webserver? • 75% for a database server? • 90% or even 100% for a batch server? What level of insurance is “Best”? • Cluster/Load Balancing Options? • Application Conflict Isolation? • Unexpected Changes?

  5. Status Quo/ “Waste” Drivers • Clusters • Active:Passive (1:1, 2:1, 3:1, 4:1) • Load balancing • 2 nodes (for availability even if didn’t need the capacity) • 3-15 nodes • Incompatability • Legacy applications that the business doesn’t want to spend the time or money to upgrade or test on newer versions. • Lack of standards resulting in many isolated versions • “Max” utilization of a system • System Administrators had/have a utilization number in their head of what they won’t run above • Cheapest Purchasing Unit • Need 2 processors, but cheaper to buy a quad core – “waste” more, but cheaper (prior to virtualization)

  6. The Under-Utilization Gap • Macro Capacity Planning • Terminology • Available: Physical Resources • Usable: Not Reserved or Not Incompatible • Unusable: Available, but Not Usable • Unutilized: Usable, but Not Used • Computing Power Standard - SpecInt

  7. The Gap

  8. How Much Processing Power is Really Usable? • The Key Factors: • Sustained Peak Maximum CPU Level (SPMCL) (Insurance) • High Availability (Insurance): • Redundant Solutions • Load Balancing • Incompatibility (Legacy Costs): • Multiple Technology Standards • Application Incompatibility

  9. Usable Computing Power

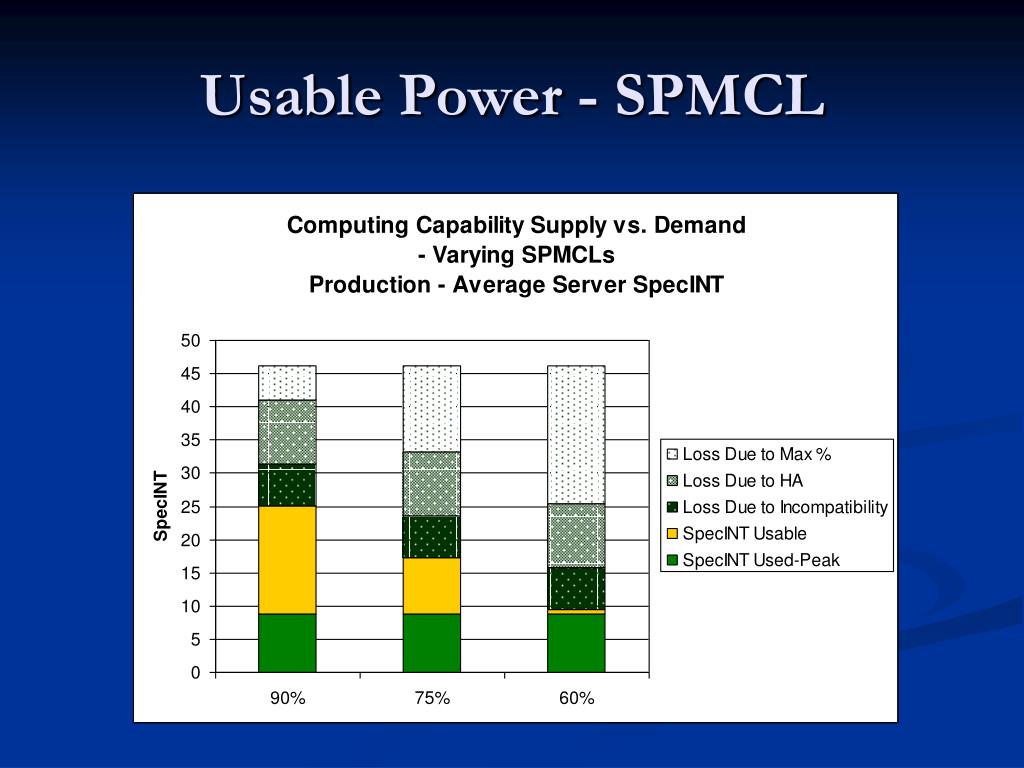

  10. Usable Power - SPMCL

  11. Quantifying the Key Factors

  12. Your Next Steps Clarify Your Actual Usable Computing Power: • Define Your SPMCLs (Sustained Peak Maximum CPU Level ) • Understand Your HA and LB Configurations • Identify Your Incompatibility Issues

  13. Conclusions • Organizations are probably “wasting” less resource than initially thought. • High Availability, Insurance, and Standards have real long term costs beyond initial capital investment. • There is no 1 right number for what CPU utilization “should” be. • Even with this perspective there is usually still more unutilized capacity. • These principles can also be applied to other resources like File System Space.
