  1. Aaron Edsinger & Charlie Kemp Humanoid Robotics Group MIT CSAIL Manipulation in Human Environments

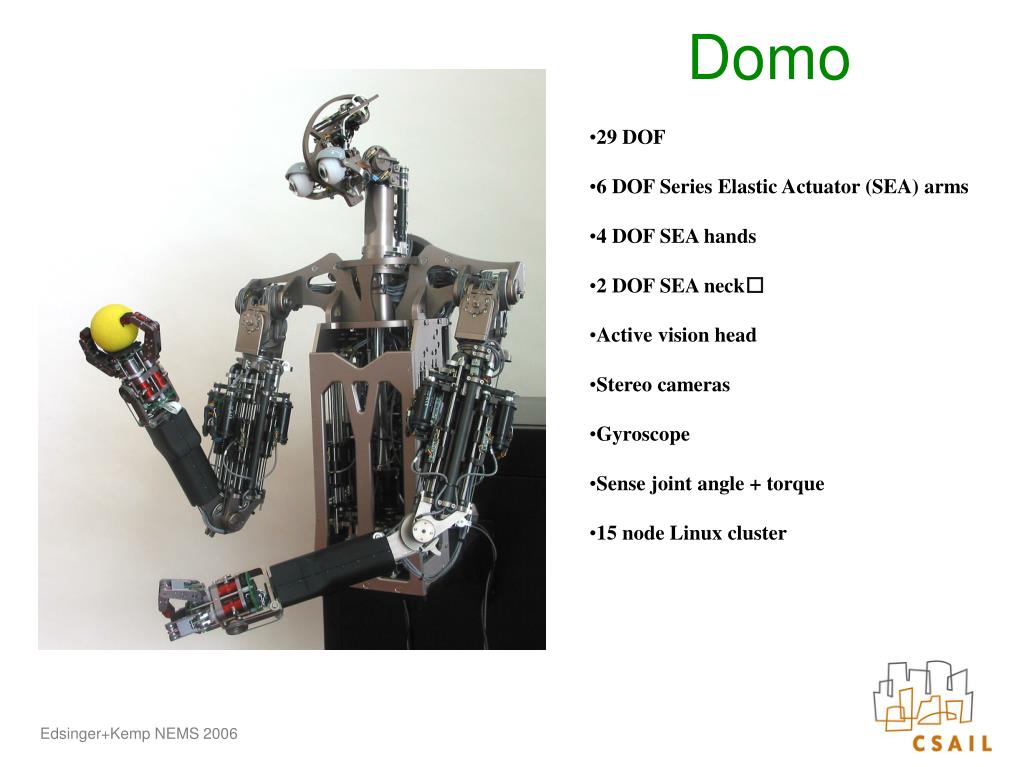

  2. Domo • 29 DOF • 6 DOF Series Elastic Actuator (SEA) arms • 4 DOF SEA hands • 2 DOF SEA neck • Active vision head • Stereo cameras • Gyroscope • Sense joint angle + torque • 15 node Linux cluster

  3. Manipulation in Human Environments Human environments are designed to match our cognitive and physical abilities • Work with everyday objects • Collaborate with people • Perform useful tasks

  4. Applications • Aging in place • Cooperative manufacturing • Household chores

  5. Three Themes • Let the body do the thinking • Collaborative manipulation • Task relevant features

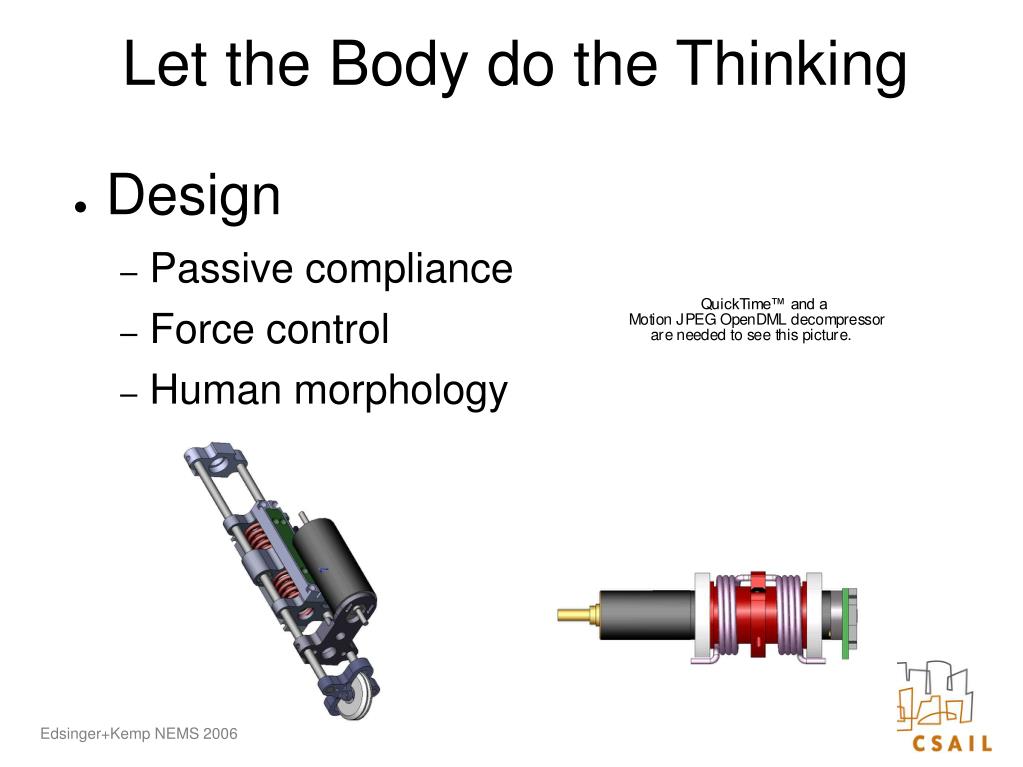

  6. Let the Body do the Thinking • Design • Passive compliance • Force control • Human morphology

  7. Let the Body do the Thinking • Compensatory behaviors • Reduce uncertainty • Modulate arm stiffness • Aid perception (motion, visibility) • Test assumptions (explore)

  8. Let the Body Do the Thinking

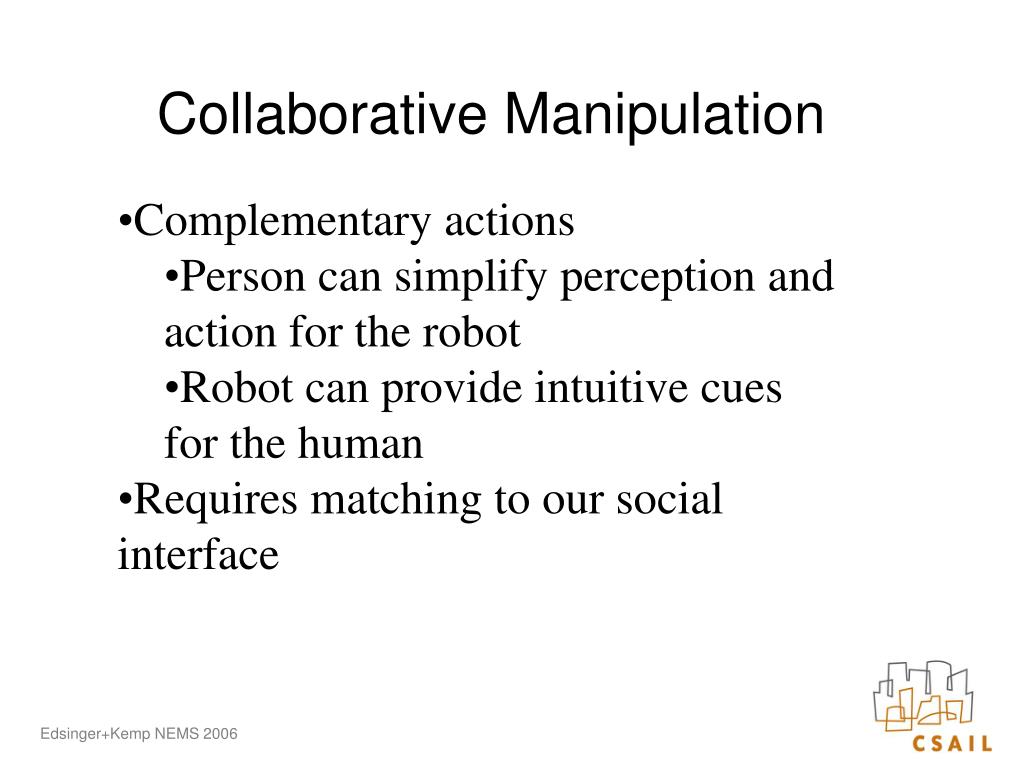

  9. Collaborative Manipulation • Complementary actions • Person can simplify perception and action for the robot • Robot can provide intuitive cues for the human • Requires matching to our social interface

  10. Collaborative Manipulation Social amplification

  11. Collaborative Manipulation • A third arm: • Hold a flashlight • Fixture a part • Extend our physical abilities: • Carry groceries • Open a jar • Expand our workspace: • Place dishes in a cabinet • Hand a tool • Reach a shelf

  12. Task Relevant Features • What is important? • What is irrelevant? *Distinct from object detection/recognition.

  13. Structure In Human Environments Donald Norman The Design of Everyday Objects

  14. Structure In Human Environments Human environments are constrained to match our cognitive and physical abilities • Sense from above • Flat surfaces • Objects for human hands • Objects for use by humans

  15. Why are tool tips common? • Single, localized interface to the world • Physical isolation helps avoid irrelevant contact • Helps perception • Helps control

  16. Tool Tip Detection • Visual + motor detection method • Kinematic Estimate • Visual Model

  17. Mean Pixel Error for Automatic and Hand Labelled Tip Detection

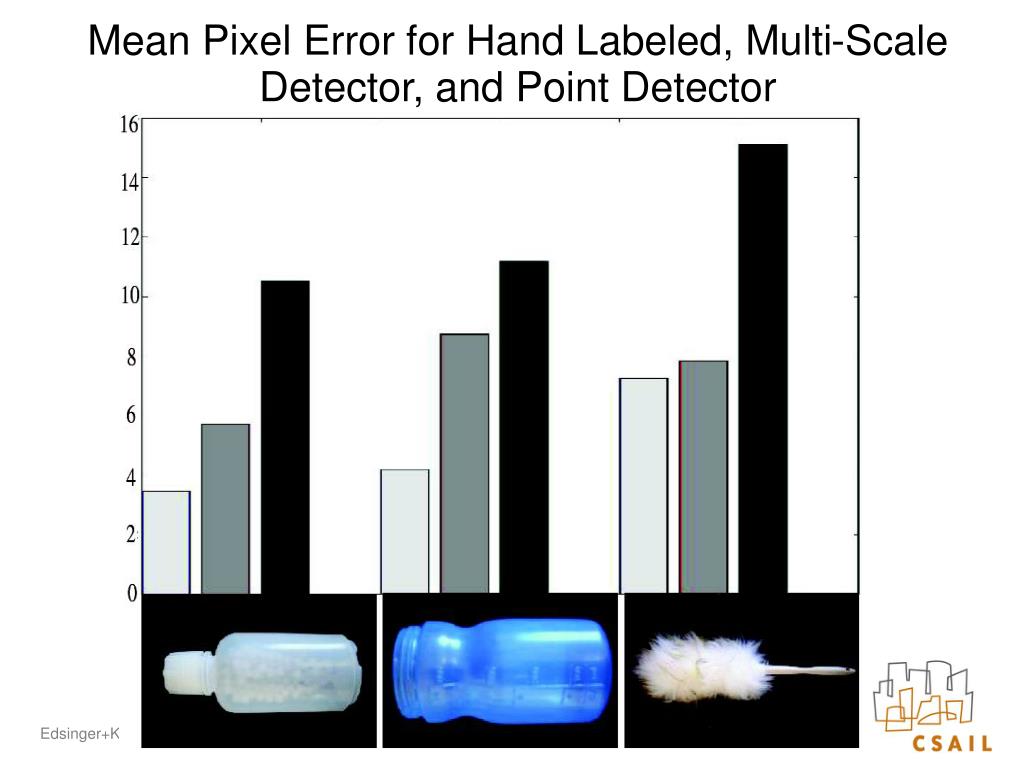

  18. Mean Pixel Error for Hand Labeled, Multi-Scale Detector, and Point Detector

  19. Model-Free Insertion • Active tip perception • Arm stiffness modulation • Human interaction

  20. Other Examples • Circular openings • Handles • Contact Surfaces • Gravity Alignment

  21. Future:Generalize What You've Learned • Across objects • Perceptually map tasks across objects • Key features map to key features • Across manipulators • Motor equivalence • Manipulator details may be irrelevant

  22. RSS 2006 Workshop Manipulation for Human Environments Robotics: Science and Systems University of Pennsylvania , August 19th, 2006 manipulation.csail.mit.edu/rss06

  23. Summary • Importance of Task Relevant Features • Example of the tool tip • Large set of hand tools • Robust detection (visual + motor) • Kinematic estimate • Visual model

  24. In Progress • Perform a variety of tasks • Insertion • Pouring • Brushing

  25. Learning from Demonstration

  26. The Detector Responds To Fast Motion Convex

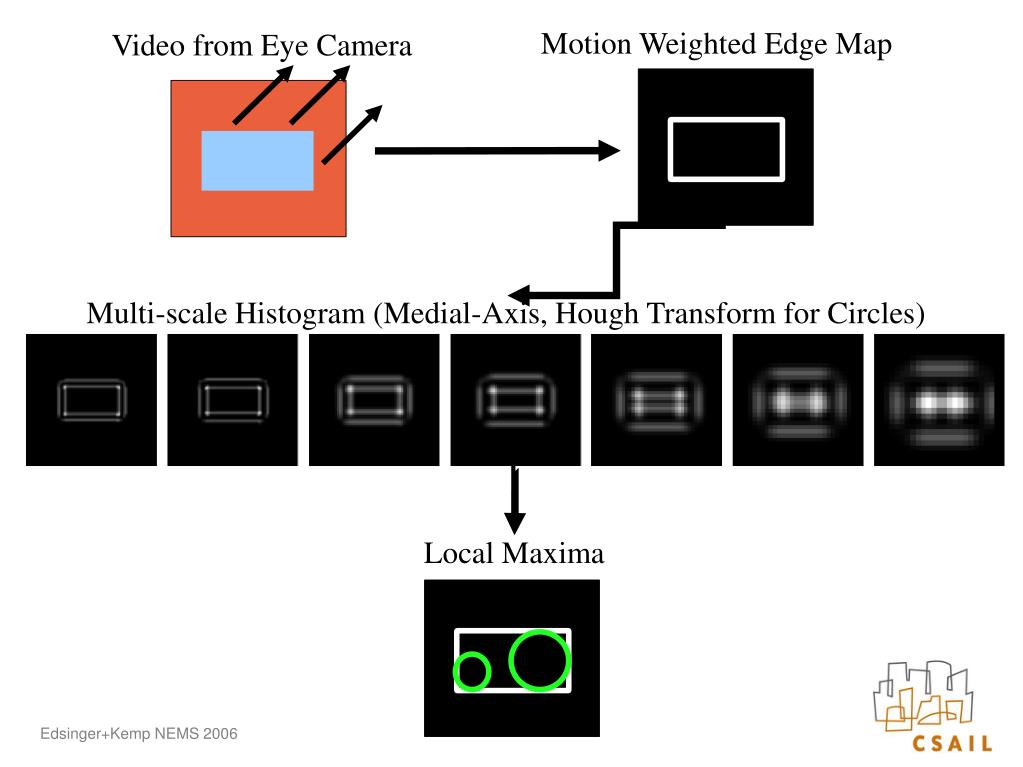

  27. Multi-scale Histogram (Medial-Axis, Hough Transform for Circles) Motion Weighted Edge Map Video from Eye Camera Local Maxima

  28. Defining Characteristics • Geometric • Isolated • Distal • Localized • Convex • Cultural/Design • Far from natural grasp location • Long distance relative to hand size

  29. Other Task Relevant Features?

  30. Detecting the Tip

  31. Include Scale and Convexity

  32. Distinct Perceptual Problem • Not object recognition • How should it be used • Distinct methods and features

  33. Use The Hand's Frame • Combine weak evidence • Rigidly grasped

  34. Acquire a Visual Model
