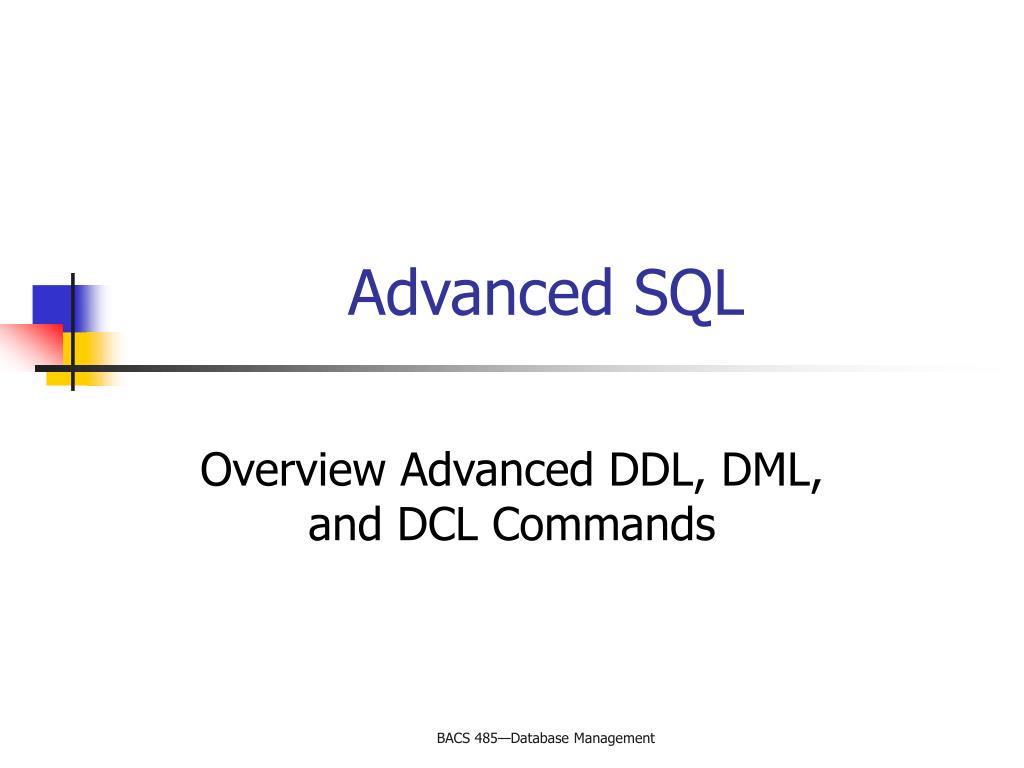

  1. Advanced SQL Overview Advanced DDL, DML, and DCL Commands BACS 485—Database Management

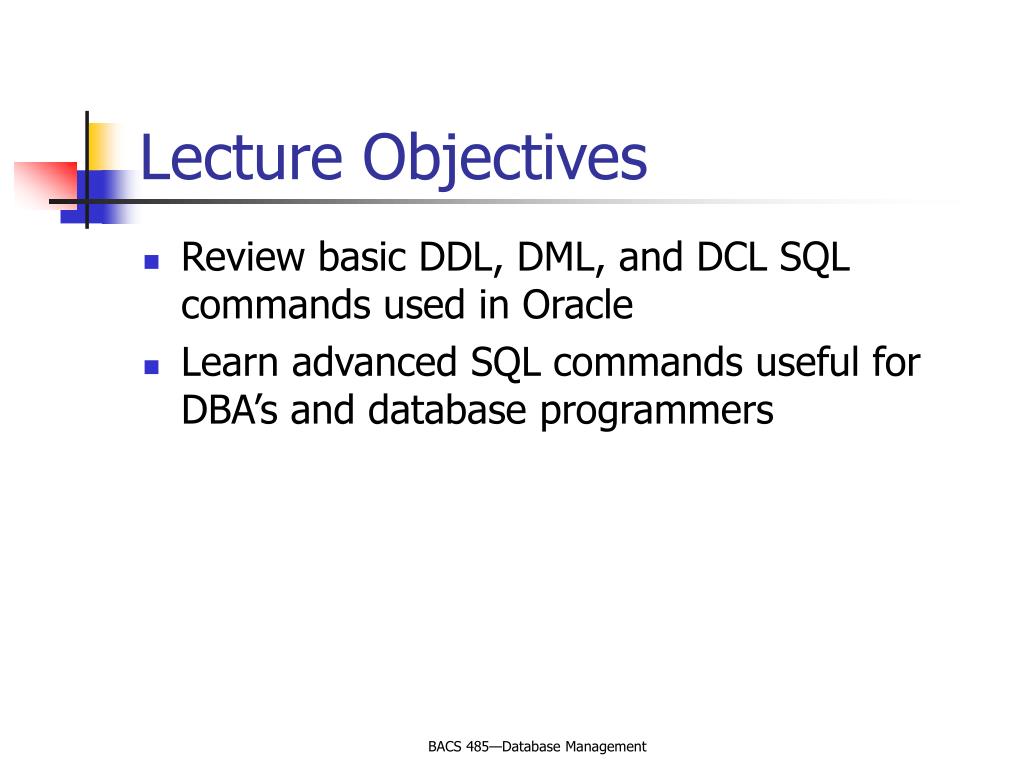

  2. Lecture Objectives • Review basic DDL, DML, and DCL SQL commands used in Oracle • Learn advanced SQL commands useful for DBA’s and database programmers BACS 485—Database Management

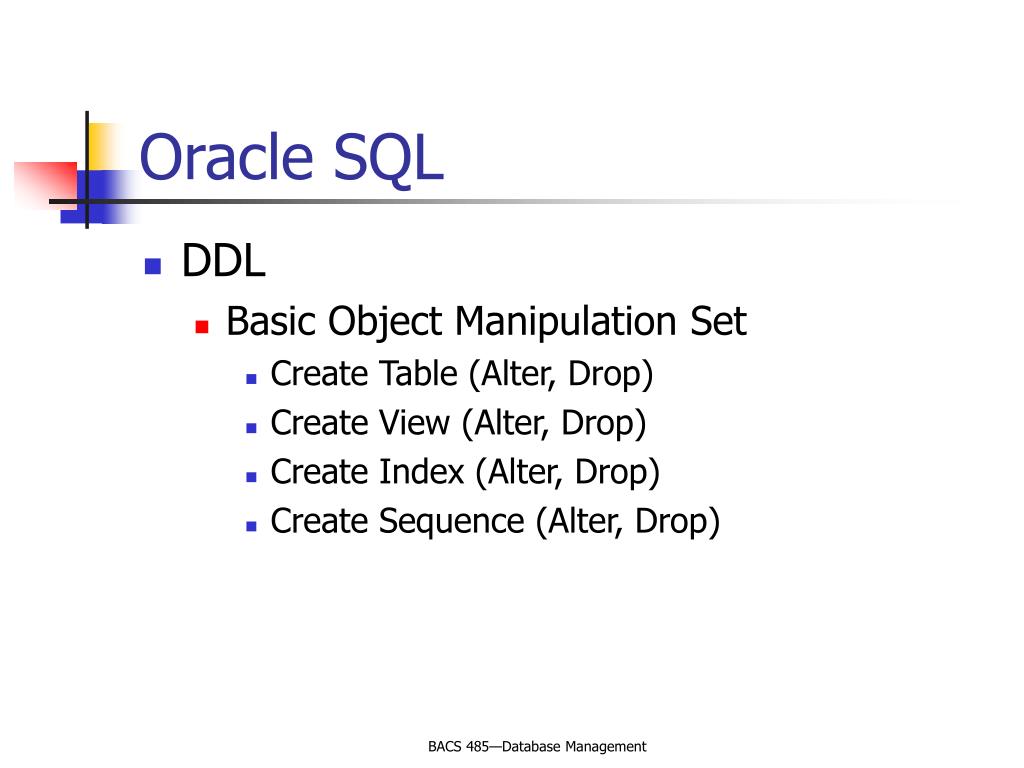

  3. Oracle SQL • DDL • Basic Object Manipulation Set • Create Table (Alter, Drop) • Create View (Alter, Drop) • Create Index (Alter, Drop) • Create Sequence (Alter, Drop) BACS 485—Database Management

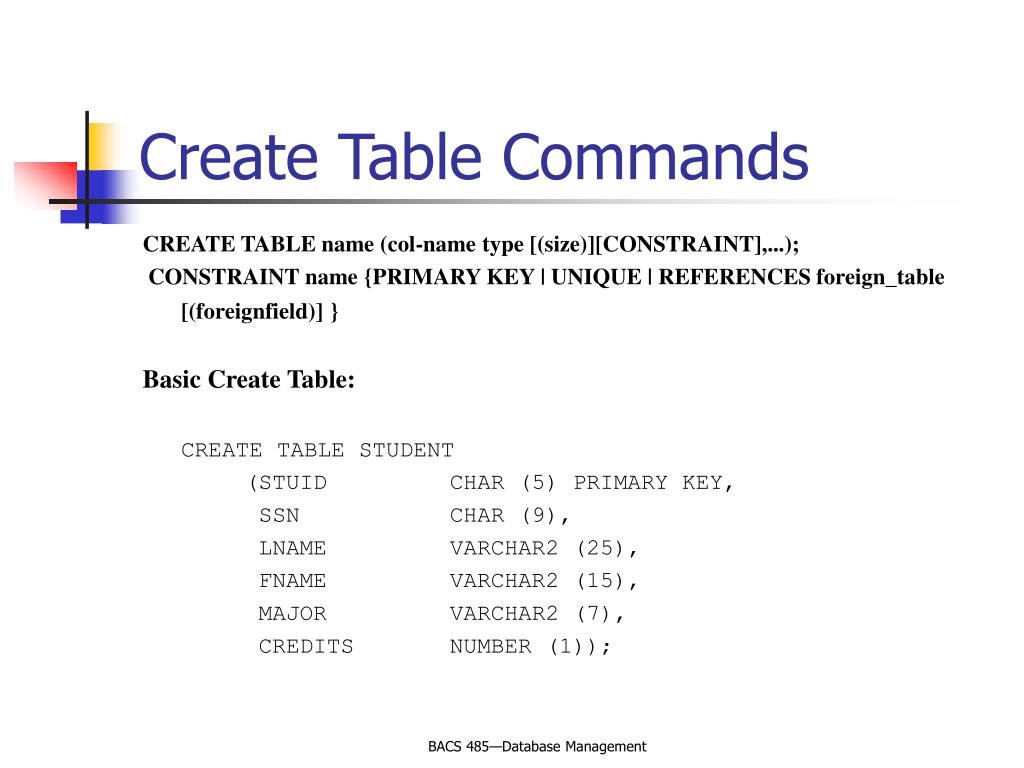

  4. Create Table Commands CREATE TABLE name (col-name type [(size)][CONSTRAINT],...); CONSTRAINT name {PRIMARY KEY | UNIQUE | REFERENCES foreign_table [(foreignfield)] } Basic Create Table: CREATE TABLE STUDENT (STUID CHAR (5) PRIMARY KEY, SSN CHAR (9), LNAME VARCHAR2 (25), FNAME VARCHAR2 (15), MAJOR VARCHAR2 (7), CREDITS NUMBER (1)); BACS 485—Database Management

  5. Create Table Commands CREATE TABLE scott.emp (empno NUMBER CONSTRAINT pk_emp PRIMARY KEY, ename VARCHAR2(10) CONSTRAINT nn_ename NOT NULL CONSTRAINT upper_ename CHECK (ename = UPPER(ename)), job VARCHAR2(9), mgr NUMBER CONSTRAINT fk_mgr REFERENCES scott.emp(empno) on delete cascade, hiredate DATE DEFAULT SYSDATE, sal NUMBER(10,2) CONSTRAINT ck_sal CHECK (sal > 500), comm NUMBER(9,0) DEFAULT NULL, deptno NUMBER(2) CONSTRAINT nn_deptno NOT NULL CONSTRAINT fk_deptno REFERENCES scott.dept(deptno)); BACS 485—Database Management

  6. Alter Table Commands ALTER TABLE emp ADD (CONSTRAINT sal_com_cc CHECK (sal + comm <= 5000)) DISABLE CONSTRAINT sal_com_cc; ALTER TABLE EMP DROP (SSN) CASCADE CONSTRAINTS; ALTER TABLE dept ADD CONSTRAINT manager_fk FOREIGN KEY (manager) REFERENCES emp (mgr); ALTER TABLE emp ADD (thriftplan NUMBER(7,2), loancode CHAR(1) NOT NULL); BACS 485—Database Management

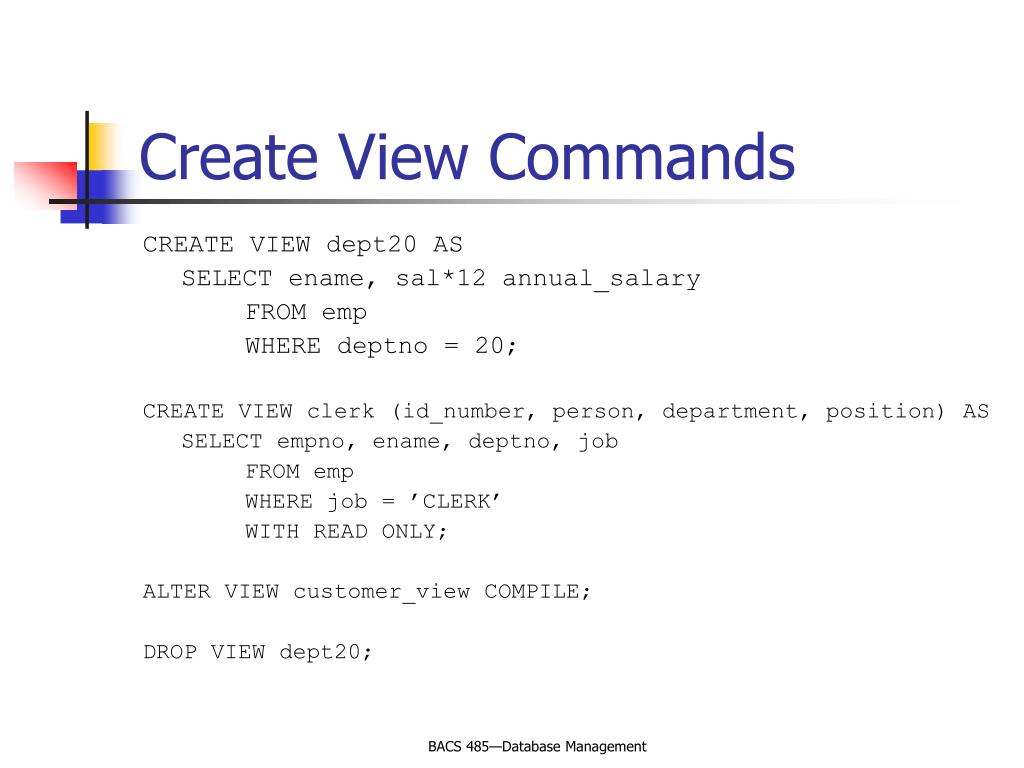

  7. Create View Commands CREATE VIEW dept20 AS SELECT ename, sal*12 annual_salary FROM emp WHERE deptno = 20; CREATE VIEW clerk (id_number, person, department, position) AS SELECT empno, ename, deptno, job FROM emp WHERE job = ’CLERK’ WITH READ ONLY; ALTER VIEW customer_view COMPILE; DROP VIEW dept20; BACS 485—Database Management

  8. Index Commands CREATE INDEX emp_idx ON scott.emp (ename); CREATE INDEX emp_i ON emp (UPPER(ename)); ALTER INDEX emp_ix REBUILD REVERSE; DROP INDEX monolith; BACS 485—Database Management

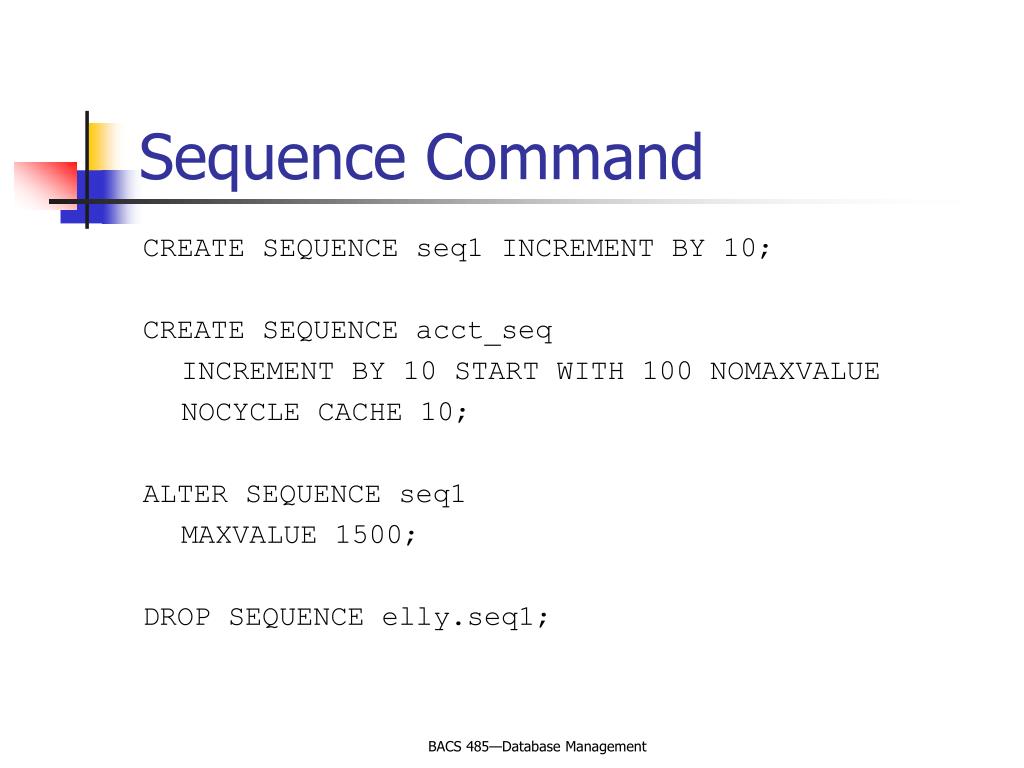

  9. Sequence Command CREATE SEQUENCE seq1 INCREMENT BY 10; CREATE SEQUENCE acct_seq INCREMENT BY 10 START WITH 100 NOMAXVALUE NOCYCLE CACHE 10; ALTER SEQUENCE seq1 MAXVALUE 1500; DROP SEQUENCE elly.seq1; BACS 485—Database Management

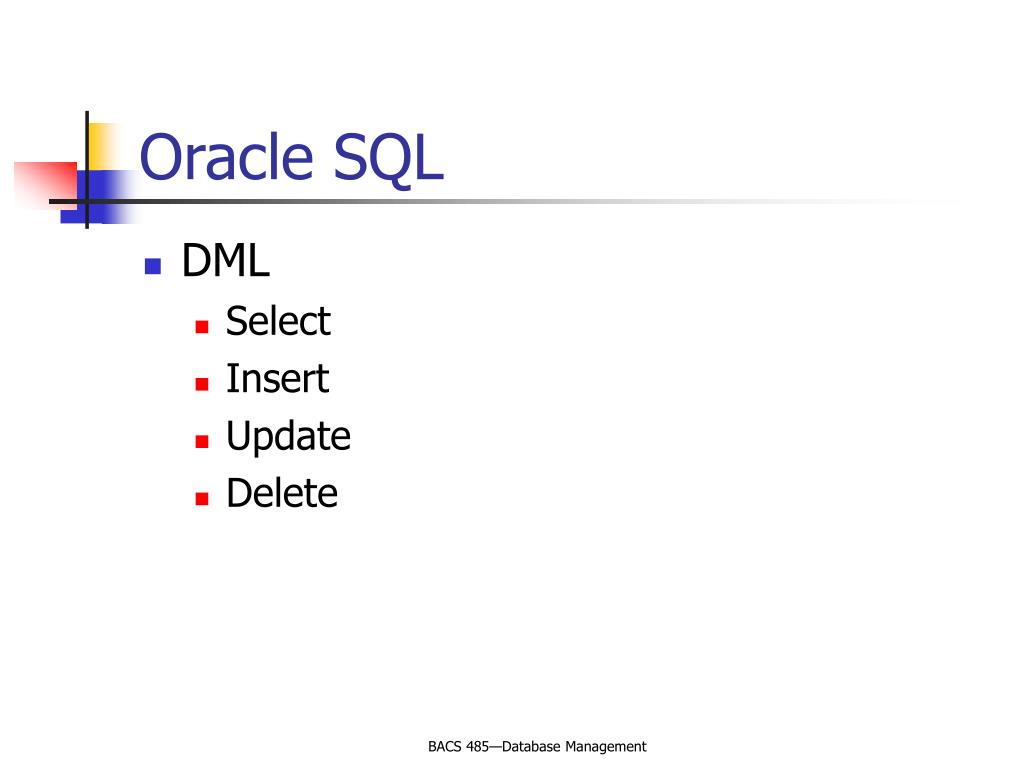

  10. Oracle SQL • DML • Select • Insert • Update • Delete BACS 485—Database Management

  11. Select Commands SELECT {field-list | * | DISTINCT field} FROM table-list WHERE expression GROUP BY group-fields HAVING group-expression ORDER BY field-list; Basic Select Example: Select * From Emp Where Salary > 45000 and Status = “Full Time” Order By SSN; BACS 485—Database Management

  12. More Complex Selects SELECT deptno, MIN(sal), MAX (sal) FROM emp WHERE job = 'CLERK' GROUP BY deptno HAVING MIN(sal) < 1000; Would print: DEPTNO MIN(SAL) MAX(SAL) ---------- ---------- ---------- 20 800 1100 30 950 950 BACS 485—Database Management

  13. SQL Aggregate Functions • AVGAverage of non-null values • NUMBER  • COU[NT]Count of non-null values • All types  • MIN[IMUM]Minimum value • NUMBER, CHAR, NCHAR, VARCHAR2 (VARCHAR), NVARCHAR2 (NCHAR VARYING)  • MAX[IMUM]Maximum value • NUMBER, CHAR, NCHAR, VARCHAR2 (VARCHAR), NVARCHAR2 (NCHAR VARYING)  • NUM[BER]Count of rows • All types  • SUMSum of non-null values • NUMBER  • STDStandard deviation of non-null values • NUMBER  • VAR[IANCE]Variance of non-null values • NUMBER  BACS 485—Database Management

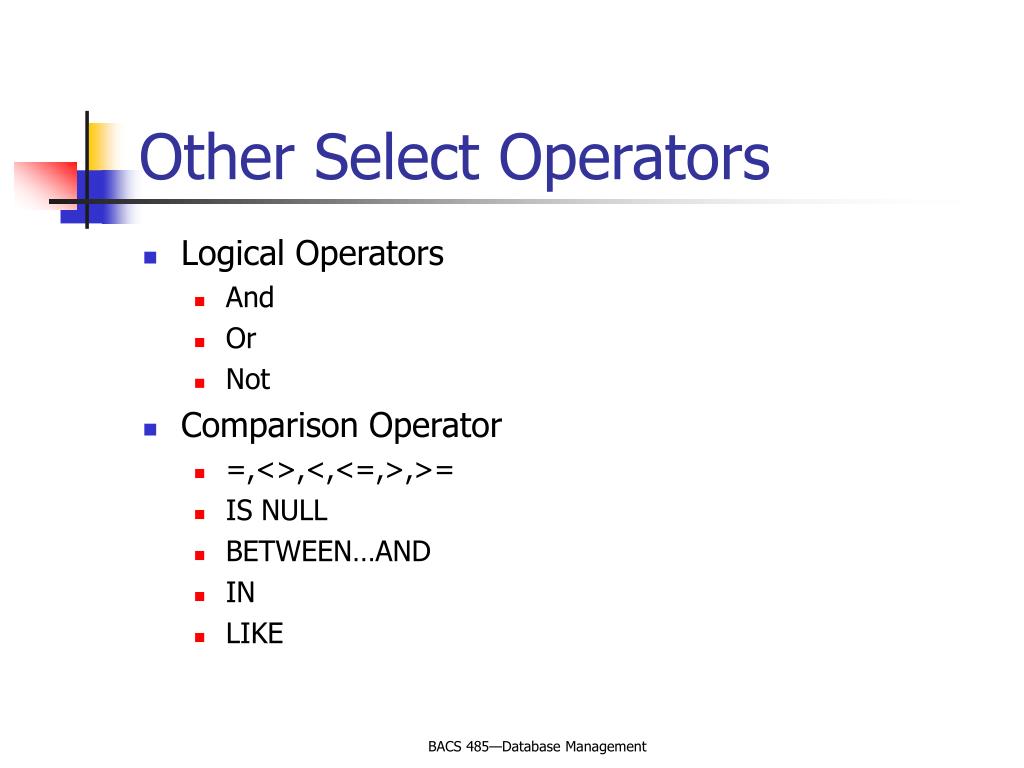

  14. Other Select Operators • Logical Operators • And • Or • Not • Comparison Operator • =,<>,<,<=,>,>= • IS NULL • BETWEEN…AND • IN • LIKE BACS 485—Database Management

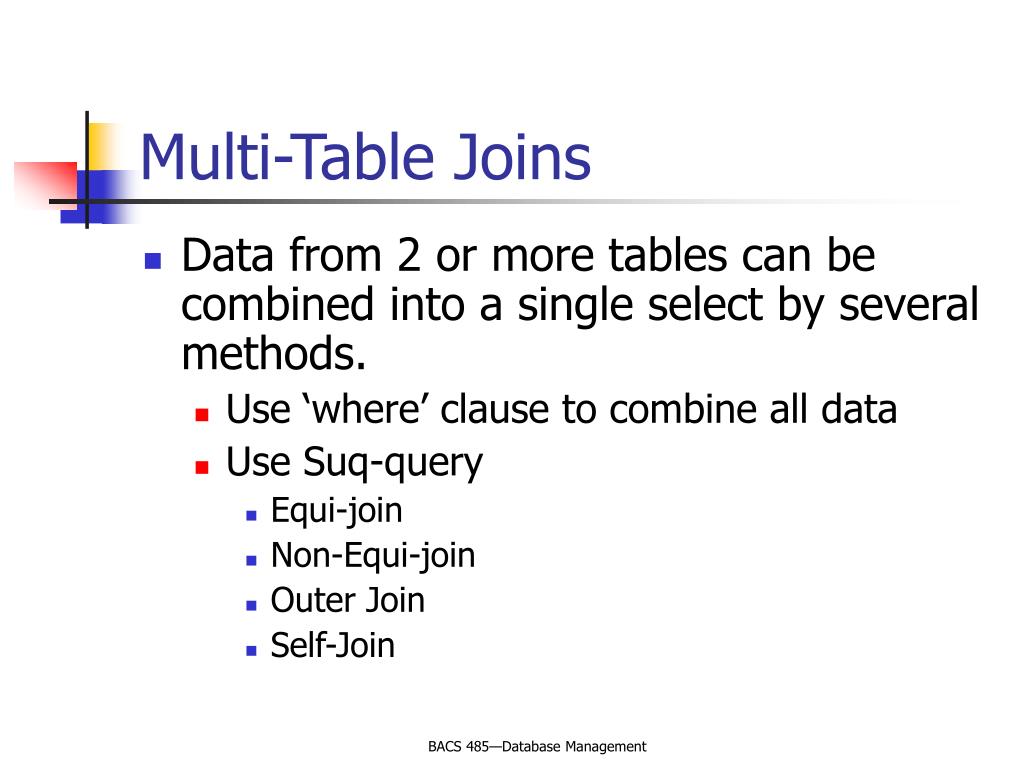

  15. Multi-Table Joins • Data from 2 or more tables can be combined into a single select by several methods. • Use ‘where’ clause to combine all data • Use Suq-query • Equi-join • Non-Equi-join • Outer Join • Self-Join BACS 485—Database Management

  16. Select Sub-Query • Sub-queries allow a component of a simple select to be an embedded select statement. SELECT Ename, sal FROM emp WHERE deptno = (SELECT deptno FROM dept WHERE dname = 'ACCOUNTING'); BACS 485—Database Management

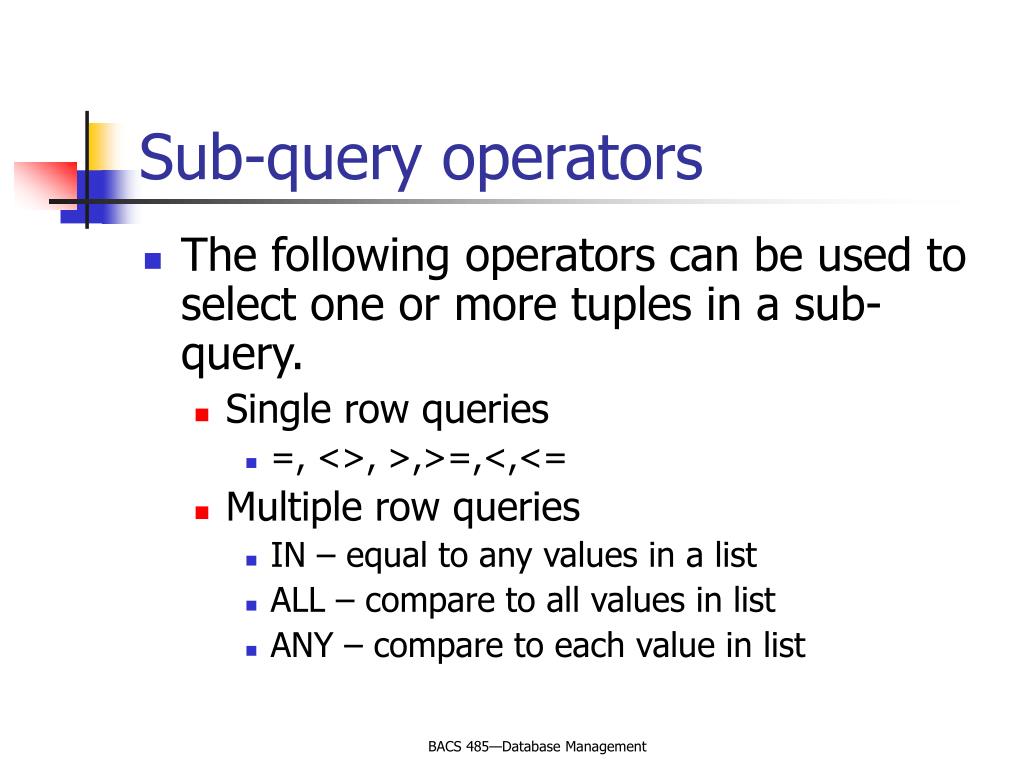

  17. Sub-query operators • The following operators can be used to select one or more tuples in a sub-query. • Single row queries • =, <>, >,>=,<,<= • Multiple row queries • IN – equal to any values in a list • ALL – compare to all values in list • ANY – compare to each value in list BACS 485—Database Management

  18. Single Row Sub-Query SELECT deptno, UPPER(ename), sal FROM emp x WHERE sal > (SELECT AVG(sal) FROM emp WHERE x.deptno = deptno) ORDER BY deptno; BACS 485—Database Management

  19. Multiple Row Query Operators • >ALL means more than the maximum value in list • <ALL means less than the minimum value in list • >ANY means less than the maximum value in list • <ANY means more than the minimum value in list • Note, from the diagram below, it is obvious that overlap is possible. The key to understanding is to remember that these operators are used to determine how a specific value relates to a list. Different operators would produce different relations. BACS 485—Database Management

  20. Multiple Row Sub-queries SELECT SSN, Lname FROM student WHERE FacID IN (SELECT FacID FROM faculty WHERE deptID = 1); SELECT empno, lname, fname, salary FROM employee WHERE salary >ANY (SELECT salary FROM employee WHERE posID = 2) AND posID <> 2; SELECT empno, lname, fname, salary FROM employee WHERE salary <ALL (SELECT AVG(salary) FROM employee GROUP BY deptID); BACS 485—Database Management

  21. Character Functions • Upper (col) – changes all to uppercase • Lower (col) – changes all to lowercase • Initcap (col) – first character of each word uppercase • Concat (col1,col2) – joins 1st value to 2nd value • Substr (col, x, y) – returns substring starting at ‘x’ for ‘y’ characters • Instr (col, c) – returns position of 1st ‘c’ character • Trim(‘c’ FROM col) – removes ‘c’ leading and trailing characters • Length (col) – returns length • Lpad(col,n,str) – pads value with ‘str’ to the left to total width of ‘n’ BACS 485—Database Management

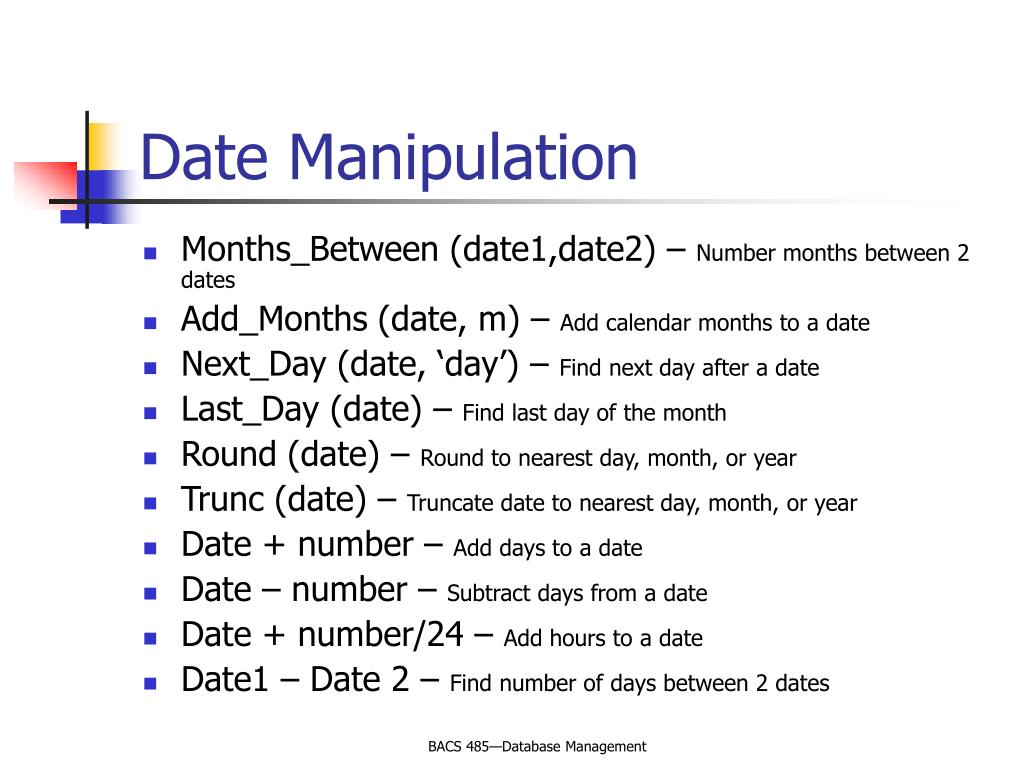

  22. Date Manipulation • Months_Between (date1,date2) – Number months between 2 dates • Add_Months (date, m) – Add calendar months to a date • Next_Day (date, ‘day’) – Find next day after a date • Last_Day (date) – Find last day of the month • Round (date) – Round to nearest day, month, or year • Trunc (date) – Truncate date to nearest day, month, or year • Date + number – Add days to a date • Date – number – Subtract days from a date • Date + number/24 – Add hours to a date • Date1 – Date 2 – Find number of days between 2 dates BACS 485—Database Management

  23. Math Manipulation • Round (col, n) – Round column to n decimal places • Trunc (col, n) – Truncate the column to n decimal places • Power (n,p) – returns np • Abs (n) – Absolute value of n • Mod (x,y) – integer remainder of x/y • +, -, *, / - perform basic mathematical operations BACS 485—Database Management

  24. Complex Select Sub-Queries SELECT a.deptno "Department", a.num_emp/b.total_count "%Employees", a.sal_sum/b.total_sal "%Salary" FROM (SELECT deptno, COUNT(*) num_emp, SUM(SAL) sal_sum FROM scott.emp GROUP BY deptno) a, (SELECT COUNT(*) total_count, SUM(sal) total_sal FROM scott.emp) b ; BACS 485—Database Management

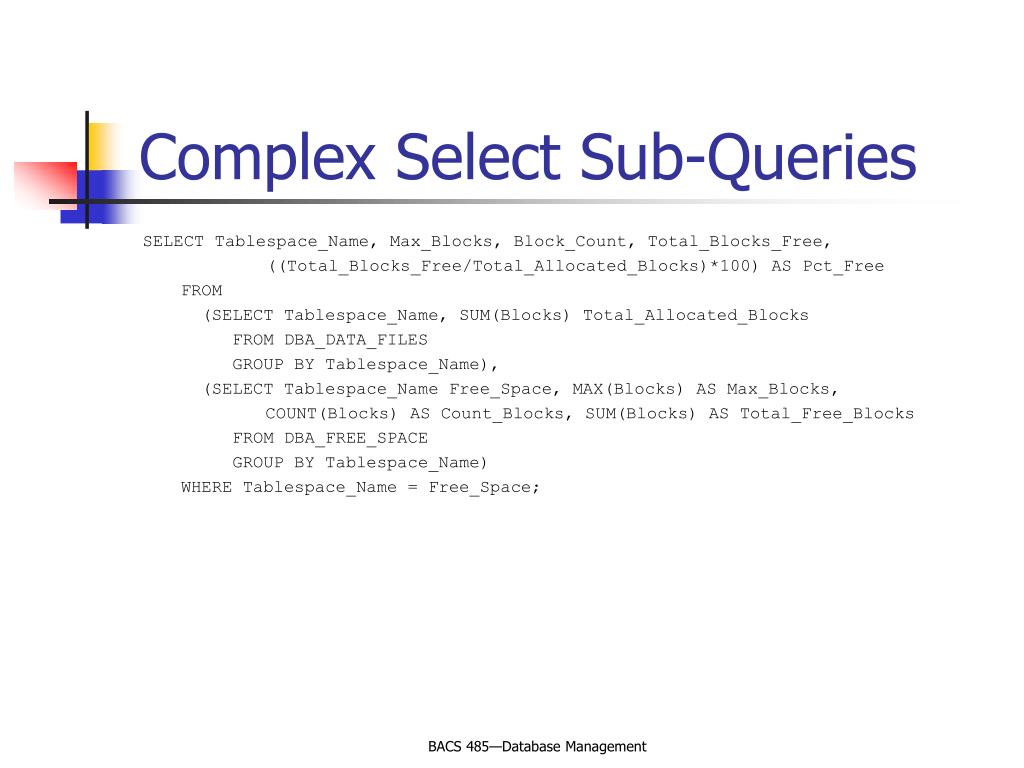

  25. Complex Select Sub-Queries SELECT Tablespace_Name, Max_Blocks, Block_Count, Total_Blocks_Free, ((Total_Blocks_Free/Total_Allocated_Blocks)*100) AS Pct_Free FROM (SELECT Tablespace_Name, SUM(Blocks) Total_Allocated_Blocks FROM DBA_DATA_FILES GROUP BY Tablespace_Name), (SELECT Tablespace_Name Free_Space, MAX(Blocks) AS Max_Blocks, COUNT(Blocks) AS Count_Blocks, SUM(Blocks) AS Total_Free_Blocks FROM DBA_FREE_SPACE GROUP BY Tablespace_Name) WHERE Tablespace_Name = Free_Space; BACS 485—Database Management

  26. Complex Select Sub-Queries Find the top 2 salaries in each department: SELECT m.ename, m.sal, m.deptno FROM emp m WHERE m.sal >= (SELECT DISTINCT o.sal FROM emp 0 WHERE (o.sal, 2) IN (SELECT i.sal, ROWNUM FROM (SELECT DSTINCT i2.sal r_sal, i2.deptno, i2.sal, i2.ROWID FROM emp i2) I WHERE I.deptno = m.deptno)) ORDER BY deptno, sal DESC; ENAME SAL DEPTNO ----- --- ----- KING 5000 10 CLARK 2450 10 SCOTT 3000 20 FORD 3000 20 BLAKE 2850 30 BACS 485—Database Management

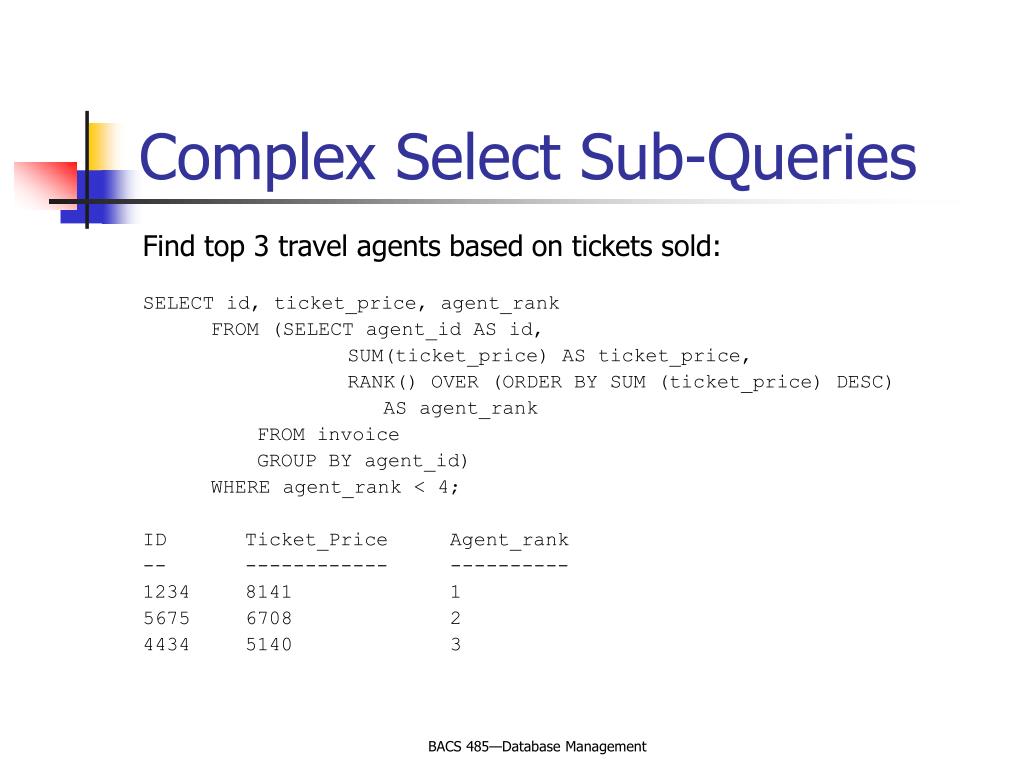

  27. Complex Select Sub-Queries Find top 3 travel agents based on tickets sold: SELECT id, ticket_price, agent_rank FROM (SELECT agent_id AS id, SUM(ticket_price) AS ticket_price, RANK() OVER (ORDER BY SUM (ticket_price) DESC) AS agent_rank FROM invoice GROUP BY agent_id) WHERE agent_rank < 4; ID Ticket_Price Agent_rank -- ------------ ---------- 1234 8141 1 5675 6708 2 4434 5140 3 BACS 485—Database Management

  28. Select Self-Join SELECT e1.ename || ‘ works for ’ || e2.ename "Employees and their Managers" FROM emp e1, emp e2 WHERE e1.mgr = e2.empno; Would Print: Employees and their Managers ------------------------------- BLAKE works for KING CLARK works for KING JONES works for KING FORD works for JONES SMITH works for FORD ALLEN works for BLAKE WARD works for BLAKE … BACS 485—Database Management

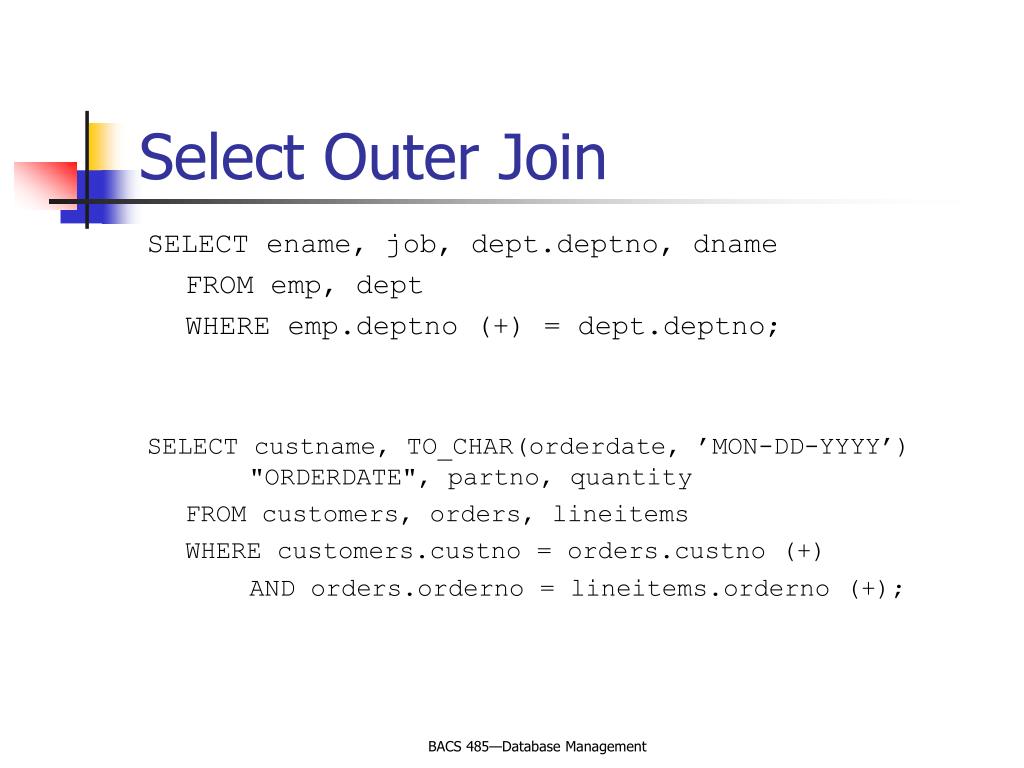

  29. Select Outer Join SELECT ename, job, dept.deptno, dname FROM emp, dept WHERE emp.deptno (+) = dept.deptno; SELECT custname, TO_CHAR(orderdate, ’MON-DD-YYYY’) "ORDERDATE", partno, quantity FROM customers, orders, lineitems WHERE customers.custno = orders.custno (+) AND orders.orderno = lineitems.orderno (+); BACS 485—Database Management

  30. Decode Statement SELECT ename, deptno, DECODE (deptno, 10, ‘ACCOUNTING’, 20, ‘RESEARCH’, 30, ‘SALES’, ‘NOT INDICATED’) FROM emp; ENAME DEPTNO DECODE(DEPTNO ----- ------ ------------- TURNER 30 SALES ALLEN 20 RESEARCH JONES 10 ACCOUNTING WARD 20 RESEARCH BACS 485—Database Management

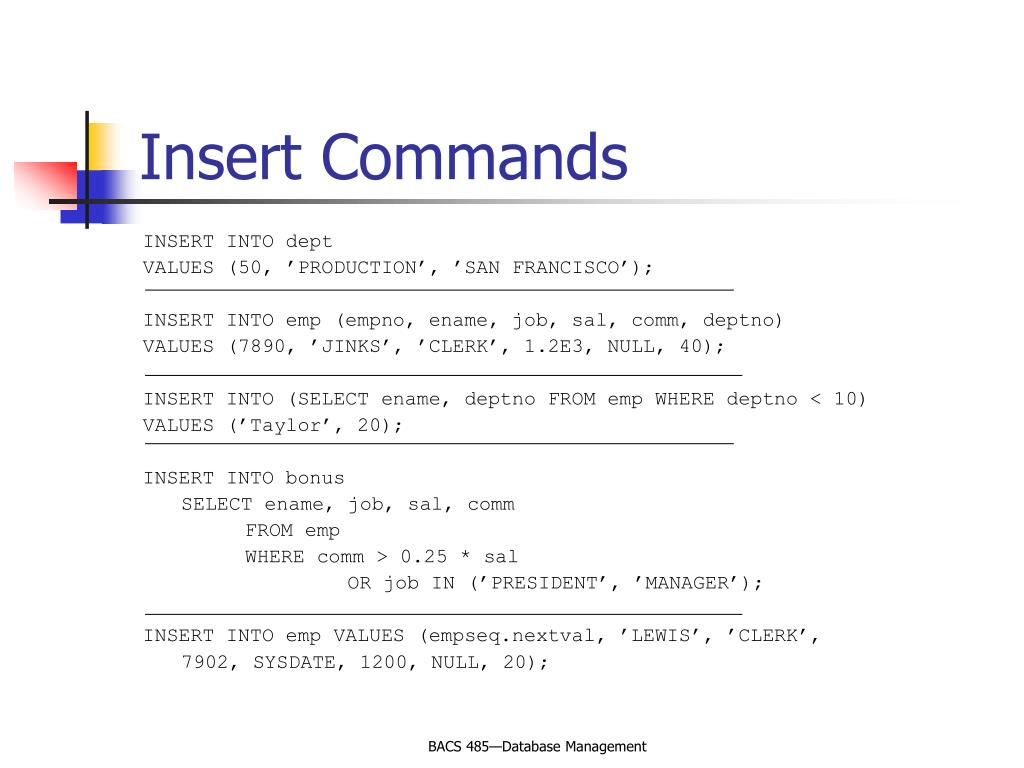

  31. Insert Commands INSERT INTO dept VALUES (50, ’PRODUCTION’, ’SAN FRANCISCO’); INSERT INTO emp (empno, ename, job, sal, comm, deptno) VALUES (7890, ’JINKS’, ’CLERK’, 1.2E3, NULL, 40); INSERT INTO (SELECT ename, deptno FROM emp WHERE deptno < 10) VALUES (’Taylor’, 20); INSERT INTO bonus SELECT ename, job, sal, comm FROM emp WHERE comm > 0.25 * sal OR job IN (’PRESIDENT’, ’MANAGER’); INSERT INTO emp VALUES (empseq.nextval, ’LEWIS’, ’CLERK’, 7902, SYSDATE, 1200, NULL, 20); BACS 485—Database Management

  32. Update Commands UPDATE emp SET comm = NULL WHERE job = ’TRAINEE’; UPDATE emp SET job = ’MANAGER’, sal = sal + 1000, deptno = 20 WHERE ename = ’JONES’; UPDATE emp SET sal = sal * 1.1 WHERE empno NOT IN (SELECT empno FROM bonus); BACS 485—Database Management

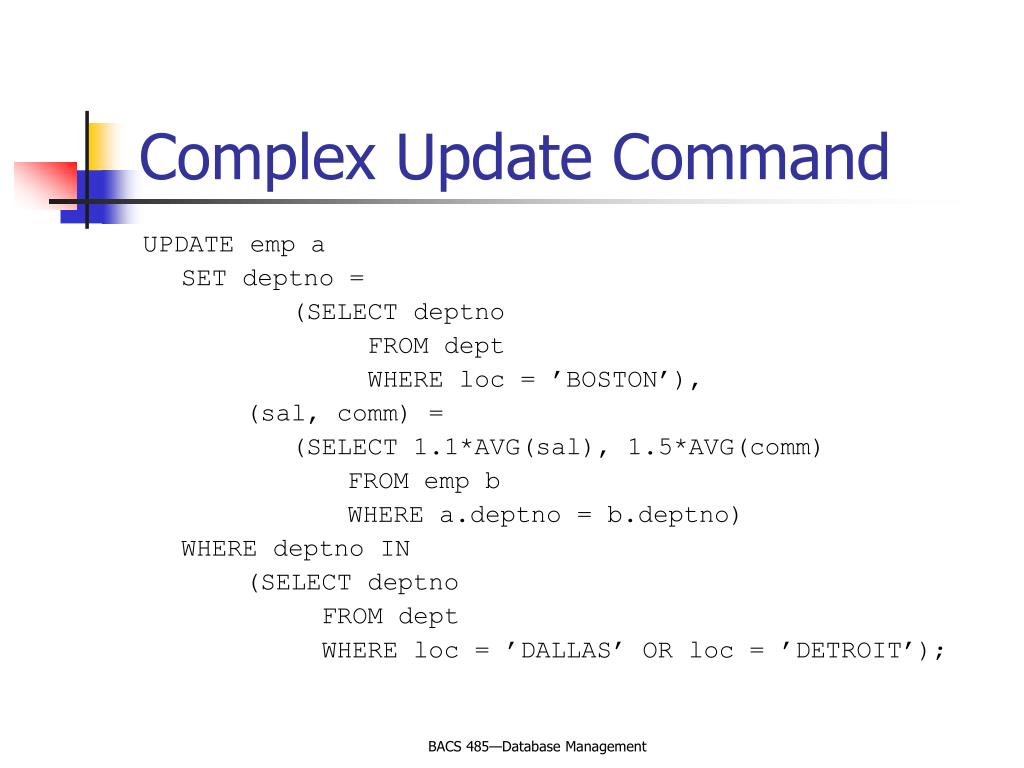

  33. Complex Update Command UPDATE emp a SET deptno = (SELECT deptno FROM dept WHERE loc = ’BOSTON’), (sal, comm) = (SELECT 1.1*AVG(sal), 1.5*AVG(comm) FROM emp b WHERE a.deptno = b.deptno) WHERE deptno IN (SELECT deptno FROM dept WHERE loc = ’DALLAS’ OR loc = ’DETROIT’); BACS 485—Database Management

  34. Delete Command DELETE FROM temp_assign; DELETE FROM emp WHERE JOB = ’SALESMAN’ AND COMM < 100; DELETE FROM (select * from emp) WHERE JOB = ’SALESMAN’ AND COMM < 100; BACS 485—Database Management

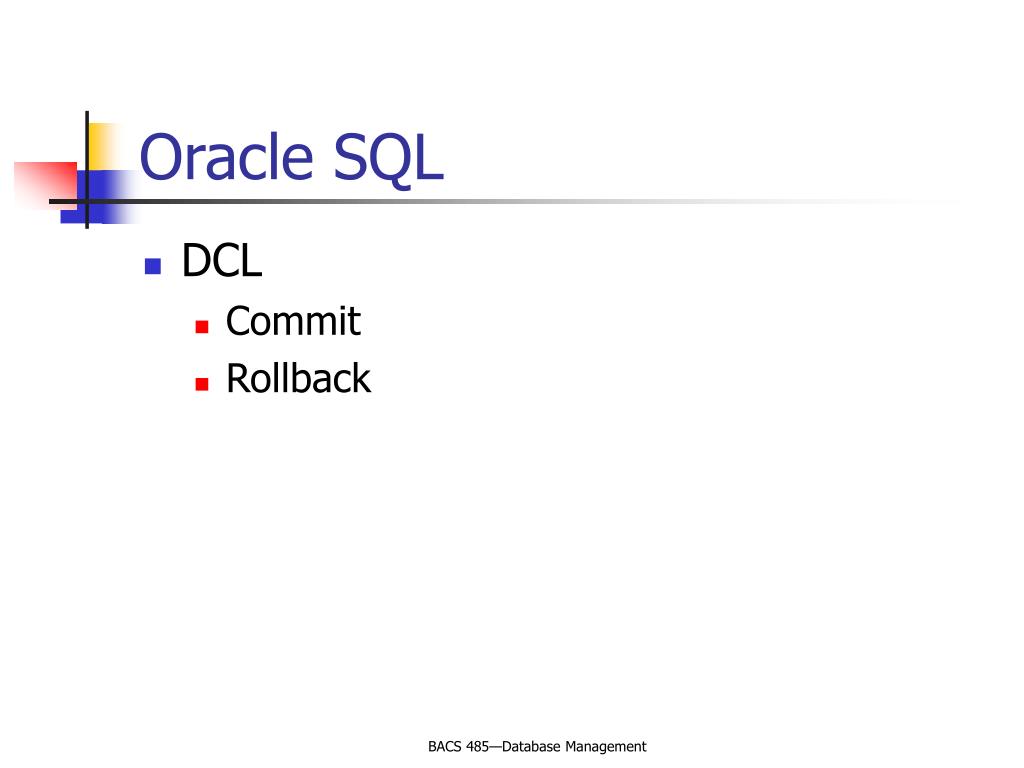

  35. Oracle SQL • DCL • Commit • Rollback BACS 485—Database Management

  36. Commit INSERT INTO dept VALUES (50, ’MARKETING’, ’TAMPA’); COMMIT; COMMIT COMMENT ’In-doubt transaction Code 36, Call x1122’; BACS 485—Database Management

  37. Rollback ROLLBACK; ROLLBACK TO SAVEPOINT sp5; BACS 485—Database Management
