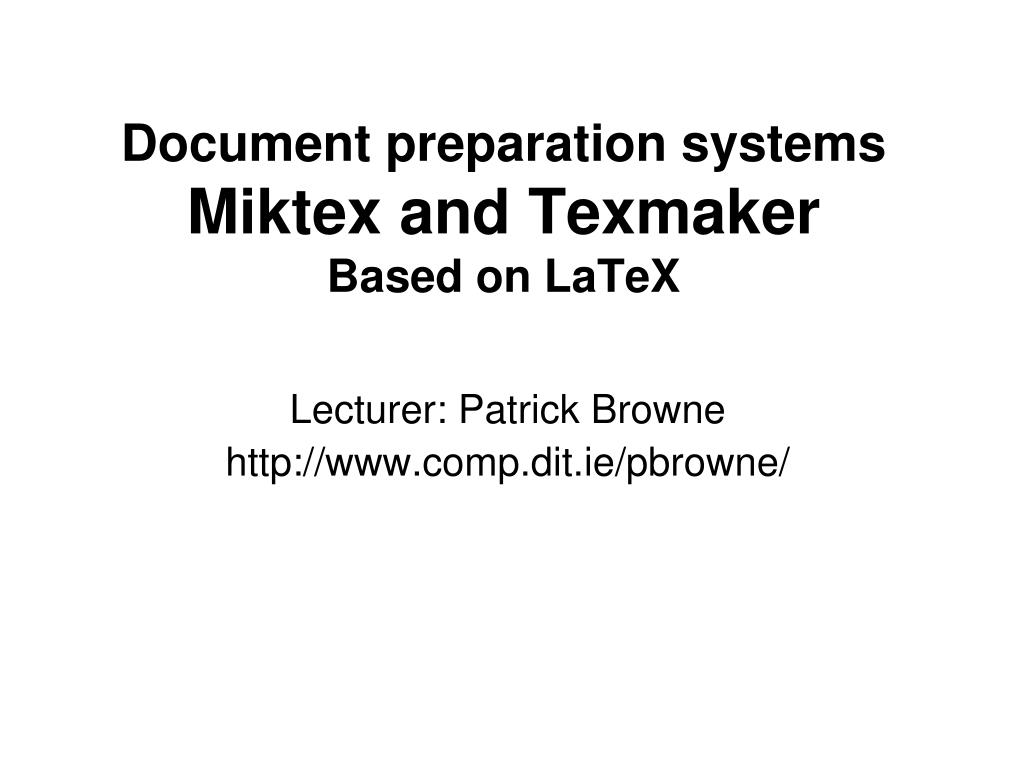

Document preparation systems Miktex and Texmaker Based on LaTeX

1. Document preparation systemsMiktex and TexmakerBased on LaTeX Lecturer: Patrick Browne http://www.comp.dit.ie/pbrowne/

2. Downloads for Windows • Miktex • http://www.miktex.org/download • basic-miktex-2.9.5105 • Texmaker • http://www.xm1math.net/texmaker/download.html#windows • texmakerwin32_install.exe (Qt5 - 52.1 Mo) • Textmaker 4.1.1

3. Set up imports for TexMaker \documentclass{book} \usepackage{verbatim} \usepackage{listings} \usepackage{color} \usepackage{titlepic} \usepackage{natbib} \usepackage[english] {babel} \lstset{language=C} \definecolor{dkgreen}{rgb}{0,0.6,0} \definecolor{gray}{rgb}{0.5,0.5,0.5} \definecolor{mauve}{rgb}{0.58,0,0.82} \usepackage{graphicx} \DeclareGraphicsExtensions{.jpg}

4. Make a title page in Texmaker \begin{document} \begin{titlepage} \titlepic{\includegraphics{DIT}} \title{An Algebraic Approach to Ontology Representation} \author{Pat Browne\\ School of Computing\\ Dublin Institute of Technology \\Kevin Street, Dublin 8} \end{titlepage} \maketitle The DIT graphic is a DIT.JPG file which must be the same folder as your document. Open the file title.tex with TexMaker.

5. The DIT graphic is a DIT.JPG file which must be the same folder as your document called title.tex. Open the file title.texwith Texmaker.

6. Compile title.tex with 1

7. View PDF with 2

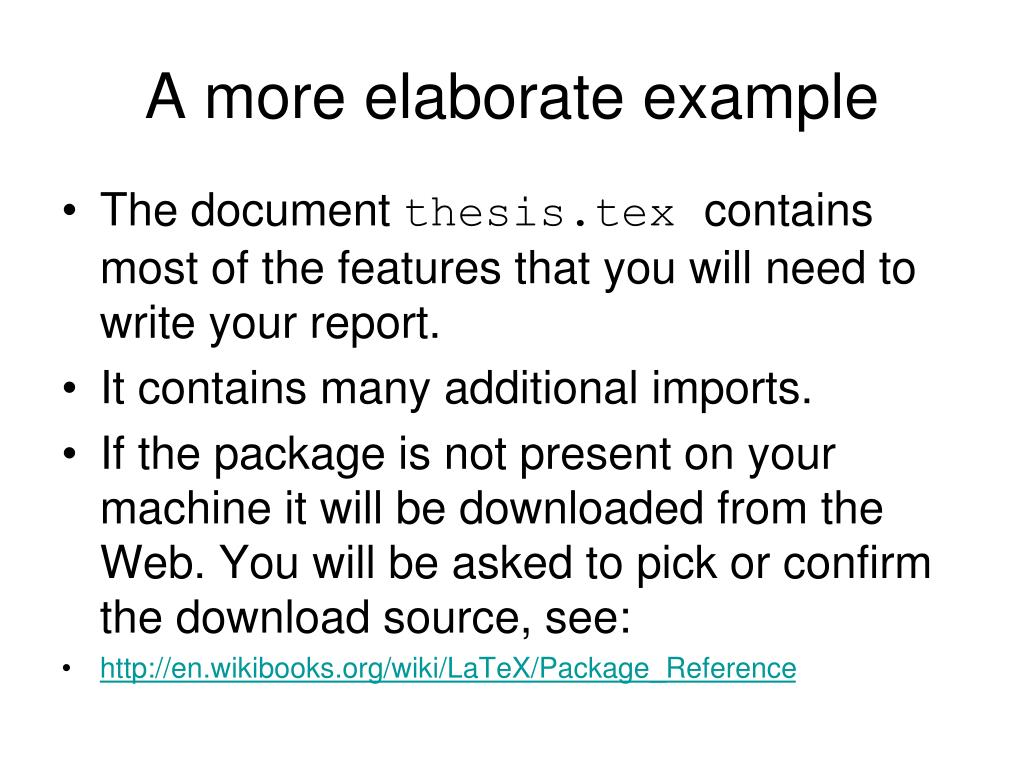

8. A more elaborate example • The document thesis.texcontains most of the features that you will need to write your report. • It contains many additional imports. • If the package is not present on your machine it will be downloaded from the Web. You will be asked to pick or confirm the download source, see: • http://en.wikibooks.org/wiki/LaTeX/Package_Reference

9. A more elaborate example • Download thesis1.zip. from the ISRP web page: • http://www.comp.dit.ie/pbrowne/Information%20Systems%20Research%20Practice/DT249-Information%20Systems%20Research%20Practice-2013-14.htm • Unzip the files to the same folder. • Start Texmaker and open thesis.tex.

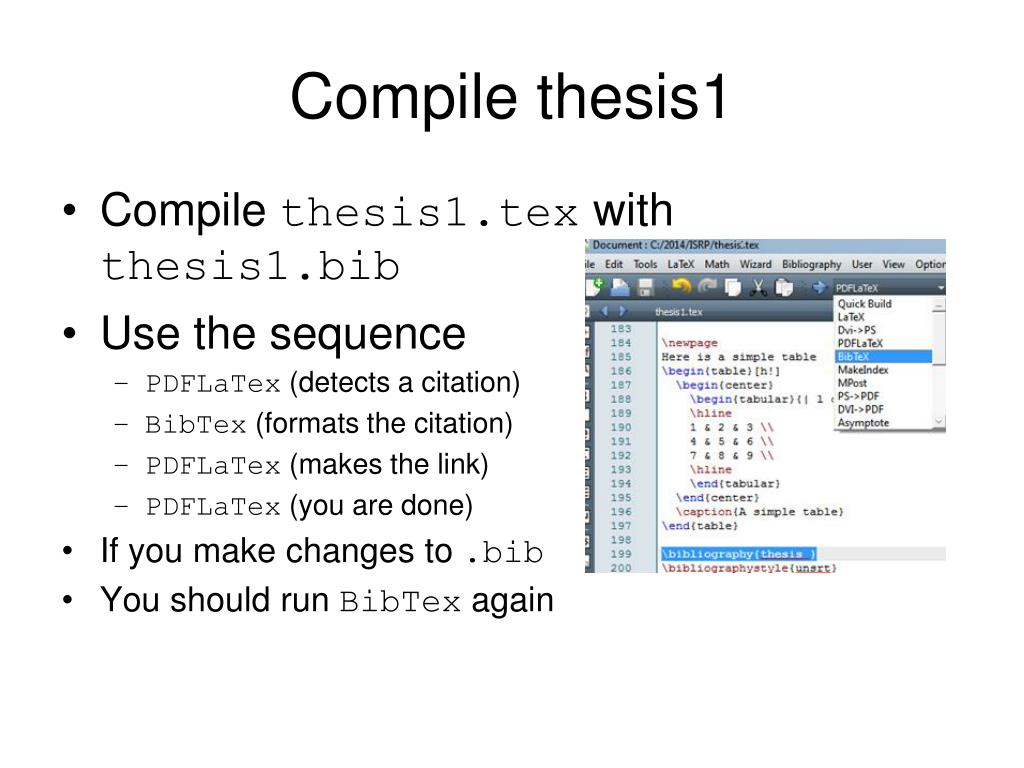

10. Compile thesis1 • Compile thesis1.tex with thesis1.bib • Use the sequence • PDFLaTex (detects a citation) • BibTex (formats the citation) • PDFLaTex (makes the link) • PDFLaTex (you are done) • If you make changes to .bib • You should run BibTex again

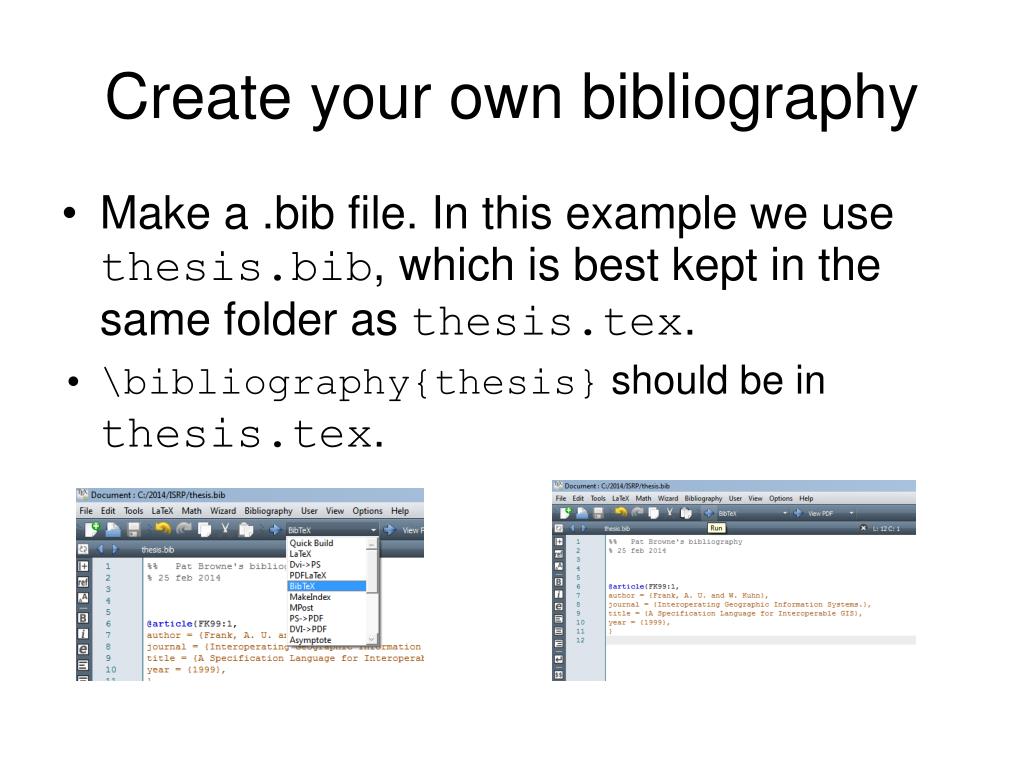

11. Create your own bibliography • Make a .bib file. In this example we use thesis.bib, which is best kept in the same folder as thesis.tex. • \bibliography{thesis} should be in thesis.tex.

12. Create a bibliography • Compile thesis.bib with the sequence • PDFLaTex (detects a citation) • BibTex (formats the citation) • PDFLaTex (makes the link) • PDFLaTex (you are done) • If you make changes to .bib • You should run BibTex again. • Make a PDF

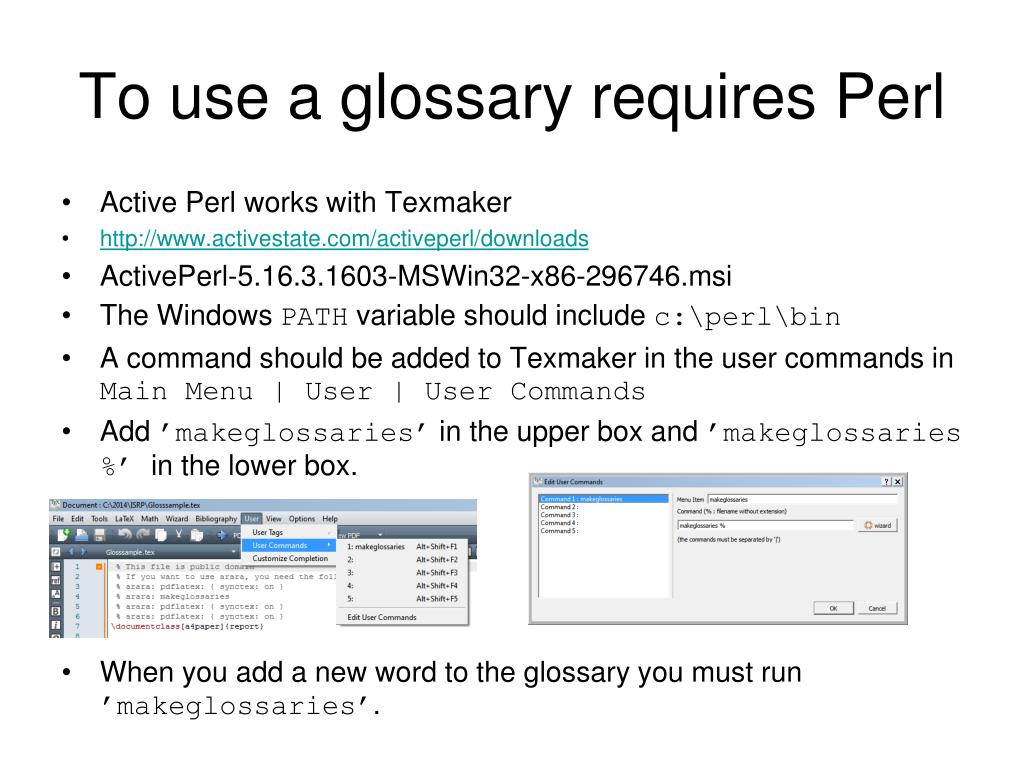

13. To use a glossary requires Perl • Active Perl works with Texmaker • http://www.activestate.com/activeperl/downloads • ActivePerl-5.16.3.1603-MSWin32-x86-296746.msi • The Windows PATH variable should include c:\perl\bin • A command should be added to Texmaker in the user commands in Main Menu | User | User Commands • Add ’makeglossaries’ in the upper box and ’makeglossaries %’ in the lower box. • When you add a new word to the glossary you must run ’makeglossaries’.

14. More Information • See glossary.zip and glossary1.zip on the ISRP web page. • Plenty of stuff on the Web, just type Texmaker into Youtube:

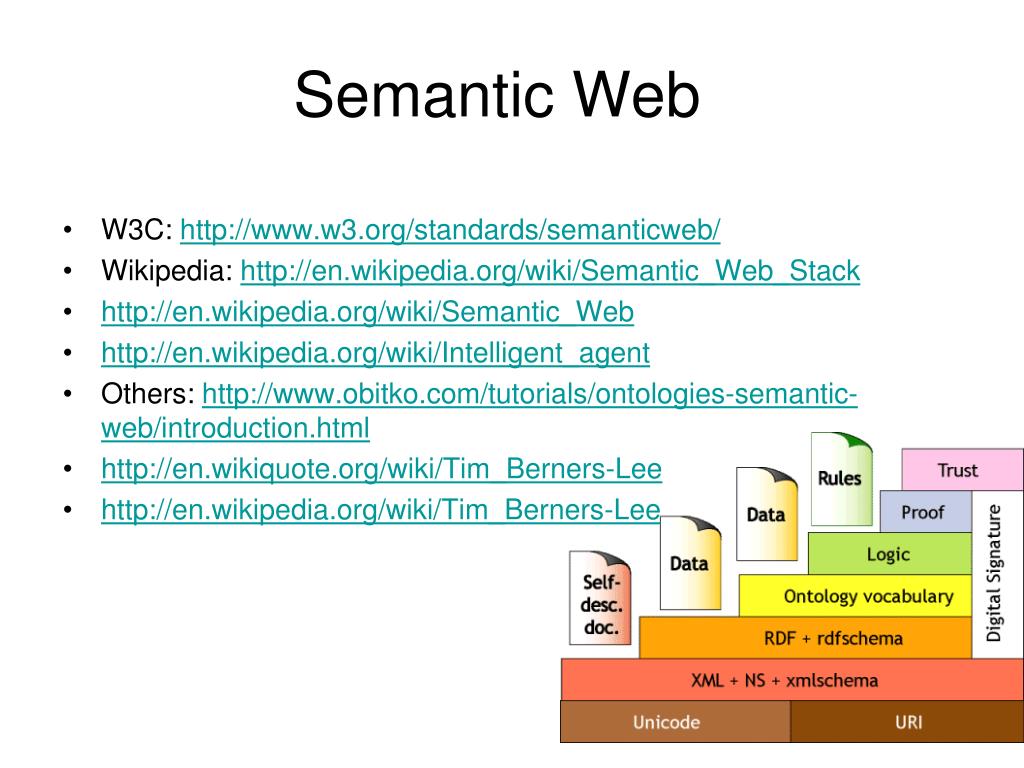

15. Semantic Web • W3C: http://www.w3.org/standards/semanticweb/ • Wikipedia: http://en.wikipedia.org/wiki/Semantic_Web_Stack • http://en.wikipedia.org/wiki/Semantic_Web • http://en.wikipedia.org/wiki/Intelligent_agent • Others: http://www.obitko.com/tutorials/ontologies-semantic-web/introduction.html • http://en.wikiquote.org/wiki/Tim_Berners-Lee • http://en.wikipedia.org/wiki/Tim_Berners-Lee

16. RDF Triple • "The sky has the colour blue" in RDF is as the triple: • a subject denoting "the sky", • a predicate denoting "has", and • an object denoting "the colour blue".
