  1. Dynamic Time Warping for Automated Cell Cycle Labelling A. El-Labban, A. Zisserman University of Oxford Y. Toyoda, A. Bird, A. Hyman Max Planck Institute of Molecular Cell Biology and Genetics

  2. Objectives • Segment and track mitotic cells • Label mitotic phases • Fully automated system Interphase Prometaphase Anaphase Telophase Prophase Metaphase

  3. Data • 3D time lapse image stacks • Use max intensity z-projections • 1-5 minute temporal resolution • 0.2 micron xy-resolution

  4. Approach • Existing approaches (e.g. Harder et al. 2009, Held et al. 2010 [CellCognition]): • Track cells • Label cell cycle phase frame-by-frame • Smooth result with HMM (CellCognition) • Our Approach: • Track cells • Label all frames by using temporal signals of features

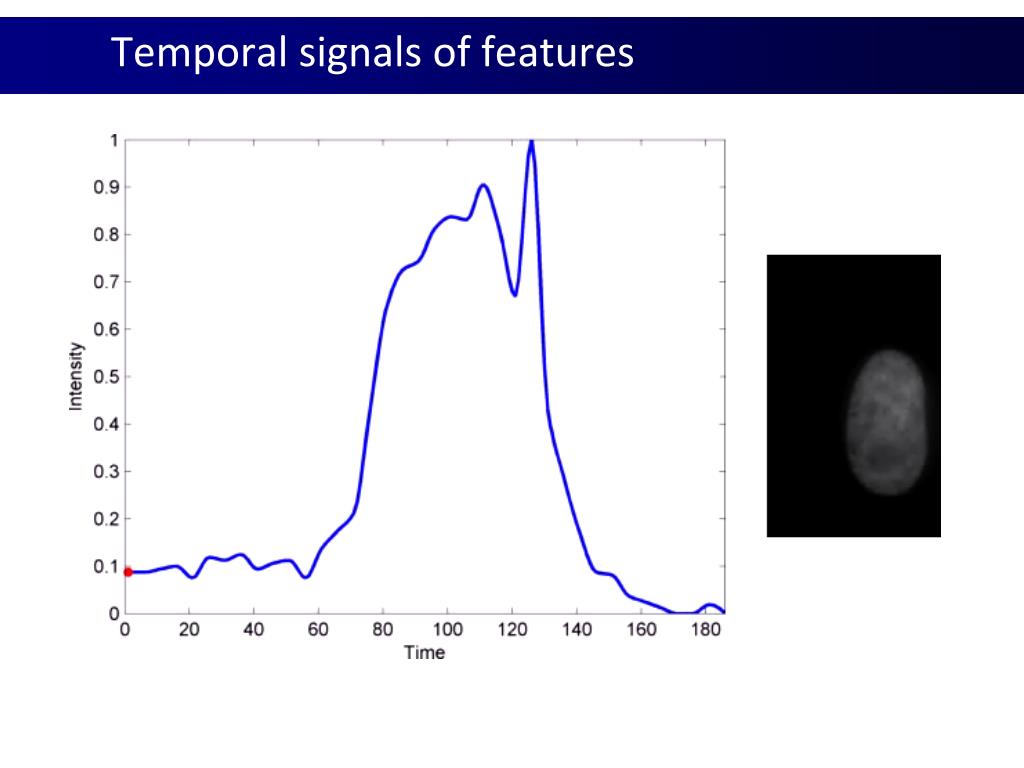

  5. Temporal signals of features

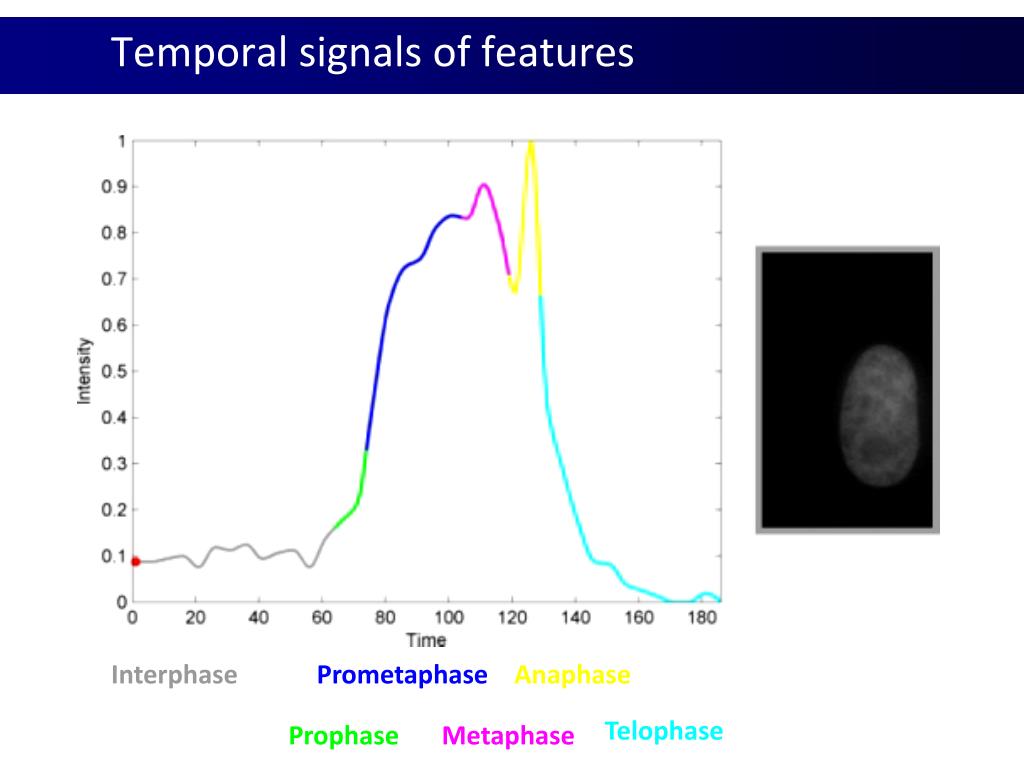

  6. Temporal signals of features Anaphase Interphase Prometaphase Telophase Prophase Metaphase

  7. Overview • Part I • Track cells in videos • Part II • Label mitotic phases

  8. Part I – Tracking

  9. Tracking • Tracking by detection • Detect first, then associate objects • Here we use detection by classification.

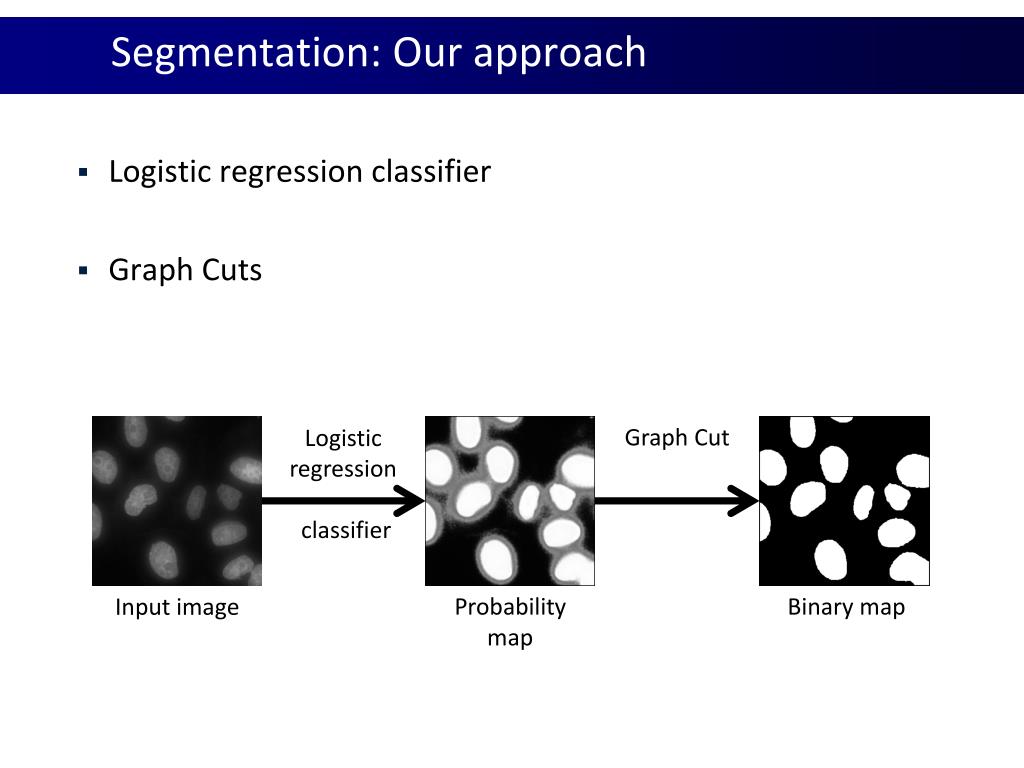

  10. Segmentation: Our approach • Logistic regression classifier • Graph Cuts Logistic regression classifier Graph Cut Input image Probability map Binary map

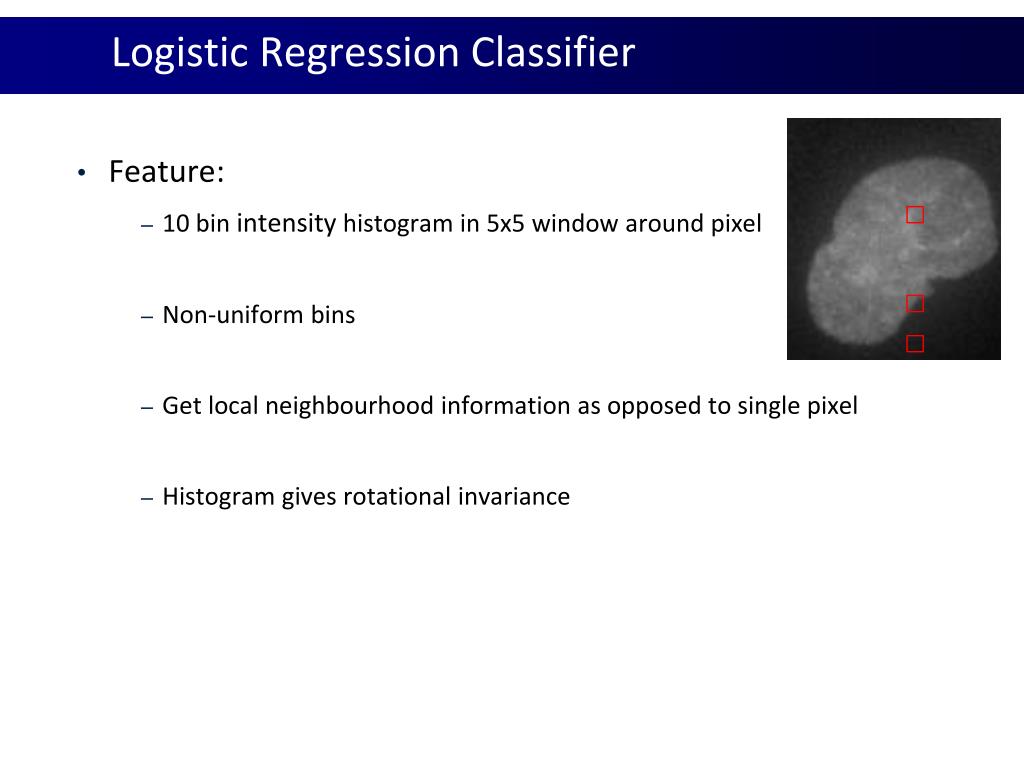

  11. Logistic Regression Classifier • Feature: • 10 bin intensity histogram in 5x5 window around pixel • Non-uniform bins • Get local neighbourhood information as opposed to single pixel • Histogram gives rotational invariance

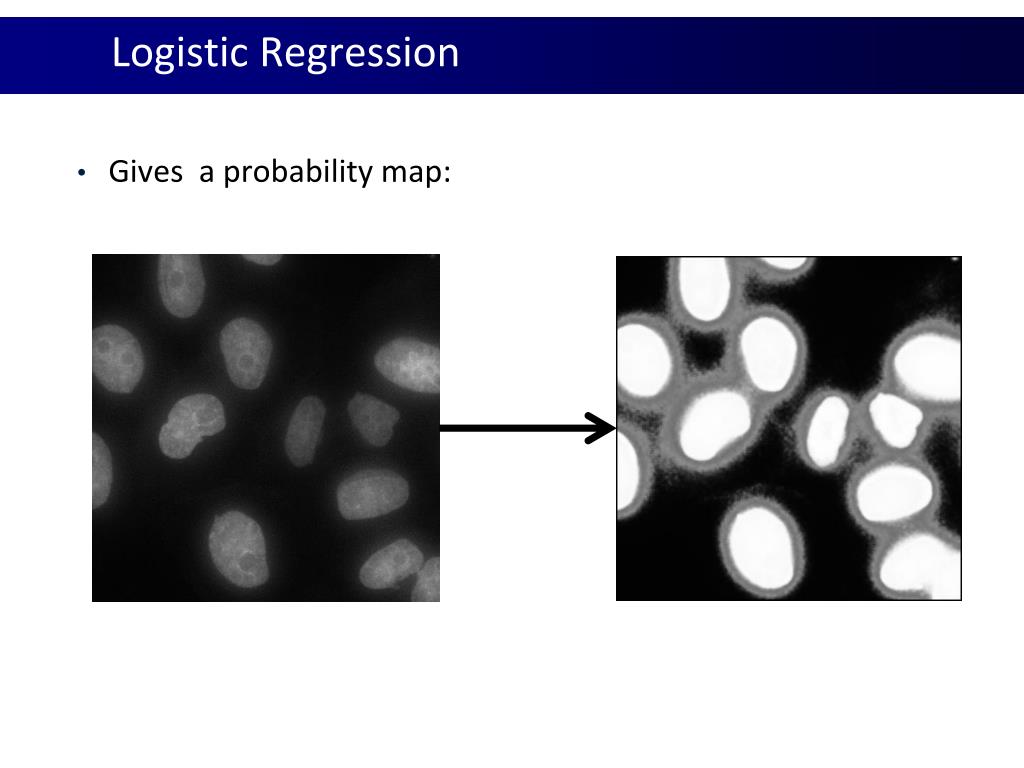

  12. Logistic Regression • Gives a probability map:

  13. Graph Cuts Gradient dependent pairwise term Probability from Logistic Regression Classifier • Uses local neighbourhood information to make decisions • Pairwise term penalises different labels for adjacent pixels

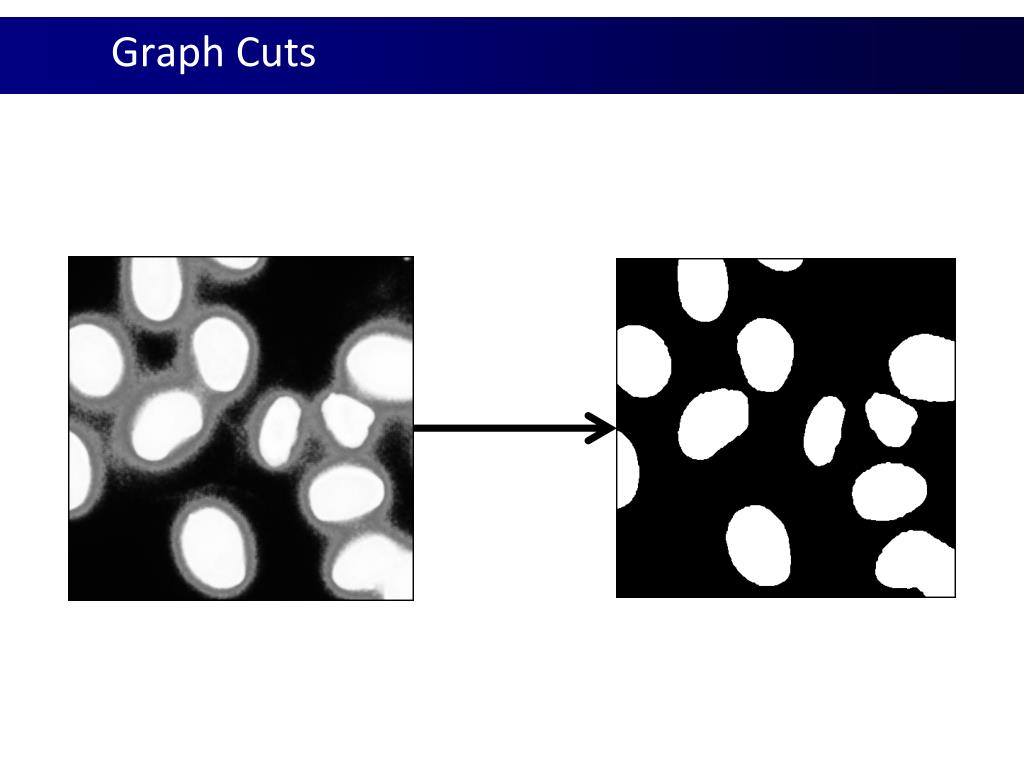

  14. Graph Cuts

  15. Tracking • Associate objects based on distance between centroids in consecutive frames. • Easy given segmentation and slow movement of cells.

  16. Tracking • Associate objects based on distance between centroids in consecutive frames. • Easy given segmentation and slow movement of cells.

  17. Tracking • Associate objects based on distance between centroids in consecutive frames. • Easy given segmentation and slow movement of cells.

  18. Tracking

  19. Part II – Phase Labelling

  20. Simple features • Maximum Intensity: Interphase

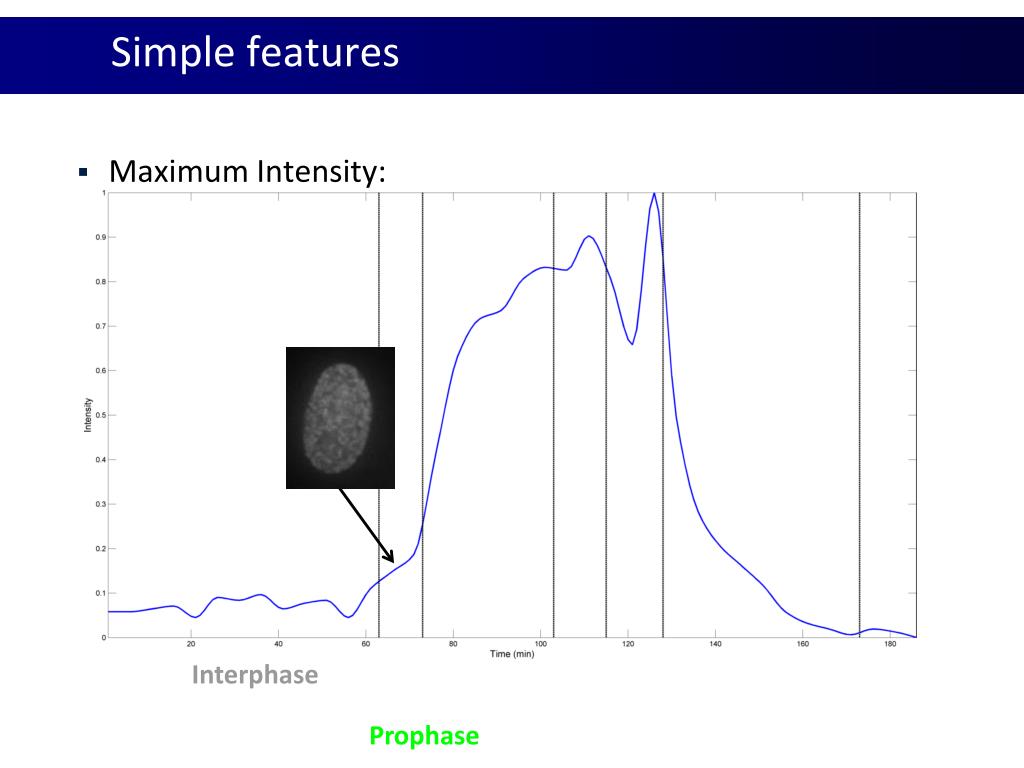

  21. Simple features • Maximum Intensity: Interphase Prophase

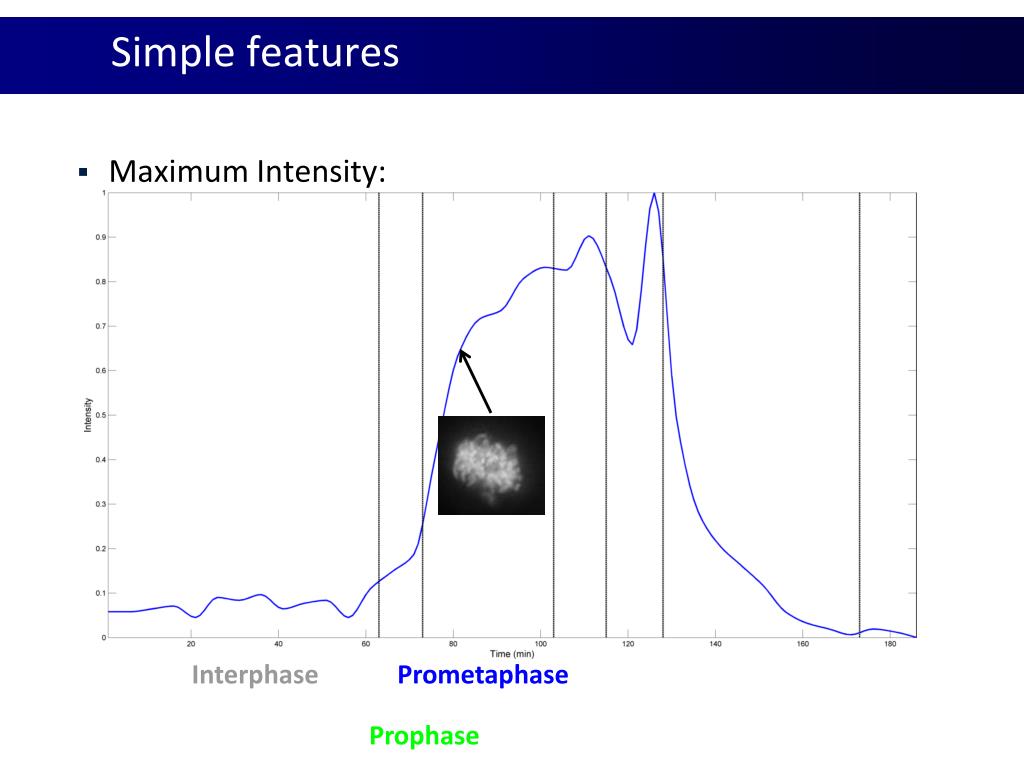

  22. Simple features • Maximum Intensity: Interphase Prometaphase Prophase

  23. Simple features • Maximum Intensity: Interphase Prometaphase Prophase Metaphase

  24. Simple features • Maximum Intensity: Anaphase Interphase Prometaphase Prophase Metaphase

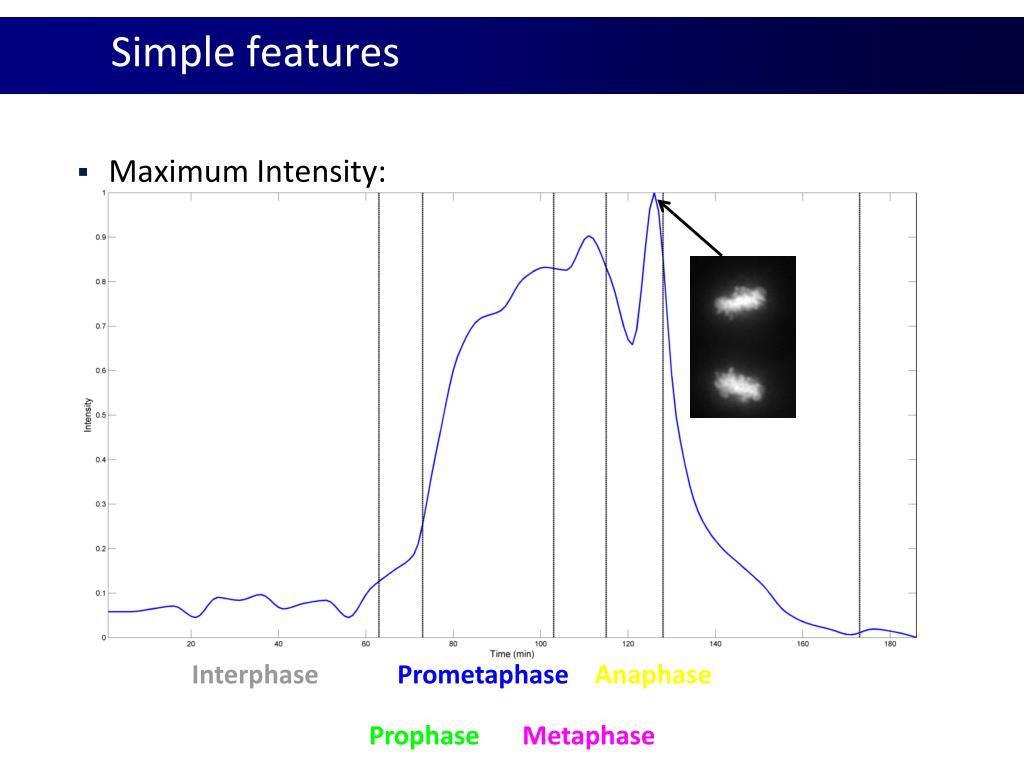

  25. Simple features • Maximum Intensity: Anaphase Interphase Prometaphase Prophase Metaphase

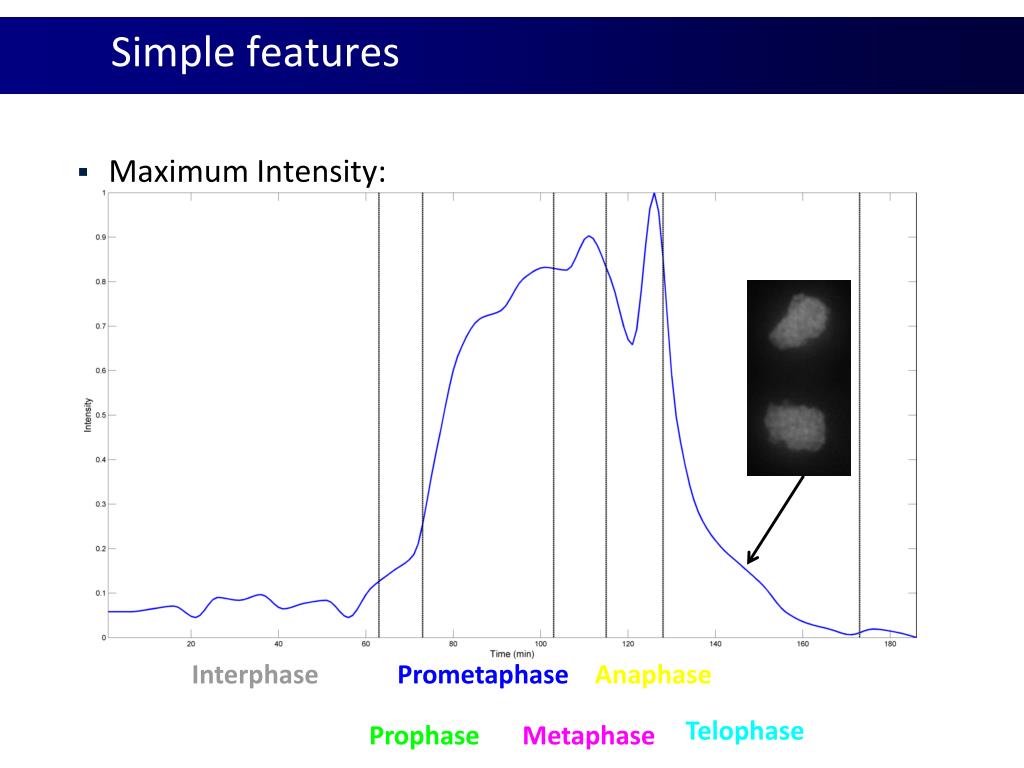

  26. Simple features • Maximum Intensity: Anaphase Interphase Prometaphase Telophase Prophase Metaphase

  27. Reference signal • Average over training set (±1 standard deviation shaded):

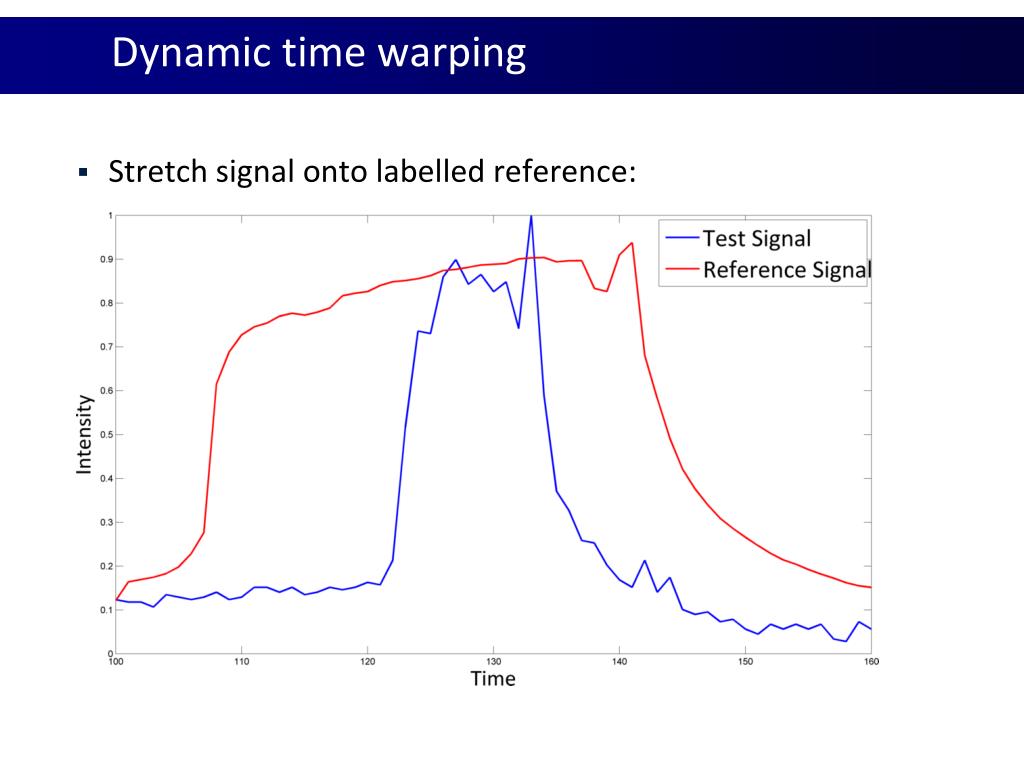

  28. Dynamic time warping • Stretch signal onto labelled reference:

  29. Dynamic time warping • Stretch signal onto labelled reference:

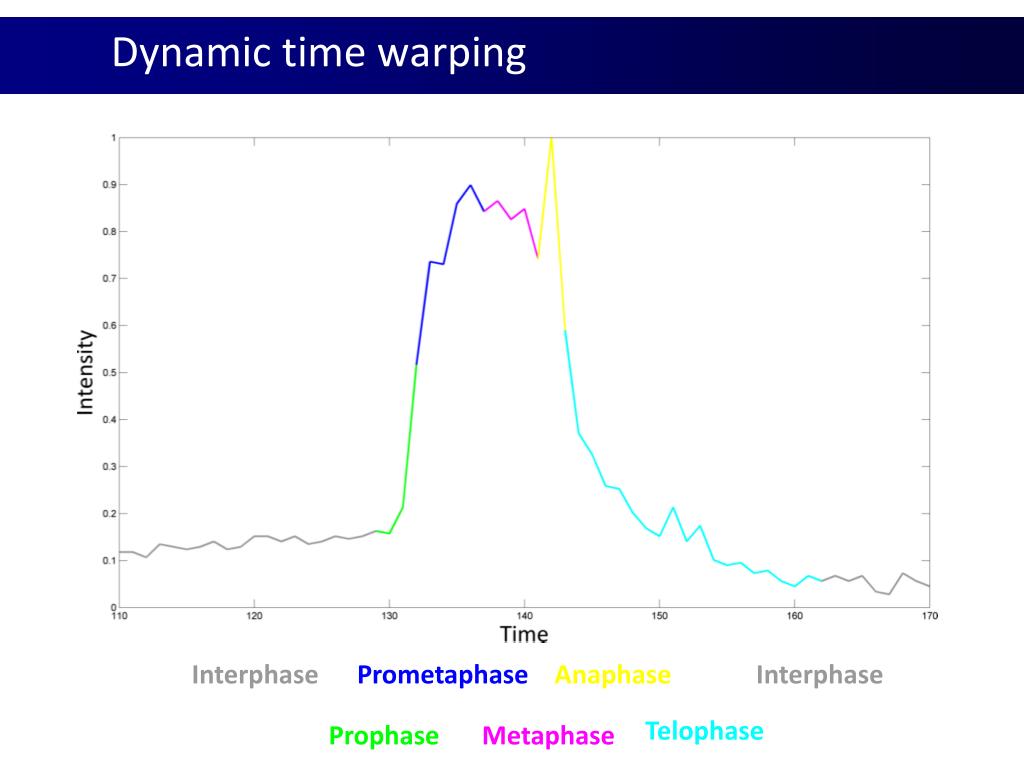

  30. Dynamic time warping Anaphase Interphase Prometaphase Interphase Telophase Prophase Metaphase

  31. Dynamic time warping • Find a cost matrix of pairwise distances between points on the two signals • Find minimum cost path through matrix Test Signal Reference Signal

  32. Features • Use 3 features and their gradients at two different scales: • Maximum intensity • Area • Compactness ( )

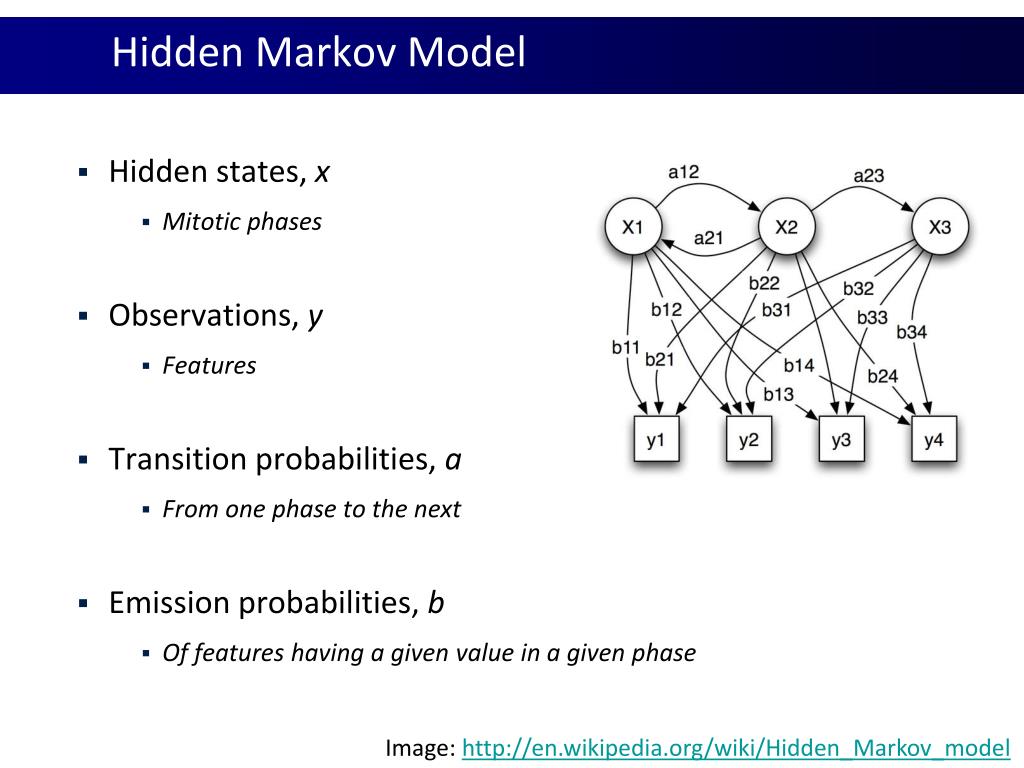

  33. Hidden Markov Model • Hidden states, x • Mitotic phases • Observations, y • Features • Transition probabilities, a • From one phase to the next • Emission probabilities, b • Of features having a given value in a given phase Image: http://en.wikipedia.org/wiki/Hidden_Markov_model

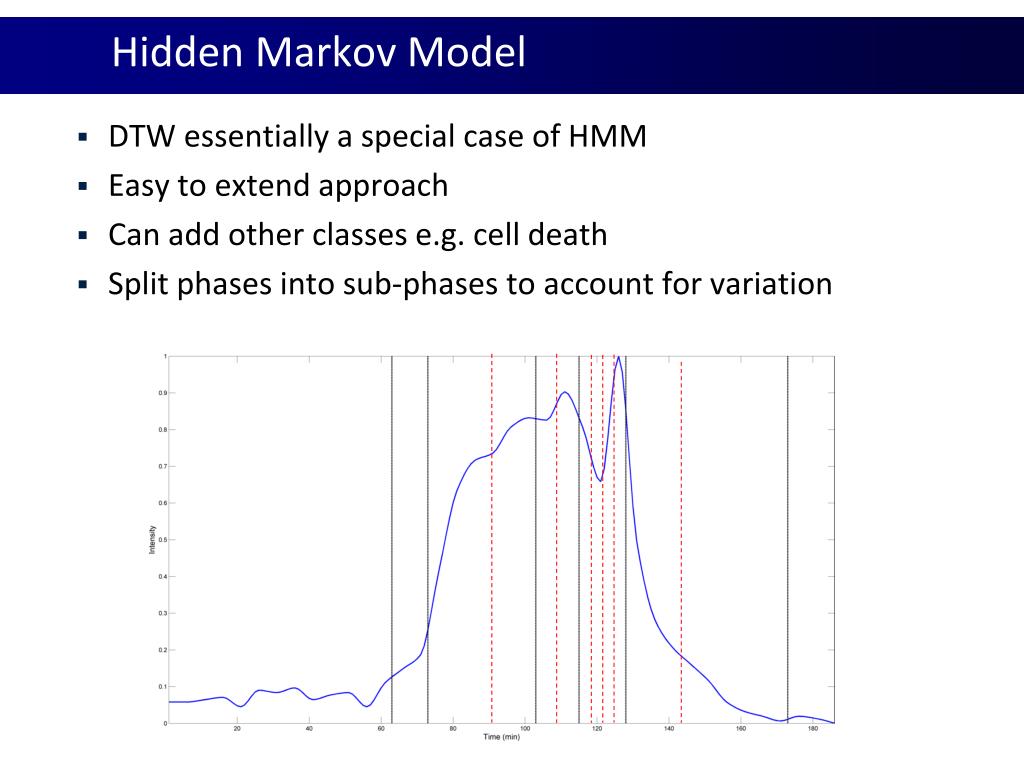

  34. Hidden Markov Model • DTW essentially a special case of HMM • Easy to extend approach • Can add other classes e.g. cell death • Split phases into sub-phases to account for variation

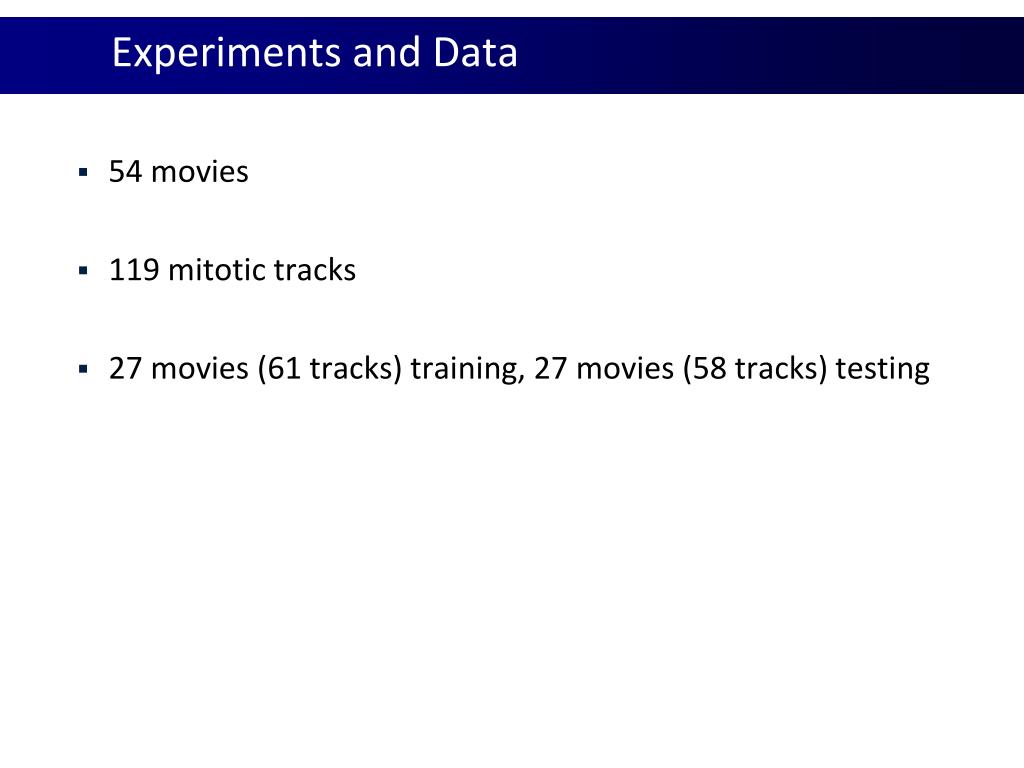

  35. Experiments and Data • 54 movies • 119 mitotic tracks • 27 movies (61 tracks) training, 27 movies (58 tracks) testing

  36. Results Interphase Prophase Prometaphase Metaphase Anaphase Telophase

  37. Results

  38. Outputs

  39. Outputs • Synopsis video1 of mitotic cells • Aligned to start of anaphase 1Rav-Acha et al., 2006

  40. Conclusions • Novel approach to cell cycle phase labelling • Utilises temporal context • Extendable with HMM

  41. Questions?
