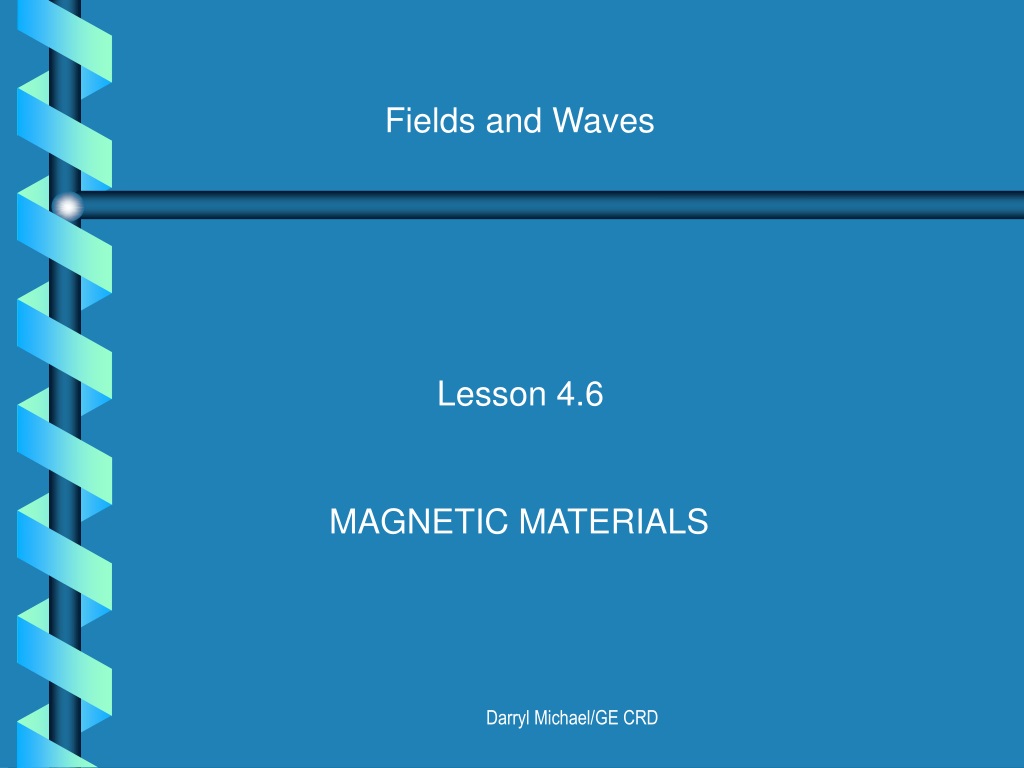

  1. Fields and Waves Lesson 4.6 MAGNETIC MATERIALS Darryl Michael/GE CRD

  2. Magnetic Materials Today’s Lesson: • linkage between H and B fields • M - magnetization • re-visit Ampere’s Law • boundary conditions • permanent magnets

  3. Use simple, linear model Vast majority of materials Magnetic Materials Magnetic properties tend to either very strong or very weak • ferromagnets (Fe) and permanent magnets • exhibit strong non-linear effects • demonstrate “memory” or hysterisis effects Recall in electrostatics that most materials have moderate effect: 1 < e < 10

  4. e- I Magnetic Materials In Quantum mechanics, atoms have “spin” In the classical picture: • electron orbits the nucleus • acts like a current loop Usually in most materials, the loops has random orientation - so the net effect is small In ferromagnets, neighboring atoms have spins that are aligned - strong effects

  5. The individual current loops can be thought of as having a dipole moment, Magnetic Dipole Moment

  6. Relationship between & magnetization Sum over all atoms -flux due to all sources -flux due to atomic sources -flux due to free current In general, one can write: where, (e.g. conduction current, e-beam)

  7. Relationship between & these are free-currents If, Maxwell’s equation: • we can determine H without determining M In most general form: Values, most materials for iron

  8. Curves for & Typical B-H Curve for materials B H For course, use ideal curve:

  9. use then apply a Material 1 TOP h Material 2 BOTTOM Boundary Conditions Do problem 1a: Boundary Conditions: Normal component: Take h << a (a thin disc) • ignore contribution from the sides

  10. w Material 1 h Material 2 Surface currents - out of plane If non-conductor, Js = 0 ,then, If conductor in 1 and Boundary Conditions Boundary Conditions: Tangential component: h << w Inet can only be due to surface currents = Js.w or

  11. Magnetic Materials Do Problems 1b and 2 Problem 2 : Field lines exit normally in high m materials Also, field lines like to travel through high m materials • use IRON to direct flux Transformers : • primary and secondary windings intercept almost all the flux - no need for “smoothly-wound” coils • Noise reduction • increase Inductance with increasing m Do Problem 3

  12. The current loop approximates the dipole moment, E-field of electric dipole B-field of magnetic dipole Far-fields look the same for both types of dipoles Magnetic and Electric Dipole Moment
