  1. Customer Needs

  2. Specs

  3. Function Decomposition

  4. Shell Concept Designs • Based off of: • Iron Man • QRIO • iRobot

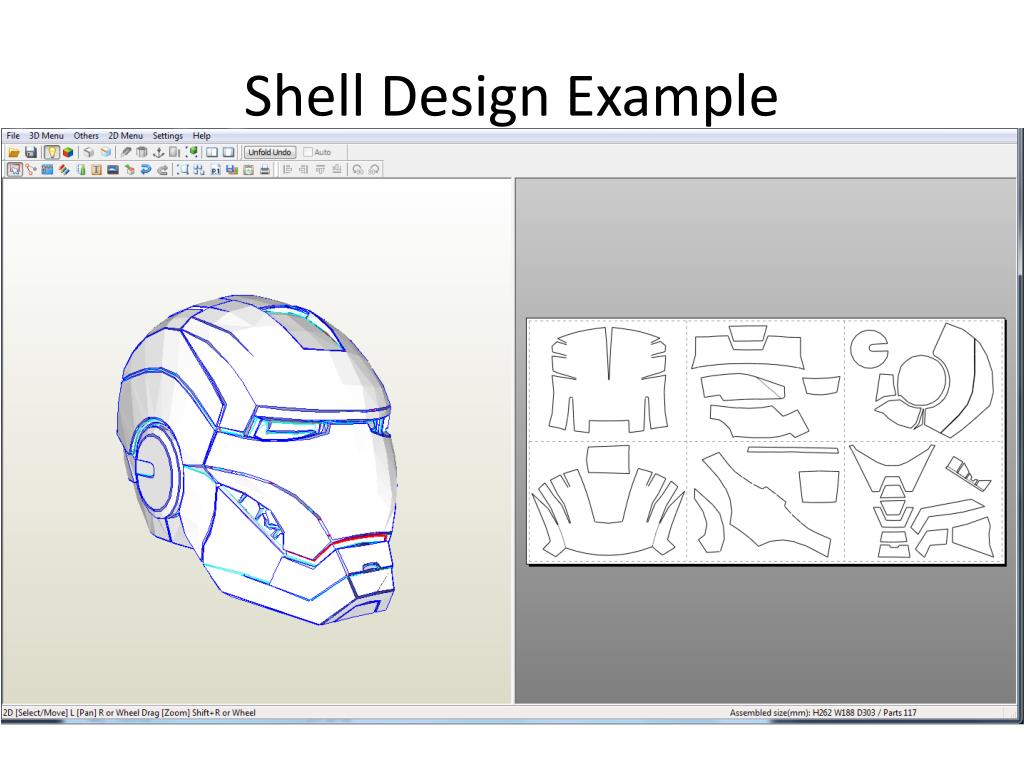

  5. Shell Design Example

  6. Shell Design Example

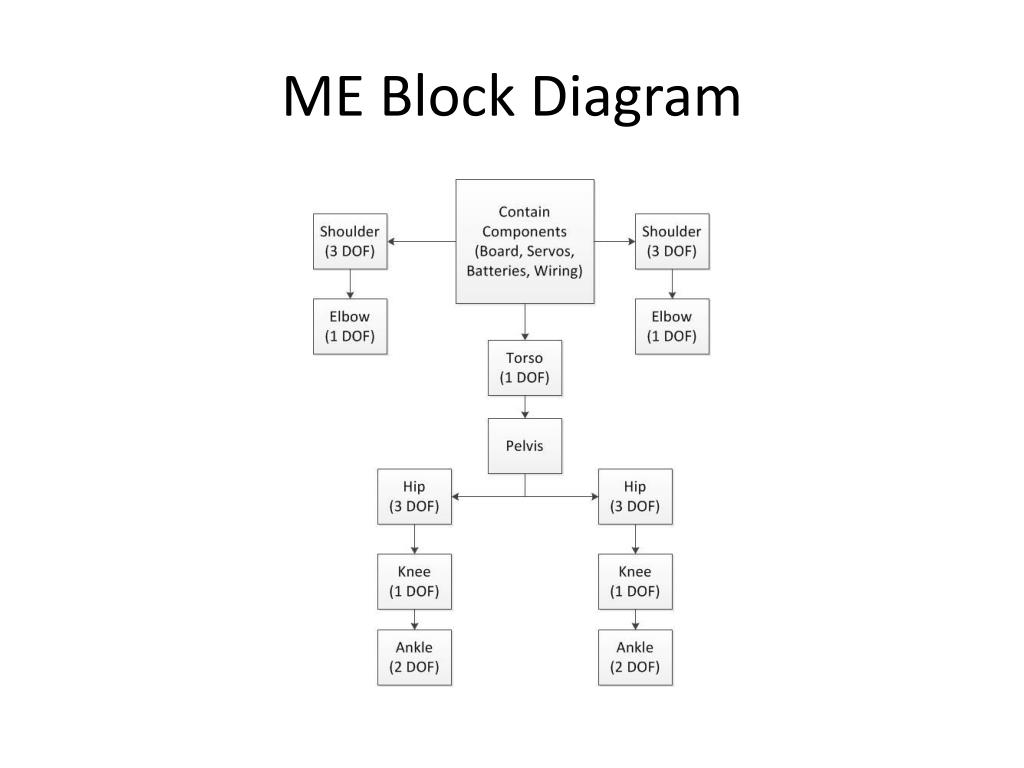

  7. ME Block Diagram

  8. Servo Placement

  9. Limb/Joint Design

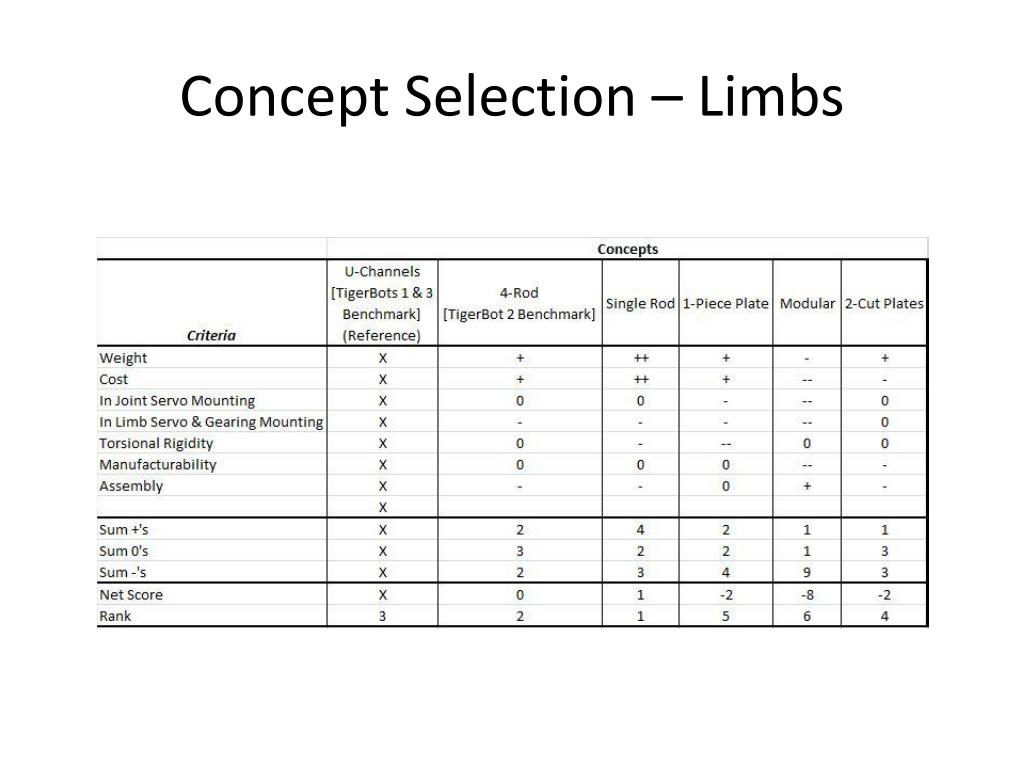

  10. Concept Selection – Limbs

  11. Preliminary Torque Calculations – Knee

  12. Preliminary Torque Calculations – Hip

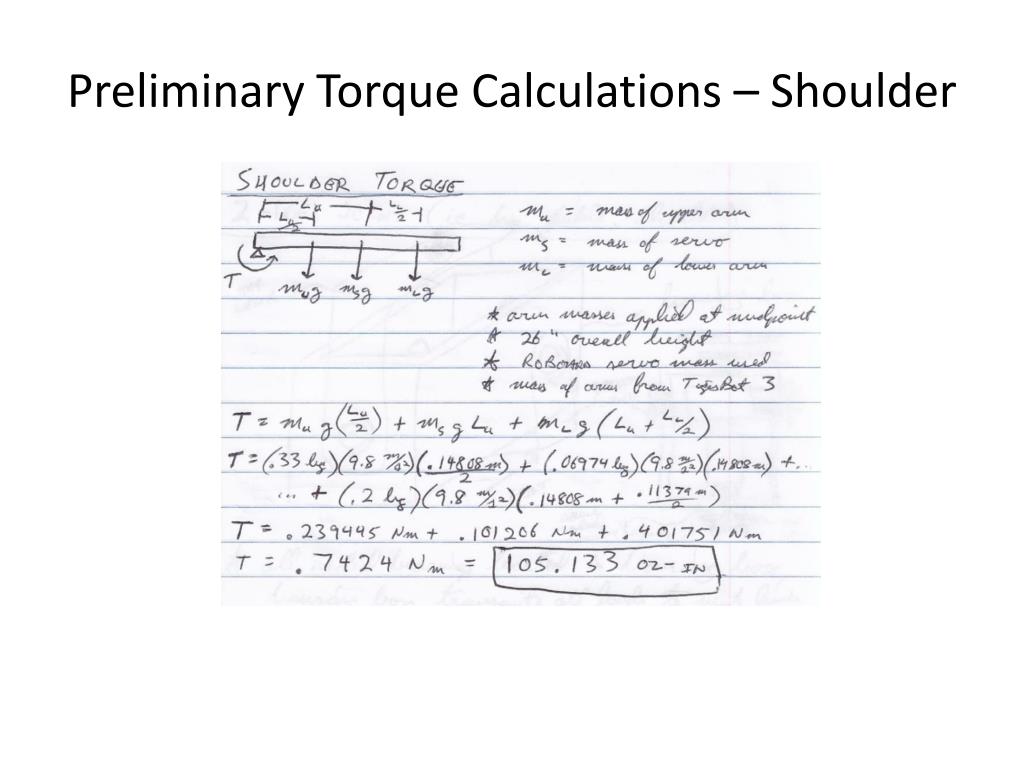

  13. Preliminary Torque Calculations – Shoulder

  14. EE Block Diagram

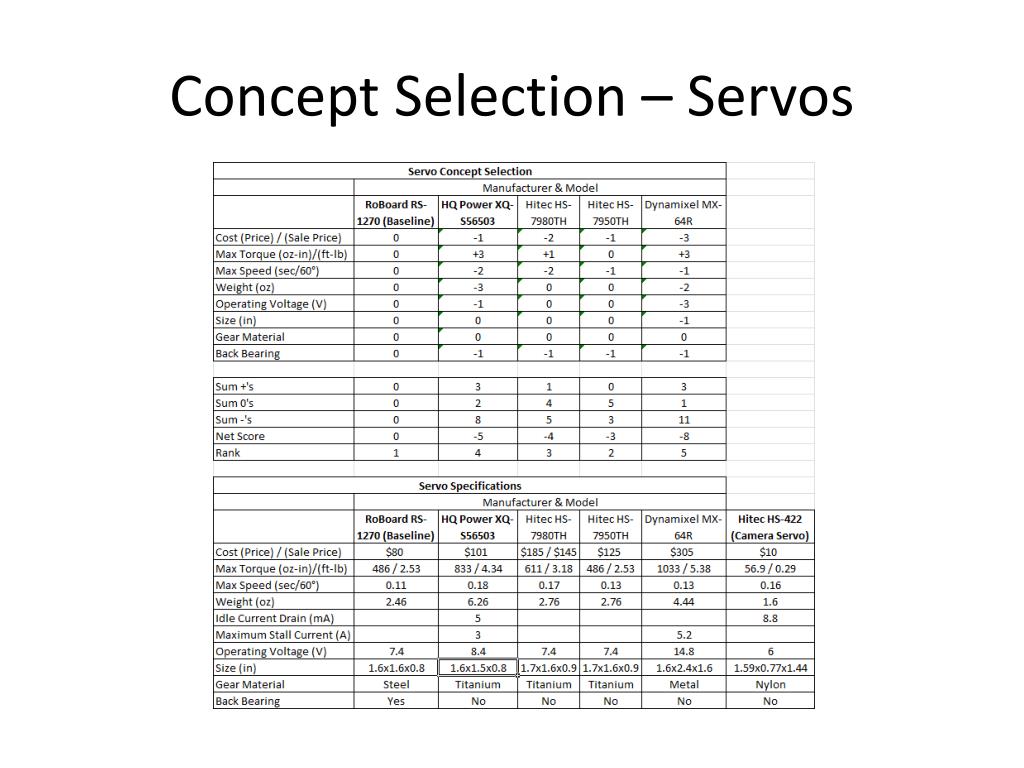

  15. Concept Selection – Servos

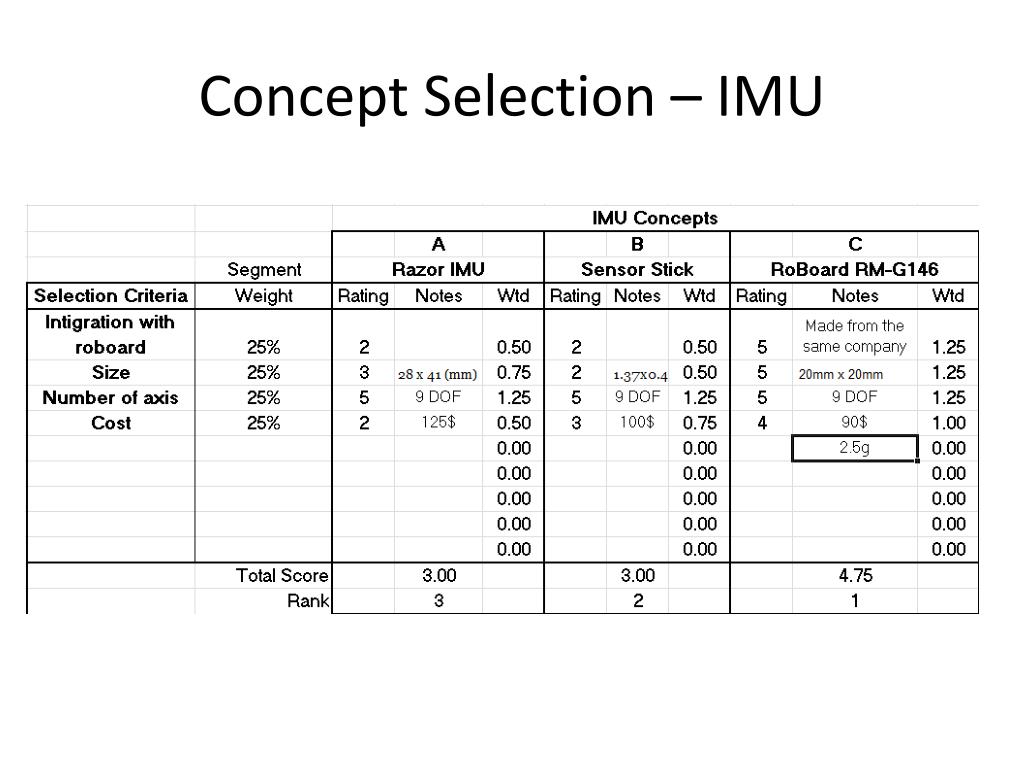

  16. Concept Selection – IMU

  17. Concept Selection – Batteries

  18. Concept Selection – Misc EE Items

  19. Software Flowchart

  20. Concept Selection – Microcontrollers

  21. Planning Schedule

  22. Risk Assessment
