  1. SALT and Version Control How to handle projects using version controlled SALT V1.07

  2. Reasons for external storage Ever since large IT projects have been going on there has been a need to keep code out of the workspace and manage it, e.g. • More room needed in the workspace • Backup copies (security) • Modularize code • Code control • Etc. Oct 2008

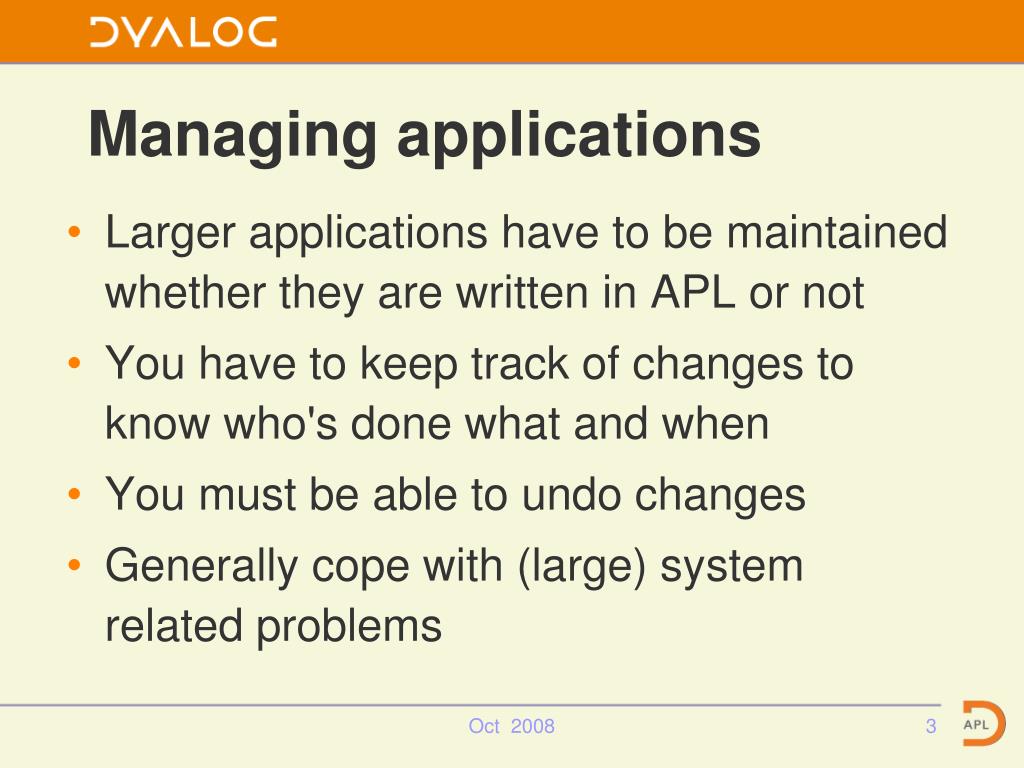

  3. Managing applications • Larger applications have to be maintained whether they are written in APL or not • You have to keep track of changes to know who's done what and when • You must be able to undo changes • Generally cope with (large) system related problems Oct 2008

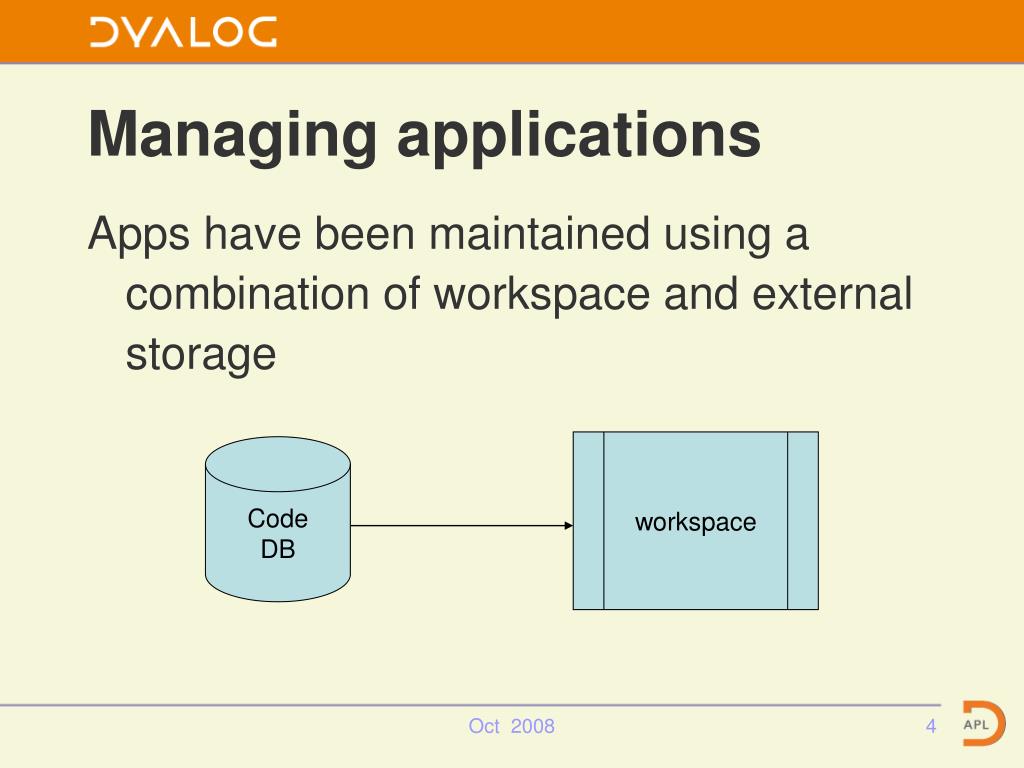

  4. workspace Code DB Managing applications Apps have been maintained using a combination of workspace and external storage Oct 2008

  5. How In APL: • APL files (most common) • Other workspaces ([]CY) • External DBs (e.g. Oracle) • Etc. In other (e.g. compiled) languages • Text files Oct 2008

  6. APL stands out The rest of the world APL Oct 2008

  7. Managing applications in APL This makes porting code or even sharing snippets of it difficult. • You cannot transport it • Hard to compare changes • You need the (proper) interpreter just to VIEW the code Oct 2008

  8. Managing applications in APL There is another way: Unicodetext files • You can transport them • You don’t need any interpreter to VIEW them • They integrate with any text file based control system Oct 2008

  9. APL doesn’t have to stand out The rest of the world APL Oct 2008

  10. Unicode With the wider acceptance of Unicode it has become easier to share code in text files. • They can be reorganized using Disk Explorer • APL code can now be cut & pasted and viewed in Notepad or other Unicode compliant editor/program • It can be distributed Oct 2008

  11. Dyalog V11 • This version introduced the scripted form of classes/namespaces • Their definitions, including functions in them, can be edited. Oct 2008

  12. Dyalog V11 • The definition of objects like classes can be retrieved and manipulated like the definition of functions • And, like the ⎕CR of a function, it can be stored outside the workspace, e.g. in a text (Unicode) file Oct 2008

  13. Requirements All that is needed to store and retrieve text to any Operating System is a pair of functions to • Store code to a text file • Read a text file into the workspace Easy enough to do. Oct 2008

  14. Requirements Of course, once you’ve done that you may want to: • Save multiple copies • Retrieve any of them • List them • Compare them • Etc. * Basically manage them * Oct 2008

  15. Enter... SALT Oct 2008

  16. OK, so, what is SALT? Oct 2008

  17. SALT SALT is exactly that: • A pair of functions to store/retrieve • + other functions to list/compare/etc. • + utility functions (e.g. ease migration of namespaces to text format) Oct 2008

  18. SALT SALT stands for Simple APL Library Toolkit Itis a source code management system for functions, Classes and script-based Namespaces in Dyalog APL. Oct 2008

  19. SALT basics • SALT is tucked away in ⎕SE, this means you can )LOAD and run any workspace anytime • To save a namespace use Save:⎕SE.SALT.Save 'myns \path\myfile' • To bring in a namespace use Load:⎕SE.SALT.Load '\path\myfile' Oct 2008

  20. Features SALT can save back a script on file right after it has been modified. Modify <test> After modification you are prompted to confirm saving over the present script file: Oct 2008

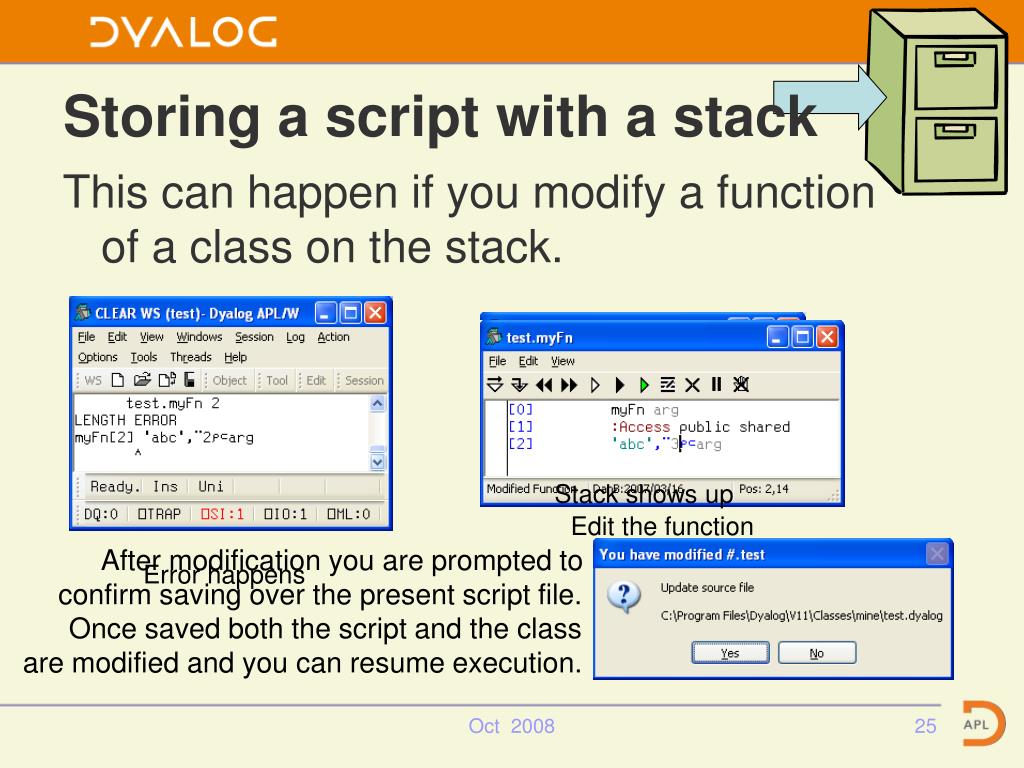

  21. Storing a script with a stack This can happen if you modify a function of a class on the stack. Stack shows up Edit the function After modification you are prompted to confirm saving over the present script file. Once saved both the script and the class are modified and you can resume execution. Error happens Oct 2008

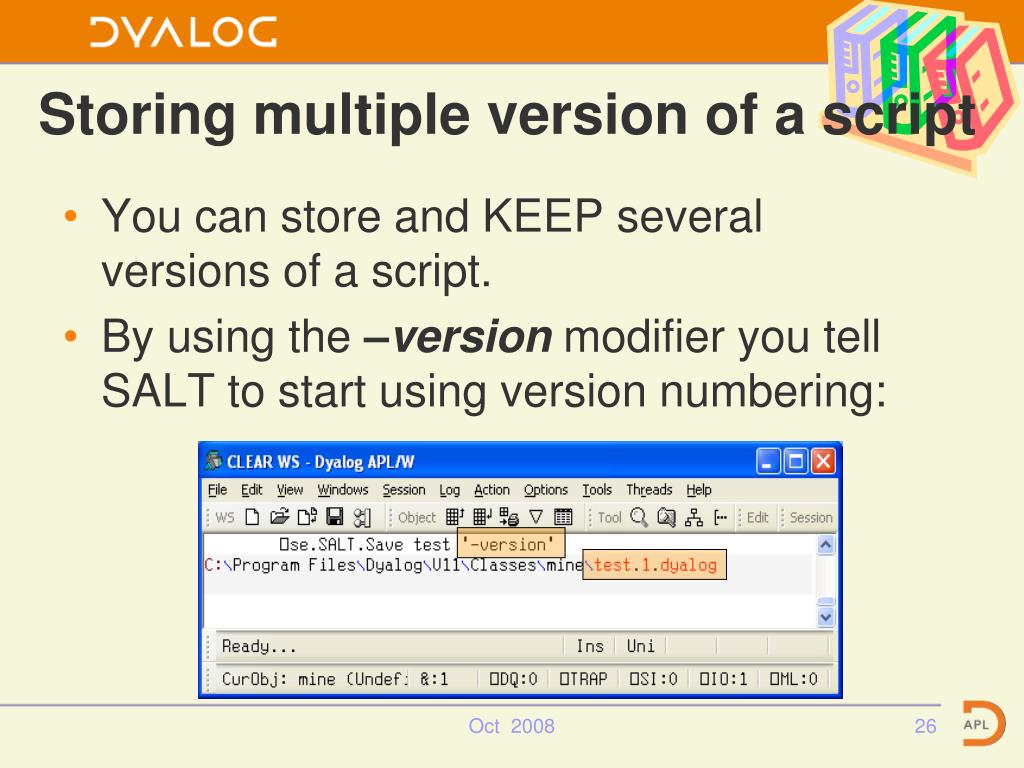

  22. Storing multiple version of a script • You can store and KEEP several versions of a script. • By using the –version modifier you tell SALT to start using version numbering: Oct 2008

  23. Storing multiple version of a script Every time you modify a script SALT stores the definition in a new file: V0 V1 Oct 2008

  24. =? Showing differences between versions SALT can show the difference between 2 versions of a script, either • natively, using APL, or • using a 3rd party Unicode comparison program Oct 2008

  25. → is used to denote inserted lines ← is used to denote deleted lines =? lines inserted lines modified Showing differences between versions If ‘APL’ is the method chosen to compare, the output will appear in the session like this: Oct 2008

  26. SALT features SALT has many more features It is UNIX ready It comes with tools of its own It can be extended easily by adding your own utilities Oct 2008

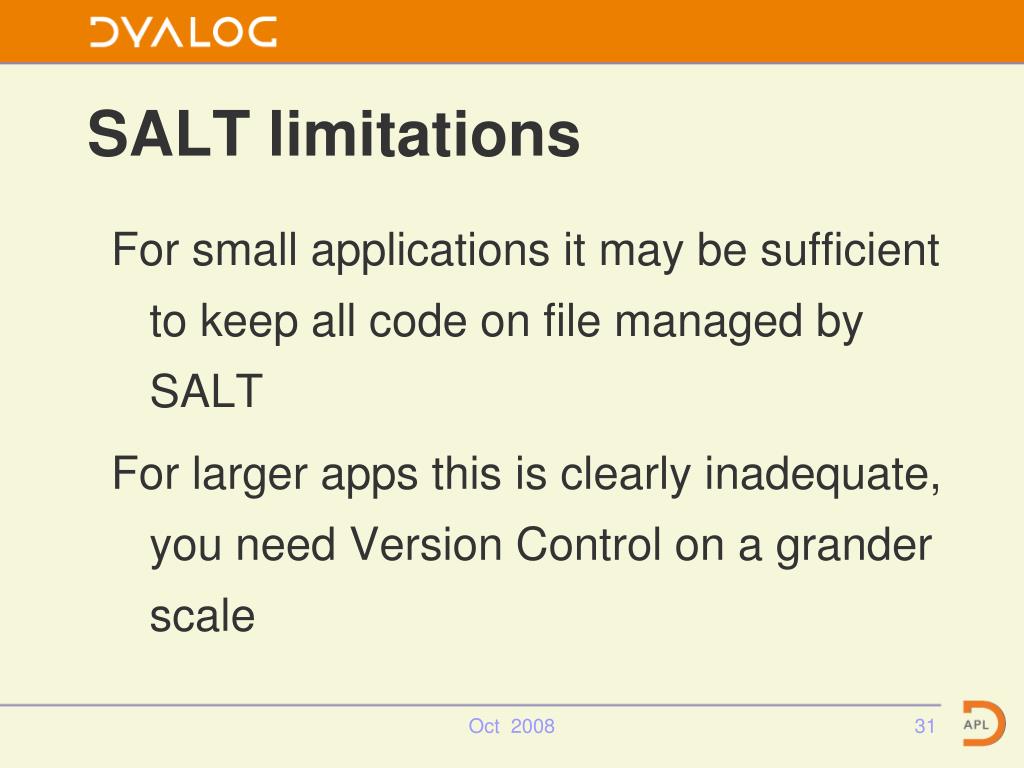

  27. SALT limitations For small applications it may be sufficient to keep all code on file managed by SALT For larger apps this is clearly inadequate, you need Version Control on a grander scale Oct 2008

  28. What is Version Control (VC)? VC is a good way to ensure team members of a project don't step over each others' toes. On a large project it is imperative to use VC. Otherwise, time (and money) will be lost trying to recover from coordination problems.

  29. original files repository import Version Control overview You usually start by importing an existing system (a set of files) into a version control repository: Oct 2008

  30. Version Control overview The original files can then be forgotten: original files repository Oct 2008

  31. original files repository checkout subset Version Control overview You then checkout a subset to work with: Oct 2008

  32. Version Control overview You then work on the subset for a while: repository subset Oct 2008

  33. Version Control overview If you are using SALT you maintain the files from APL: Dyalog APL subset Oct 2008

  34. Version Control overview Every once in a while you update the repository: repository Checkin subset Oct 2008

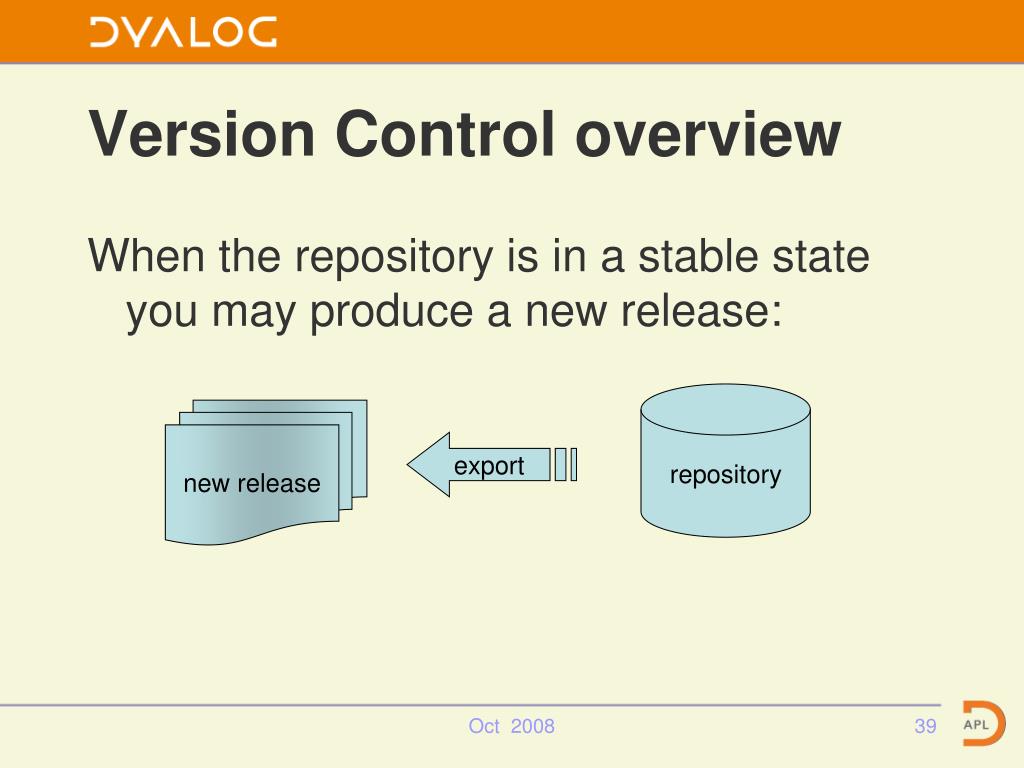

  35. repository new release export Version Control overview When the repository is in a stable state you may produce a new release: Oct 2008

  36. VC systems There are several VC systems out there. To mention a few: PerForce, ClearCase, Visual SourceSafe, CVS and SubVersion. There are pros & cons for each. Oct 2008

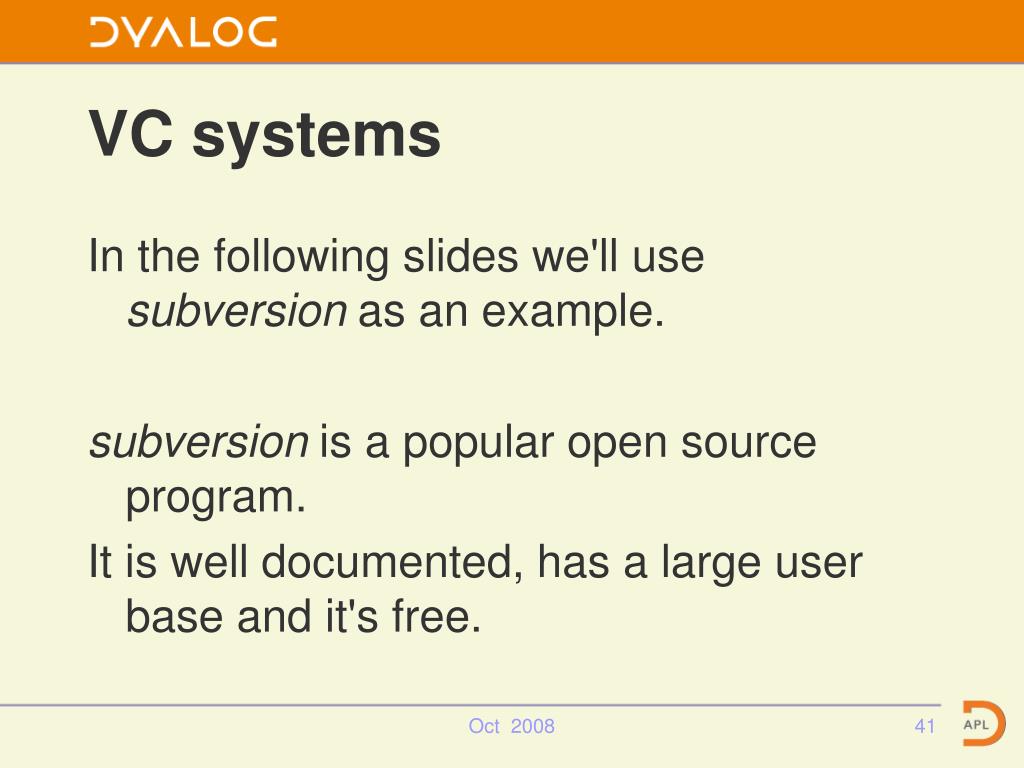

  37. VC systems In the following slides we'll use subversion as an example. subversion is a popular open source program. It is well documented, has a large user base and it's free. Oct 2008

  38. Enter... subversion Oct 2008

  39. subversion subversion is a version control system for Unix and Windows. It is independent of any file system or file types to manage It is easy to install Oct 2008

  40. subversion subversion comes in command line (shell) mode. Most commands involve a single program: svn. For ex: svn import ... svn checkout ... svn checkin ... svn export ... Oct 2008

  41. subversion There are many more commands in subversion. They handle updates, conflicts, allow to see differences between versions. The complete list is extensive but well documented. Oct 2008

  42. subversion There is also a GUI front-end for subversion. This front-end is completely separate but closely integrated to the GUI. It's name isTortoiseSVN. subversion will be installed if not there. Oct 2008

  43. subversion Different people prefer different things: Windows users may choose the GUI front-end for subversion. Unix users may prefer the shell environment APL users might prefer to stay in APL Either way the results will be the same: better coordination! Oct 2008

  44. subversion: an example Assuming we have the following workspace named ROBOTS written in Dyalog: It has 2 top level namespaces in which there are 5 (nested) namespaces: • namespace Master: 2 namespaces • namespace Troopers: 3 namespaces Oct 2008

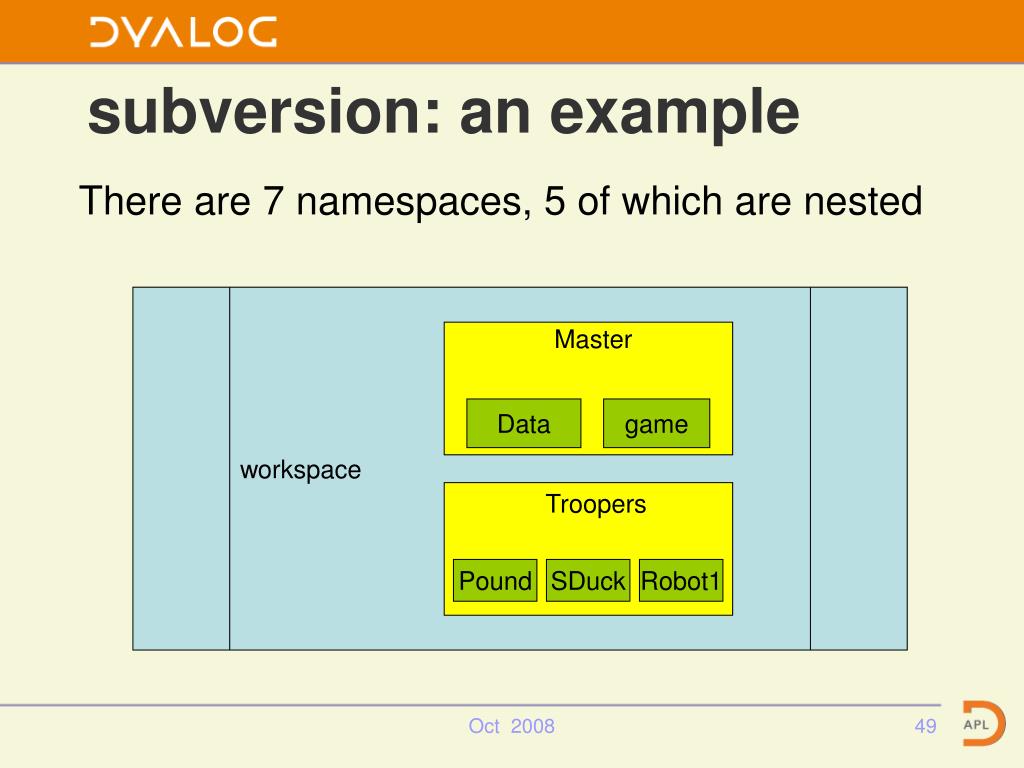

  45. workspace Master Data game Troopers Pound SDuck Robot1 subversion: an example There are 7 namespaces, 5 of which are nested Oct 2008

  46. subversion: an example We’ve seen the benefits of using text files for the namespaces: • easier to visualize the code • easier to maintain • easier to share • no need to have the interpreter to see it Oct 2008

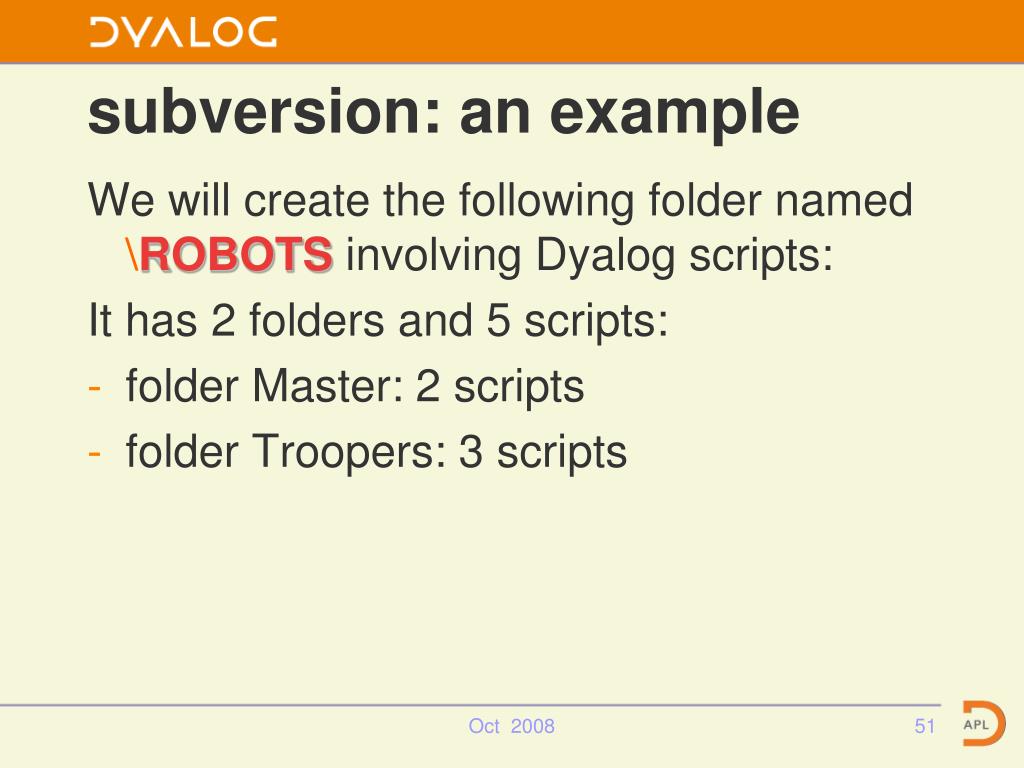

  47. subversion: an example We will create the following folder named \ROBOTS involving Dyalog scripts: It has 2 folders and 5 scripts: • folder Master: 2 scripts • folder Troopers: 3 scripts Oct 2008

  48. subversion: an example To create \ROBOTS we only need to: use SALT's <Save> function to store the scripted namespaces to the \ROBOTS subfolders Oct 2008

  49. subversion: an example For example: To create \ROBOTS\Troopers\Pound.dyalog we will simply ask <Save> to do it for you: ⎕SE.SALT.Save 'Troopers.Pound \ROBOTS\Troopers\Pound -convert' Oct 2008

  50. subversion: an example You then do the other namespaces: ⎕SE.SALT.Save 'Troopers.SDuck \ROBOTS\Troopers\SDuck -convert‘ ⎕SE.SALT.Save 'Troopers.Robot1 \ROBOTS\Troopers\Robot1 -convert' Oct 2008
