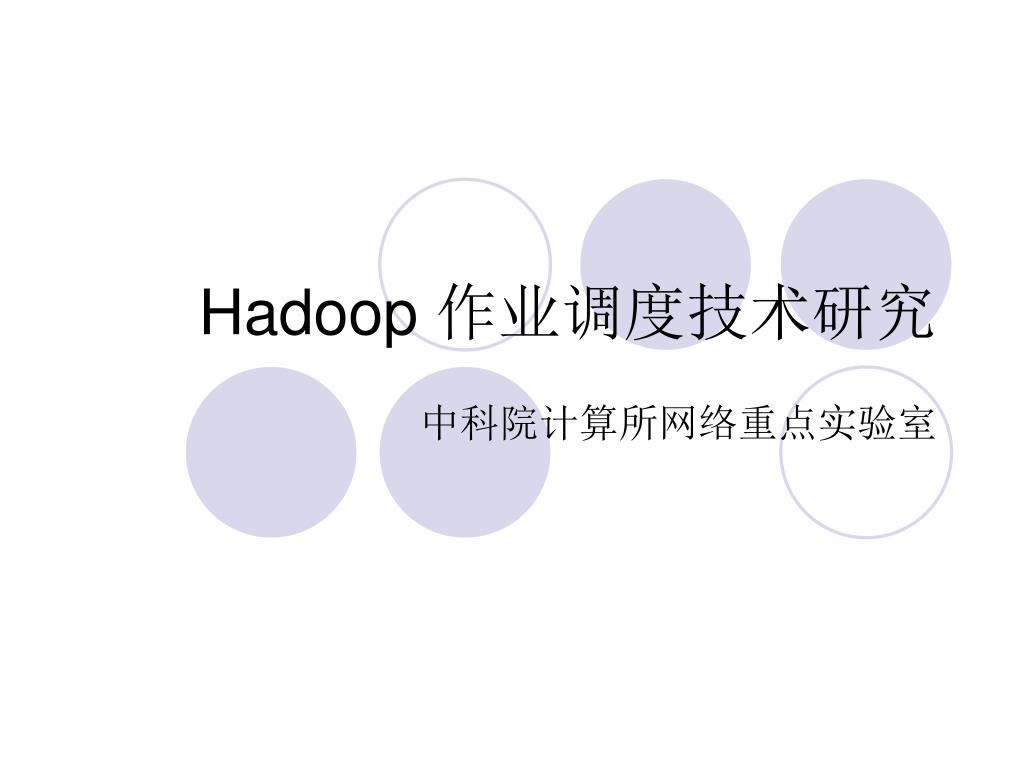

  1. Hadoop 作业调度技术研究 中科院计算所网络重点实验室

  2. Hadoop平台应用特点 • 多种应用共用一个Hadoop平台 • 生产性应用:数据加载,统计值计算,垃圾数据分析等 • 批作业:机器学习等 • 交互式作业:SQL查询、样本采集等 • 不同应用对硬件资源要求不同 • I/O密集型作业,如:机器学习算法 • CPU密集型作业:如:过滤,统计值计算 • 作业之间存在依赖关系 • 并发作业数量不稳定 • 如何提高Hadoop平台资源利用效率?

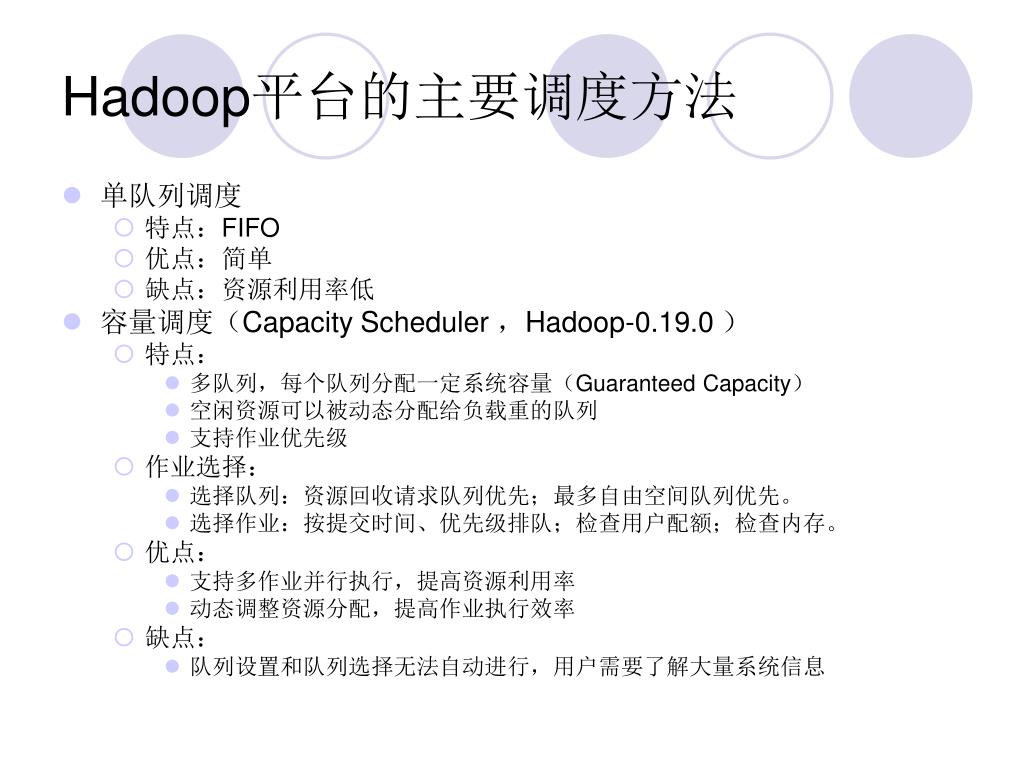

  3. Hadoop平台的主要调度方法 • 单队列调度 • 特点:FIFO • 优点:简单 • 缺点:资源利用率低 • 容量调度(Capacity Scheduler ,Hadoop-0.19.0 ) • 特点: • 多队列,每个队列分配一定系统容量(Guaranteed Capacity) • 空闲资源可以被动态分配给负载重的队列 • 支持作业优先级 • 作业选择: • 选择队列:资源回收请求队列优先;最多自由空间队列优先。 • 选择作业:按提交时间、优先级排队;检查用户配额;检查内存。 • 优点: • 支持多作业并行执行,提高资源利用率 • 动态调整资源分配,提高作业执行效率 • 缺点: • 队列设置和队列选择无法自动进行,用户需要了解大量系统信息

  4. Hadoop平台的主要调度方法 • 公平调度(Fair Scheduler,Hadoop-0.19.0) • 目标: • 改善小作业的响应时间 • 确保生产性作业的服务水平 • 特点: • 将作业分组——形成作业池(based on a configurable attribute , such as user name, unix group,…) • 给每个作业池分配最小共享资源(Minimum map slots, Minimum reduce slots ) • 将多余的资源平均分配给每个作业 • 作业选择: • 优先调度资源小于最小共享资源的作业 • 选择分配资源与所需资源差距最大的作业 • 优点: • 支持作业分类调度,使不同类型的作业获得不同的资源分配,提高服务质量 • 动态调整并行作业数量,充分利用资源 • 缺点: • 不考虑节点的实际负载状态,导致节点负载实际不均衡

  5. Hadoop作业调度存在的问题 • Actual workload of the task nodes hasnot be considered. • At runtime, the actual workload of a task node is determined by resource consumption of the running tasks rather than number of those. • In reality, many clusters are shared by many systems, like MPI, MemCache .... Their impact on MR jobs should be considered. • How job dependency is supported? • Pipeline for the critical paths. • Rationally schedule for jobs in the non critical path.

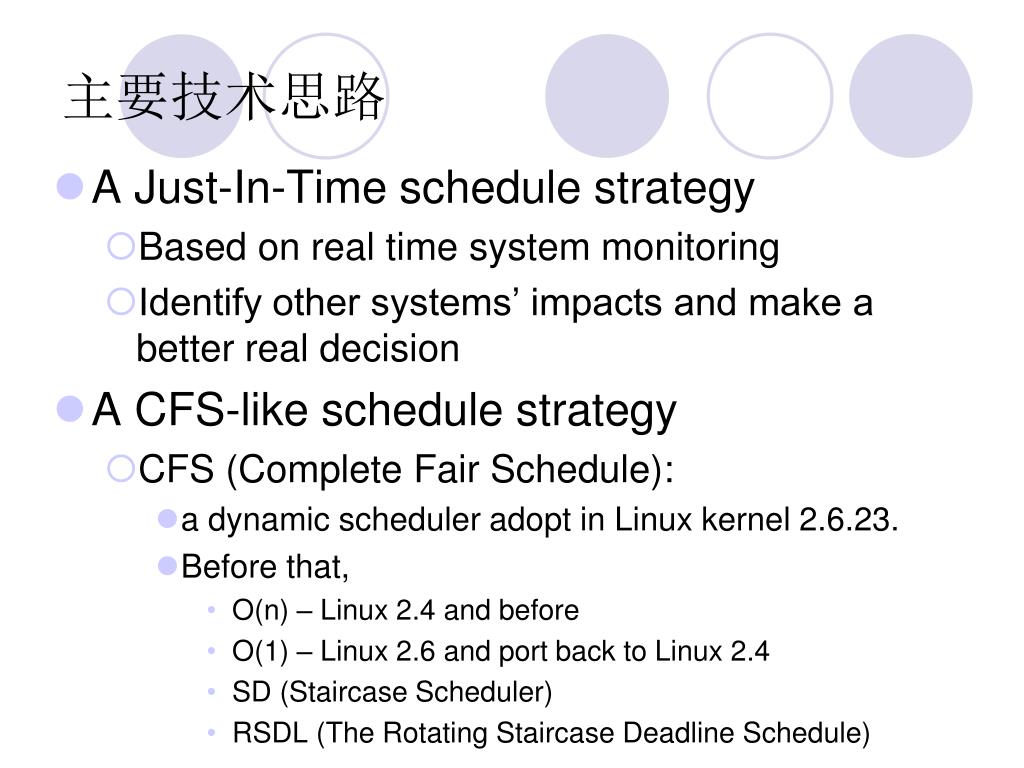

  6. 主要技术思路 • A Just-In-Time schedule strategy • Based on real time system monitoring • Identify other systems’ impacts and make a better real decision • A CFS-like schedule strategy • CFS (Complete Fair Schedule): • a dynamic scheduler adopt in Linux kernel 2.6.23. • Before that, • O(n)–Linux2.4andbefore • O(1)– Linux 2.6 and port back to Linux 2.4 • SD (Staircase Scheduler) • RSDL (The Rotating Staircase Deadline Schedule)

  7. 主要技术思路 • A new description for Job Group • Job dependency • Data dependency • Runtime demands • A more light-weight support of HOD features • Assumption: • A cluster is shared by many organizations (person, departments)

  8. 目标 Just-In-Time Hadoop Scheduler Real time monitor information based scheduling CFS-like scheduling Support job groups Support dynamic priority

  9. 评价 • Gridmix • The benchmark currently included in Hadoop • Need many extensions for non-dedicated clusters

  10. 谢谢!
