  1. T&D Planning at Nashville Electric ServicePaul H. Allen, Nashville Electric ServiceAPPA E&O Technical ConferenceMarch 9, 2004 - San Antonio, Texas The Power Of Greater Nashville

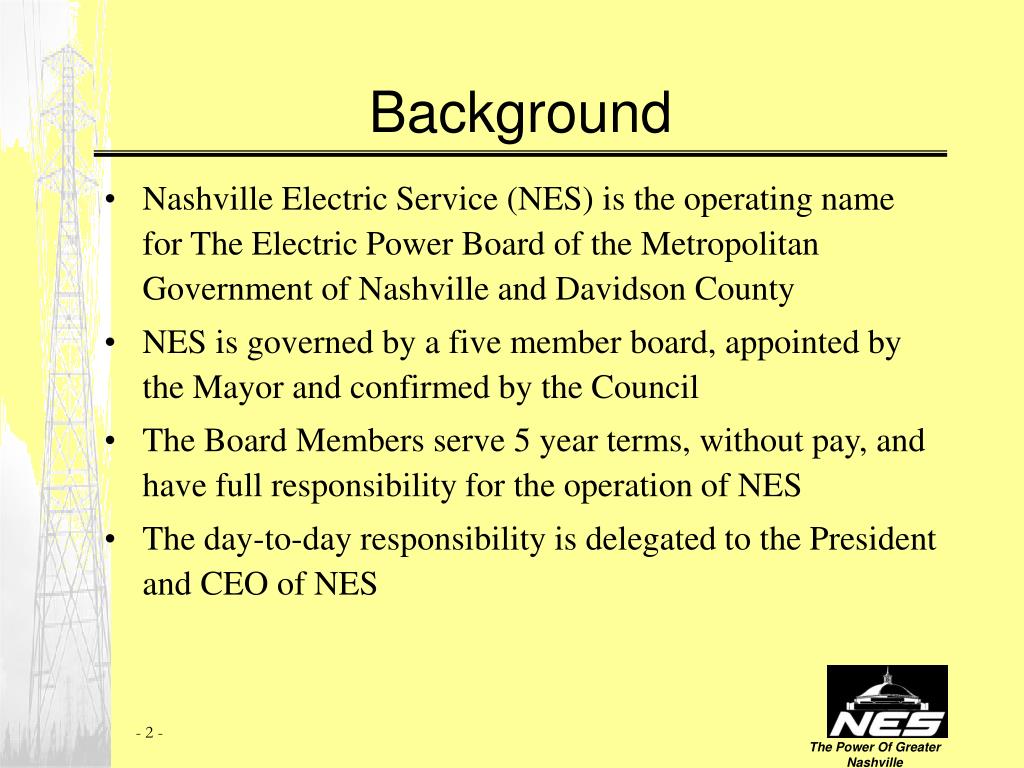

  2. Background • Nashville Electric Service (NES) is the operating name for The Electric Power Board of the Metropolitan Government of Nashville and Davidson County • NES is governed by a five member board, appointed by the Mayor and confirmed by the Council • The Board Members serve 5 year terms, without pay, and have full responsibility for the operation of NES • The day-to-day responsibility is delegated to the President and CEO of NES The Power Of Greater Nashville

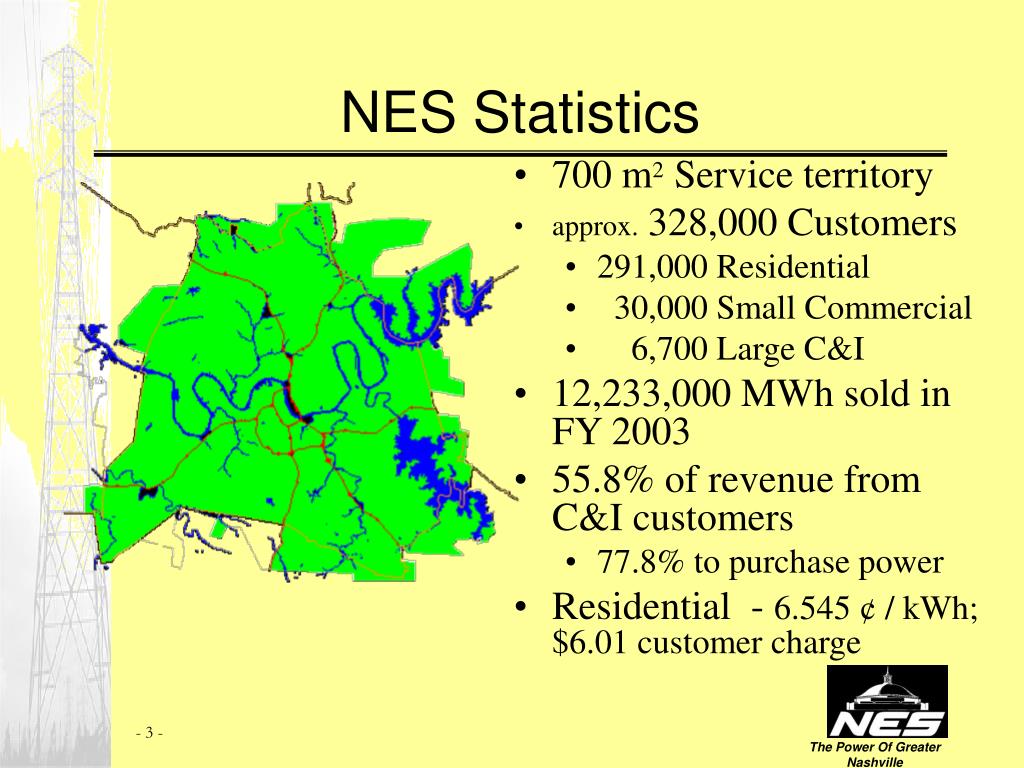

  3. NES Statistics • 700 m2 Service territory • approx. 328,000 Customers • 291,000 Residential • 30,000 Small Commercial • 6,700 Large C&I • 12,233,000 MWh sold in FY 2003 • 55.8% of revenue from C&I customers • 77.8% to purchase power • Residential - 6.545 ¢ / kWh; $6.01 customer charge The Power Of Greater Nashville

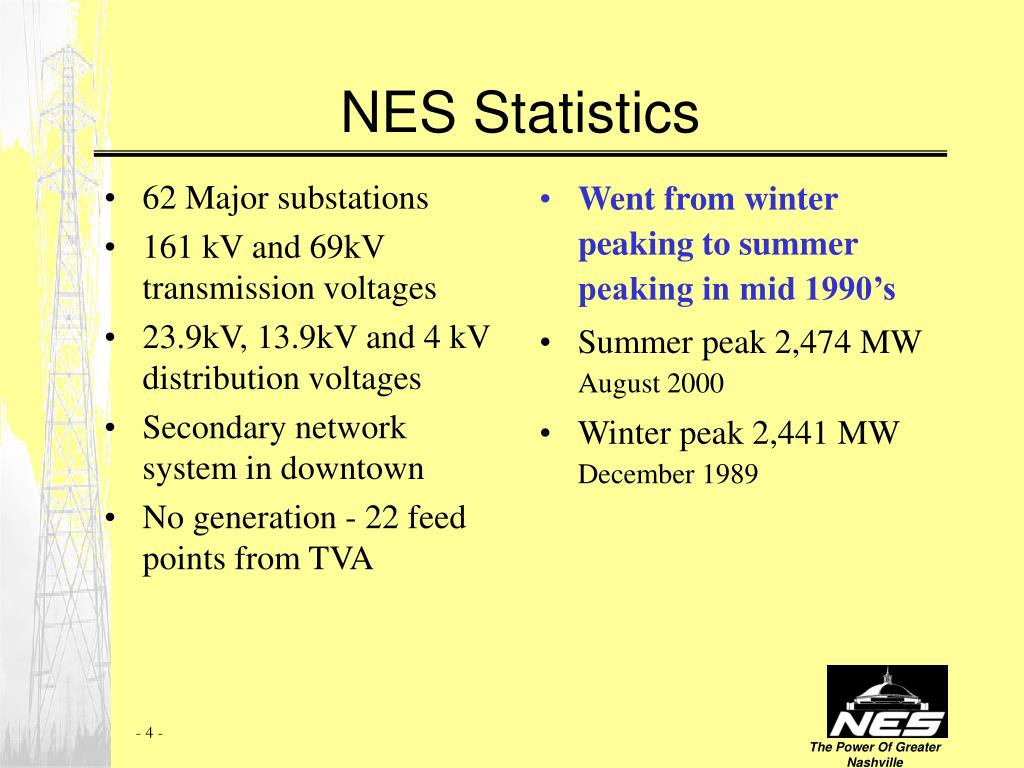

  4. 62 Major substations 161 kV and 69kV transmission voltages 23.9kV, 13.9kV and 4 kV distribution voltages Secondary network system in downtown No generation - 22 feed points from TVA Went from winter peaking to summer peaking in mid 1990’s Summer peak 2,474 MWAugust 2000 Winter peak 2,441 MWDecember 1989 NES Statistics The Power Of Greater Nashville

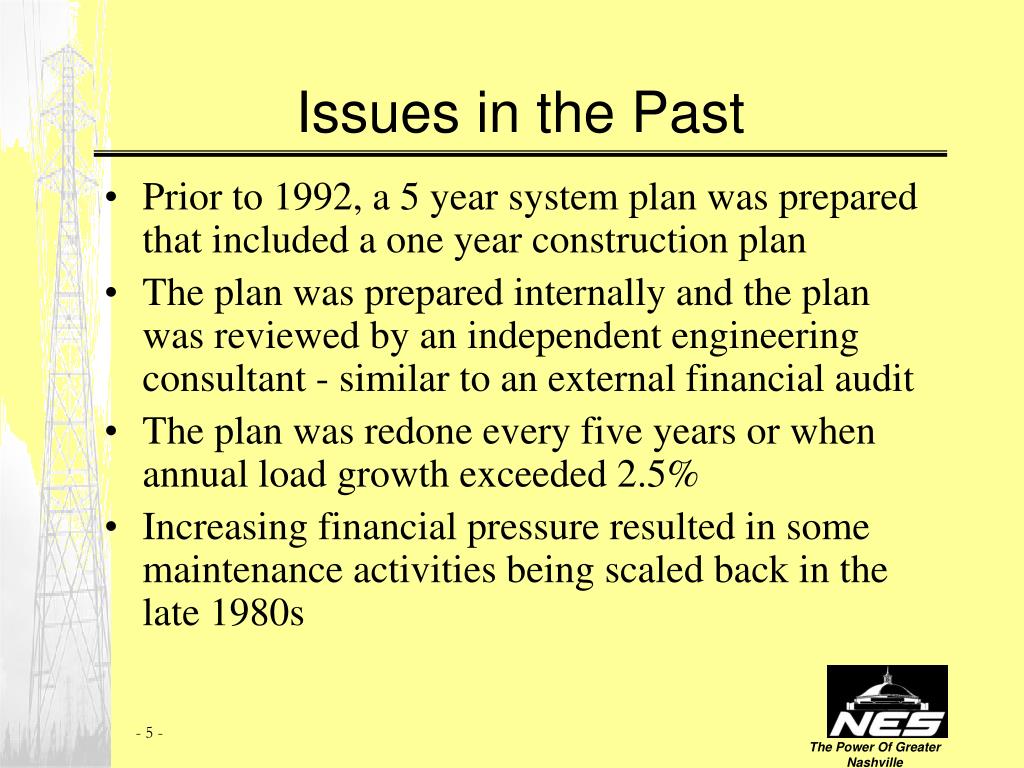

  5. Issues in the Past • Prior to 1992, a 5 year system plan was prepared that included a one year construction plan • The plan was prepared internally and the plan was reviewed by an independent engineering consultant - similar to an external financial audit • The plan was redone every five years or when annual load growth exceeded 2.5% • Increasing financial pressure resulted in some maintenance activities being scaled back in the late 1980s The Power Of Greater Nashville

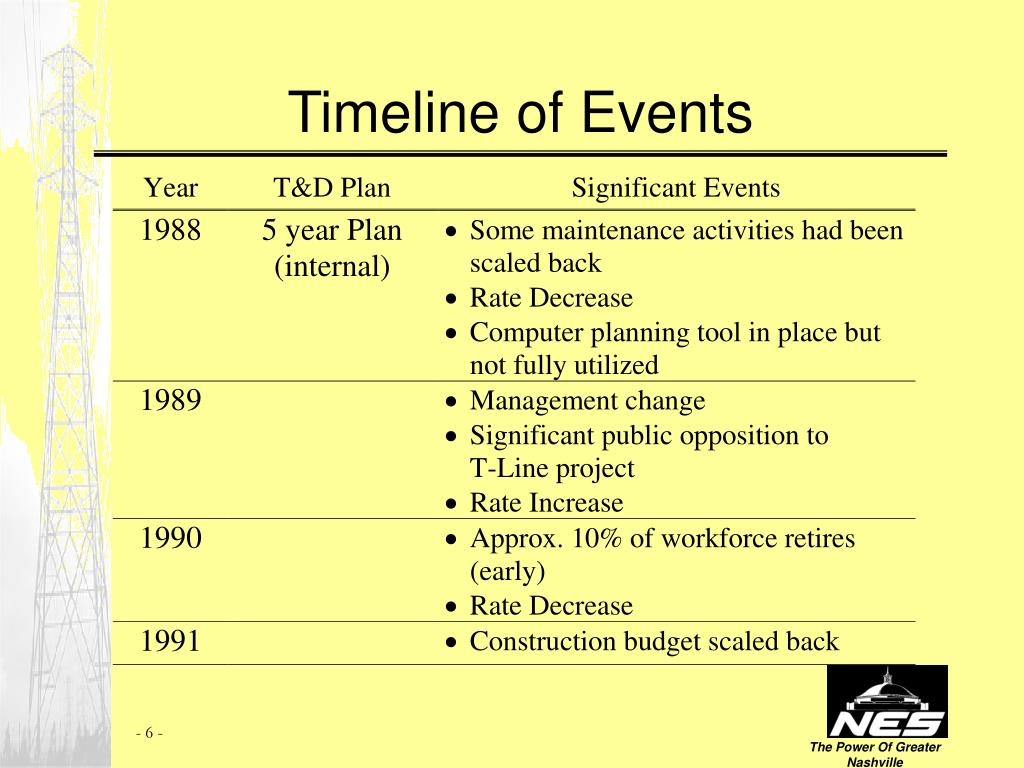

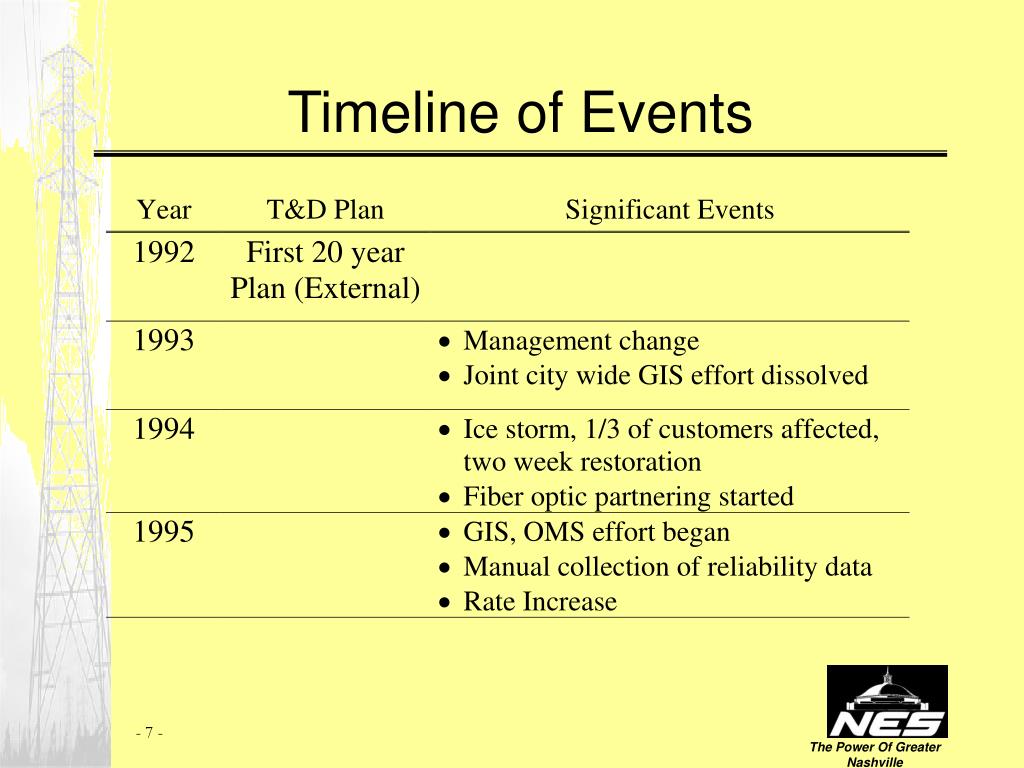

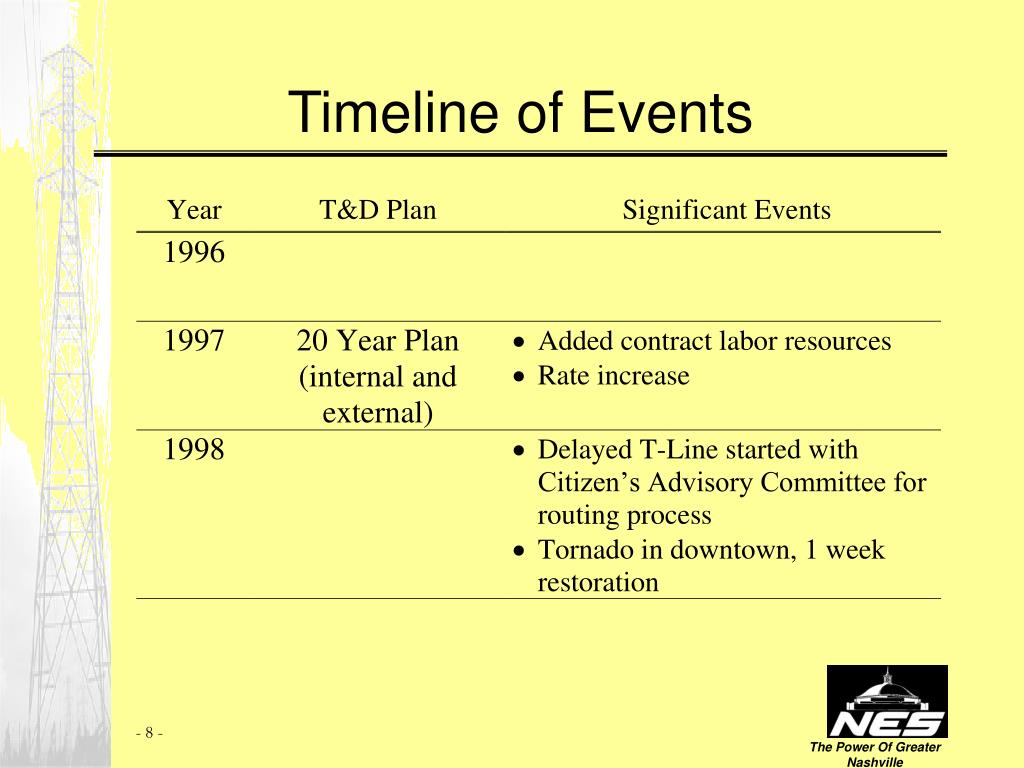

  6. Timeline of Events The Power Of Greater Nashville

  7. Timeline of Events The Power Of Greater Nashville

  8. Timeline of Events The Power Of Greater Nashville

  9. Timeline of Events The Power Of Greater Nashville

  10. Current Environment • Planning Process - Overview • A 20 year comprehensive T&D plan is prepared at least every 5 years or when system demand reaches or exceeds 105% in the base year of the last study • Result - a new plan every 3 to 5 years • An external consultant is used on every other plan • Assures that process is state of the art • Provides appropriate due diligence to Board and Executive Management • Interim studies are performed (internally) between plans to determine if plan should be accelerated or slowed The Power Of Greater Nashville

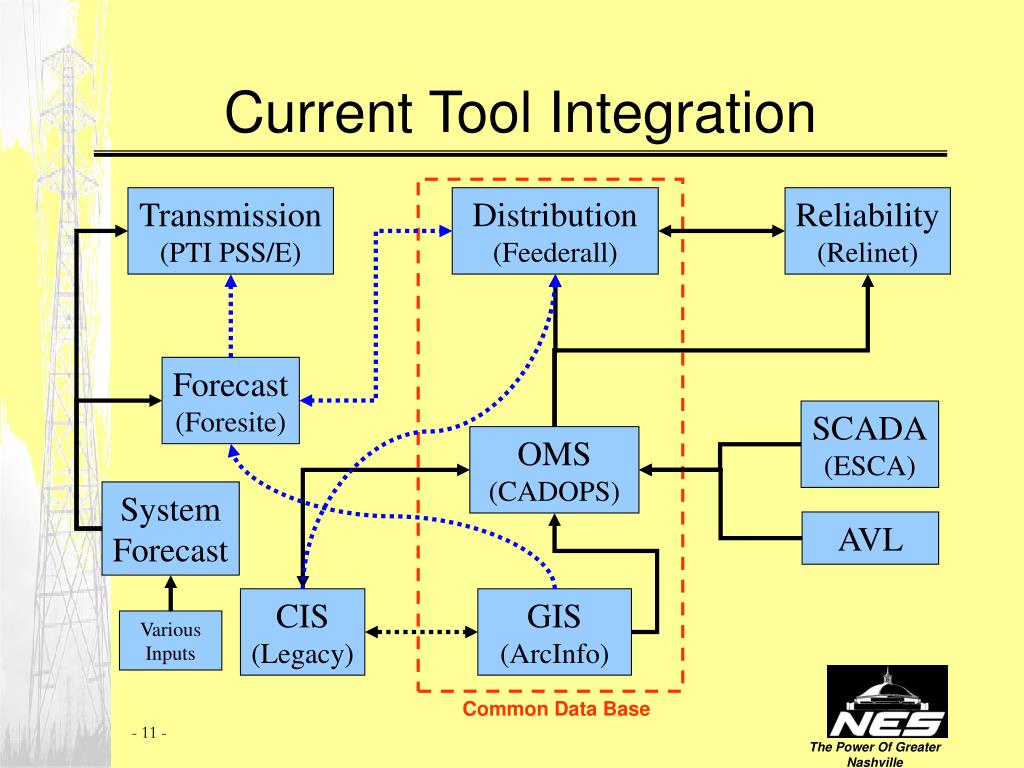

  11. Current Tool Integration Transmission (PTI PSS/E) Distribution (Feederall) Reliability (Relinet) Forecast (Foresite) SCADA (ESCA) OMS (CADOPS) System Forecast AVL CIS (Legacy) GIS (ArcInfo) VariousInputs Common Data Base The Power Of Greater Nashville

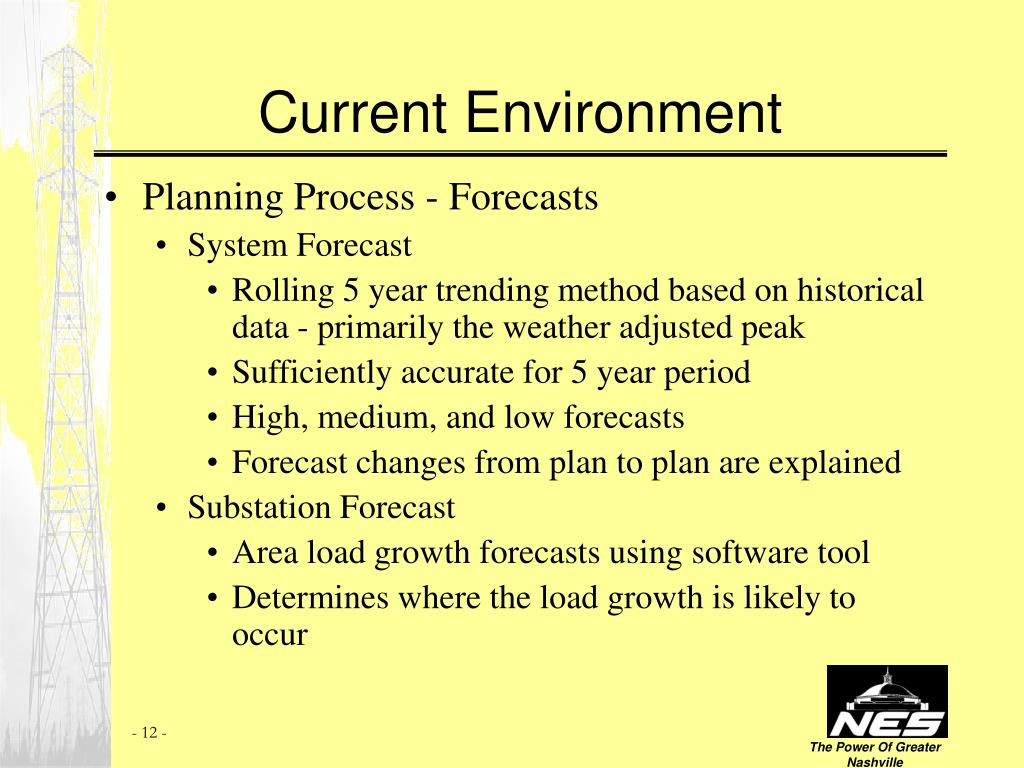

  12. Current Environment • Planning Process - Forecasts • System Forecast • Rolling 5 year trending method based on historical data - primarily the weather adjusted peak • Sufficiently accurate for 5 year period • High, medium, and low forecasts • Forecast changes from plan to plan are explained • Substation Forecast • Area load growth forecasts using software tool • Determines where the load growth is likely to occur The Power Of Greater Nashville

  13. Current Environment • Substation Forecast • Creation of land use models from satellite imagery, zoning data, city planning data, etc. - one acre small areas • Much of information is from GIS systems • Small areas are assigned to distribution substations • System forecast is spread to substations by software tool and substations loads are grown relative to each other based on small areas • Used to identify capacity needs, inputs for transmission load flow studies, and to determine loads on distribution feeders The Power Of Greater Nashville

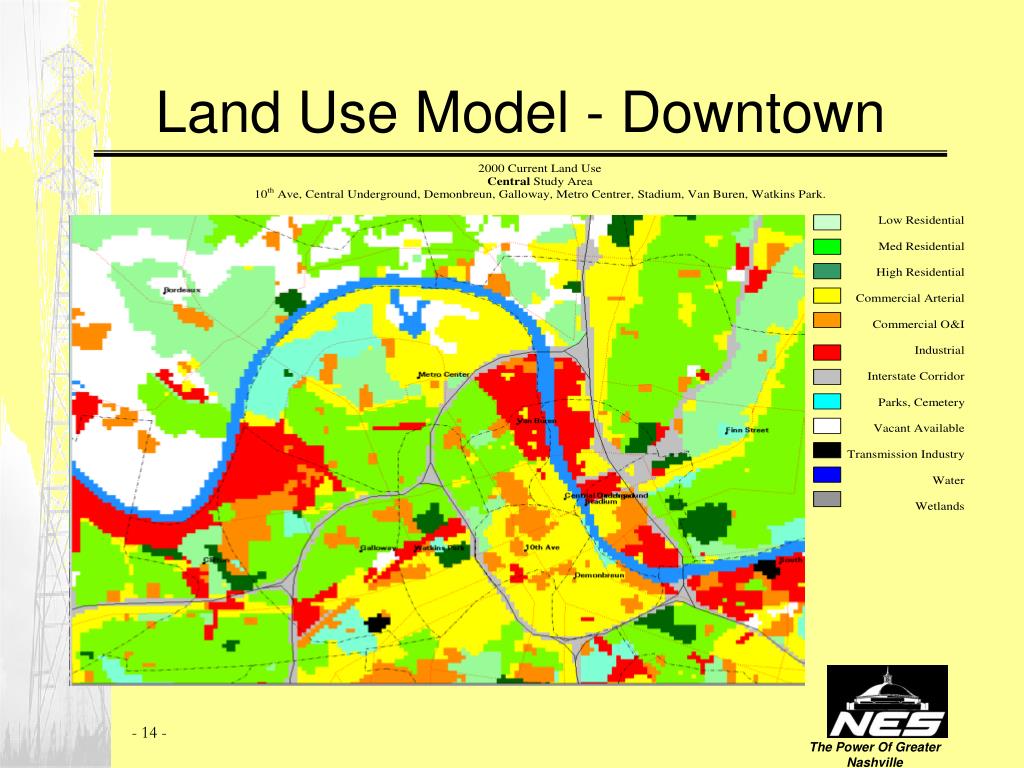

  14. Land Use Model - Downtown The Power Of Greater Nashville

  15. Southwest Area Growth - 2020 The Power Of Greater Nashville

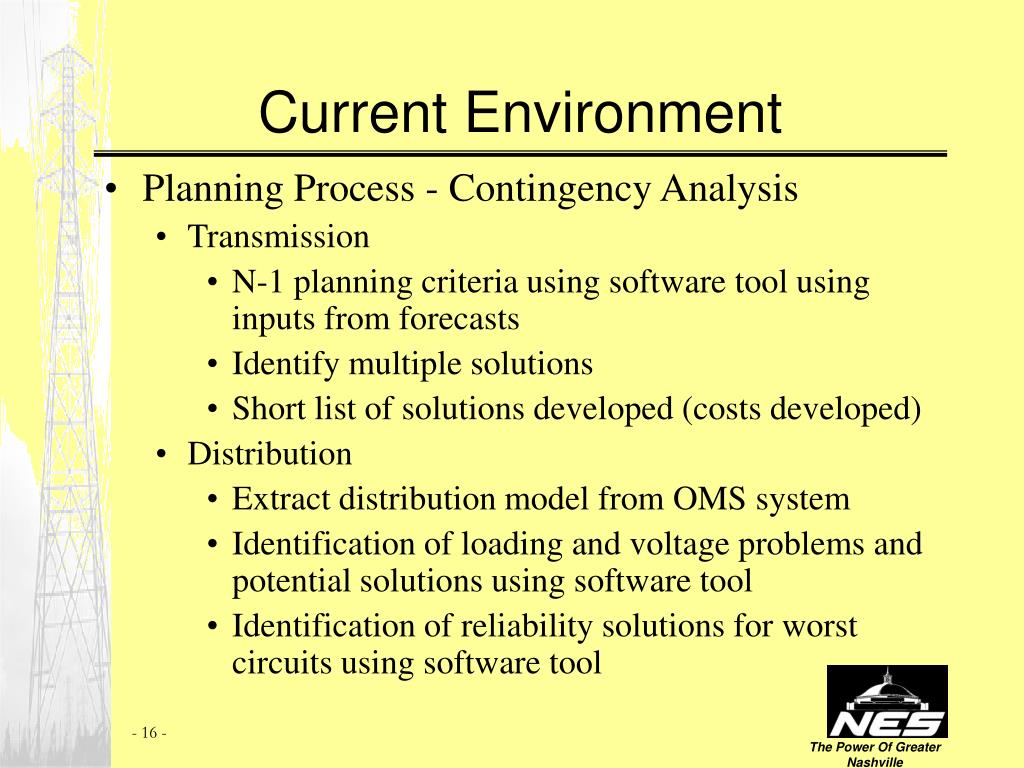

  16. Current Environment • Planning Process - Contingency Analysis • Transmission • N-1 planning criteria using software tool using inputs from forecasts • Identify multiple solutions • Short list of solutions developed (costs developed) • Distribution • Extract distribution model from OMS system • Identification of loading and voltage problems and potential solutions using software tool • Identification of reliability solutions for worst circuits using software tool The Power Of Greater Nashville

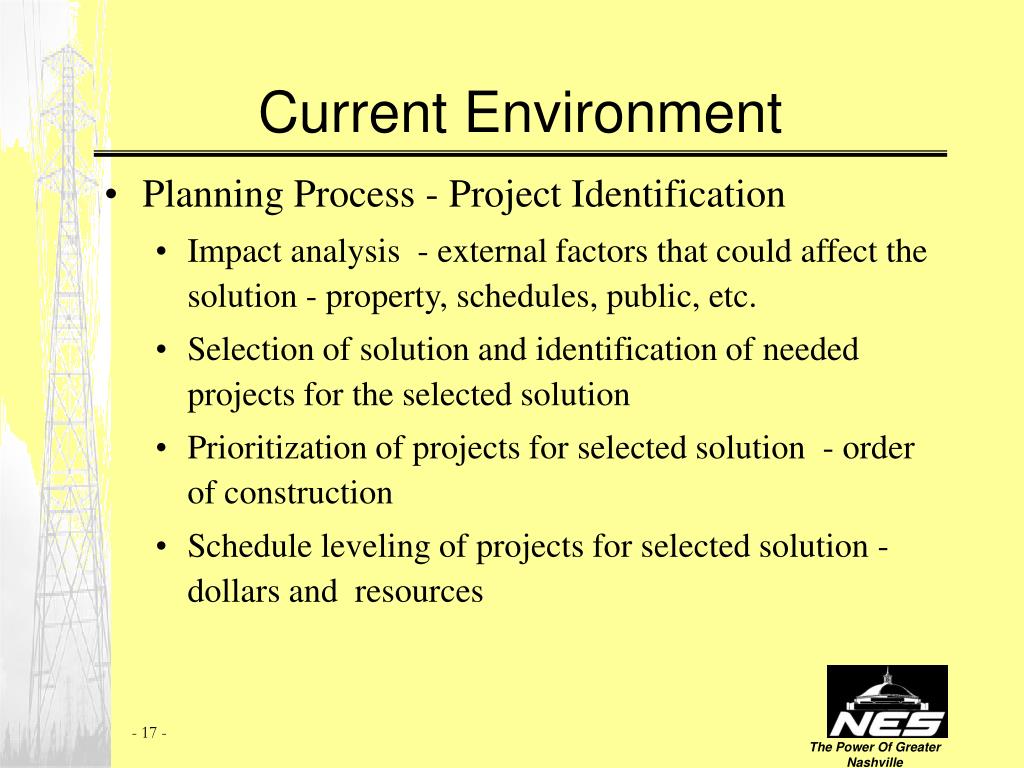

  17. Current Environment • Planning Process - Project Identification • Impact analysis - external factors that could affect the solution - property, schedules, public, etc. • Selection of solution and identification of needed projects for the selected solution • Prioritization of projects for selected solution - order of construction • Schedule leveling of projects for selected solution - dollars and resources The Power Of Greater Nashville

  18. Current Environment • Budget Process • 5 year financial model used to forecast net income • Key financial goals • Cash reserve, debt coverage, leverage goal • Capital budget developed from T&D plan, forecasted new business, other infrastructure projects, and equipment/facilities • Current prioritization is by senior management team and stakeholders • Iterative Process - capital expenditures affect financial goals - pressure to limit expenditures The Power Of Greater Nashville

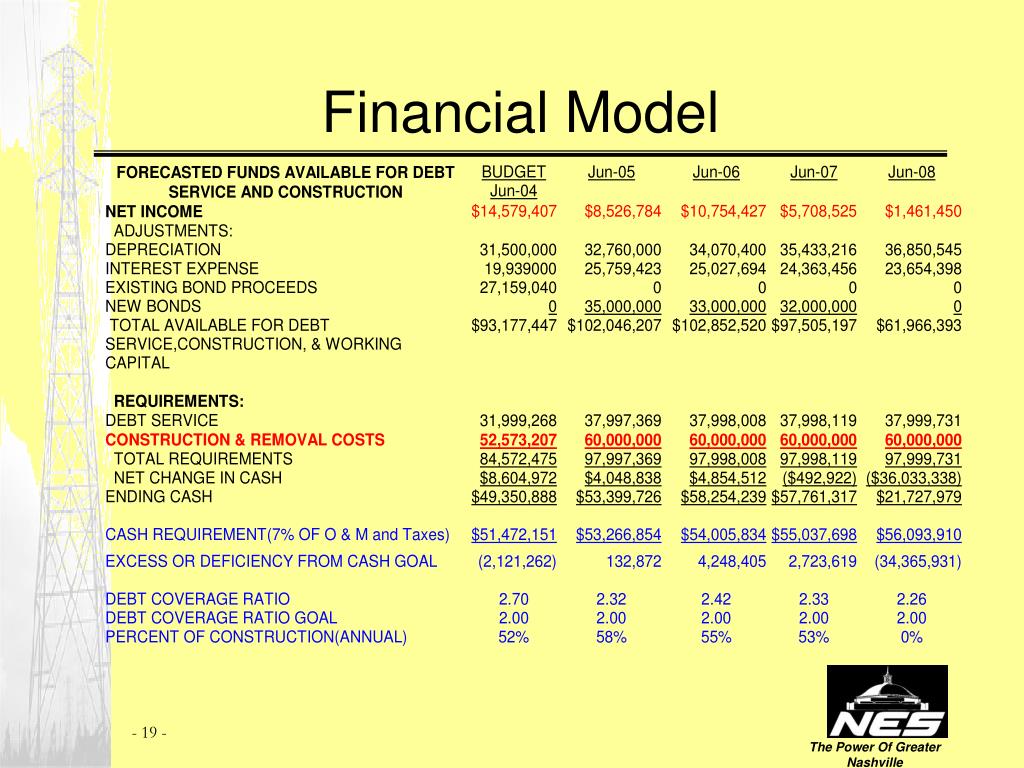

  19. Financial Model The Power Of Greater Nashville

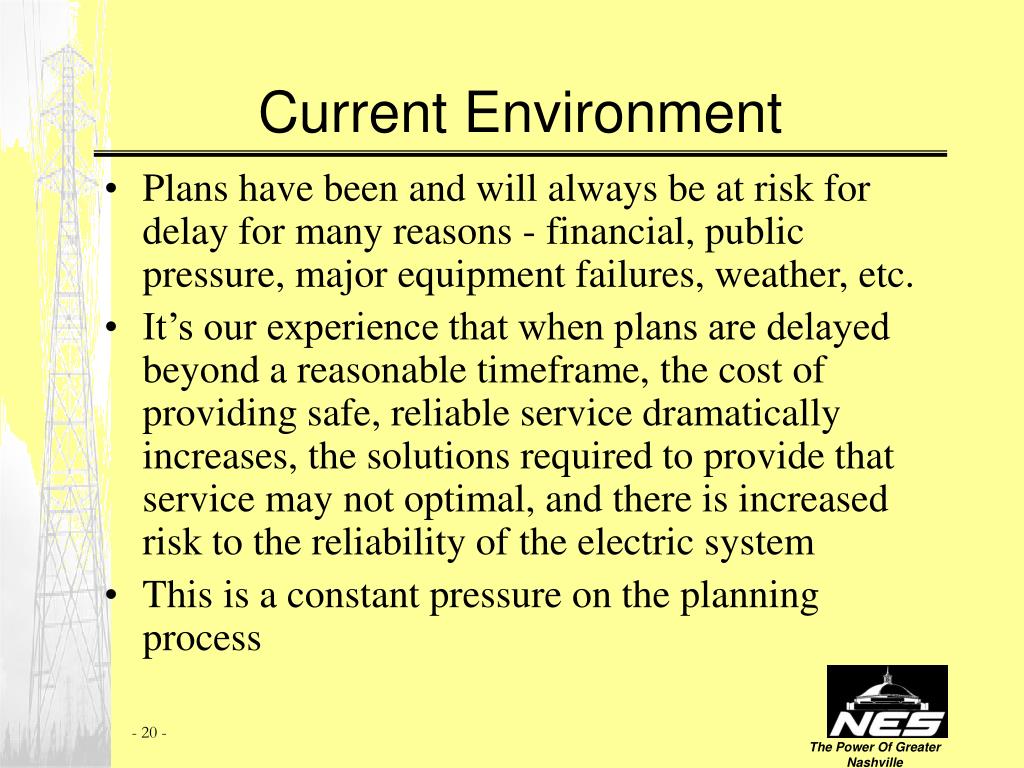

  20. Current Environment • Plans have been and will always be at risk for delay for many reasons - financial, public pressure, major equipment failures, weather, etc. • It’s our experience that when plans are delayed beyond a reasonable timeframe, the cost of providing safe, reliable service dramatically increases, the solutions required to provide that service may not optimal, and there is increased risk to the reliability of the electric system • This is a constant pressure on the planning process The Power Of Greater Nashville

  21. Capital Expenditures The Power Of Greater Nashville

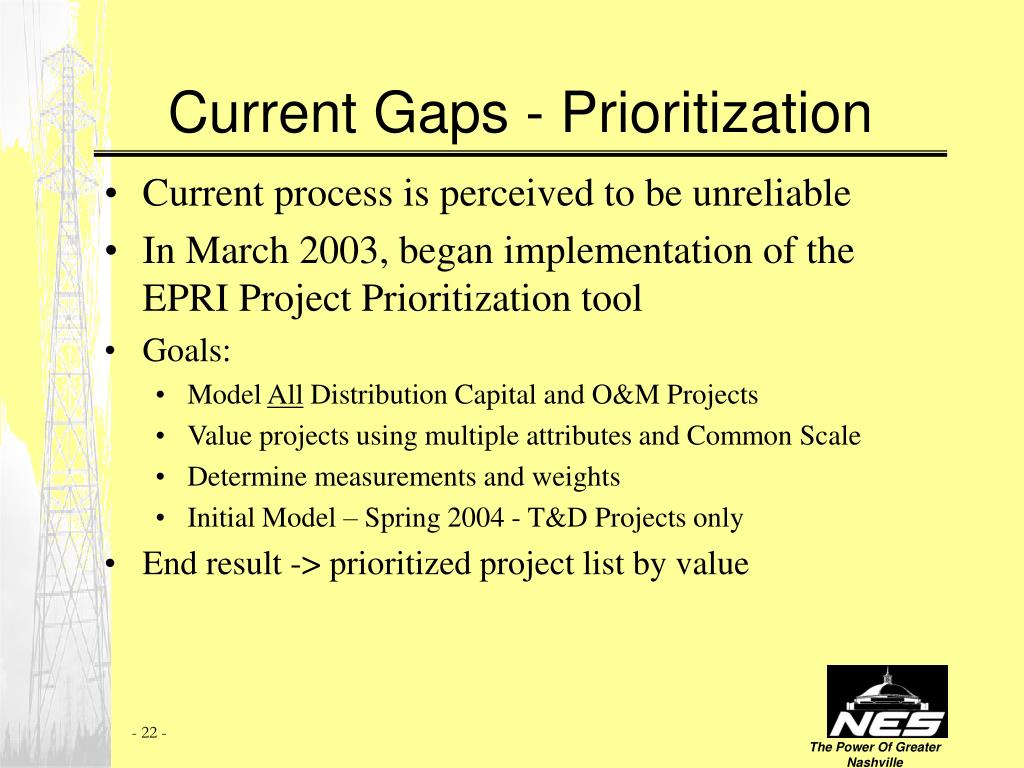

  22. Current Gaps - Prioritization • Current process is perceived to be unreliable • In March 2003, began implementation of the EPRI Project Prioritization tool • Goals: • Model All Distribution Capital and O&M Projects • Value projects using multiple attributes and Common Scale • Determine measurements and weights • Initial Model – Spring 2004 - T&D Projects only • End result -> prioritized project list by value The Power Of Greater Nashville

  23. Project Prioritization The Power Of Greater Nashville

  24. Current Gaps - Work Mgmt. • Mainframe legacy system installed in 1989 • Purchased integrated system in 2002 (Mincom) • Work Management, Finance, Supply Chain • External consultant facilitated “Best Practice” process definitions • Planned “Go-Live” is July 1, 2004 • Goals: • Enable one view of all work • Improve ability to prioritize and manage work • Improve project management • Reduce overall cycle time for work lifecycle • Provide accurate tools for estimation and design • Ensure that resources are at the right place at the right time The Power Of Greater Nashville

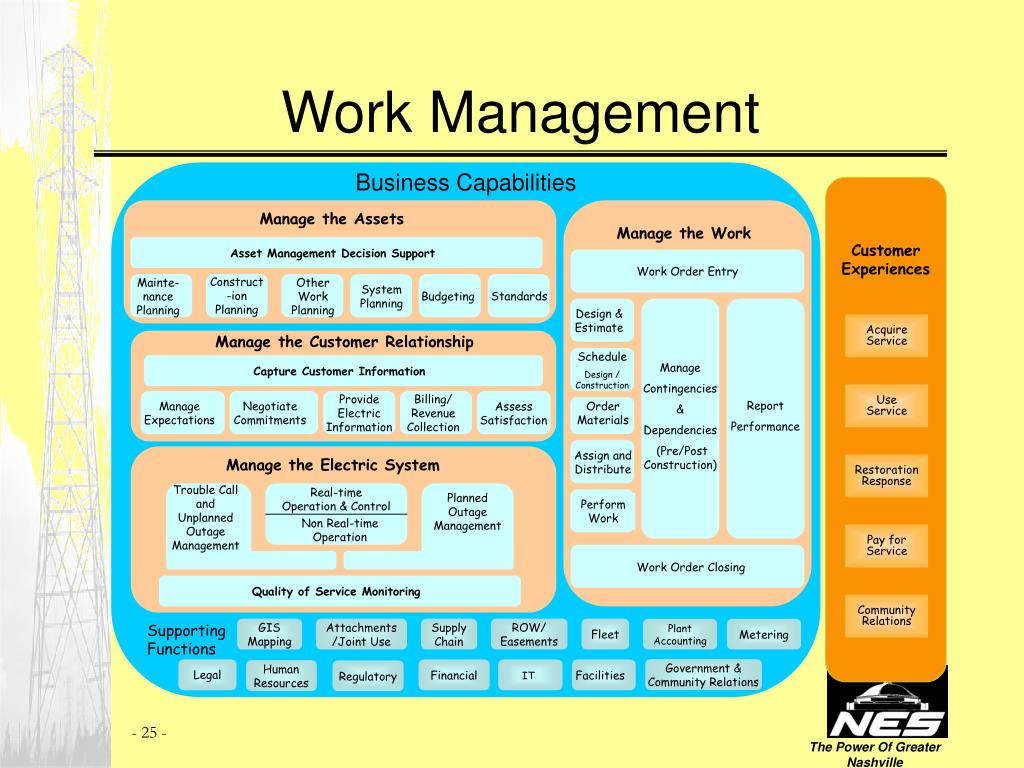

  25. Work Management The Power Of Greater Nashville

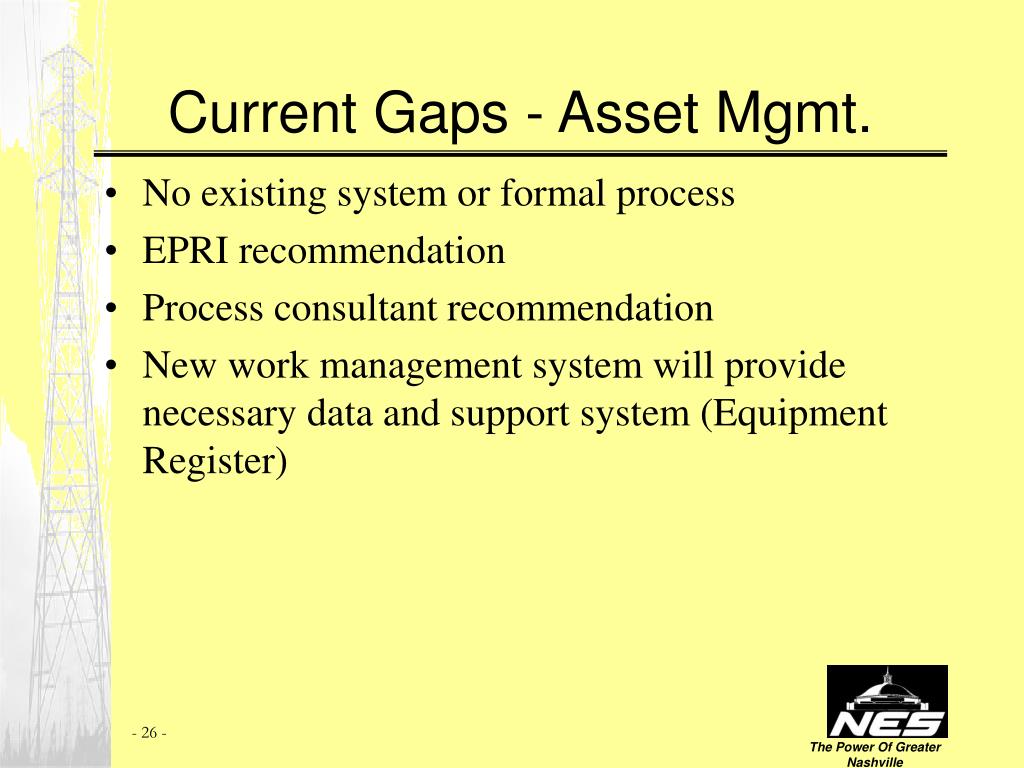

  26. Current Gaps - Asset Mgmt. • No existing system or formal process • EPRI recommendation • Process consultant recommendation • New work management system will provide necessary data and support system (Equipment Register) The Power Of Greater Nashville

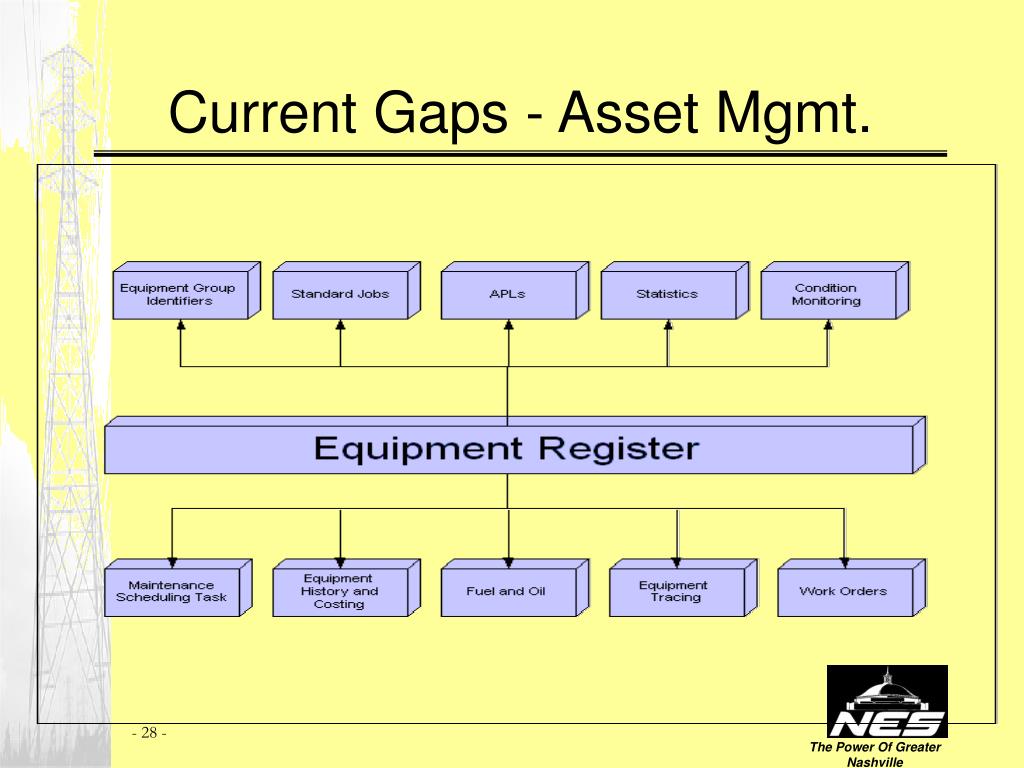

  27. Asset Management Decision Support Current Gaps - Asset Mgmt. Manage the Assets System Planning Maintenance Planning Construction Planning Other Work Planning Budgeting Standards The Power Of Greater Nashville

  28. Current Gaps - Asset Mgmt. The Power Of Greater Nashville

  29. Current Gaps - Asset Mgmt. The Power Of Greater Nashville

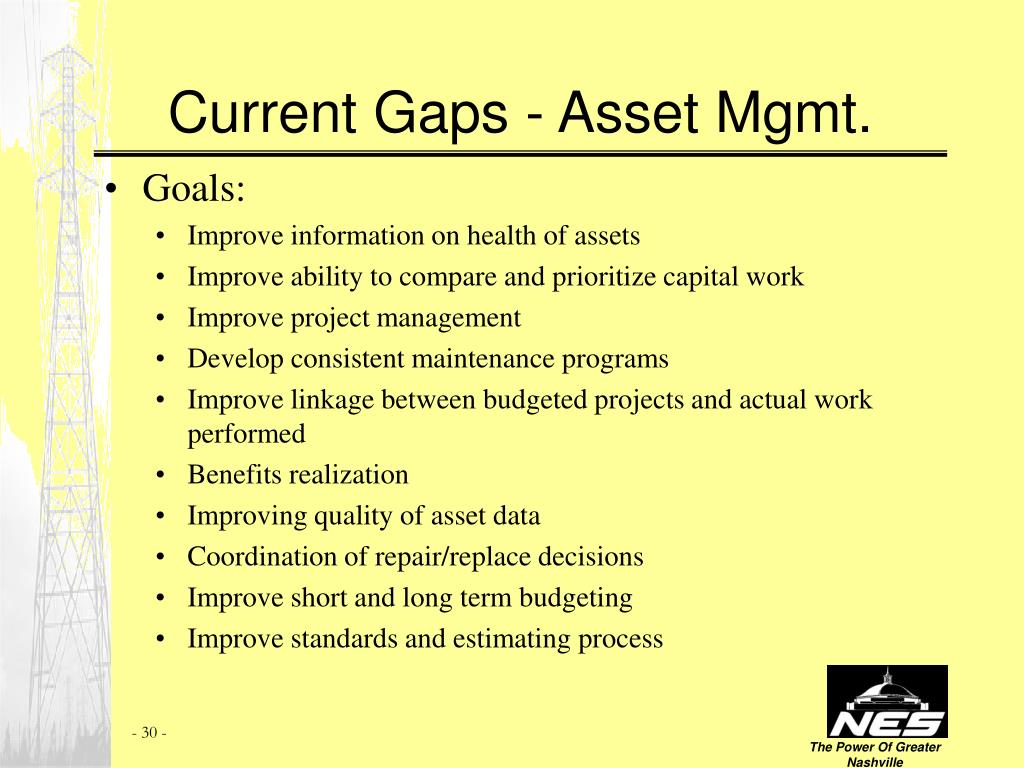

  30. Current Gaps - Asset Mgmt. • Goals: • Improve information on health of assets • Improve ability to compare and prioritize capital work • Improve project management • Develop consistent maintenance programs • Improve linkage between budgeted projects and actual work performed • Benefits realization • Improving quality of asset data • Coordination of repair/replace decisions • Improve short and long term budgeting • Improve standards and estimating process The Power Of Greater Nashville

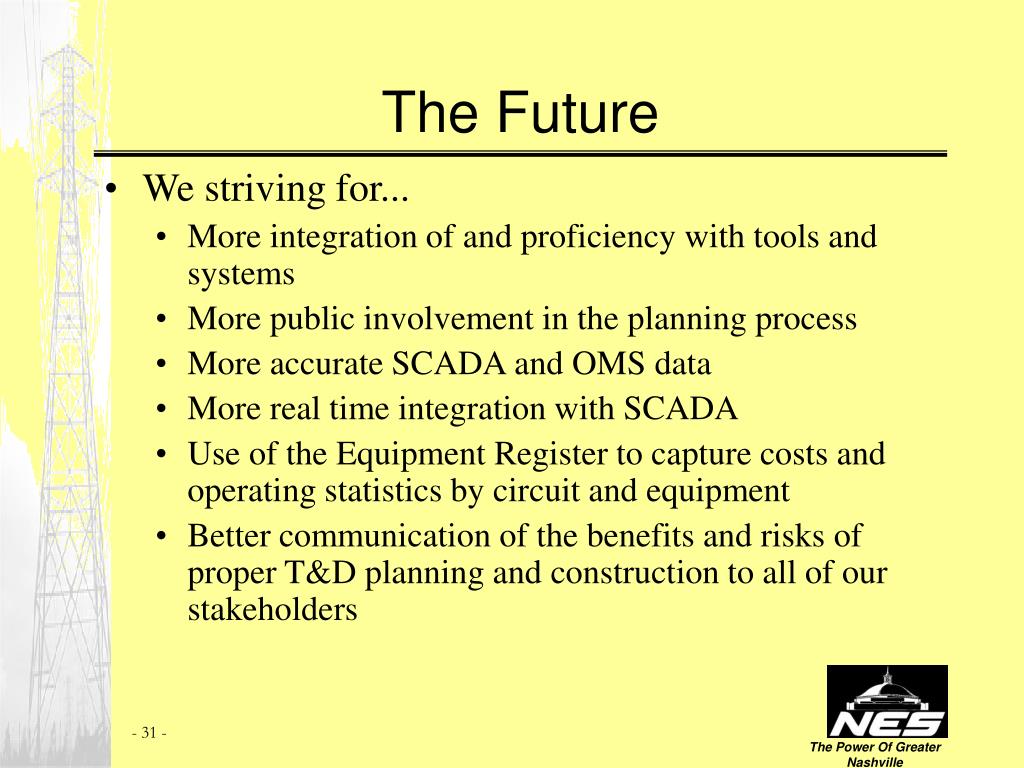

  31. The Future • We striving for... • More integration of and proficiency with tools and systems • More public involvement in the planning process • More accurate SCADA and OMS data • More real time integration with SCADA • Use of the Equipment Register to capture costs and operating statistics by circuit and equipment • Better communication of the benefits and risks of proper T&D planning and construction to all of our stakeholders The Power Of Greater Nashville

  32. Future Integration Plans Equipment Register Transmission Planning Reliability Planning Distribution Planning Substation Forecast Mobile Data/AVL OMS (CADOPS) System Forecast SCADA System Automation CIS Other Operational Applications VariousInputs GIS Common Data Base The Power Of Greater Nashville

  33. Thank You! The Power Of Greater Nashville
