Digital Signal Processing

Digital Signal Processing. Prof. Nizamettin AYDIN naydin @ yildiz .edu.tr http:// www . yildiz .edu.tr/~naydin. Digital Signal Processing. Lecture 12 Frequency Response of FIR Filters. READING ASSIGNMENTS. This Lecture: Chapter 6, Sections 6-1, 6-2, 6-3, 6-4, & 6-5

aurek
Télécharger la présentation

Digital Signal Processing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Digital Signal Processing Prof. Nizamettin AYDIN naydin@yildiz.edu.tr http://www.yildiz.edu.tr/~naydin

  2. Digital Signal Processing Lecture 12 Frequency Response of FIR Filters

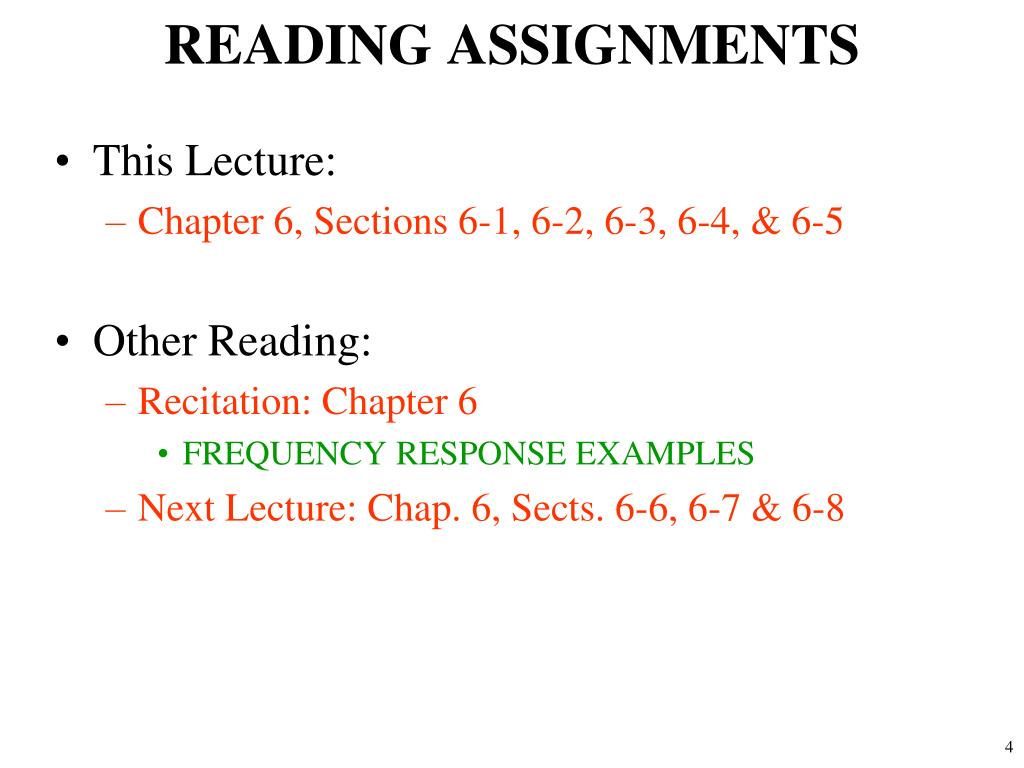

  3. READING ASSIGNMENTS • This Lecture: • Chapter 6, Sections 6-1, 6-2, 6-3, 6-4, & 6-5 • Other Reading: • Recitation: Chapter 6 • FREQUENCY RESPONSE EXAMPLES • Next Lecture: Chap. 6, Sects. 6-6, 6-7 & 6-8

  4. LECTURE OBJECTIVES MAG PHASE • SINUSOIDAL INPUT SIGNAL • DETERMINE the FIR FILTER OUTPUT • FREQUENCY RESPONSE of FIR • PLOTTING vs. Frequency • MAGNITUDE vs. Freq • PHASE vs. Freq

  5. DOMAINS: Time & Frequency • Time-Domain: “n” = time • x[n] discrete-time signal • x(t) continuous-time signal • Frequency Domain (sum of sinusoids) • Spectrum vs. f (Hz) • ANALOG vs. DIGITAL • Spectrum vs. omega-hat • Move back and forth QUICKLY

  6. DIGITAL “FILTERING” • CONCENTRATE on the SPECTRUM • SINUSOIDAL INPUT • INPUT x[n] = SUM of SINUSOIDS • Then, OUTPUT y[n] = SUM of SINUSOIDS x(t) A-to-D x[n] FILTER y[n] D-to-A y(t)

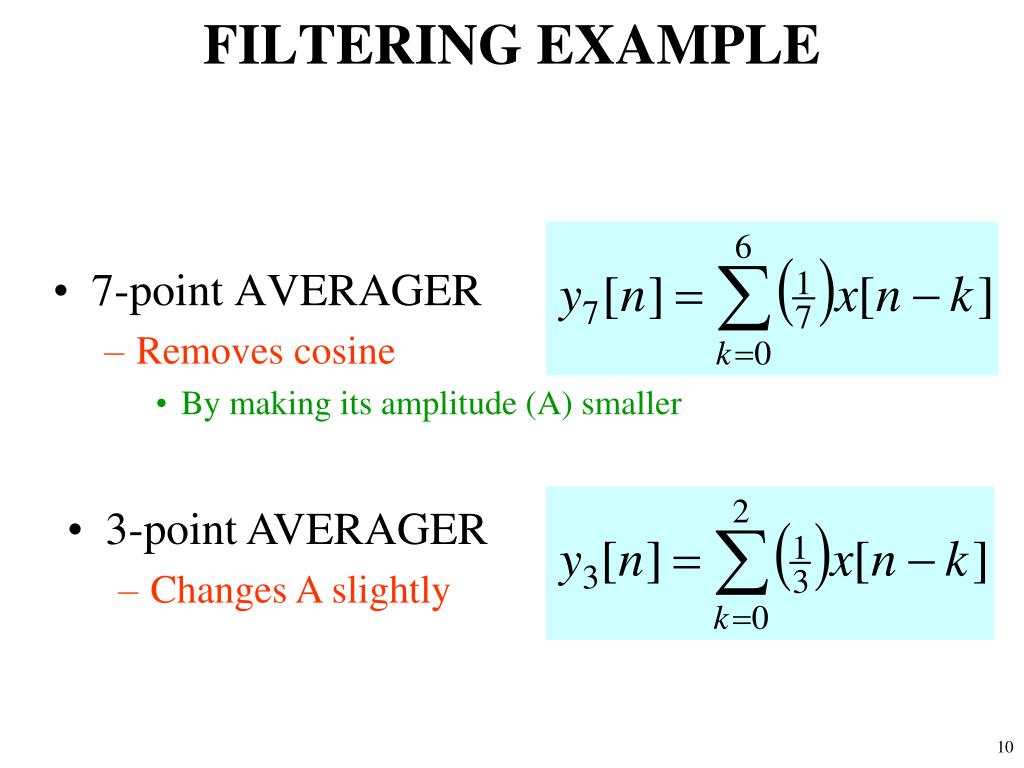

  7. FILTERING EXAMPLE • 7-point AVERAGER • Removes cosine • By making its amplitude (A) smaller • 3-point AVERAGER • Changes A slightly

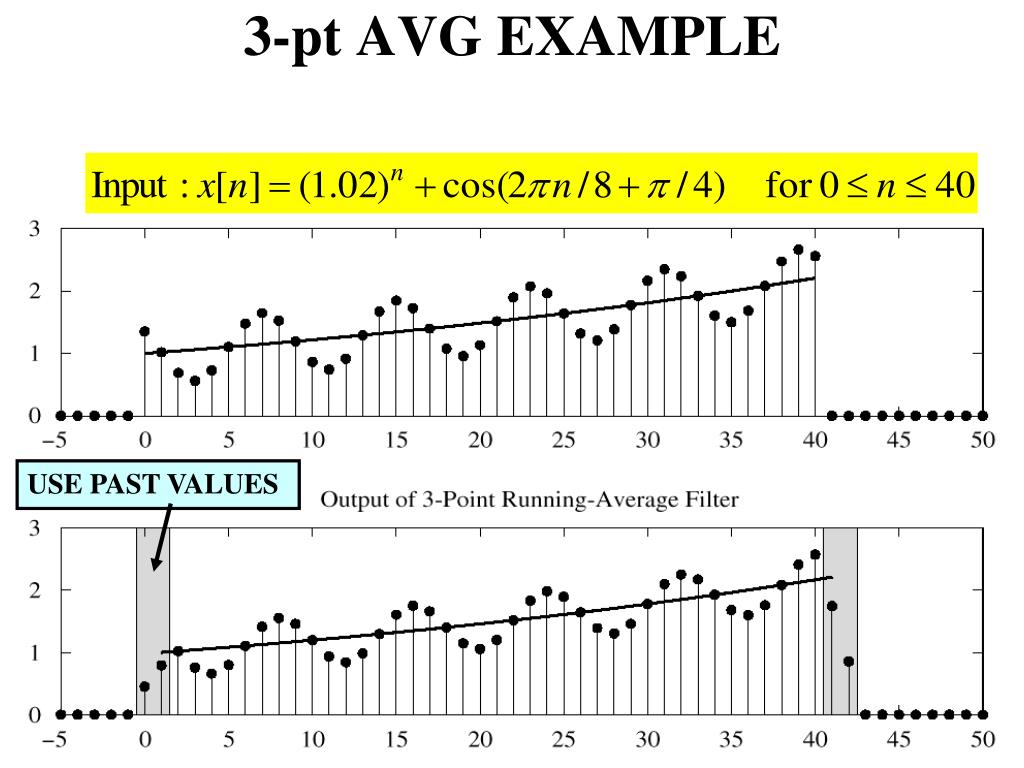

  8. 3-pt AVG EXAMPLE USE PAST VALUES

  9. 7-pt FIR EXAMPLE (AVG) CAUSAL: Use Previous LONGER OUTPUT

  10. SINUSOIDAL RESPONSE • INPUT: x[n] = SINUSOID • OUTPUT: y[n] will also be a SINUSOID • Different Amplitude and Phase • SAME Frequency • AMPLITUDE & PHASE CHANGE • Called the FREQUENCY RESPONSE

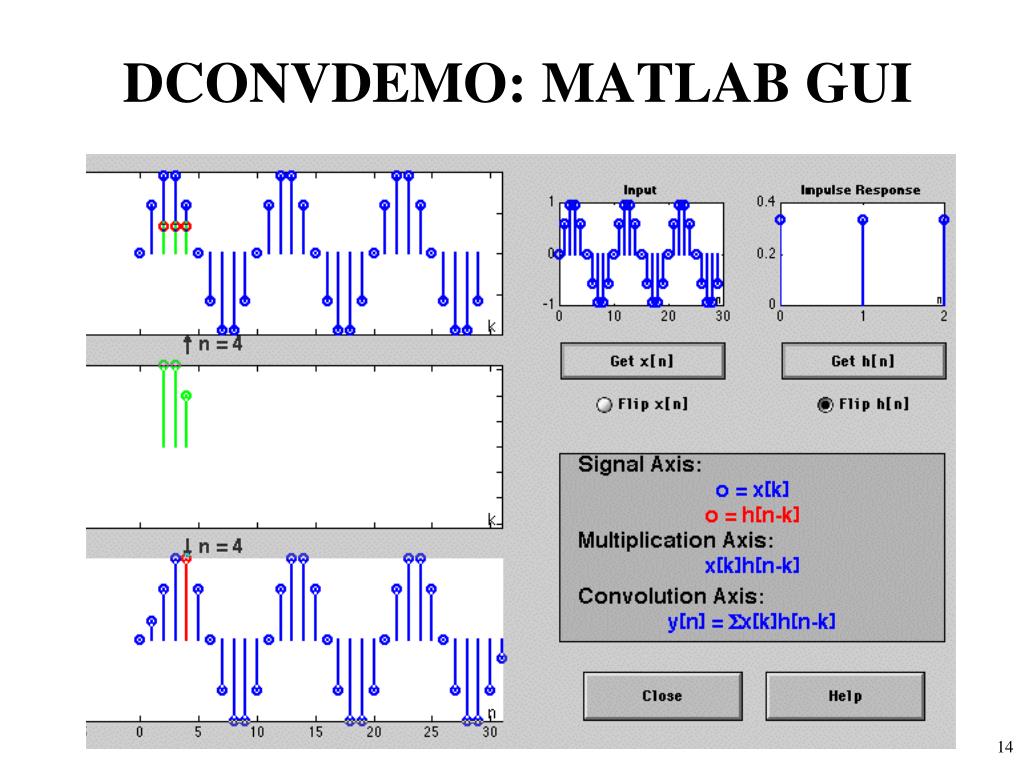

  11. DCONVDEMO: MATLAB GUI

  12. COMPLEX EXPONENTIAL x[n] is the input signal—a complex exponential FIR DIFFERENCE EQUATION

  13. COMPLEX EXP OUTPUT • Use the FIR “Difference Equation”

  14. FREQUENCY RESPONSE FREQUENCY RESPONSE • Complex-valued formula • Has MAGNITUDE vs. frequency • And PHASE vs. frequency • Notation: • At each frequency, we can DEFINE

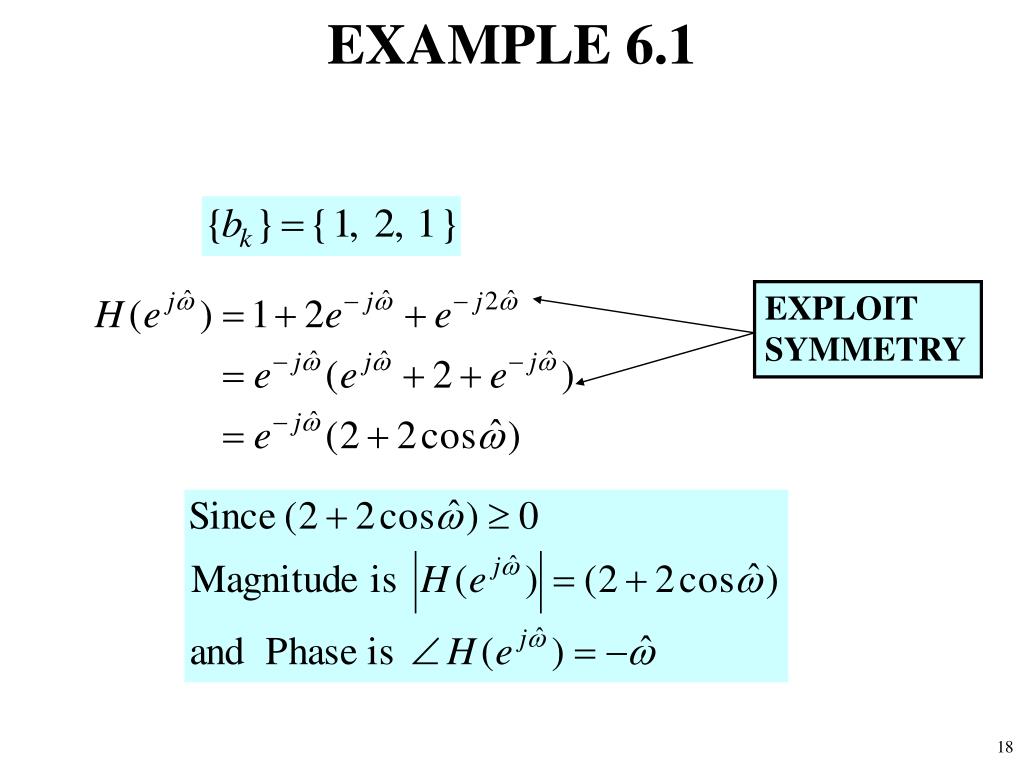

  15. EXAMPLE 6.1 EXPLOIT SYMMETRY

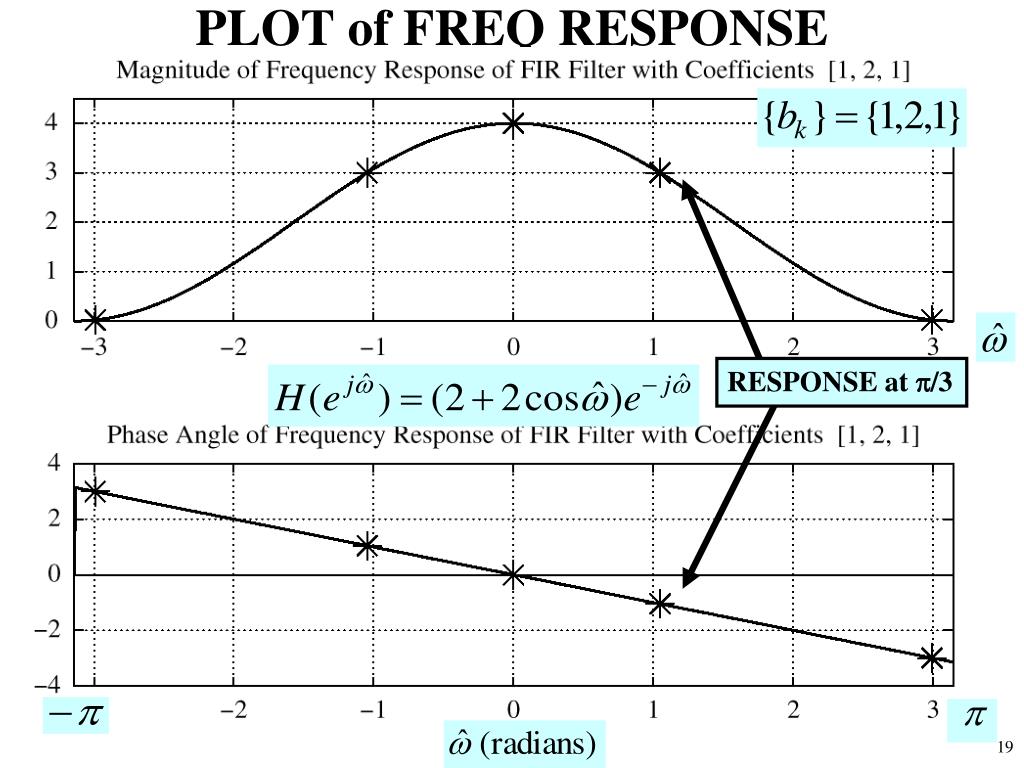

  16. PLOT of FREQ RESPONSE RESPONSE at p/3

  17. EXAMPLE 6.2 x[n] y[n]

  18. EXAMPLE 6.2 (answer)

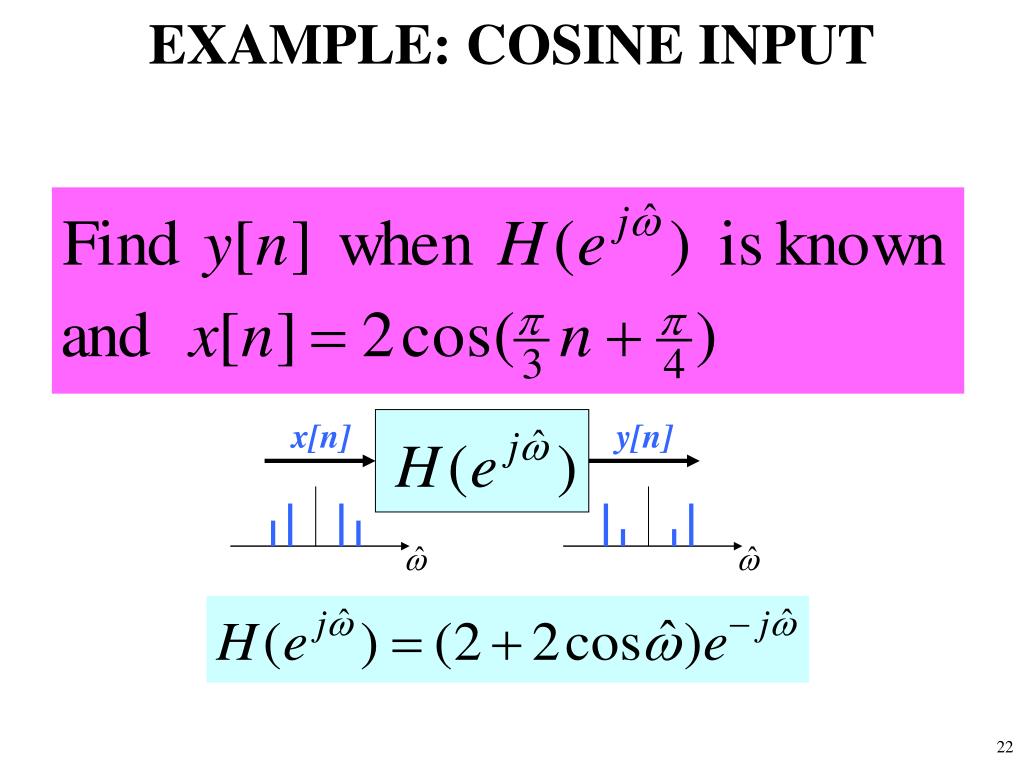

  19. EXAMPLE: COSINE INPUT x[n] y[n]

  20. EX: COSINE INPUT Use Linearity

  21. EX: COSINE INPUT (ans-2)

  22. MATLAB: FREQUENCY RESPONSE • HH = freqz(bb,1,ww) • VECTOR bb contains Filter Coefficients • SP-First: HH = freekz(bb,1,ww) • FILTER COEFFICIENTS {bk}

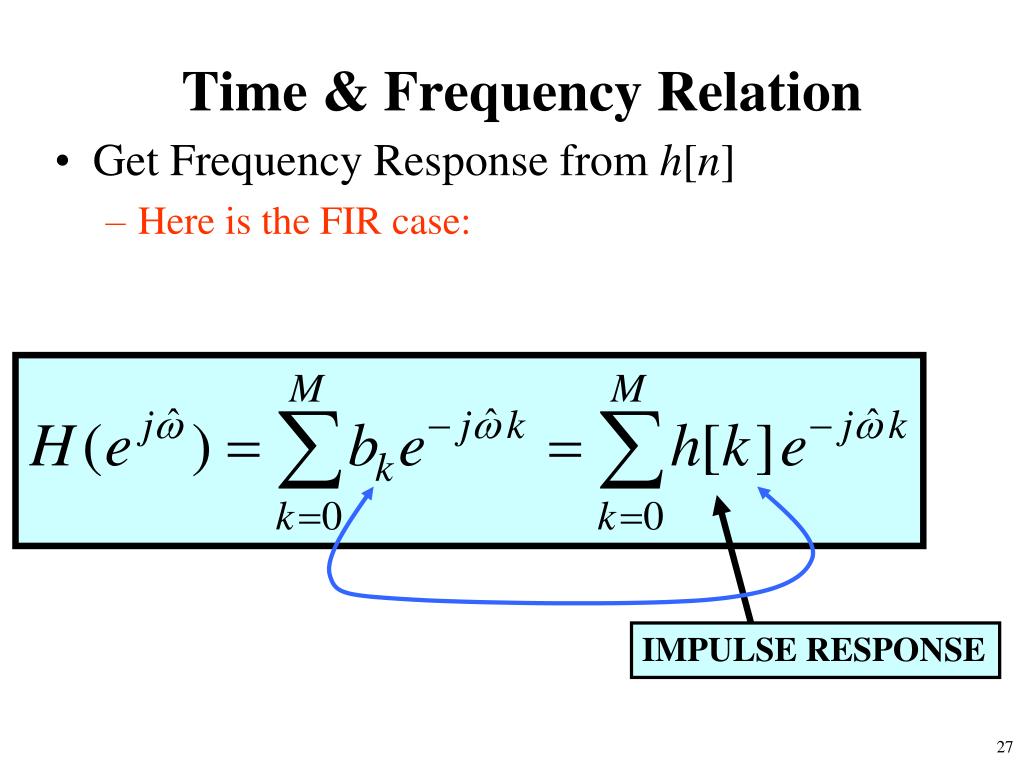

  23. Time & Frequency Relation IMPULSE RESPONSE • Get Frequency Response from h[n] • Here is the FIR case:

  24. BLOCK DIAGRAMS x[n] y[n] x[n] y[n] • Equivalent Representations

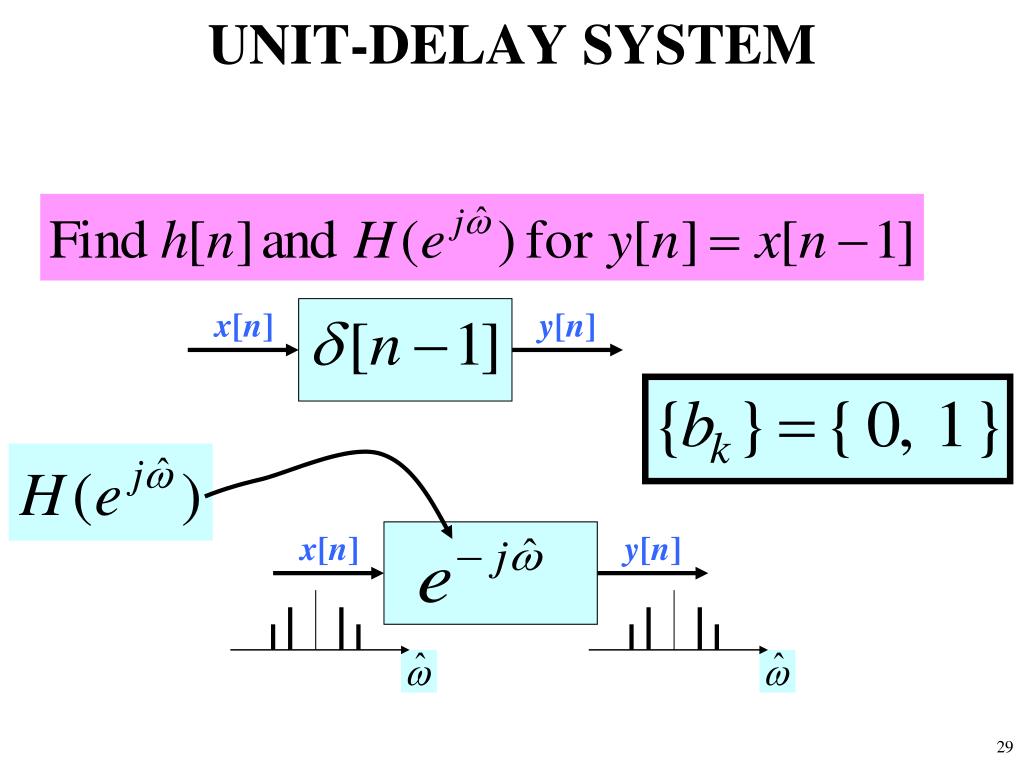

  25. UNIT-DELAY SYSTEM x[n] y[n] x[n] y[n]

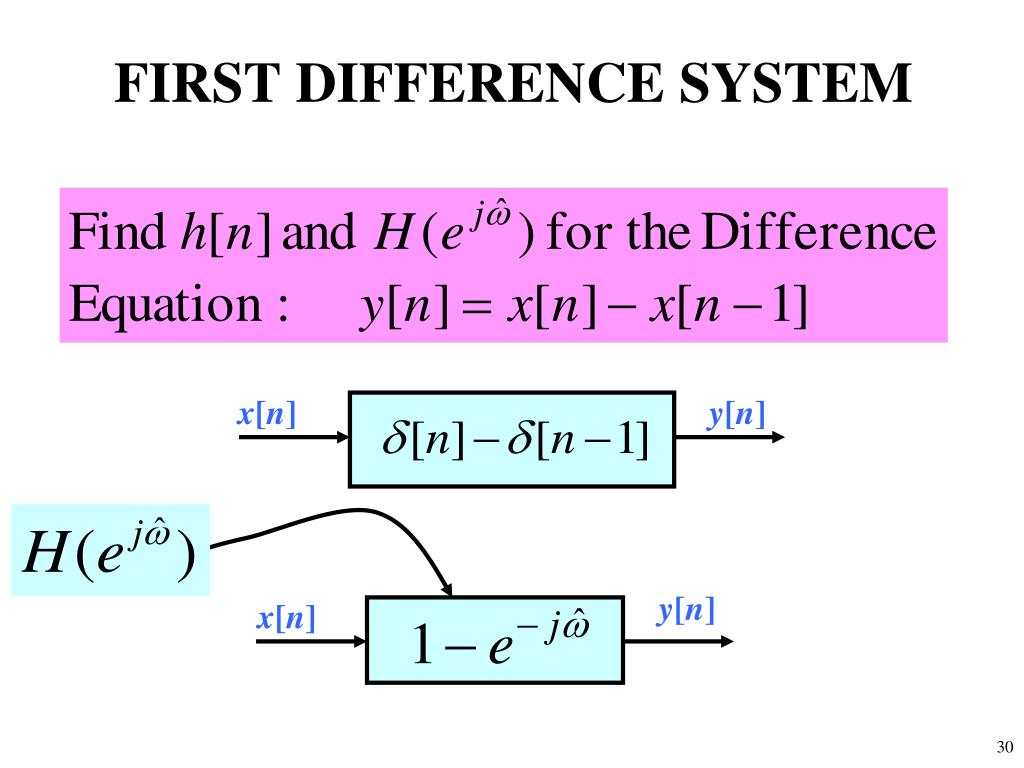

  26. FIRST DIFFERENCE SYSTEM x[n] y[n] y[n] x[n]

  27. DLTI Demo with Sinusoids x[n] y[n] FILTER

  28. CASCADE SYSTEMS • Does the order of S1 & S2 matter? • NO, LTI SYSTEMS can be rearranged !!! • WHAT ARE THE FILTER COEFFS? {bk} • WHAT is the overall FREQUENCY RESPONSE ? S1 S2

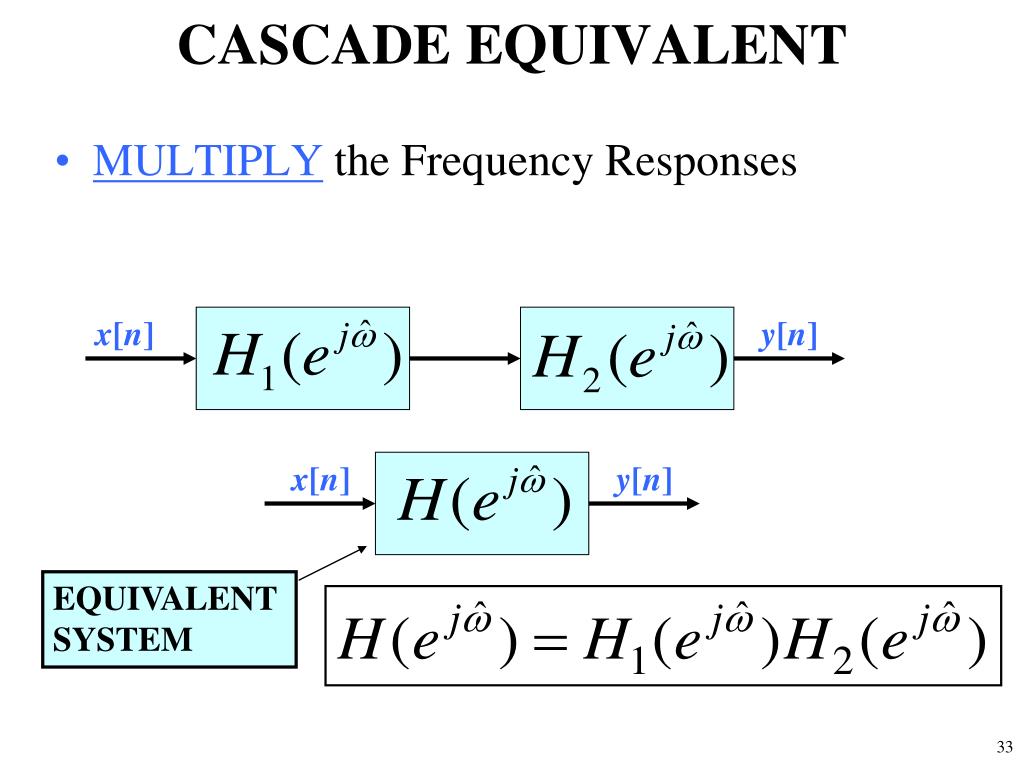

  29. CASCADE EQUIVALENT • MULTIPLY the Frequency Responses x[n] y[n] x[n] y[n] EQUIVALENT SYSTEM
