  1. Distribution ED01 English Code : STM#115 OfficeServTM 7400 System Introduction Samsung Electronics Co., Ltd.

  2. Objectives • After successful completion of the course the trainees should be able to execute the following activities. • To understand basic technology of the network. • TBD

  3. Contents Features of OfficeServ7400 Major Functions Detailed Specifications

  4. Features of the OfficeServ7400

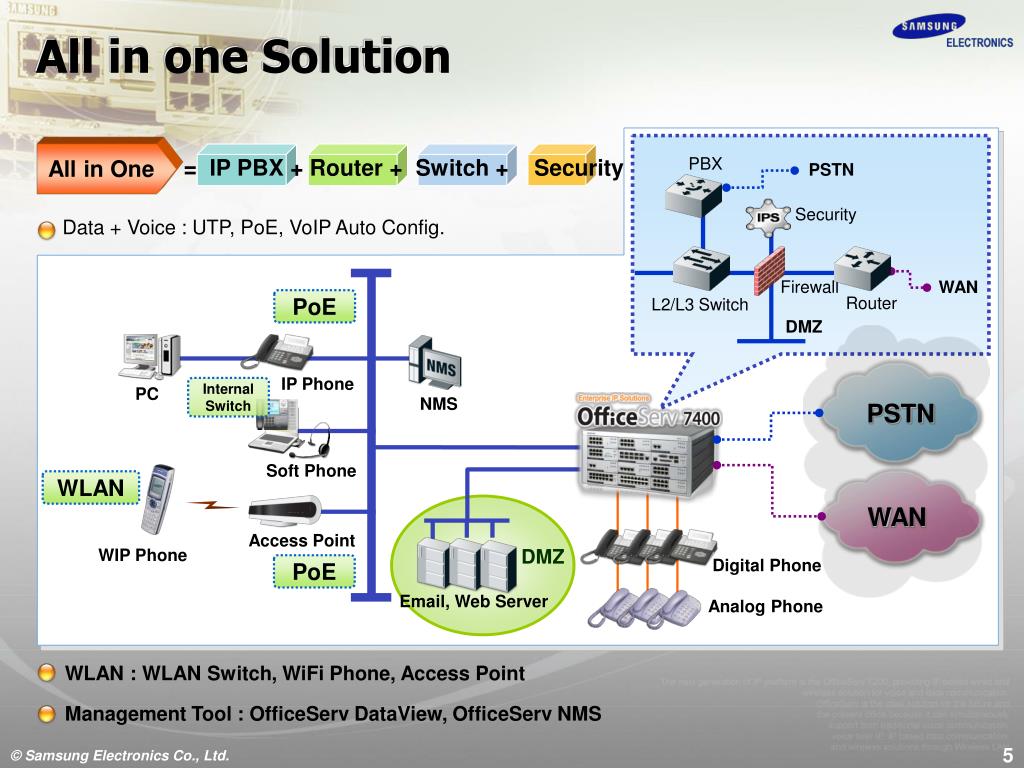

  5. = IP PBX + Router + Switch + Security PSTN WAN All in one Solution All in One PBX PSTN Security Data + Voice : UTP, PoE, VoIP Auto Config. Firewall WAN Router L2/L3 Switch PoE DMZ IP Phone Internal Switch PC NMS Soft Phone WLAN Access Point DMZ WIP Phone Digital Phone PoE Email, Web Server Analog Phone WLAN : WLAN Switch, WiFi Phone, Access Point Management Tool : OfficeServ DataView, OfficeServ NMS

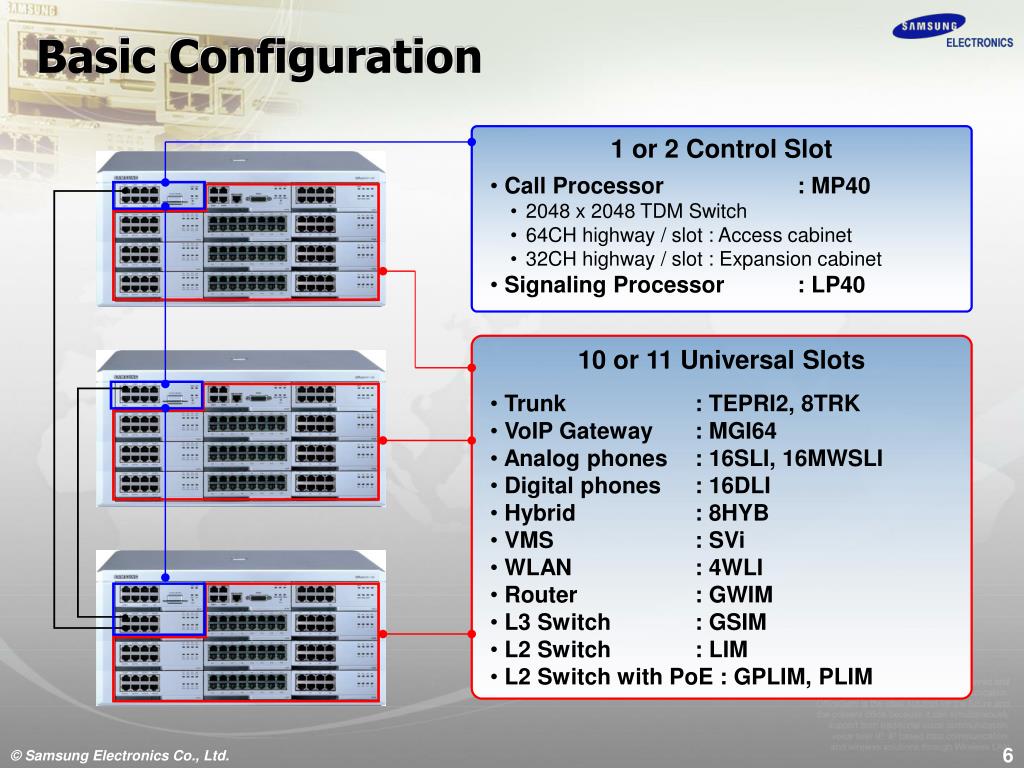

  6. Basic Configuration • 1 or 2 Control Slot • Call Processor : MP40 • 2048 x 2048 TDM Switch • 64CH highway / slot : Access cabinet • 32CH highway / slot : Expansion cabinet • Signaling Processor : LP40 10 or 11 Universal Slots • Trunk : TEPRI2, 8TRK • VoIP Gateway : MGI64 • Analog phones : 16SLI, 16MWSLI • Digital phones : 16DLI • Hybrid : 8HYB • VMS : SVi • WLAN : 4WLI • Router : GWIM • L3 Switch : GSIM • L2 Switch : LIM • L2 Switch with PoE : GPLIM, PLIM

  7. Extension Case I Case II Case III

  8. Capacity • Trunk line and Subscriber line Trunk Lines Subscriber Lines • Analog : 88 • T1 : 264 • E1 : 330 • ISDN PRI : 264(T1), 330(E1) • Analog phone : 176 • Digital phone : 176 • Large LCD DGP : 88 Trunk Lines Subscriber Lines • Analog : 88 • T1 : 264 • E1 : 330 • ISDN PRI : 264(T1), 330(E1) • Analog phone : 176 • Digital phone : 176 • Large LCD DGP : 88 Trunk Lines Subscriber Lines • Analog : 80 • T1 : 480 • E1 : 600 • ISDN PRI : 480(T1), 600(E1) • Analog phone : 60 • Digital phone : 80 • Large LCD DGP : 40 • IP station : 480 • WLAN phone : 192 • SIP phone : 192

  9. Trunk Lines • Trunk line Capacity

  10. Subscriber Lines • Capacity

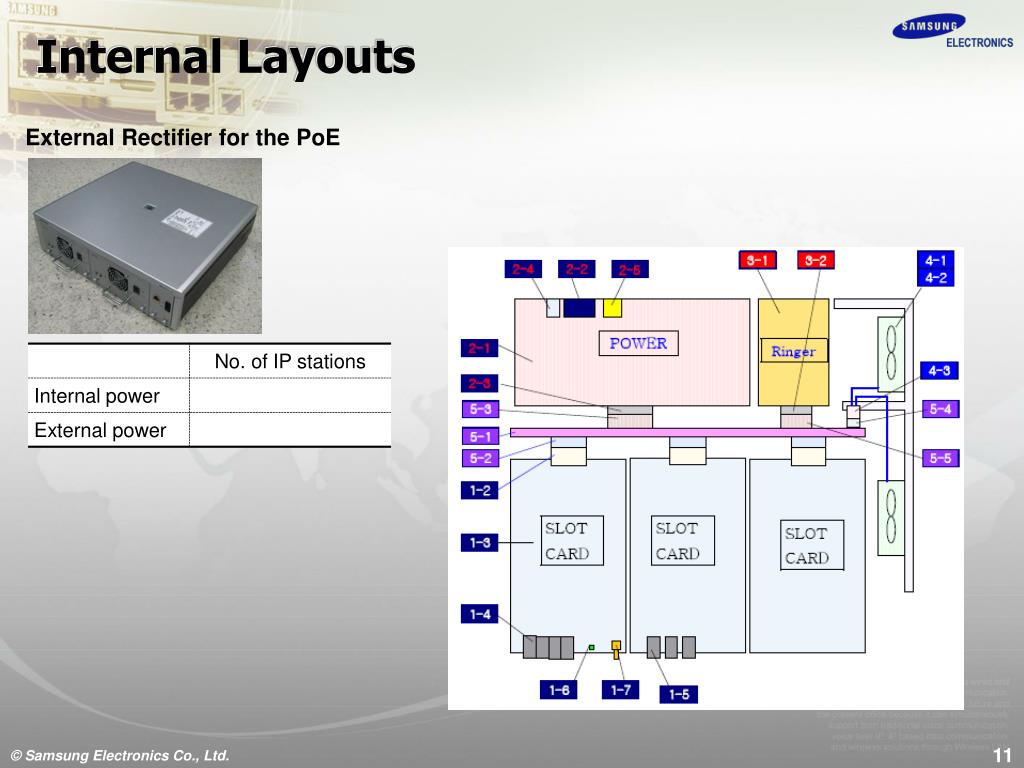

  11. Internal Layouts External Rectifier for the PoE

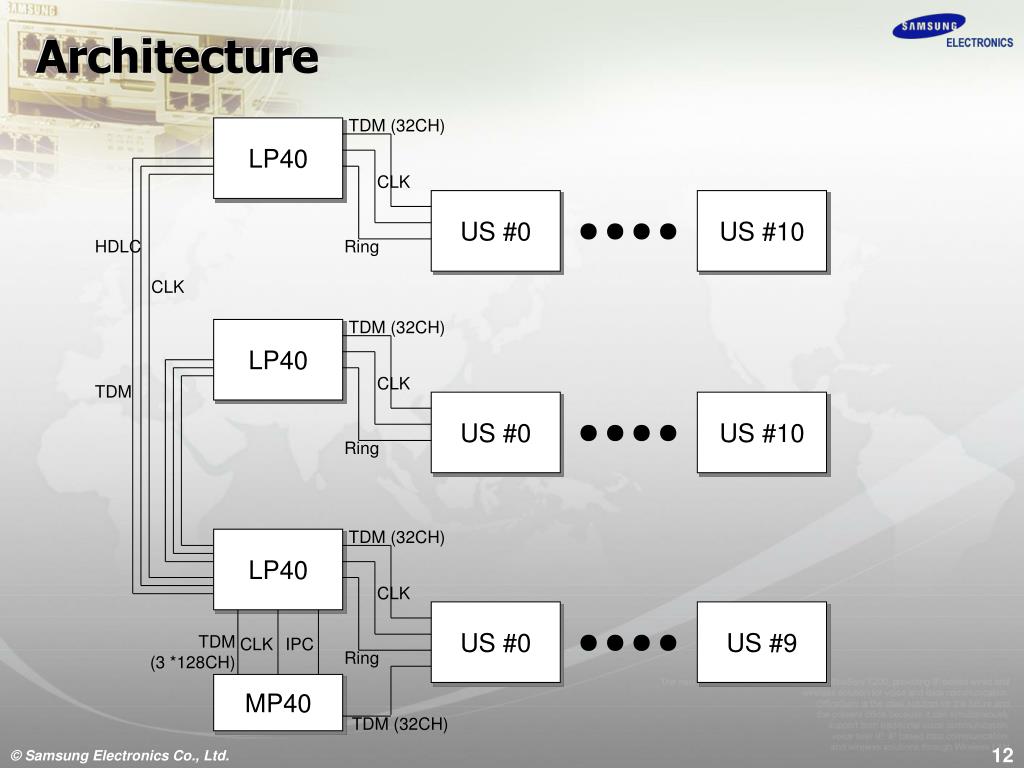

  12. Architecture TDM (32CH) LP40 CLK US #0 US #10 ● ● ● ● HDLC Ring CLK TDM (32CH) LP40 CLK TDM US #0 US #10 ● ● ● ● Ring TDM (32CH) LP40 CLK US #0 US #9 ● ● ● ● TDM (3 *128CH) CLK IPC Ring MP40 TDM (32CH)

  13. Major Functions

  14. PSTN ITSP Router Router Router Voice Networking IP phone Loop, T1/E1, PRI Soft phone IP phone Loop, T1/E1, PRI SIP, H.323 Analog phone or Digital phone SIP, H.323 Analog phone or Digital phone SIP, H.323 • Trunk : Analog & Digital (T1/E1/PRI) • Subscribers : Analog, Digital, and IP phones IP phone

  15. Internet Internet Internet SPnet • SPnet : Samsung Proprietary Network protocol SPnet SPnet SPnet

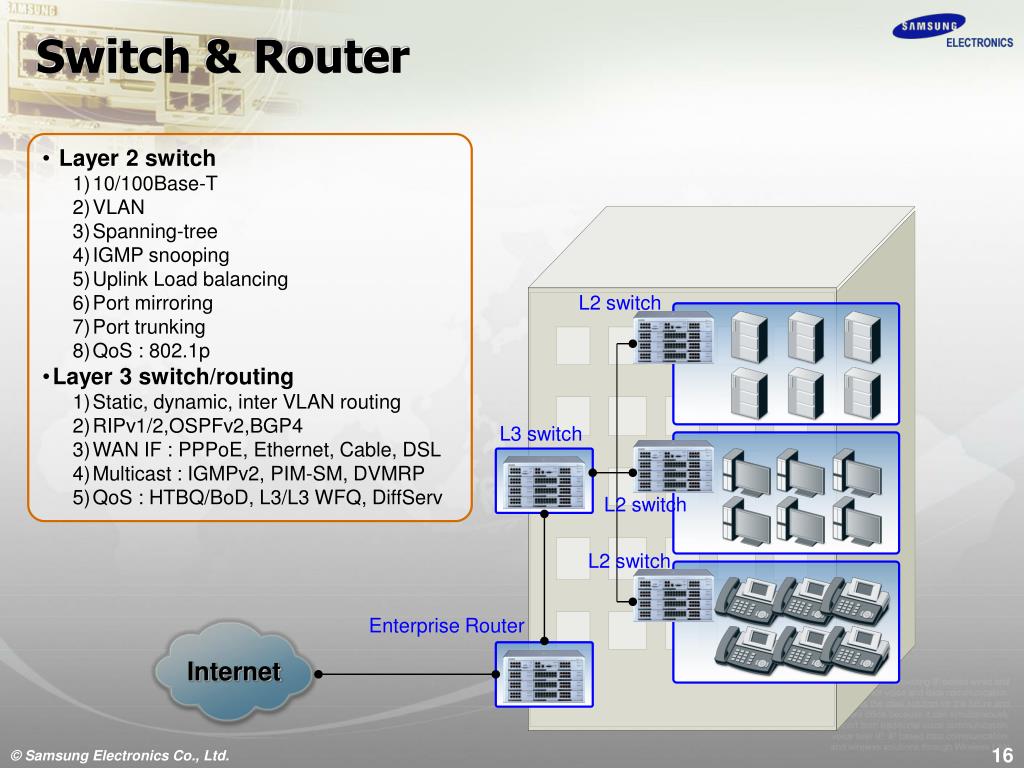

  16. Internet Switch & Router • Layer 2 switch • 10/100Base-T • VLAN • Spanning-tree • IGMP snooping • Uplink Load balancing • Port mirroring • Port trunking • QoS : 802.1p • Layer 3 switch/routing • Static, dynamic, inter VLAN routing • RIPv1/2,OSPFv2,BGP4 • WAN IF : PPPoE, Ethernet, Cable, DSL • Multicast : IGMPv2, PIM-SM, DVMRP • QoS : HTBQ/BoD, L3/L3 WFQ, DiffServ L2 switch L3 switch L2 switch L2 switch Enterprise Router

  17. WAN WLAN • 802.11b standard for Wireless Data & Voice • Mobilize your wireless enterprise Access Point (WBS24 Basic) Access Point (WBS24 Combo) • 802.11b • G.729 • 14CH • RF power : 100mW WLAN Phone (WIP-5000M) WLAN Phone (WIP-5000M)

  18. VoIP QoS • Auto-QoS supported by the VoIP Service module. • GWIM • Auto configuration of NAPT for MP40 and MGIs. • GSIM • Auto configuration of classification for VoIP traffics. • Auto configuration of DSCP marking for the VoIP traffics. • Auto configuration of 802.1p, CoS mapping for VoIP traffics. • GPLIM • Currently auto-QoS not supported. Classification 802.1p Tagging DSCP CoS RTP Priority Queuing

  19. Security • Features Firewall IPS Anti-VirusWall Anti-Spam IP TCP Payload IP TCP Payload IP TCP Payload IP TCP Payload IP TCP Payload IP TCP Payload

  20. Management • Features • CLI • SNMPv1,v2,v3 • RMON • Secure Web based Data Server Call Server Web Based Web MMC Key MMC

  21. Detailed Specifications

  22. Feature list: Layer 2

  23. Feature list: Layer 3 & Router

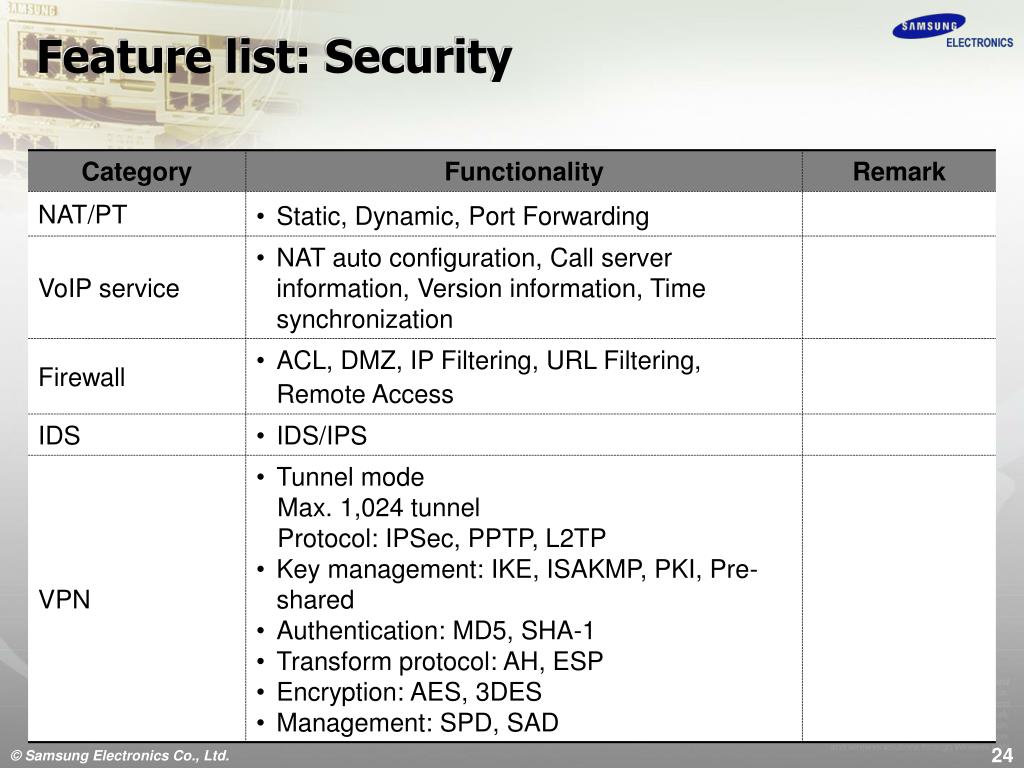

  24. Feature list: Security

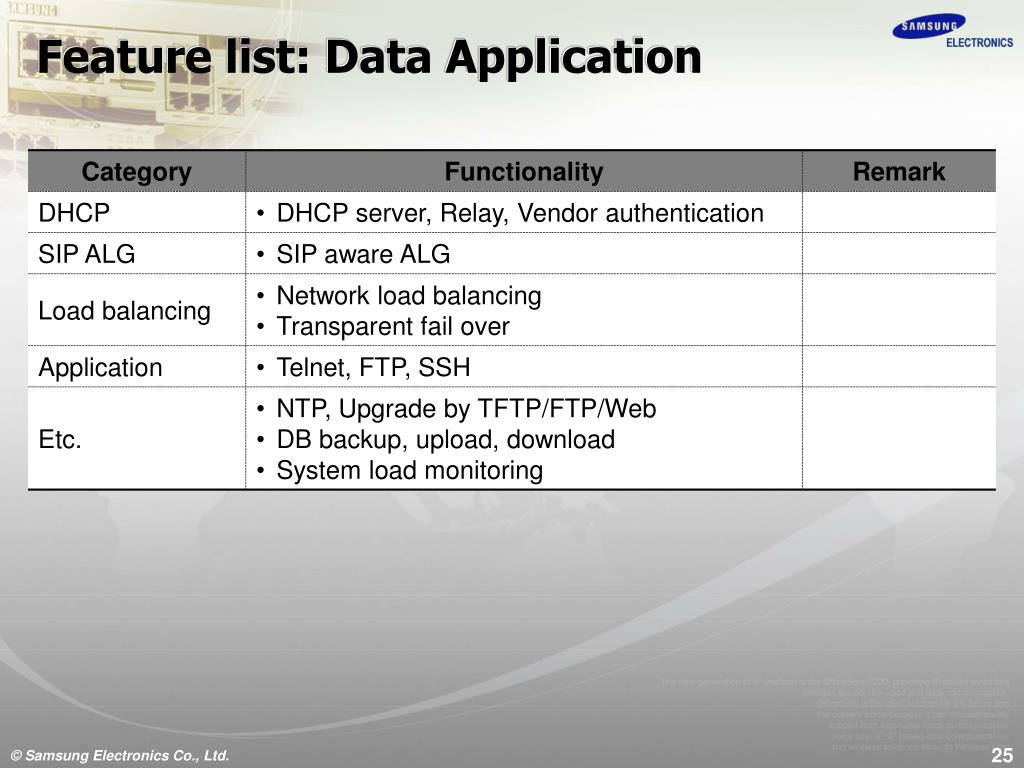

  25. Feature list: Data Application

  26. Samsung Electronics Co., Ltd.
