  1. CS 480/680 Computer Graphics Review Dr. Frederick C Harris, Jr.

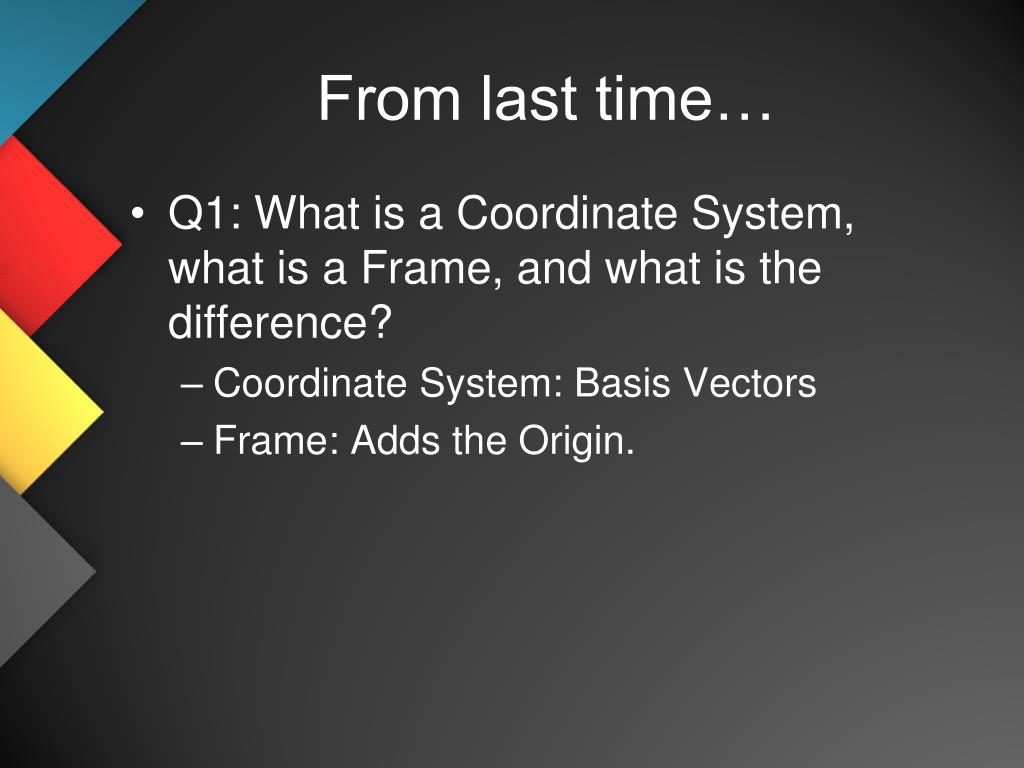

  2. From last time… • Q1: What is a Coordinate System, what is a Frame, and what is the difference? • Coordinate System: Basis Vectors • Frame: Adds the Origin.

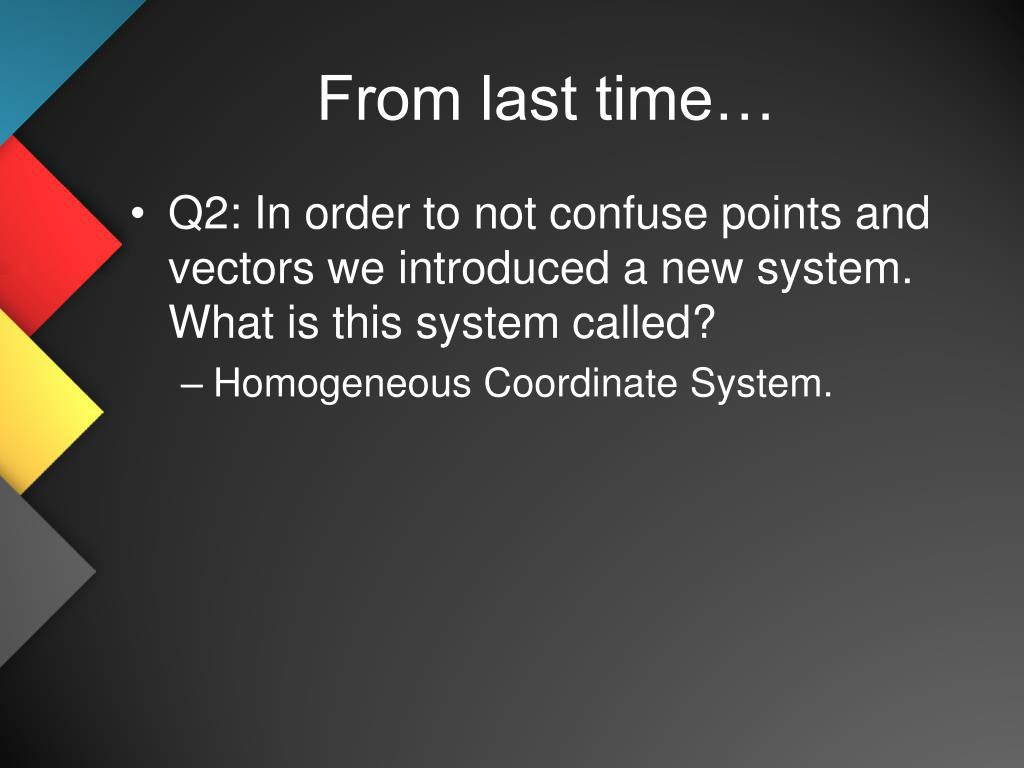

  3. From last time… • Q2: In order to not confuse points and vectors we introduced a new system. What is this system called? • Homogeneous Coordinate System.

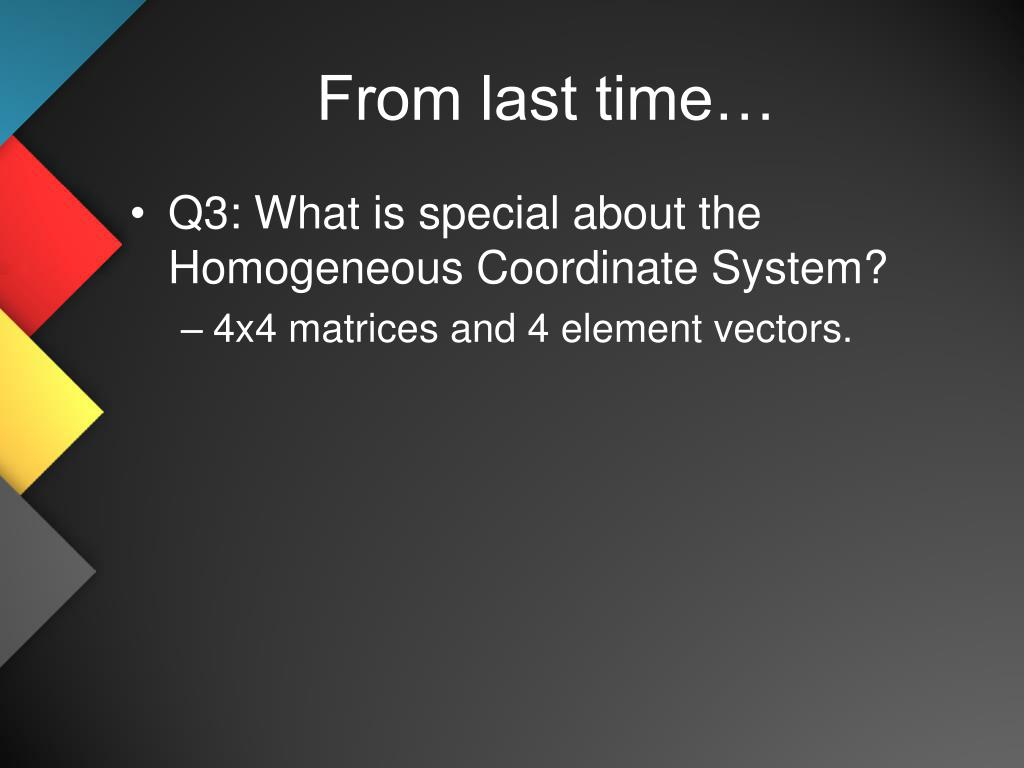

  4. From last time… • Q3: What is special about the Homogeneous Coordinate System? • 4x4 matrices and 4 element vectors.

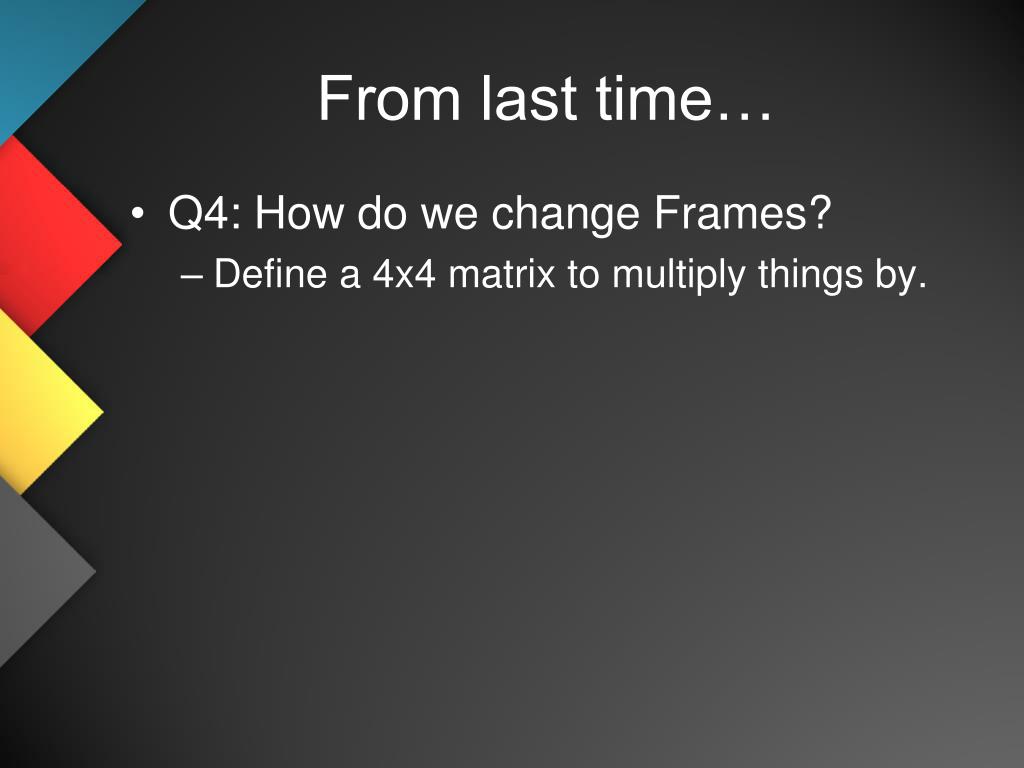

  5. From last time… • Q4: How do we change Frames? • Define a 4x4 matrix to multiply things by.

  6. From last time… • Q5: We discussed several of these matrices … some that we hook together commonly. (MVP) What does MVP stand for in computer graphics? • Model View Projection matrix.

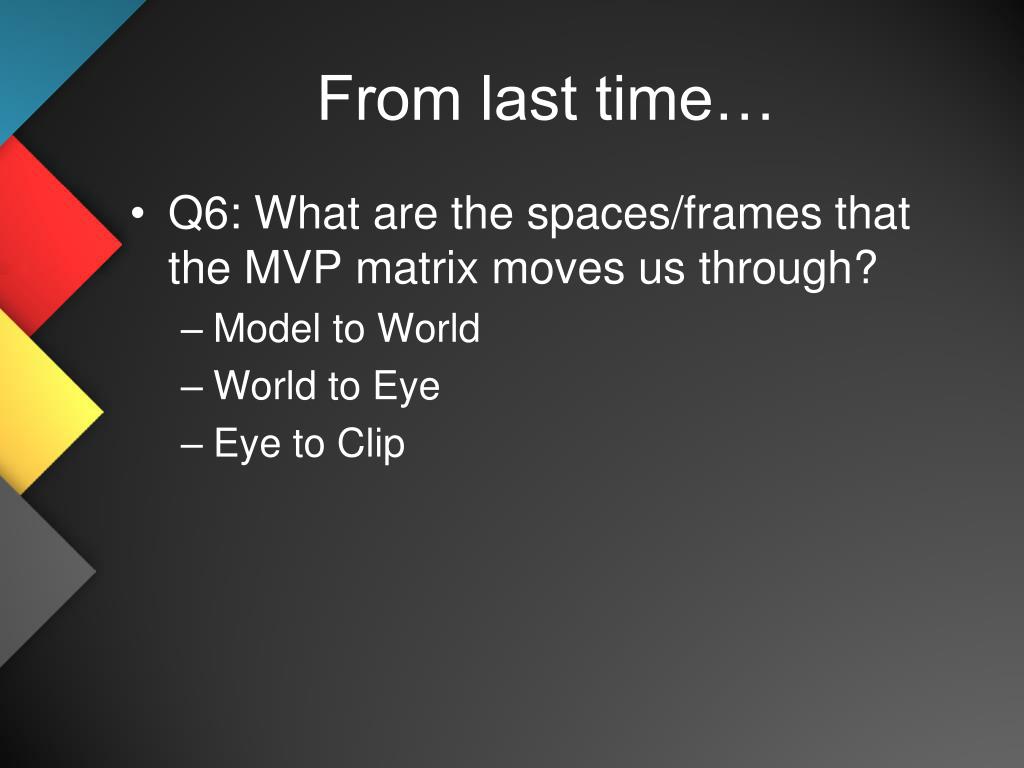

  7. From last time… • Q6: What are the spaces/frames that the MVP matrix moves us through? • Model to World • World to Eye • Eye to Clip

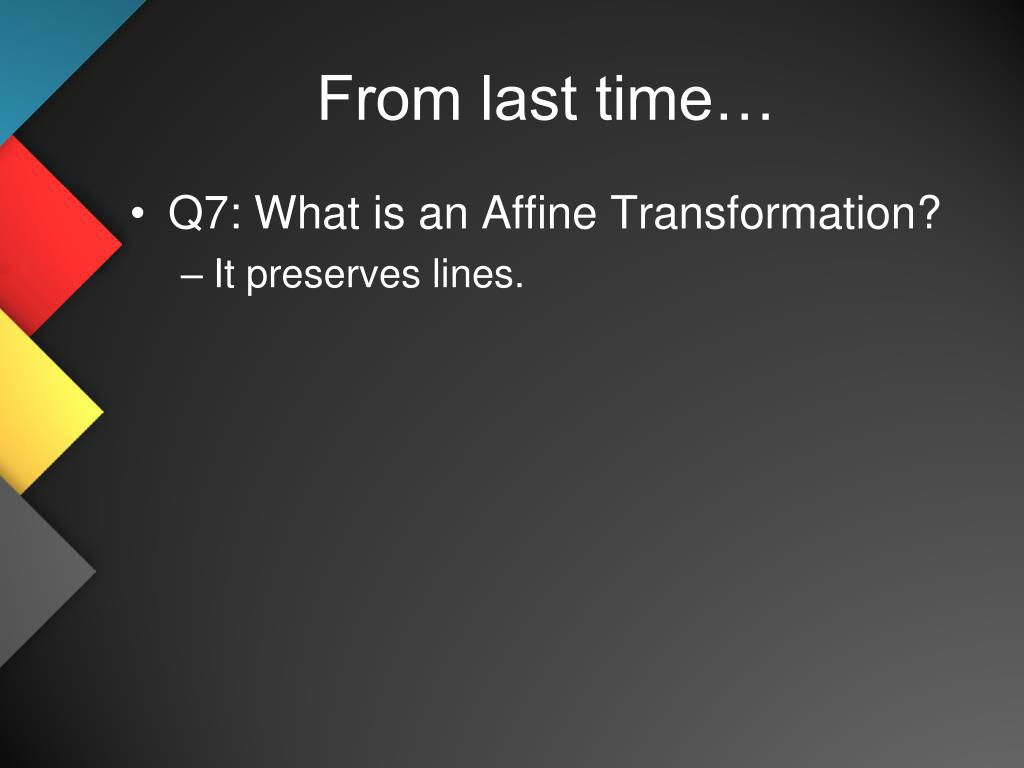

  8. From last time… • Q7: What is an Affine Transformation? • It preserves lines.

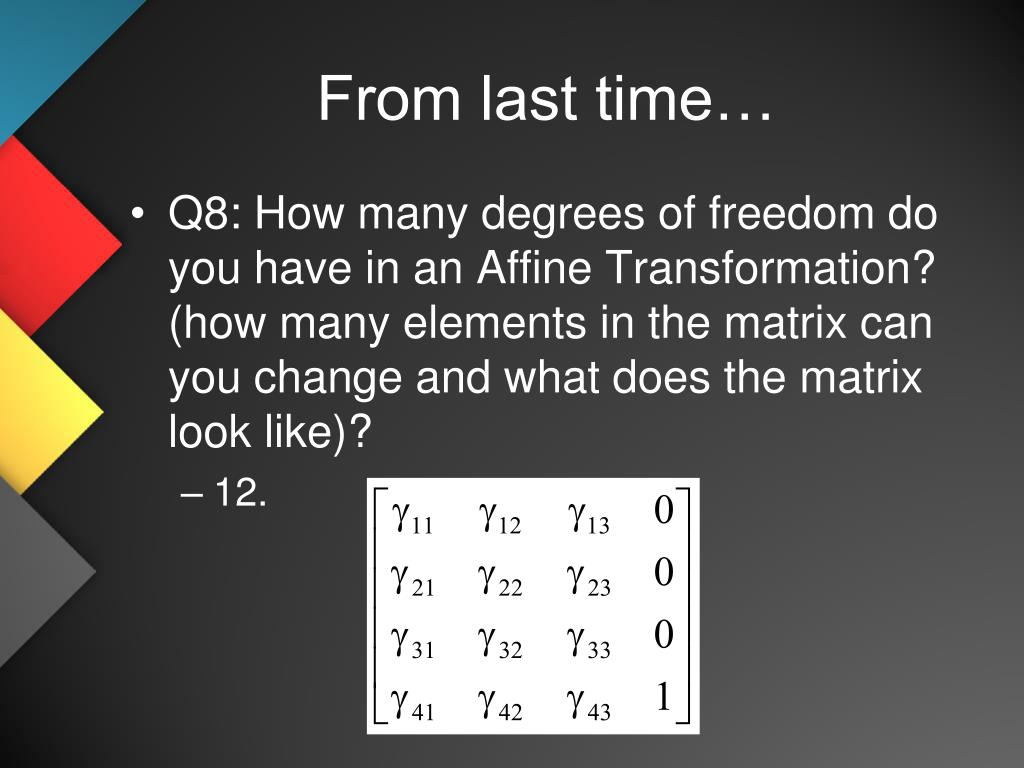

  9. From last time… • Q8: How many degrees of freedom do you have in an Affine Transformation? (how many elements in the matrix can you change and what does the matrix look like)? • 12.
