  1. Dynamic Symmetric Key Provisioning Protocol (DSKPP) Mingliang Pei Salah Machani IETF68 KeyProv WG Prague

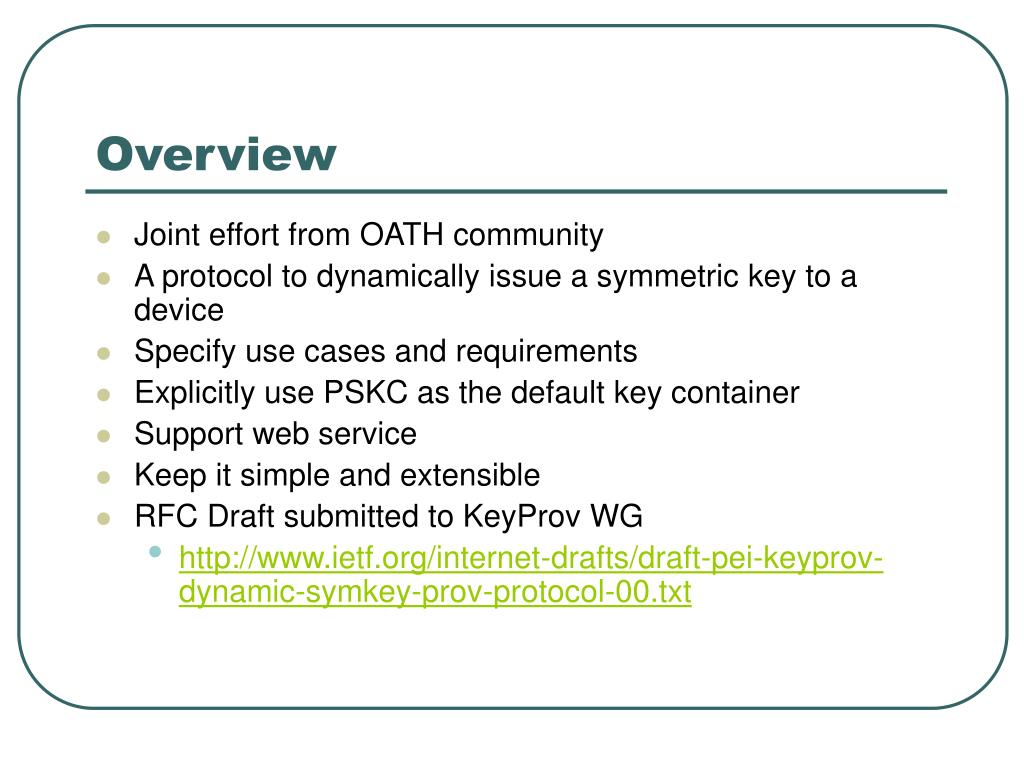

  2. Overview • Joint effort from OATH community • A protocol to dynamically issue a symmetric key to a device • Specify use cases and requirements • Explicitly use PSKC as the default key container • Support web service • Keep it simple and extensible • RFC Draft submitted to KeyProv WG • http://www.ietf.org/internet-drafts/draft-pei-keyprov-dynamic-symkey-prov-protocol-00.txt

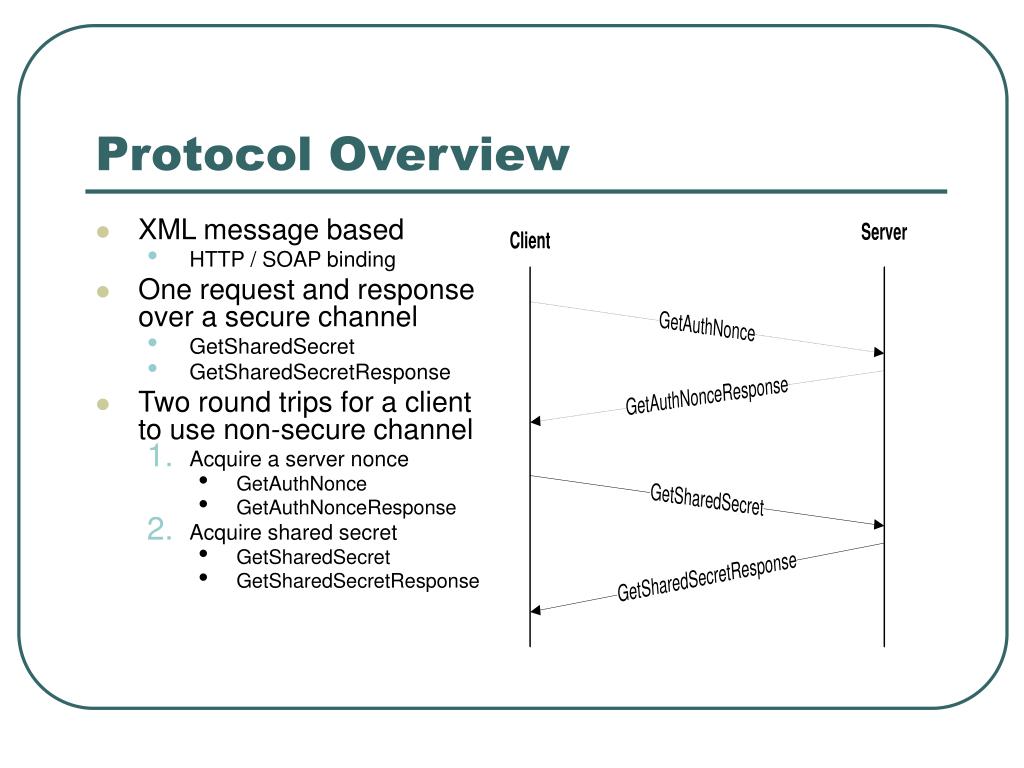

  3. Protocol Overview • XML message based • HTTP / SOAP binding • One request and response over a secure channel • GetSharedSecret • GetSharedSecretResponse • Two round trips for a client to use non-secure channel • Acquire a server nonce • GetAuthNonce • GetAuthNonceResponse • Acquire shared secret • GetSharedSecret • GetSharedSecretResponse

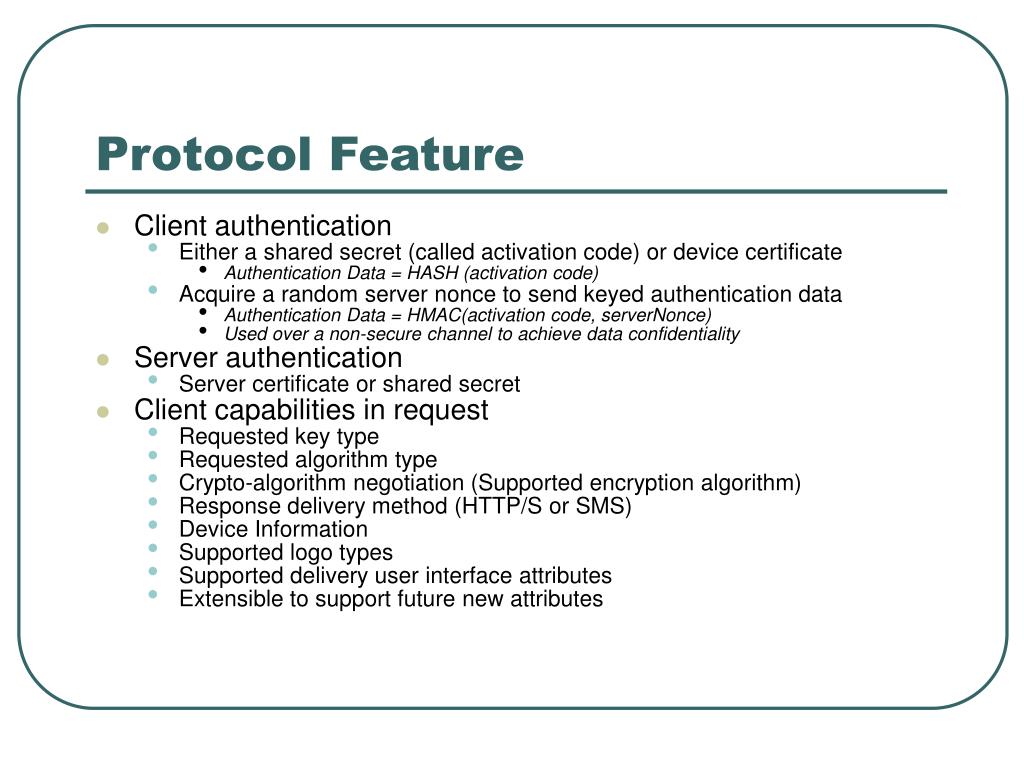

  4. Protocol Feature • Client authentication • Either a shared secret (called activation code) or device certificate • Authentication Data = HASH (activation code) • Acquire a random server nonce to send keyed authentication data • Authentication Data = HMAC(activation code, serverNonce) • Used over a non-secure channel to achieve data confidentiality • Server authentication • Server certificate or shared secret • Client capabilities in request • Requested key type • Requested algorithm type • Crypto-algorithm negotiation (Supported encryption algorithm) • Response delivery method (HTTP/S or SMS) • Device Information • Supported logo types • Supported delivery user interface attributes • Extensible to support future new attributes

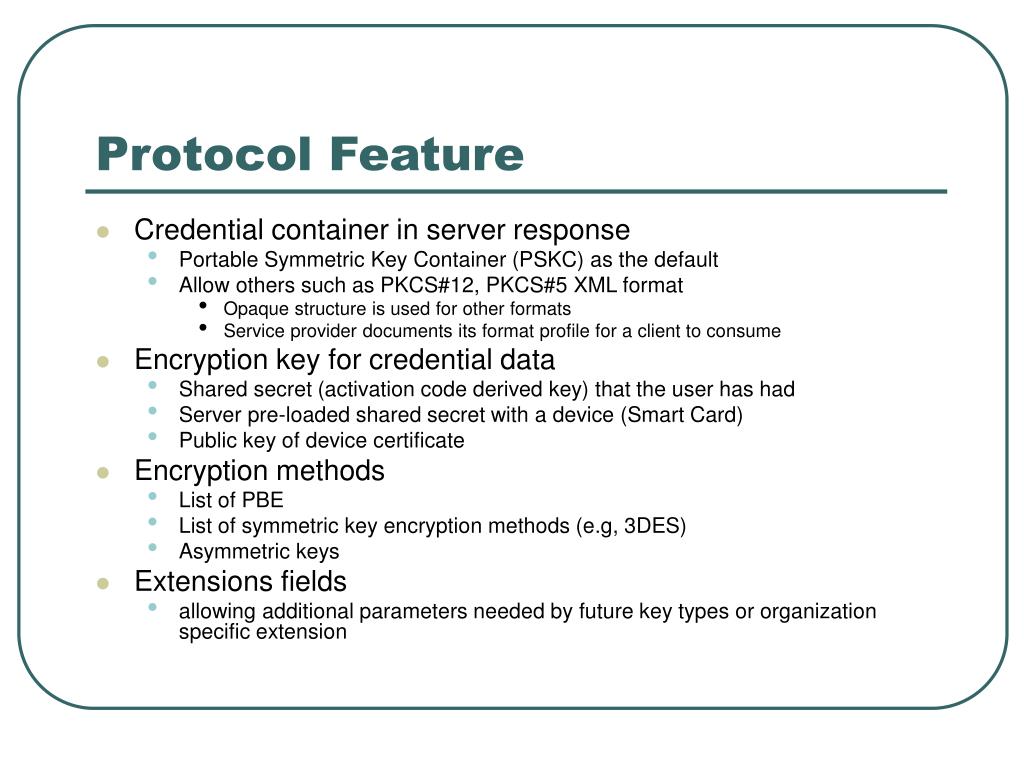

  5. Protocol Feature • Credential container in server response • Portable Symmetric Key Container (PSKC) as the default • Allow others such as PKCS#12, PKCS#5 XML format • Opaque structure is used for other formats • Service provider documents its format profile for a client to consume • Encryption key for credential data • Shared secret (activation code derived key) that the user has had • Server pre-loaded shared secret with a device (Smart Card) • Public key of device certificate • Encryption methods • List of PBE • List of symmetric key encryption methods (e.g, 3DES) • Asymmetric keys • Extensions fields • allowing additional parameters needed by future key types or organization specific extension
