Application-Controlled File Caching Policies Pei Cao, Edward W. Felten and Kai Li Presented By :

1. ECE 7995 Presentation Application-Controlled File Caching Policies Pei Cao, Edward W. Felten and Kai Li Presented By: Mazen Daaibes Gurpreet Mavi

2. Outline (part-1) • Introduction • User Level File Caching • Two level replacement • Kernel Allocation Policy • An Allocation Policy • First try • Swapping Position • Place Holders • Final Allocation Scheme

3. Introduction • File Caching is a widely used technique in file system implementation. • The major challenge is to provide high cache hit ratio. • Two-level cache management is used: • Allocation: the kernel allocates physical pages to individual applications. • Replacement: each application is responsible for deciding how to use its physical pages. • Previous work has focused on replacement, largely ignoring allocation. • Some applications have special knowledge about their file access patterns which can be used to make intelligent cache replacement decisions. • Traditionally, these applications buffer file data in user address space as a way of controlling replacement. • This approach leads to double buffering because the kernel tries to cache file data as well. • Also, this approach does not give the application real control because virtual memory system can still page out data in the user address space.

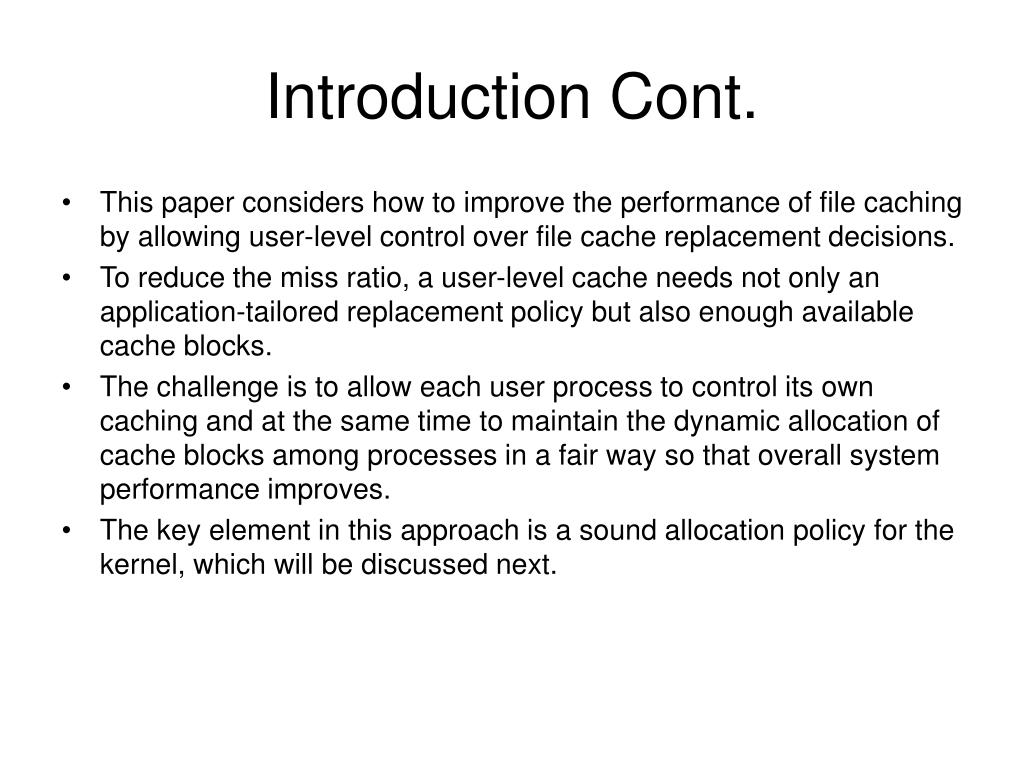

4. Introduction Cont. • This paper considers how to improve the performance of file caching by allowing user-level control over file cache replacement decisions. • To reduce the miss ratio, a user-level cache needs not only an application-tailored replacement policy but also enough available cache blocks. • The challenge is to allow each user process to control its own caching and at the same time to maintain the dynamic allocation of cache blocks among processes in a fair way so that overall system performance improves. • The key element in this approach is a sound allocation policy for the kernel, which will be discussed next.

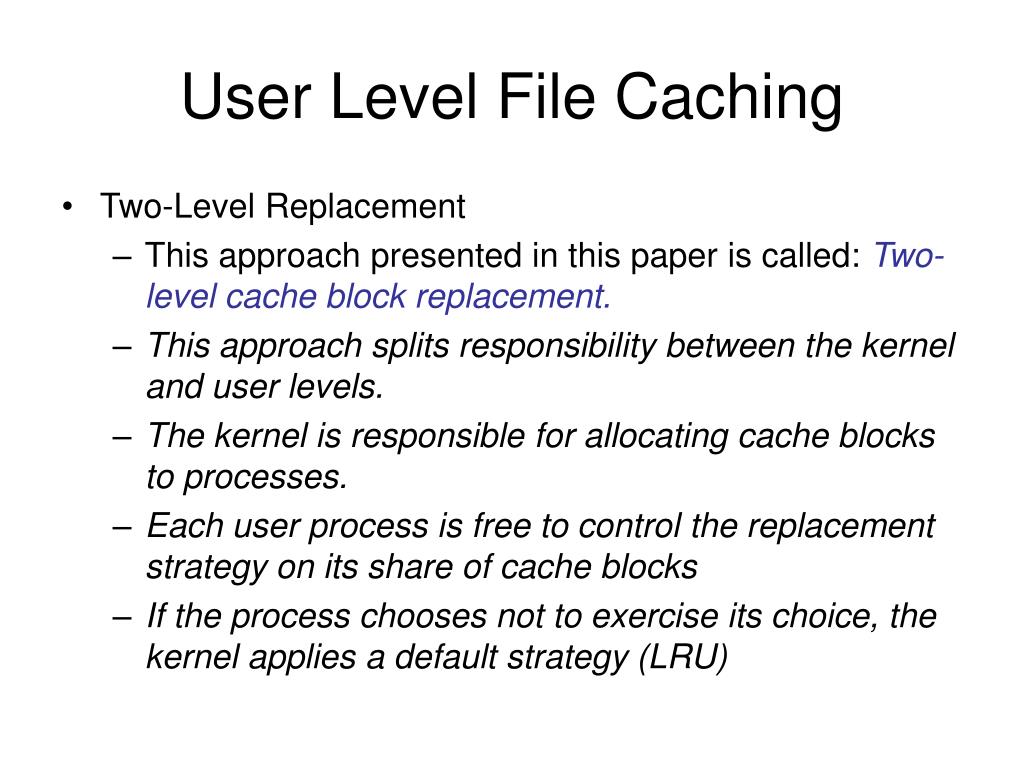

5. User Level File Caching • Two-Level Replacement • This approach presented in this paper is called: Two-level cache block replacement. • This approach splits responsibility between the kernel and user levels. • The kernel is responsible for allocating cache blocks to processes. • Each user process is free to control the replacement strategy on its share of cache blocks • If the process chooses not to exercise its choice, the kernel applies a default strategy (LRU)

6. User Level File Caching Cont. Application P Application Q 1. P misses 2. Kernel asks Q 4. Reallocates B 3. Q gives up B Kernel

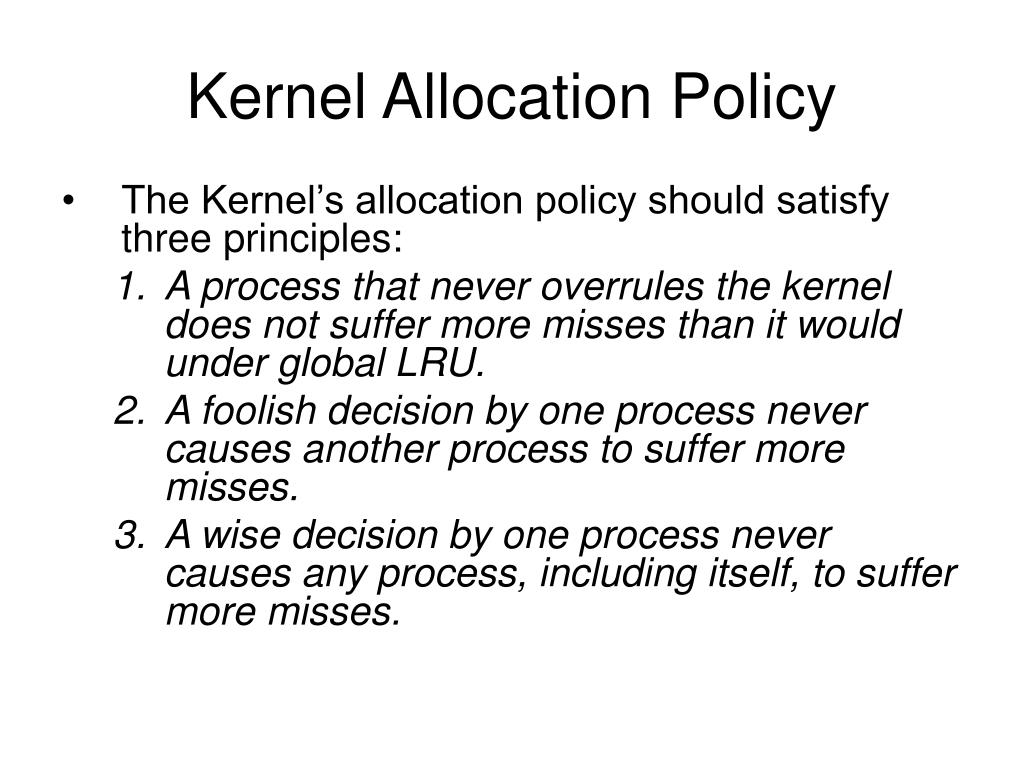

7. Kernel Allocation Policy • The Kernel’s allocation policy should satisfy three principles: • A process that never overrules the kernel does not suffer more misses than it would under global LRU. • A foolish decision by one process never causes another process to suffer more misses. • A wise decision by one process never causes any process, including itself, to suffer more misses.

8. First Try Time P’s ref Q’s ref Cache State Global LRU List Increasing recency A W X B A is the least recently used but P suggests B t0 MISS t1 Y A W X Y P has no choice but to use A t2 MISS t3 Z W X Y Z t4 MISS t5 A X Y Z A t6 MISS t7 B Y Z A B t8 Total misses = 4 (2 by Q, 2 by P) Total misses under global LRU = 3 (2 by Q, 1 by P) This Violates Principle 3

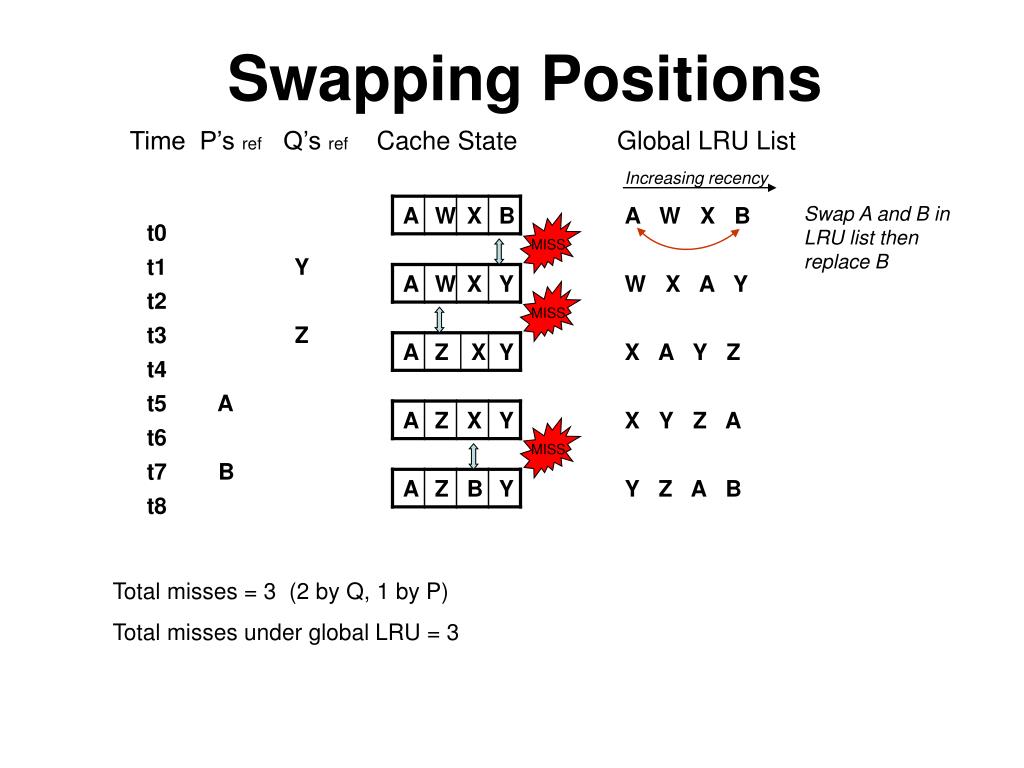

9. Swapping Positions Time P’s ref Q’s ref Cache State Global LRU List Increasing recency A W X B Swap A and B in LRU list then replace B t0 MISS t1 Y W X A Y t2 MISS t3 Z X A YZ t4 t5 A X YZ A t6 MISS t7 B Y Z A B t8 Total misses = 3 (2 by Q, 1 by P) Total misses under global LRU = 3

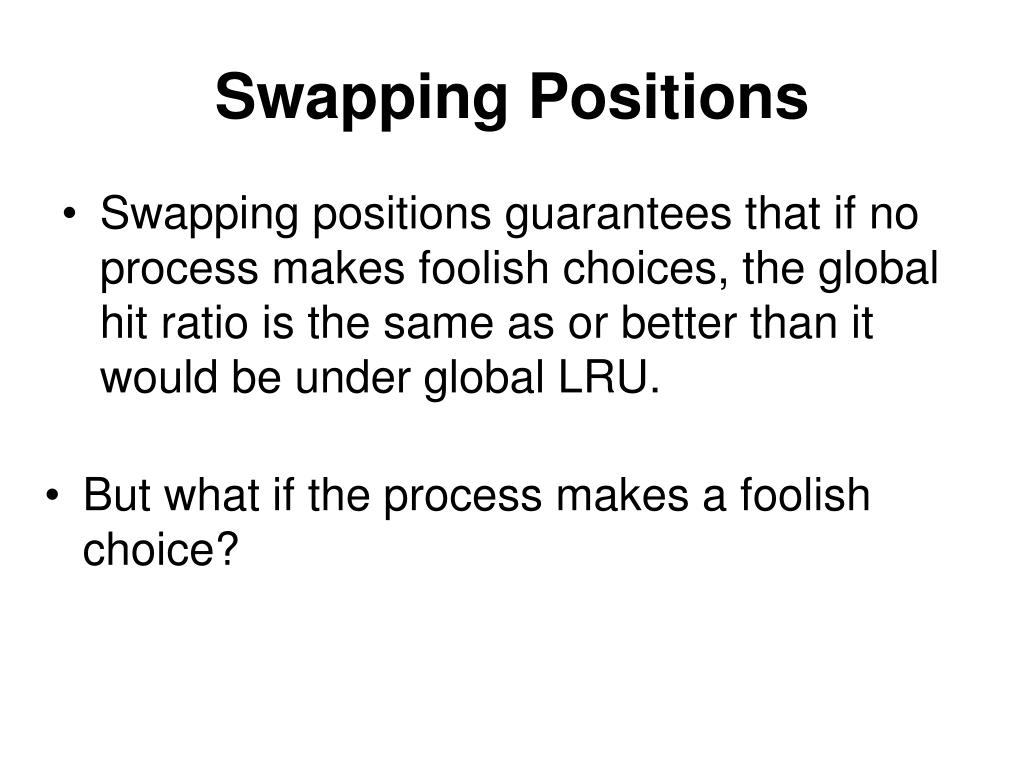

10. Swapping Positions • Swapping positions guarantees that if no process makes foolish choices, the global hit ratio is the same as or better than it would be under global LRU. • But what if the process makes a foolish choice?

11. No Place Holders Time P’s ref Q’s ref Cache State Global LRU List Increasing recency X A Y Q makes wrong decision and replaces Y t0 MISS t1 Z A X Z t2 MISS t3 Y X Z Y t4 MISS t5 A Z Y A t6 Total misses = 3 (2 by Q, 1 by P) Total misses under global LRU = 1 (by Q) This Violates Principle 2

12. With Place Holders Time P’s ref Q’s ref Cache State Global LRU List Increasing recency X A Y Q makes wrong decision and replaces Y t0 MISS t1 Z A X(Y) Z A place holder is created for Y t2 MISS t3 Y A Z Y t4 t5 A Z Y A t6 Total misses = 2 (2 by Q, 0 by P) Total misses under global LRU = 1 (by Q) Q hurts itself by its foolish decision, but it doesn’t hurt anyone else. Principle 2 is satisfied.

13. To summarize… • If a reference to cache block b hits: • b is moved to the head of the global LRU list • Place-holder pointing to b is deleted

14. To summarize… • If a reference to cache block b misses: • 1st case: there is a place-holder for b, pointing to t. t is replaced and its page is given to b. If t is dirty, it is written to disk. • 2nd case: no place-holder for b. The kernel finds the block at the end of the LRU list. Say block c, belonging to process P. The kernel consults P. • if P chooses to replace block x. The kernel then swaps x and c in the LRU list. • If there is place-holder pointing to x, it is changed to point to c. Otherwise, a place-holder is built for x, pointing to c. • Finally, x’s page is given to b.

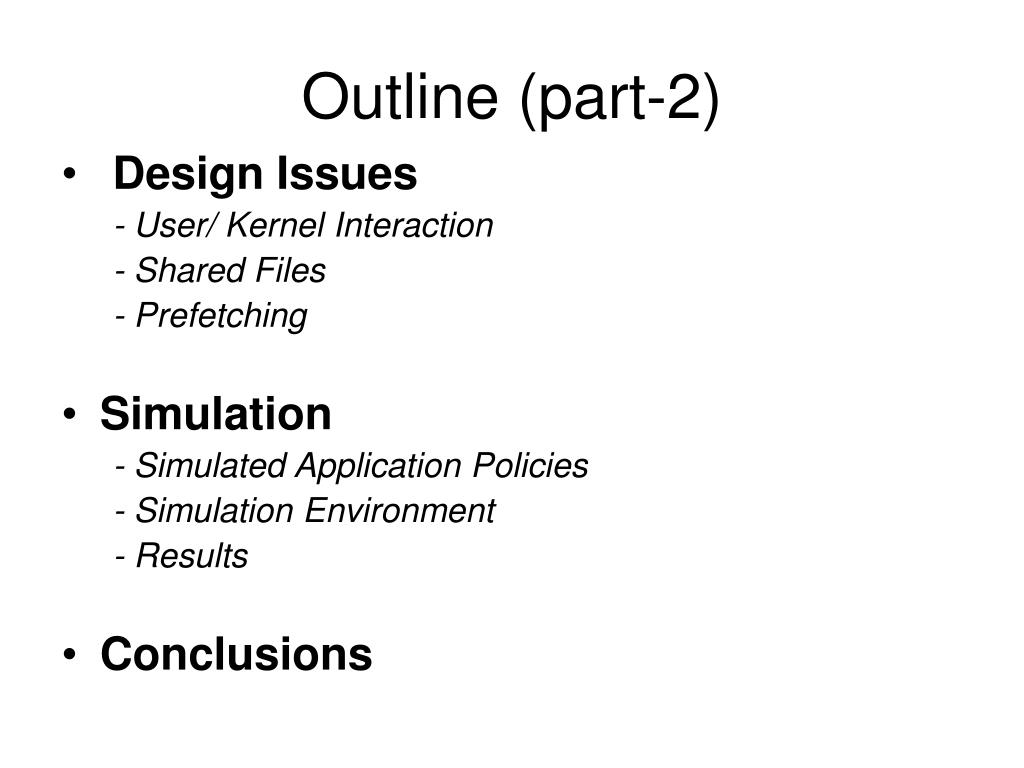

15. Outline (part-2) • Design Issues - User/ Kernel Interaction - Shared Files - Prefetching • Simulation - Simulated Application Policies - Simulation Environment - Results • Conclusions

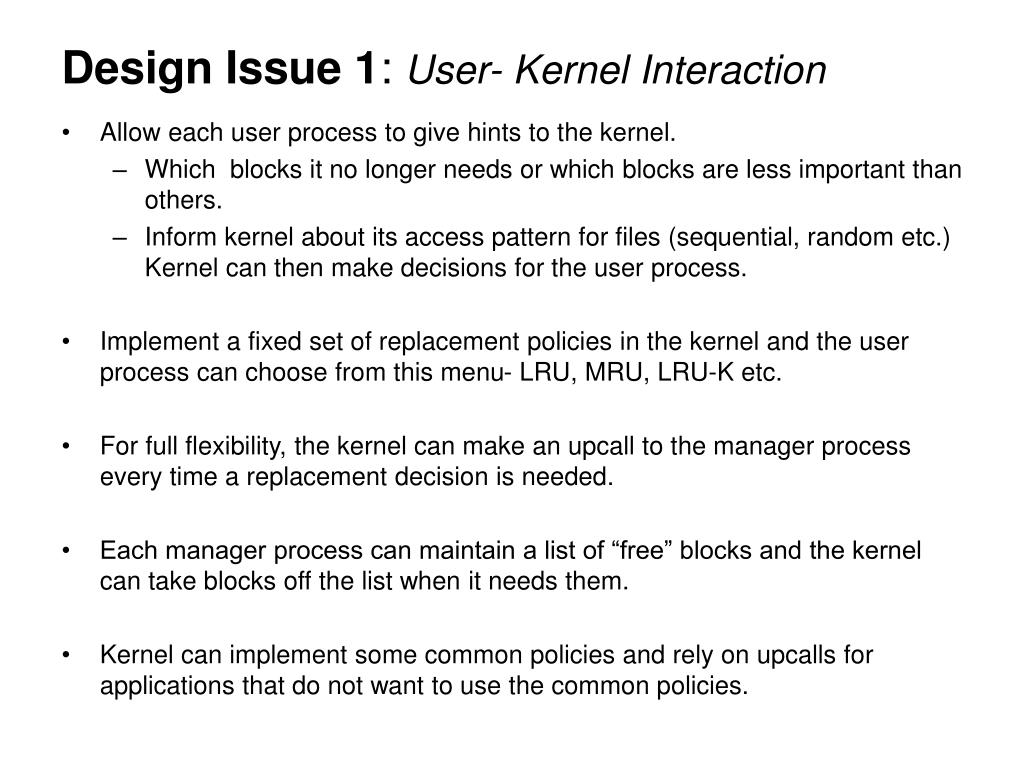

16. Design Issue 1: User- Kernel Interaction • Allow each user process to give hints to the kernel. • Which blocks it no longer needs or which blocks are less important than others. • Inform kernel about its access pattern for files (sequential, random etc.) Kernel can then make decisions for the user process. • Implement a fixed set of replacement policies in the kernel and the user process can choose from this menu- LRU, MRU, LRU-K etc. • For full flexibility, the kernel can make an upcall to the manager process every time a replacement decision is needed. • Each manager process can maintain a list of “free” blocks and the kernel can take blocks off the list when it needs them. • Kernel can implement some common policies and rely on upcalls for applications that do not want to use the common policies.

17. Design Issue 2: Shared Files Concurrently shared files are handled in one of the two ways: • If all the sharing processes agree to designate a single process as manager for the shared file, then the kernel allows this. • If the sharing processes fail to agree, management reverts to the kernel and the default global LRU policy is used.

18. Design Issue 3: Prefetching • Kernel prefetching would be responsible for deciding how aggressively to prefetch. Simply treat the prefetcher process as another process competing for memory in the file cache. • Information about future file references (essential for prefetching) might be valuable to the replacement code as well. Adding prefetching may well make the allocator’s job easier rather than harder. • Interaction between the allocator and the prefetcher would also be useful. The allocator could inform the prefetcher about the current demand for cache blocks; the prefetcher could then voluntarily free blocks when it realizes that some prefetched blocks are no longer useful.

19. Simulation • Trace driven simulation has been used to evaluate two- level replacement. • In these simulations, the user-level managers used a general replacement strategy that takes advantage of knowledge about applications’ file references. • Two set of traces were used to evaluate the scheme. • Ultrix • Sprite

20. Simulated Application Policies • The two-level block replacement enables each user process to use its own replacement policy. • This solves the problem for those sophisticated applications that know exactly what replacement policy they want. • For less sophisticated applications, the knowledge about an application’s file accesses can be used in replacement policy. • Knowledge about file accesses can often be obtained through general heuristics or from the compiler or the application writer.

21. Simulated Application Policies (contd.) • Following replacement policy based on the principle of RMIN (replace the block whose next reference is farthest in future) has been proposed to exploit partial knowledge of the future file access sequence. • When the kernel suggests a candidate replacement block to the manager process, • Find all blocks whose next references are definitely (or with high probability) after the next reference to the candidate block. • If there is no such block, replace the candidate block. • Else, choose the block whose reference is farthest from the next reference of the candidate block.

22. Simulated Application Policies (contd.) • This strategy can be applied to general applications with following common file reference patterns : • Sequential:Most files are accessed sequentially most of the time. • File specific sequence:Some files are mostly accessed in one of a few sequences. • Filter:Many applications access files one by one in the order of their names in the command line and access each file sequentially from beginning to end. • Same-order:a file or group of files are repeatedly accessed in the same order. • Access Once: Many programs do not re-read or re-write file data that they have already been accessed.

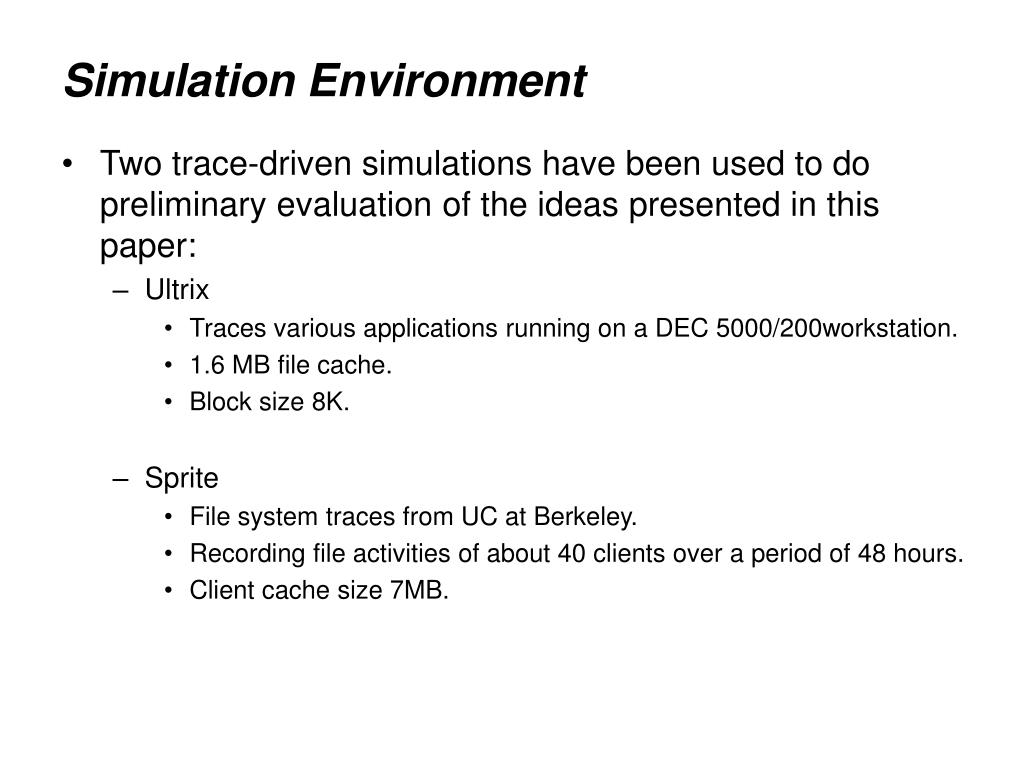

23. Simulation Environment • Two trace-driven simulations have been used to do preliminary evaluation of the ideas presented in this paper: • Ultrix • Traces various applications running on a DEC 5000/200workstation. • 1.6 MB file cache. • Block size 8K. • Sprite • File system traces from UC at Berkeley. • Recording file activities of about 40 clients over a period of 48 hours. • Client cache size 7MB.

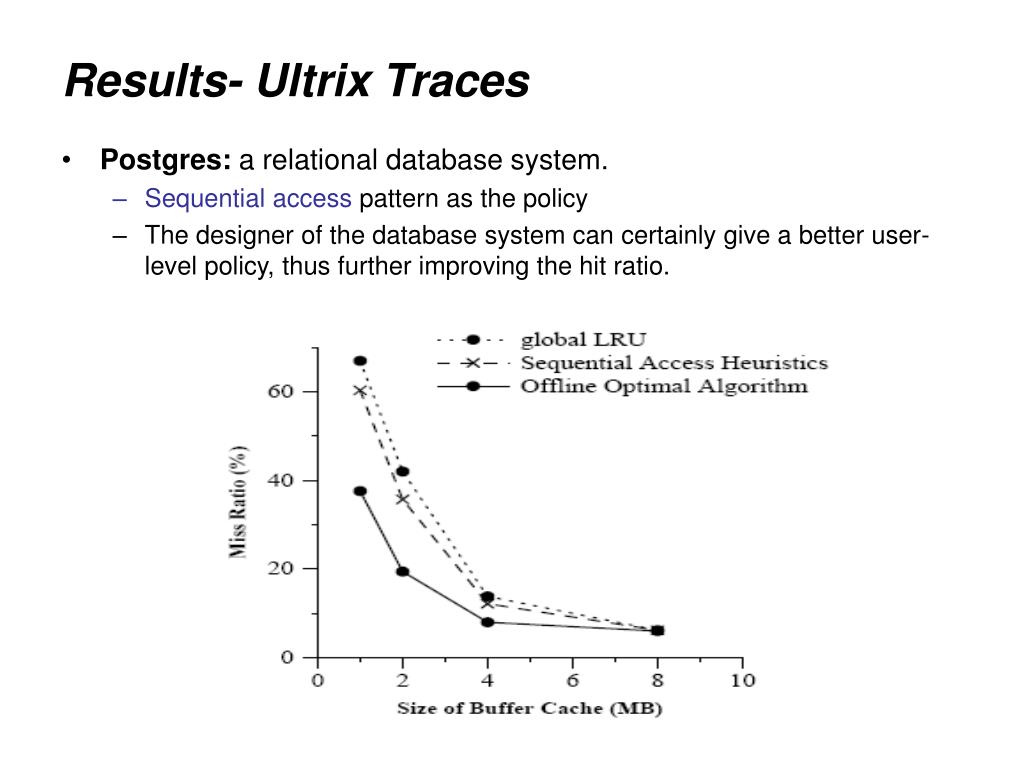

24. Results- Ultrix Traces • Postgres: a relational database system. • Sequential access pattern as the policy • The designer of the database system can certainly give a better user-level policy, thus further improving the hit ratio.

25. Results- Ultrix Traces • Cscope: an interactive tool for examining C sources. • It reads the database of all source files sequentially from beginning to end to answer each query. • Applying right user-level policy (Same-Order being the access pattern) the miss ratio is reduced significantly.

26. Results- Ultrix Traces • Link-editing: Ultrix linker • Linker in this system makes a lot of small file accesses. • Doesn’t fit sequential access pattern, but fits Read-once

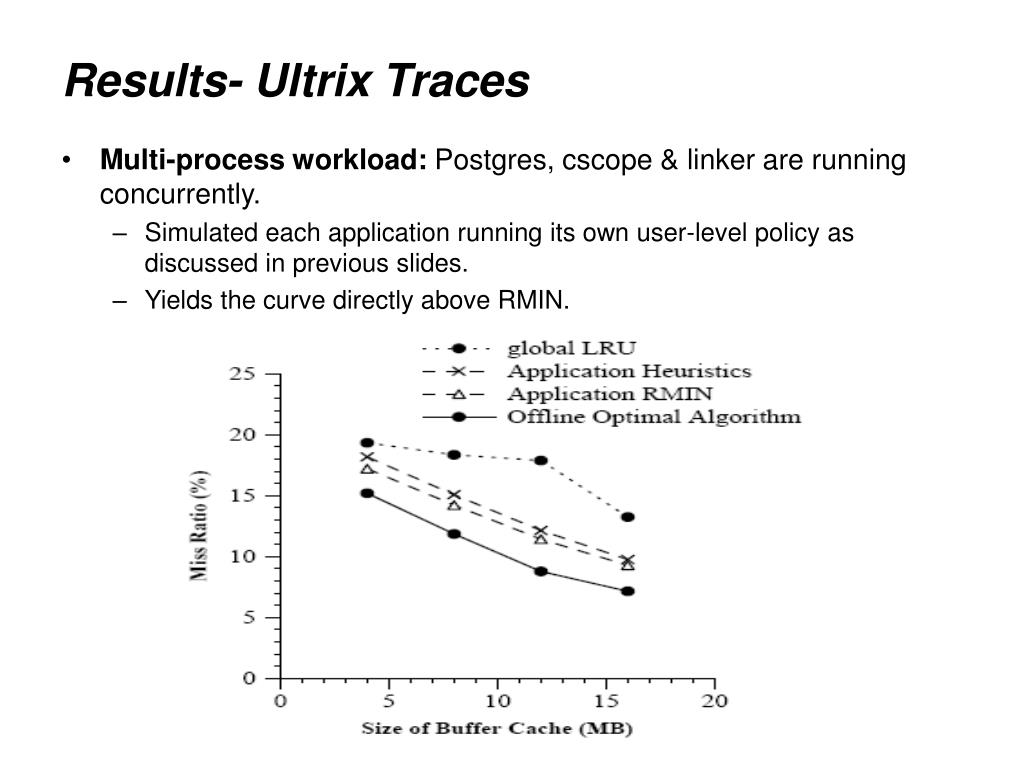

27. Results- Ultrix Traces • Multi-process workload: Postgres, cscope & linker are running concurrently. • Simulated each application running its own user-level policy as discussed in previous slides. • Yields the curve directly above RMIN.

28. Results – Sprite Traces • In a system with a slow network (e.g ethernet), client caching performance • determines the file system performance on each workstation. • Since most file accesses are sequential, the sequential heuristic can be • used. • Sequential pattern improves hit ratio for about 10% of the clients.

29. Conclusions: • This paper has proposed a two-level replacement scheme for file cache management. • Its kernel policy for cache block allocation. • Several user-level replacement policies. • Kernel Allocation policy guarantees performance improvements over the traditional global LRU file caching approach: • The method guarantees that processes that are unwilling or unable to predict their file access patterns will perform at least as well as global LRU. • It guarantees that a process that mis-predicts its file access patterns cannot cause other processes to suffer more misses. • The key contribution is the guarantee that a good user-level policy will improve the file cache hit ratios of the entire system.

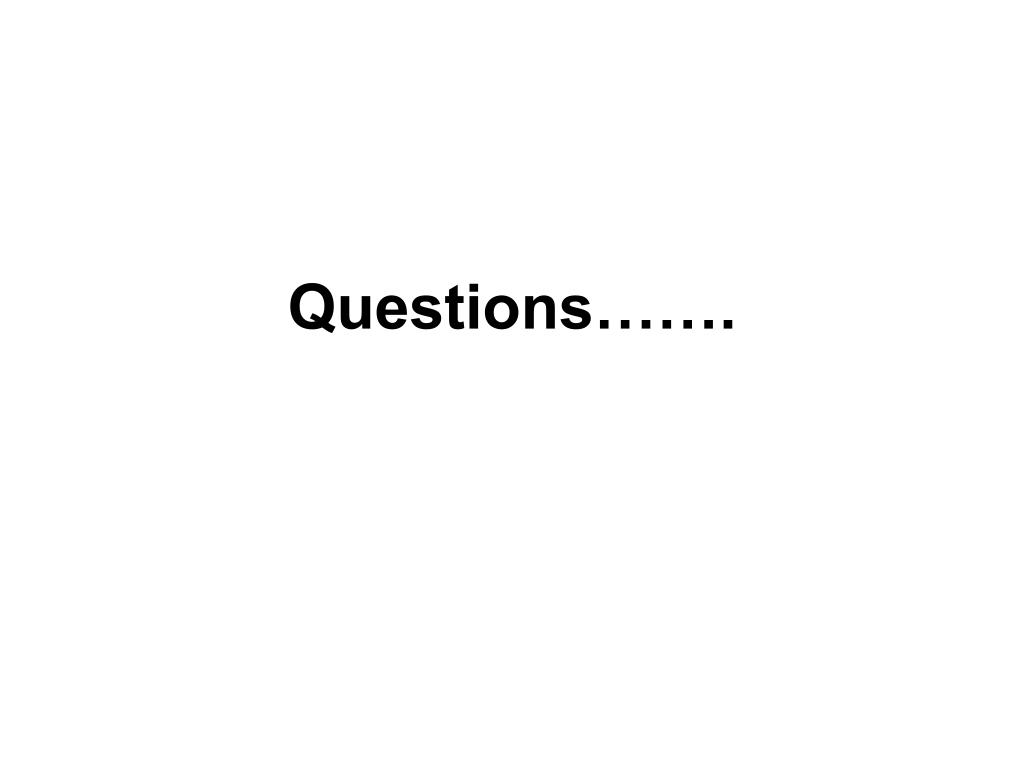

30. Questions…….
