  1. Web services in CS1/IS1

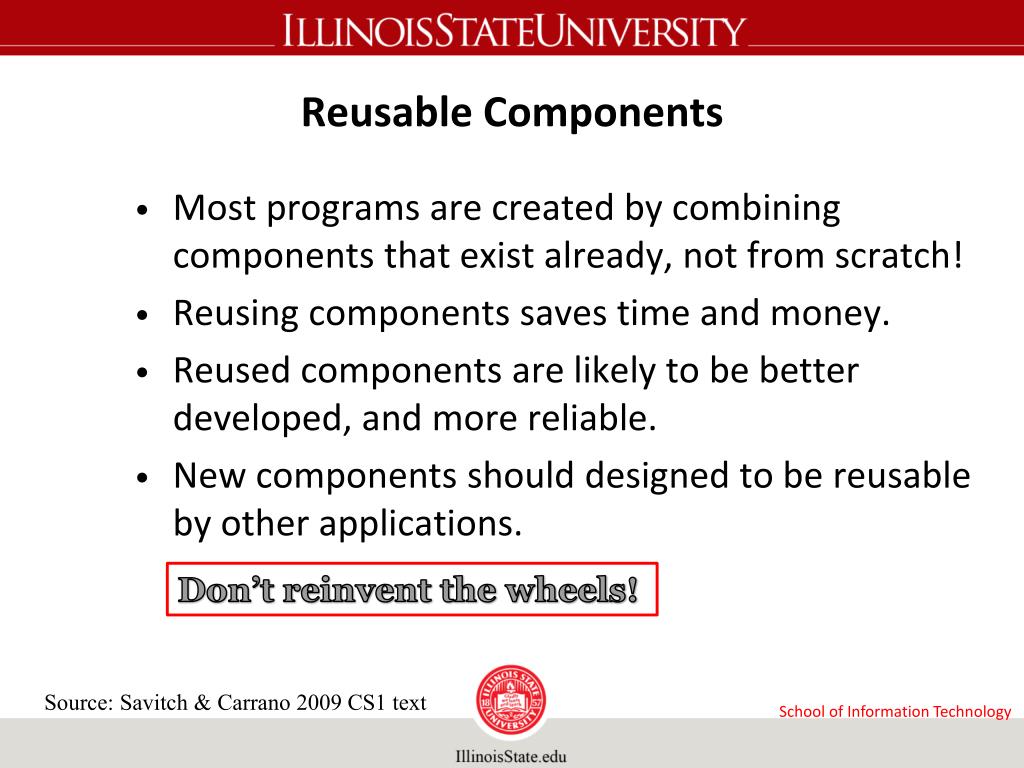

  2. Reusable Components • Most programs are created by combining components that exist already, not from scratch! • Reusing components saves time and money. • Reused components are likely to be better developed, and more reliable. • New components should designed to be reusable by other applications. Don’t reinvent the wheels! Source: Savitch & Carrano 2009 CS1 text

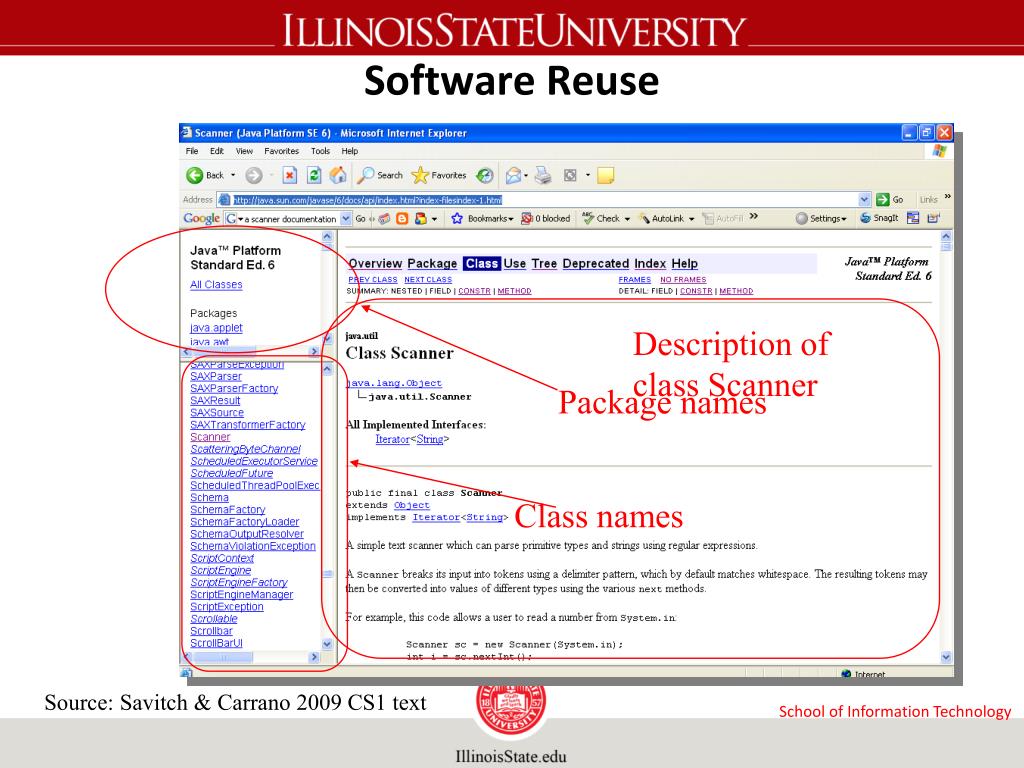

  3. Description of class Scanner Package names Class names Software Reuse Source: Savitch & Carrano 2009 CS1 text

  4. Software Reuse via SOA/WS • Latest form of reuse is via “services” • SOA (Service-Oriented Architecture) • “A system for linking resources on demand. In an SOA, resources are made available to other participants in the network as independent services that are accessed in a standardized way. This provides for more flexible loose coupling of resources than in traditional systems architectures.” –Sybase • “Architecture that describes an entity (e.g., application or enterprise) as a set of interdependent services. SOA provides for reuse of existing services and the rapid deployment of new business capabilities based on existing assets.” -- CIO.gov • Many others …

  5. Software Reuse via SOA/WS • One popular way of implementing SOA is via Web services • WS (Web Service) • "a software system designed to support interoperablemachine-to-machine interaction over a network. It has an interface described in a machine-processable format (specifically WSDL). Other systems interact with the Web service in a manner prescribed by its description using SOAP-messages, typically conveyed using HTTP with an XML serialization in conjunction with other Web-related standards.“ – W3C • Laymen terms: a piece of program that can interact with another program using standardized Web protocols • Examples: Google Maps API, Flickr API, Twitter API, Amazon Web services. (API = Application Programming Interface)

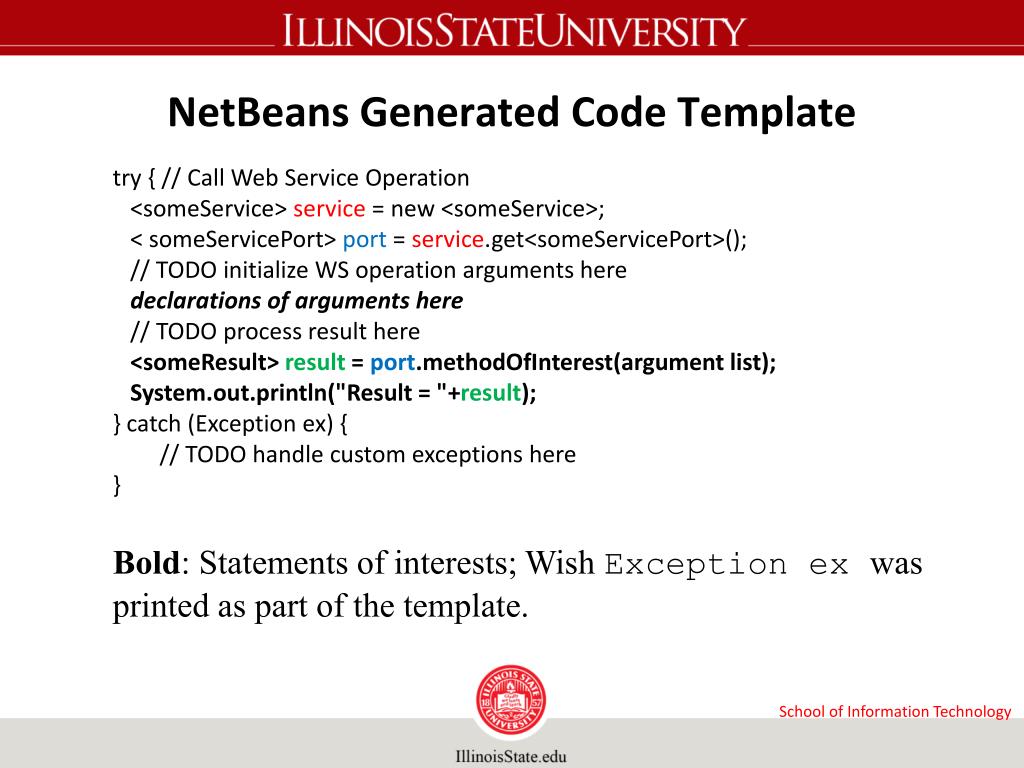

  6. NetBeans Generated Code Template try { // Call Web Service Operation <someService> service = new <someService>; < someServicePort> port = service.get<someServicePort>(); // TODO initialize WS operation arguments here declarations of arguments here // TODO process result here <someResult> result = port.methodOfInterest(argument list); System.out.println("Result = "+result); } catch (Exception ex) { // TODO handle custom exceptions here } Bold: Statements of interests; Wish Exception ex was printed as part of the template.

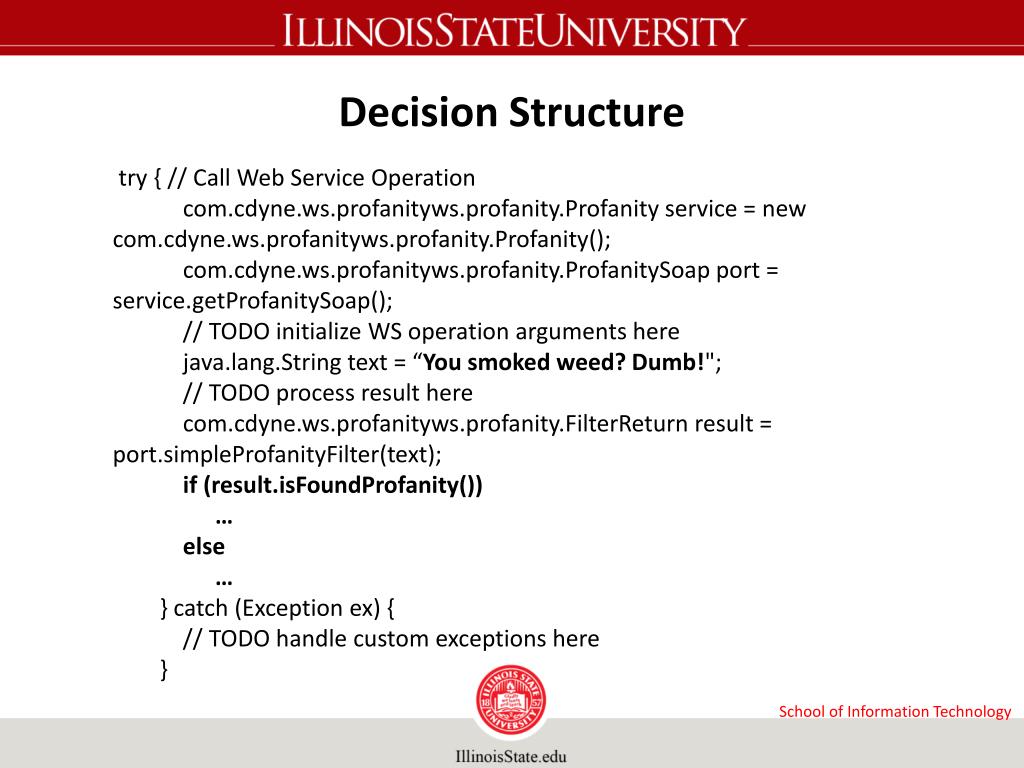

  7. Decision Structure try { // Call Web Service Operation com.cdyne.ws.profanityws.profanity.Profanity service = new com.cdyne.ws.profanityws.profanity.Profanity(); com.cdyne.ws.profanityws.profanity.ProfanitySoap port = service.getProfanitySoap(); // TODO initialize WS operation arguments here java.lang.String text = “You smoked weed? Dumb!"; // TODO process result here com.cdyne.ws.profanityws.profanity.FilterReturn result = port.simpleProfanityFilter(text); if (result.isFoundProfanity()) … else … } catch (Exception ex) { // TODO handle custom exceptions here }

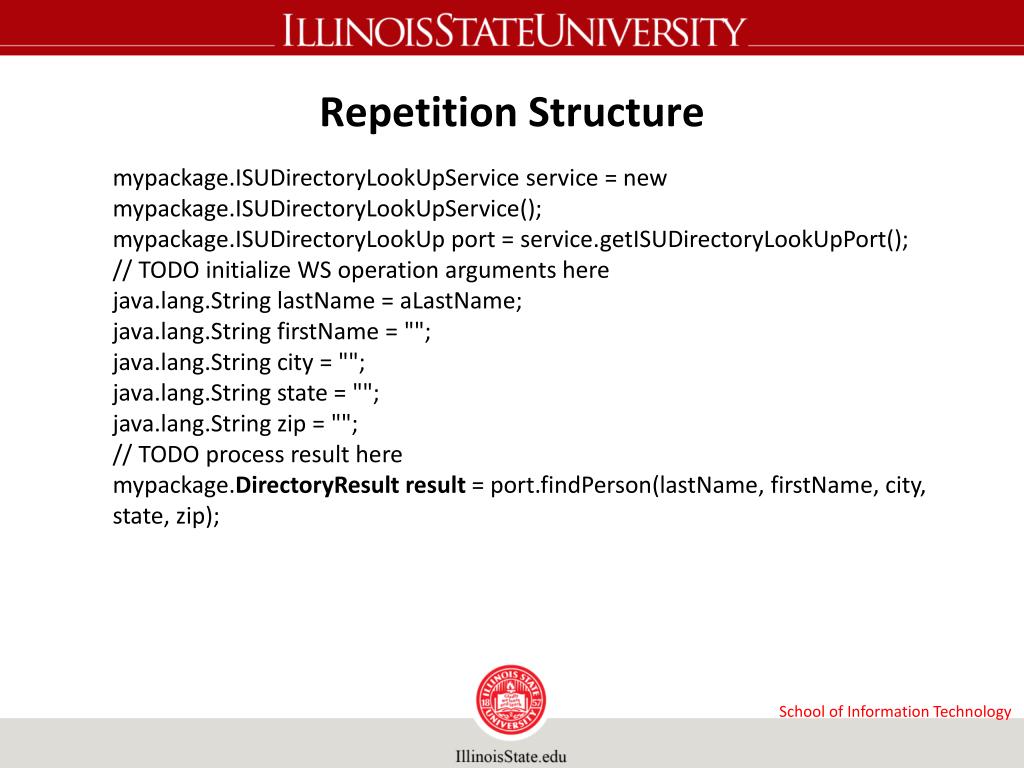

  8. Repetition Structure mypackage.ISUDirectoryLookUpService service = new mypackage.ISUDirectoryLookUpService(); mypackage.ISUDirectoryLookUp port = service.getISUDirectoryLookUpPort(); // TODO initialize WS operation arguments here java.lang.StringlastName = aLastName; java.lang.StringfirstName = ""; java.lang.String city = ""; java.lang.String state = ""; java.lang.String zip = ""; // TODO process result here mypackage.DirectoryResult result = port.findPerson(lastName, firstName, city, state, zip);

  9. Repetition Structure (2) IntlistingSize = result.getItems().getDirectoryRecord().size(); for (inti = 0; i < listingSize; i++) { firstName = result.getItems().getDirectoryRecord().get(i).getFirstName(); lastName = result.getItems().getDirectoryRecord().get(i).getLastName(); zip = result.getItems().getDirectoryRecord().get(i).getZip(); phone = result.getItems().getDirectoryRecord().get(i).getPhone(); state = result.getItems().getDirectoryRecord().get(i).getState(); cityNamePrint = result.getItems().getDirectoryRecord().get(i).getCity(); }
