  1. Chapter 19 STL Containers §19.1 STL Basics §19.2 STL Iterators §19.3 Sequence Containers §19.4 Associative Containers §19.5 Container Adapters

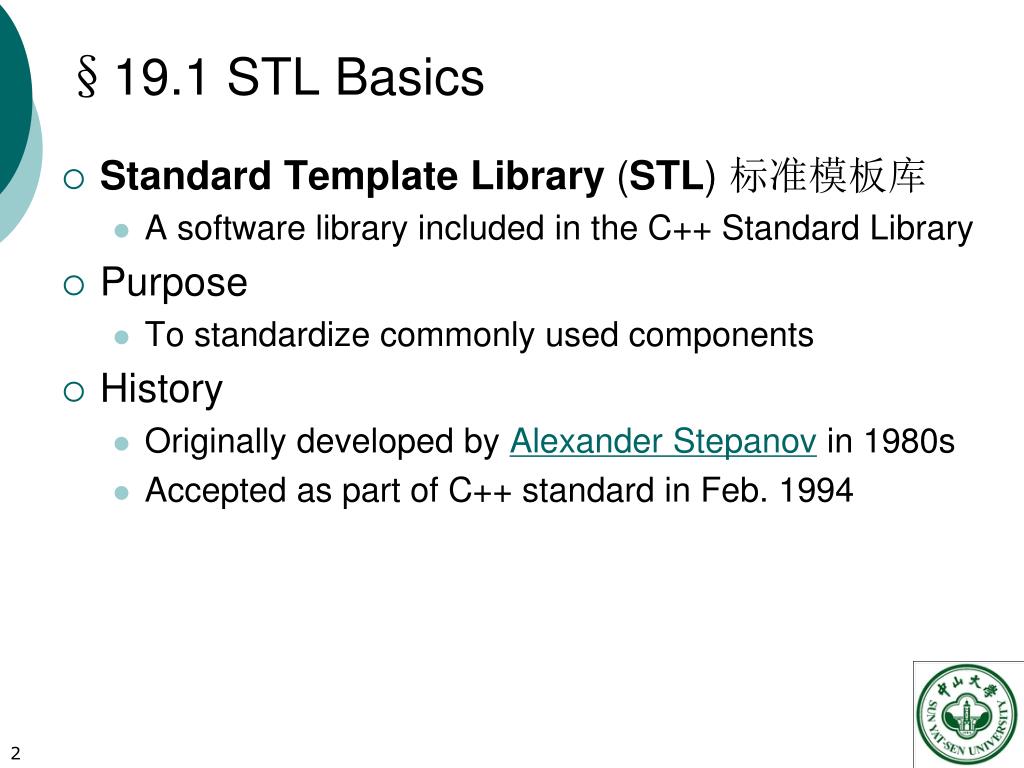

  2. §19.1 STL Basics • Standard Template Library (STL) 标准模板库 • A software library included in the C++ Standard Library • Purpose • To standardize commonly used components • History • Originally developed by Alexander Stepanov in 1980s • Accepted as part of C++ standard in Feb. 1994

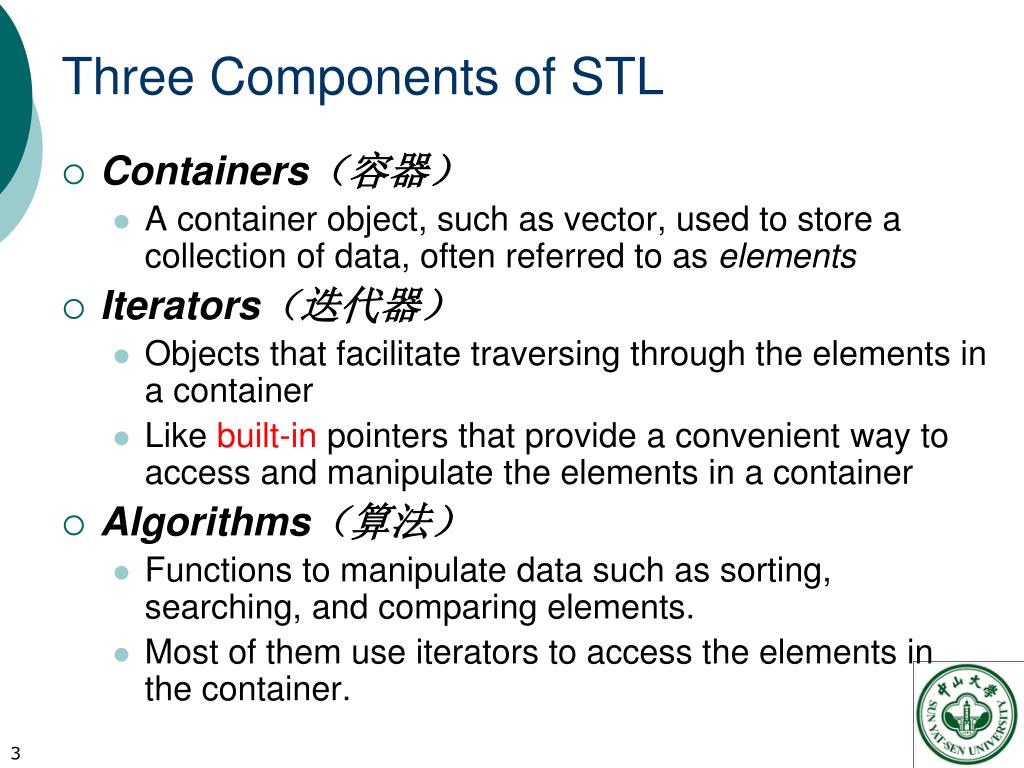

  3. Three Components of STL • Containers（容器） • A container object, such as vector, used to store a collection of data, often referred to as elements • Iterators（迭代器） • Objects that facilitate traversing through the elements in a container • Like built-in pointers that provide a convenient way to access and manipulate the elements in a container • Algorithms（算法） • Functions to manipulate data such as sorting, searching, and comparing elements. • Most of them use iterators to access the elements in the container.

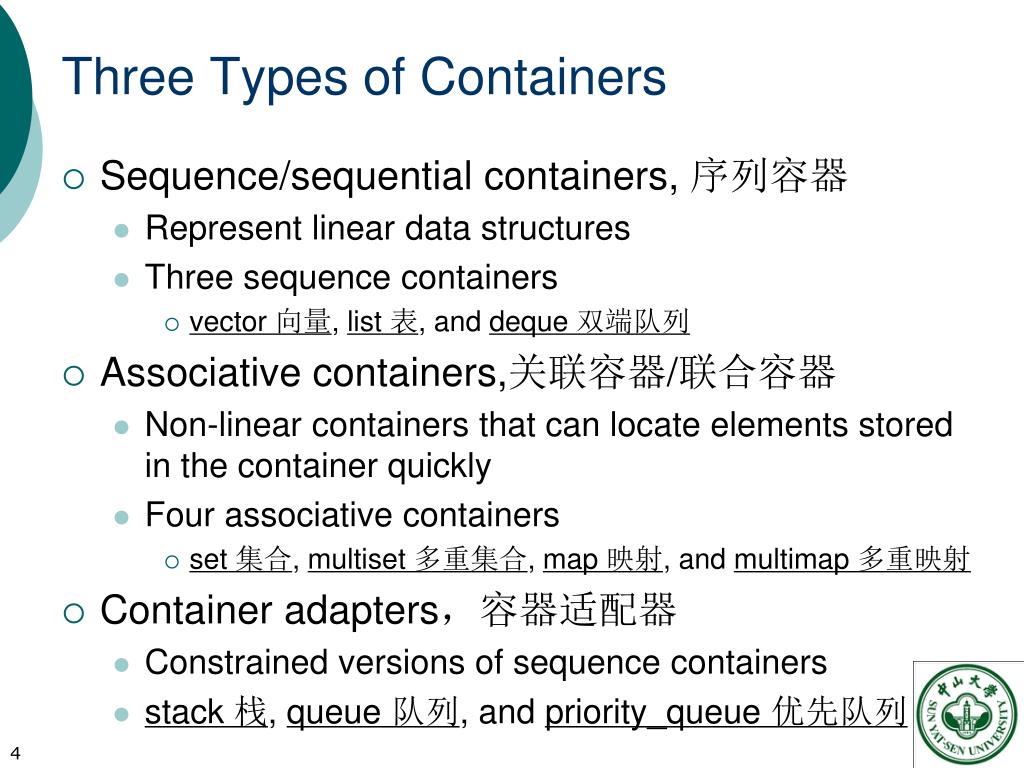

  4. Three Types of Containers • Sequence/sequential containers, 序列容器 • Represent linear data structures • Three sequence containers • vector 向量, list 表, and deque 双端队列 • Associative containers,关联容器/联合容器 • Non-linear containers that can locate elements stored in the container quickly • Four associative containers • set 集合, multiset 多重集合, map 映射, and multimap 多重映射 • Container adapters，容器适配器 • Constrained versions of sequence containers • stack 栈, queue 队列, and priority_queue 优先队列

  5. Container Classes

  6. Common Functions to All Containers

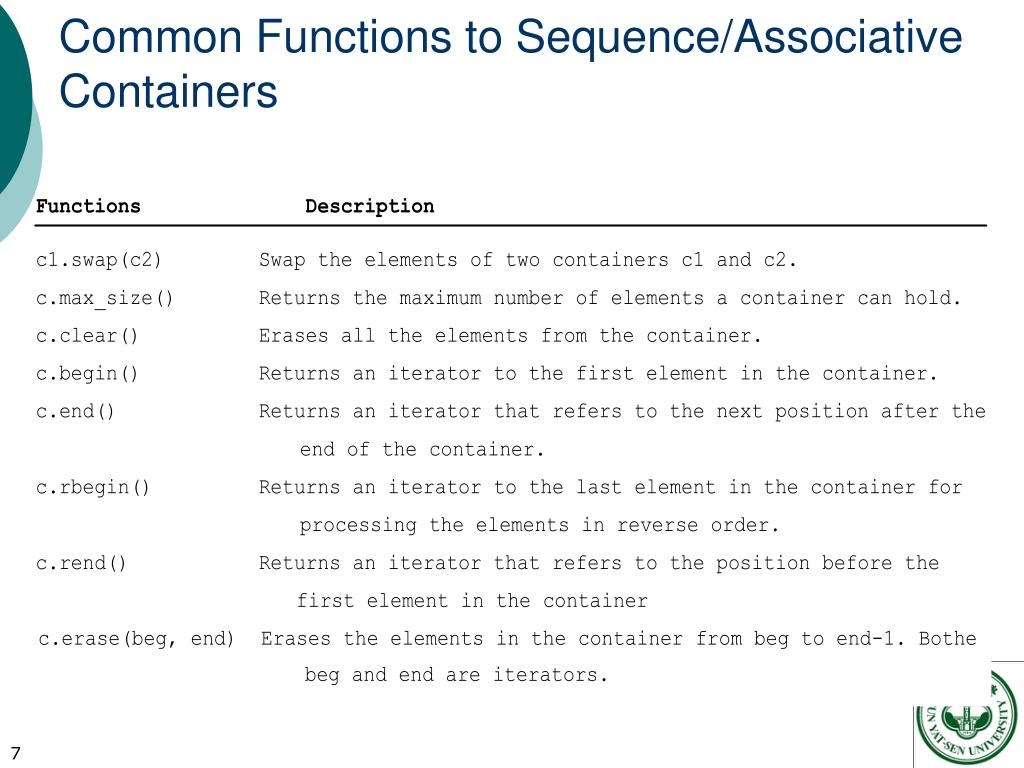

  7. Common Functions to Sequence/Associative Containers

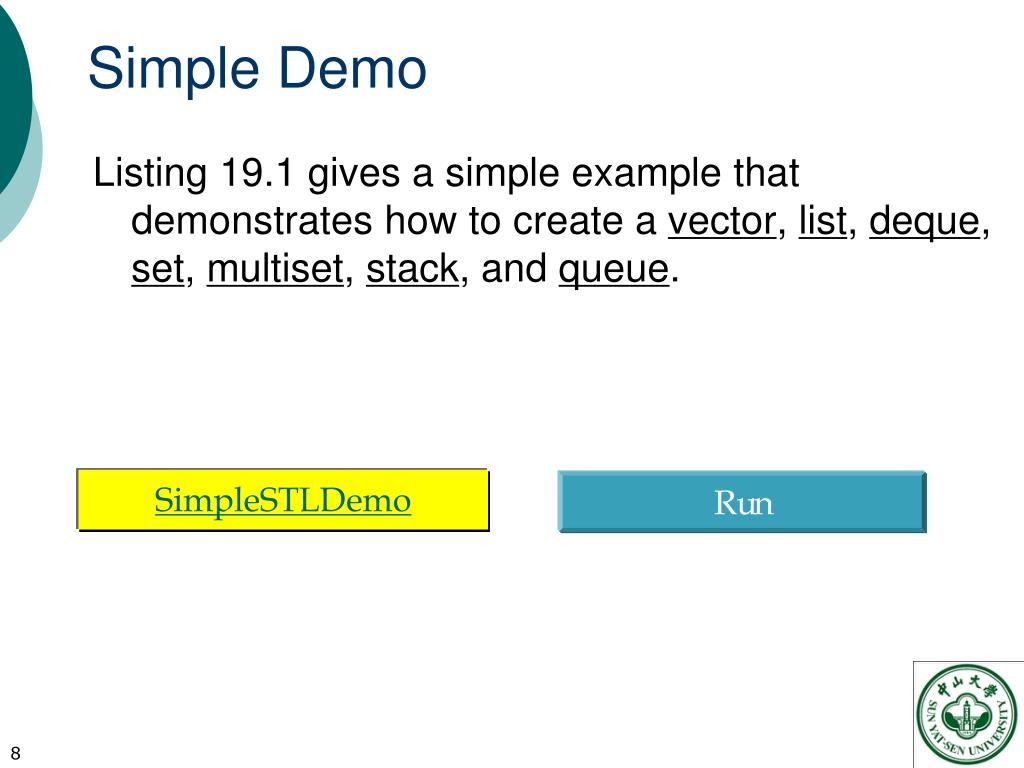

  8. Simple Demo Listing 19.1 gives a simple example that demonstrates how to create a vector, list, deque, set, multiset, stack, and queue. SimpleSTLDemo

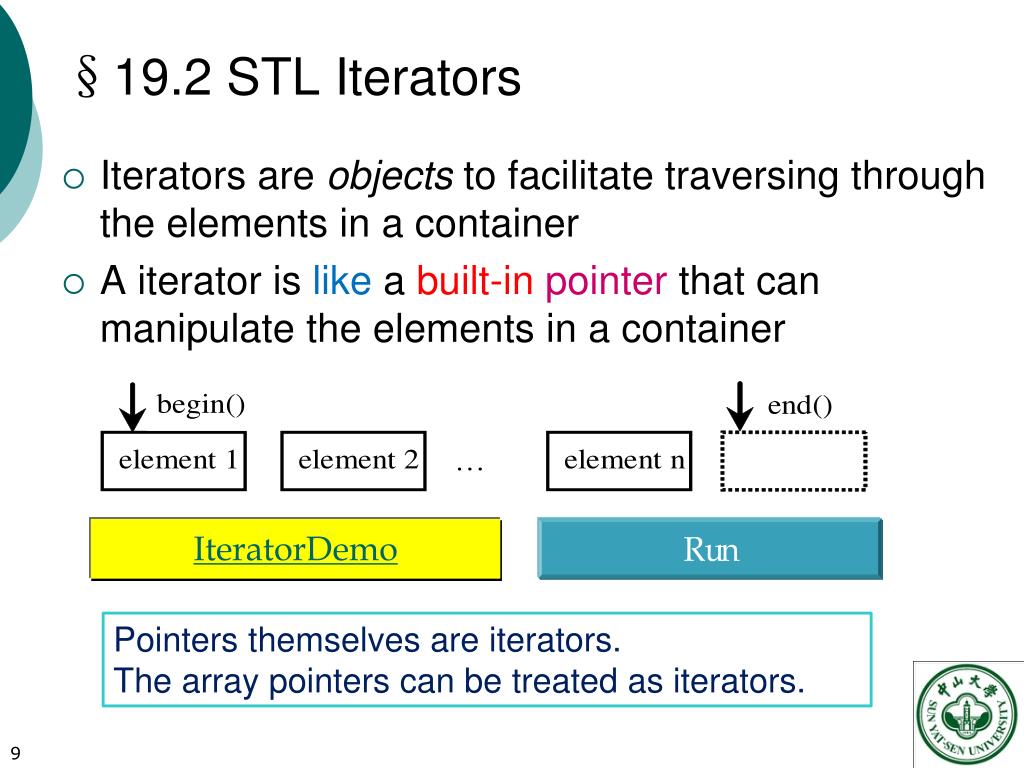

  9. §19.2 STL Iterators • Iterators are objects to facilitate traversing through the elements in a container • A iterator is like a built-inpointer that can manipulate the elements in a container IteratorDemo Pointers themselves are iterators. The array pointers can be treated as iterators.

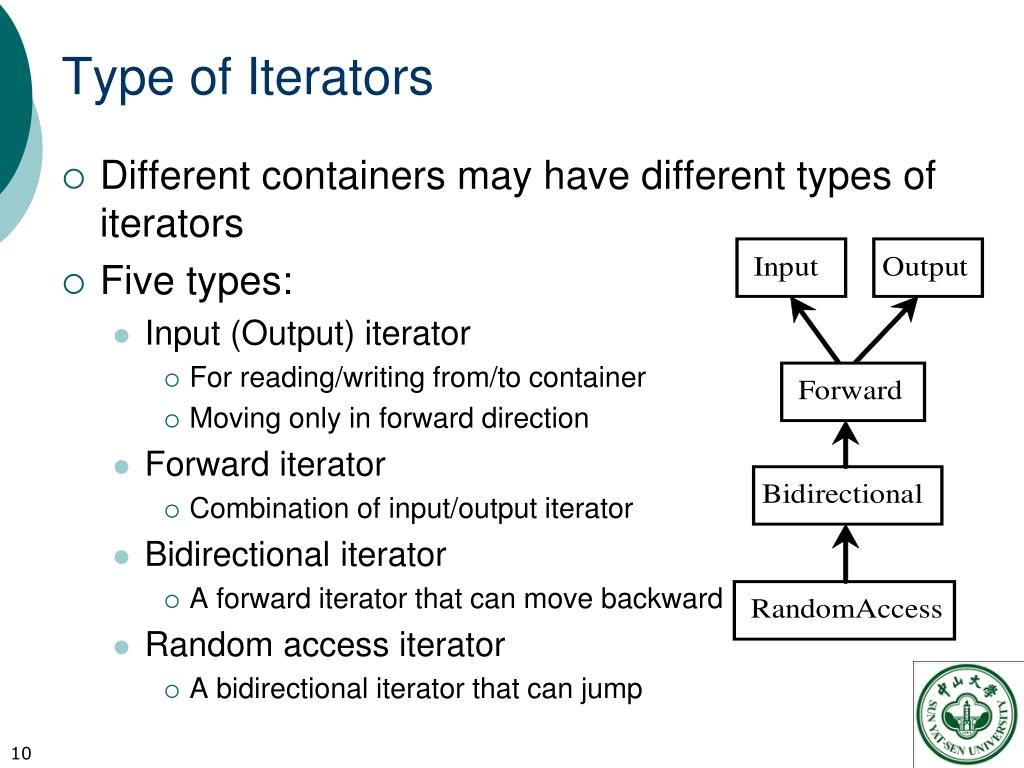

  10. Type of Iterators • Different containers may have different types of iterators • Five types: • Input (Output) iterator • For reading/writing from/to container • Moving only in forward direction • Forward iterator • Combination of input/output iterator • Bidirectional iterator • A forward iterator that can move backward • Random access iterator • A bidirectional iterator that can jump

  11. Iterator Types Supported by Containers

  12. Predefined Iterators • Iterators have been defined in every containers • Using “typedef” • The typedefs of iterators • iterator • const_iterator • reverse_iterator • const_reverse_iterator typedefint integer; integer value = 40; ConstIteratorDemo ReverseIteratorDemo

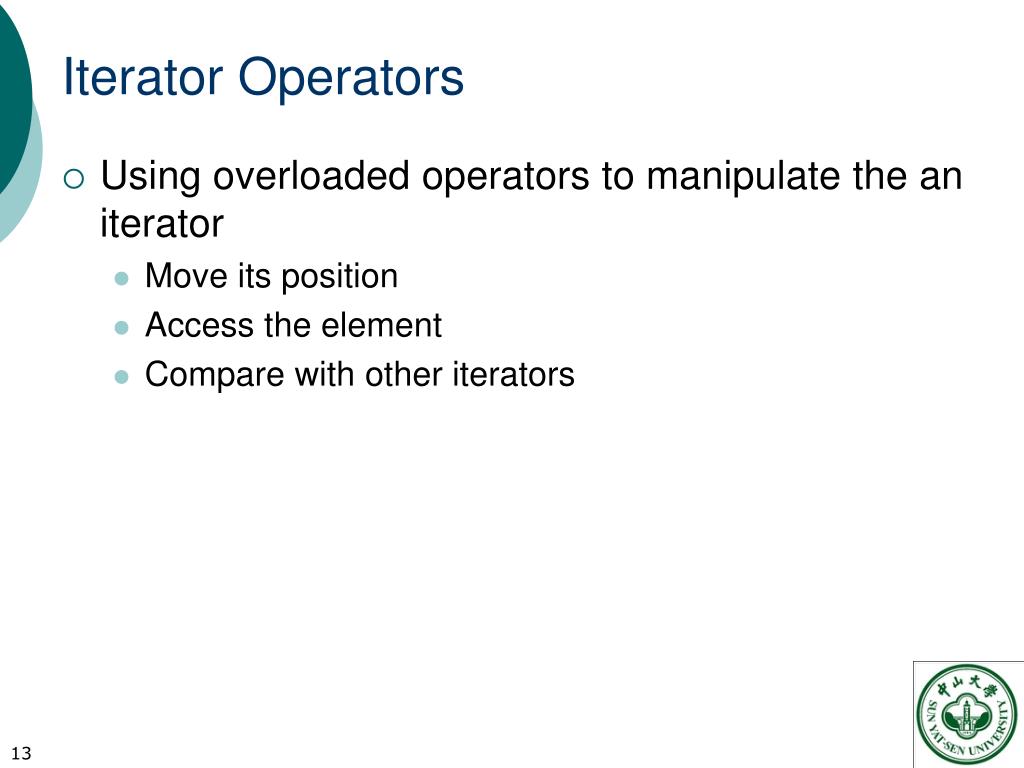

  13. Iterator Operators • Using overloaded operators to manipulate the an iterator • Move its position • Access the element • Compare with other iterators

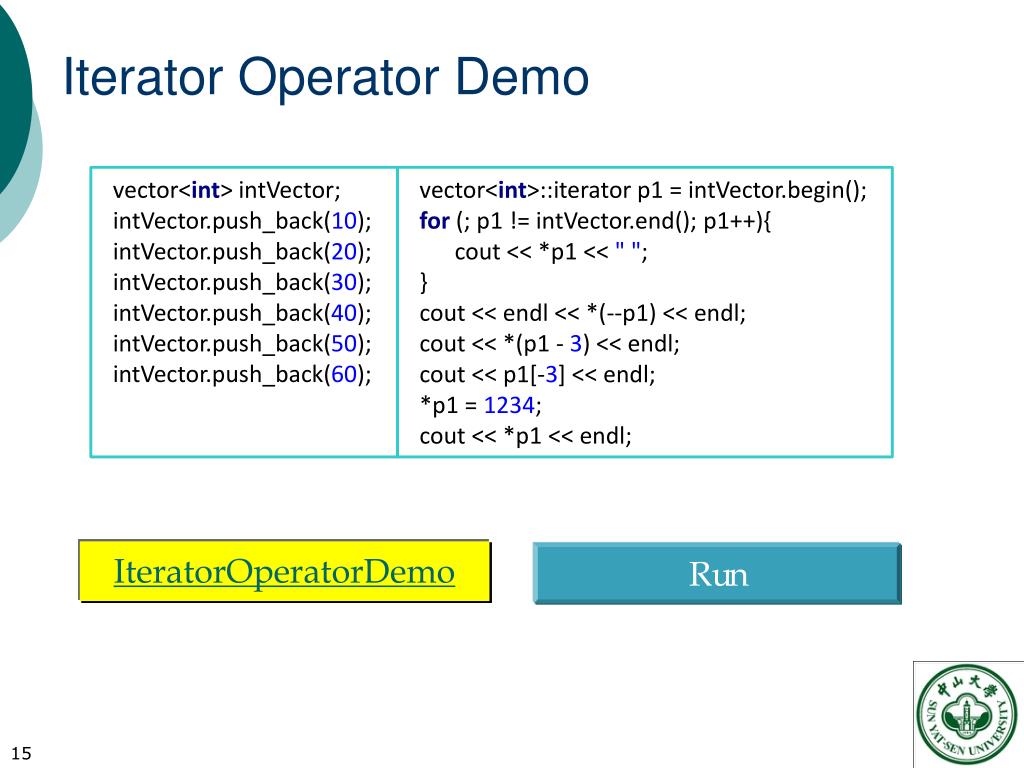

  14. Iterator Operator Demo vector<int> intVector; intVector.push_back(10); intVector.push_back(20); intVector.push_back(30); intVector.push_back(40); intVector.push_back(50); intVector.push_back(60); vector<int>::iterator p1 = intVector.begin(); for (; p1 != intVector.end(); p1++){ cout << *p1 << " "; } cout << endl << *(--p1) << endl; cout << *(p1 - 3) << endl; cout << p1[-3] << endl; *p1 = 1234; cout << *p1 << endl; IteratorOperatorDemo

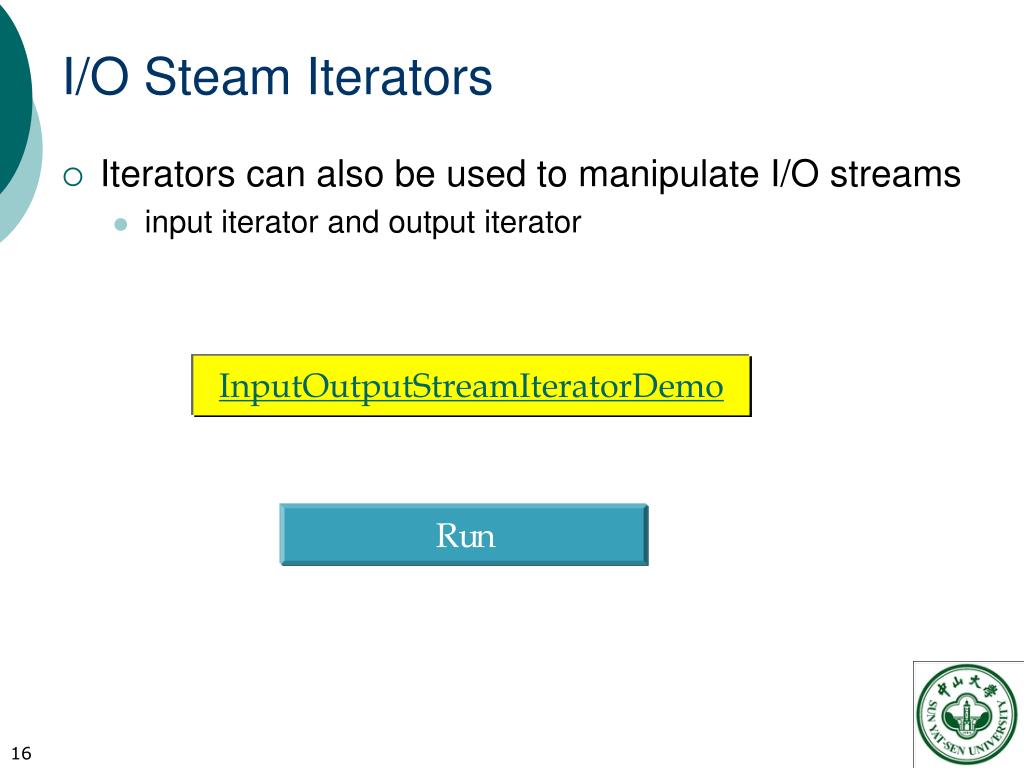

  15. I/O Steam Iterators • Iterators can also be used to manipulate I/O streams • input iterator and output iterator InputOutputStreamIteratorDemo

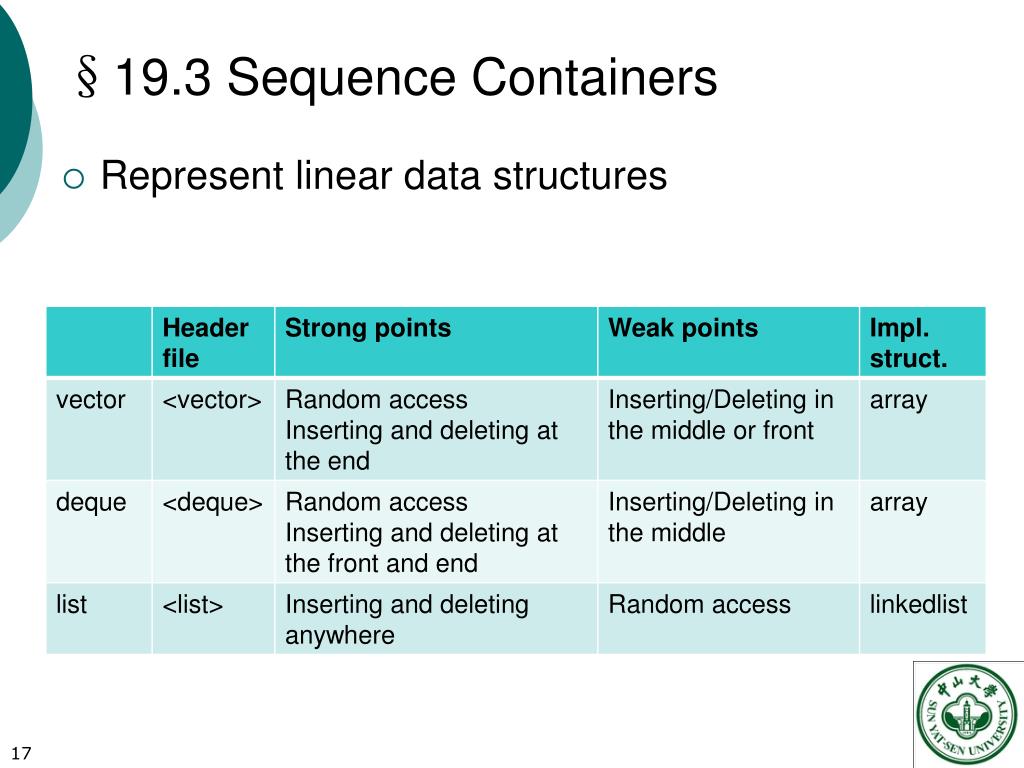

  16. §19.3 Sequence Containers • Represent linear data structures

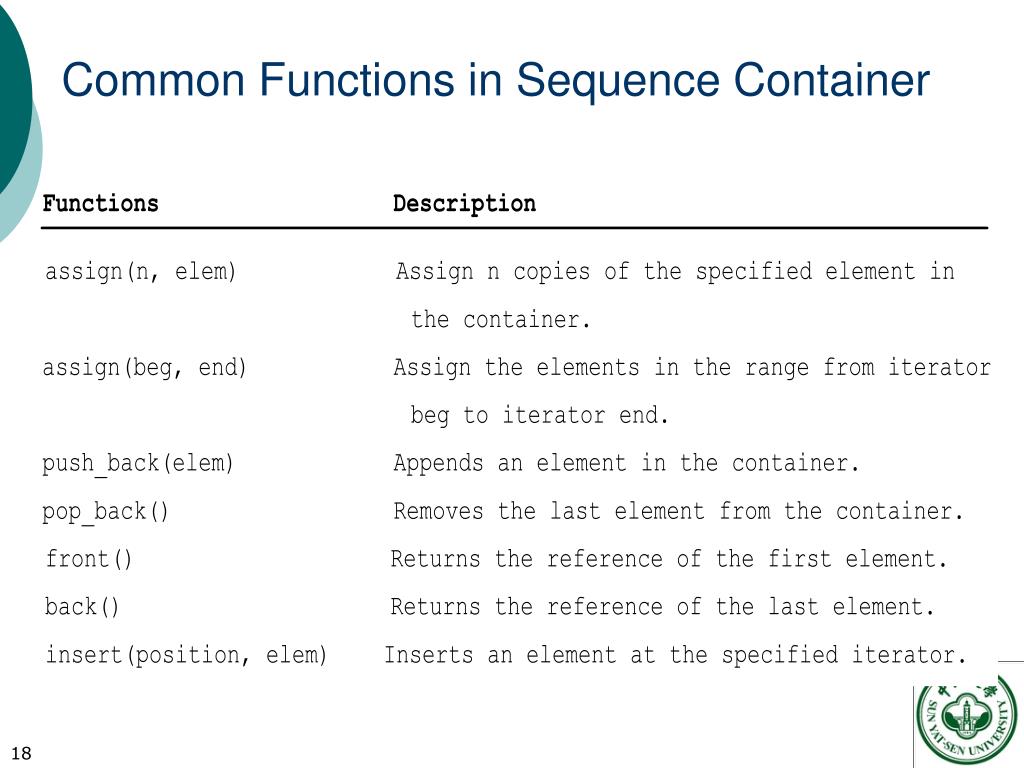

  17. Common Functions in Sequence Container

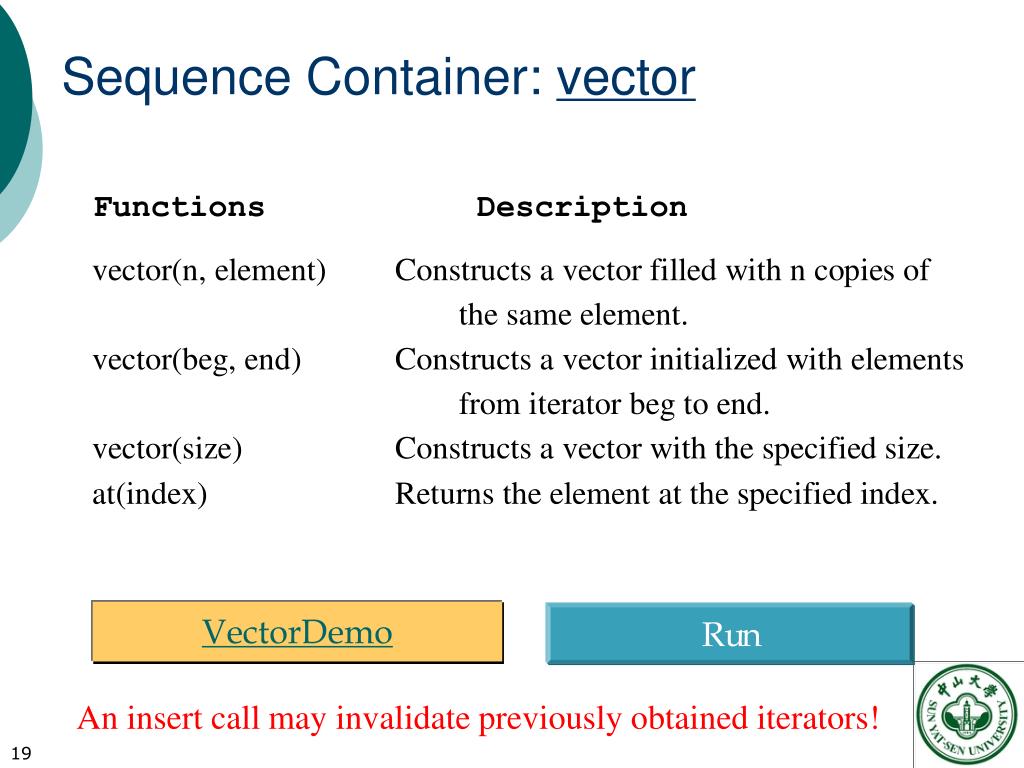

  18. Sequence Container: vector VectorDemo An insert call may invalidate previously obtained iterators!

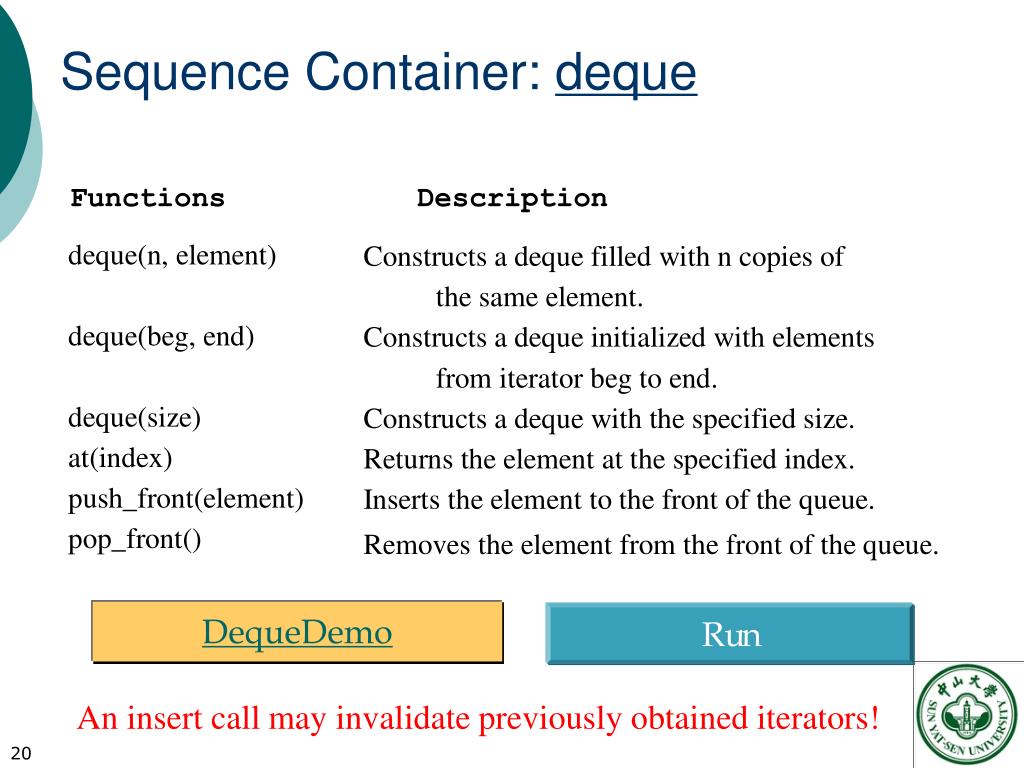

  19. Sequence Container: deque DequeDemo An insert call may invalidate previously obtained iterators!

  20. Sequence Container: list An insert call won’t change the previously obtained iterators! ListDemo

  21. §19.4 Associative Containers • Represent non-linear data structures • Elements in an associative container are sorted according to some sorting criterion (“<” by default) • For fast storage and quick retrieval using keys

  22. Common Functions in Associative Containers

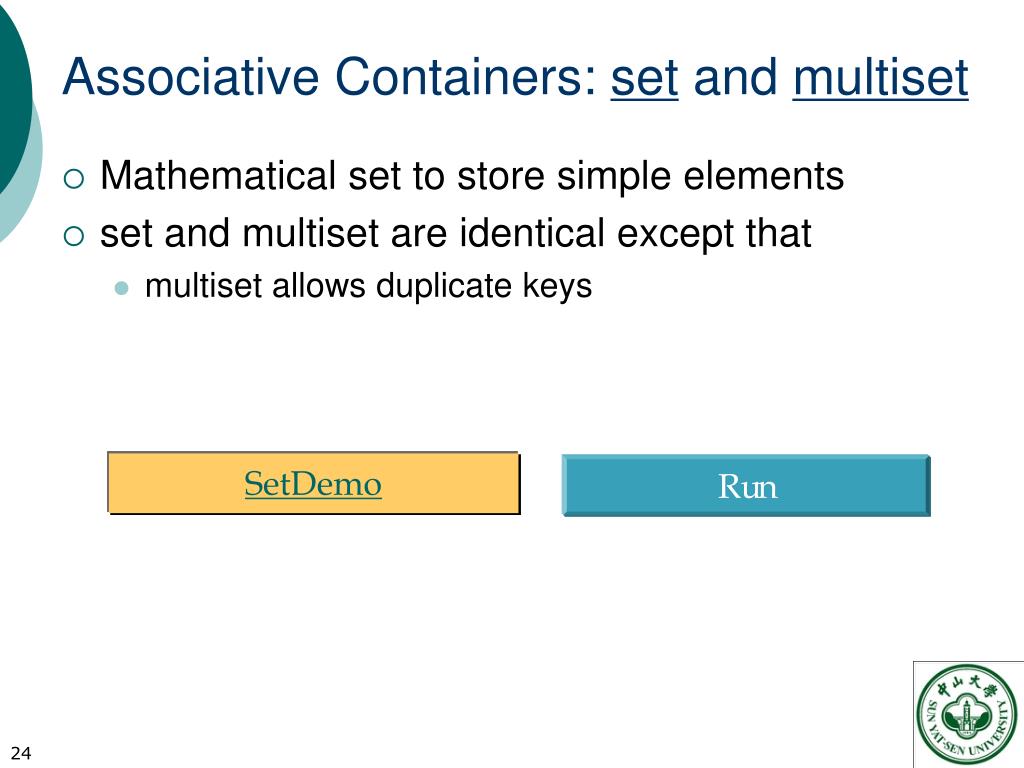

  23. Associative Containers: set and multiset • Mathematical set to store simple elements • set and multiset are identical except that • multiset allows duplicate keys SetDemo

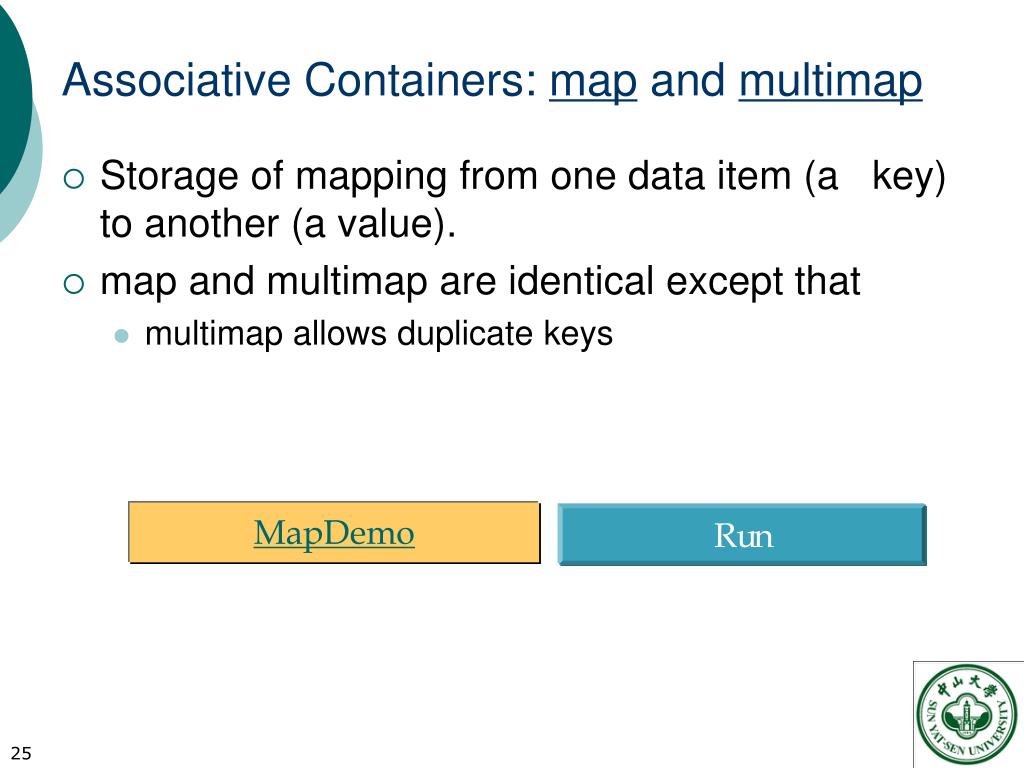

  24. Associative Containers: map and multimap • Storage of mapping from one data item (a key) to another (a value). • map and multimap are identical except that • multimap allows duplicate keys MapDemo

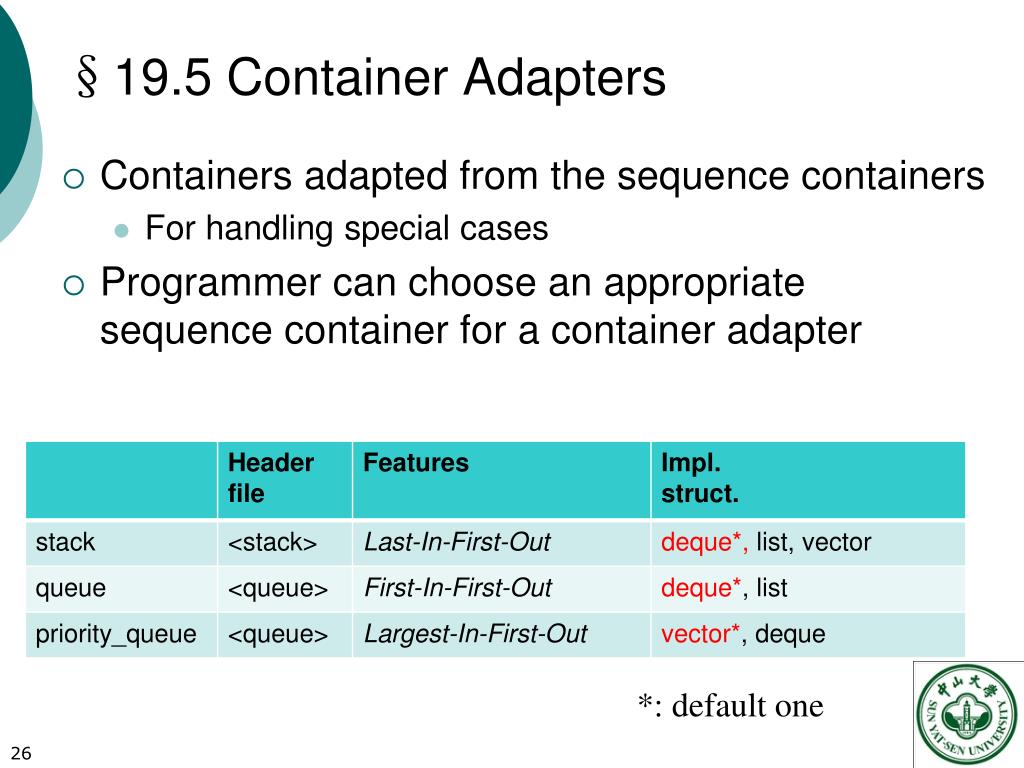

  25. §19.5 Container Adapters • Containers adapted from the sequence containers • For handling special cases • Programmer can choose an appropriate sequence container for a container adapter *: default one

  26. Container Adapter: stack StackDemo

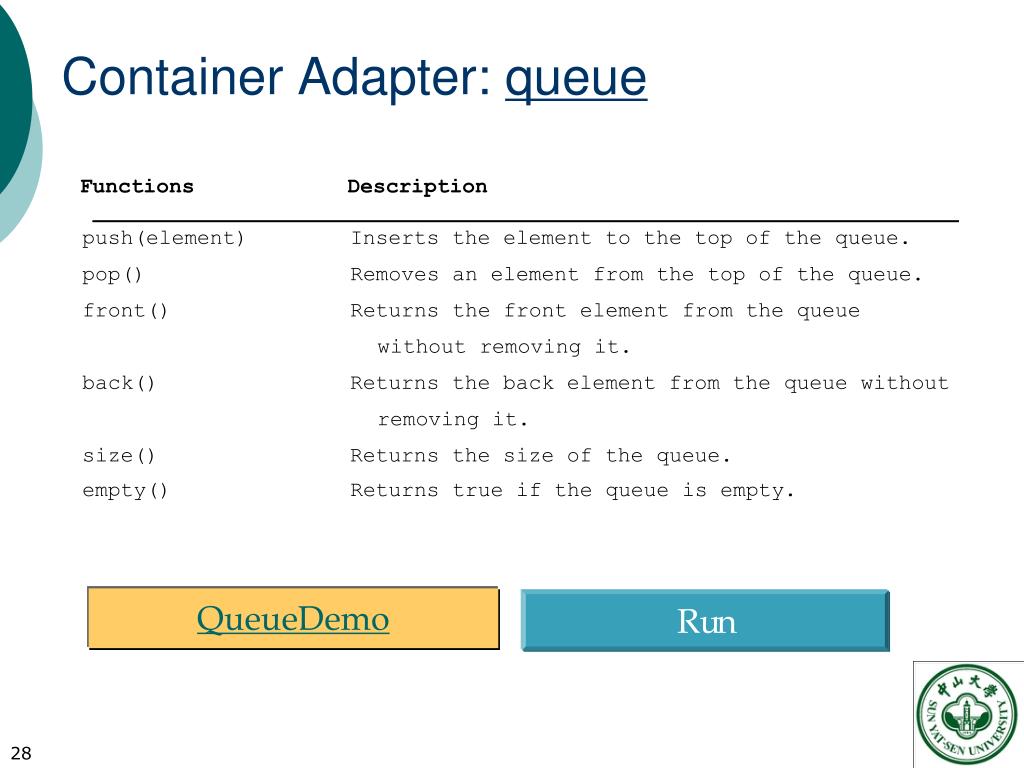

  27. Container Adapter: queue QueueDemo

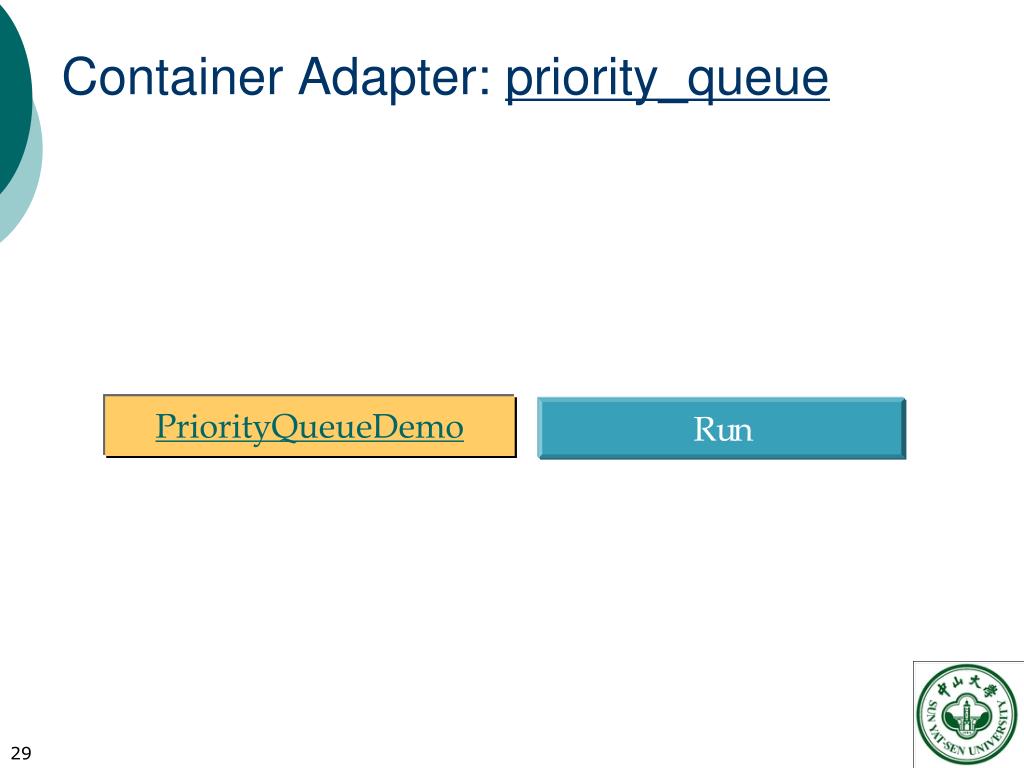

  28. Container Adapter: priority_queue PriorityQueueDemo

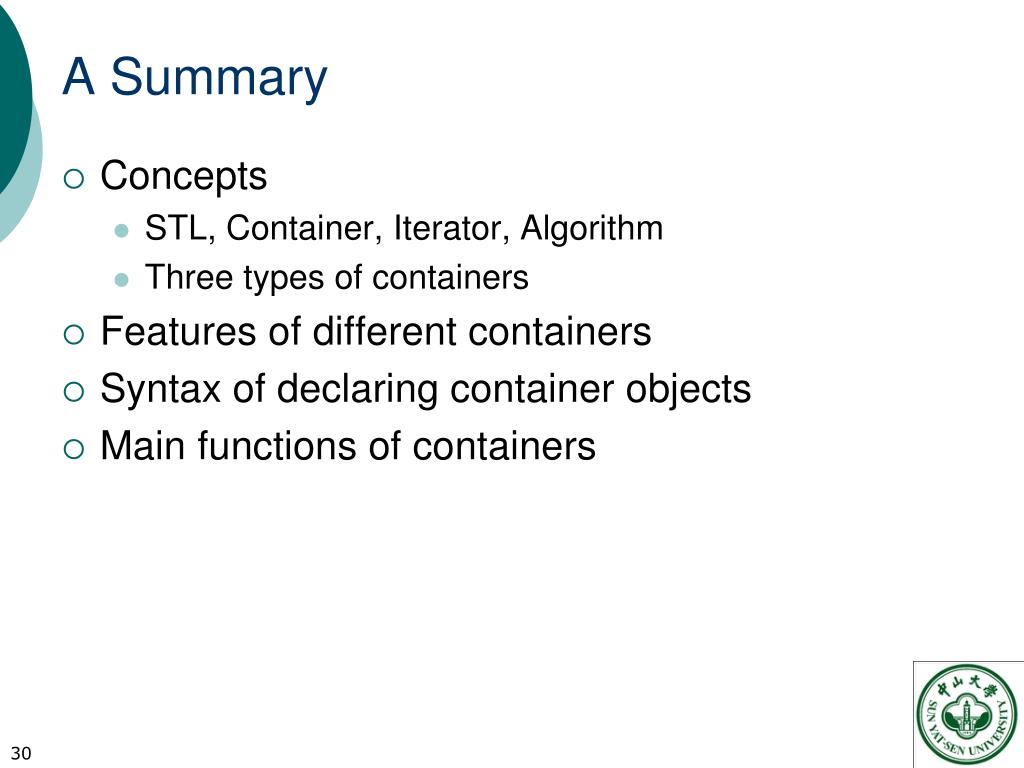

  29. A Summary • Concepts • STL, Container, Iterator, Algorithm • Three types of containers • Features of different containers • Syntax of declaring container objects • Main functions of containers
