  1. Chapter 39 Stair Construction Layout

  2. Introduction • Stairs can provide an elegant focal point • Step-by-step instructions will be given for drawing: • Straight run stair layouts • Open stair layouts • U-shaped stair layouts

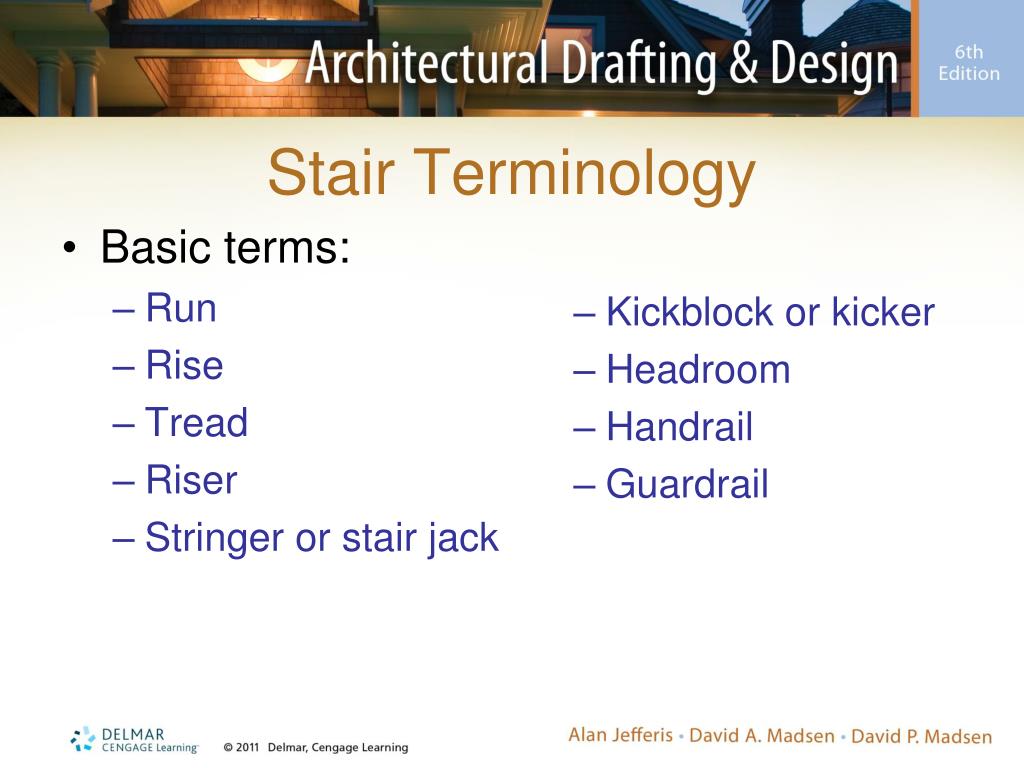

  3. Stair Terminology • Basic terms: • Run • Rise • Tread • Riser • Stringer or stair jack • Kickblock or kicker • Headroom • Handrail • Guardrail

  4. Determining Rise and Run • Building codes dictate maximum rise • Total height from floor to floor must be known • Total rise is found by adding floor-to-ceiling height, floor joist depth, and floor covering depth • Total rise is divided by maximum allowable rise to determine the number of steps

  5. Straight Stair Layout • Includes: • Drawing the stairs with finished-quality lines • Dimensioning and notes

  6. Open Stairway Layout • Major difference • No risers between treads

  7. U-Shaped Stairs • Often used in residential design • Introduces a landing • Usually at midpoint of run • Can be offset • Open or enclosed

  8. L-Shaped Stairs • Major differences from U-shaped stairs: • Landing can be placed at any point of stair run • A portion of stair will be shown in elevation, and a portion will be shown in section • Cutting plane placement determines views

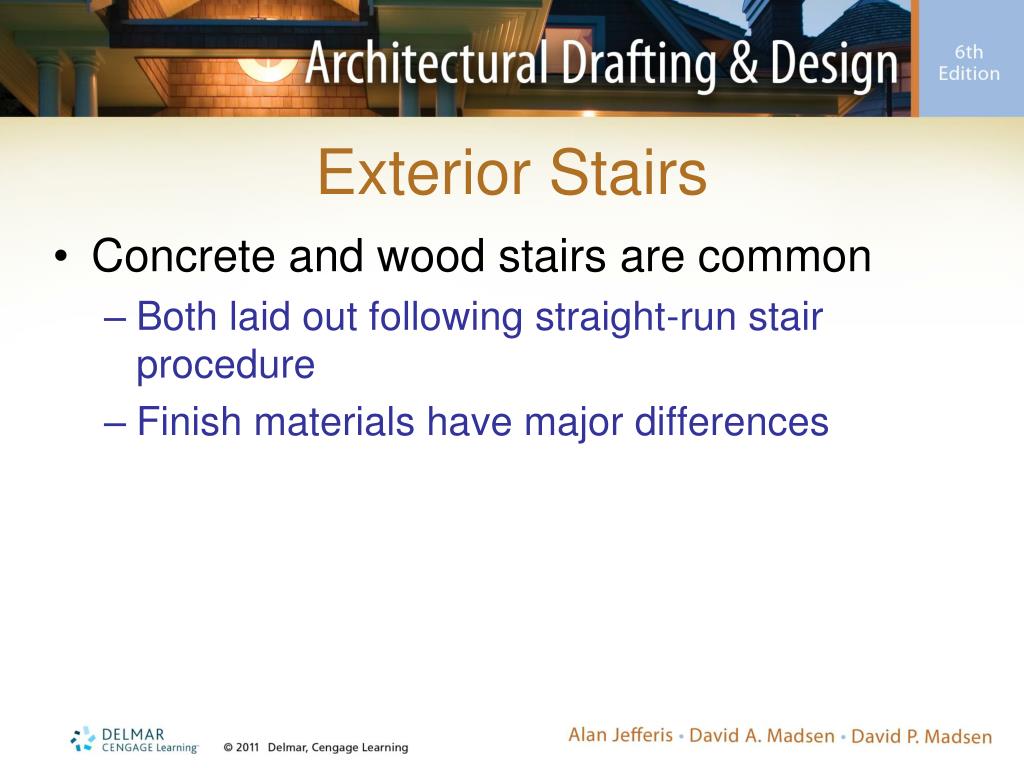

  9. Exterior Stairs • Concrete and wood stairs are common • Both laid out following straight-run stair procedure • Finish materials have major differences

  10. Section–Stair Checklist • Refer to the text for a complete stair checklist, including: • Plot • Drawing • Annotation • Dimensions
