  1. Constructing Component-Based Extension Interfaces in Legacy Systems Code Gilles Muller École des Mines de Nantes Julia Lawall DIKU, University of Copenhagen Jean-Marc Menaud, Mario Sudholt École des Mines de Nantes

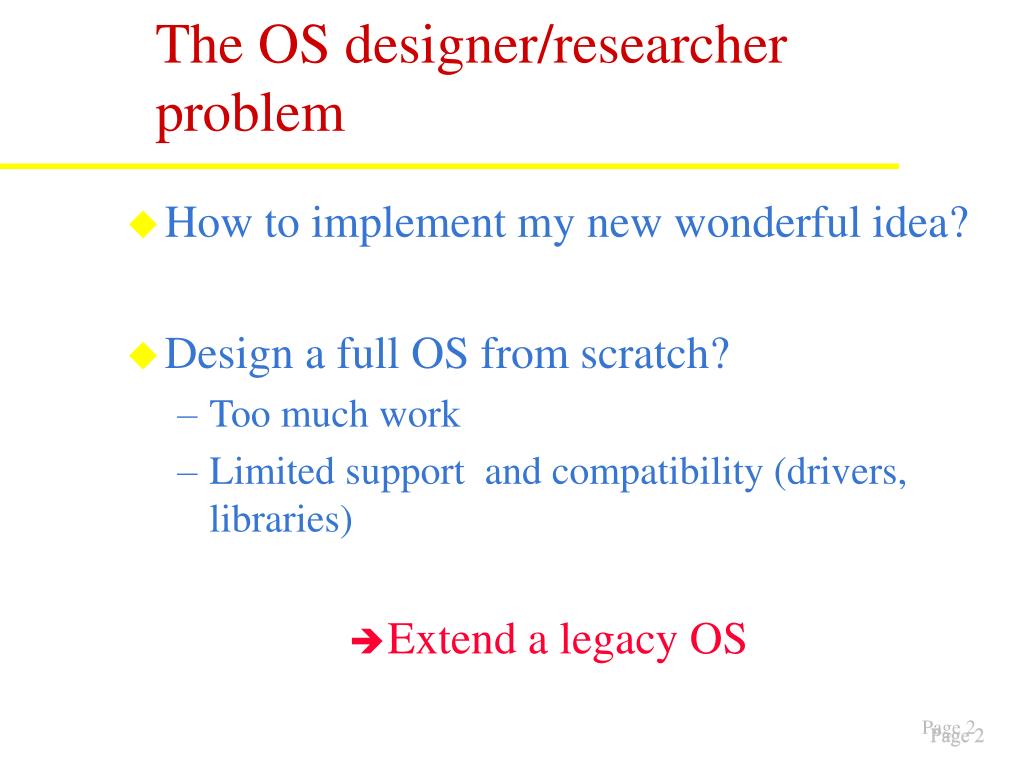

  2. The OS designer/researcher problem • How to implement my new wonderful idea? • Design a full OS from scratch? • Too much work • Limited support and compatibility (drivers, libraries) • Extend a legacy OS

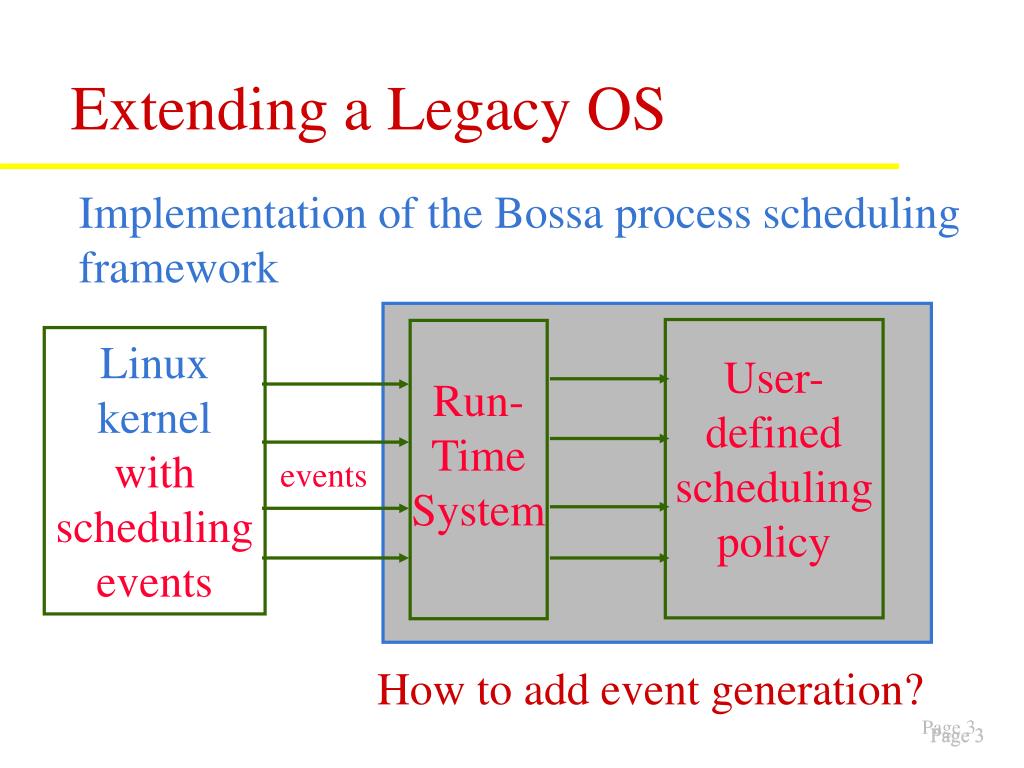

  3. Extending a Legacy OS Implementation of the Bossa process scheduling framework Run-Time System Linux kernel with scheduling events User- defined scheduling policy events How to add event generation?

  4. Problems in extending a legacy OS with new functions • How to plug new functions in the existing code • Interfaces may not exist • How to be sure that the extension is correctly done • One modification may have to be done in many places • The legacy OS may evolve • What about extending multiples OSes? • How to be sure that the whole system is consistent • Many extensions may cohabit

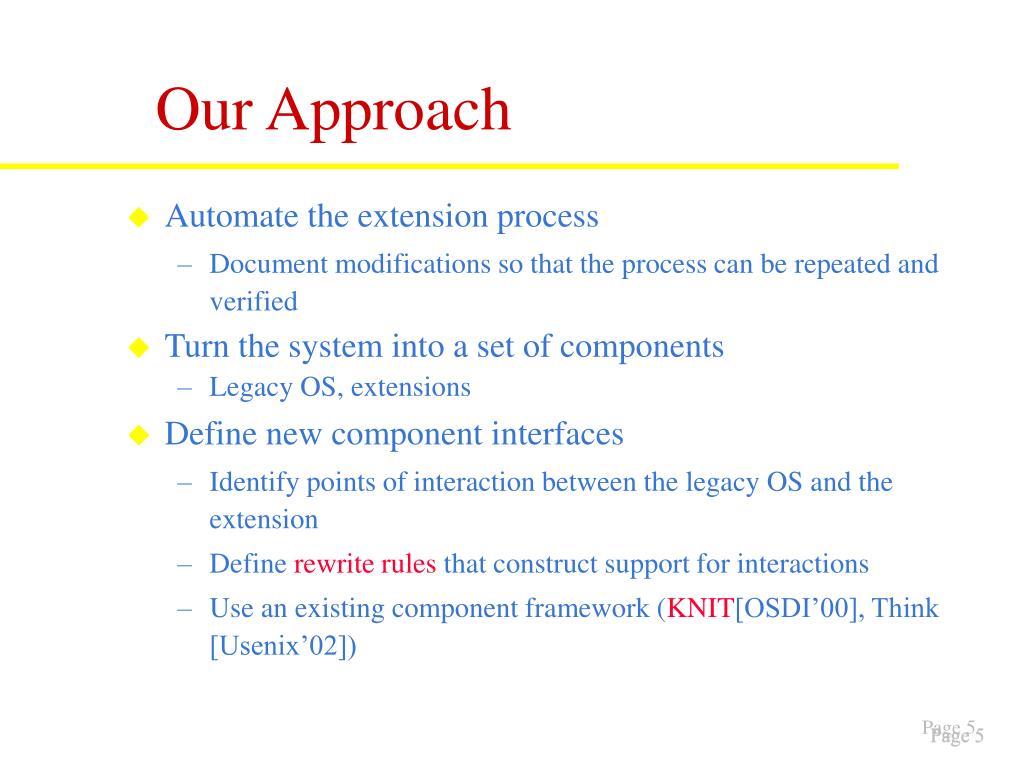

  5. Our Approach • Automate the extension process • Document modifications so that the process can be repeated and verified • Turn the system into a set of components • Legacy OS, extensions • Define new component interfaces • Identify points of interaction between the legacy OS and the extension • Define rewrite rules that construct support for interactions • Use an existing component framework (KNIT[OSDI’00], Think [Usenix’02])

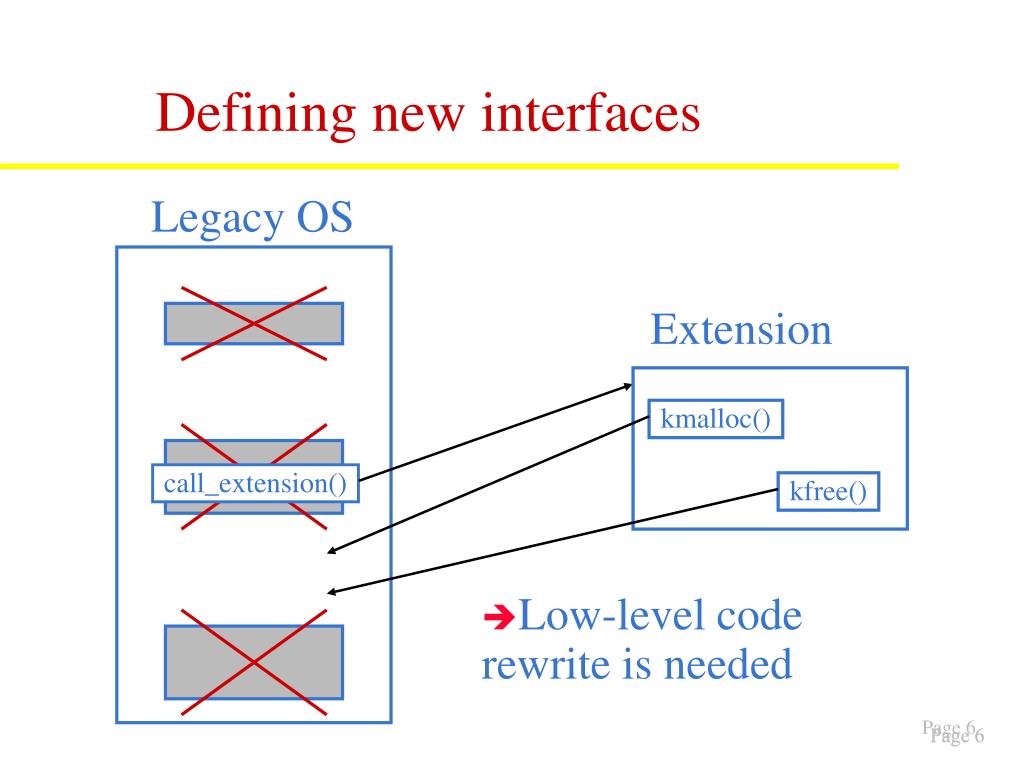

  6. Extension kmalloc() call_extension() kfree() Defining new interfaces Legacy OS • Low-level code rewrite is needed

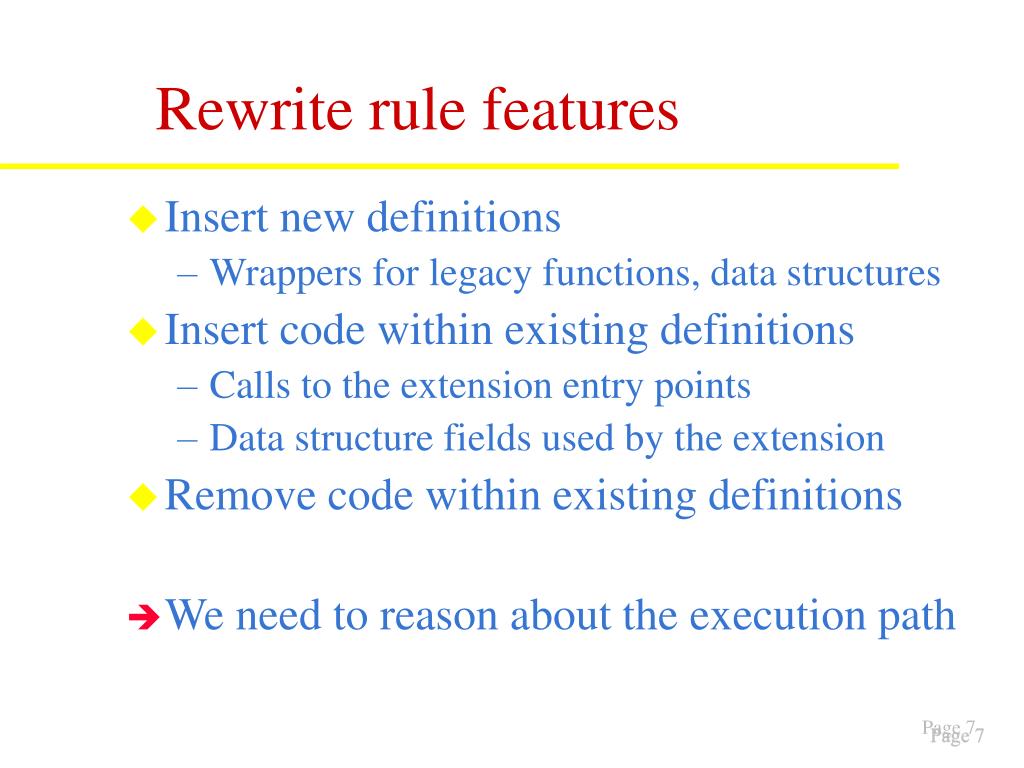

  7. Rewrite rule features • Insert new definitions • Wrappers for legacy functions, data structures • Insert code within existing definitions • Calls to the extension entry points • Data structure fields used by the extension • Remove code within existing definitions • We need to reason about the execution path

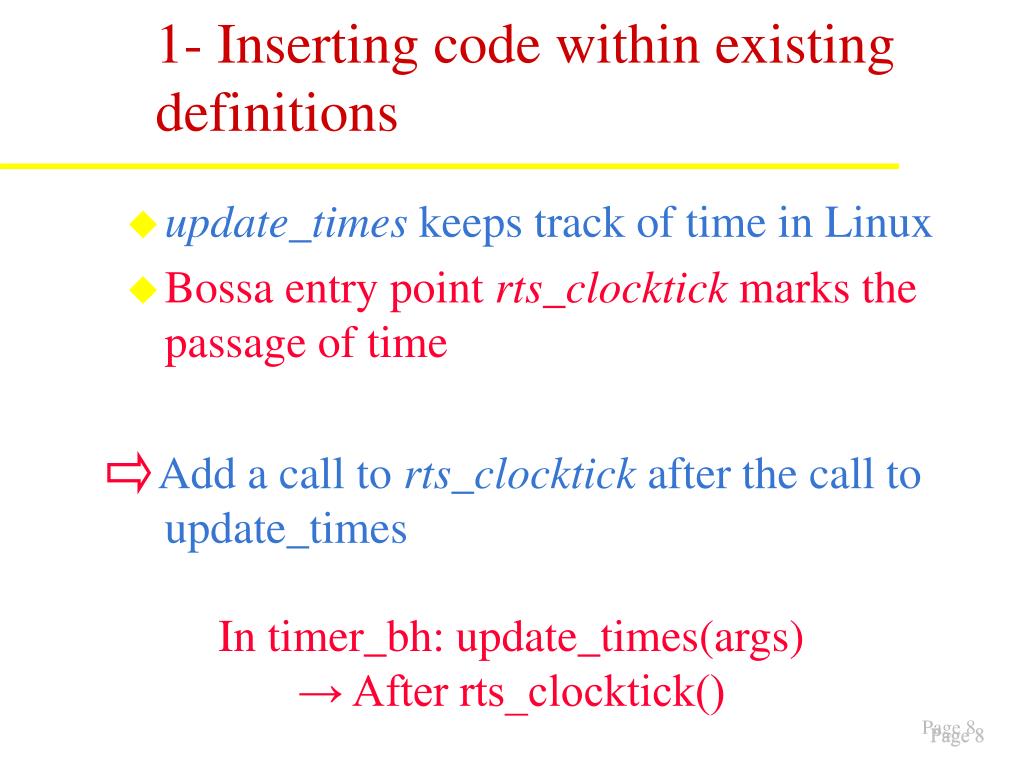

  8. 1- Inserting code within existing definitions • update_times keeps track of time in Linux • Bossa entry point rts_clocktick marks the passage of time Add a call to rts_clocktick after the call to update_times In timer_bh: update_times(args) → After rts_clocktick()

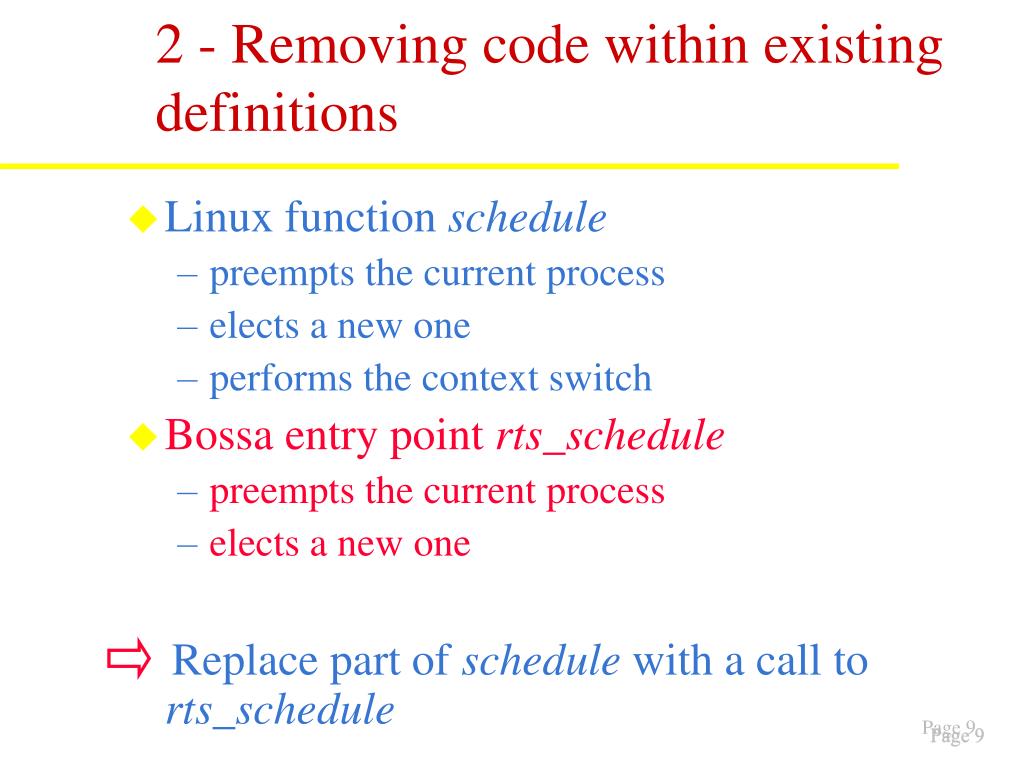

  9. 2 - Removing code within existing definitions • Linux function schedule • preempts the current process • elects a new one • performs the context switch • Bossa entry point rts_schedule • preempts the current process • elects a new one Replace part of schedule with a call to rts_schedule

  10. Specifying a region of code • rts_schedule replaces code that is both • after the taking of the runqueue lock • before the releasing of the runqueue lock • Temporal logic used to describe code regions • AF: On all forward paths, there exists … • AFΔ: On all backward paths, there exists … In schedule: ALL(AFΔ spin_lock_irq(&runqueue_lock) & AF spin_unlock_irq(&runqueue_lock)) → … rts_schedule(caller) …

  11. 3 - Error checking • Safety criteria: • A rule never applies • Multiple rules apply at a single code point • Error rules: • Illegal patterns, partial matches In schedule: (AFΔ spin_lock_irq(&runqueue_lock) & (¬AF spin_unlock_irq(&runqueue_lock) | ¬AFΔ spin_unlock_irq(&runqueue_lock))) → Error(“runqueue lock taken but not released: ambiguous rts_schedule”)

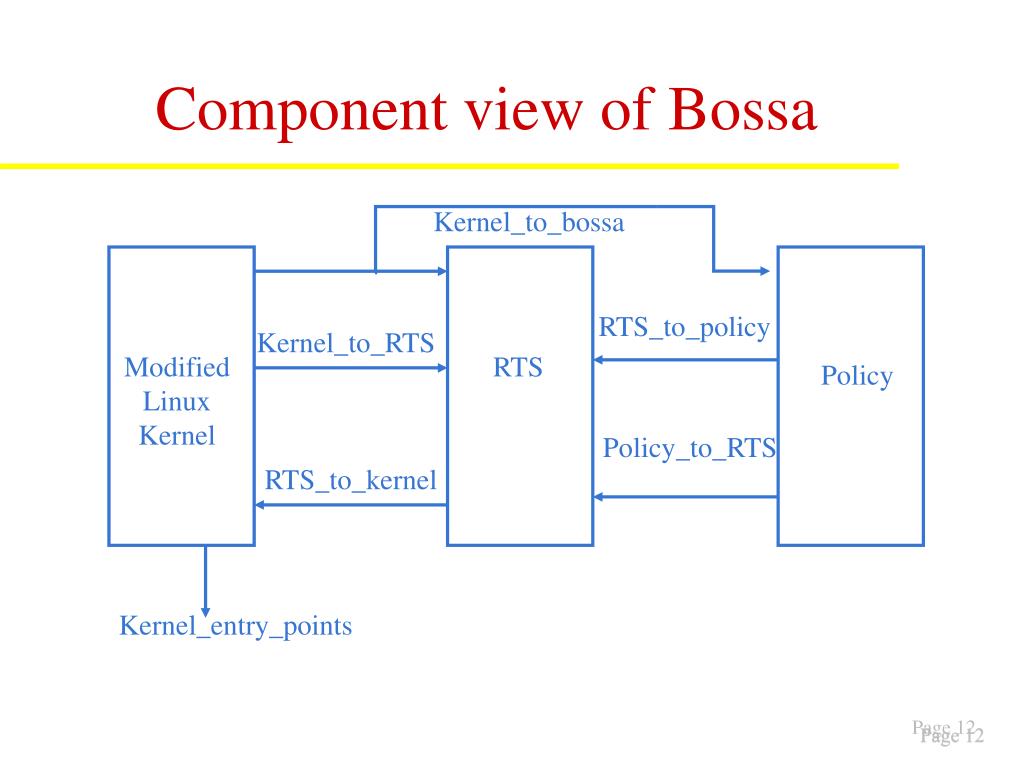

  12. Component view of Bossa Kernel_to_bossa RTS_to_policy Kernel_to_RTS Modified Linux Kernel RTS Policy Policy_to_RTS RTS_to_kernel Kernel_entry_points

  13. Component Generation • Knit elements: • Bundletypes: list related objects bundletype RTS_to_kernel = { rts_clocktick, rts_schedule, … } • Units: use bundletypes to describe module imports and exports unit Kernel = { imports [ rts_to_kernel : RTS_to_kernel ]; exports [ kernel_to_Bossa : Kernel_to_Bossa, … ]; … }

  14. Knit interfaces extended with rewrite rules • Bundletypes include rewrite rules to apply when the object is imported or exported bundletype RTS_to_kernel = { rts_clocktick { import: In timer_bh: update_times(args) → After rts_clocktick() } , … }

  15. Experiments • Bossa • 23 rewrites rules • 20 exported functions • 13 imported functions • Applied over the Linux 2.4 kernel (100MB) • SQUID • Add support for specific prefetching policies • 4 rewrites rules • 25 exported functions • 4 imported functions

  16. Future work • Improvement of error detection • Jaluna/Chorus re-engineering to support virtual machine monitor • Extend Linux/Bossa with energy support • Target the Fractal/Think component framework • Turn Linux into components • Release our prototype

  17. Conclusion A replacement for “patch” • AOP inspired approach to OS evolution • Approach specifically targeted to system needs • Side result of Bossa • Promising initial experiments • Step towards the integration of components and AOP
