Hashing in Networked Systems

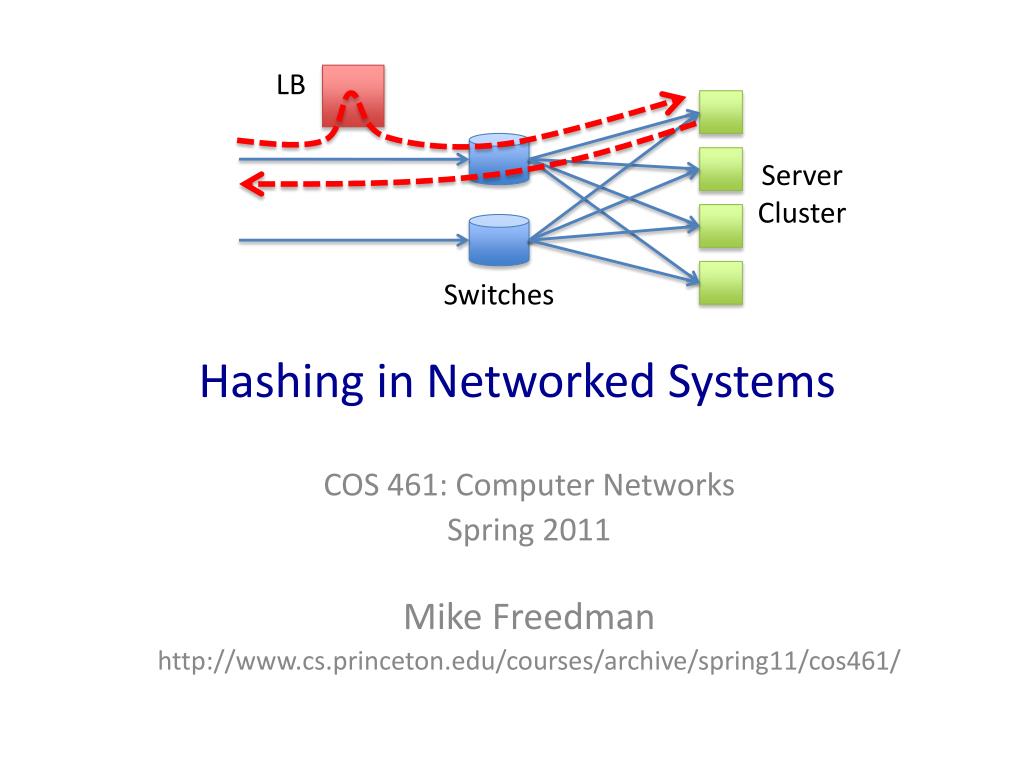

1. LB Server Cluster Hashing in Networked Systems Switches COS 461: Computer Networks Spring 2011 Mike Freedman http://www.cs.princeton.edu/courses/archive/spring11/cos461/

2. Hashing • Hash function • Function that maps a large, possibly variable-sized datum into a small datum, often a single integer that serves to index an associative array • In short: maps n-bit datum into k buckets (k << 2n) • Provides time- & space-saving data structure for lookup • Main goals: • Low cost • Deterministic • Uniformity (load balanced)

3. Today’s outline • Uses of hashing • Equal-cost multipath routing in switches • Network load balancing in server clusters • Per-flow statistics in switches (QoS, IDS) • Caching in cooperative CDNs and P2P file sharing • Data partitioning in distributed storage services • Various hashing strategies • Modulo hashing • Consistent hashing • Bloom Filters

4. Uses of Hashing

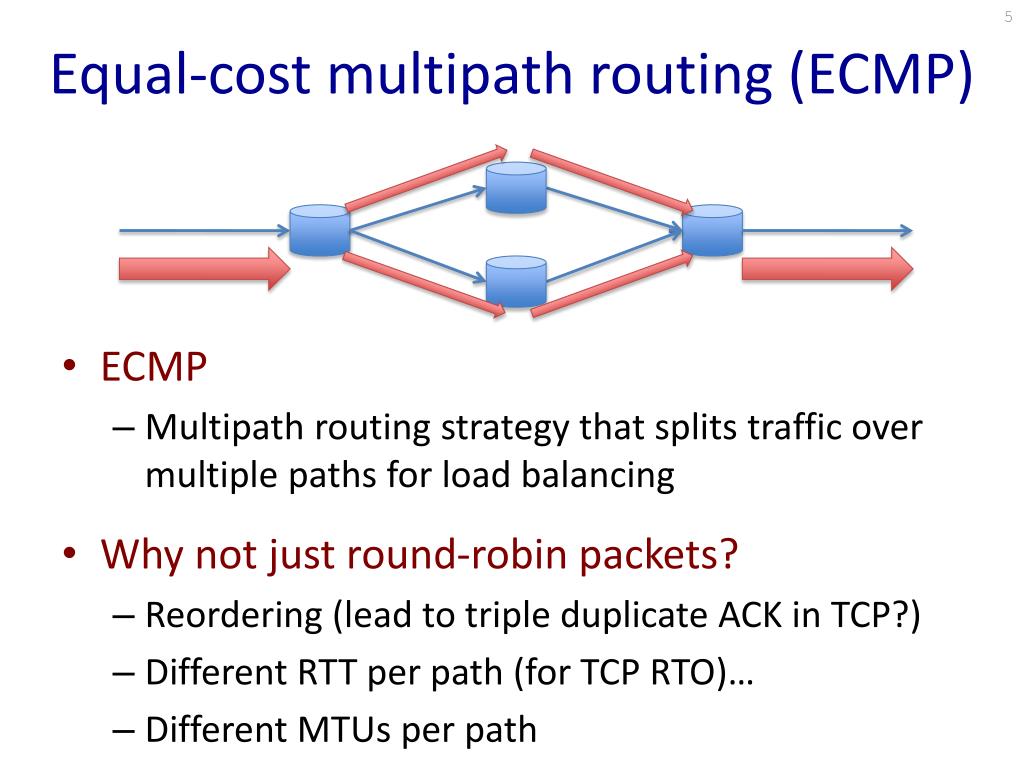

5. Equal-cost multipath routing (ECMP) • ECMP • Multipath routing strategy that splits traffic over multiple paths for load balancing • Why not just round-robin packets? • Reordering (lead to triple duplicate ACK in TCP?) • Different RTT per path (for TCP RTO)… • Different MTUs per path

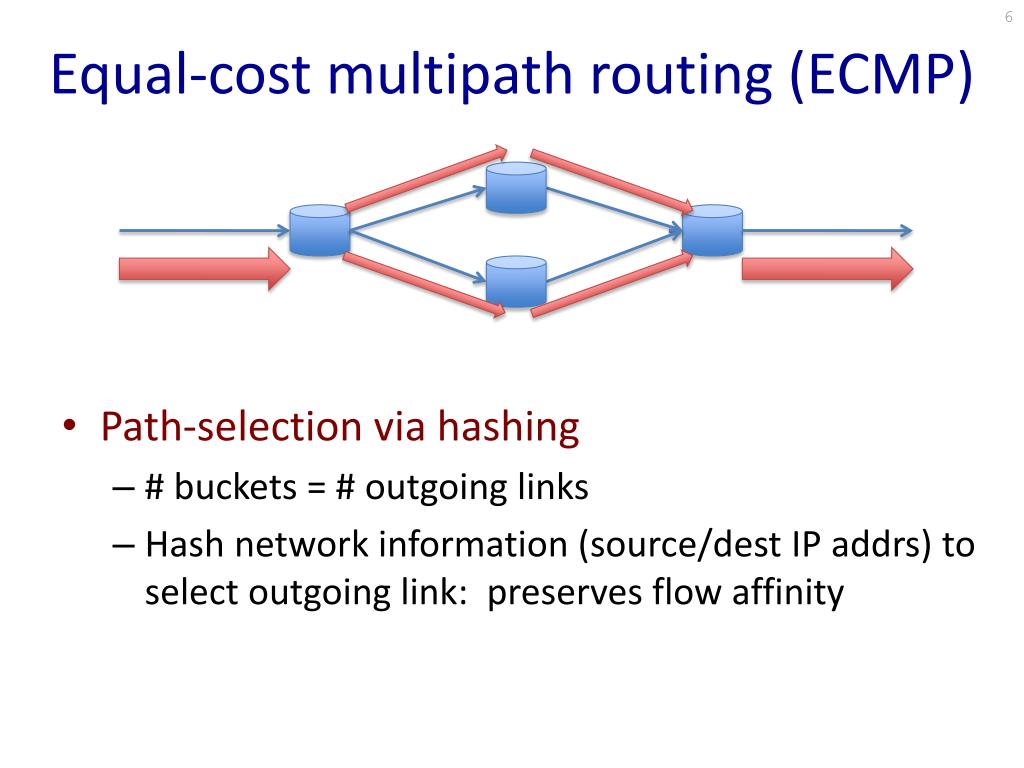

6. Equal-cost multipath routing (ECMP) • Path-selection via hashing • # buckets = # outgoing links • Hash network information (source/dest IP addrs) to select outgoing link: preserves flow affinity

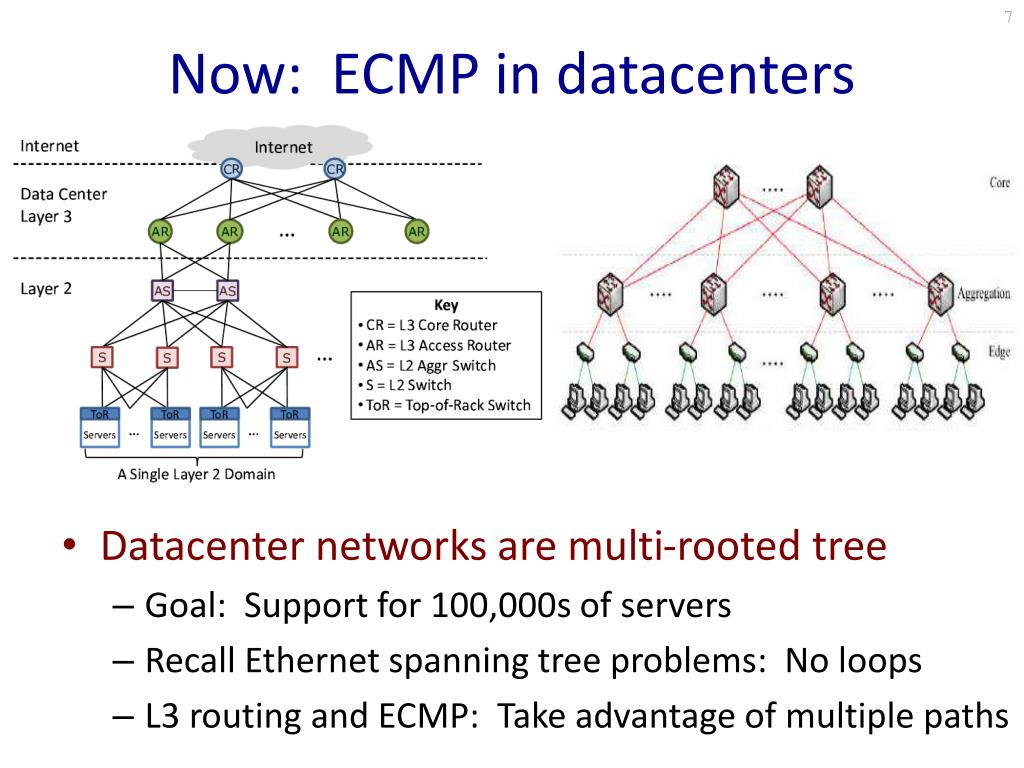

7. Now: ECMP in datacenters • Datacenter networks are multi-rooted tree • Goal: Support for 100,000s of servers • Recall Ethernet spanning tree problems: No loops • L3 routing and ECMP: Take advantage of multiple paths

8. Network load balancing • Goal: Split requests evenly over k servers • Map new flows to any server • Packets of existing flows continue to use same server • 3 approaches • Load balancer terminates TCP, opens own connection to server • Virtual IP / Dedicated IP (VIP/DIP) approaches • One global-facing virtual IP represents all servers in cluster • Hash client’s network information (source IP:port) • NAT approach: Replace virtual IP with server’s actual IP • Direct Server Return (DSR)

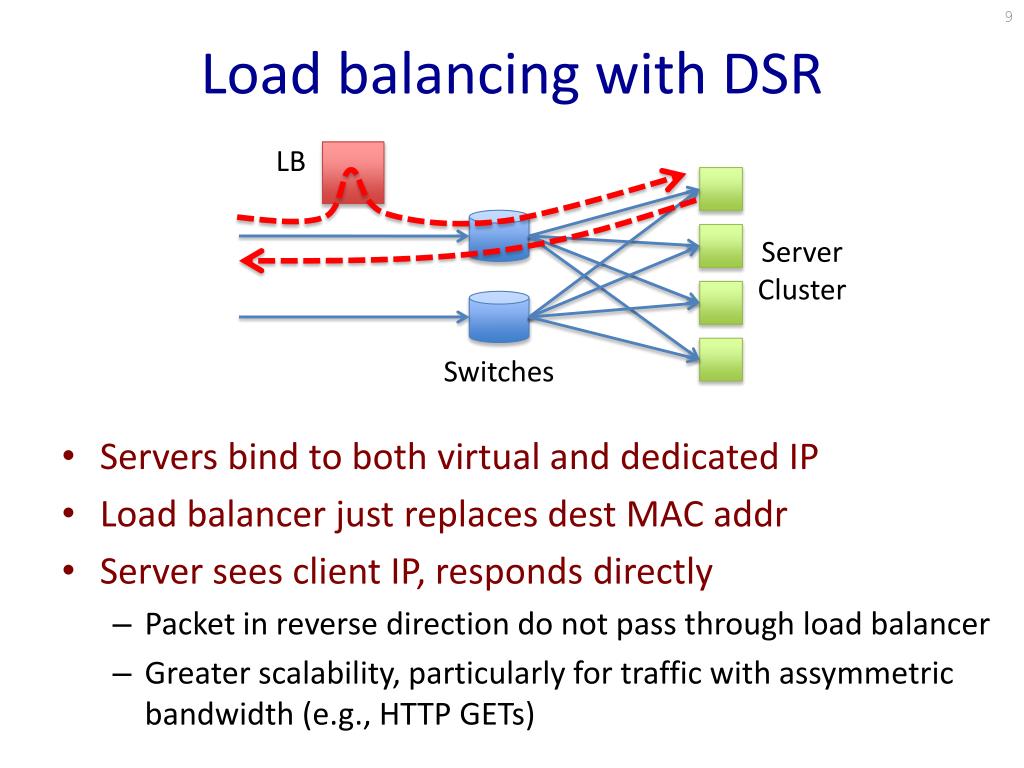

9. Load balancing with DSR LB Server Cluster Switches • Servers bind to both virtual and dedicated IP • Load balancer just replaces dest MAC addr • Server sees client IP, responds directly • Packet in reverse direction do not pass through load balancer • Greater scalability, particularly for traffic with assymmetric bandwidth (e.g., HTTP GETs)

10. Per-flow state in switches • Switches often need to maintain connection records or per-flow state • Quality-of-service for flows • Flow-based measurement and monitoring • Payload analysis in Intrusion Detection Systems (IDSs) • On packet receipt: • Hash flow information (packet 5-tuple) • Perform lookup if packet belongs to known flow • Otherwise, possibly create new flow entry • Probabilistic match (false positives) may be okay

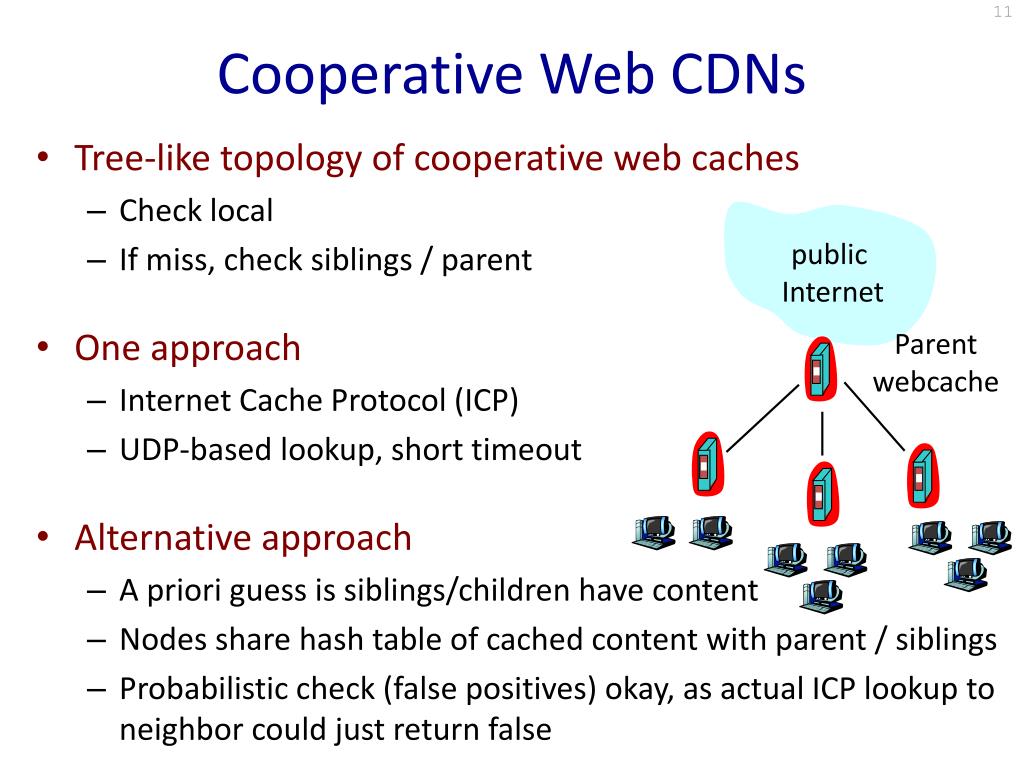

11. Cooperative Web CDNs public Internet Parent webcache • Tree-like topology of cooperative web caches • Check local • If miss, check siblings / parent • One approach • Internet Cache Protocol (ICP) • UDP-based lookup, short timeout • Alternative approach • A priori guess is siblings/children have content • Nodes share hash table of cached content with parent / siblings • Probabilistic check (false positives) okay, as actual ICP lookup to neighbor could just return false

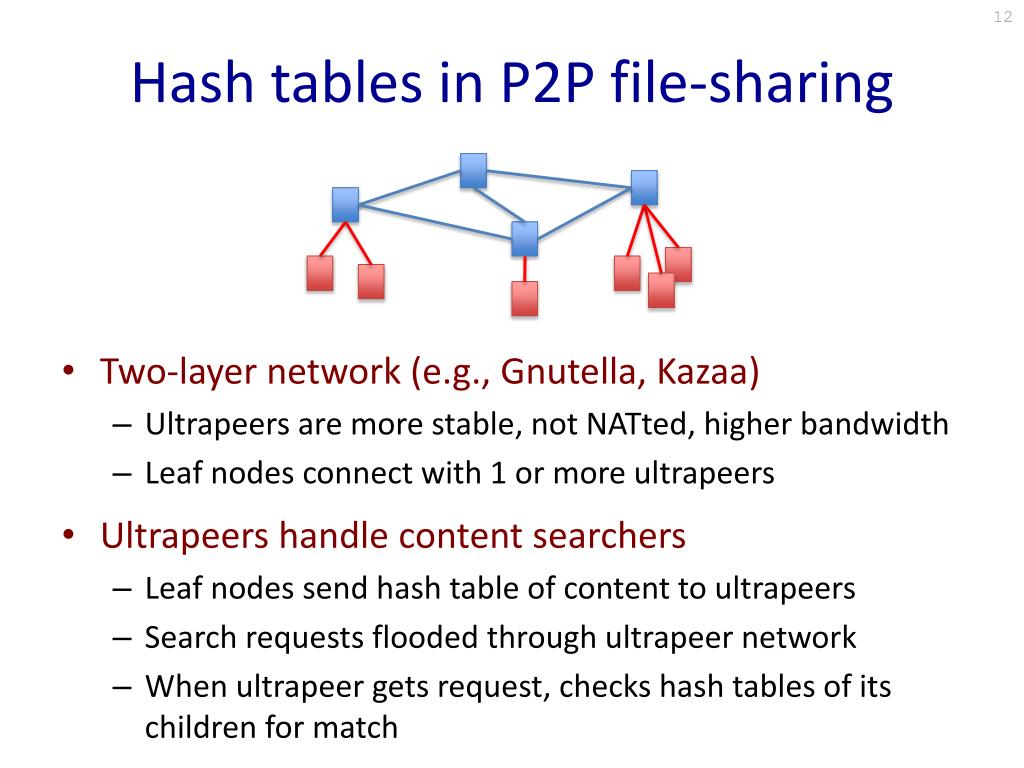

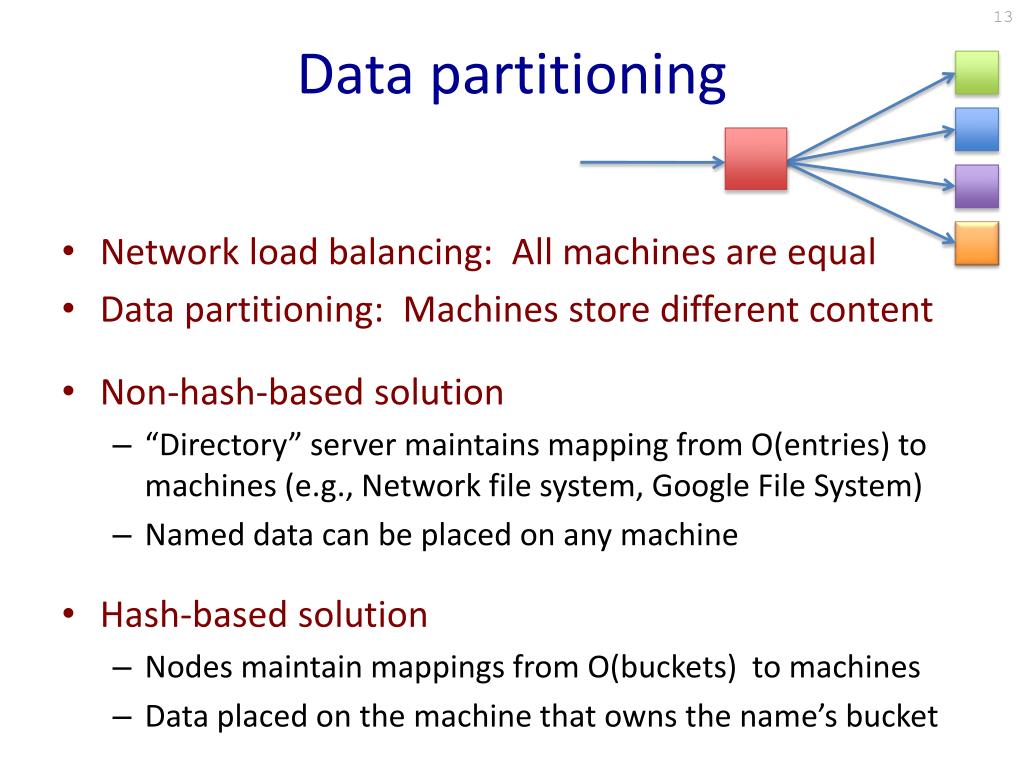

12. Hash tables in P2P file-sharing • Two-layer network (e.g., Gnutella, Kazaa) • Ultrapeers are more stable, not NATted, higher bandwidth • Leaf nodes connect with 1 or more ultrapeers • Ultrapeers handle content searchers • Leaf nodes send hash table of content to ultrapeers • Search requests flooded through ultrapeer network • When ultrapeer gets request, checks hash tables of its children for match

13. Data partitioning • Network load balancing: All machines are equal • Data partitioning: Machines store different content • Non-hash-based solution • “Directory” server maintains mapping from O(entries) to machines (e.g., Network file system, Google File System) • Named data can be placed on any machine • Hash-based solution • Nodes maintain mappings from O(buckets) to machines • Data placed on the machine that owns the name’s bucket

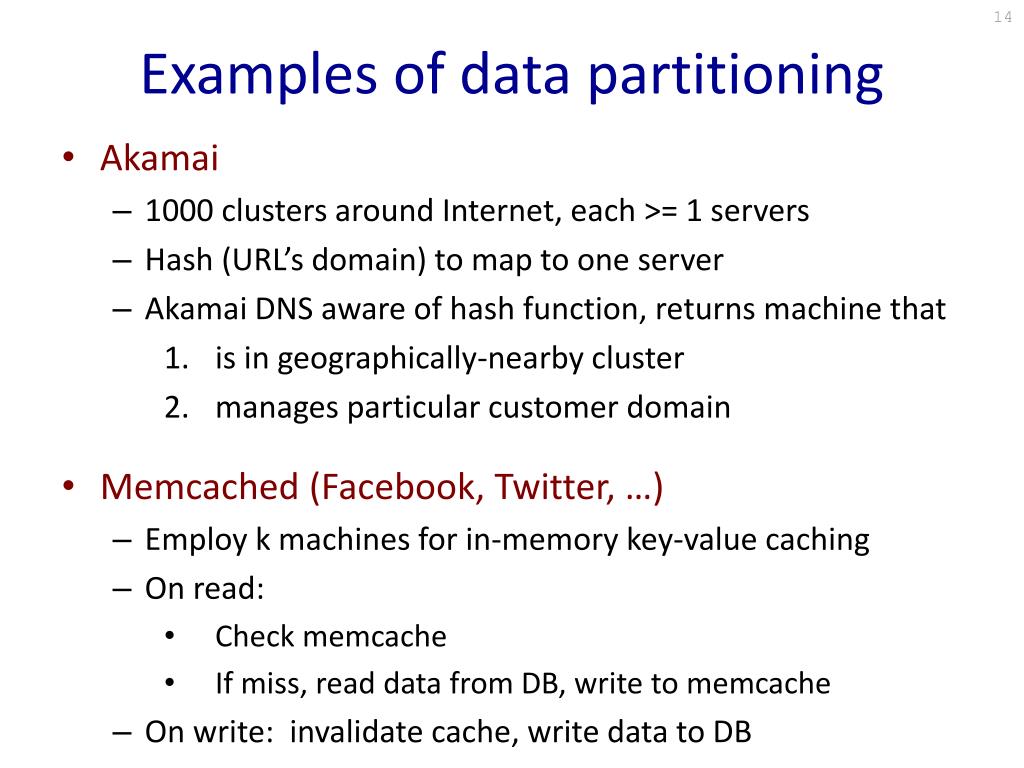

14. Examples of data partitioning • Akamai • 1000 clusters around Internet, each >= 1 servers • Hash (URL’s domain) to map to one server • Akamai DNS aware of hash function, returns machine that • is in geographically-nearby cluster • manages particular customer domain • Memcached (Facebook, Twitter, …) • Employ k machines for in-memory key-value caching • On read: • Check memcache • If miss, read data from DB, write to memcache • On write: invalidate cache, write data to DB

15. How Akamai Works – Already Cached cnn.com (content provider) DNS root server Akamai server GET index.html Akamai high-level DNS server 1 2 Akamai low-level DNS server 7 8 Nearby hash-chosenAkamai server 9 10 GET /cnn.com/foo.jpg Cluster End-user

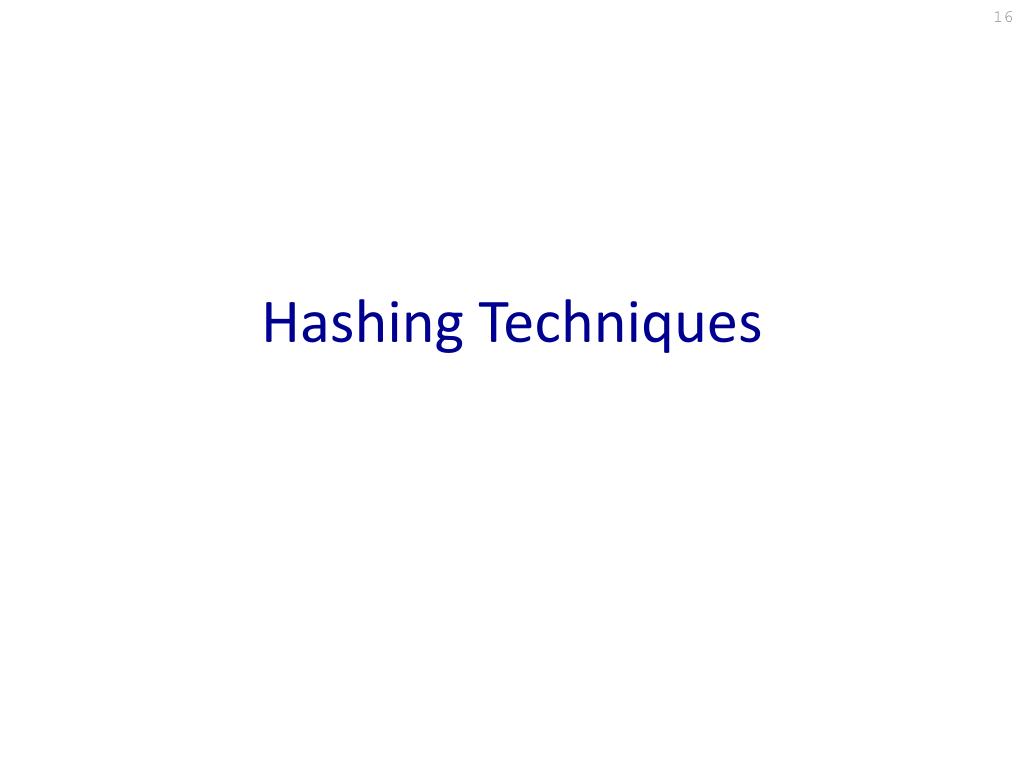

16. Hashing Techniques

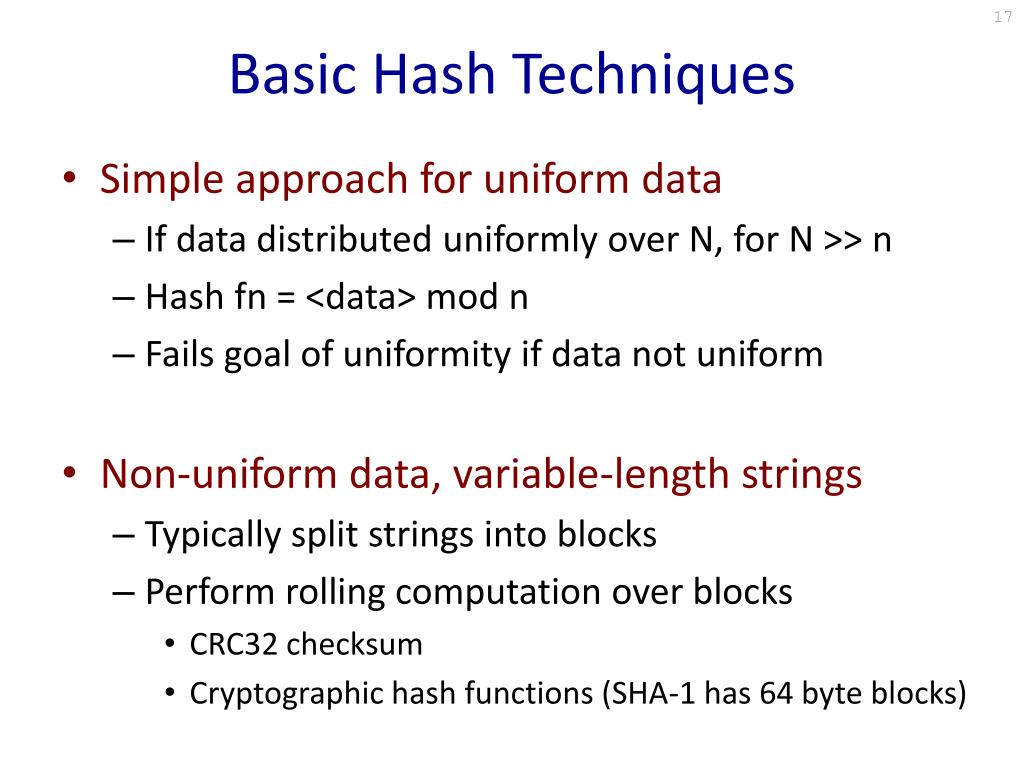

17. Basic Hash Techniques • Simple approach for uniform data • If data distributed uniformly over N, for N >> n • Hash fn = <data> mod n • Fails goal of uniformity if data not uniform • Non-uniform data, variable-length strings • Typically split strings into blocks • Perform rolling computation over blocks • CRC32 checksum • Cryptographic hash functions (SHA-1 has 64 byte blocks)

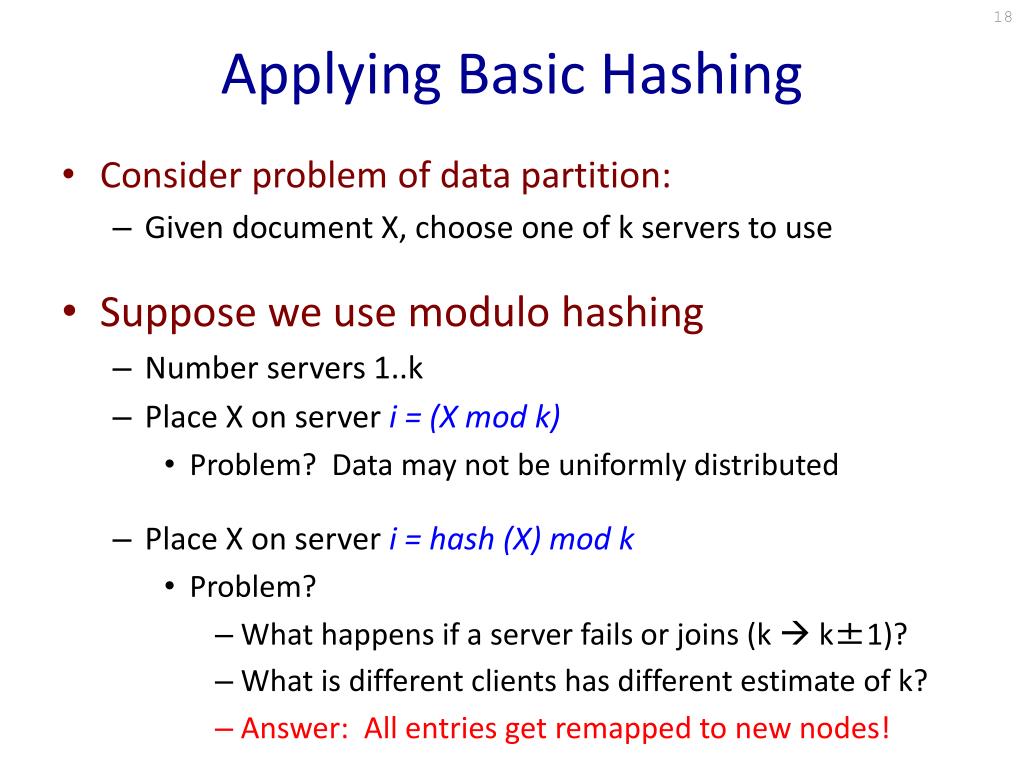

18. Applying Basic Hashing • Consider problem of data partition: • Given document X, choose one of k servers to use • Suppose we use modulo hashing • Number servers 1..k • Place X on serveri = (X mod k) • Problem? Data may not be uniformly distributed • Place X on server i = hash (X) mod k • Problem? • What happens if a server fails or joins (k  k±1)? • What is different clients has different estimate of k? • Answer: All entries get remapped to new nodes!

19. Consistent Hashing insert(key1,value) • Consistent hashing partitions key-space among nodes • Contact appropriate node to lookup/store key • Blue node determines red node is responsible for key1 • Blue node sends lookup or insert to red node lookup(key1) key1=value key1 key2 key3

20. URL1 URL2 URL3 0001 0100 1011 1100 1110 0110 1010 1111 0000 0010 Consistent Hashing • Partitioning key-space among nodes • Nodes choose random identifiers: e.g., hash(IP) • Keys randomly distributed in ID-space: e.g., hash(URL) • Keys assigned to node “nearest” in ID-space • Spreads ownership of keys evenly across nodes

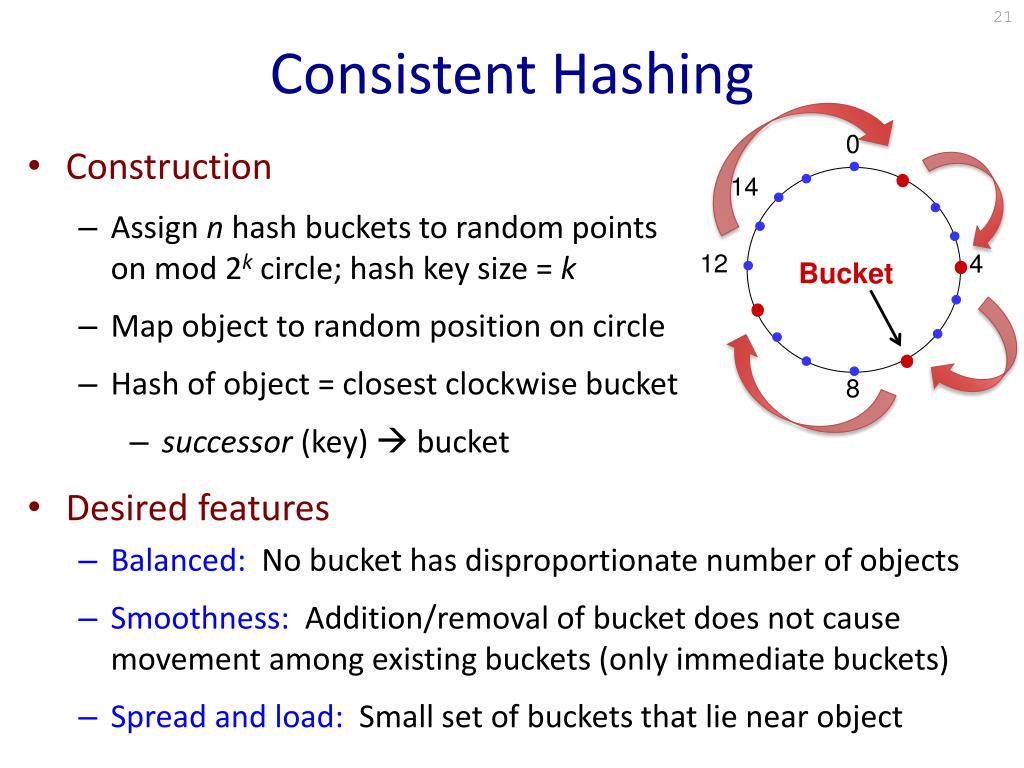

21. 21 Consistent Hashing 0 • Construction • Assign n hash buckets to random points on mod 2k circle; hash key size = k • Map object to random position on circle • Hash of object = closest clockwise bucket • successor (key)  bucket 14 12 4 Bucket 8 • Desired features • Balanced: No bucket has disproportionate number of objects • Smoothness: Addition/removal of bucket does not cause movement among existing buckets (only immediate buckets) • Spread and load: Small set of buckets that lie near object

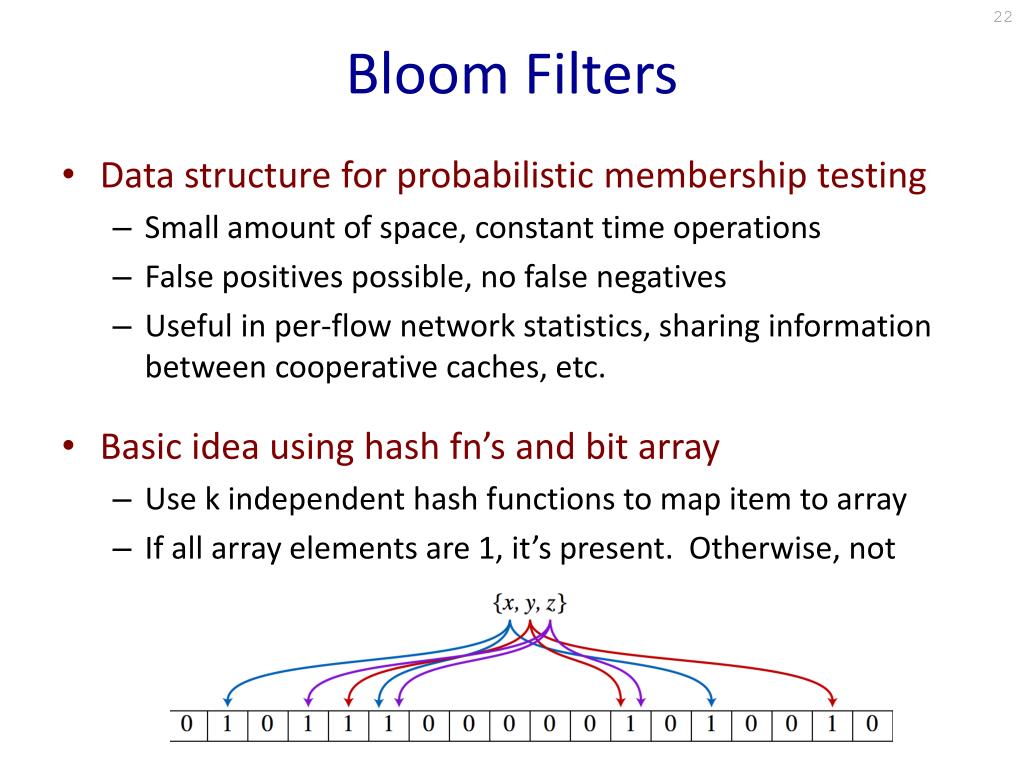

22. Bloom Filters • Data structure for probabilistic membership testing • Small amount of space, constant time operations • False positives possible, no false negatives • Useful in per-flow network statistics, sharing information between cooperative caches, etc. • Basic idea using hash fn’s and bit array • Use k independent hash functions to map item to array • If all array elements are 1, it’s present. Otherwise, not

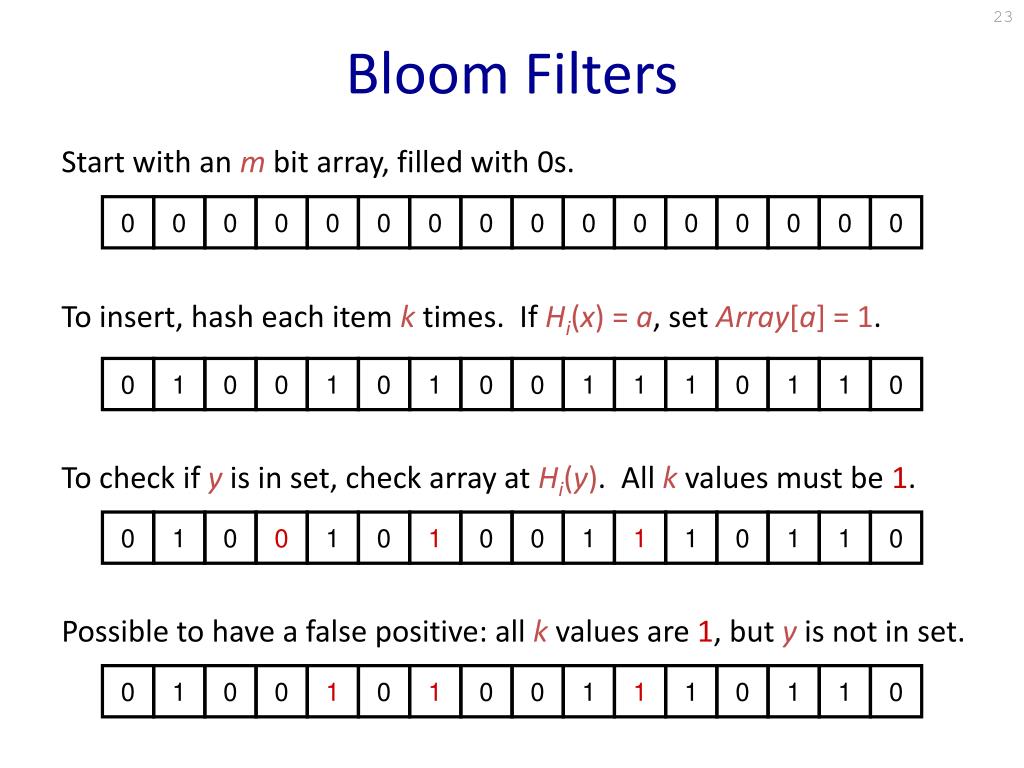

23. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 1 0 0 1 1 1 0 1 1 0 0 1 0 0 1 0 1 0 0 1 1 1 0 1 1 0 0 1 0 0 1 0 1 0 0 1 1 1 0 1 1 0 Bloom Filters Start with an m bit array, filled with 0s. To insert, hash each item k times. If Hi(x) = a, set Array[a] = 1. To check if y is in set, check array at Hi(y). All k values must be 1. Possible to have a false positive: all k values are 1, but y is not in set.
