How were the yeast cells extracted?

How were the yeast cells extracted?. Method 1: Quench: -80°C, 80% MeOH Extract: 80% MeOH , 100% Chloroform 30 minutes at room temperature Method 2: Quench: -80°C, 80% MeOH Extract: -80°C, 80% MeOH , 100% Chloroform 30 minutes in a dry ice/ EtOH bath Method 3: Quench: ice-cold dH 2 O

avye-gentry
Télécharger la présentation

How were the yeast cells extracted?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How were the yeast cells extracted? • Method 1: • Quench: -80°C, 80% MeOH • Extract: 80% MeOH, 100% Chloroform 30 minutes at room temperature • Method 2: • Quench: -80°C, 80% MeOH • Extract:-80°C,80% MeOH, 100% Chloroform 30 minutes in a dry ice/EtOH bath • Method 3: • Quench: ice-cold dH2O • Extract: -80°C, 80% MeOH, 100% Chloroform 30 minutes in a dry ice/EtOH bath • Method 4: • Quench: ice-cold PBS • Extract: -80°C, 80% MeOH, 100% Chloroform 30 minutes in a dry ice/EtOH bath

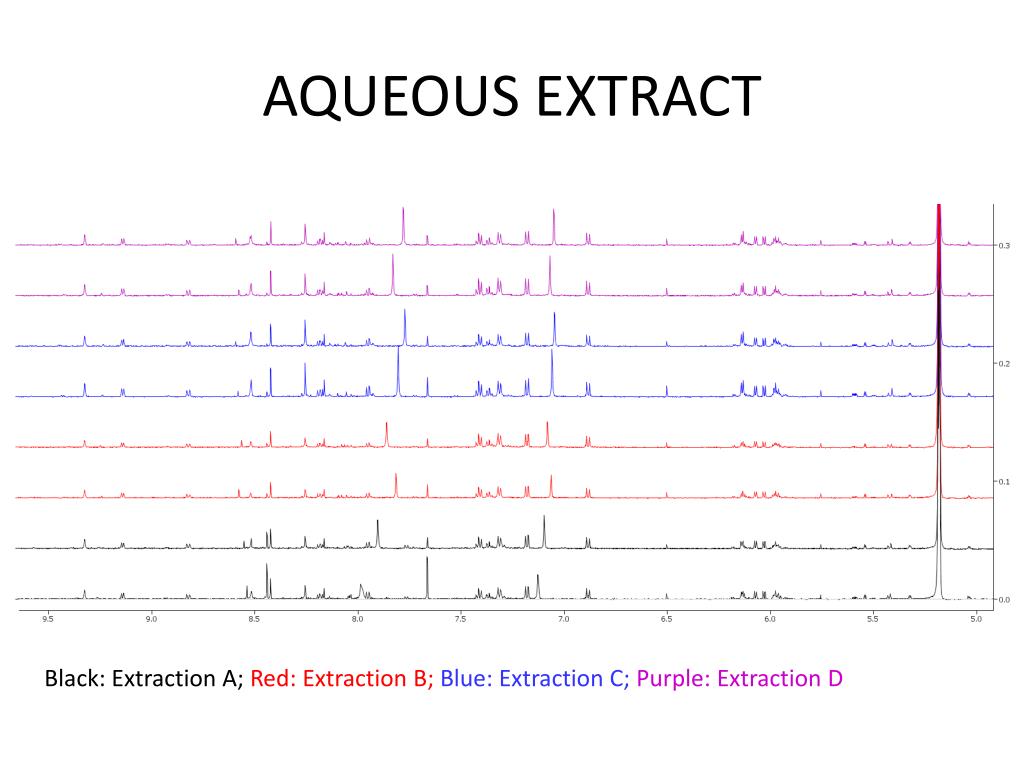

  2. AQUEOUS EXTRACT Black: Extraction A; Red: Extraction B; Blue: Extraction C; Purple: Extraction D

  3. AQUEOUS EXTRACT M1 (Group A Aqueous) methanol trehalose threonine valine glutamine glutarate glycine propylene glycol succinate alanine citrate glutamate lactate carnitine arginine isoleucine acetone leucine lycine acetate serine glutathione UDP-glucose asaparagine isobutyrate tyrosine proline aspartate phenylalanine fumarate NAD+ formate

  4. AQUEOUS EXTRACT formate phenylalanine tyrosine tyrosine UDP-glucose NAD+ NAD+ NAD+ UDP-glucose NAD+ fumarate NAD+ NAD+ NAD+ UDP-glucose

  5. AQUEOUS EXTRACT Black: Extraction A; Red: Extraction B; Blue: Extraction C; Purple: Extraction D

  6. LIPID EXTRACT L1 (Group A Aqueous)

  7. LIPID EXTRACT Black: Extraction A; Red: Extraction B; Blue: Extraction C; Purple: Extraction D

  8. LIPID EXTRACT Black: Extraction A; Red: Extraction B; Blue: Extraction C; Purple: Extraction D

  9. LIPID EXTRACT Black: Extraction A; Red: Extraction B; Blue: Extraction C; Purple: Extraction D
