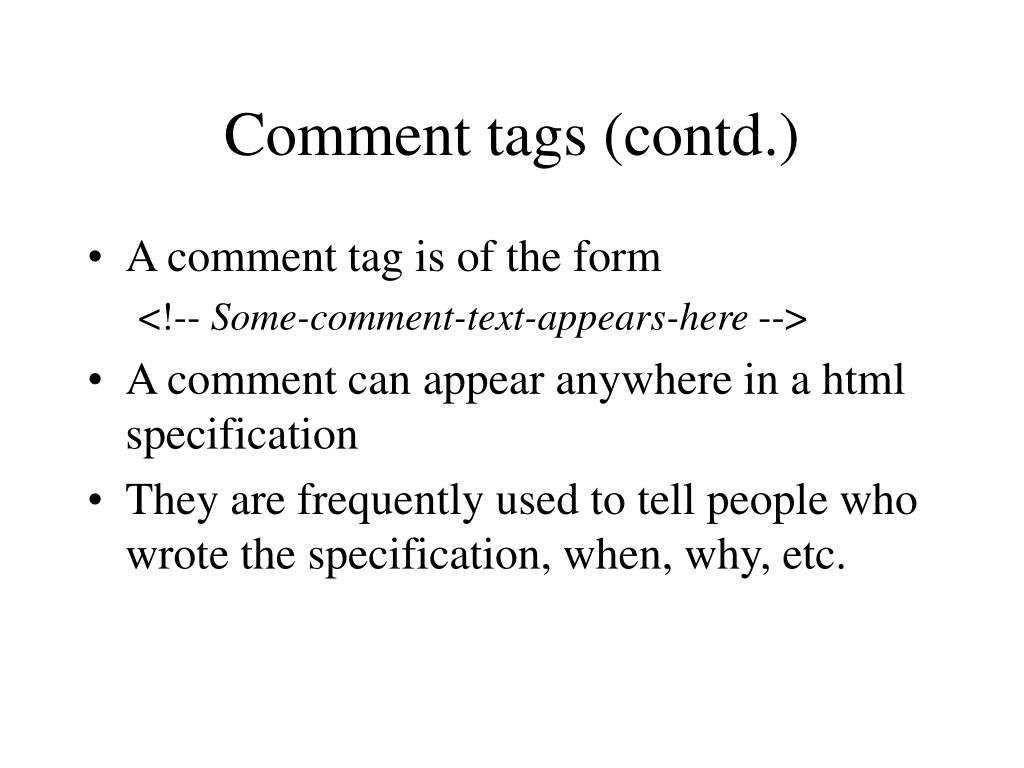

  1. Comment tags (contd.) • A comment tag is of the form <!-- Some-comment-text-appears-here --> • A comment can appear anywhere in a html specification • They are frequently used to tell people who wrote the specification, when, why, etc.

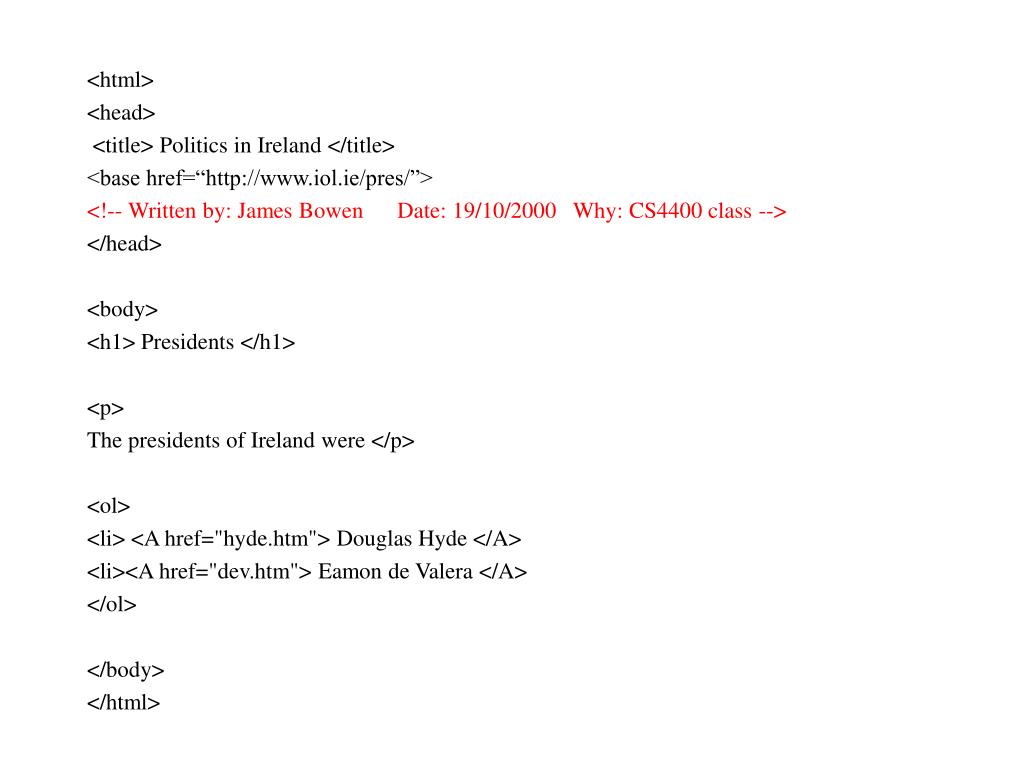

  2. <html> <head> <title> Politics in Ireland </title> <base href=“http://www.iol.ie/pres/”> <!-- Written by: James Bowen Date: 19/10/2000 Why: CS4400 class --> </head> <body> <h1> Presidents </h1> <p> The presidents of Ireland were </p> <ol> <li> <A href="hyde.htm"> Douglas Hyde </A> <li><A href="dev.htm"> Eamon de Valera </A> </ol> </body> </html>

  3. Using <img> tags

  4. <img> tags • <img> tags are used to incorporate pictures into web documents • A picture cannot be inserted directly into the html spec of a web document, since a html spec is a textual spec • <img> tags are used to point to pictures that we want to appear in a web document

  5. <img> tags (contd.) • The <img> tag is a structured tag -- it has attributes • The src attribute is used to point to the picture to be included <img src = “some-URL” >

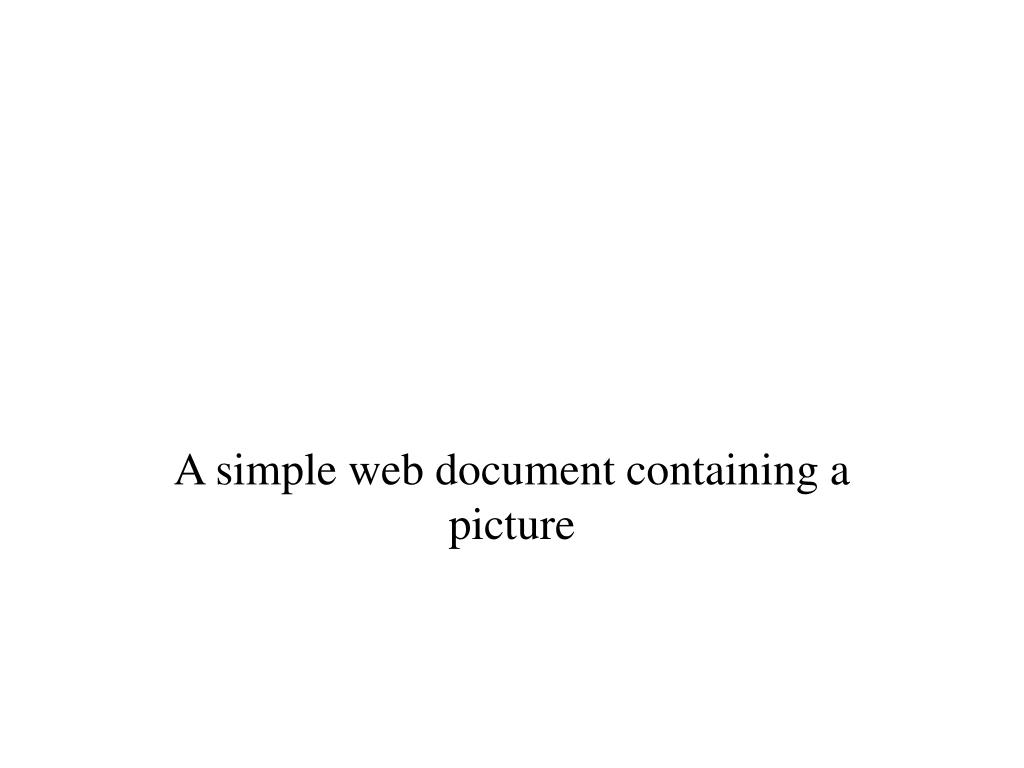

  6. A simple web document containing a picture

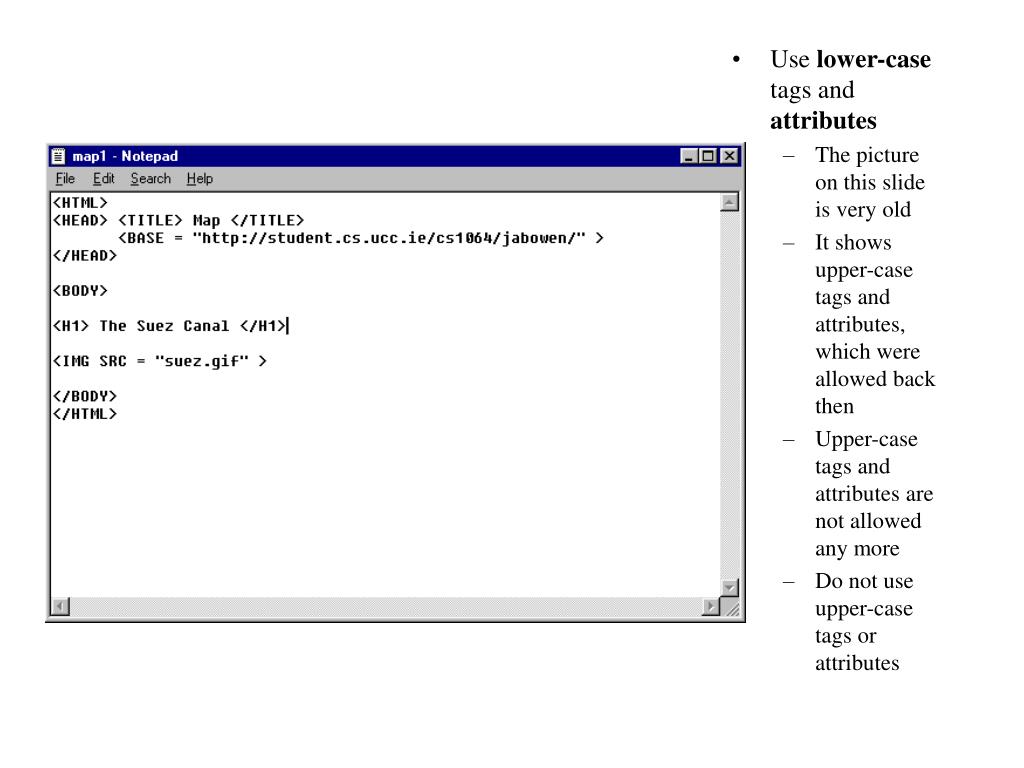

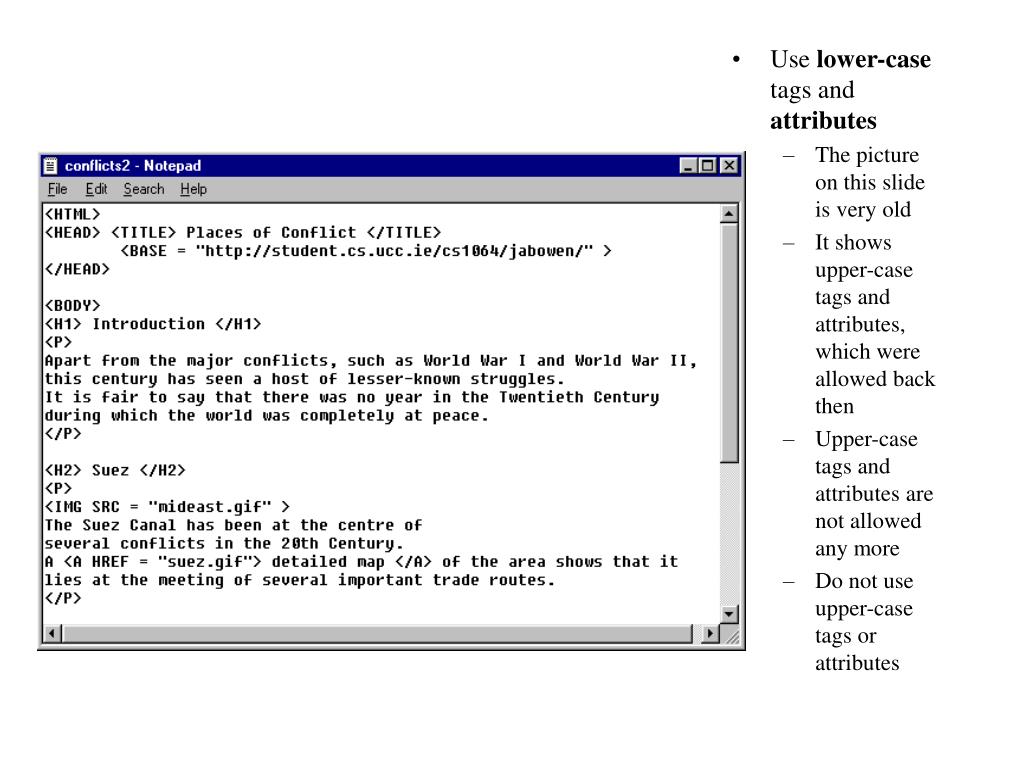

  7. Use lower-case tags and attributes • The picture on this slide is very old • It shows upper-case tags and attributes, which were allowed back then • Upper-case tags and attributes are not allowed any more • Do not use upper-case tags or attributes

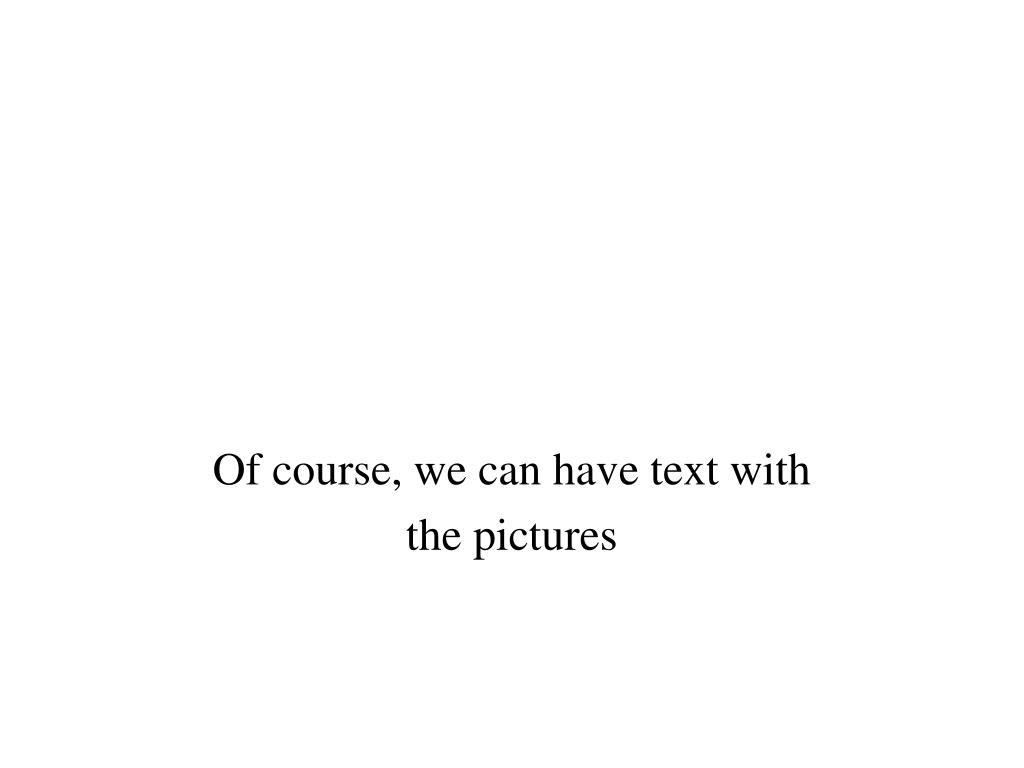

  8. Of course, we can have text with the pictures

  9. Use lower-case tags and attributes • The picture on this slide is very old • It shows upper-case tags and attributes, which were allowed back then • Upper-case tags and attributes are not allowed any more • Do not use upper-case tags or attributes

  10. A document

  11. Use lower-case tags and attributes • The picture on this slide is very old • It shows upper-case tags and attributes, which were allowed back then • Upper-case tags and attributes are not allowed any more • Do not use upper-case tags or attributes

  12. Never use HTML presentational attributes

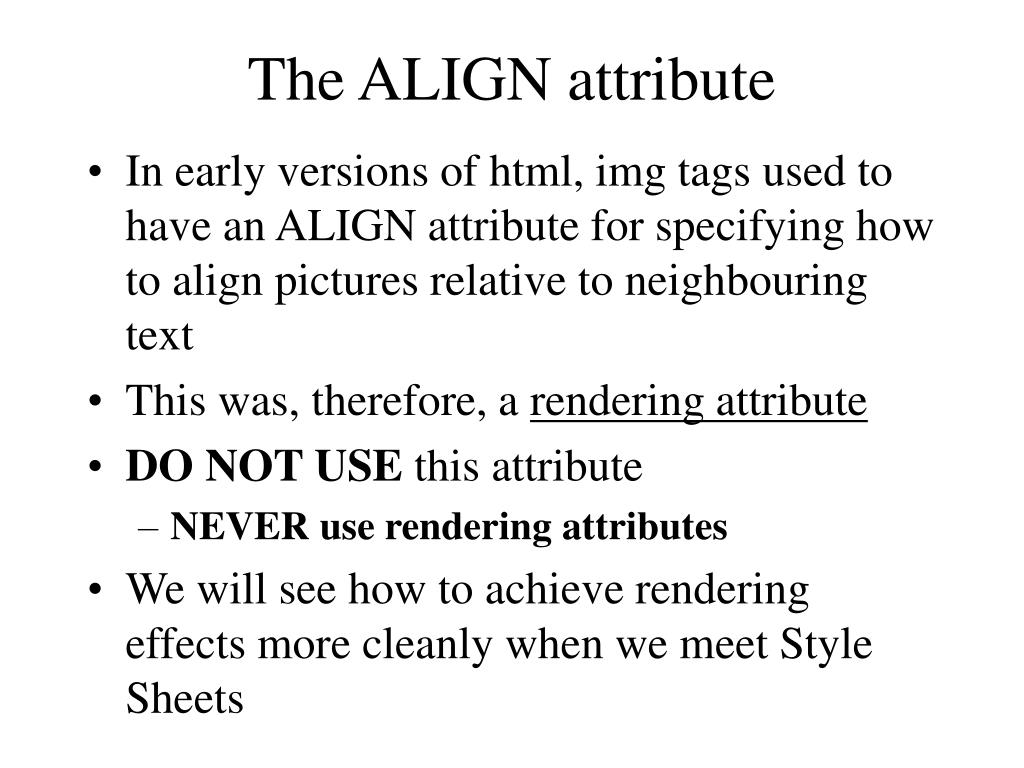

  13. The ALIGN attribute • In early versions of html, img tags used to have an ALIGN attribute for specifying how to align pictures relative to neighbouring text • This was, therefore, a rendering attribute • DO NOT USE this attribute • NEVER use rendering attributes • We will see how to achieve rendering effects more cleanly when we meet Style Sheets

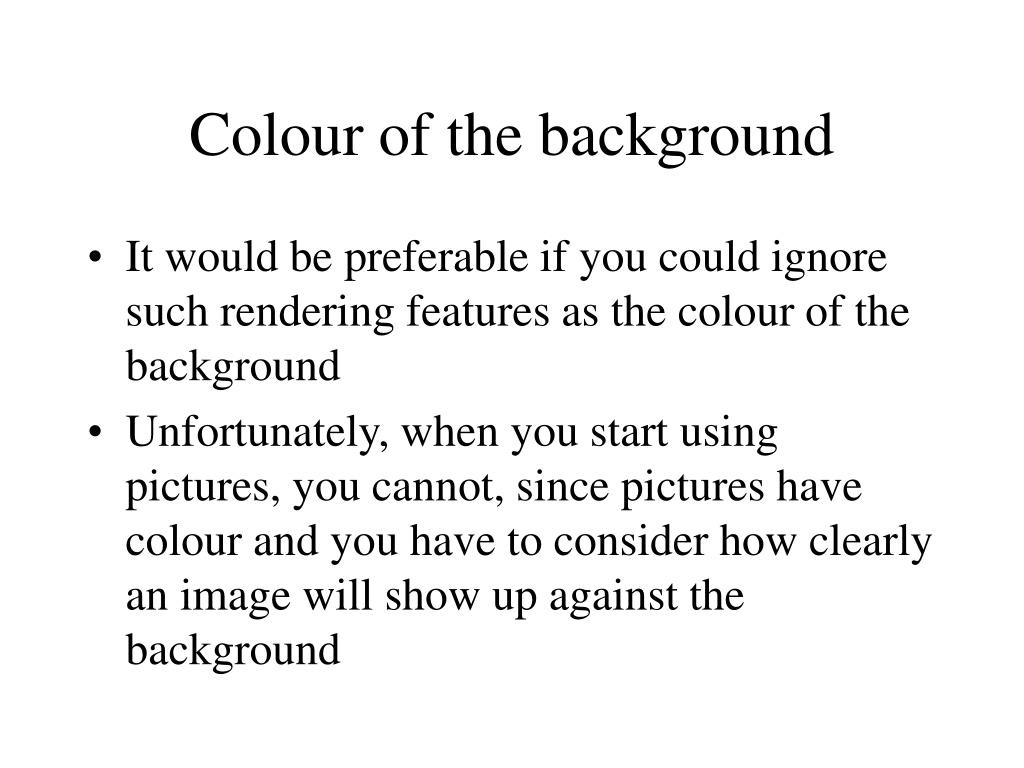

  14. Colour of the background • It would be preferable if you could ignore such rendering features as the colour of the background • Unfortunately, when you start using pictures, you cannot, since pictures have colour and you have to consider how clearly an image will show up against the background

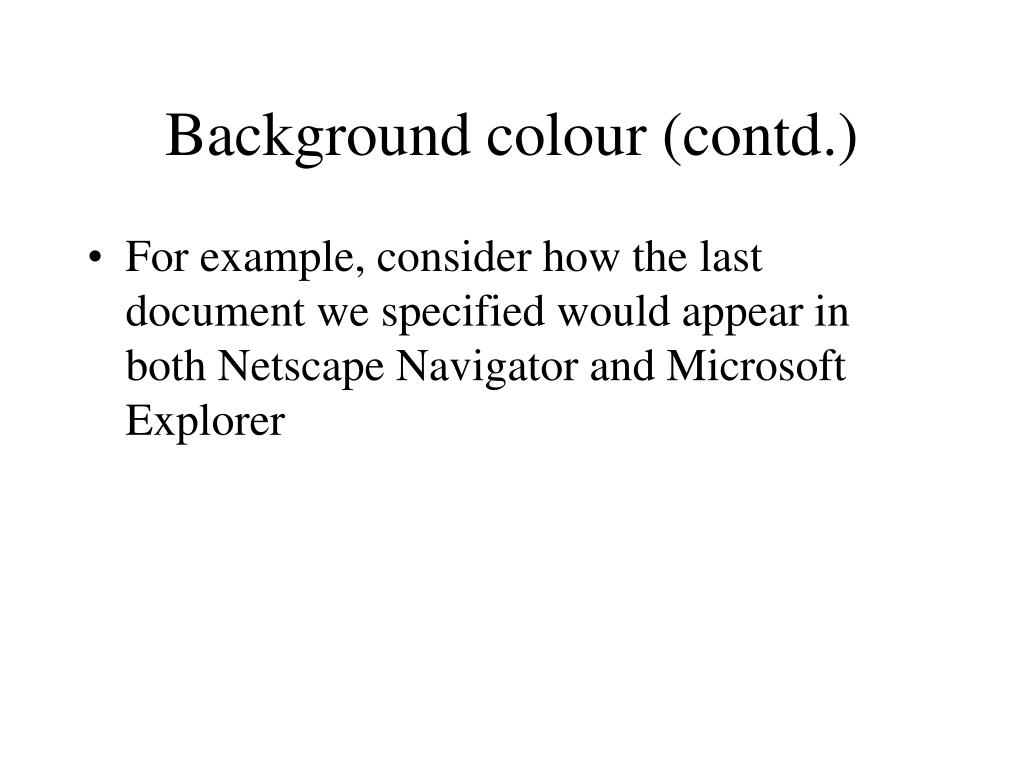

  15. Background colour (contd.) • For example, consider how the last document we specified would appear in both Netscape Navigator and Microsoft Explorer

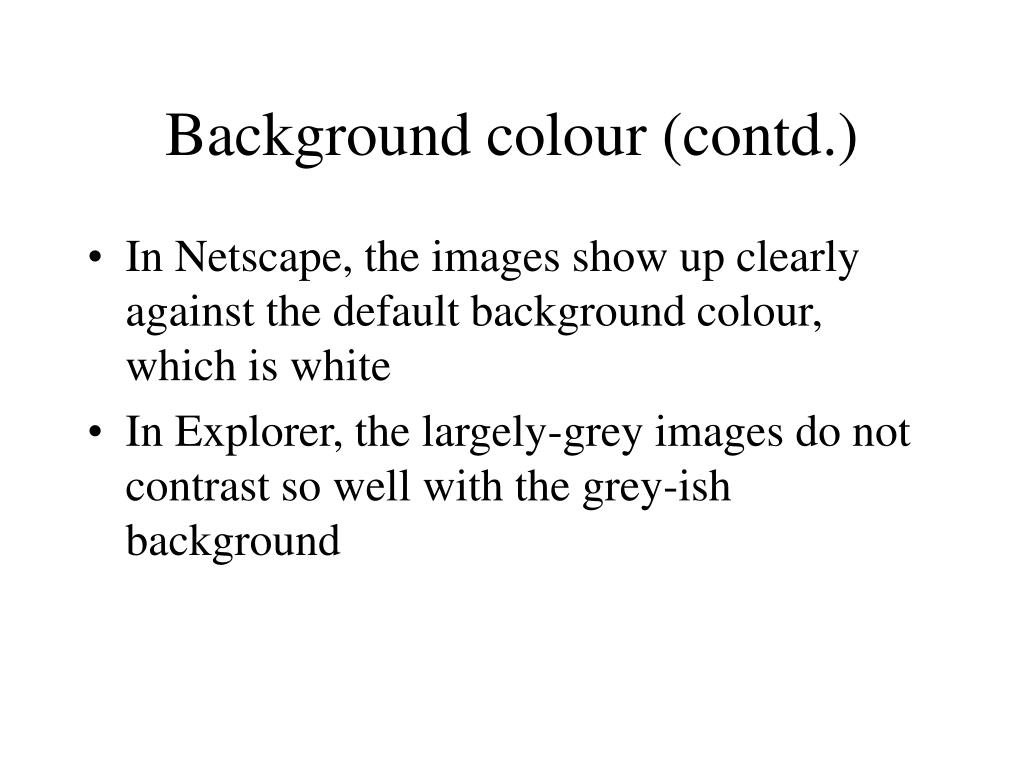

  16. Background colour (contd.) • In Netscape, the images show up clearly against the default background colour, which is white • In Explorer, the largely-grey images do not contrast so well with the grey-ish background

  17. Background colour (contd.) • We can specify the background colour we want • Early versions of html provided a BGCOLOR attribute in the <body> tag • However this is a rendering attribute and SHOULD NOT BE USED • We will see how to do it more cleanly when we meet style sheets

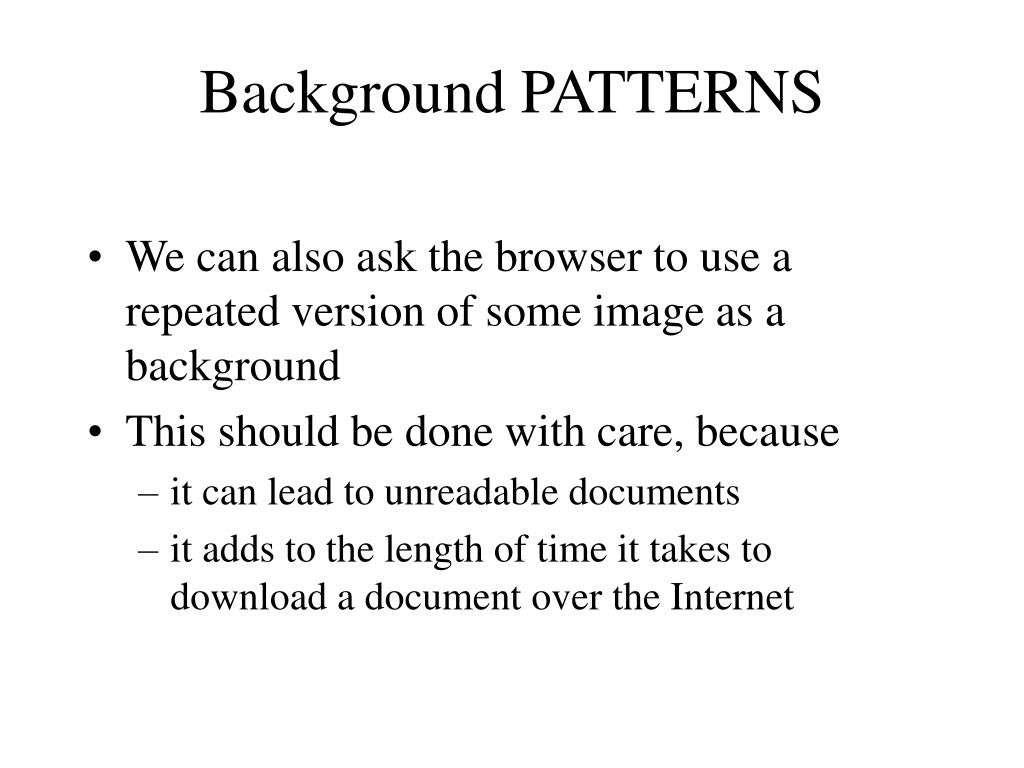

  18. Background PATTERNS • We can also ask the browser to use a repeated version of some image as a background • This should be done with care, because • it can lead to unreadable documents • it adds to the length of time it takes to download a document over the Internet

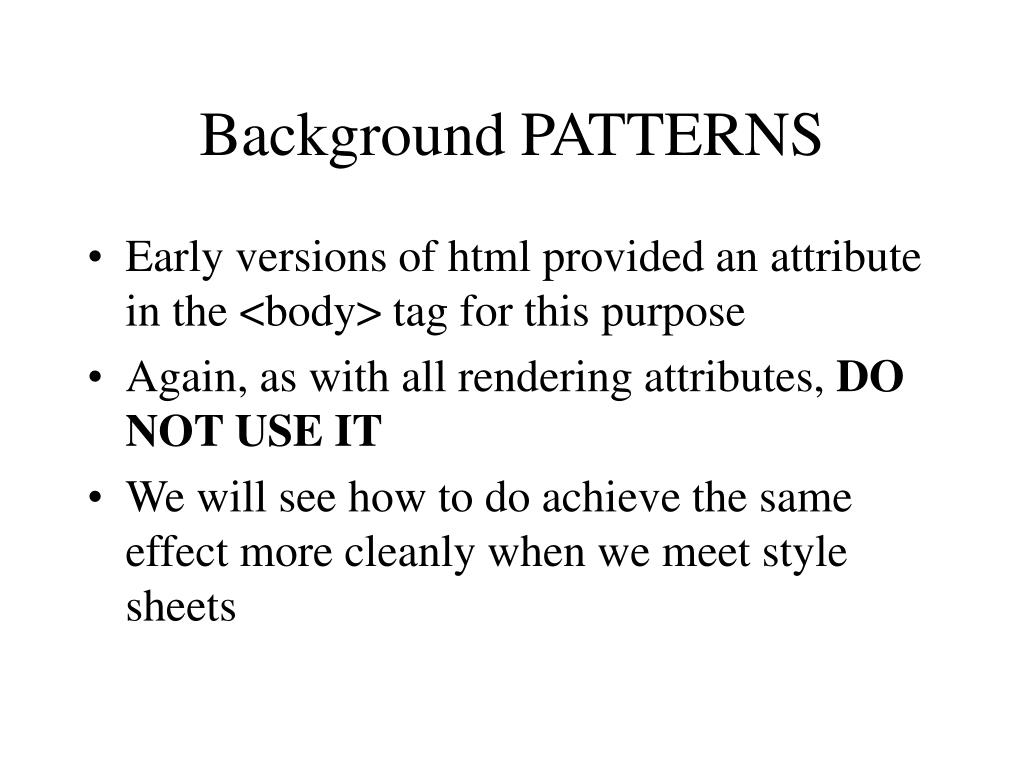

  19. Background PATTERNS • Early versions of html provided an attribute in the <body> tag for this purpose • Again, as with all rendering attributes, DO NOT USE IT • We will see how to do achieve the same effect more cleanly when we meet style sheets

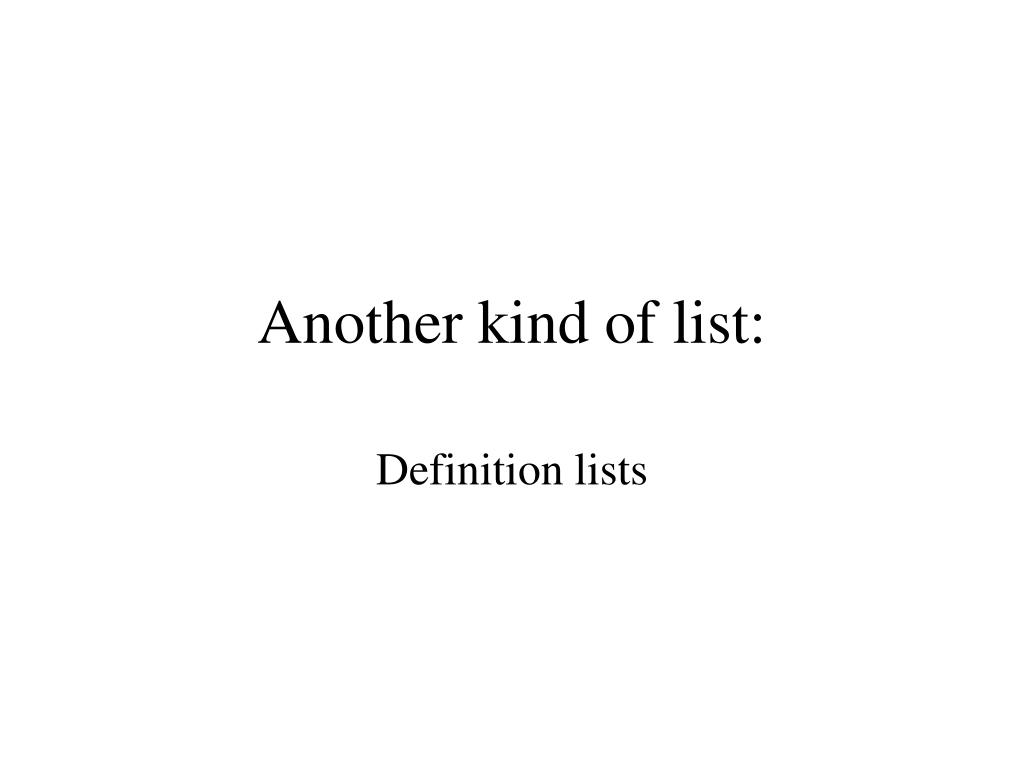

  20. Another kind of list: Definition lists

  21. Definition lists: • Frequently, we want to have lists of items like this: CPU Central Processor Unit VDU Visual Display Unit IRQ Interrupt ReQuest

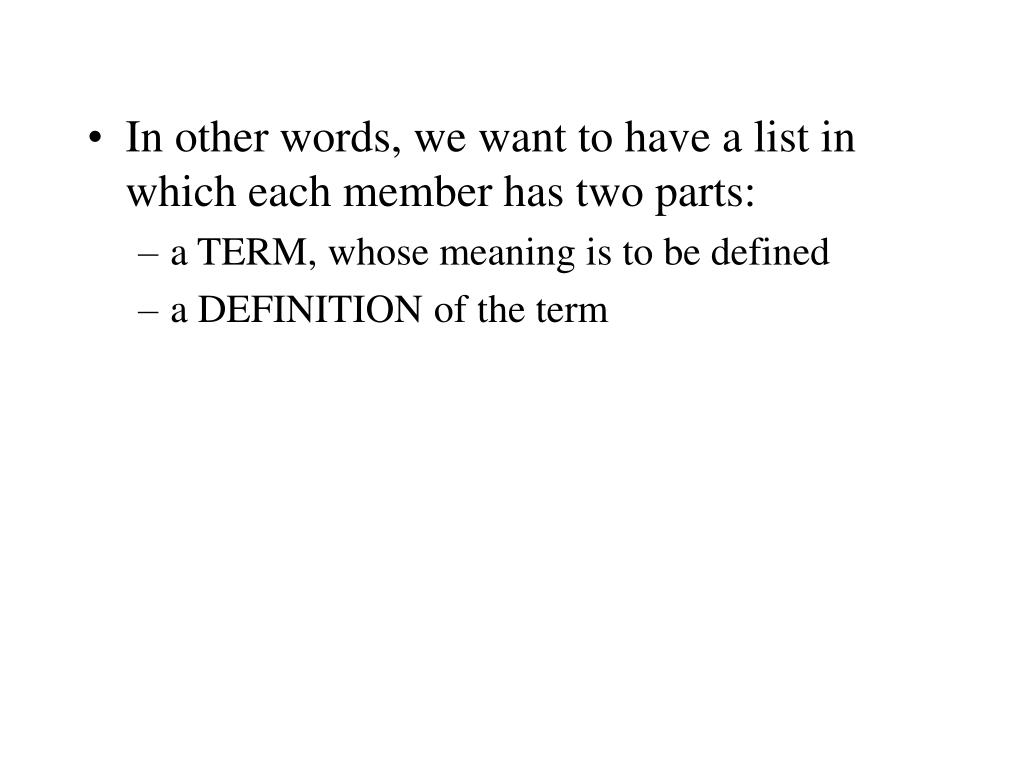

  22. In other words, we want to have a list in which each member has two parts: • a TERM, whose meaning is to be defined • a DEFINITION of the term

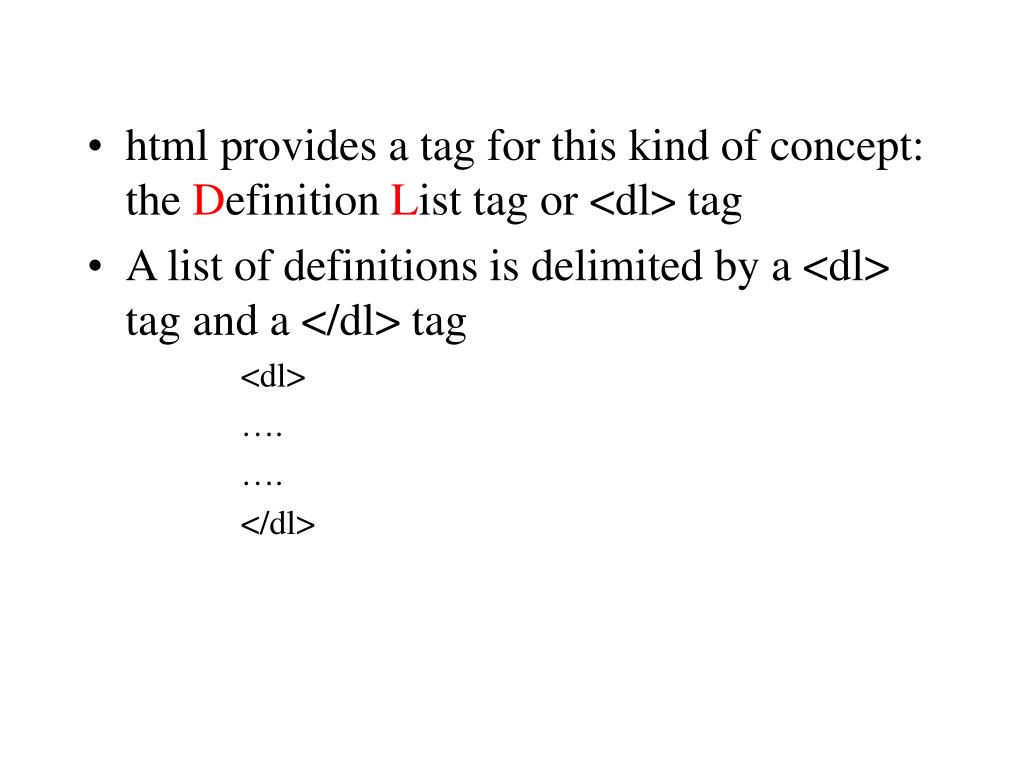

  23. html provides a tag for this kind of concept: the Definition List tag or <dl> tag • A list of definitions is delimited by a <dl> tag and a </dl> tag <dl> …. …. </dl>

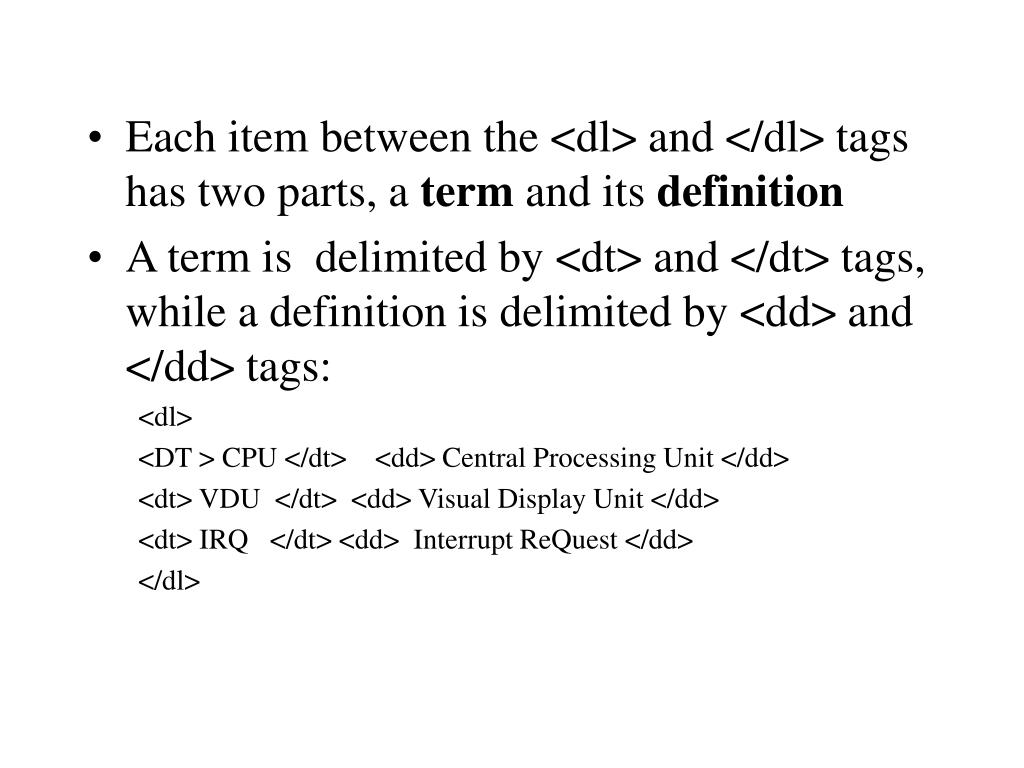

  24. Each item between the <dl> and </dl> tags has two parts, a term and its definition • A term is delimited by <dt> and </dt> tags, while a definition is delimited by <dd> and </dd> tags: <dl> <DT > CPU </dt> <dd> Central Processing Unit </dd> <dt> VDU </dt> <dd> Visual Display Unit </dd> <dt> IRQ </dt> <dd> Interrupt ReQuest </dd> </dl>

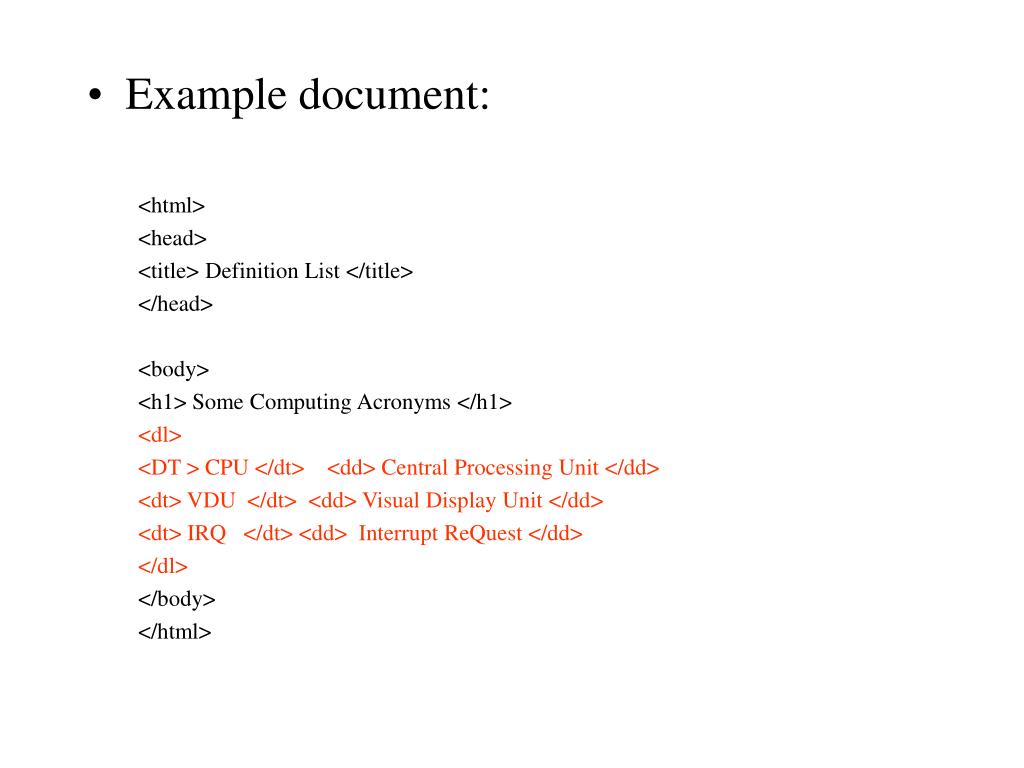

  25. Example document: <html> <head> <title> Definition List </title> </head> <body> <h1> Some Computing Acronyms </h1> <dl> <DT > CPU </dt> <dd> Central Processing Unit </dd> <dt> VDU </dt> <dd> Visual Display Unit </dd> <dt> IRQ </dt> <dd> Interrupt ReQuest </dd> </dl> </body> </html>

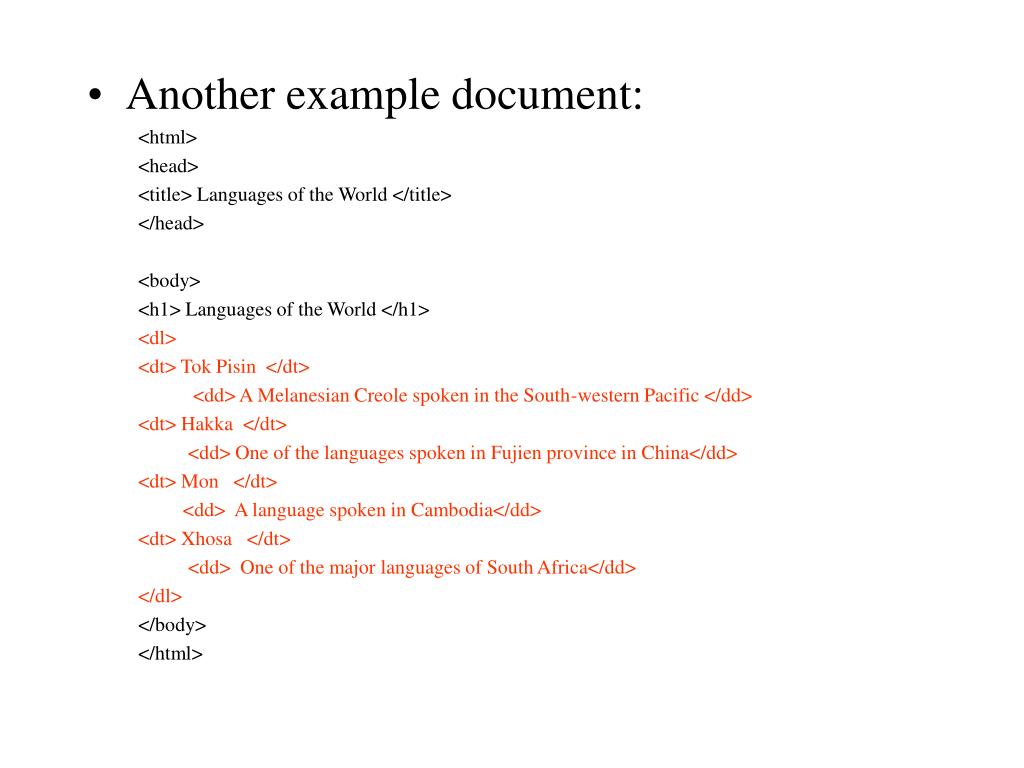

  26. Another example document: <html> <head> <title> Languages of the World </title> </head> <body> <h1> Languages of the World </h1> <dl> <dt> Tok Pisin </dt> <dd> A Melanesian Creole spoken in the South-western Pacific </dd> <dt> Hakka </dt> <dd> One of the languages spoken in Fujien province in China</dd> <dt> Mon </dt> <dd> A language spoken in Cambodia</dd> <dt> Xhosa </dt> <dd> One of the major languages of South Africa</dd> </dl> </body> </html>
