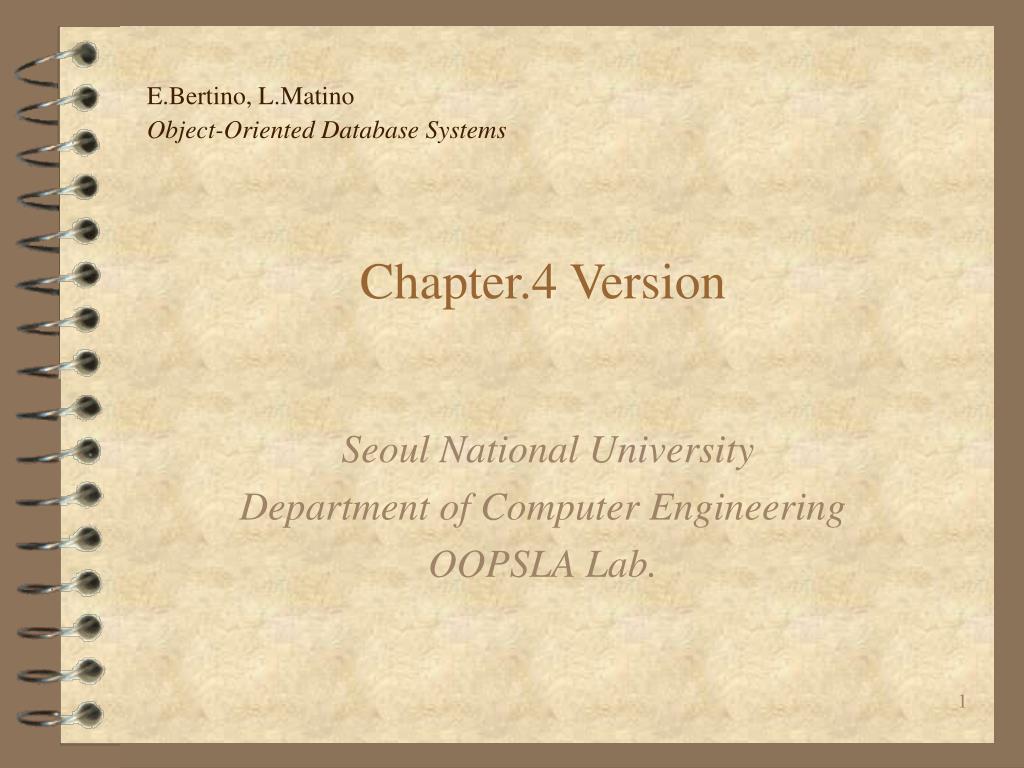

  1. Chapter.4 Version Seoul National University Department of Computer Engineering OOPSLALab.

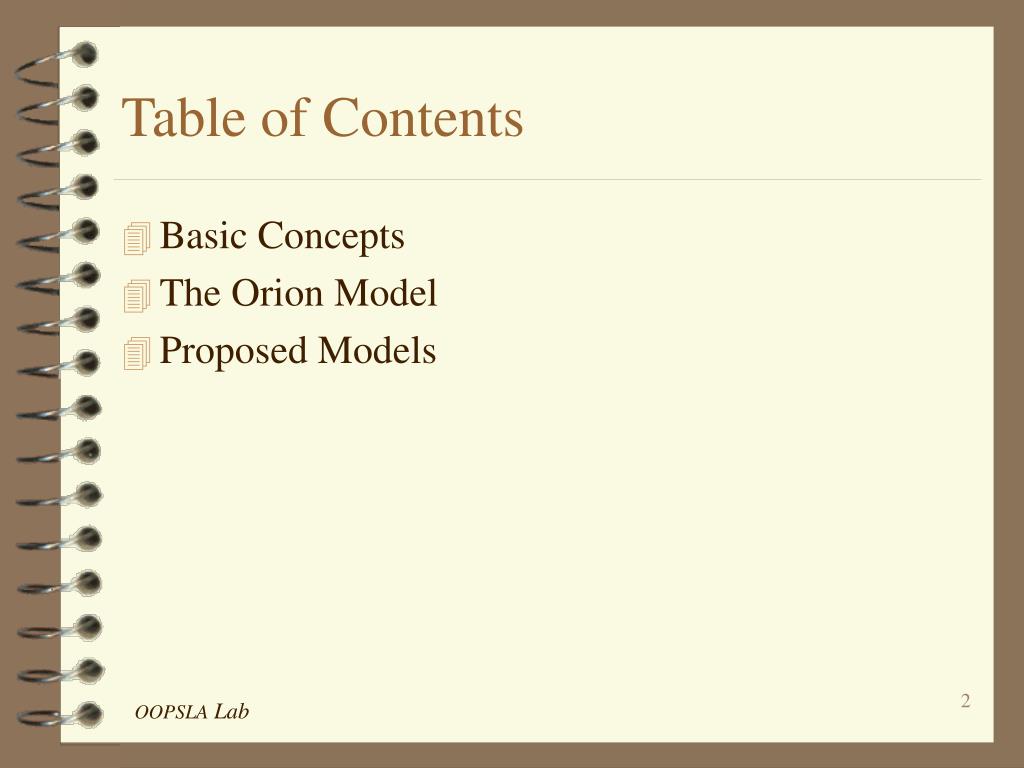

  2. Table of Contents • Basic Concepts • The Orion Model • Proposed Models

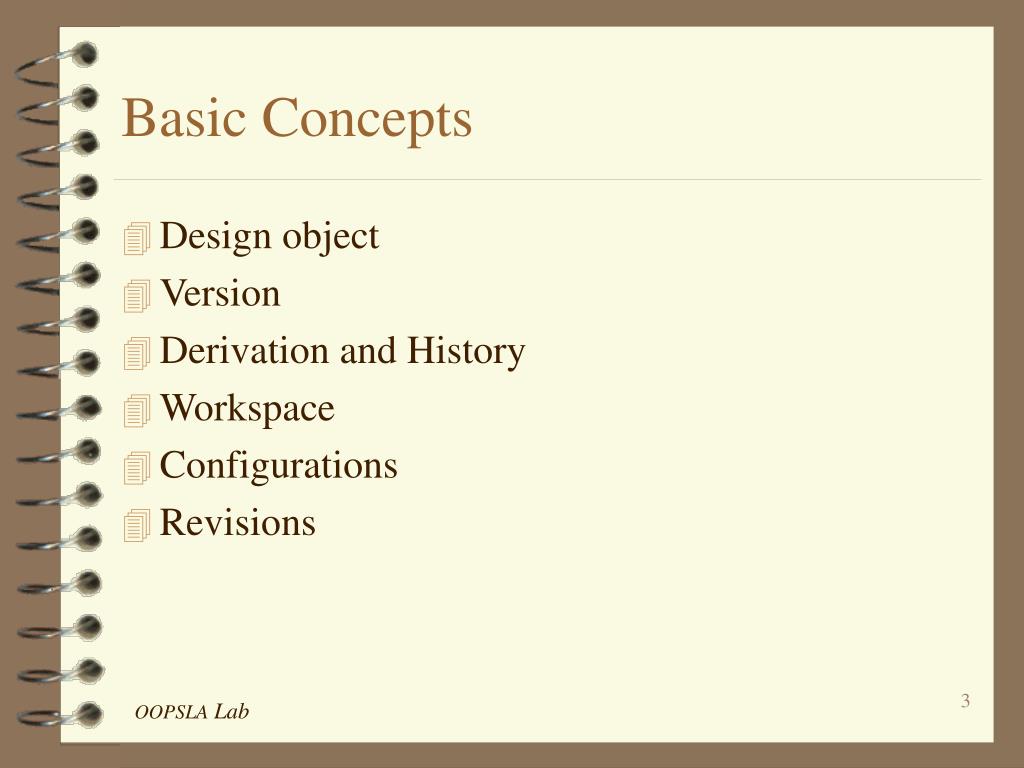

  3. Basic Concepts • Design object • Version • Derivation and History • Workspace • Configurations • Revisions

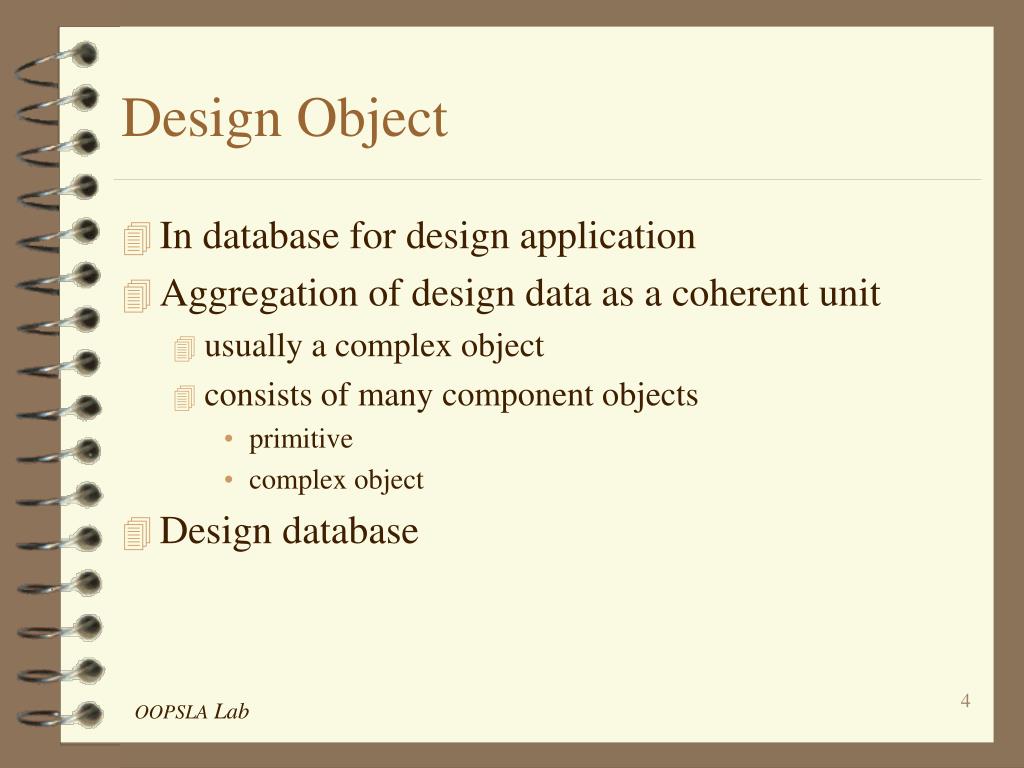

  4. Design Object • In database for design application • Aggregation of design data as a coherent unit • usually a complex object • consists of many component objects • primitive • complex object • Design database

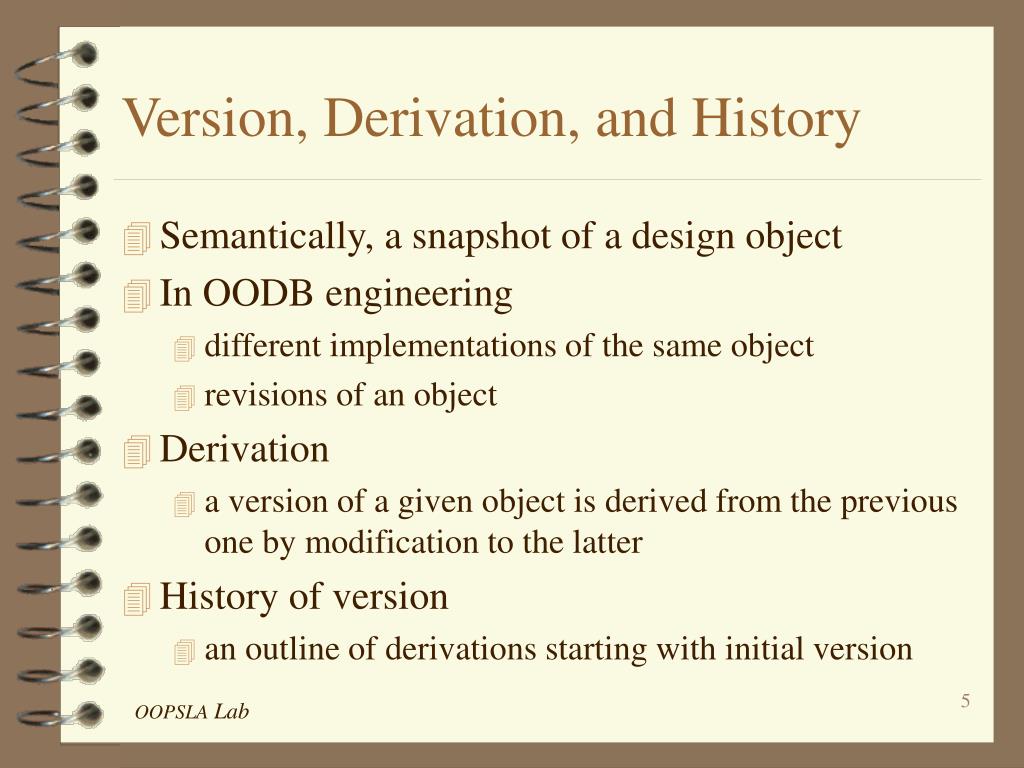

  5. Version, Derivation, and History • Semantically, a snapshot of a design object • In OODB engineering • different implementations of the same object • revisions of an object • Derivation • a version of a given object is derived from the previous one by modification to the latter • History of version • an outline of derivations starting with initial version

  6. History of Version O[0] Latest Version Created (default version) Alternatives O[1] O[2] O[3] O[2.1] O[1.1] O[2.2] O[1.1.1] Current Version

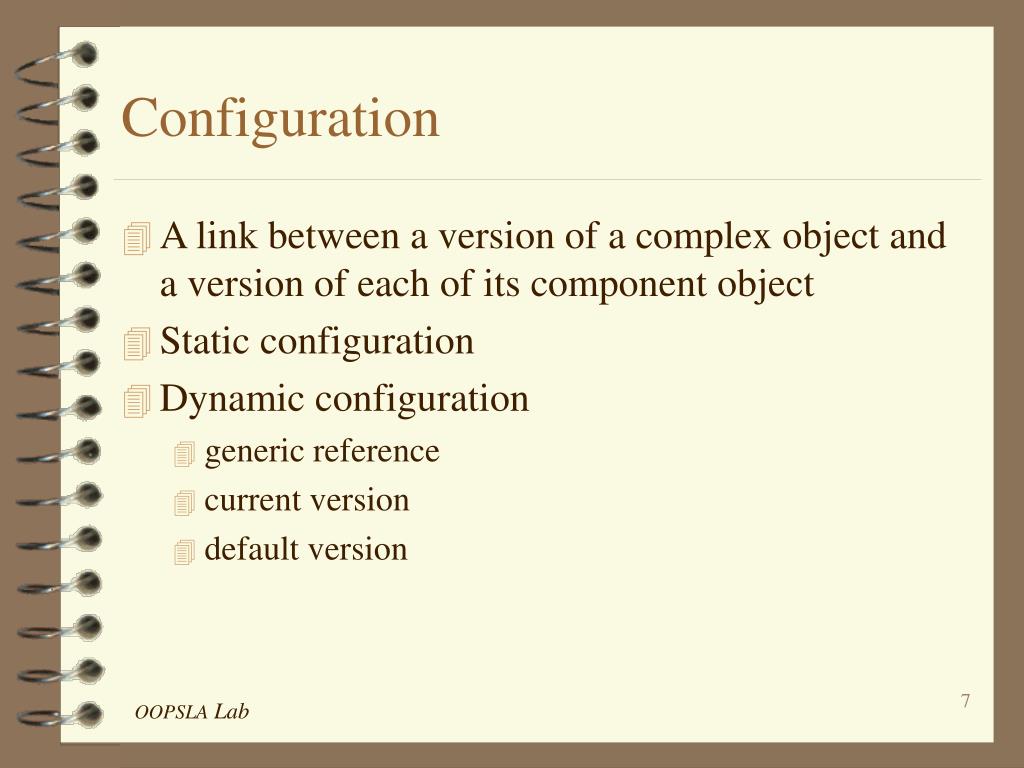

  7. Configuration • A link between a version of a complex object and a version of each of its component object • Static configuration • Dynamic configuration • generic reference • current version • default version

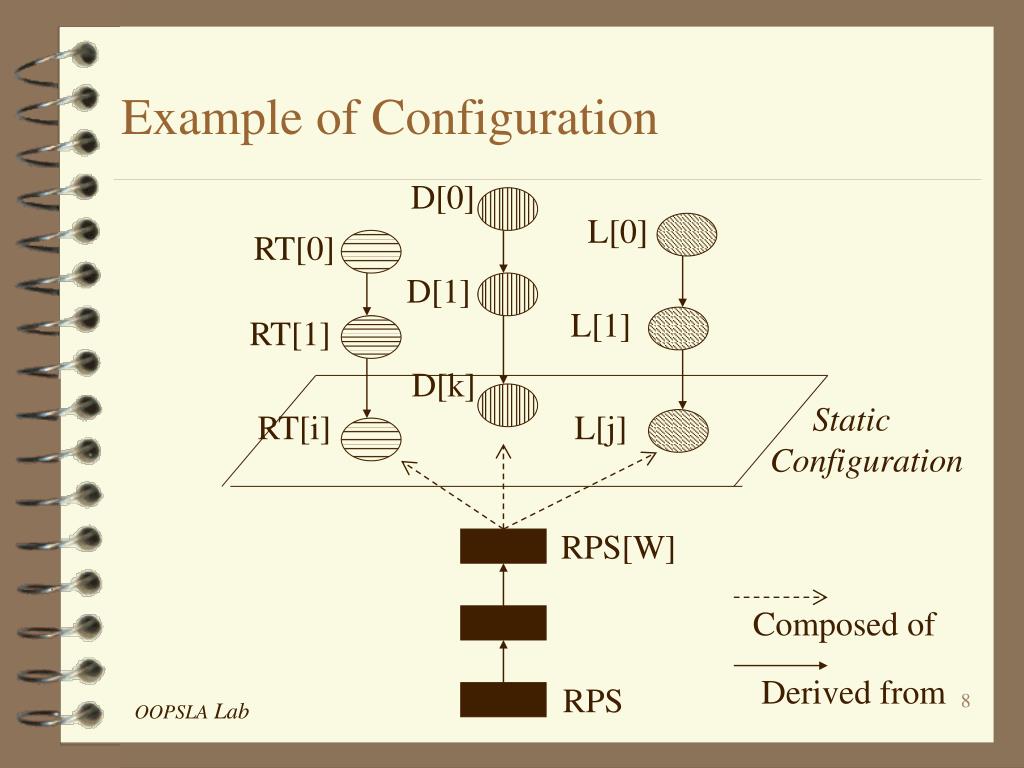

  8. Example of Configuration D[0] L[0] RT[0] D[1] L[1] RT[1] D[k] Static Configuration RT[i] L[j] RPS[W] Composed of Derived from RPS

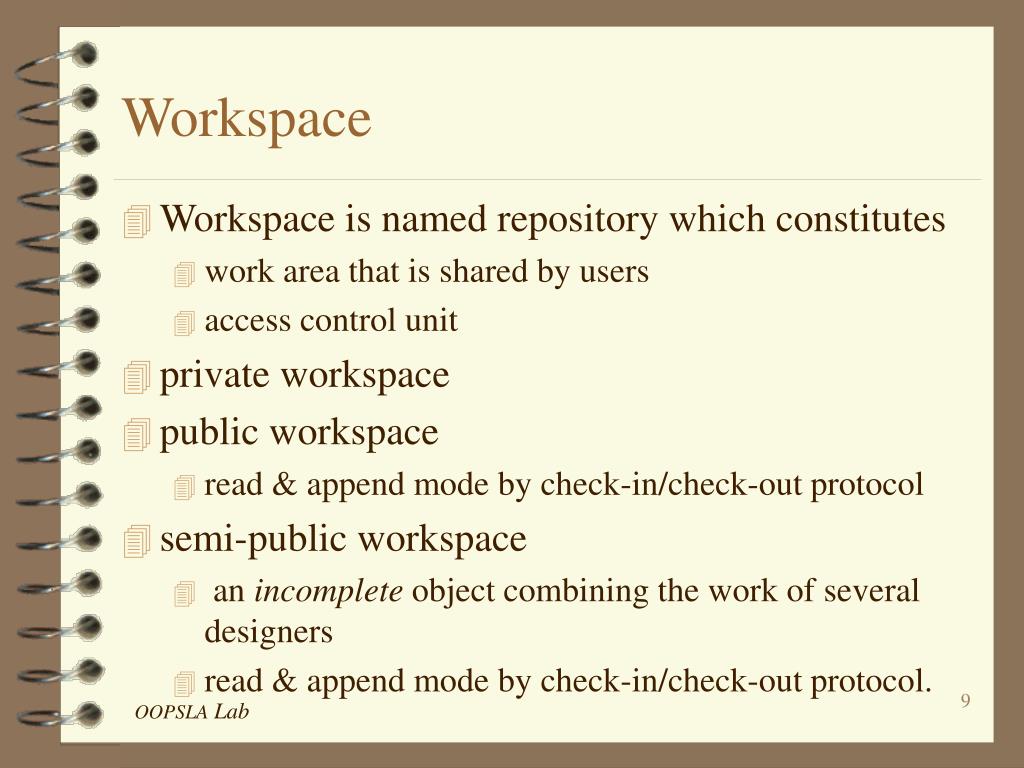

  9. Workspace • Workspace is named repository which constitutes • work area that is shared by users • access control unit • private workspace • public workspace • read & append mode by check-in/check-out protocol • semi-public workspace • an incomplete object combining the work of several designers • read & append mode by check-in/check-out protocol.

  10. Revision on Version • New version of an object can invalidate some of the objects which reference the given object • notifying changes • propagating changes • Problems in change propagation • scope of change propagation in history • path for change propagation in configuration

  11. Ambiguous Propagation of a Change RT[0] D[0] L[0] RT[1] D[1] L[1] RT[2] D[2] L[2] D[k] L[j] RT[i] RPS[w] RPS1[j] RPS RPS1

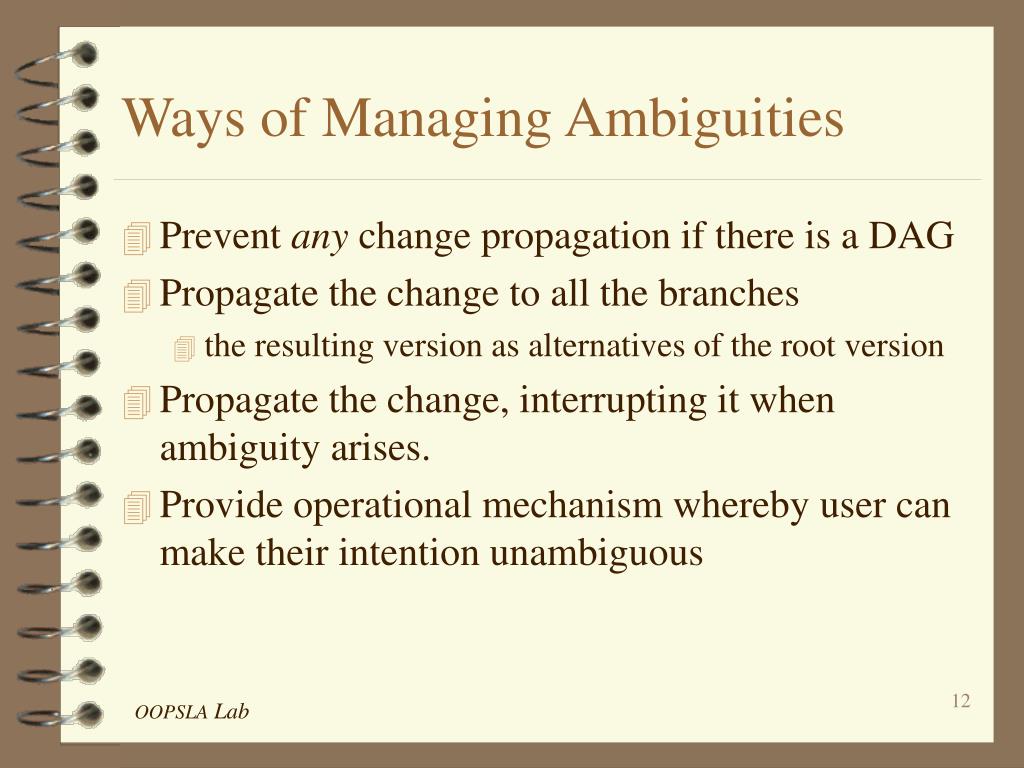

  12. Ways of Managing Ambiguities • Prevent any changepropagation if there is a DAG • Propagate the change to all the branches • the resulting version as alternatives of the root version • Propagate the change, interrupting it when ambiguity arises. • Provide operational mechanism whereby user can make their intention unambiguous

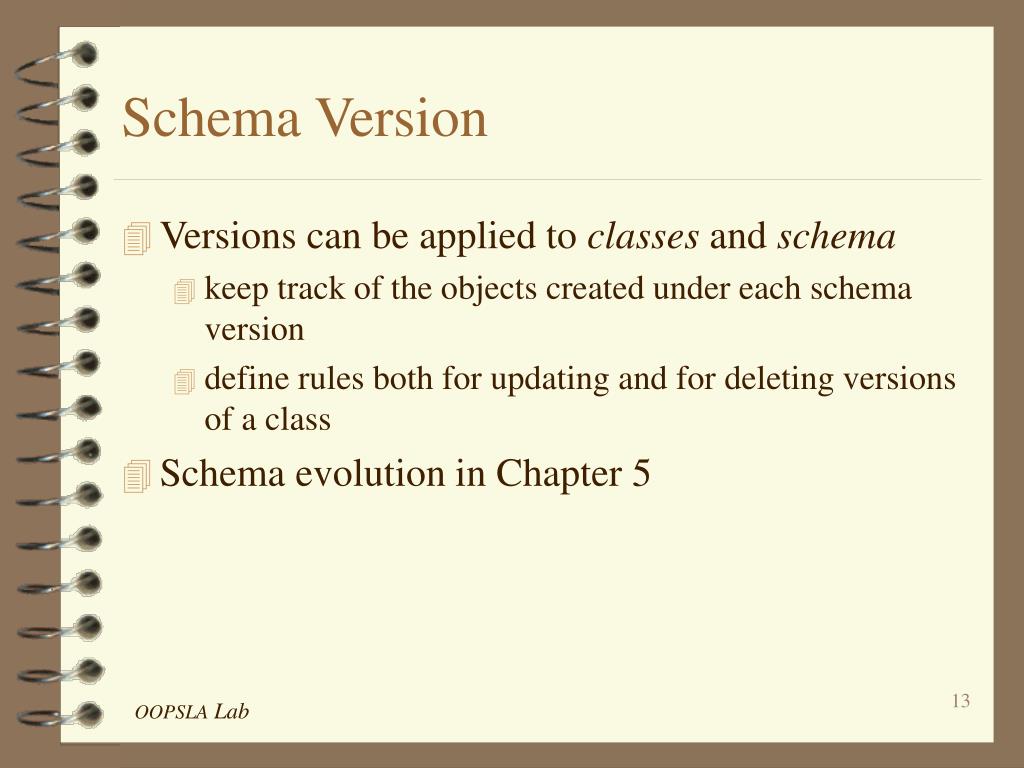

  13. Schema Version • Versions can be applied to classes and schema • keep track of the objects created under each schema version • define rules both for updating and for deleting versions of a class • Schema evolution in Chapter 5

  14. The ORION Model • Types of Version • Transient Version • Working Version • Released Version • Generic Object • Version Descriptor • Notification of Changes • Schema Versions

  15. Transient Version • In the private workspace • Only the creator can update or delete it • Can be created • from scratch • by check-out a released version from a public database. • Can be derived • from another transient version then the source is promoted to a working version • from a working version in a private database

  16. Working Version • In the private workspace • Considered to be stable, thus can’t be updated • only deletion by the creator • Can be derived from transient version by implicit or explicit promoting the latter

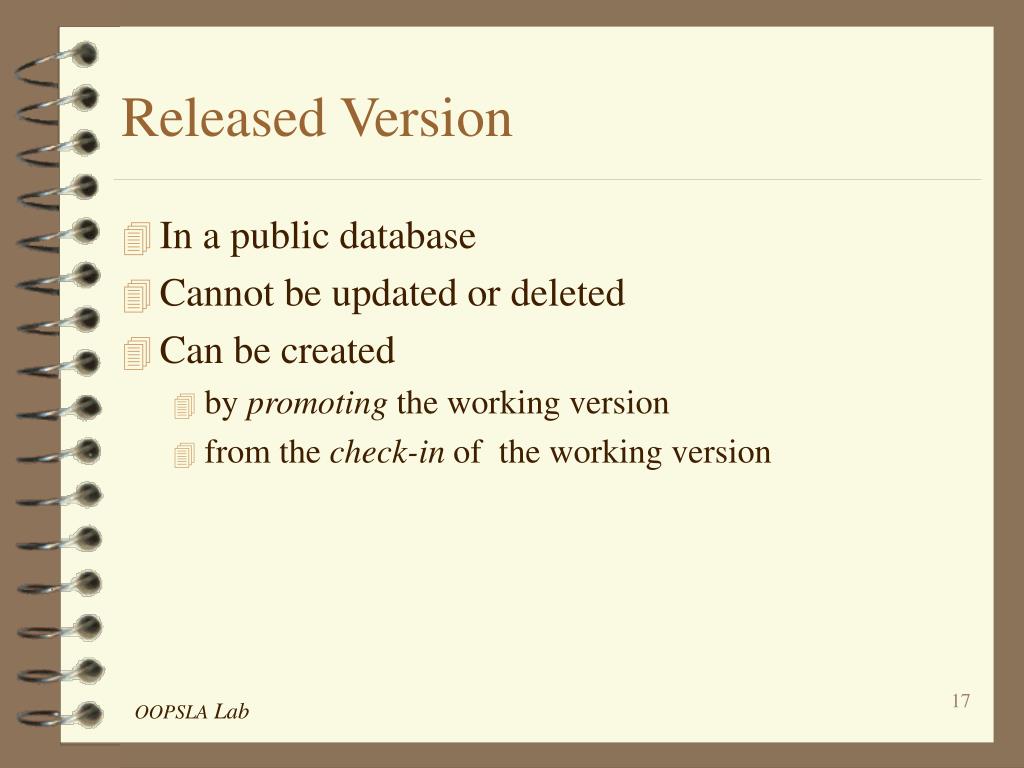

  17. Released Version • In a public database • Cannot be updated or deleted • Can be created • by promoting the working version • from the check-in of the working version

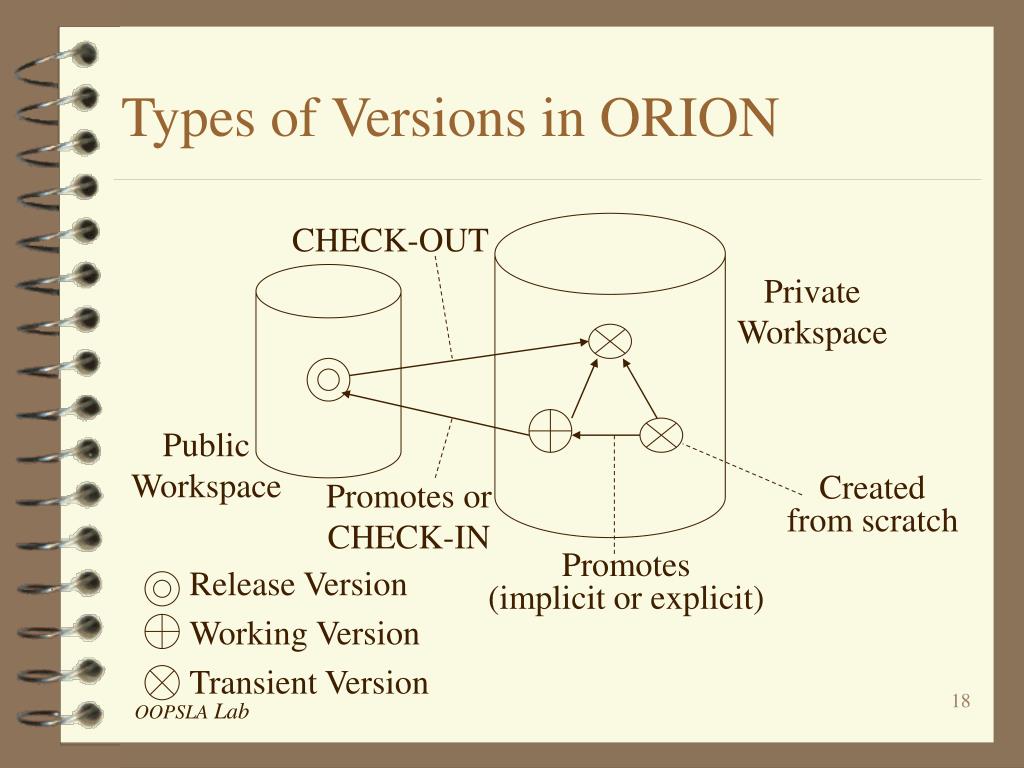

  18. Types of Versions in ORION CHECK-OUT Private Workspace Public Workspace Created from scratch Promotes or CHECK-IN Promotes (implicit or explicit) Release Version Working Version Transient Version

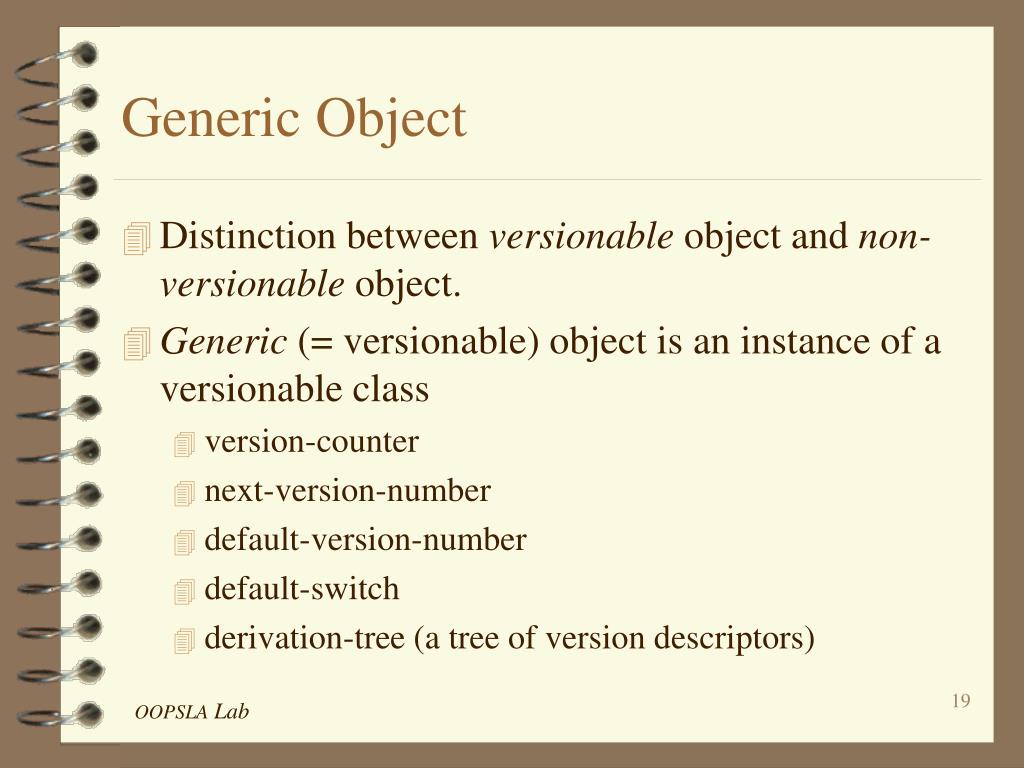

  19. Generic Object • Distinction between versionable object and non-versionable object. • Generic (= versionable) object is an instance of a versionable class • version-counter • next-version-number • default-version-number • default-switch • derivation-tree (a tree of version descriptors)

  20. An Example of Generic Object O[0] OID[0] OID A Generic Reference (Dynamic) OID[1] O[1] Version Instances B O[2] OID[2] Generic Object Specific Reference (Static) default version

  21. Version Descriptor • A version descriptor for each version instance Oi • the version-number of Oi • the OID of Oi • a list of the references to version descriptors for all version instances which are derived directly from Oi • System attributes in each version instance • version-number • type-of-version • OID of its generic object

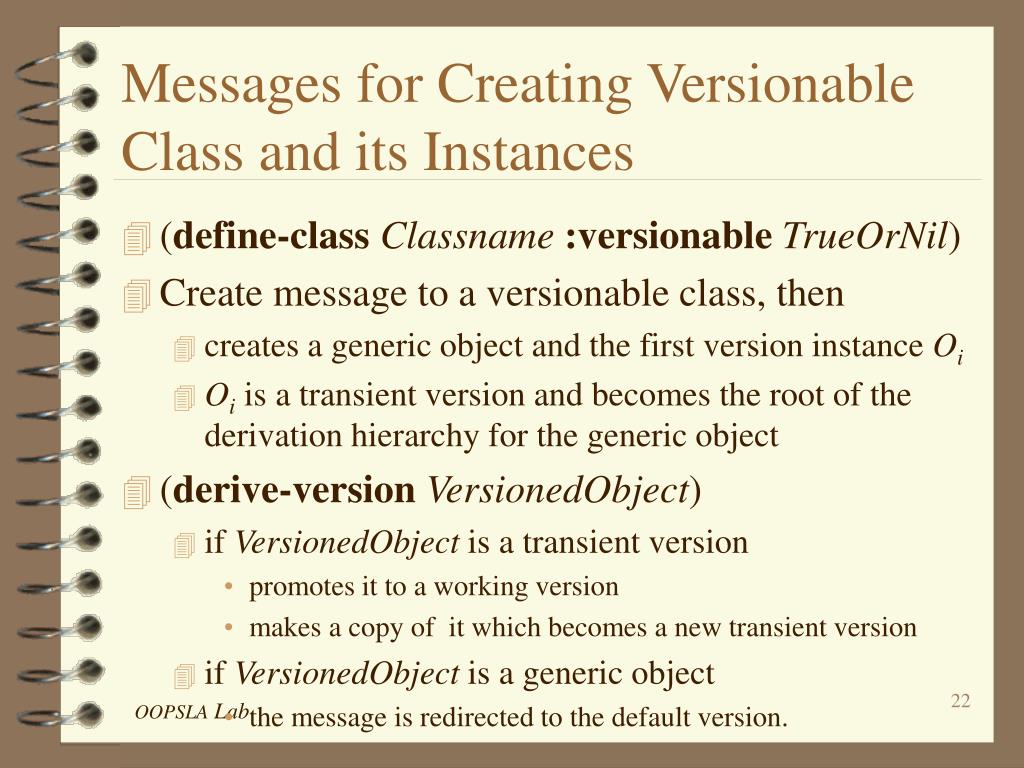

  22. Messages for Creating Versionable Class and its Instances • (define-classClassname:versionableTrueOrNil) • Create message to a versionable class, then • creates a generic object and the first version instance Oi • Oi is a transient version and becomes the root of the derivation hierarchy for the generic object • (derive-versionVersionedObject) • if VersionedObject is a transient version • promotes it to a working version • makes a copy of it which becomes a new transient version • if VersionedObject is a generic object • the message is redirected to the default version.

  23. Messages Related to Version (1) • (promote VersionedObject ) • promote a transient version to a working version • no action on a working version • ( demote VersionedObject ) • demote a working version to a transient version • no action on a transient version and a working version from which other versions have been derived • ( change-default-versionVersionedObject [NewdefaultVersionNumber] ) • by default, version number of the most recent version

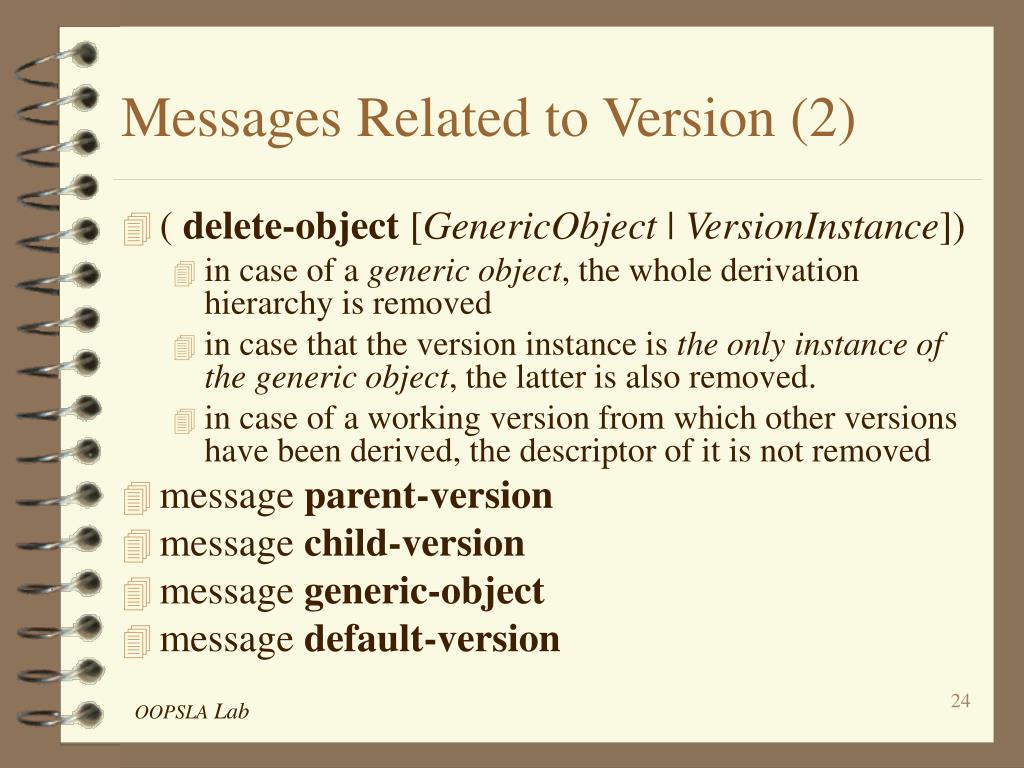

  24. Messages Related to Version (2) • ( delete-object [GenericObject | VersionInstance]) • in case of a generic object, the whole derivation hierarchy is removed • in case that the version instance is theonly instance of the generic object, the latter is also removed. • in case of a working version from which other versions have been derived, the descriptor of it is not removed • message parent-version • message child-version • message generic-object • message default-version

  25. Version and Query • Version-number can be used in predicate • Queries related with version • to find all of the version instances of a versionable class • to find the user-defined default version • to find the most recent version instance • Generic object should be accessed in some queries • implementation and performance problem • unsupported in ORION

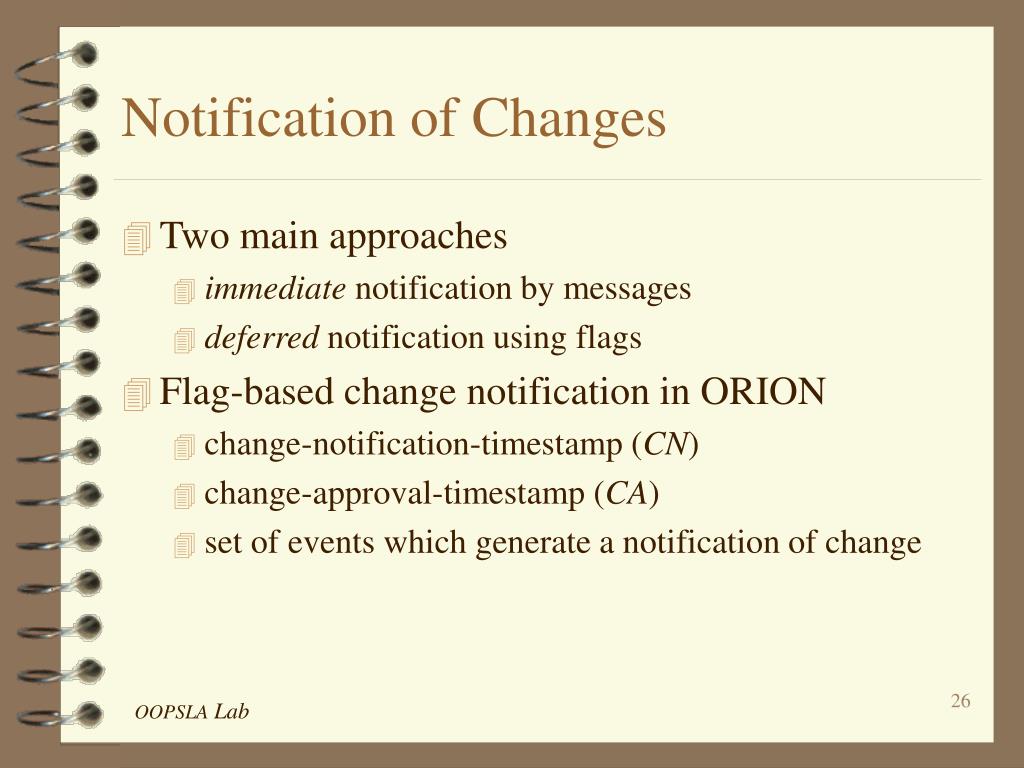

  26. Notification of Changes • Two main approaches • immediate notification by messages • deferred notification using flags • Flag-based change notification in ORION • change-notification-timestamp (CN) • change-approval-timestamp (CA) • set of events which generate a notification of change

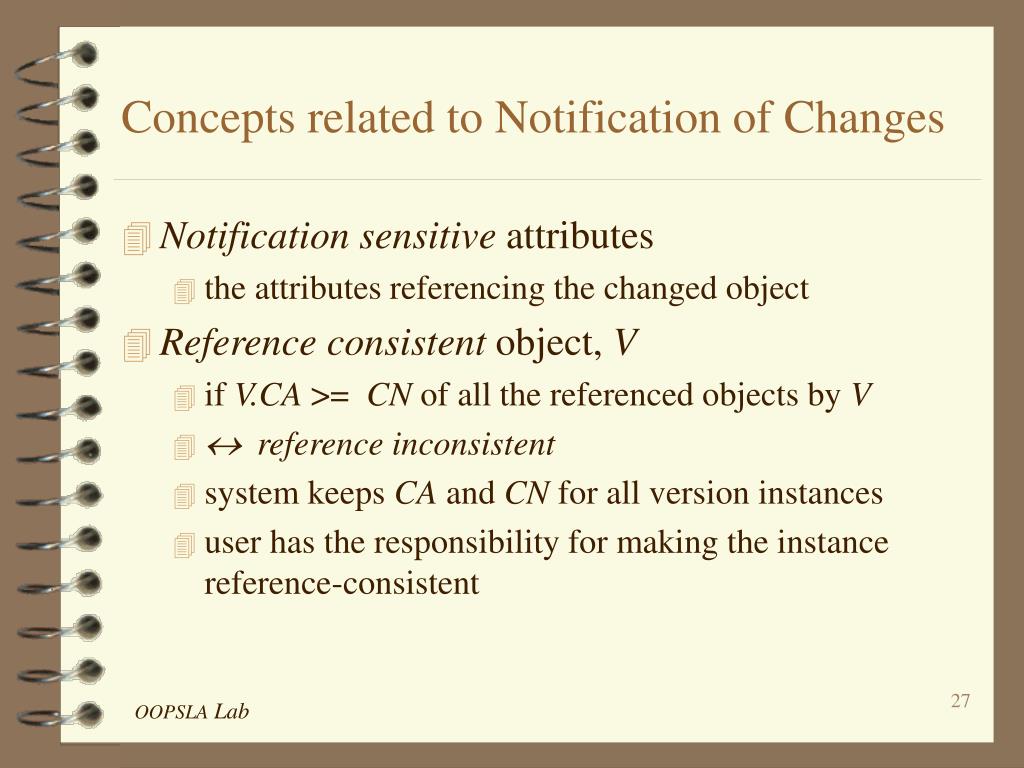

  27. Concepts related to Notification of Changes • Notification sensitive attributes • the attributes referencing the changed object • Reference consistent object, V • if V.CA >= CN of all the referenced objects by V •  reference inconsistent • system keeps CA and CN for all version instances • user has the responsibility for making the instance reference-consistent

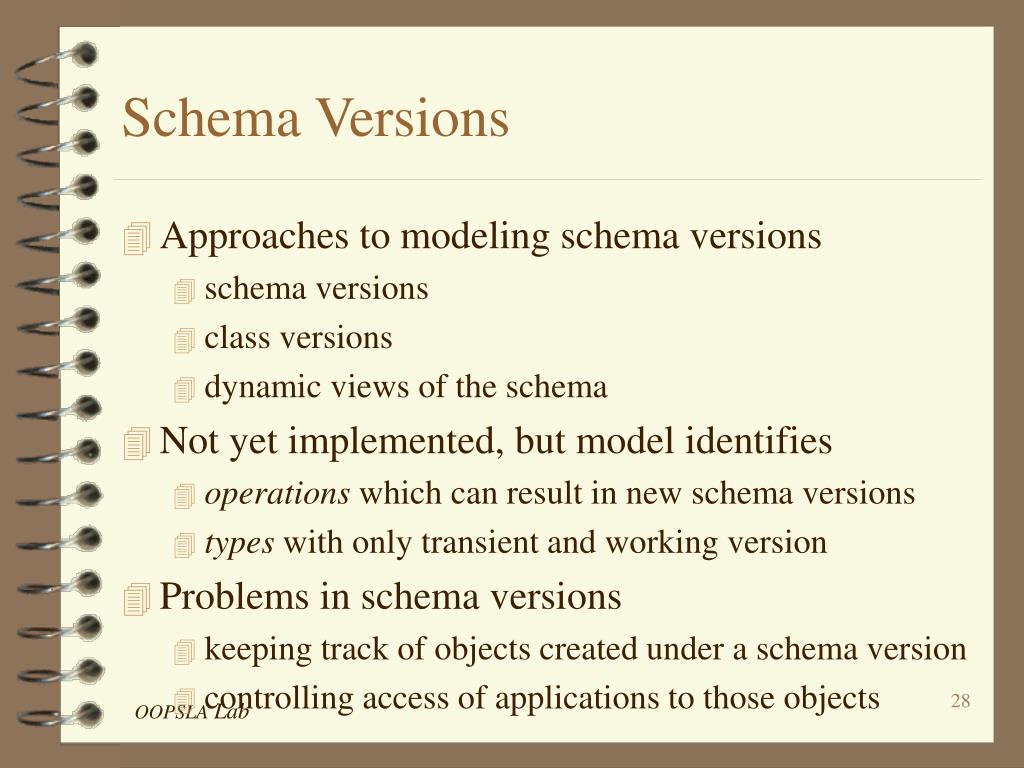

  28. Schema Versions • Approaches to modeling schema versions • schema versions • class versions • dynamic views of the schema • Not yet implemented, but model identifies • operations which can result in new schema versions • types with only transient and working version • Problems in schema versions • keeping track of objects created under a schema version • controlling access of applications to those objects

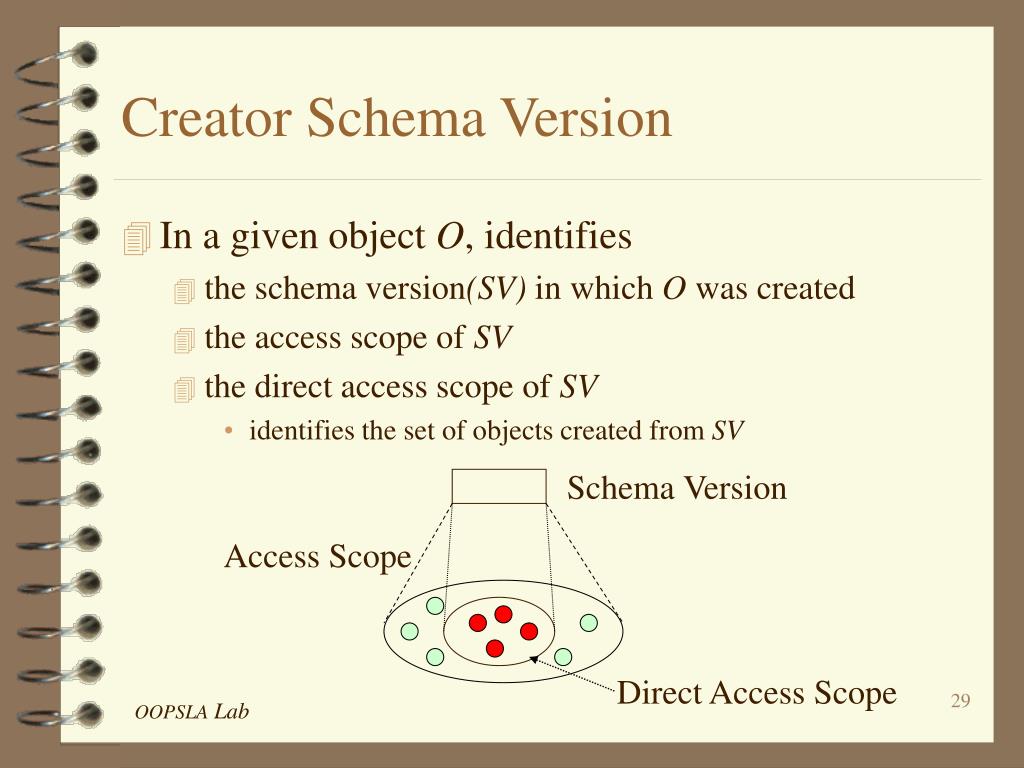

  29. Creator Schema Version • In a given object O, identifies • the schema version(SV) in which O was created • the access scope of SV • the direct access scope of SV • identifies the set of objects created from SV Schema Version Access Scope Direct Access Scope

  30. Proposed Models • Time-oriented Data Model • Dittrich and Lorie • Klahold, Schlageter and Wilkes • Landis • Batory and Kim • Ketabachi and Berzins • Beech and Mahbod • Vines, Vines and King • SUN NSE • Apollo DSEE

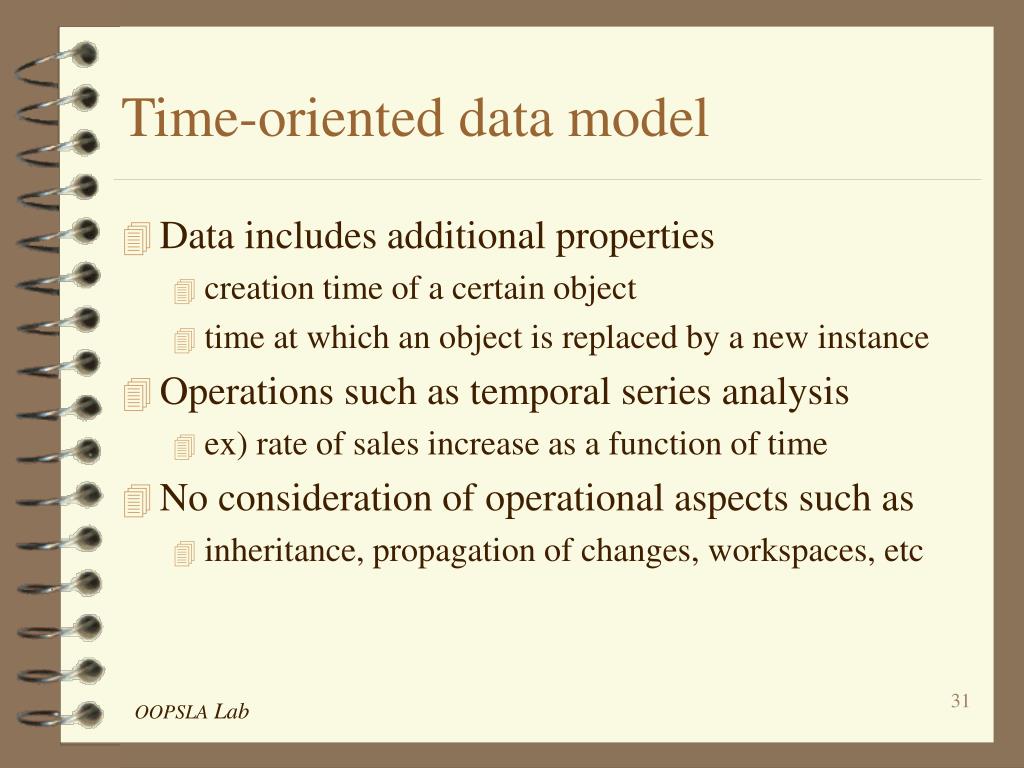

  31. Time-oriented data model • Data includes additional properties • creation time of a certain object • time at which an object is replaced by a new instance • Operations such as temporal series analysis • ex) rate of sales increase as a function of time • No consideration of operational aspects such as • inheritance, propagation of changes, workspaces, etc

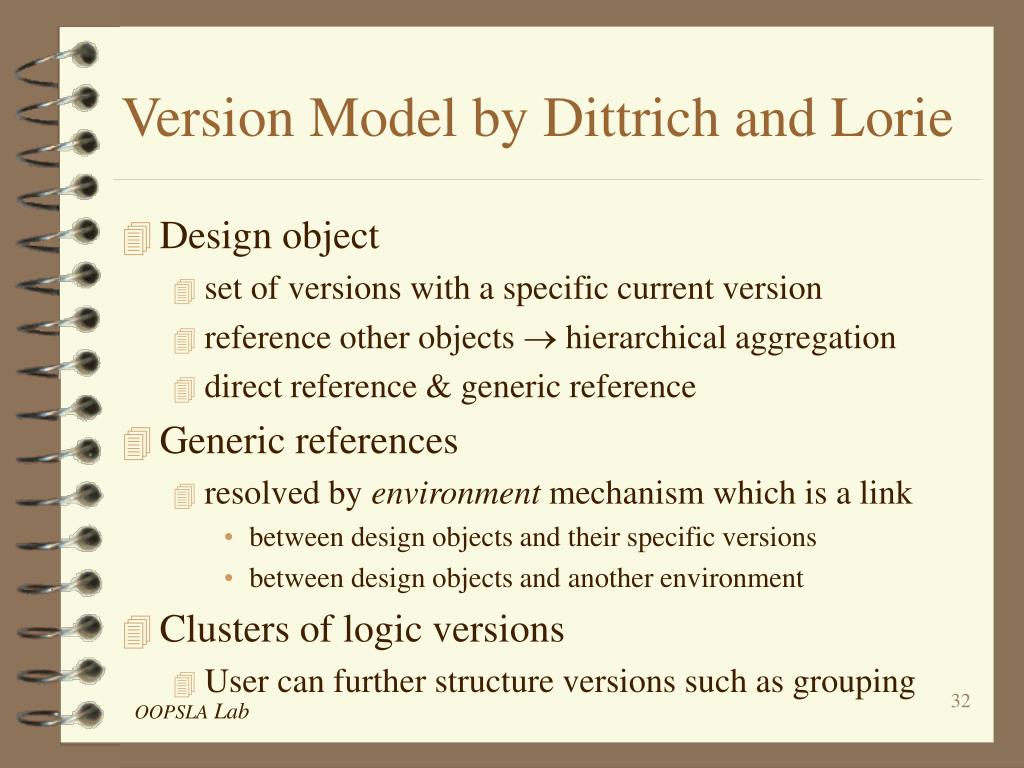

  32. Version Model by Dittrich and Lorie • Design object • set of versions with a specific current version • reference other objects  hierarchical aggregation • direct reference & generic reference • Generic references • resolved by environment mechanism which is a link • between design objects and their specific versions • between design objects and another environment • Clusters of logic versions • User can further structure versions such as grouping

  33. Model by Klahold, Schlageter and Wilkes • Version graph • similar to the concept of history • partitions • groups together a set of versions • a level of consistencey • Views of subsets of a version’s graph

  34. Model by Landis • Non-linear history • consists of several derivation branches • the current version and the default branch. • Version references • supports dynamic configuration • Change propagation • a new version creation, schema change, value change • Additional mechanism to control changes • delta sets which are similar to the log • pended version creation is similar to checking-in in semi-public workspace

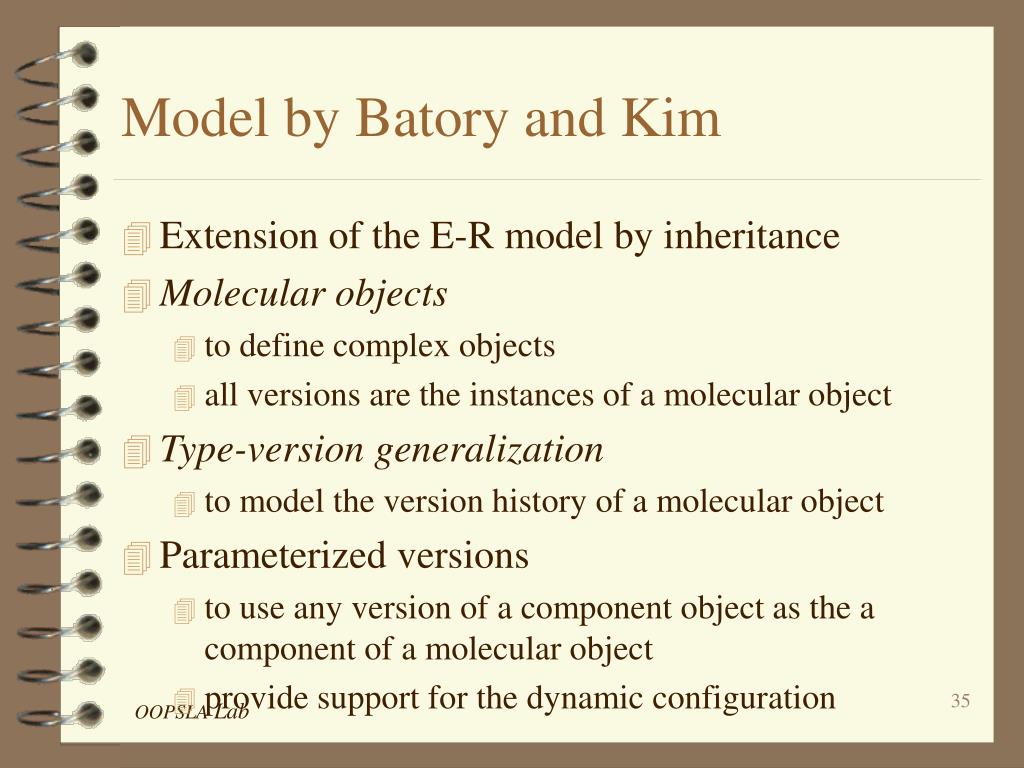

  35. Model by Batory and Kim • Extension of the E-R model by inheritance • Molecular objects • to define complex objects • all versions are the instances of a molecular object • Type-version generalization • to model the version history of a molecular object • Parameterized versions • to use any version of a component object as the a component of a molecular object • provide support for the dynamic configuration

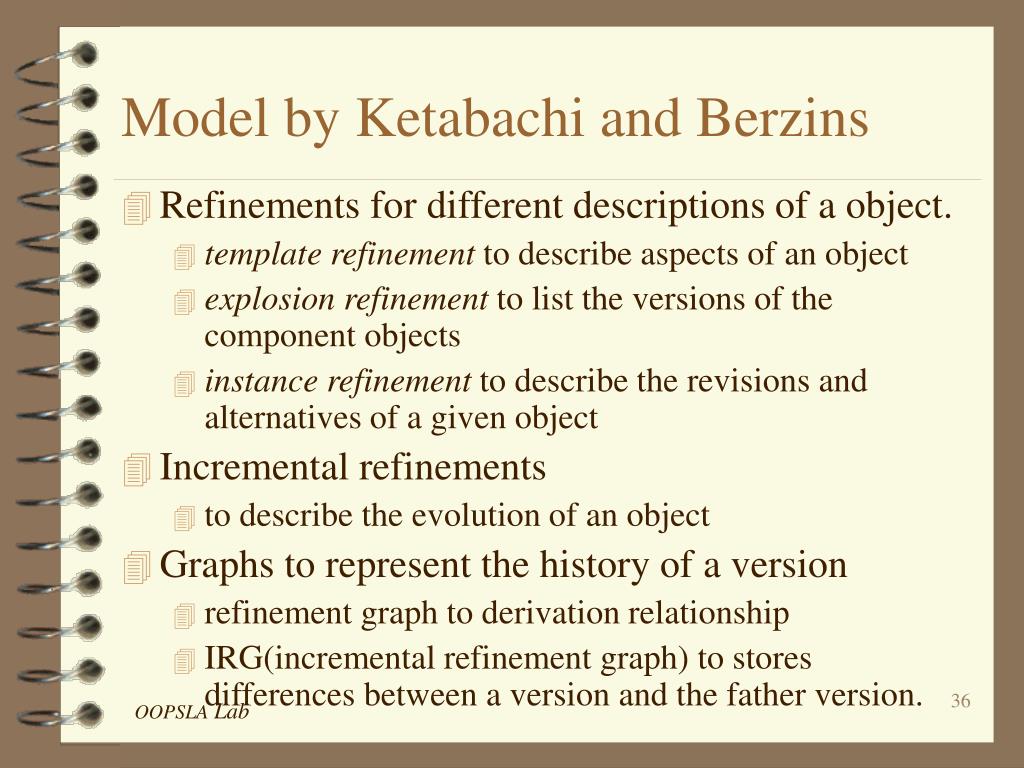

  36. Model by Ketabachi and Berzins • Refinements for different descriptions of a object. • template refinement to describe aspects of an object • explosion refinement to list the versions of the component objects • instance refinement to describe the revisions and alternatives of a given object • Incremental refinements • to describe the evolution of an object • Graphs to represent the history of a version • refinement graph to derivation relationship • IRG(incremental refinement graph) to stores differences between a version and the father version.

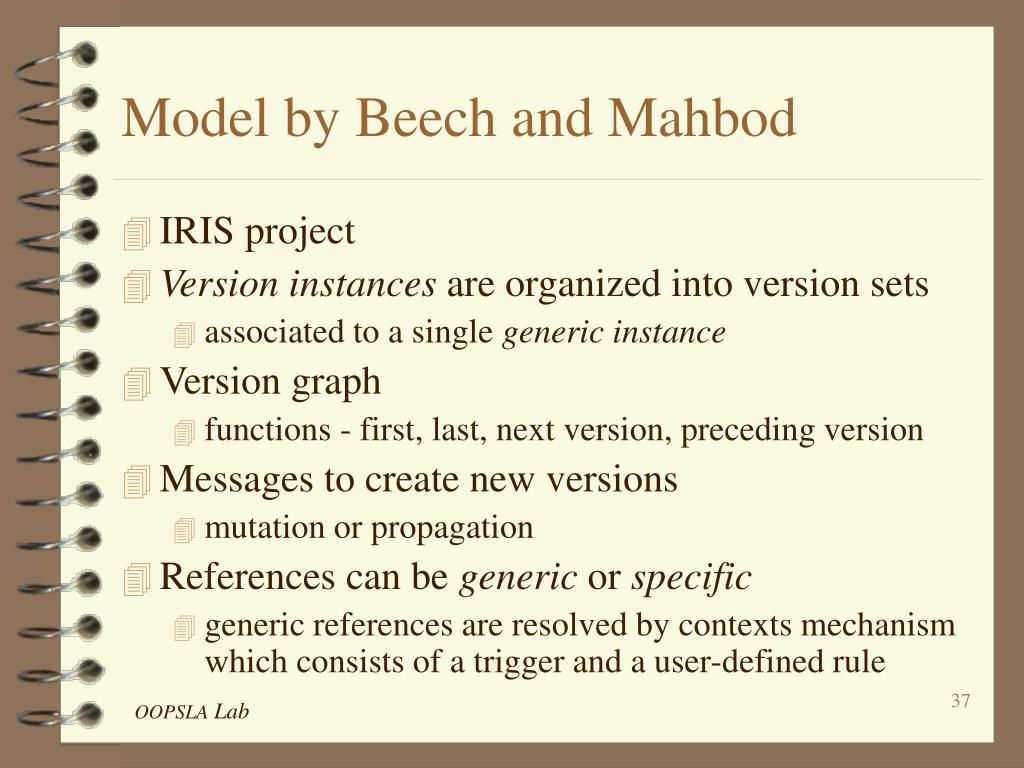

  37. Model by Beech and Mahbod • IRIS project • Version instances are organized into version sets • associated to a single generic instance • Version graph • functions - first, last, next version, preceding version • Messages to create new versions • mutation or propagation • References can be generic or specific • generic references are resolved by contexts mechanism which consists of a trigger and a user-defined rule

  38. Model by Vines, Vines and King • Change control and versions model of GAIA • Versions are identified with timestamps • Version is related to the event which generated it • version sensitive relations • change sensitive relations • Specific objects for managing changes • change request object • change notification object • configuration object

  39. SUN NSU Model • System for software development environment • Types of object • FILE, TARGET, COMPONENT, LINKDB • Versions are stored in the form of interleaved deltas inside an object • Access paradigm is based on • acquire, modify and reconcile operations • Change notification support

  40. Apollo DSEE Model • System for software development environment • Components • history manager - reserve and replace operation • configuration manager to define module composition • configuration thread and bound configuration thread(BCT) • task manager • monitor manager • advice manager • Versions of program modules are stored by using interleaved deltas • Release = a software system + BCT + a keyword.
