  1. Lecture 5 Source Transformation Thevenin Equivalent Circuit Norton Equivalent Circuit

  2. Circuit Techinques • Ohm’s Law • P=VI • KCL, KVL • Voltage/current divider • Series/parallel resistance • Mesh/Nodal Analysis • Source Transformation • Thevenin/Norton Equivalent Circuit • Superposition Principle • Maximum Power Transfer

  3. Source Transformation Show that iS=vS/R for any RL

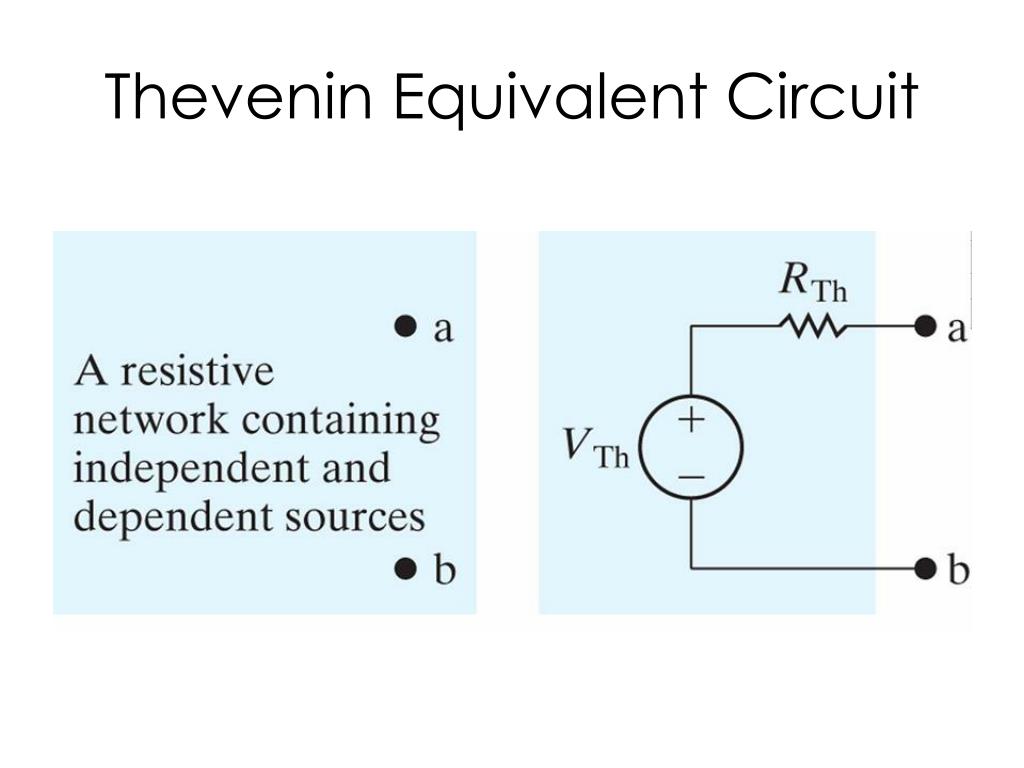

  4. Thevenin Equivalent Circuit

  5. Determine the Thevenin Voltage (VTh) • If RL=∞ (load across a-b is removed), then Vab=VTH • RTH does not play a role!

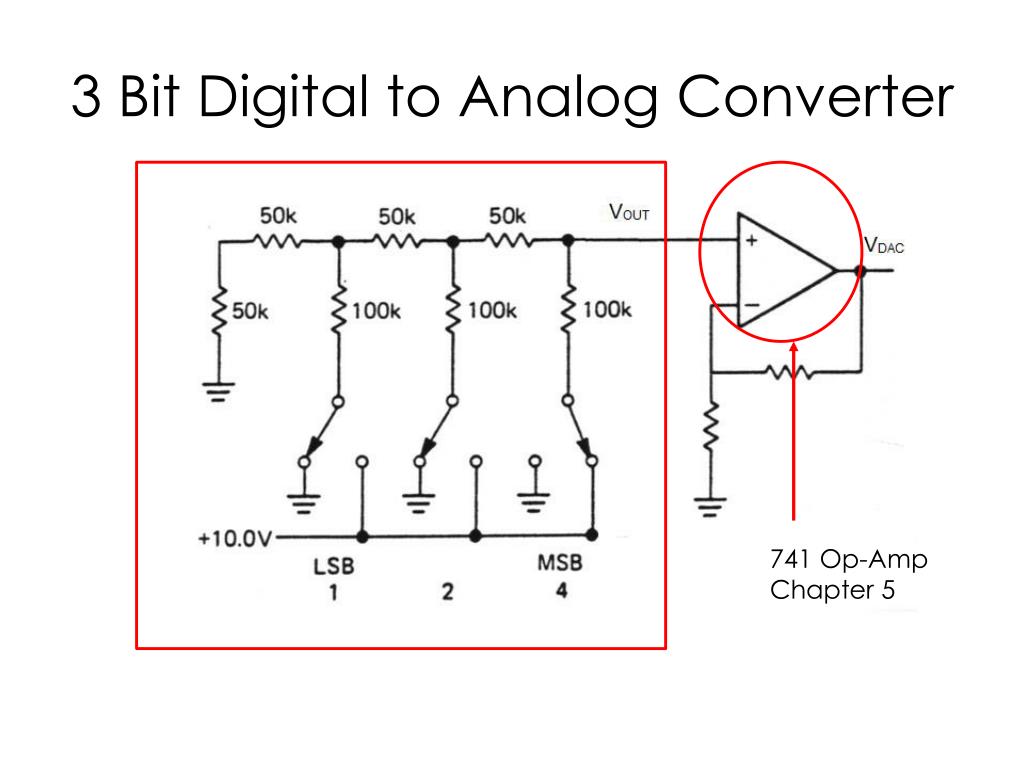

  6. 3 Bit Digital to Analog Converter 741 Op-Amp Chapter 5

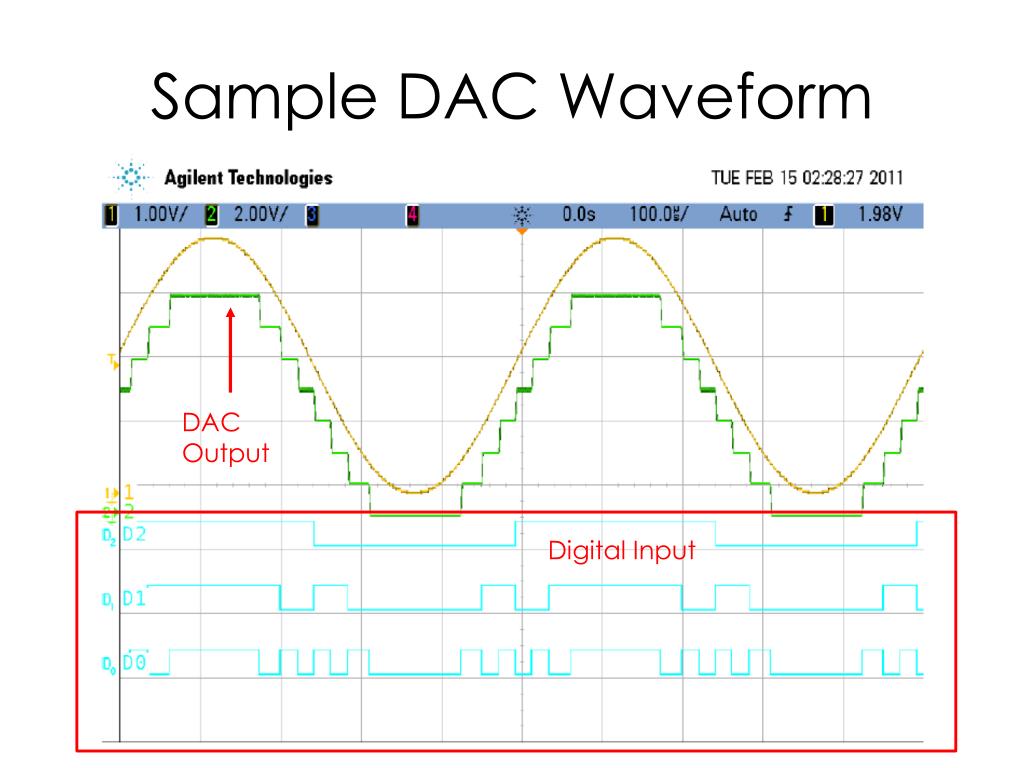

  7. Sample DAC Waveform DAC Output Digital Input

  8. Applications • Most modern audio signals are stored in digital form (e.g. MP3 and CDs) and in order to be heard through speakers they must be converted into an analog signal

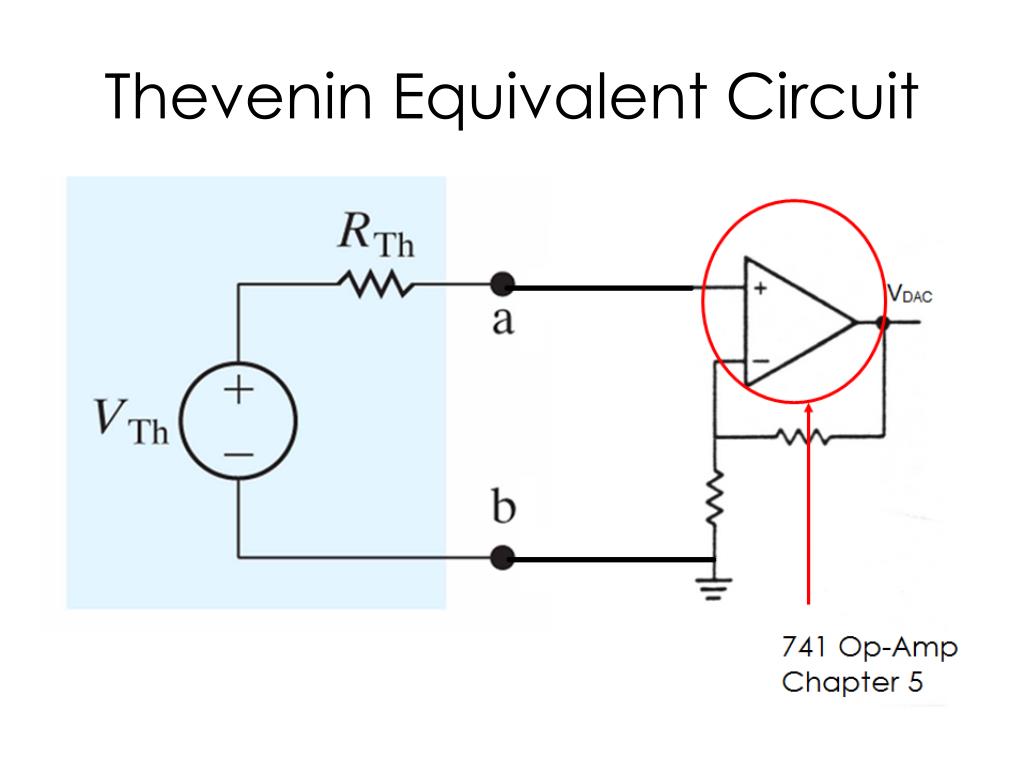

  9. Thevenin Equivalent Circuit

  10. Determine VTH

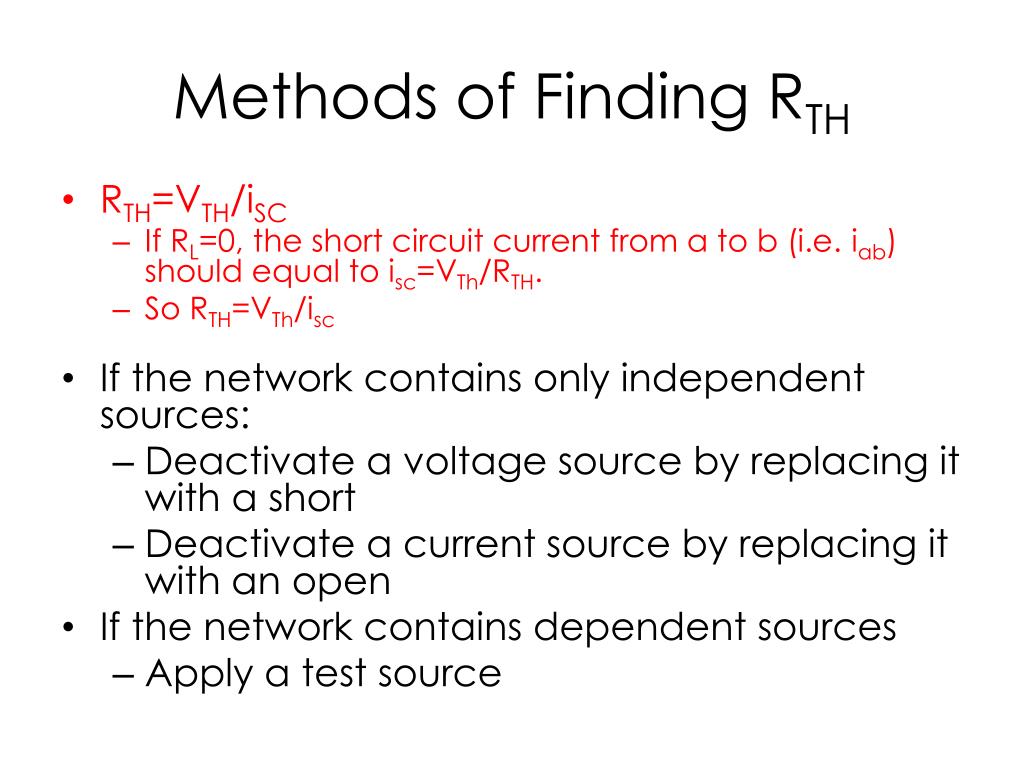

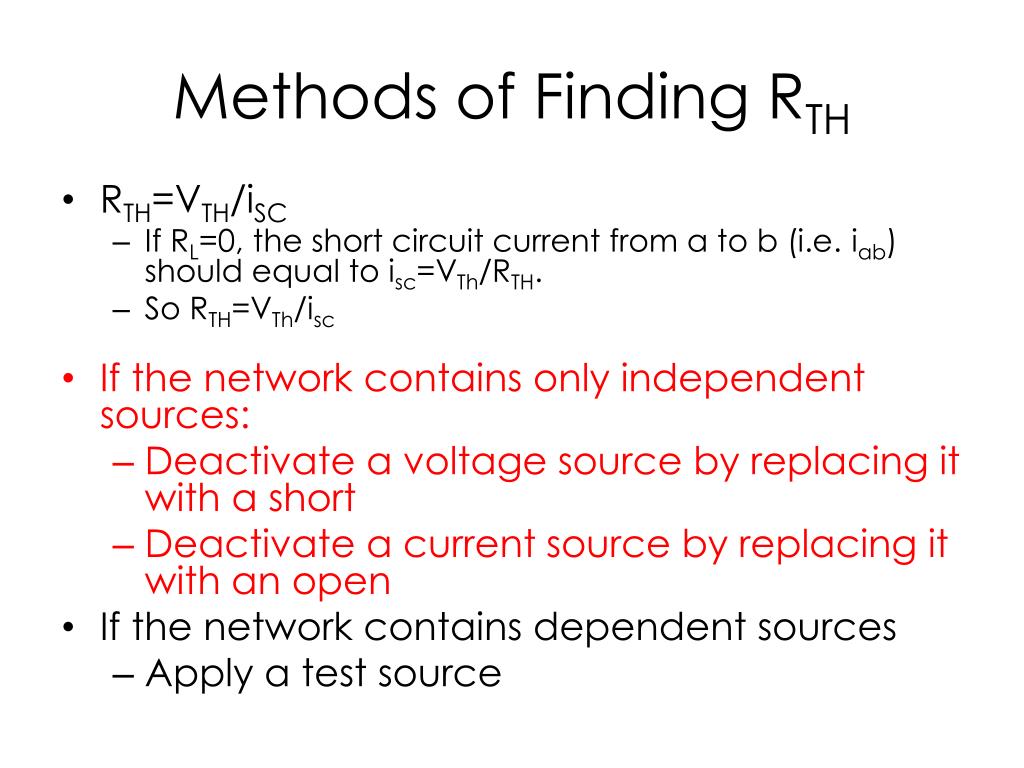

  11. Methods of Finding RTH • RTH=VTH/iSC • If RL=0, the short circuit current from a to b (i.e. iab) should equal to isc=VTh/RTH. • So RTH=VTh/isc • If the network contains only independent sources: • Deactivate a voltage source by replacing it with a short • Deactivate a current source by replacing it with an open • If the network contains dependent sources • Apply a test source

  12. Calculate the Thevenin Resistance RTH

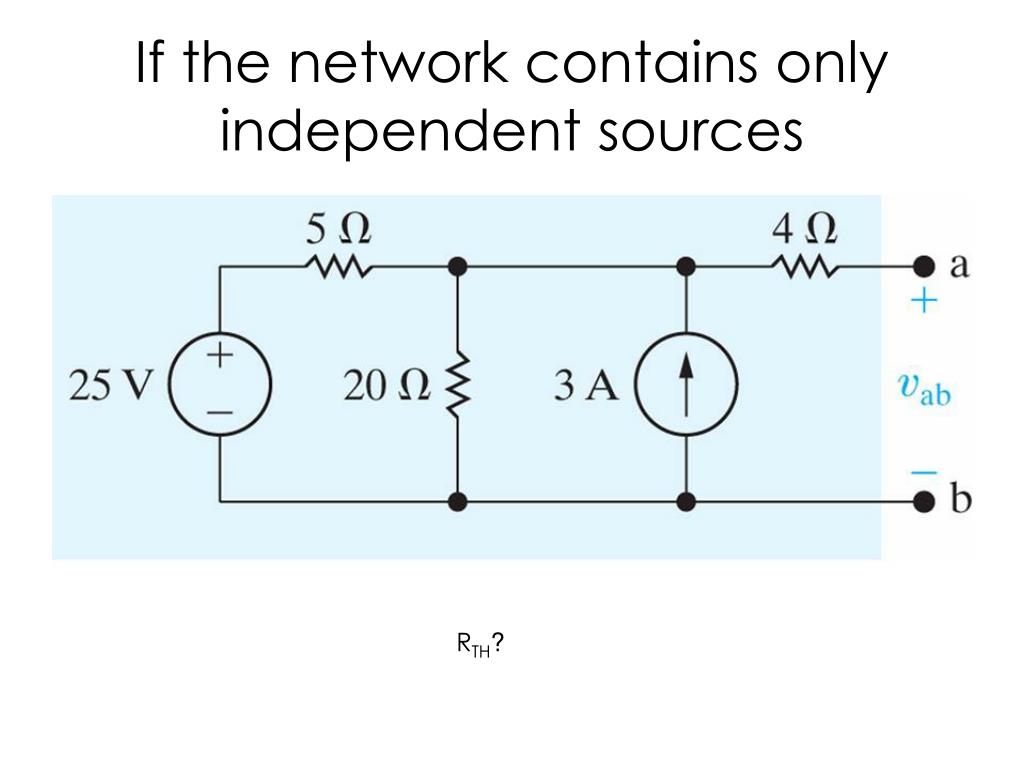

  13. If the network contains only independent sources RTH?

  14. RTH

  15. Methods of Finding RTH • RTH=VTH/iSC • If RL=0, the short circuit current from a to b (i.e. iab) should equal to isc=VTh/RTH. • So RTH=VTh/isc • If the network contains only independent sources: • Deactivate a voltage source by replacing it with a short • Deactivate a current source by replacing it with an open • If the network contains dependent sources • Apply a test source

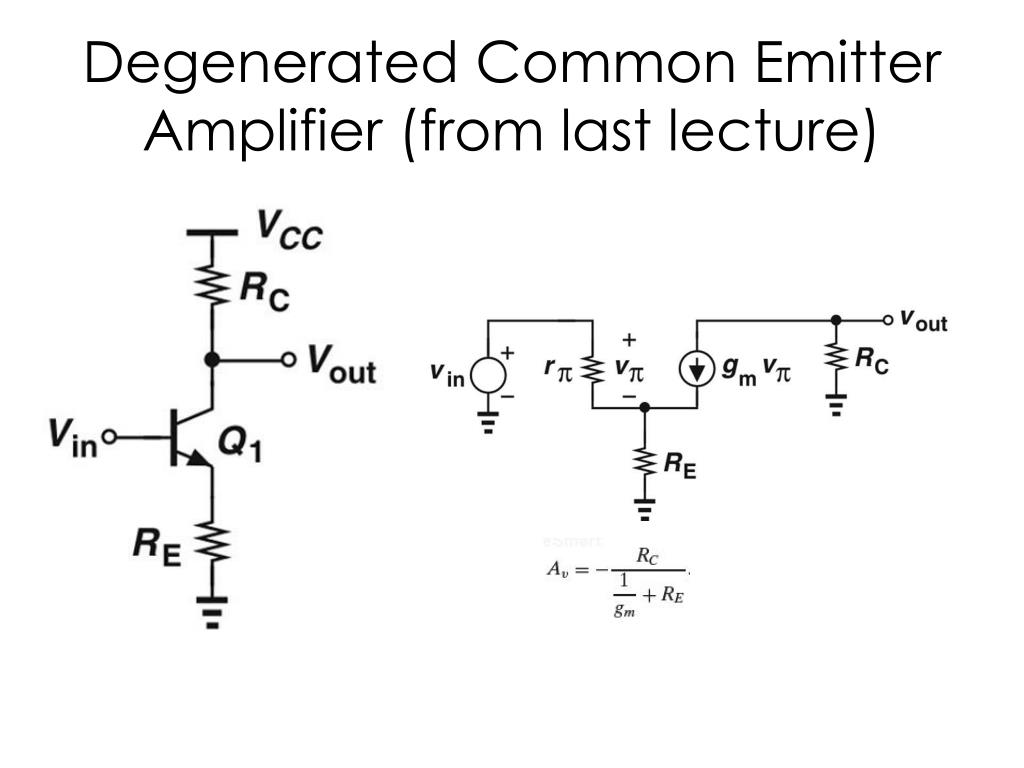

  16. Degenerated Common Emitter Amplifier (from last lecture)

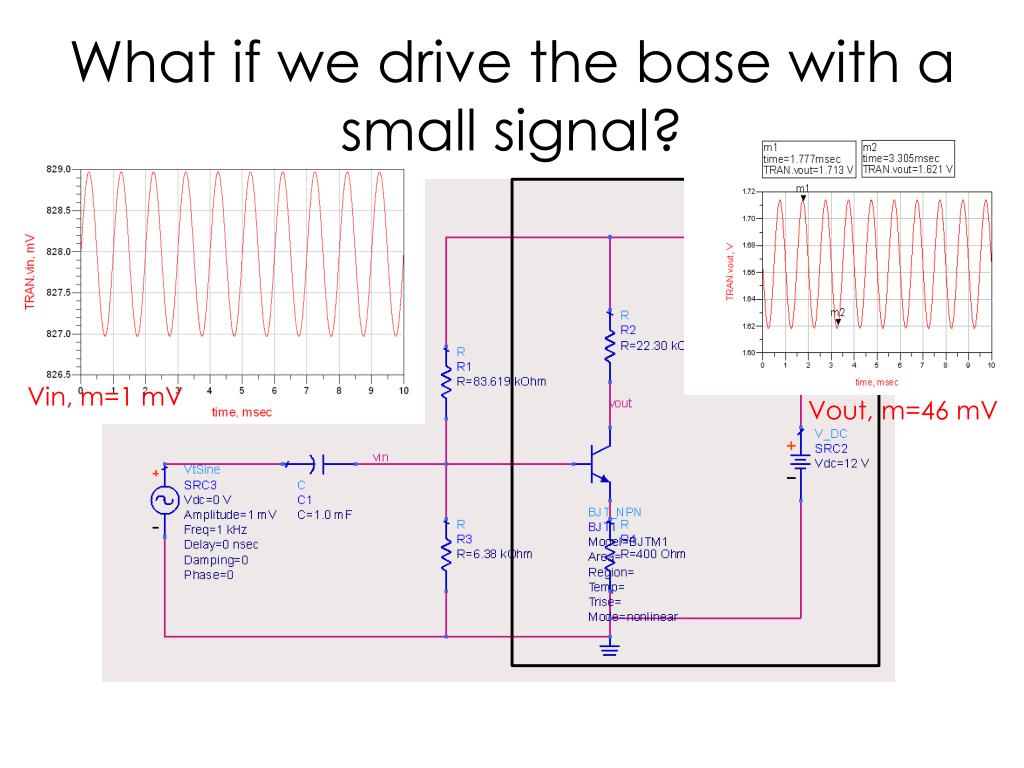

  17. What if we drive the base with a small signal? Vin, m=1 mV Vout, m=46 mV

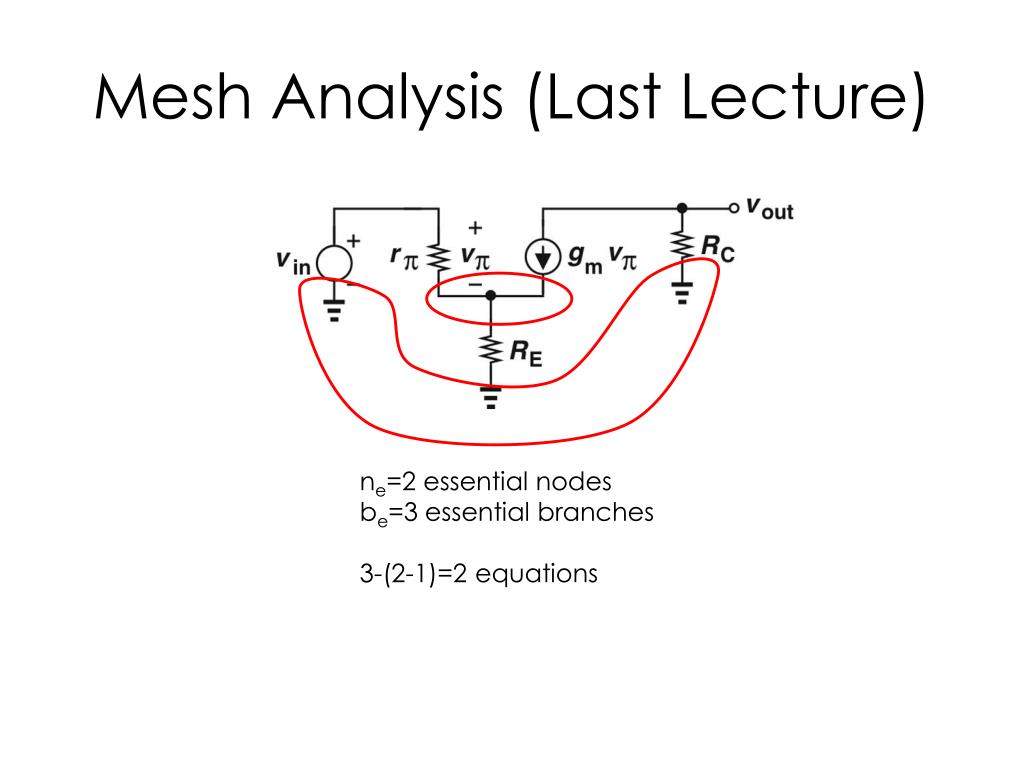

  18. Mesh Analysis (Last Lecture) ne=2 essential nodes be=3 essential branches 3-(2-1)=2 equations

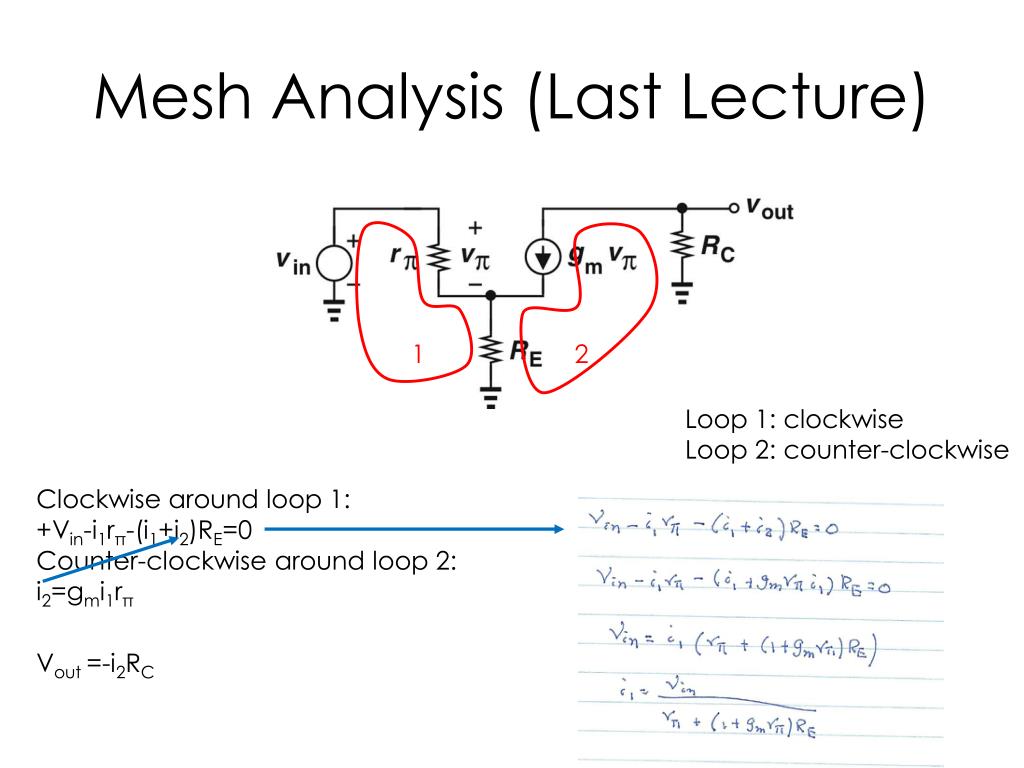

  19. Mesh Analysis (Last Lecture) 1 2 Loop 1: clockwise Loop 2: counter-clockwise Clockwise around loop 1: +Vin-i1rπ-(i1+i2)RE=0 Counter-clockwise around loop 2: i2=gmi1rπ Vout=-i2RC

  20. Mesh Analysis (Details)

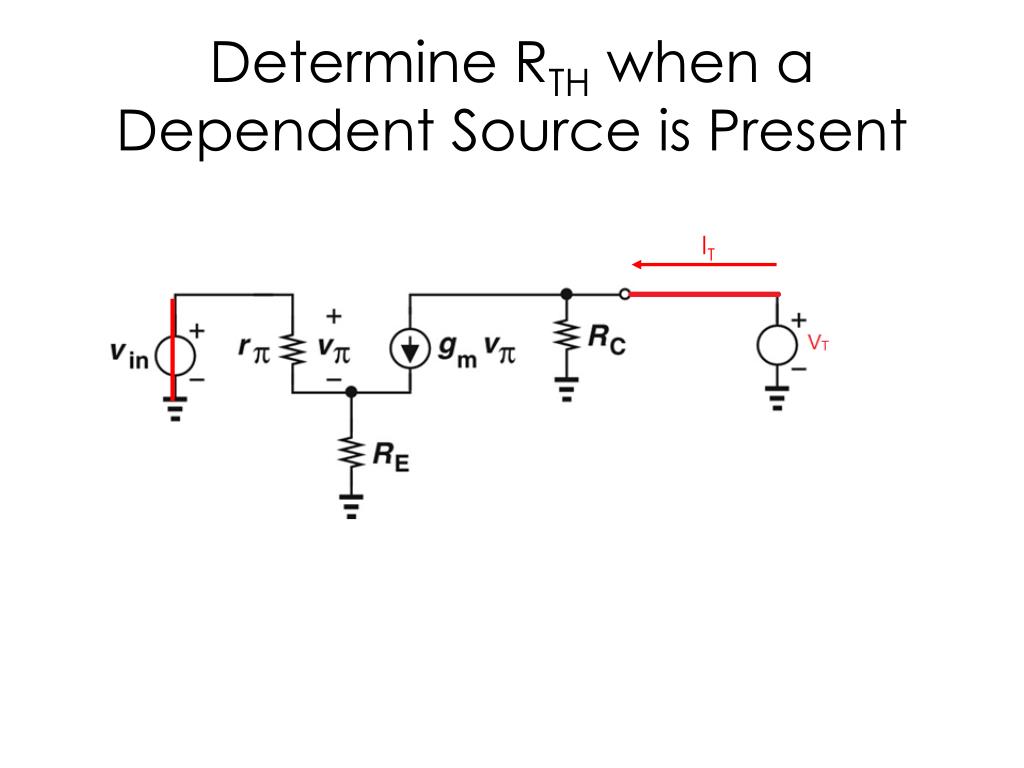

  21. Determine RTH when a Dependent Source is Present IT

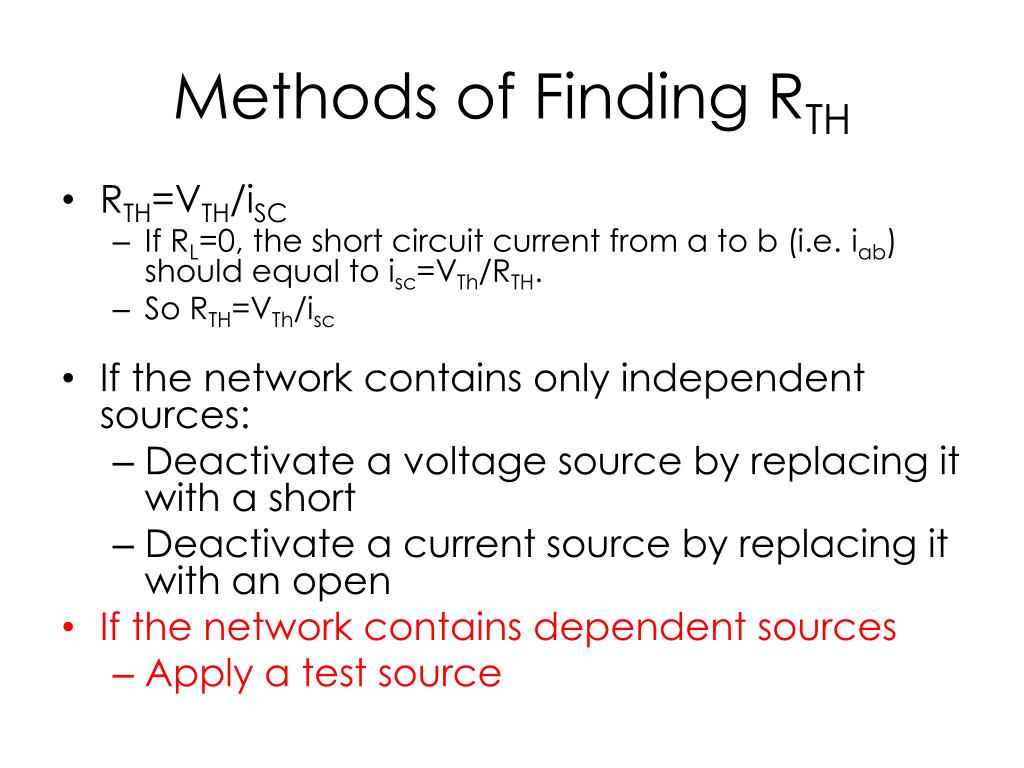

  22. Methods of Finding RTH • RTH=VTH/iSC • If RL=0, the short circuit current from a to b (i.e. iab) should equal to isc=VTh/RTH. • So RTH=VTh/isc • If the network contains only independent sources: • Deactivate a voltage source by replacing it with a short • Deactivate a current source by replacing it with an open • If the network contains dependent sources • Apply a test source

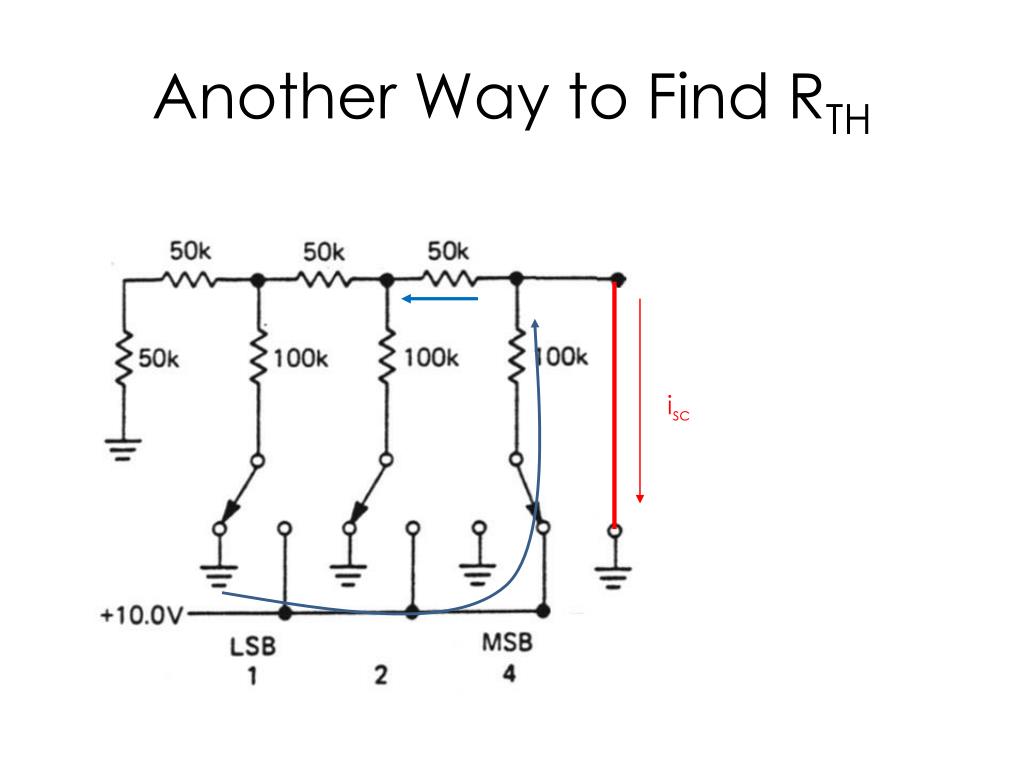

  23. Another Way to Find RTH isc

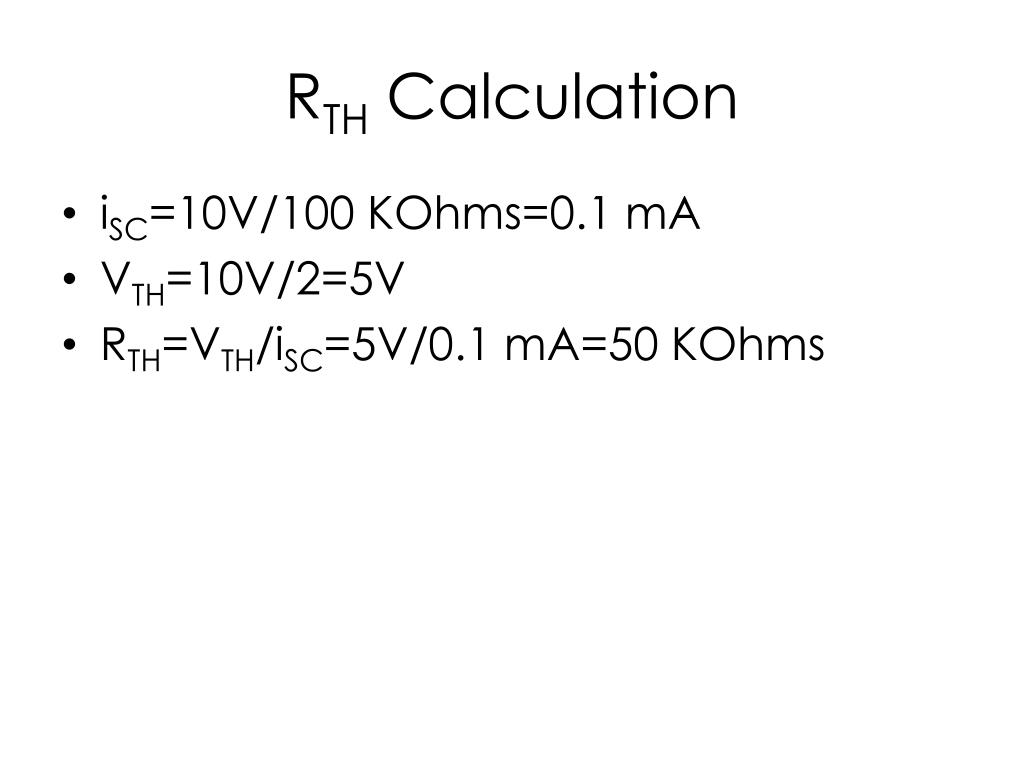

  24. RTH Calculation • iSC=10V/100 KOhms=0.1 mA • VTH=10V/2=5V • RTH=VTH/iSC=5V/0.1 mA=50 KOhms

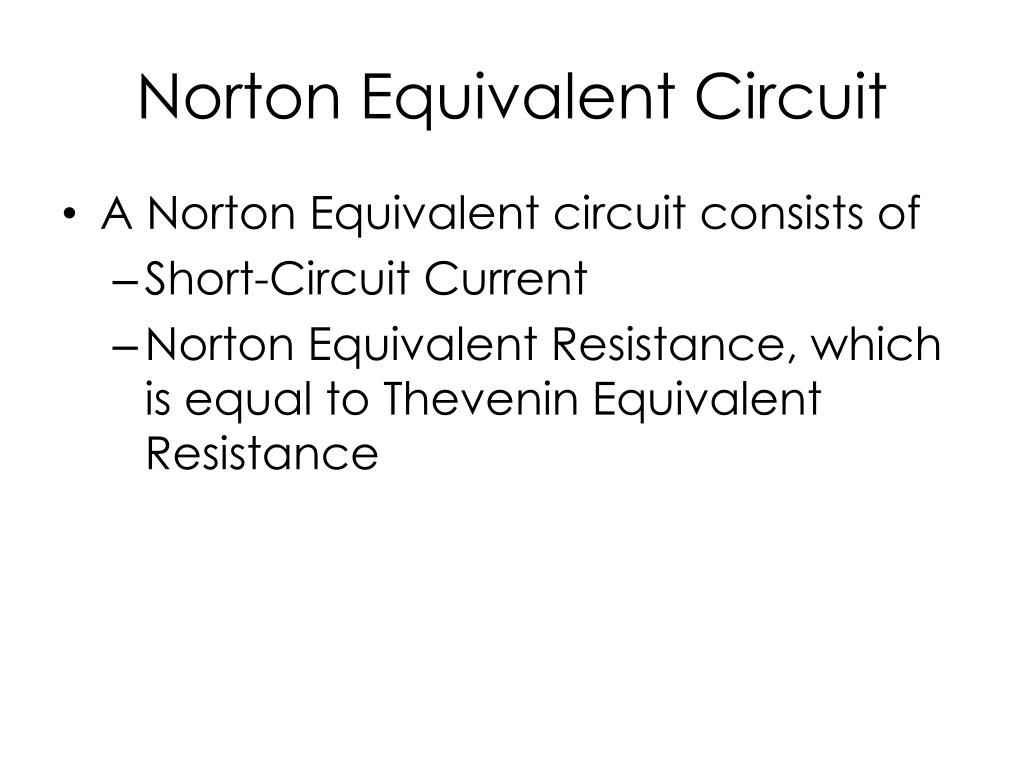

  25. Norton Equivalent Circuit • A Norton Equivalent circuit consists of • Short-Circuit Current • Norton Equivalent Resistance, which is equal to Thevenin Equivalent Resistance

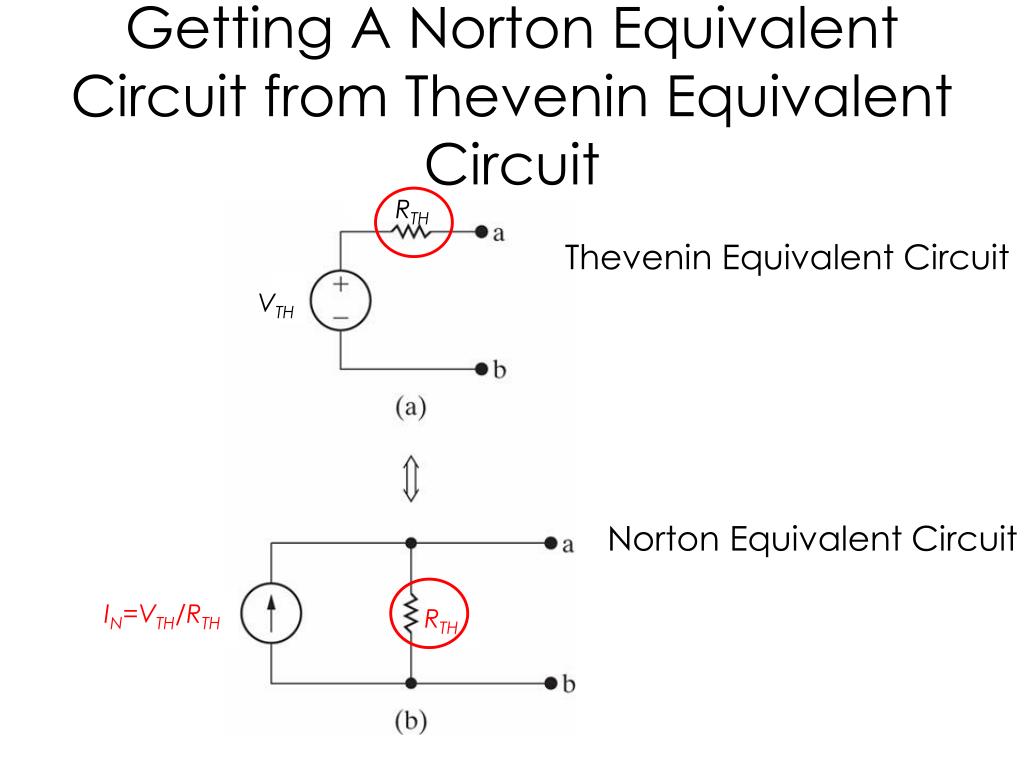

  26. Getting A Norton Equivalent Circuit from Thevenin Equivalent Circuit RTH Thevenin Equivalent Circuit VTH Norton Equivalent Circuit IN=VTH/RTH RTH

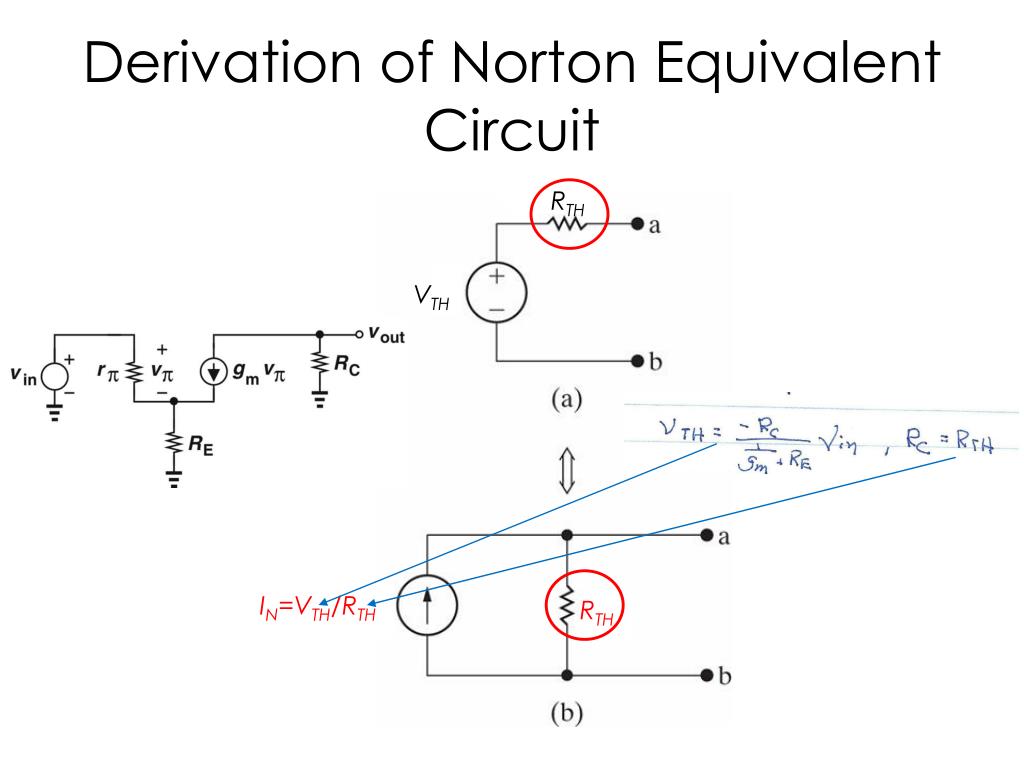

  27. Derivation of Norton Equivalent Circuit RTH VTH IN=VTH/RTH RTH

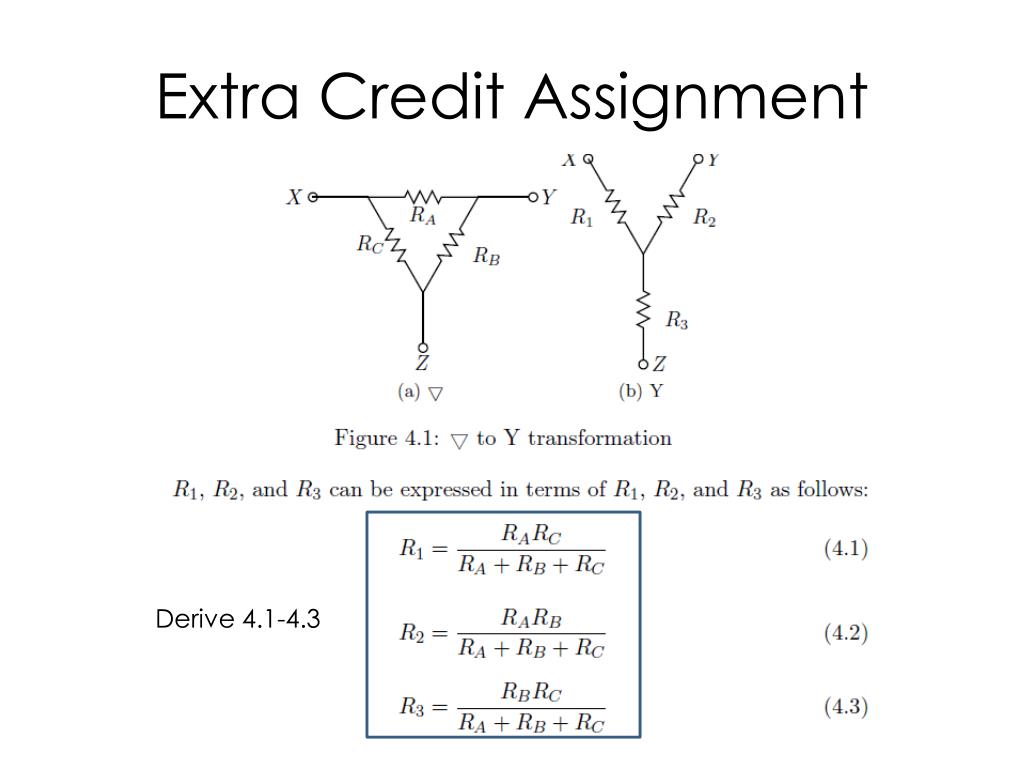

  28. Extra Credit Assignment Derive 4.1-4.3

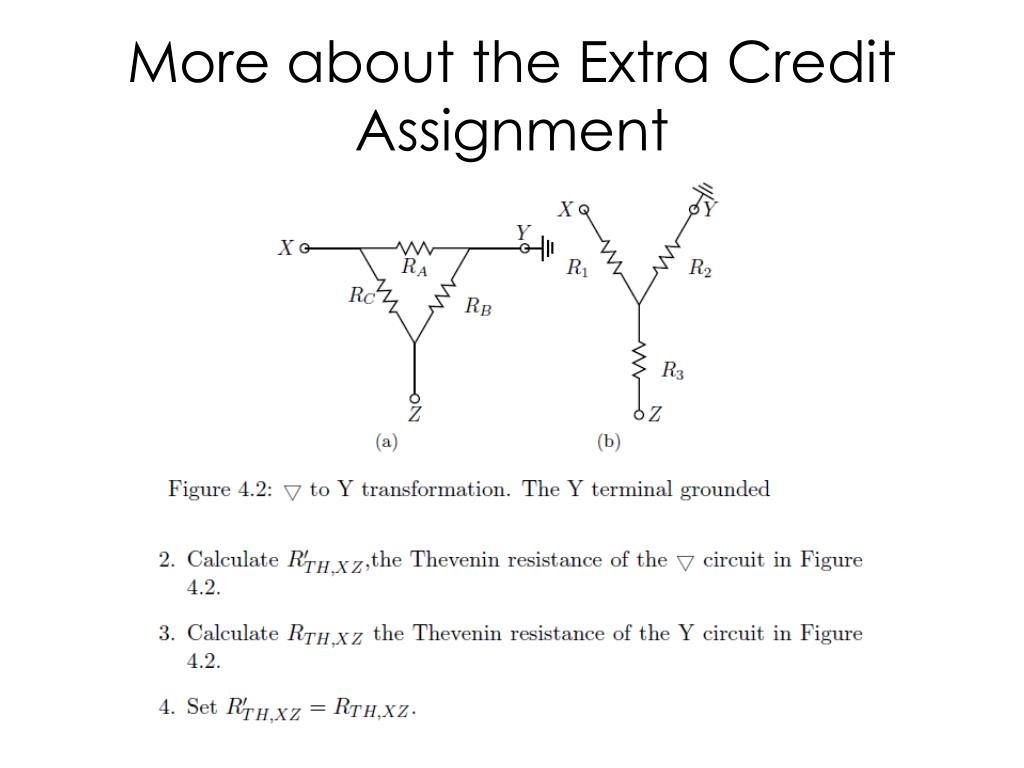

  29. More about the Extra Credit Assignment

  30. Extra Slides on Thevenin

  31. Determine vab Show that VTH=vab

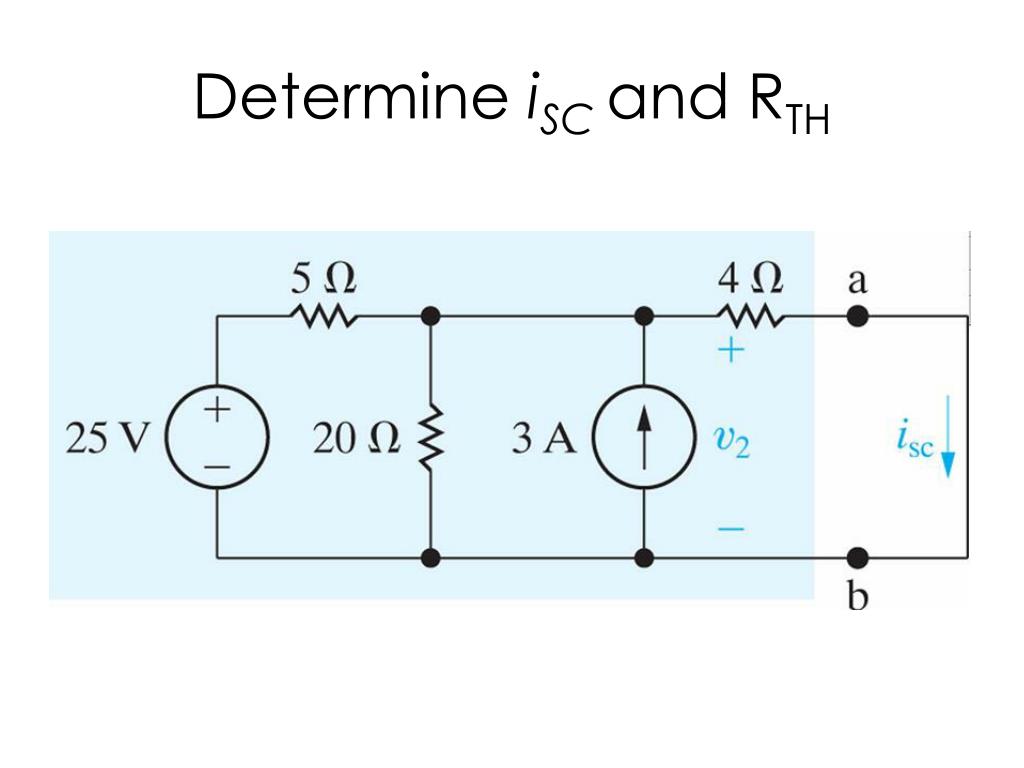

  32. Determine iSCand RTH

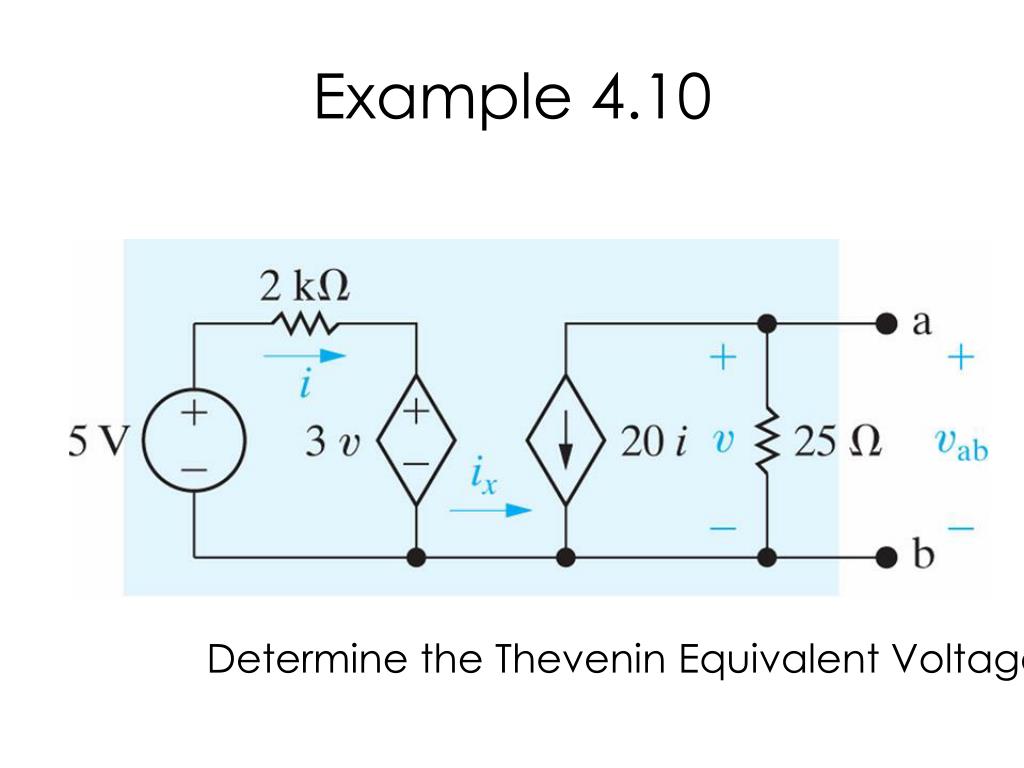

  33. Example 4.10 Determine the Thevenin Equivalent Voltage

  34. Example 4.10 Determine the short circuit current Determine RTH

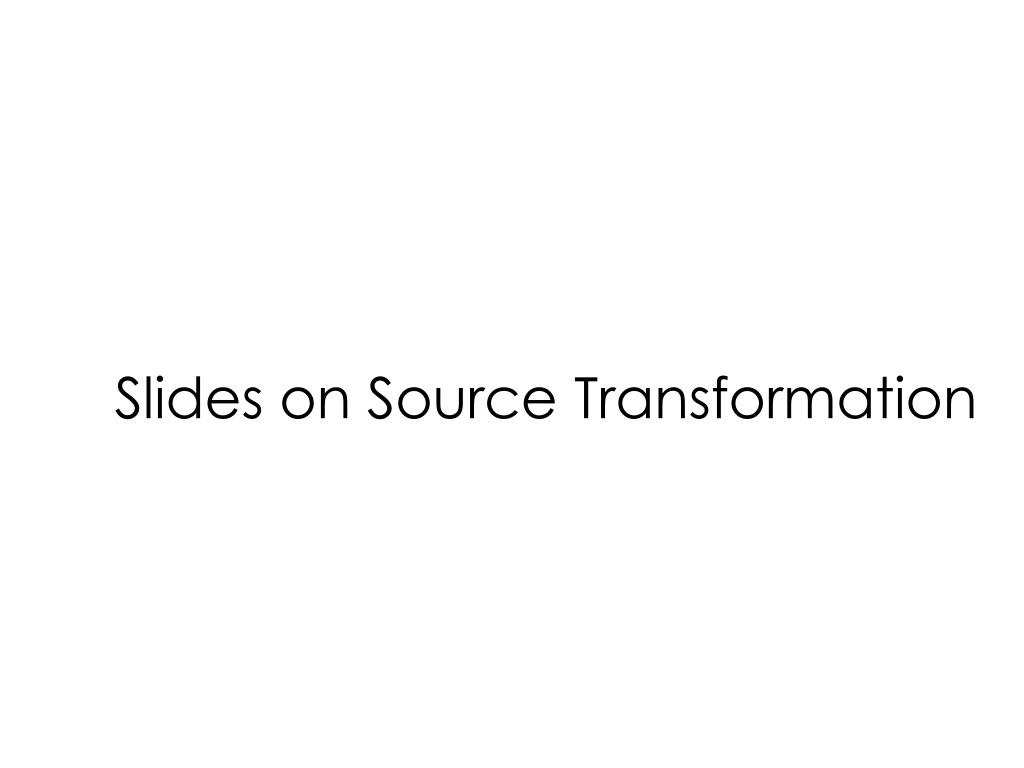

  35. Slides on Source Transformation

  36. RTH

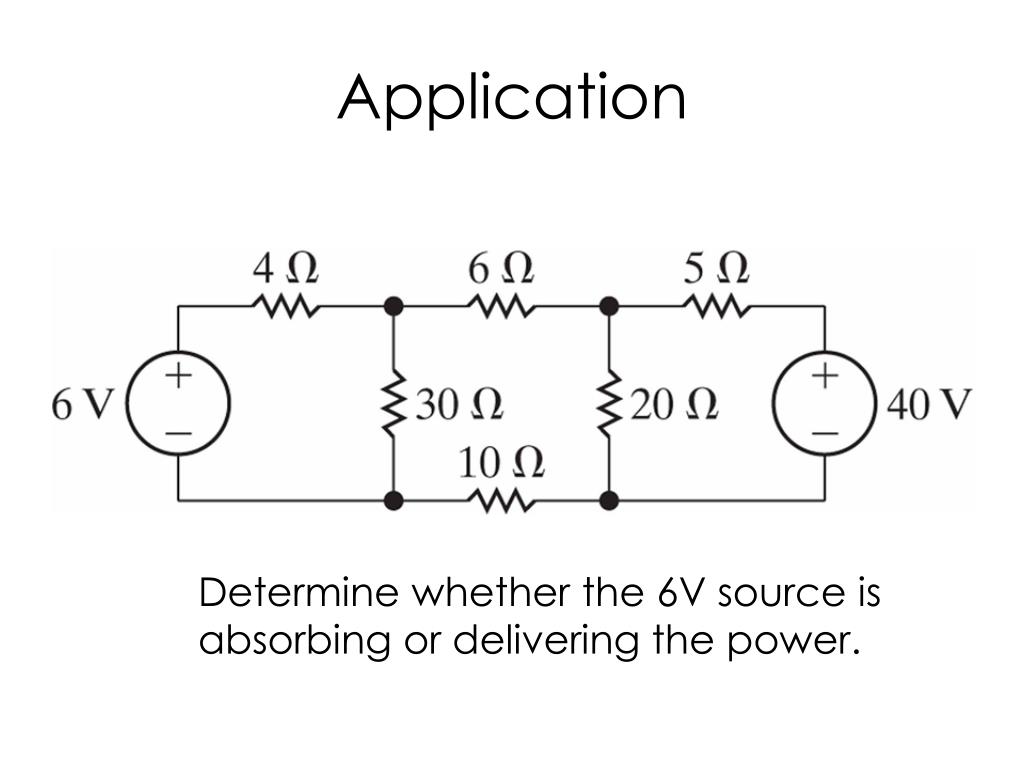

  37. Application Determine whether the 6V source is absorbing or delivering the power.

  38. Step-by-step simplification

  39. Redundant Resistor (1) Prove that the left circuit and the right circuit are equivalent for any load resistor.

  40. Redundant Resistor (2) Prove that the left circuit and the right circuit are equivalent for any load resistor.

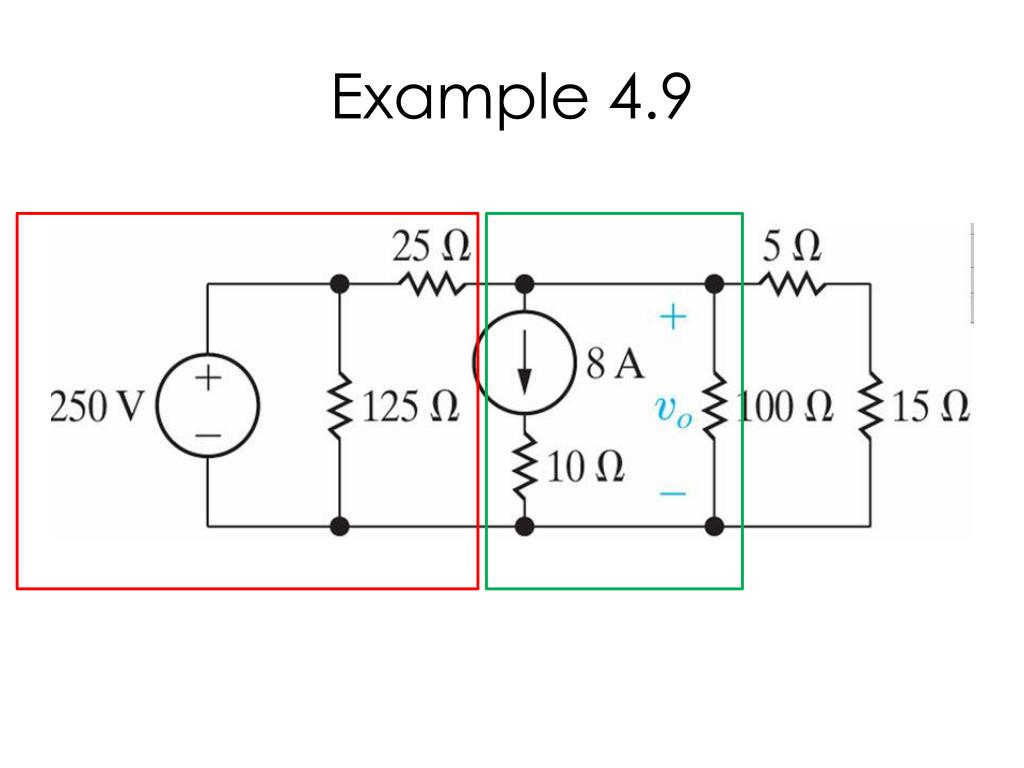

  41. Example 4.9

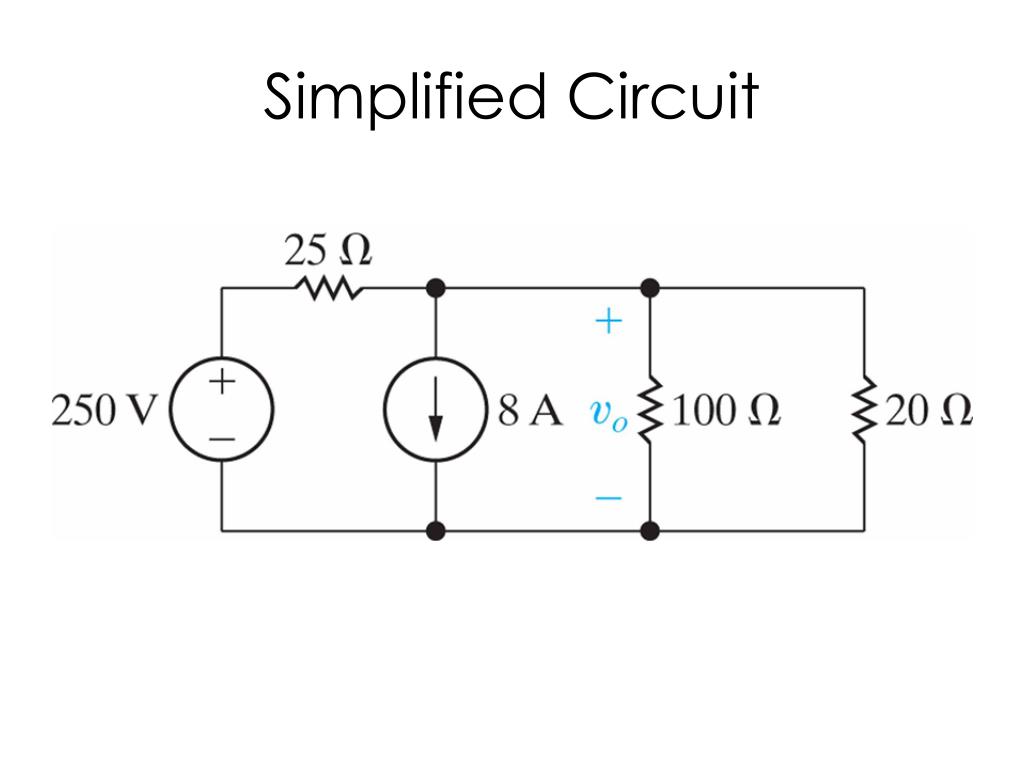

  42. Simplified Circuit
