Network Intrusion Detection System (NIDS)

1. Network Intrusion Detection System (NIDS) Somesh Jha

2. NIDS • Inspect packets at certain vantage points • Behind the routers • Look for malicious or anomalous behavior • Much more fine-grained than firewalls • Example: drop a packet whose payload “matches” a certain string

3. Classification of NIDS • Signature-based • Establish a database of malicious patterns • If a sequence of packets “matches” one of the patterns, raise an alarm • Positives • Good attack libraries • Easy to understand the results • Negatives • Unable to detect new attacks or variants of old attacks • Example • Snort, Bro, NFR, …

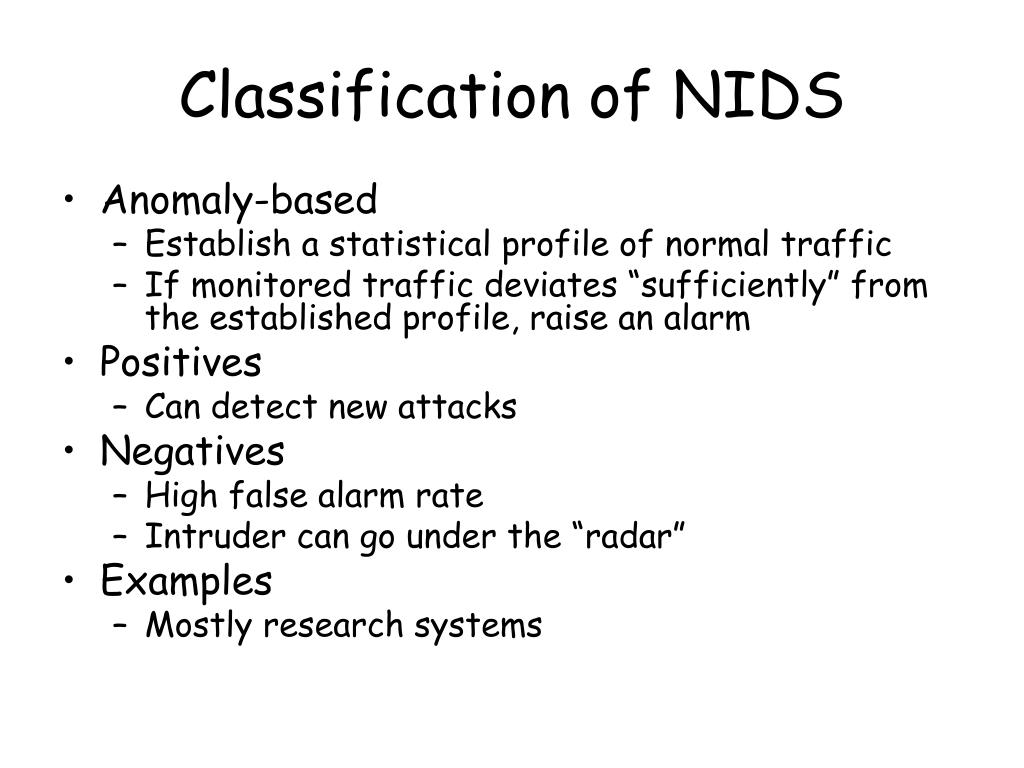

4. Classification of NIDS • Anomaly-based • Establish a statistical profile of normal traffic • If monitored traffic deviates “sufficiently” from the established profile, raise an alarm • Positives • Can detect new attacks • Negatives • High false alarm rate • Intruder can go under the “radar” • Examples • Mostly research systems

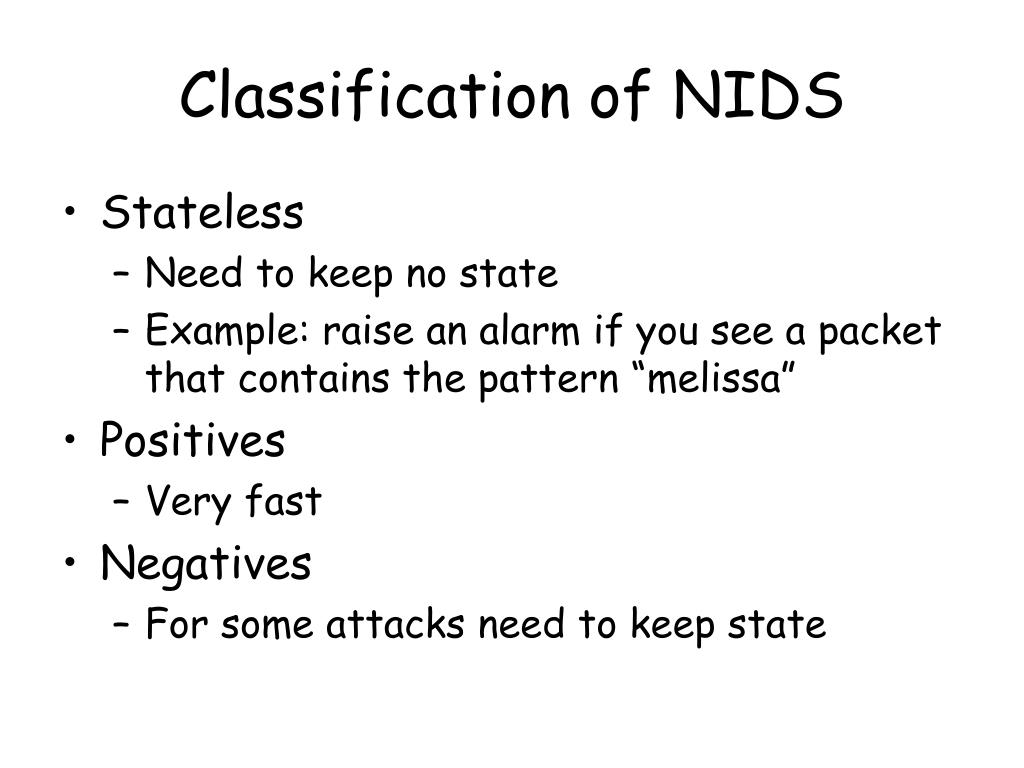

5. Classification of NIDS • Stateless • Need to keep no state • Example: raise an alarm if you see a packet that contains the pattern “melissa” • Positives • Very fast • Negatives • For some attacks need to keep state

6. Classification of NIDS • Stateful • Keeps state • Sometime need to do reassembly • Reassemble packets that belong to the same connection, e.g., packets that belong to the same ssh session • Quite hard! (out-of-order delivery) • Positives • Can detect more attacks • Negatives • Requires too much memory

7. Snort logs, alerts, ... malicious patterns Filtered packet stream libpcap

8. libpcap • Takes the “raw” packet stream • Parses the packets and presents them as a • Filtered packet stream • Website for more details • http://www-nrg.ee.lbl.gov/.

9. Malicious Pattern Example alert tcp any any -> 10.1.1.0/24 80 (content: “/cgi-bin/phf”; msg: “PHF probe!”;) action pass log alert destination address destination port source address source port protocol

10. Malicious Patterns Example • content: “/cgi-bin/phf” • Matches any packet whose payload contains the string “/cgi-bin/phf” • Look at http://www.cert.org/advisories/CA-1996-06.html • msg: “PHF probe!” • Generate this message if a match happens

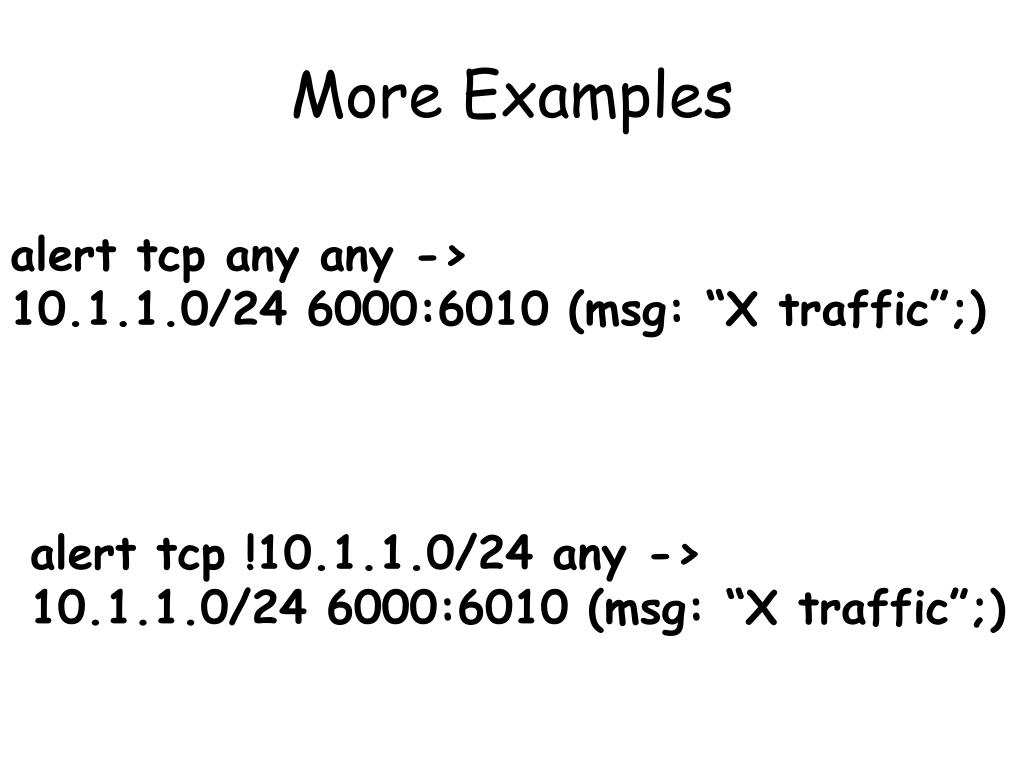

11. More Examples alert tcp any any -> 10.1.1.0/24 6000:6010 (msg: “X traffic”;) alert tcp !10.1.1.0/24 any -> 10.1.1.0/24 6000:6010 (msg: “X traffic”;)

12. How to generate new patterns? • Buffer overrun found in Internet Message Access Protocol (IMAP) • http://www.cert.org/advisories/CA-1997-09.html • Run exploit in a test network and record all traffic • Examine the content of the attack packet

13. Notional "IMAP buffer overflow" packet 052499-22:27:58.403313 192.168.1.4:1034 -> 192.168.1.3:143 TCP TTL:64 TOS:0x0 DF ***PA* Seq: 0x5295B44E Ack: 0x1B4F8970 Win: 0x7D78 90 90 90 90 90 90 90 90 90 90 90 90 90 90 EB 3B ...............; 5E 89 76 08 31 ED 31 C9 31 C0 88 6E 07 89 6E 0C ^.v.1.1.1..n..n. B0 0B 89 F3 8D 6E 08 89 E9 8D 6E 0C 89 EA CD 80 .....n....n..... 31 DB 89 D8 40 CD 80 90 90 90 90 90 90 90 90 90 1...@........... 90 90 90 90 90 90 90 90 90 90 90 E8 C0 FF FF FF ................ 2F 62 69 6E 2F 73 68 90 90 90 90 90 90 90 90 90 /bin/sh.........

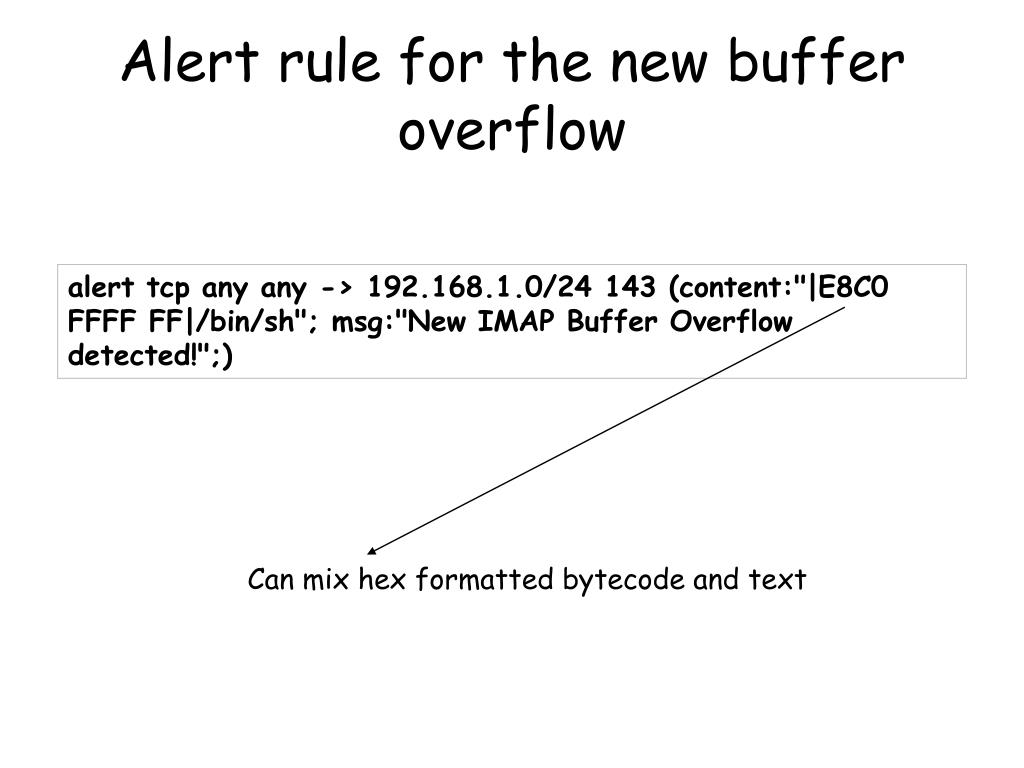

14. Alert rule for the new buffer overflow alert tcp any any -> 192.168.1.0/24 143 (content:"|E8C0 FFFF FF|/bin/sh"; msg:"New IMAP Buffer Overflow detected!";) Can mix hex formatted bytecode and text

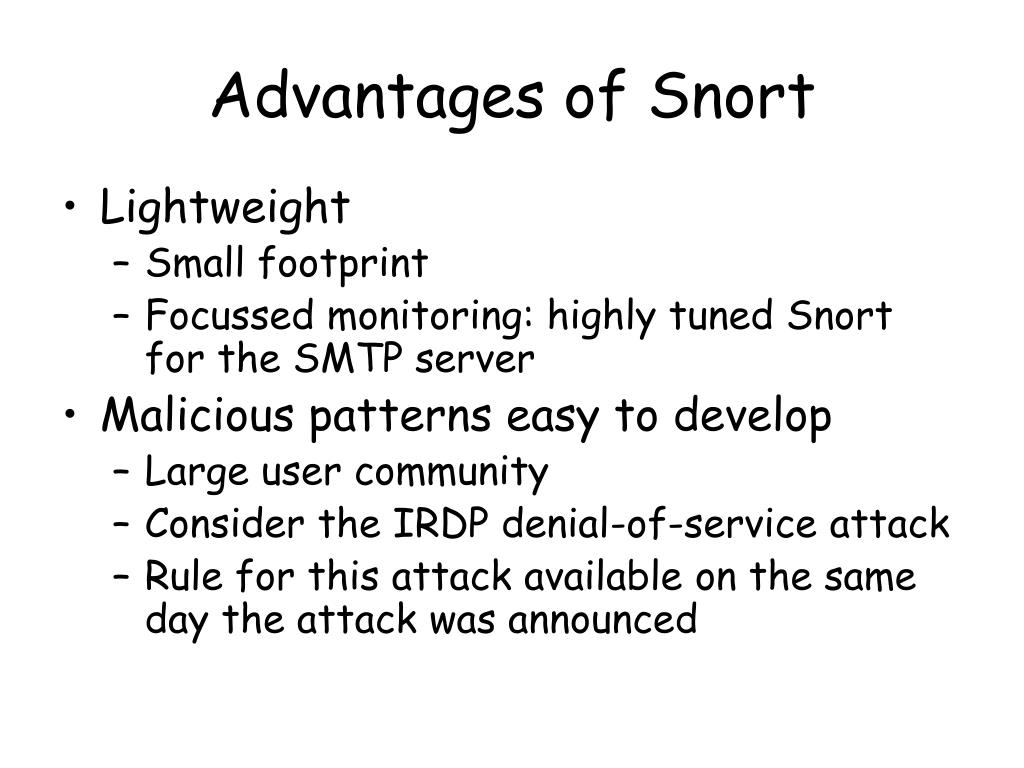

15. Advantages of Snort • Lightweight • Small footprint • Focussed monitoring: highly tuned Snort for the SMTP server • Malicious patterns easy to develop • Large user community • Consider the IRDP denial-of-service attack • Rule for this attack available on the same day the attack was announced

16. Disadvantages • Does not do an stream reassembly • Attackers can use that to “fool” Snort • Break one attack packet into a stream • Pattern matching is expensive • Matching patterns in payloads is expensive (avoid it!) • Rule development methodology is adhoc
