Outline. Ex-vessel coils. MHD Saddle loops. Ex-vessel Rogowskis. High frequency coils. Divertor coils. Diamagnetic loops. In-vessel flux loops. ITER Measurement requirements Location within or outside the vessel Design features Open design issues

azizi
Télécharger la présentation

Slide 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

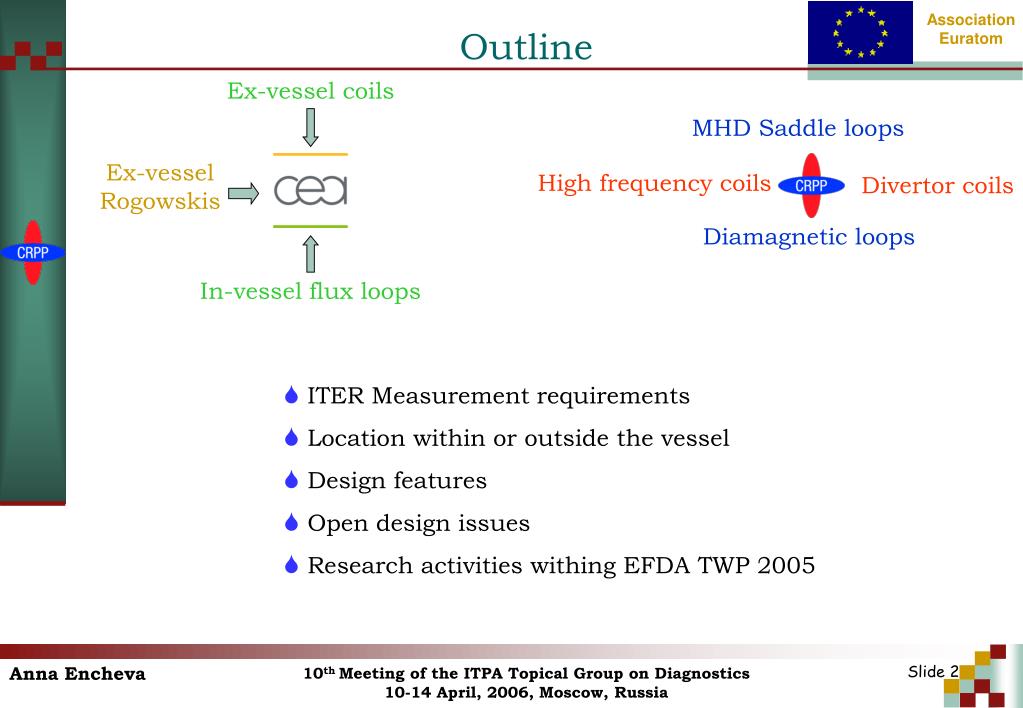

  1. Outline Ex-vessel coils MHD Saddle loops Ex-vessel Rogowskis High frequency coils Divertor coils Diamagnetic loops In-vessel flux loops • ITER Measurement requirements • Location within or outside the vessel • Design features • Open design issues • Research activities withing EFDA TWP 2005 Anna Encheva Slide 2

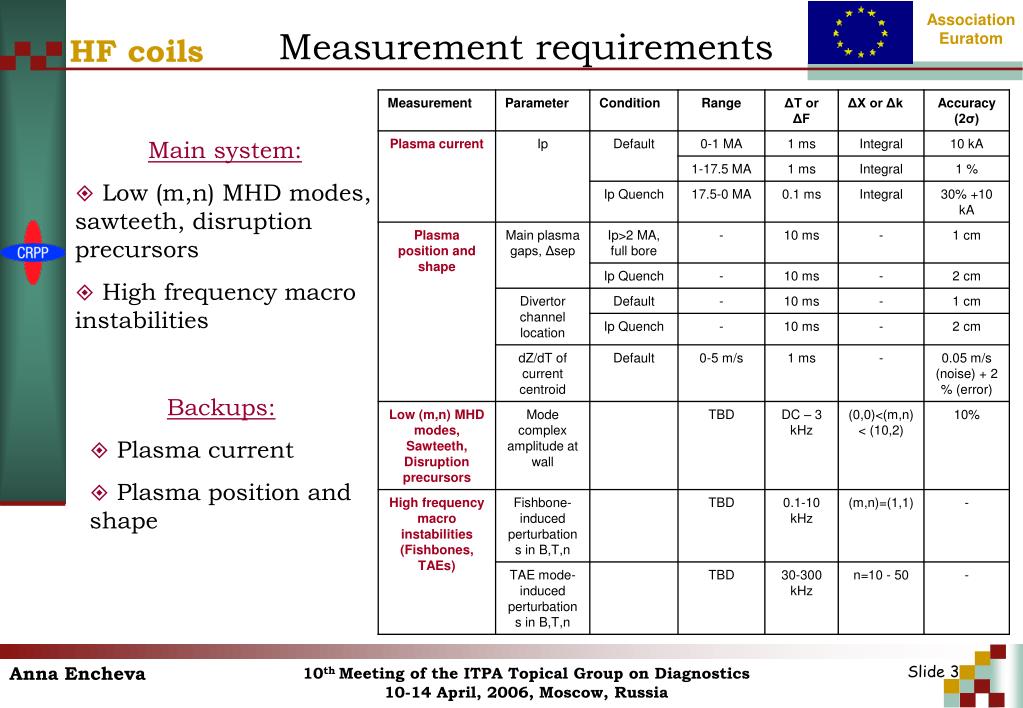

  2. Measurement requirements HF coils • Main system: • Low (m,n) MHD modes, sawteeth, disruption precursors • High frequency macro instabilities • Backups: • Plasma current • Plasma position and shape Anna Encheva Slide 3

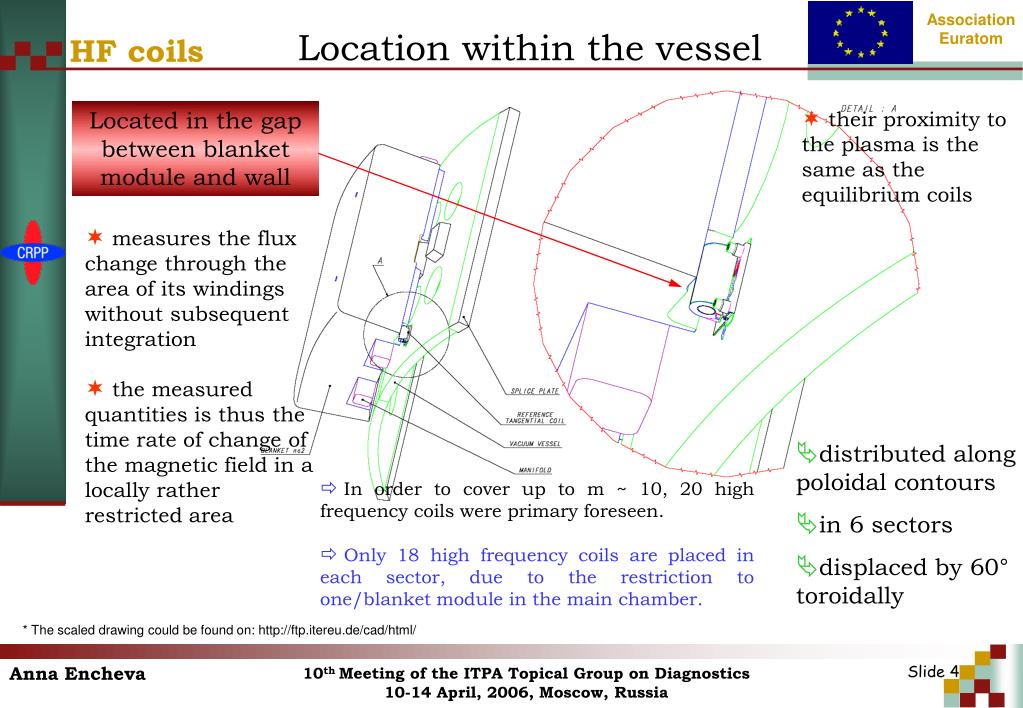

  3. Location within the vessel HF coils Located in the gap between blanket module and wall • their proximity to the plasma is the same as the equilibrium coils • measures the flux change through the area of its windings without subsequent integration • the measured quantities is thus the time rate of change of the magnetic field in a locally rather restricted area • distributed along poloidal contours • in 6 sectors • displaced by 60° toroidally • In order to cover up to m ~ 10, 20 high frequency coils were primary foreseen. • Only 18 high frequency coils are placed in each sector, due to the restriction to one/blanket module in the main chamber. * The scaled drawing could be found on: http://ftp.itereu.de/cad/html/ Anna Encheva Slide 4

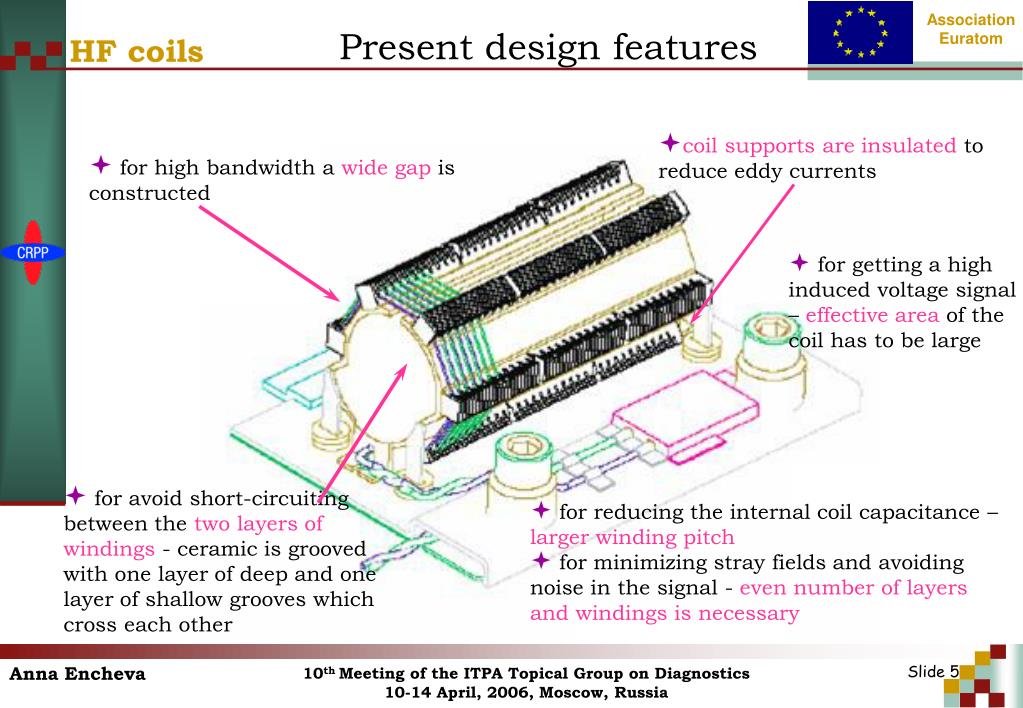

  4. Present design features HF coils • for high bandwidth a wide gap is constructed • coil supports are insulated to reduce eddy currents • for getting a high induced voltage signal – effective area of the coil has to be large • for avoid short-circuiting between the two layers of windings - ceramic is grooved with one layer of deep and one layer of shallow grooves which cross each other • for reducing the internal coil capacitance – larger winding pitch • for minimizing stray fields and avoiding noise in the signal - even number of layers and windings is necessary Anna Encheva Slide 5

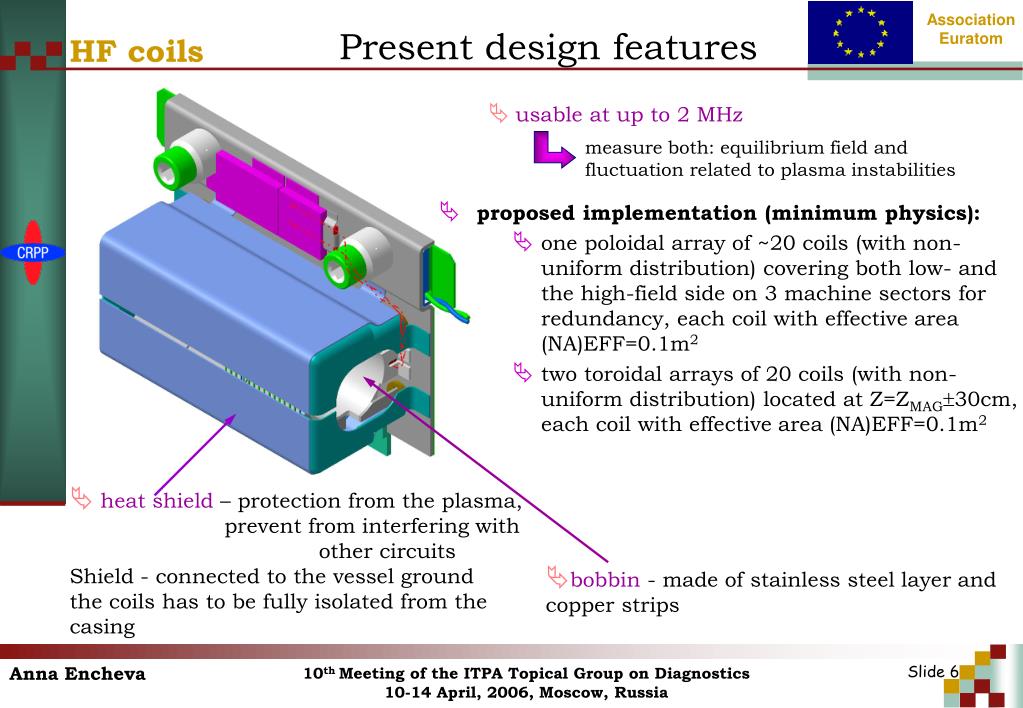

  5. Present design features HF coils • usable at up to 2 MHz measure both: equilibrium field and fluctuation related to plasma instabilities • proposed implementation (minimum physics): • one poloidal array of ~20 coils (with non-uniform distribution) covering both low- and the high-field side on 3 machine sectors for redundancy, each coil with effective area (NA)EFF=0.1m2 • two toroidal arrays of 20 coils (with non-uniform distribution) located at Z=ZMAG30cm, each coil with effective area (NA)EFF=0.1m2 • heat shield – protection from the plasma, prevent from interfering with other circuits Shield - connected to the vessel ground the coils has to be fully isolated from the casing • bobbin - made of stainless steel layer and copper strips Anna Encheva Slide 6

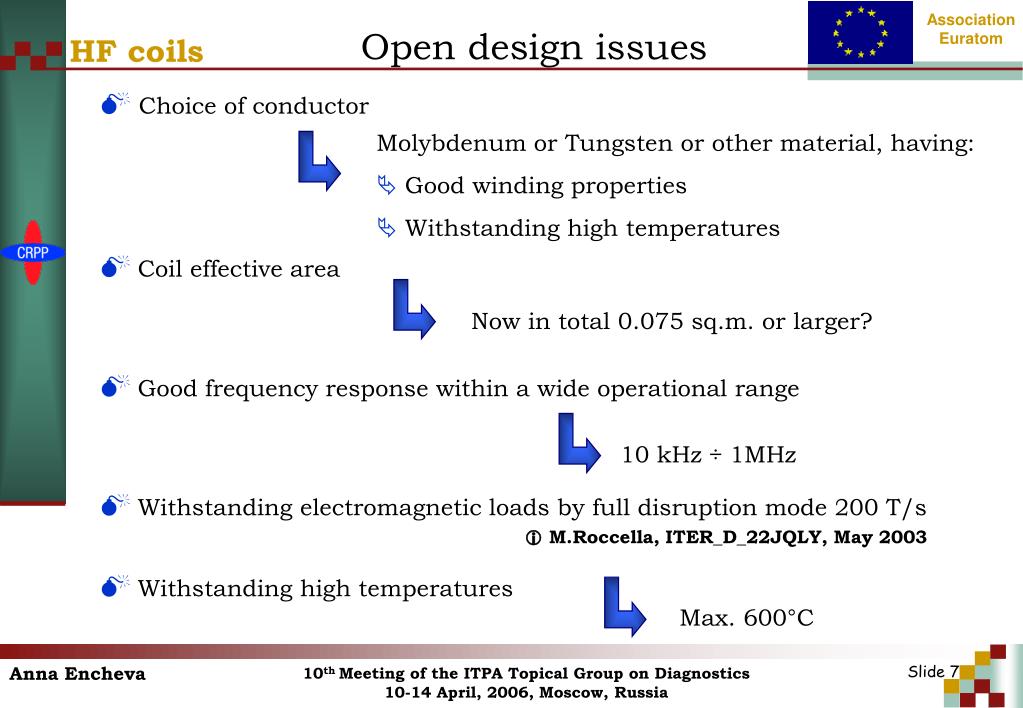

  6. Open design issues HF coils • Choice of conductor Molybdenum or Tungsten or other material, having: • Good winding properties • Withstanding high temperatures • Coil effective area Now in total 0.075 sq.m. or larger? • Good frequency response within a wide operational range 10 kHz ÷ 1MHz • Withstanding electromagnetic loads by full disruption mode 200 T/s M.Roccella, ITER_D_22JQLY, May 2003 • Withstanding high temperatures Max. 600°C Anna Encheva Slide 7

  7. Work plan 2006 HF coils • Transient electromagnetic analysis: • full disruption mode : 200T/s • induced voltage • Dynamic harmonic electromagnetic analysis: • induced eddy currents • amplitude - frequency response characteristics • Thermal analysis: • nuclear heating rate in the coil materials • temperature distribution in the coil structure • Coupled field analysis: • Structural analysis: • thermal loads • stress-strain distribution Anna Encheva Slide 8

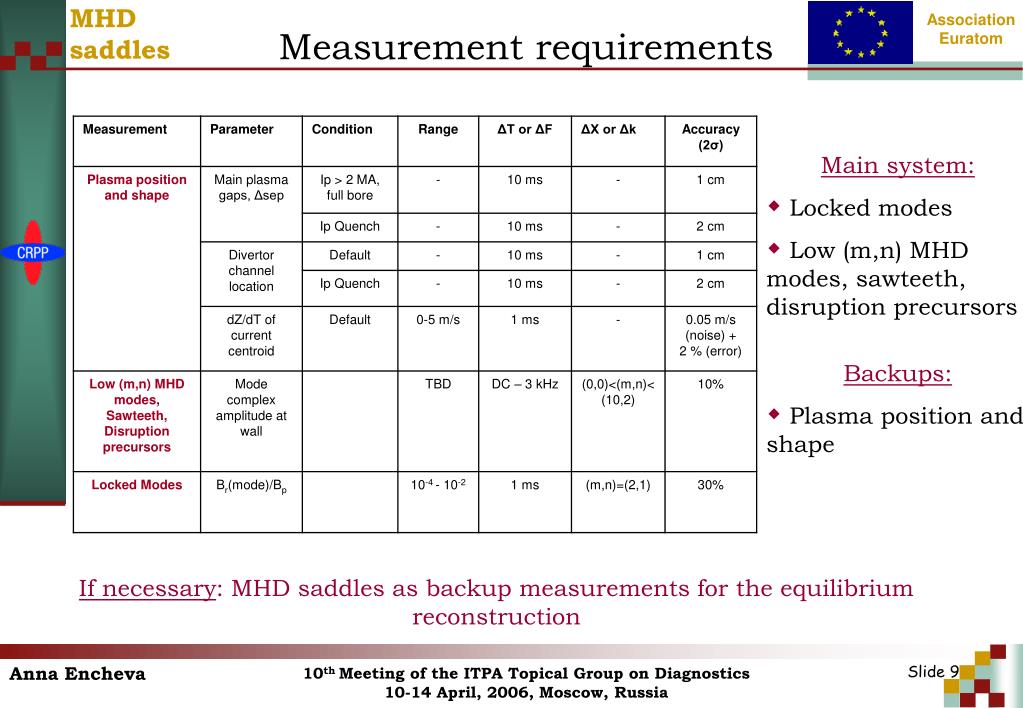

  8. MHD saddles Measurement requirements • Main system: • Locked modes • Low (m,n) MHD modes, sawteeth, disruption precursors • Backups: • Plasma position and shape If necessary: MHD saddles as backup measurements for the equilibrium reconstruction Anna Encheva Slide 9

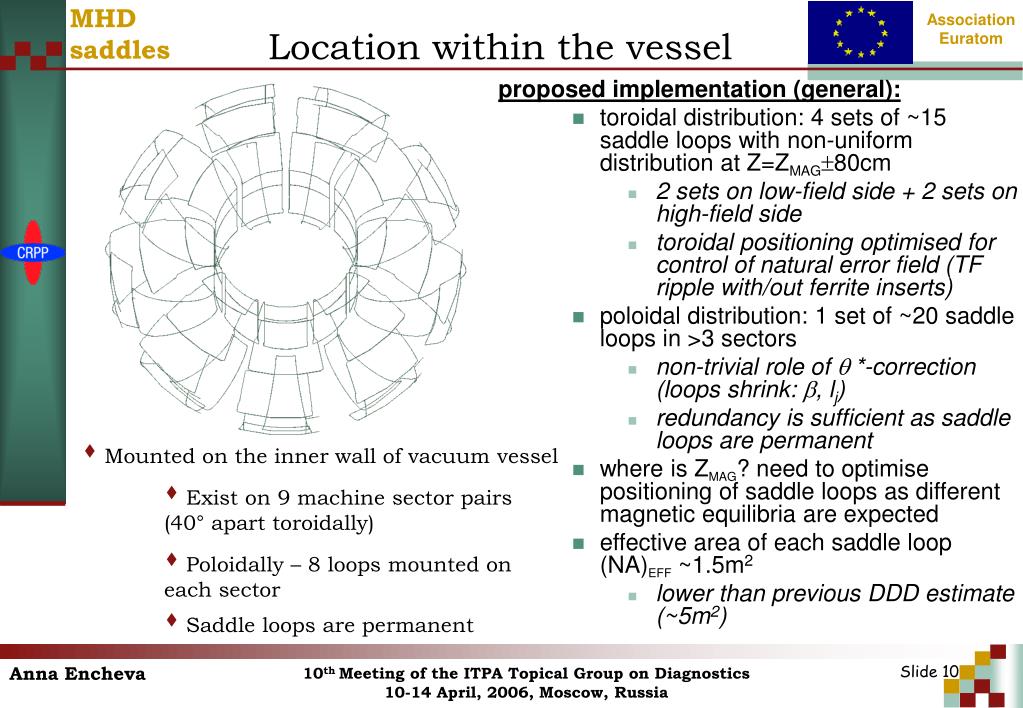

  9. MHD saddles Location within the vessel proposed implementation (general): • toroidal distribution: 4 sets of ~15 saddle loops with non-uniform distribution at Z=ZMAG80cm • 2 sets on low-field side + 2 sets on high-field side • toroidal positioning optimised for control of natural error field (TF ripple with/out ferrite inserts) • poloidal distribution: 1 set of ~20 saddle loops in >3 sectors • non-trivial role of *-correction (loops shrink: , lj) • redundancy is sufficient as saddle loops are permanent • where is ZMAG? need to optimise positioning of saddle loops as different magnetic equilibria are expected • effective area of each saddle loop (NA)EFF ~1.5m2 • lower than previous DDD estimate (~5m2) • Mounted on the inner wall of vacuum vessel • Exist on 9 machine sector pairs (40° apart toroidally) • Poloidally – 8 loops mounted on each sector • Saddle loops are permanent Anna Encheva Slide 10

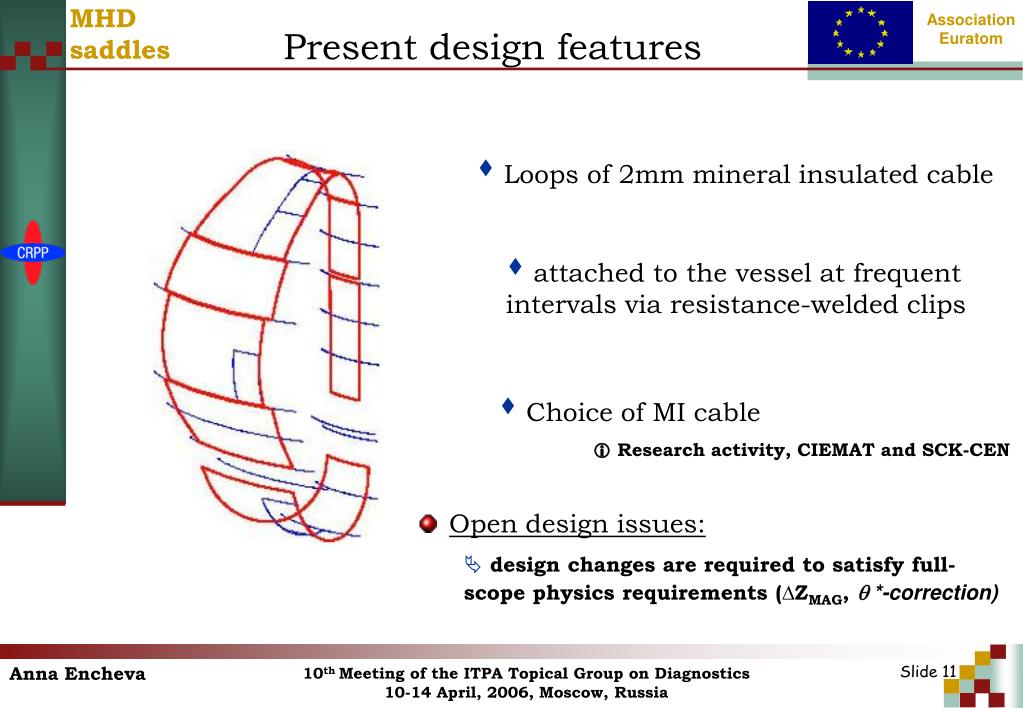

  10. MHD saddles Present design features • Loops of 2mm mineral insulated cable • attached to the vessel at frequent intervals via resistance-welded clips • Choice of MI cable Research activity, CIEMAT and SCK-CEN • Open design issues: • design changes are required to satisfy full-scope physics requirements (∆ZMAG, *-correction) Anna Encheva Slide 11

  11. Divertor coils Measurement requirements • measurement of separatrix-wall gaps and reconstruction of equilibria (plasma shape and position) • improve the reconstruction accuracy near the X-point • this set of coils is essential to the reconstruction of divertor configuration • Plasma Position and Shape: • Main plasma gaps with time resolution 10 ms and accuracy 1-2 cm • Divertor channel location (10 ms, 1-2 cm) • dZ/dt of current centroid for range of 5 m/s, time resolution 1 ms and accuracy 0.05 m/s (noise) + 2% (error) • Measured quantity: • Magnetic field (normal and perpendicular to diverter cassette elements) at coils locations. Anna Encheva Slide 12

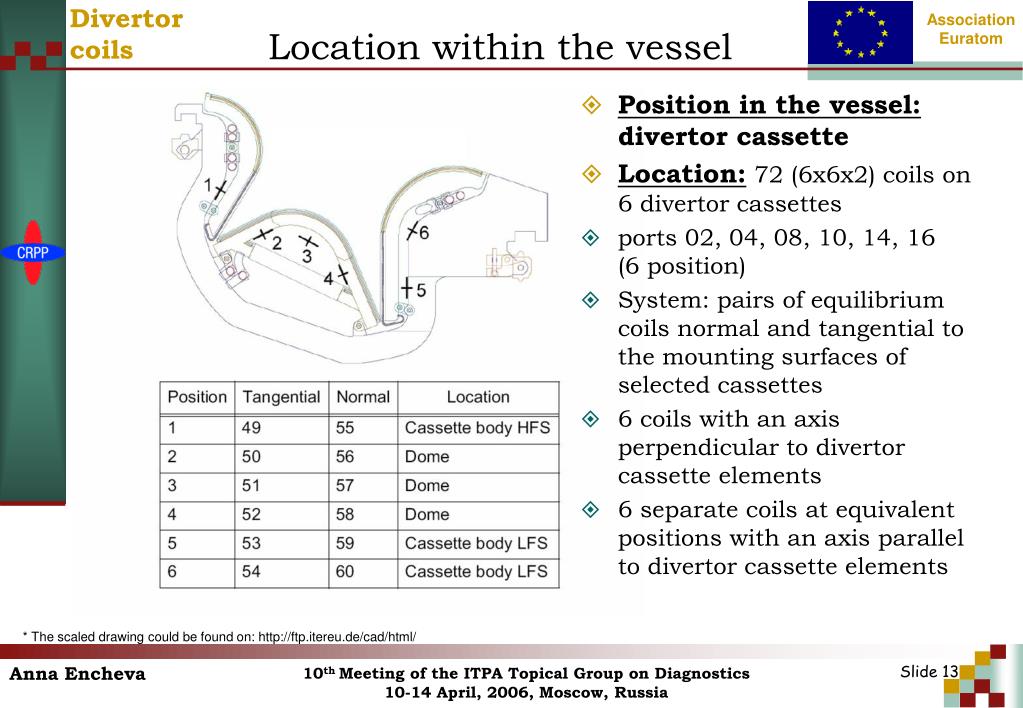

  12. Divertor coils Location within the vessel • Position in the vessel: divertor cassette • Location:72 (6x6x2) coils on 6 divertor cassettes • ports 02, 04, 08, 10, 14, 16 (6 position) • System: pairs of equilibrium coils normal and tangential to the mounting surfaces of selected cassettes • 6 coils with an axis perpendicular to divertor cassette elements • 6 separate coils at equivalent positions with an axis parallel to divertor cassette elements * The scaled drawing could be found on: http://ftp.itereu.de/cad/html/ Anna Encheva Slide 13

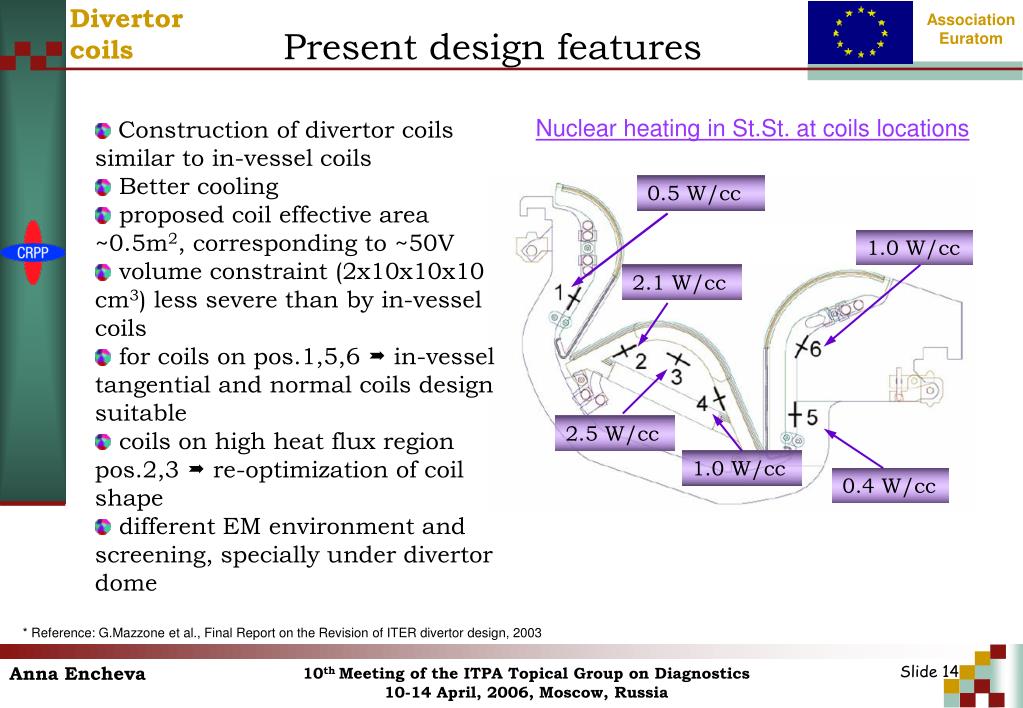

  13. Divertor coils Present design features Nuclear heating in St.St. at coils locations Construction of divertor coils similar to in-vessel coils Better cooling proposed coil effective area ~0.5m2, corresponding to ~50V volume constraint (2x10x10x10 cm3) less severe than by in-vessel coils for coils on pos.1,5,6  in-vessel tangential and normal coils design suitable coils on high heat flux region pos.2,3  re-optimization of coil shape different EM environment and screening, specially under divertor dome 0.5 W/cc 1.0 W/cc 2.1 W/cc 2.5 W/cc 1.0 W/cc 0.4 W/cc * Reference: G.Mazzone et al., Final Report on the Revision of ITER divertor design, 2003 Anna Encheva Slide 14

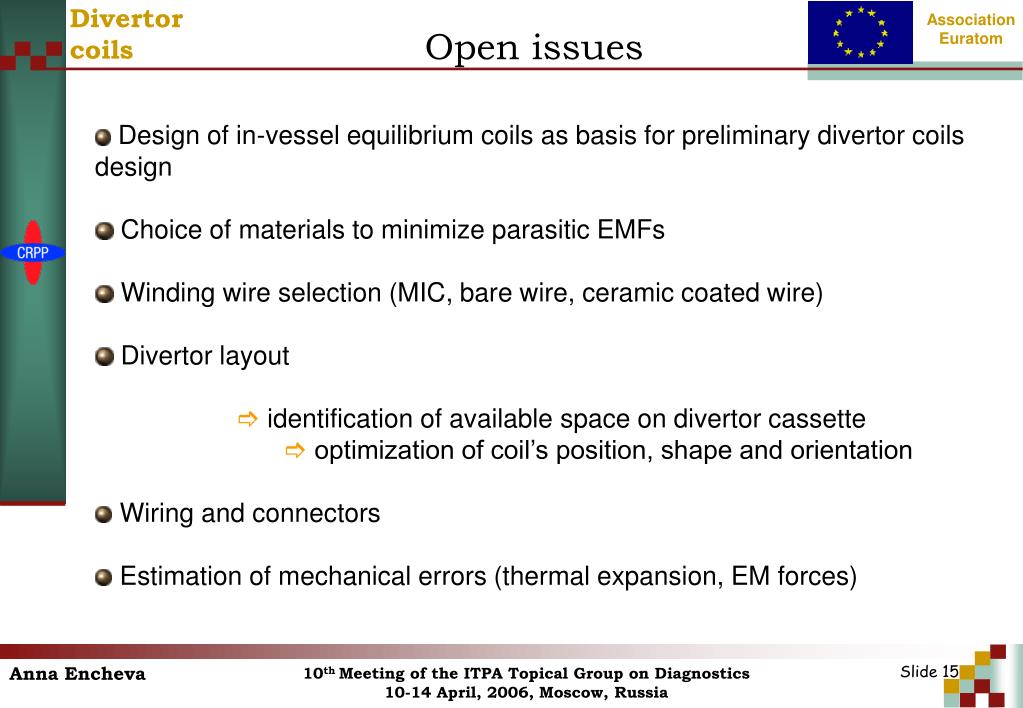

  14. Divertor coils Open issues • Design of in-vessel equilibrium coils as basis for preliminary divertor coils design • Choice of materials to minimize parasitic EMFs • Winding wire selection (MIC, bare wire, ceramic coated wire) • Divertor layout • identification of available space on divertor cassette • optimization of coil’s position, shape and orientation • Wiring and connectors • Estimation of mechanical errors (thermal expansion, EM forces) Anna Encheva Slide 15

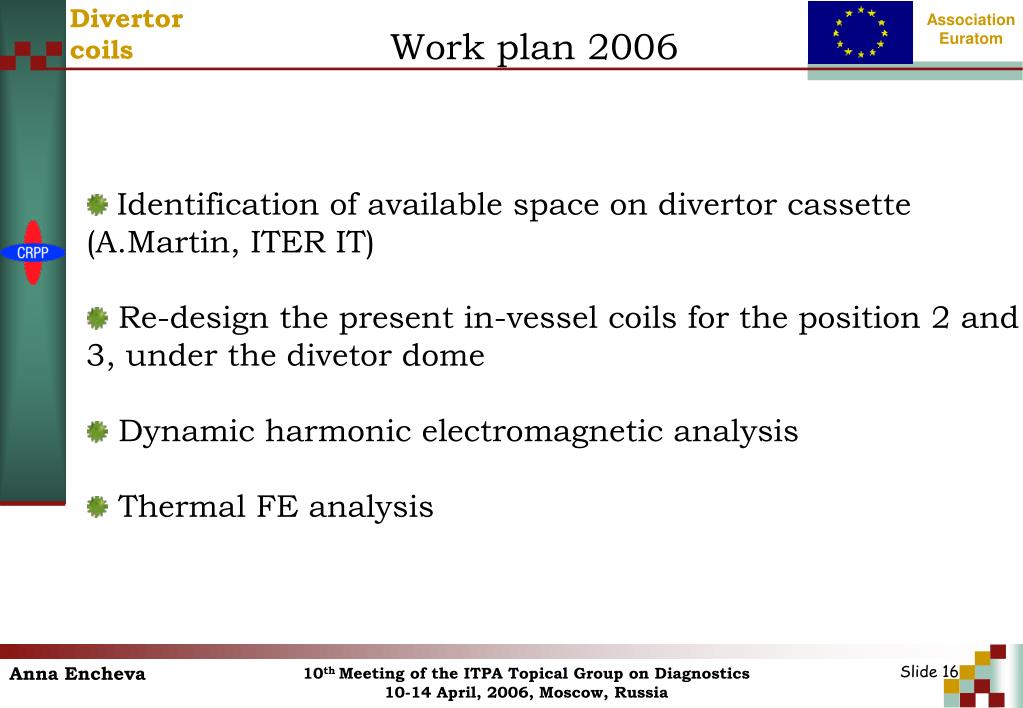

  15. Divertor coils Work plan 2006 Identification of available space on divertor cassette (A.Martin, ITER IT) Re-design the present in-vessel coils for the position 2 and 3, under the divetor dome Dynamic harmonic electromagnetic analysis Thermal FE analysis Anna Encheva Slide 16

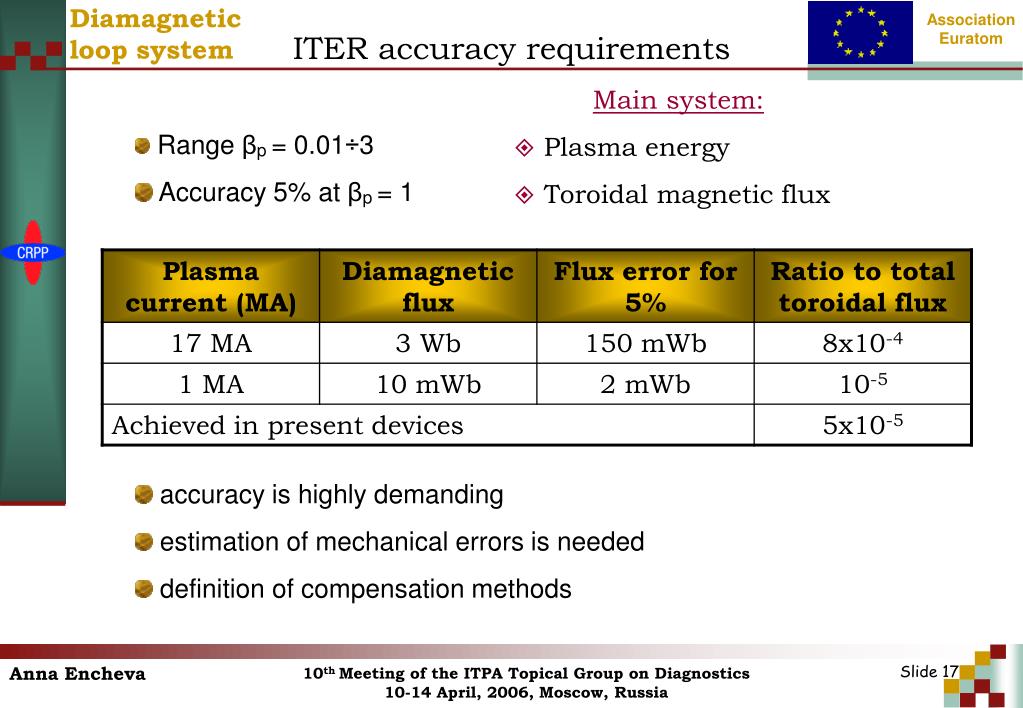

  16. Diamagnetic loop system ITER accuracy requirements • Main system: • Plasma energy • Toroidal magnetic flux • Range βp = 0.01÷3 • Accuracy 5% at βp = 1 • accuracy is highly demanding • estimation of mechanical errors is needed • definition of compensation methods Anna Encheva Slide 17

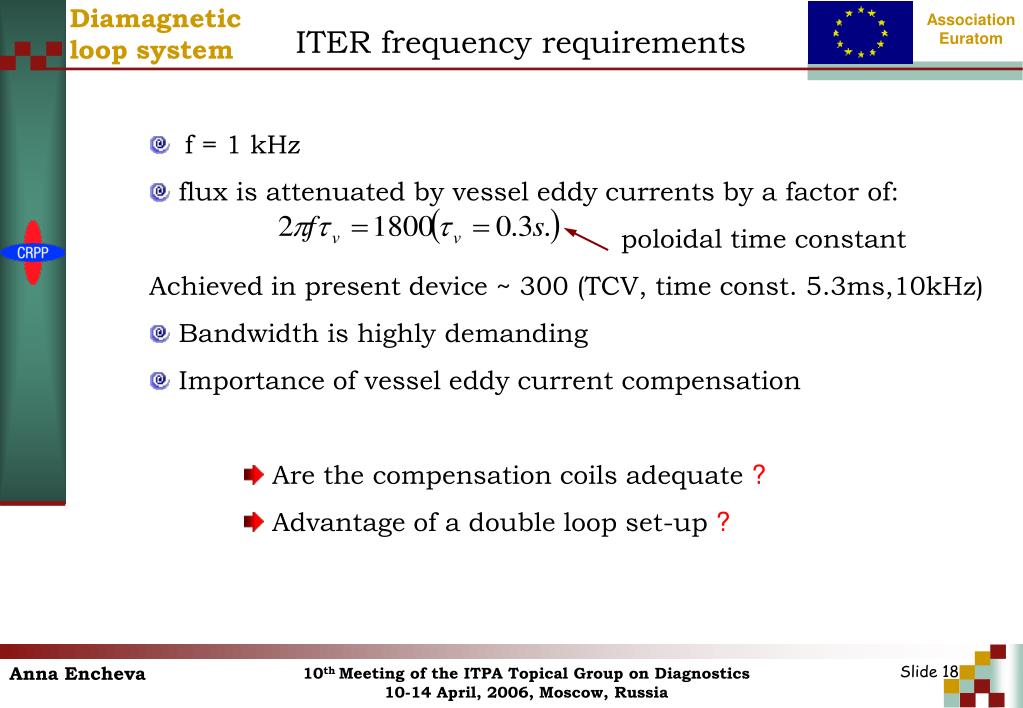

  17. Diamagnetic loop system ITER frequency requirements • f = 1 kHz • flux is attenuated by vessel eddy currents by a factor of: • poloidal time constant • Achieved in present device ~ 300 (TCV, time const. 5.3ms,10kHz) • Bandwidth is highly demanding • Importance of vessel eddy current compensation • Are the compensation coils adequate ? • Advantage of a double loop set-up ? Anna Encheva Slide 18

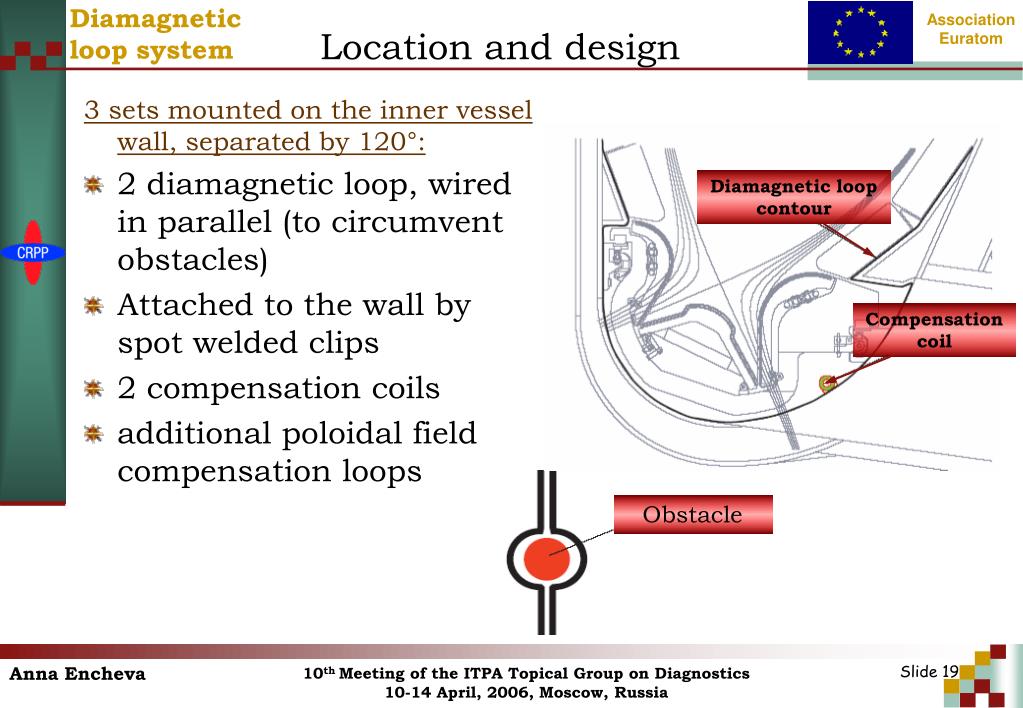

  18. Diamagnetic loop system Location and design 3 sets mounted on the inner vessel wall, separated by 120°: • 2 diamagnetic loop, wired in parallel (to circumvent obstacles) • Attached to the wall by spot welded clips • 2 compensation coils • additional poloidal field compensation loops Diamagnetic loop contour Compensation coil Obstacle Anna Encheva Slide 19

  19. Diamagnetic loop system Method for performance analysis Identify and describe sources of mechanical errors (2005) • construction misalignements and assembly errors in sensors • construction misalignements in PF and TF coils, VV • deformation under EM forces in PF and TF coils • deformation after thermal expansion of VV Quantifying mechanical errors requires: • magnetic field mapping (2006) • thermal expansion modelling of VV (2006) • modelling of VV deformation under EM forces • modelling of eddy currents in VV (2006) Anna Encheva Slide 20

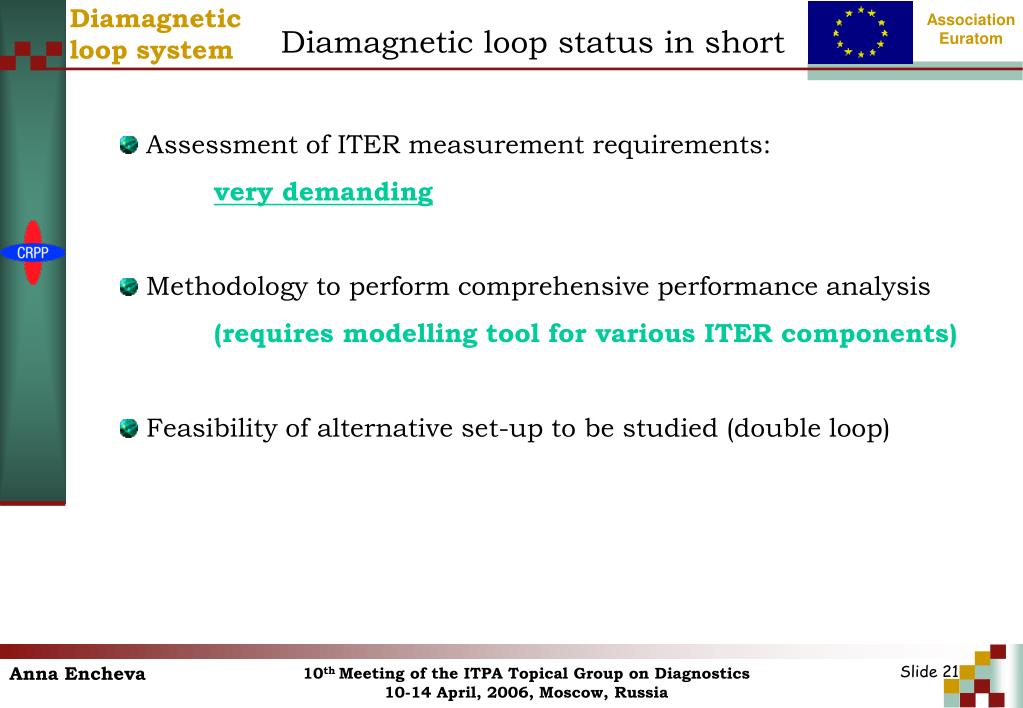

  20. Diamagnetic loop system Diamagnetic loop status in short • Assessment of ITER measurement requirements: • very demanding • Methodology to perform comprehensive performance analysis • (requires modelling tool for various ITER components) • Feasibility of alternative set-up to be studied (double loop) Anna Encheva Slide 21

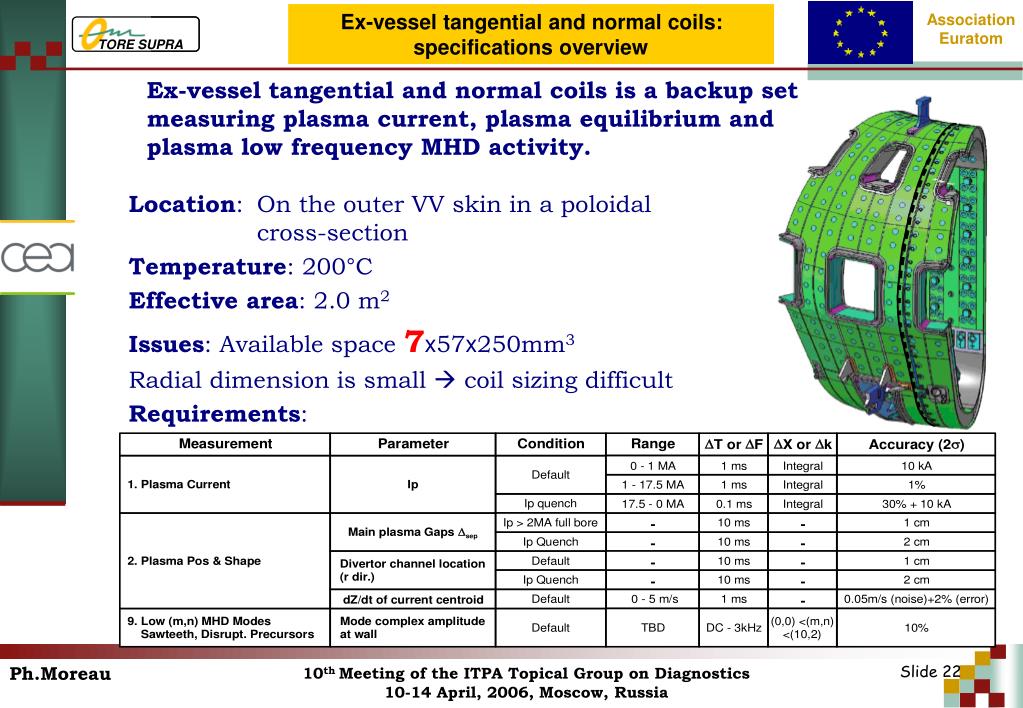

  21. TORE SUPRA Ex-vessel tangential and normal coils: specifications overview Ex-vessel tangential and normal coils is a backup set measuring plasma current, plasma equilibrium and plasma low frequency MHD activity. Location: On the outer VV skin in a poloidal cross-section Temperature: 200°C Effective area: 2.0 m2 Issues: Available space 7x57x250mm3 Radial dimension is small  coil sizing difficult Requirements: Ph.Moreau Slide 22

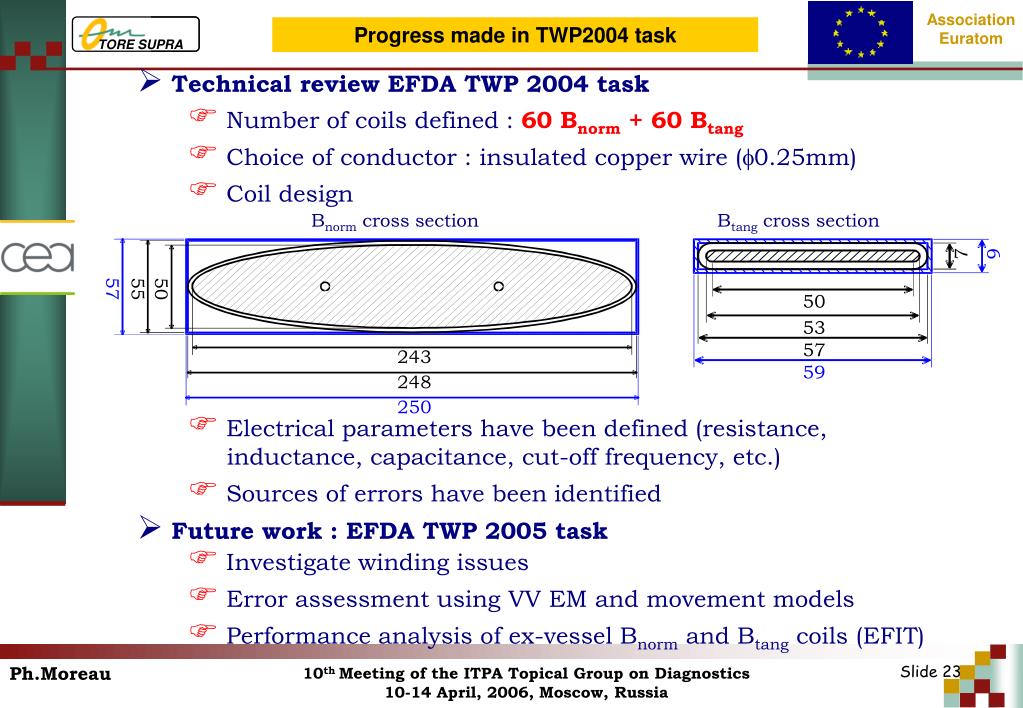

  22. TORE SUPRA 7 9 57 55 50 50 53 57 243 59 248 250 Progress made in TWP2004 task • Technical review EFDA TWP 2004 task • Number of coils defined : 60 Bnorm + 60 Btang • Choice of conductor : insulated copper wire (f0.25mm) • Coil design Bnorm cross section Btang cross section • Electrical parameters have been defined (resistance, inductance, capacitance, cut-off frequency, etc.) • Sources of errors have been identified • Future work : EFDA TWP 2005 task • Investigate winding issues • Error assessment using VV EM and movement models • Performance analysis of ex-vessel Bnorm and Btang coils (EFIT) Ph.Moreau Slide 23

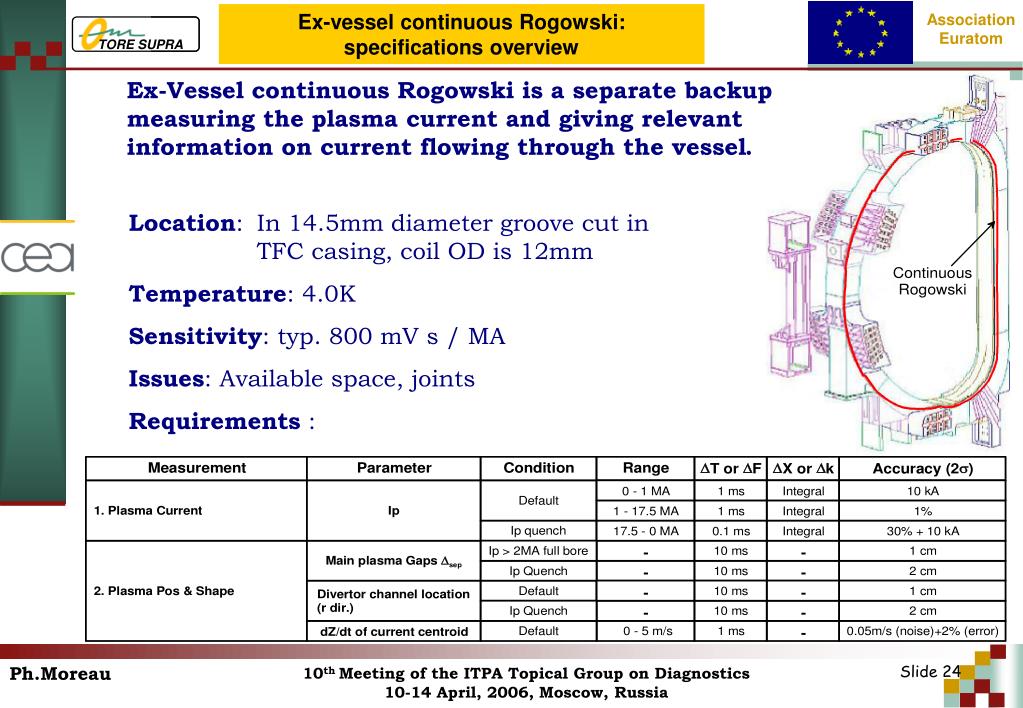

  23. TORE SUPRA Ex-vessel continuous Rogowski: specifications overview Ex-Vessel continuous Rogowski is a separate backup measuring the plasma current and giving relevant information on current flowing through the vessel. Location: In 14.5mm diameter groove cut in TFC casing, coil OD is 12mm Temperature: 4.0K Sensitivity: typ. 800 mV s / MA Issues: Available space, joints Requirements : Ph.Moreau Slide 24

  24. TORE SUPRA Rogowski : Stainless steel former model Progress made in TWP2004 task • Technical review EFDA TWP 2004 task • Rogowski routing in TFC is defined • Number of joints as low as possible: One joint at the top of TFC, another one at the bottom of TFC • Stress analysis during cool-down / warm-up cycles and plasma operation  Selection of material (former and cable) • Rogowski design and model have been done • Former having a double screw groove – regular winding two layers: 1st layer diameter 11 mm 2st layer diameter 9 mm Routing constrains: 100m radius of curvature • Electrical parameters have been defined (resistance, inductance, capacitance, cut-off frequency, etc.) Ph.Moreau Slide 25

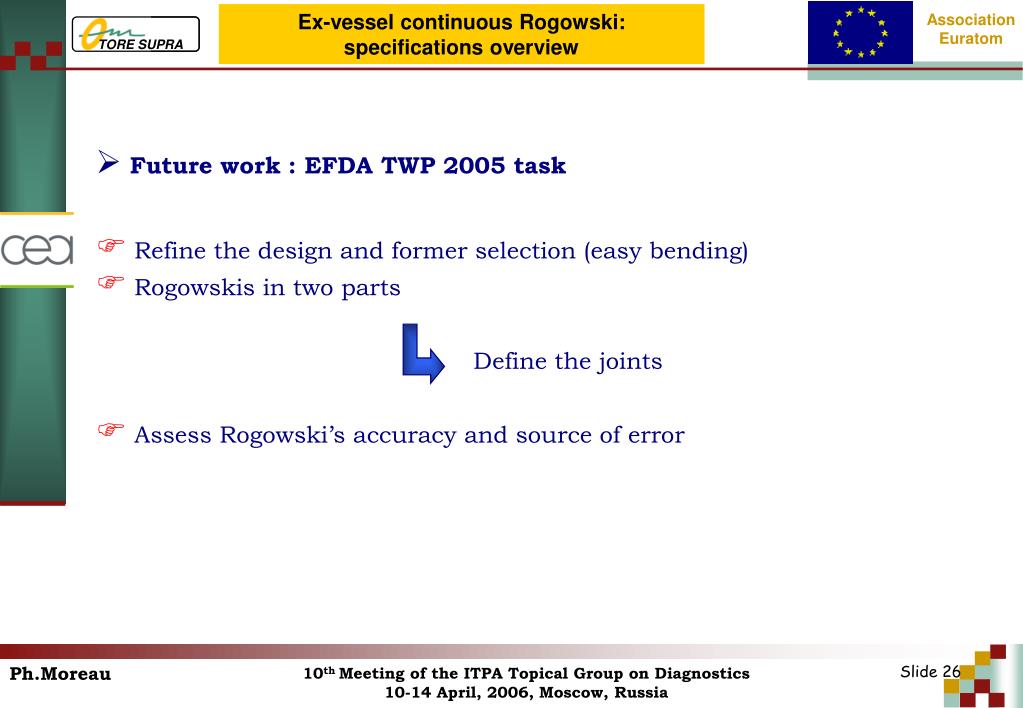

  25. TORE SUPRA Ex-vessel continuous Rogowski: specifications overview • Future work : EFDA TWP 2005 task • Refine the design and former selection (easy bending) • Rogowskis in two parts Define the joints • Assess Rogowski’s accuracy and source of error Ph.Moreau Slide 26

  26. TORE SUPRA Inner vessel partial and continuous flux loops: specifications overview Continuous and partial flux loops contribute as the main set-up to plasma equilibrium calculation (with in-vessel Bnorm and Btang). The continuous loops supply loop voltage and are supplementary set to get plasma current. Partial flux loops are also a supplementary set measuring plasma MHD activity. Location: Inner surface of the VV Number: 4 continuous flux loops + 6 sets of 20 saddle loops Design: 2mm MIC Mechanic: Attached to the VV by spot welded joints Temperature: 300°C Issues: Subjected to plasma and nuclear heatingContinuous flux loops interrupted by 9 welded joints Ph.Moreau Slide 27

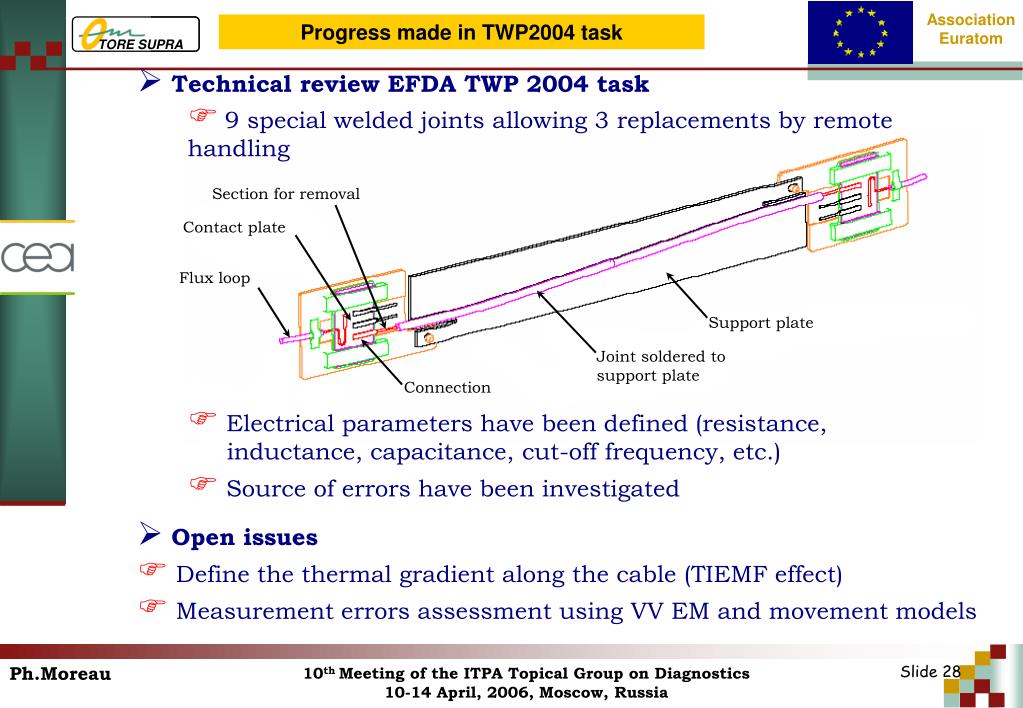

  27. TORE SUPRA Section for removal Contact plate Flux loop Support plate Joint soldered to support plate Connection Progress made in TWP2004 task • Technical review EFDA TWP 2004 task • 9 special welded joints allowing 3 replacements by remote handling • Electrical parameters have been defined (resistance, inductance, capacitance, cut-off frequency, etc.) • Source of errors have been investigated • Open issues • Define the thermal gradient along the cable (TIEMF effect) • Measurement errors assessment using VV EM and movement models Ph.Moreau Slide 28
