Calcul. Appel calculette. Formule arcos. Recherche google. Fin diaporama. Fichier word. Ordinogramme calcul contenu cuve à mazout. EX: H: 20 cm L: 292 cm D: 116 cm V: 355.392 cm³ V: 355,4 L. Début. D: diamètre en cm H: hauteur en cm L: longueur cuve en cm. Lire D, L, H.

azra
Télécharger la présentation

Calcul

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

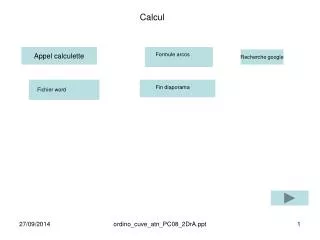

  1. Calcul Appel calculette Formule arcos Recherche google Fin diaporama Fichier word ordino_cuve_atn_PC08_2DrA.ppt

  2. Ordinogramme calcul contenu cuve à mazout EX: H: 20 cm L: 292 cm D: 116 cm V: 355.392 cm³ V: 355,4 L Début D: diamètre en cm H: hauteur en cm L: longueur cuve en cm Lire D, L, H R = D / 2 E = R * R B = R - H ATN : ARC Tangente < 0 > 0 B? = 0 V = (E * (ATN(A/B) + π) – A *B) * L V = (E * (ATN (A/B)) – A *B) * L V = E * π/2 * L V en L Calcul FIN ordino_cuve_atn_PC08_2DrA.ppt

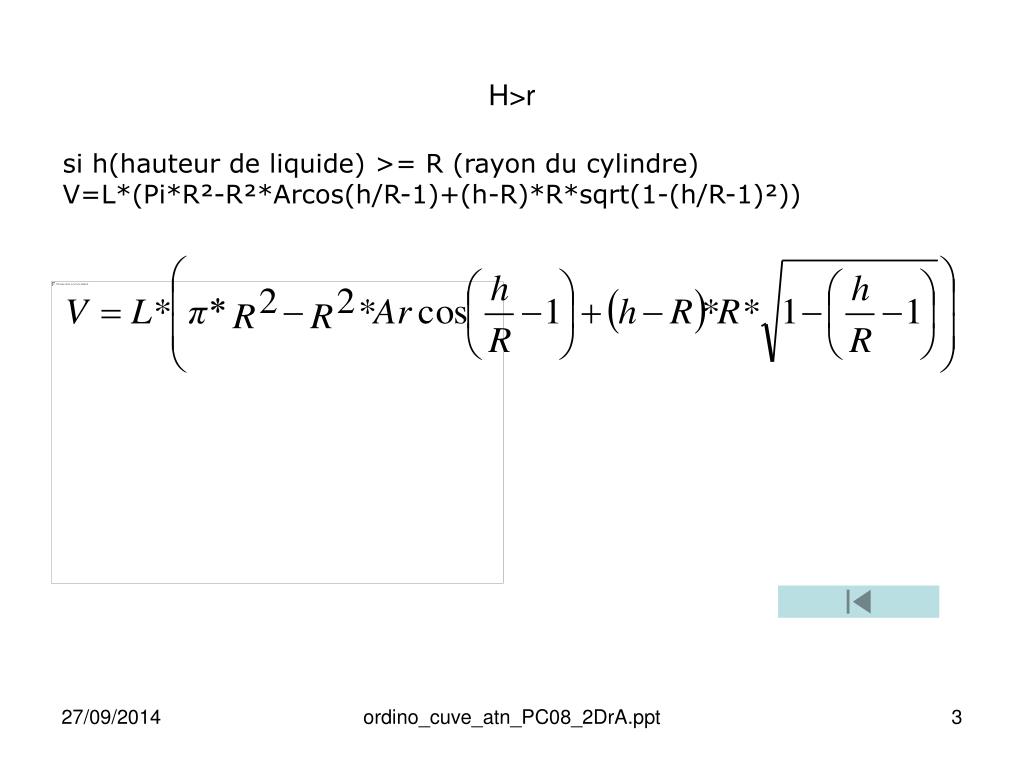

  3. H>r si h(hauteur de liquide) >= R (rayon du cylindre)V=L*(Pi*R²-R²*Arcos(h/R-1)+(h-R)*R*sqrt(1-(h/R-1)²)) ordino_cuve_atn_PC08_2DrA.ppt
