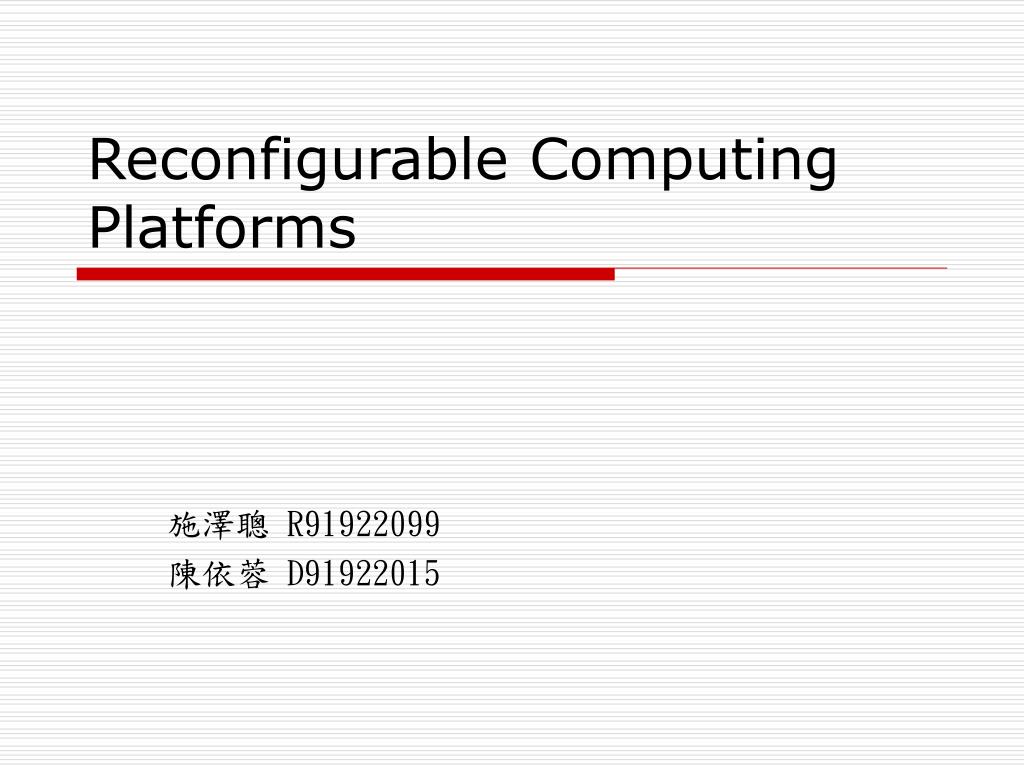

  1. Reconfigurable Computing Platforms 施澤聰 R91922099 陳依蓉 D91922015

  2. Outline • Reconfigurable computing platform • FPGA • General Purpose Processor • General purpose processor reconfigurable computing techniques • General purpose processor reconfigurable computing algorithms • Future work • reference

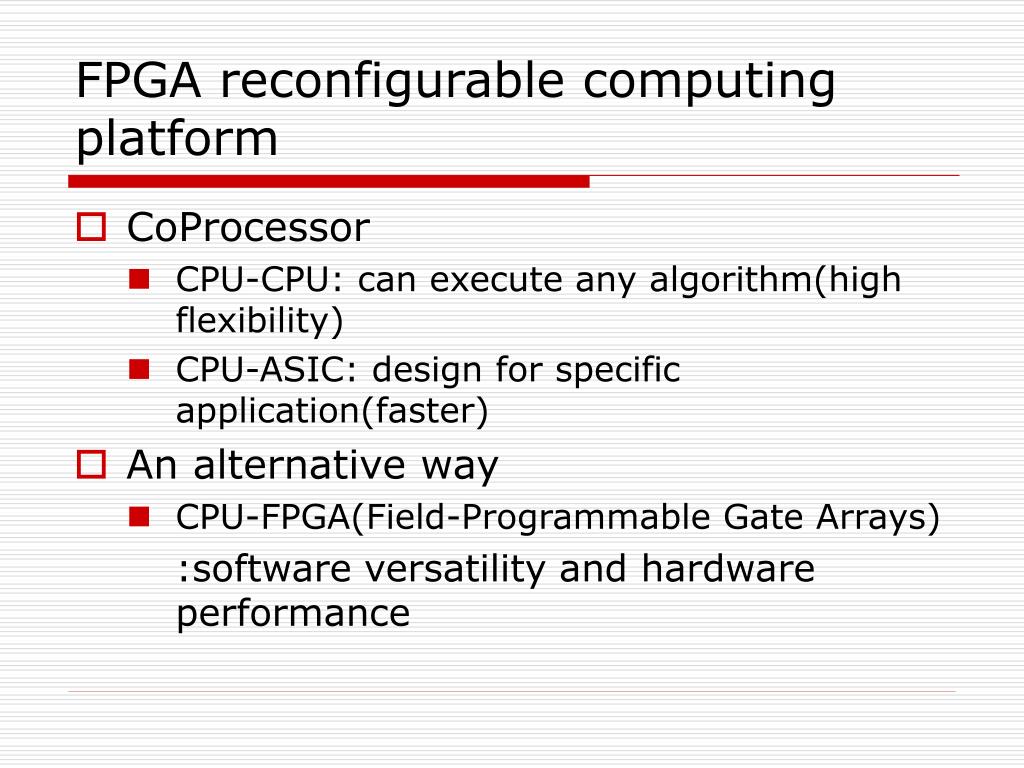

  3. FPGA reconfigurable computing platform • CoProcessor • CPU-CPU: can execute any algorithm(high flexibility) • CPU-ASIC: design for specific application(faster) • An alternative way • CPU-FPGA(Field-Programmable Gate Arrays) :software versatility and hardware performance

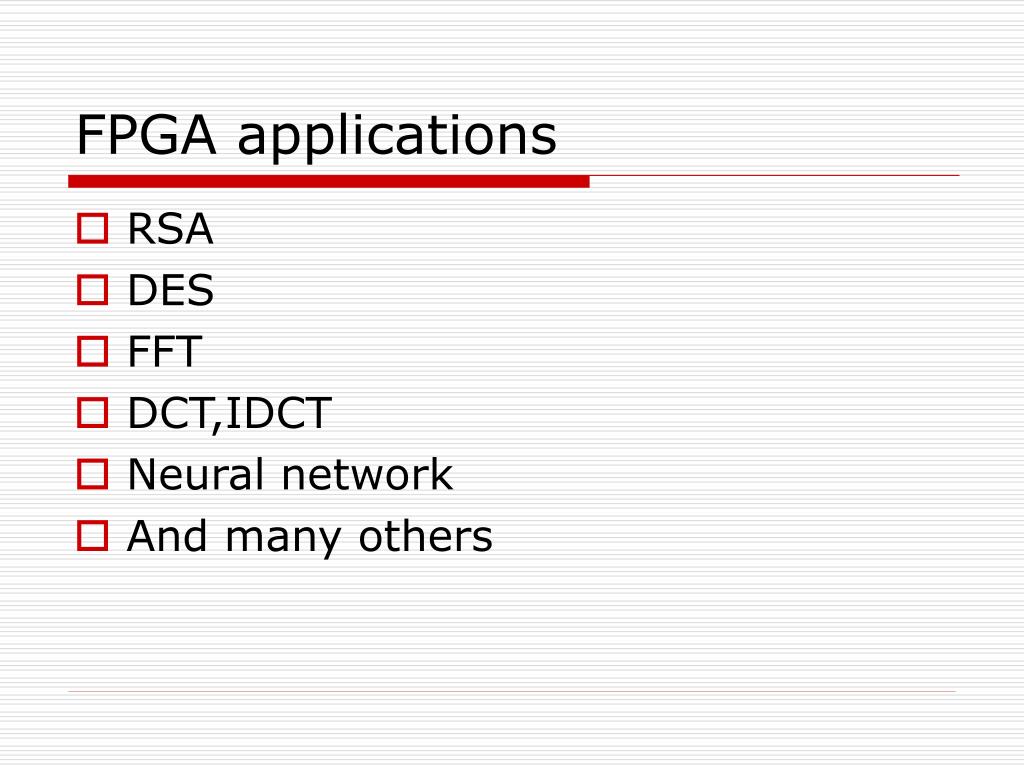

  4. FPGA applications • RSA • DES • FFT • DCT,IDCT • Neural network • And many others

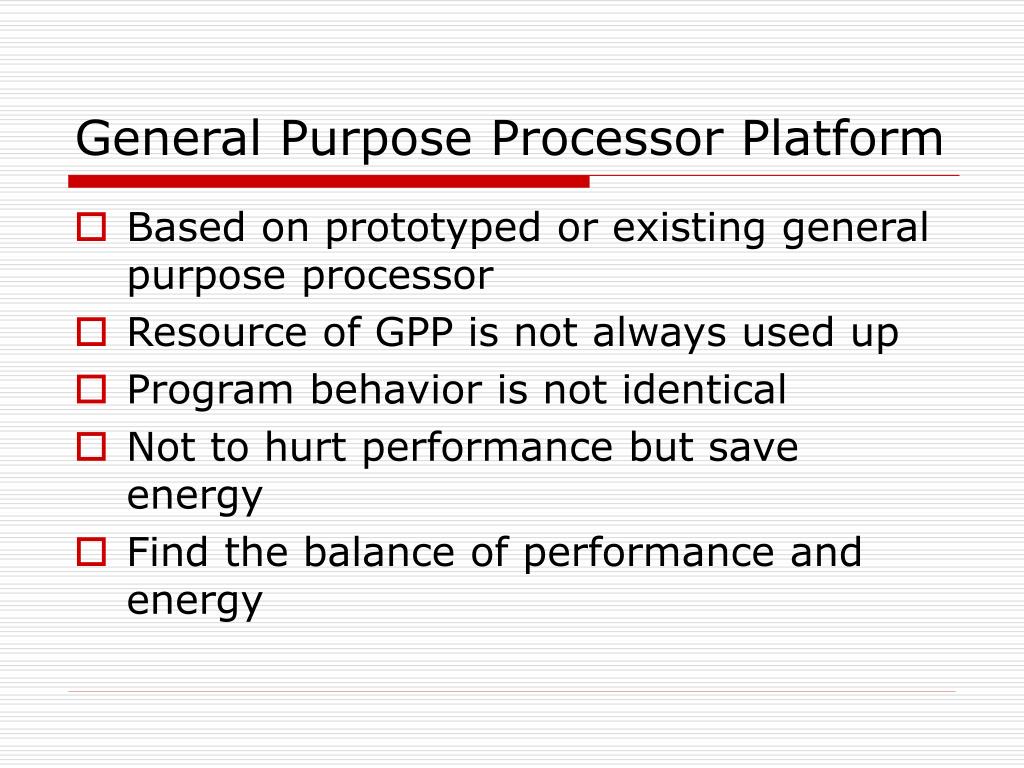

  5. General Purpose Processor Platform • Based on prototyped or existing general purpose processor • Resource of GPP is not always used up • Program behavior is not identical • Not to hurt performance but save energy • Find the balance of performance and energy

  6. Reconfigurable Components on GPP • TLB • Cache • Instruction Queue • Functional Unit • Branch predictor • Pipeline

  7. Reconfigurable Instruction Queue • Joint local and global energy • Take advantage of some specific behavior of frame based applications • Try to adjust instruction queue according to current program behavior

  8. Reconfigurable Cache • Introduction to cache architecture • Techniques for reconfigurable cache • Algorithms to reconfigure cache

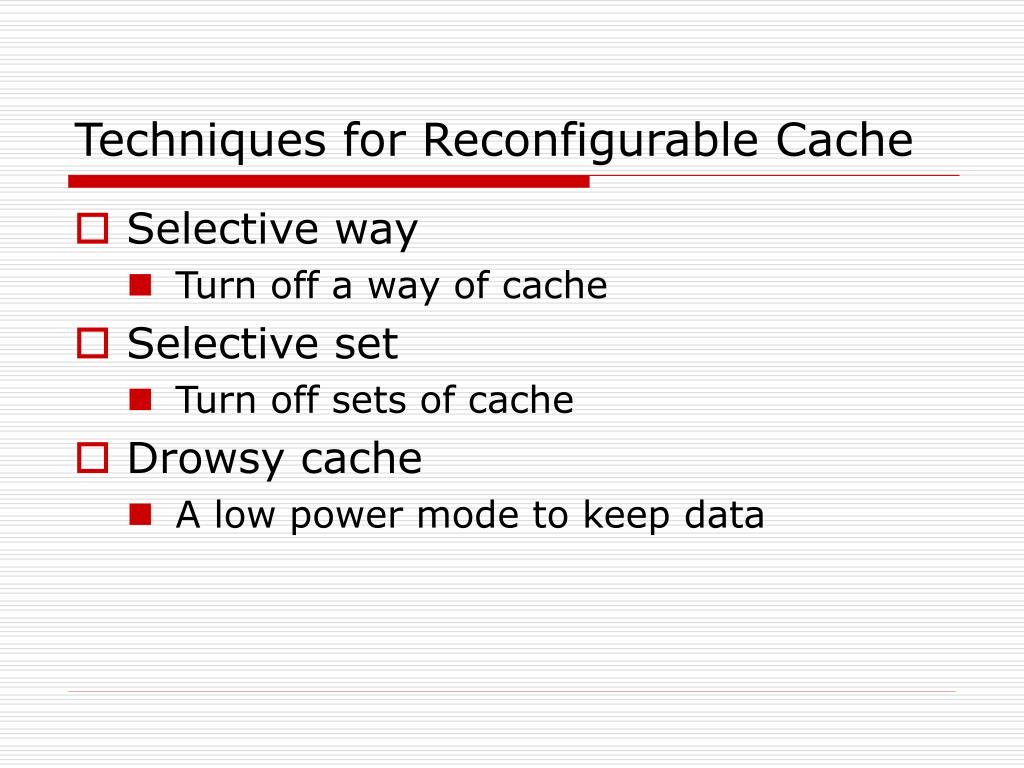

  9. Techniques for Reconfigurable Cache • Selective way • Turn off a way of cache • Selective set • Turn off sets of cache • Drowsy cache • A low power mode to keep data

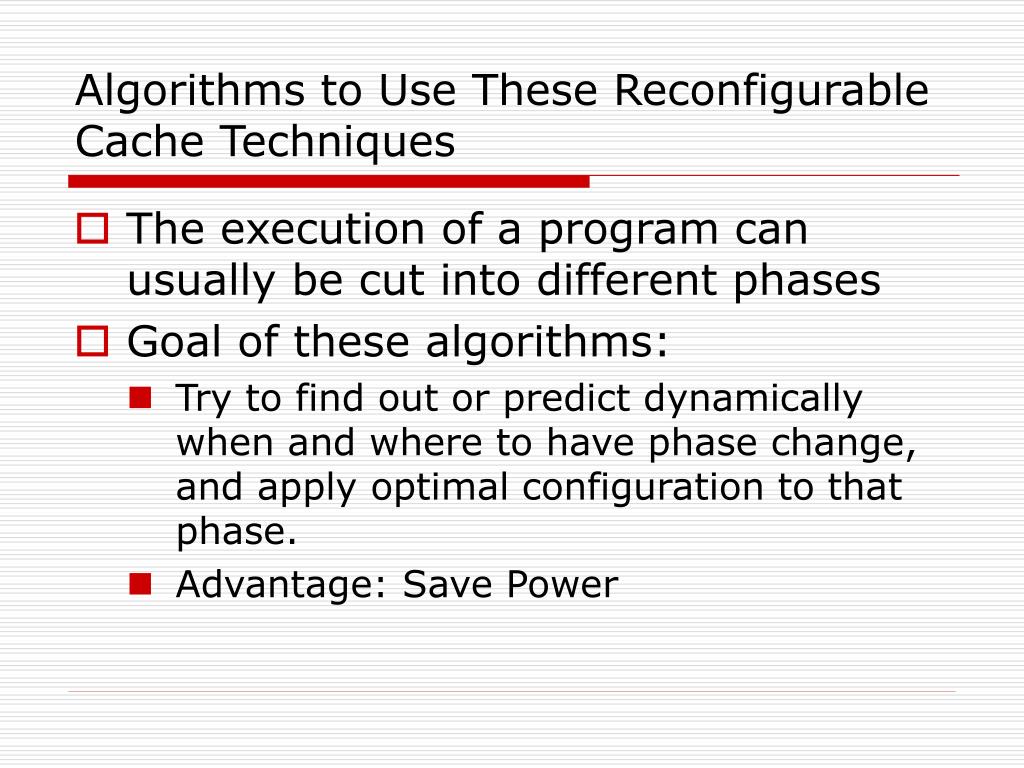

  10. Algorithms to Use These Reconfigurable Cache Techniques • The execution of a program can usually be cut into different phases • Goal of these algorithms: • Try to find out or predict dynamically when and where to have phase change, and apply optimal configuration to that phase. • Advantage: Save Power

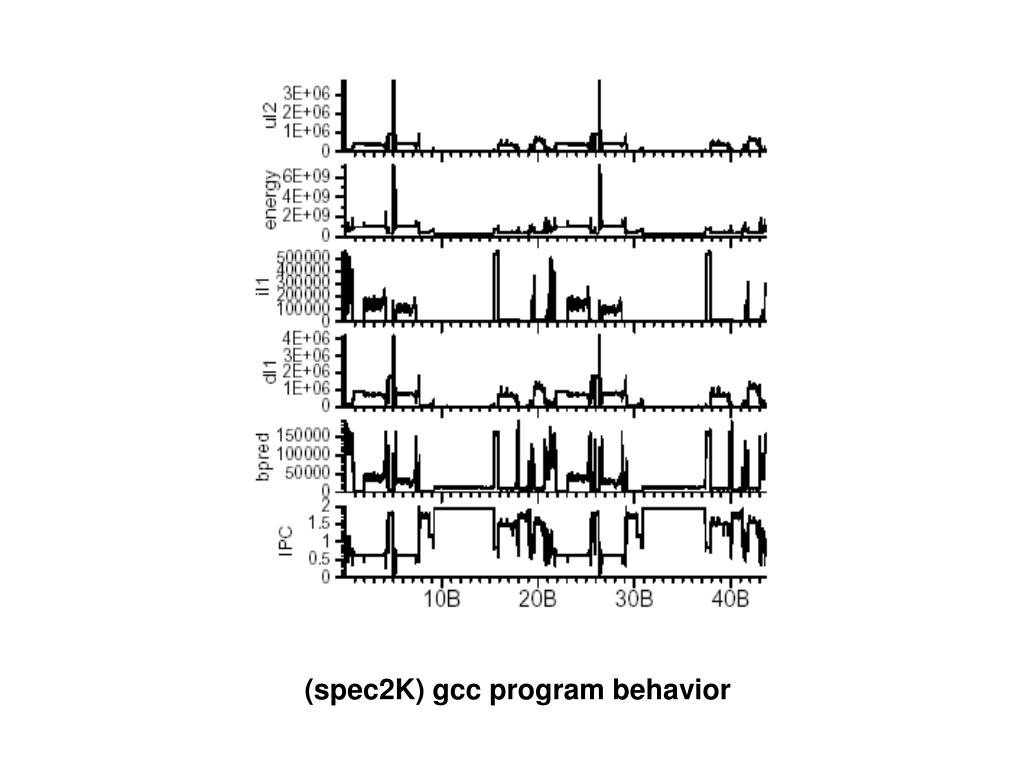

  11. (spec2K) gcc program behavior

  12. Two Direction to Find Phase Change • Temporal • To recursively profile program for a fixed interval • Spatial • Use the change of subroutines as phase change information

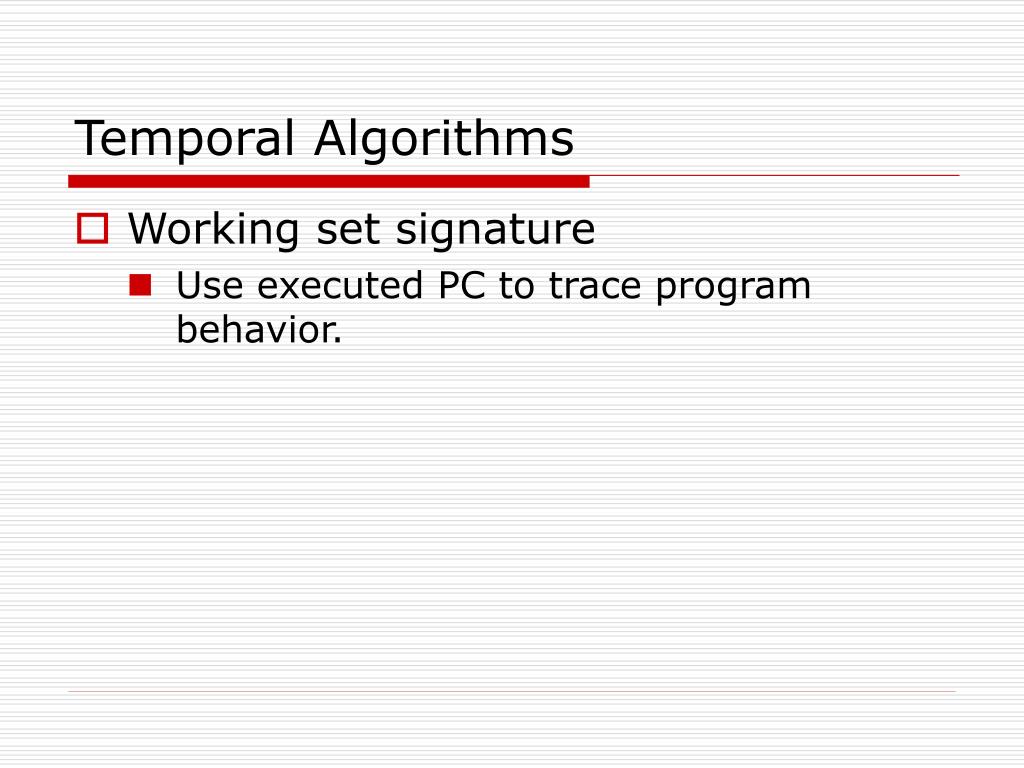

  13. Temporal Algorithms • Working set signature • Use executed PC to trace program behavior.

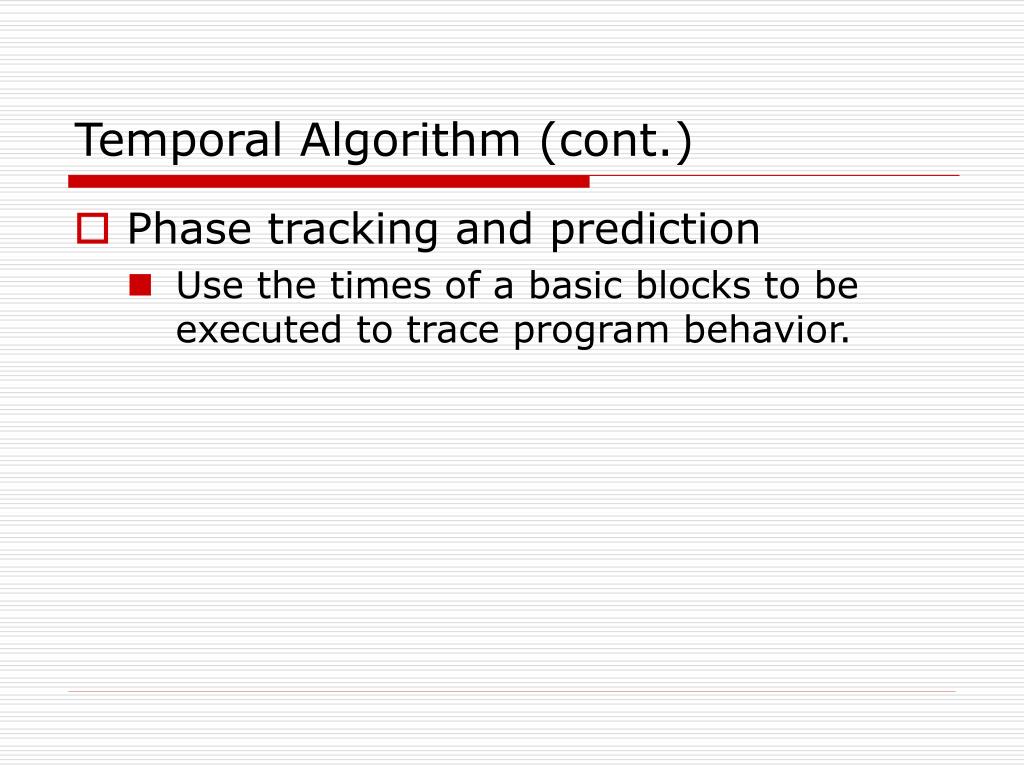

  14. Temporal Algorithm (cont.) • Phase tracking and prediction • Use the times of a basic blocks to be executed to trace program behavior.

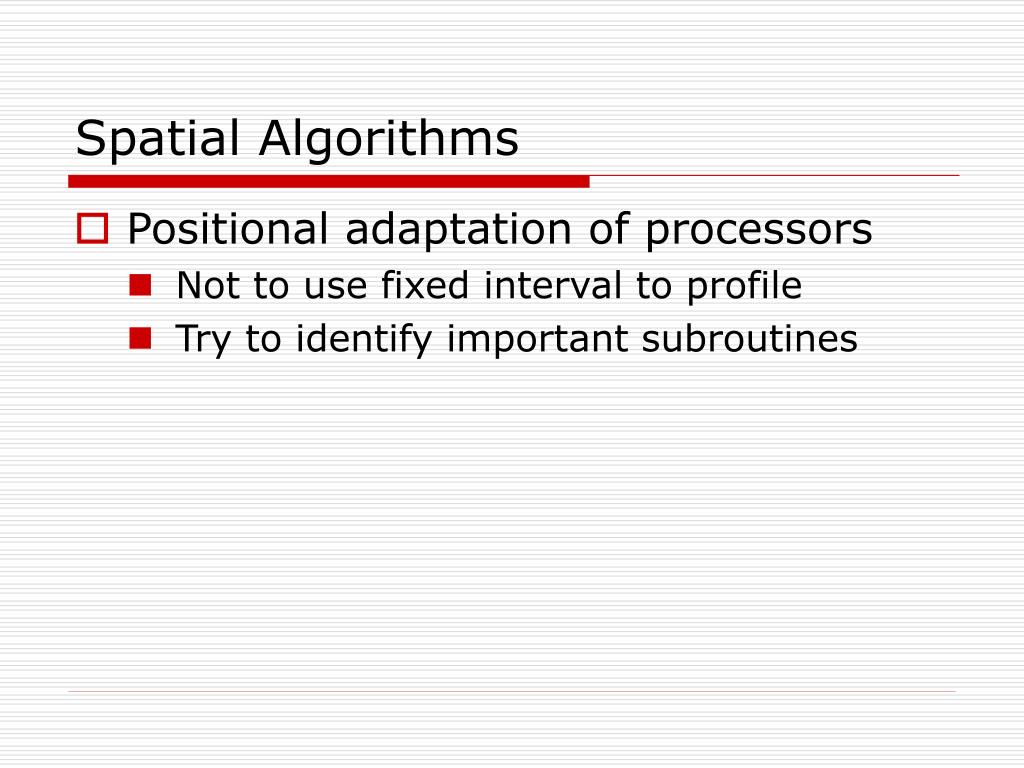

  15. Spatial Algorithms • Positional adaptation of processors • Not to use fixed interval to profile • Try to identify important subroutines

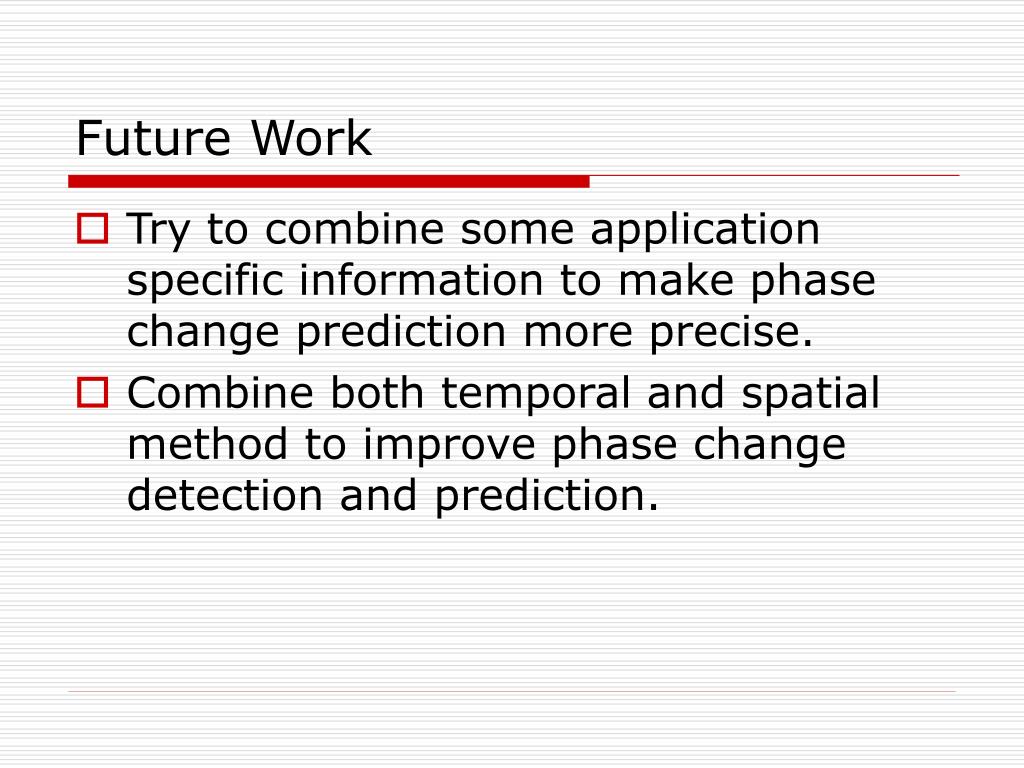

  16. Future Work • Try to combine some application specific information to make phase change prediction more precise. • Combine both temporal and spatial method to improve phase change detection and prediction.

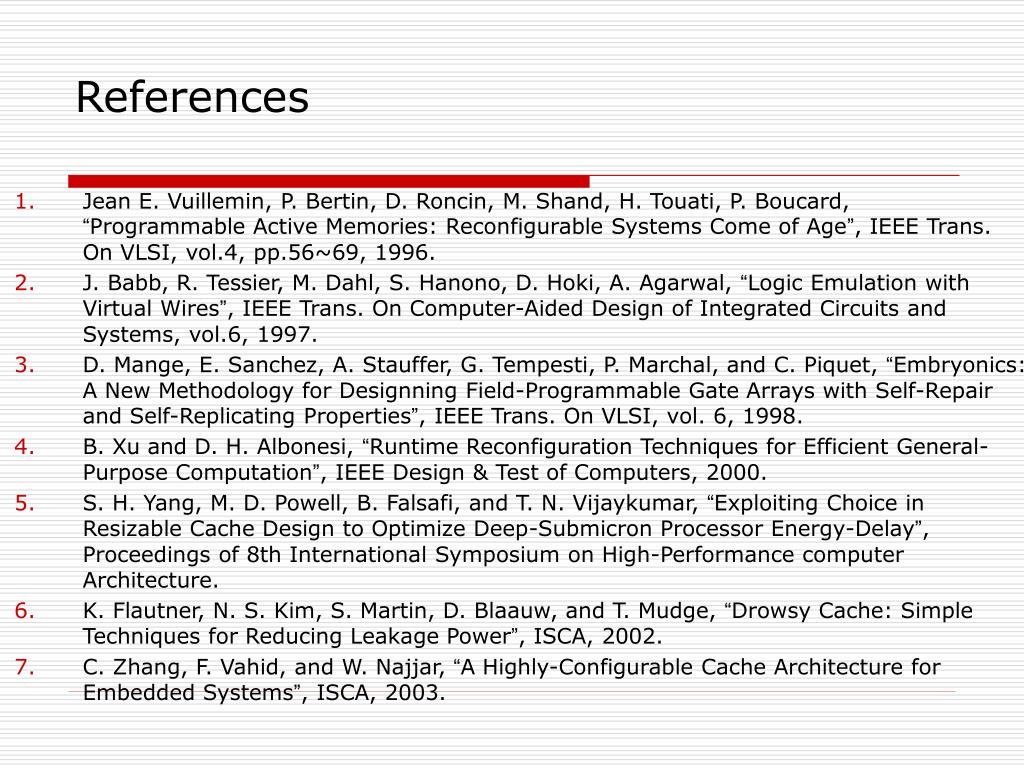

  17. References • Jean E. Vuillemin, P. Bertin, D. Roncin, M. Shand, H. Touati, P. Boucard, “Programmable Active Memories: Reconfigurable Systems Come of Age”, IEEE Trans. On VLSI, vol.4, pp.56~69, 1996. • J. Babb, R. Tessier, M. Dahl, S. Hanono, D. Hoki, A. Agarwal, “Logic Emulation with Virtual Wires”, IEEE Trans. On Computer-Aided Design of Integrated Circuits and Systems, vol.6, 1997. • D. Mange, E. Sanchez, A. Stauffer, G. Tempesti, P. Marchal, and C. Piquet, “Embryonics: A New Methodology for Designning Field-Programmable Gate Arrays with Self-Repair and Self-Replicating Properties”, IEEE Trans. On VLSI, vol. 6, 1998. • B. Xu and D. H. Albonesi, “Runtime Reconfiguration Techniques for Efficient General-Purpose Computation”, IEEE Design & Test of Computers, 2000. • S. H. Yang, M. D. Powell, B. Falsafi, and T. N. Vijaykumar, “Exploiting Choice in Resizable Cache Design to Optimize Deep-Submicron Processor Energy-Delay”, Proceedings of 8th International Symposium on High-Performance computer Architecture. • K. Flautner, N. S. Kim, S. Martin, D. Blaauw, and T. Mudge, “Drowsy Cache: Simple Techniques for Reducing Leakage Power”, ISCA, 2002. • C. Zhang, F. Vahid, and W. Najjar, “A Highly-Configurable Cache Architecture for Embedded Systems”, ISCA, 2003.

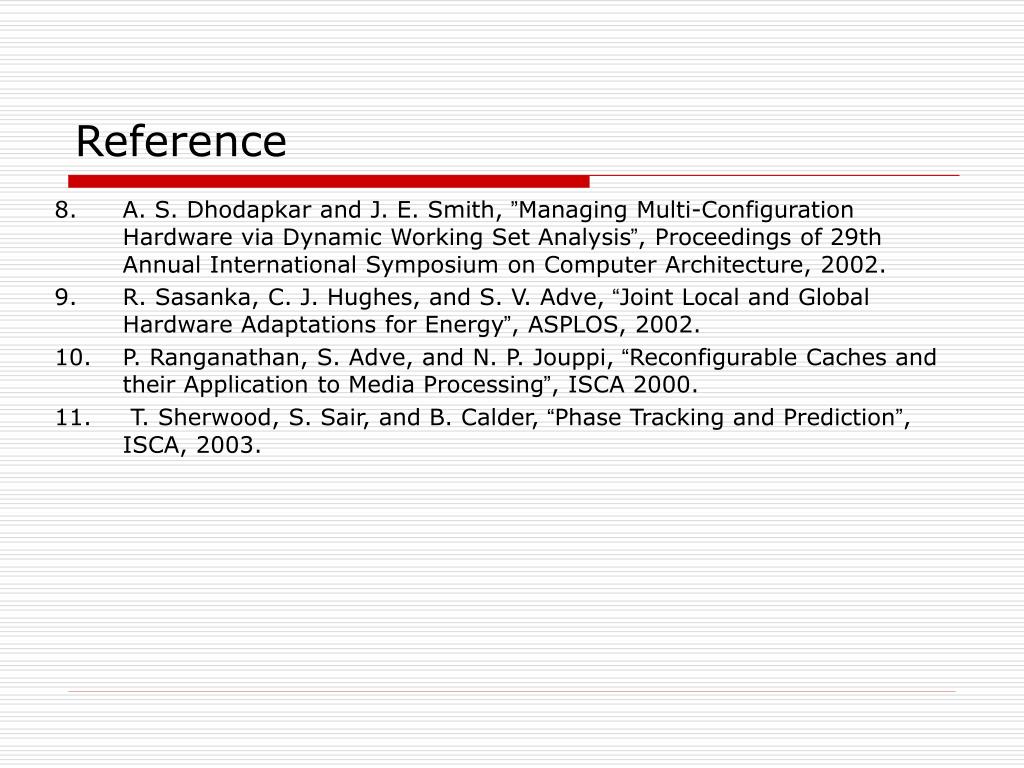

  18. Reference • A. S. Dhodapkar and J. E. Smith, ”Managing Multi-Configuration Hardware via Dynamic Working Set Analysis”, Proceedings of 29th Annual International Symposium on Computer Architecture, 2002. • R. Sasanka, C. J. Hughes, and S. V. Adve, “Joint Local and Global Hardware Adaptations for Energy”, ASPLOS, 2002. • P. Ranganathan, S. Adve, and N. P. Jouppi, “Reconfigurable Caches and their Application to Media Processing”, ISCA 2000. • T. Sherwood, S. Sair, and B. Calder, “Phase Tracking and Prediction”, ISCA, 2003.

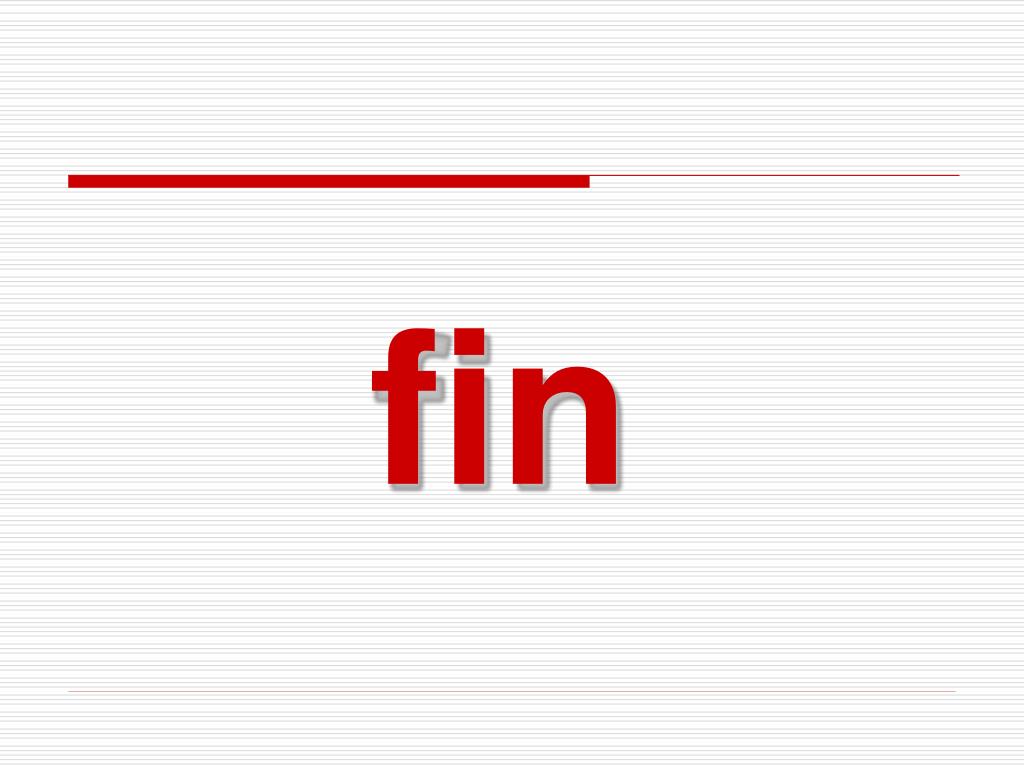

  19. fin
