  1. Genome Sequence determination 陳中庸 E-mail: cychen@cycu.edu.tw Web site: www.cychen.idv.tw

  2. Complete Microbial Genomes

  3. Genome what now? • Sequencing is… • Determining the full nucleotide sequence of one strain of an organism • Making predictions of genes within that sequence & predicting the function of those genes • HARD!!!! • Sequencing requires… • Time • Money • People • Computers

  4. Genome what now? • Before Sequencing … • Nature of an organism • Genetic code • Genome size • Genome structure • Sequencing means… - Bioinformatic - Functional Assay - More….

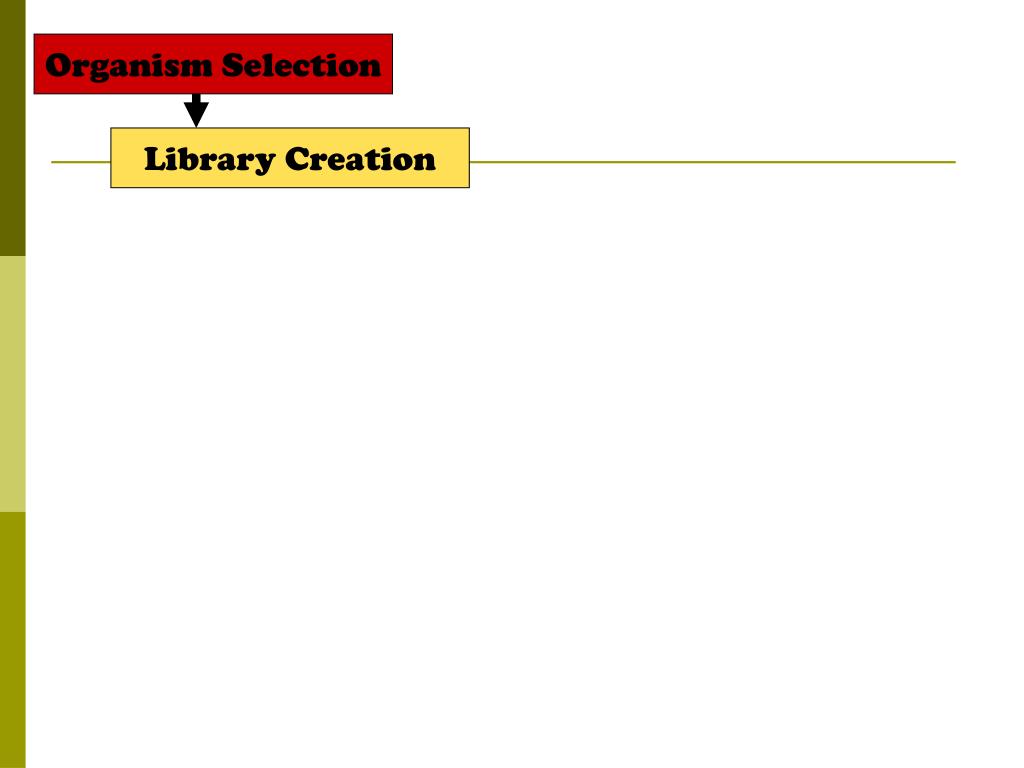

  5. Organism Selection Library Creation

  6. Organism Selection Library Creation Sequencing

  7. Organism Selection Library Creation Sequencing Assembly

  8. Organism Selection Library Creation Sequencing Assembly

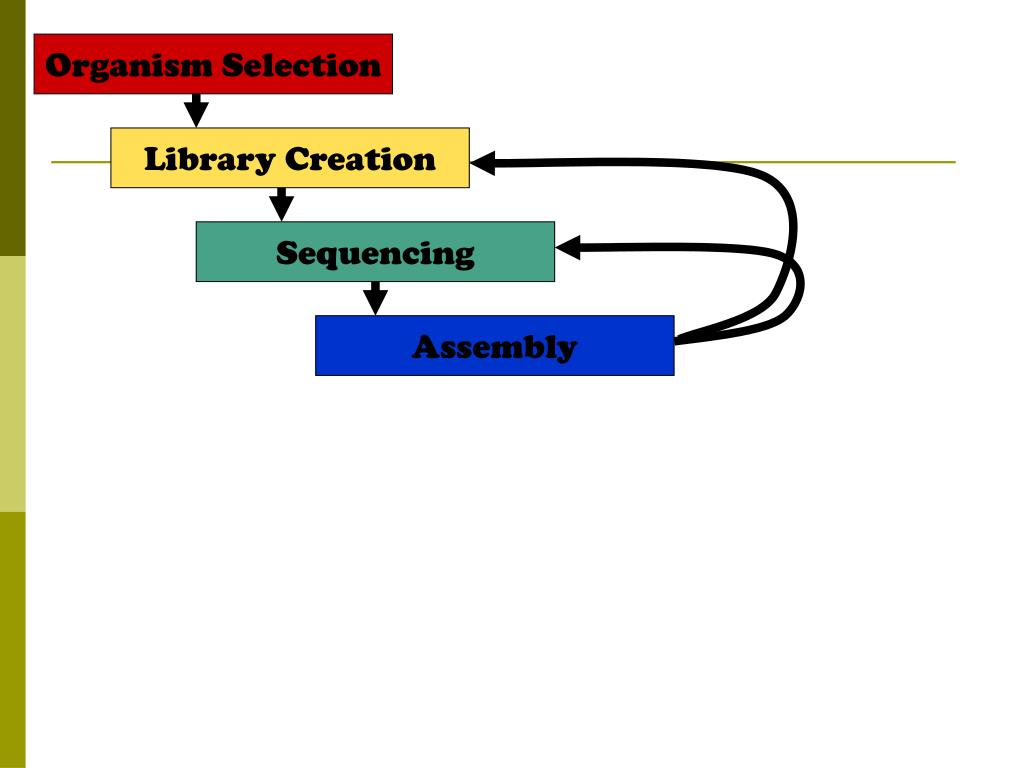

  9. Organism Selection Library Creation Sequencing Assembly

  10. Organism Selection Library Creation Sequencing Assembly Gap Closure

  11. Organism Selection Library Creation Sequencing Assembly Gap Closure

  12. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing

  13. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Annotation

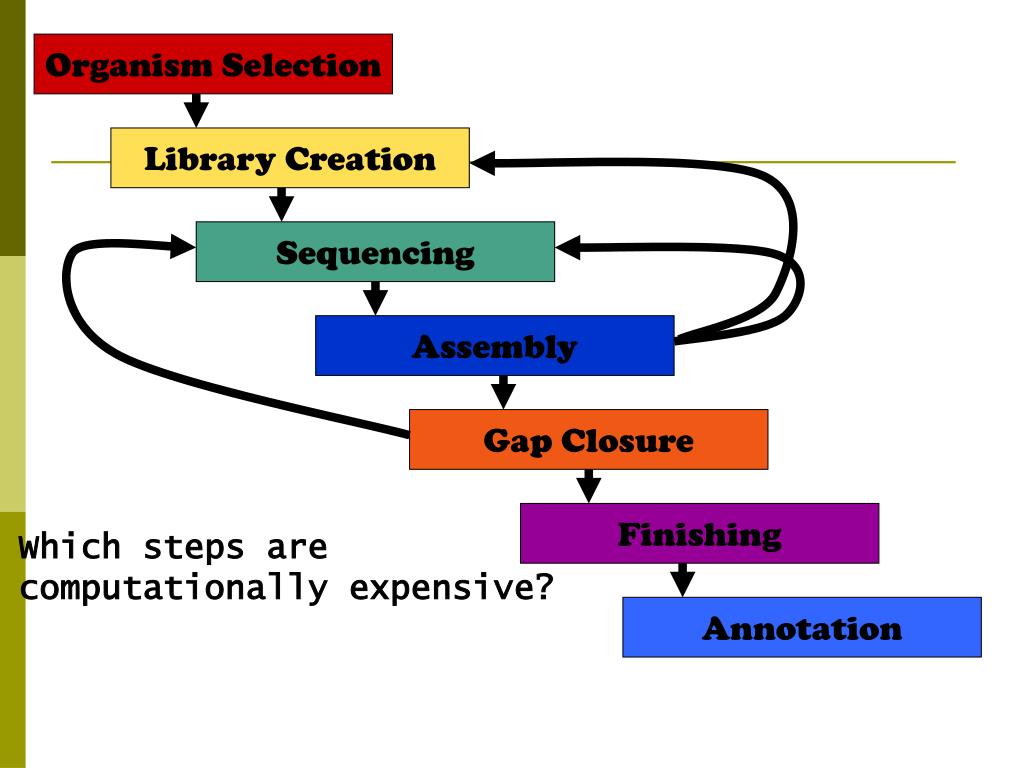

  14. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Which steps are computationally expensive? Annotation

  15. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Annotation

  16. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Which steps have not already been exceptionally well studied? Annotation

  17. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Annotation

  18. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Which step has not been subjected to a variety of approaches? Annotation

  19. Organism Selection Library Creation Sequencing Assembly Gap Closure Finishing Annotation

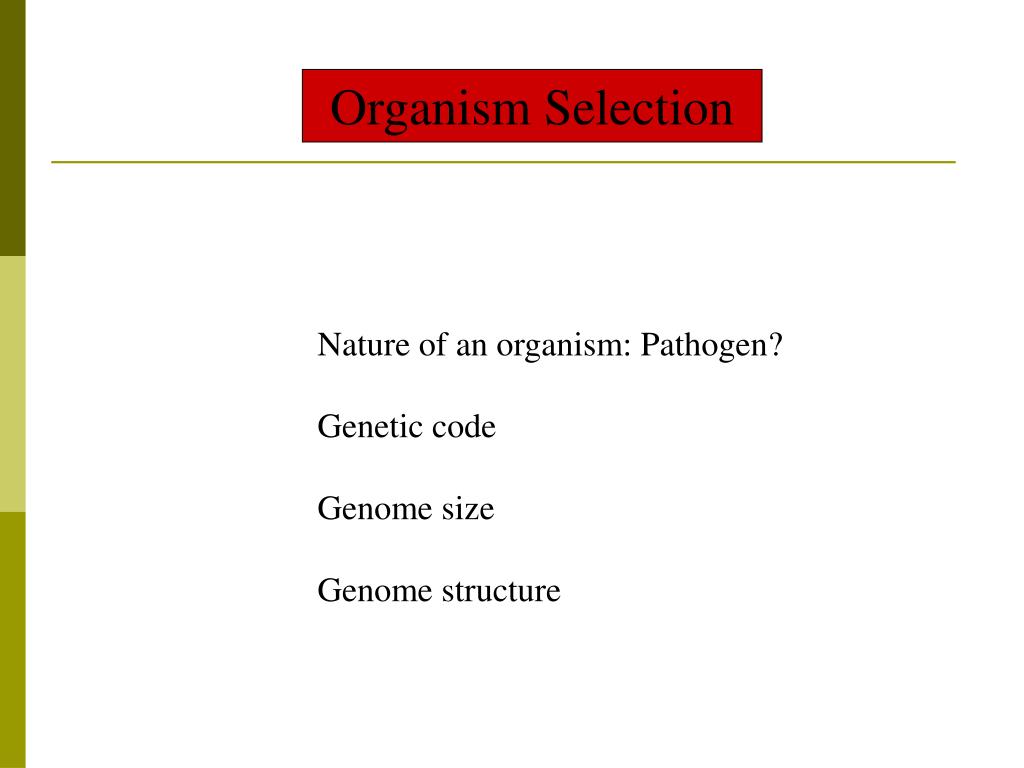

  20. Organism Selection • Nature of an organism: Pathogen? • Genetic code • Genome size • Genome structure

  21. Vibrio vulnificus Strain: YJ016 Genome Size: 5.2 Mb Source: Southern Taiwan Significance: Virulence Strategy: Whole Genome Shotgun Sequencing Coverage: 10X

  22. Organism Selection • Nature of an organism: Pathogen? • Genetic code: Special Code? • Genome size • Genome structure

  23. Genetic Code Tables http://www.ncbi.nlm.nih.gov/Taxonomy/Utils/wprintgc.cgi?mode=c

  24. Organism Selection • Nature of an organism: Pathogen? • Genetic code: Special Code? • Genome size: How many Megabases? • Genome structure

  25. Organism Selection • Nature of an organism: Pathogen? • Genetic code: Special Code? • Genome size: How many Megabases? • Genome structure: Linear/Circular Chromosome? How many?

  26. How to sequence a complete genome? Sizes of bacterial genomes vary between :Mycoplasma genitalium and Myxobacteria: 0.6 Mb to ~13 Mb • reading length of DNA sequencing reactions is just ~600 bp (= 0.0006 Mb) ⇒ a subdivision of the genome is obviously necessary • If the genome needs to be subdivided into small pieces of suitable sizes for sequencing, then • Individual sequences/fragments need to be ordered somehow into their "native" order • Therefore, overlaps between each other are necessary in order to re-assemble the pieces ⇒ there are two main sequencing strategies: 1. whole genome shotgun sequencing 2. ordered shotgun sequencing

  27. c = Coverage;

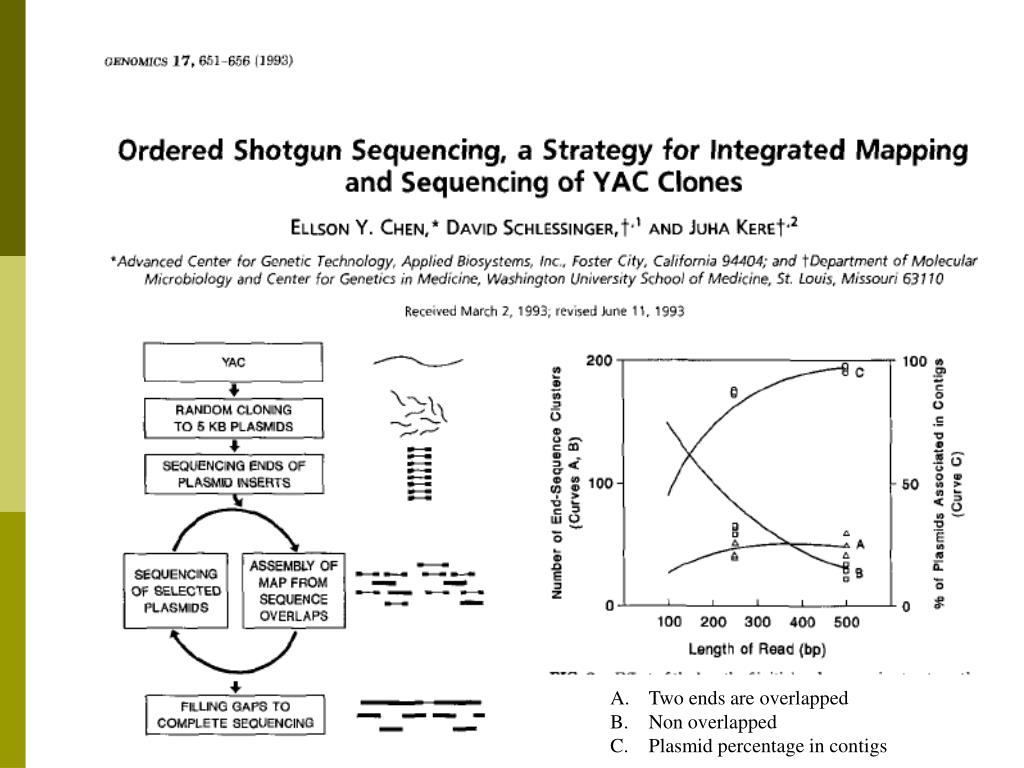

  28. Two ends are overlapped • Non overlapped • Plasmid percentage in contigs

  29. Library Creation • Team Works • QC control • Time Table • Budget • Paper

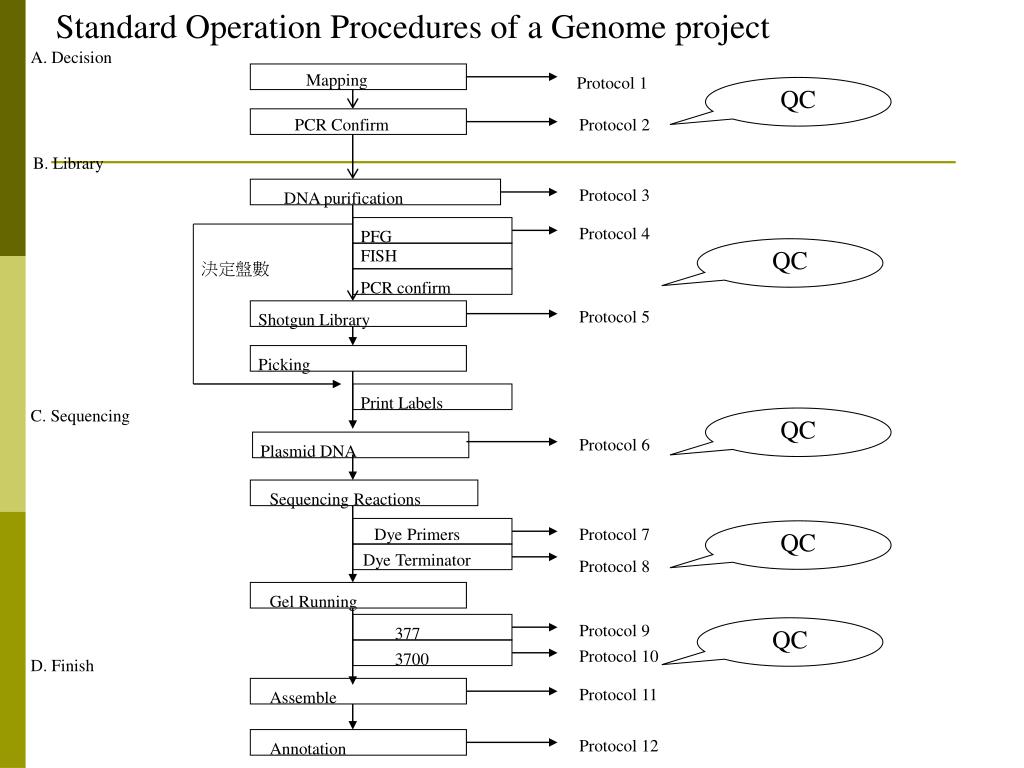

  30. Standard Operation Procedures of a Genome project A. Decision Mapping Protocol 1 QC PCR Confirm Protocol 2 B. Library Protocol 3 DNA purification Protocol 4 PFG QC FISH 決定盤數 PCR confirm Protocol 5 Shotgun Library Picking Print Labels C. Sequencing QC Protocol 6 Plasmid DNA Sequencing Reactions Dye Primers Protocol 7 QC Dye Terminator Protocol 8 Gel Running Protocol 9 377 QC Protocol 10 3700 D. Finish Protocol 11 Assemble Protocol 12 Annotation

  31. Library (1) Random Shearing of Genomic DNA • Restriction enzyme: • Sau3AI (GATC)--- affected by CG methylase • MboI (GATC) – affected by dam methylase • -- not affected by CG methylase • 2. Sonication: • Sonication – Bal31 repair – T4 DNApolymerase – Sizing – • Recover –Ligation • 3. GeneMachine: easy sizing by filter

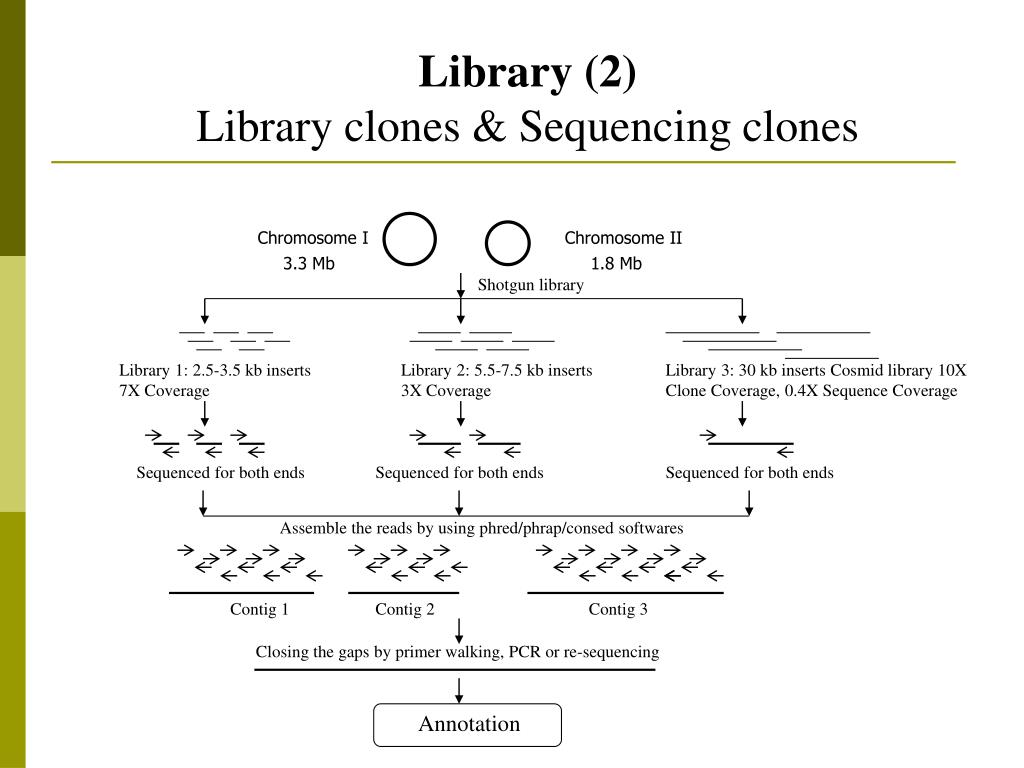

  32. Library (2) Library clones & Sequencing clones Chromosome I Chromosome II 3.3 Mb 1.8 Mb Shotgun library Library 1: 2.5-3.5 kb inserts 7X Coverage Library 2: 5.5-7.5 kb inserts 3X Coverage Library 3: 30 kb inserts Cosmid library 10X Clone Coverage, 0.4X Sequence Coverage Sequenced for both ends Sequenced for both ends Sequenced for both ends Assemble the reads by using phred/phrap/consed softwares Contig 1 Contig 2 Contig 3 Closing the gaps by primer walking, PCR or re-sequencing Annotation

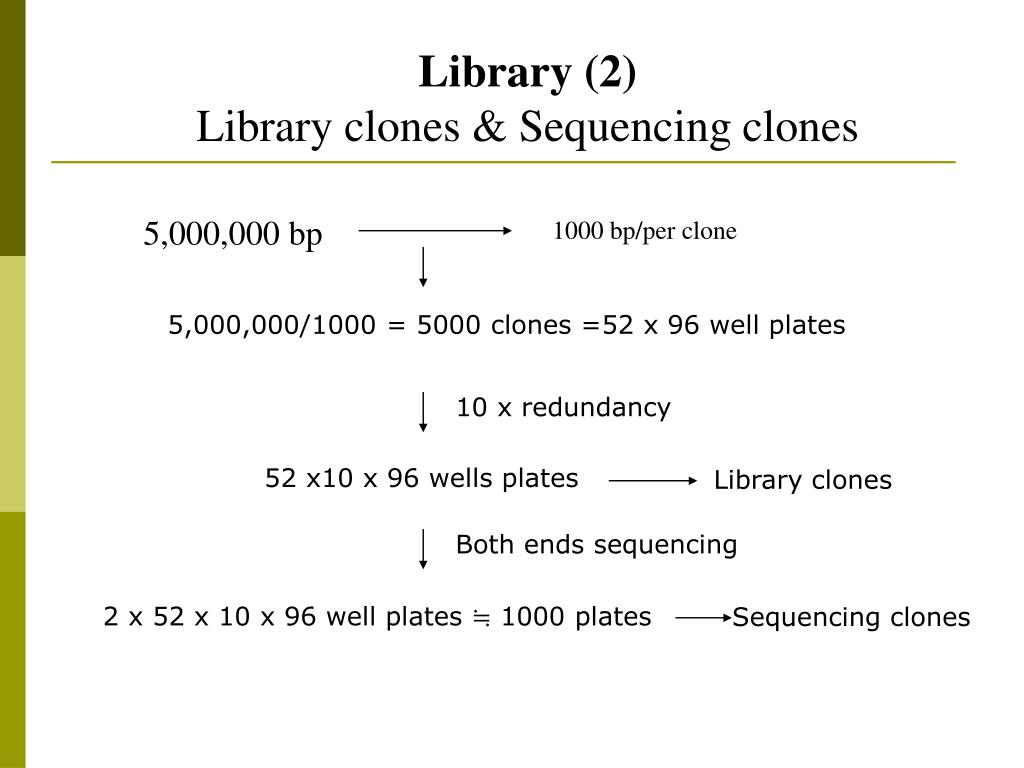

  33. Library (2) Library clones & Sequencing clones 5,000,000 bp 1000 bp/per clone 5,000,000/1000 = 5000 clones =52 x 96 well plates 10 x redundancy 52 x10 x 96 wells plates Library clones Both ends sequencing 2 x 52 x 10 x 96 well plates ≒ 1000 plates Sequencing clones

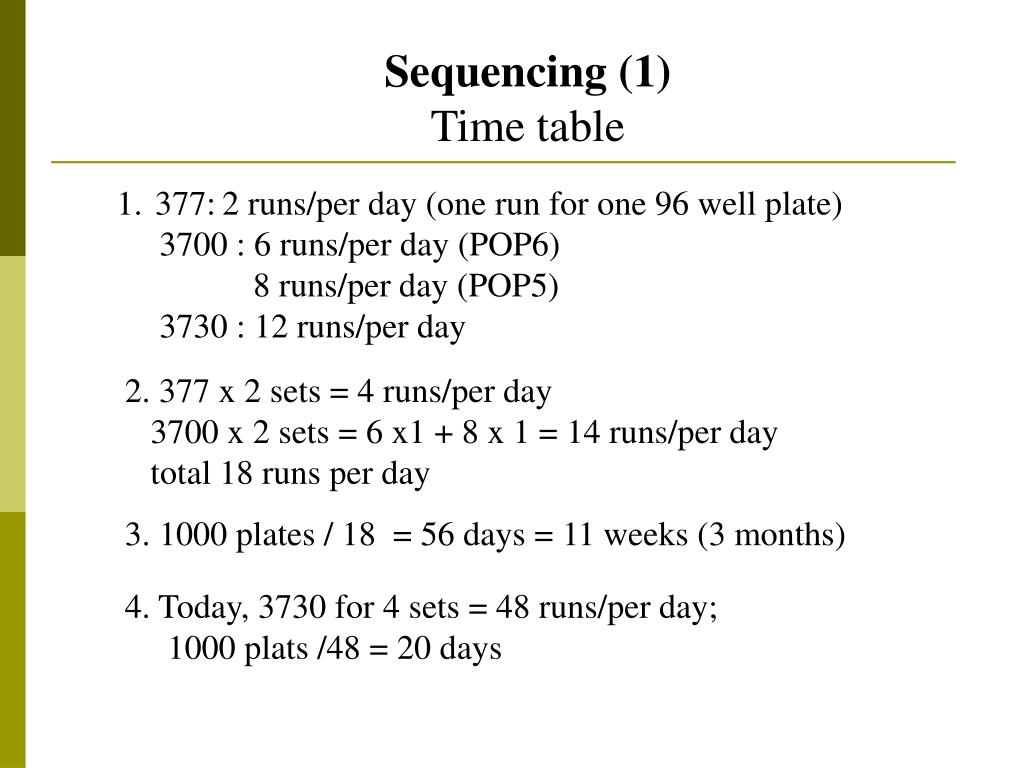

  34. Sequencing (1) Time table • 377:2 runs/per day (one run for one 96 well plate) • 3700 : 6 runs/per day (POP6) • 8 runs/per day (POP5) • 3730 : 12 runs/per day 2. 377 x 2 sets = 4 runs/per day 3700 x 2 sets = 6 x1 + 8 x 1 = 14 runs/per day total 18 runs per day 3. 1000 plates / 18 = 56 days = 11 weeks (3 months) 4. Today, 3730 for 4 sets = 48 runs/per day; 1000 plats /48 = 20 days

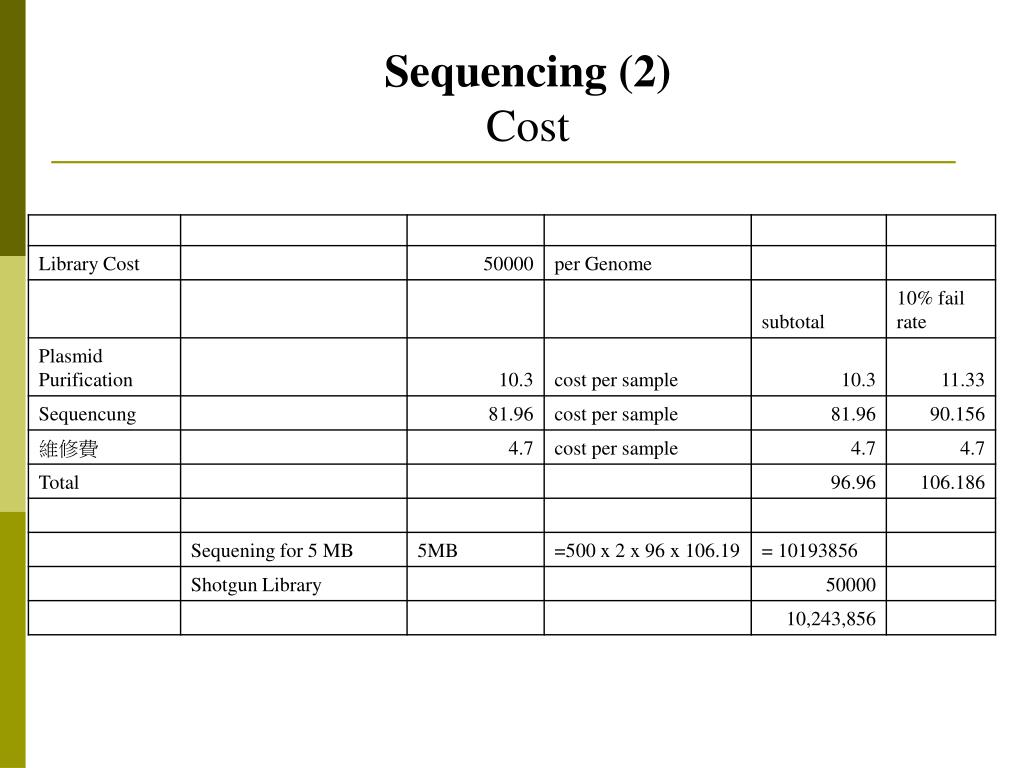

  35. Sequencing (2) Cost

  36. 硬體設施 ABI 377 ABI 3700 MegaBace 4000 ABI 3730XL

  37. The automated production line for sample preparation at the Whitehead Institute, Center for Genome Research. The system consists of custom-designed factory-style conveyor belt robots that perform all functions from purifying DNA from bacterial cultures through setting up and purifying sequencing reactions.

  38. 5X coverage 359 328 279 Assembled contigs 245 243 166 Assembled reads Reads vs. Assembled Contigs

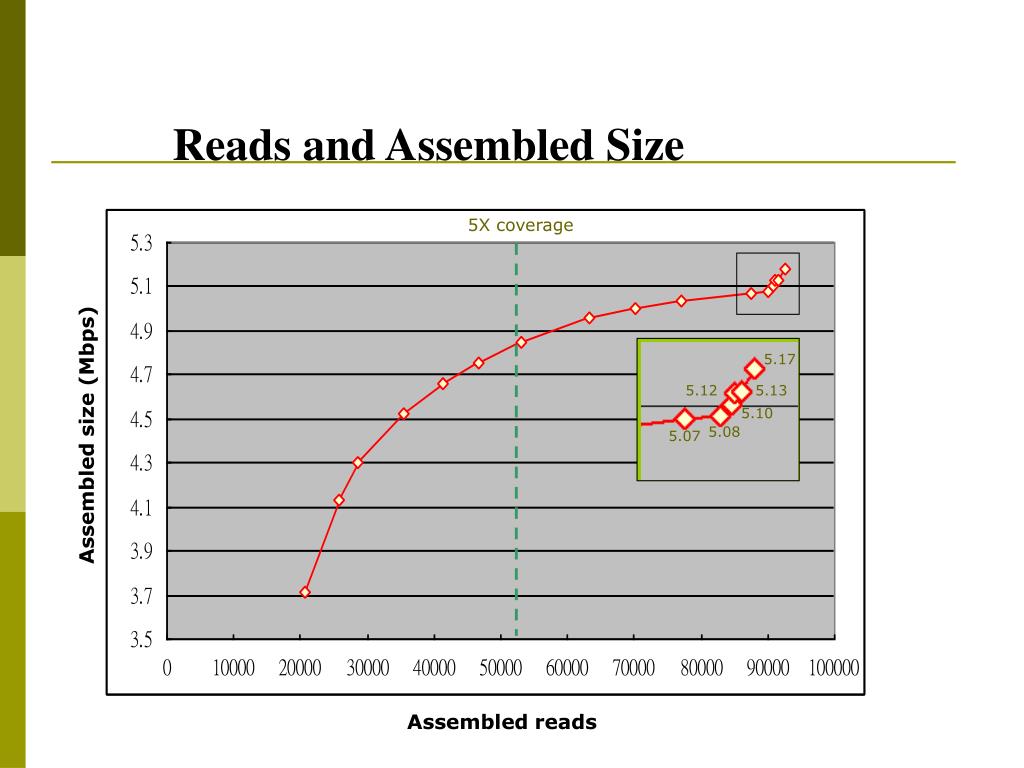

  39. 5X coverage Assembled size (Mbps) 5.17 5.12 5.13 5.10 5.08 5.07 Assembled reads Reads and Assembled Size
