  1. Elastic TransactionsUnleashing Concurrency of Transactional Memory Pascal Felber Vincent Gramoli Rachid Guerraoui

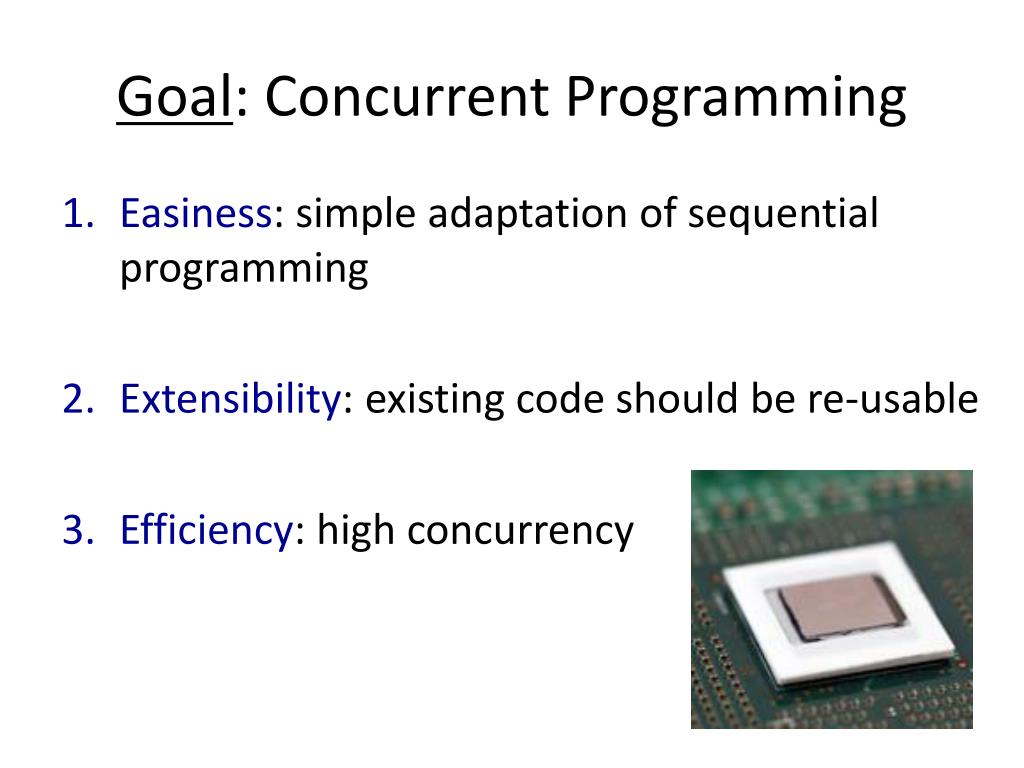

  2. Goal: Concurrent Programming • Easiness: simple adaptation of sequential programming • Extensibility: existing code should be re-usable • Efficiency: high concurrency

  3. Pessimistic vs. Optimistic Paradigm • Pessimistic: first validate, then execute • May I modify the data safely? • If so go on, otherwise wait. • Optimistic: first execute, then validate • Execute & hope for the best. • In worst case, roll-back!

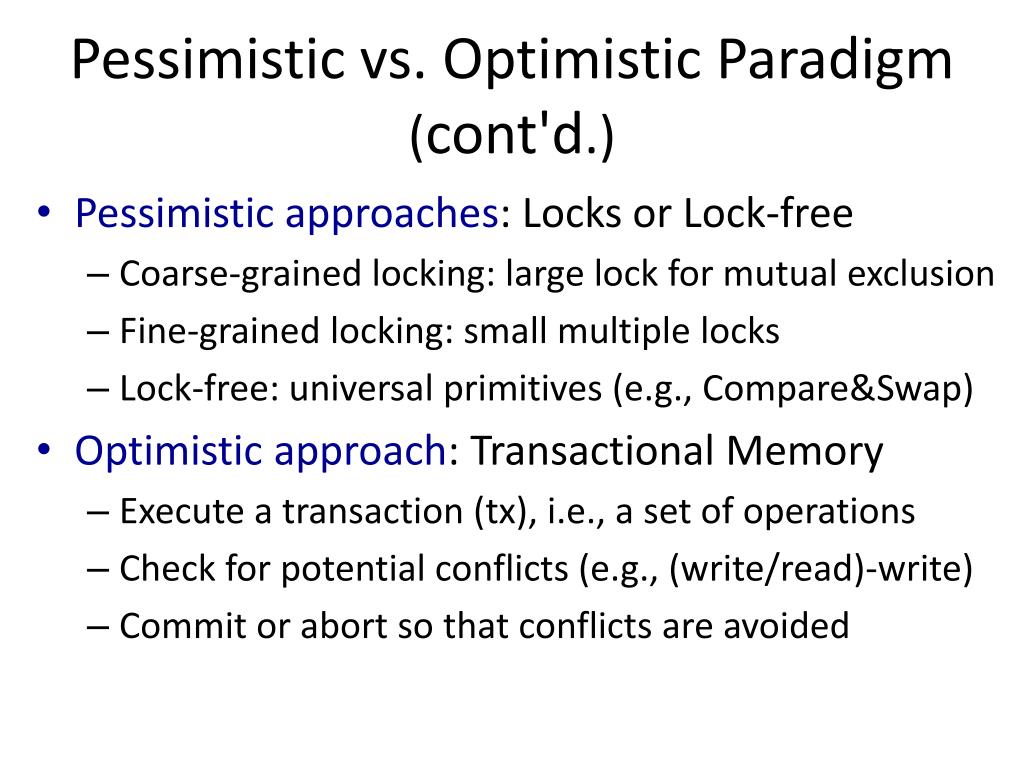

  4. Pessimistic vs. Optimistic Paradigm(cont'd.) • Pessimistic approaches: Locks or Lock-free • Coarse-grained locking: large lock for mutual exclusion • Fine-grained locking: small multiple locks • Lock-free: universal primitives (e.g., Compare&Swap) • Optimistic approach: Transactional Memory • Execute a transaction (tx), i.e., a set of operations • Check for potential conflicts (e.g., (write/read)-write) • Commit or abort so that conflicts are avoided

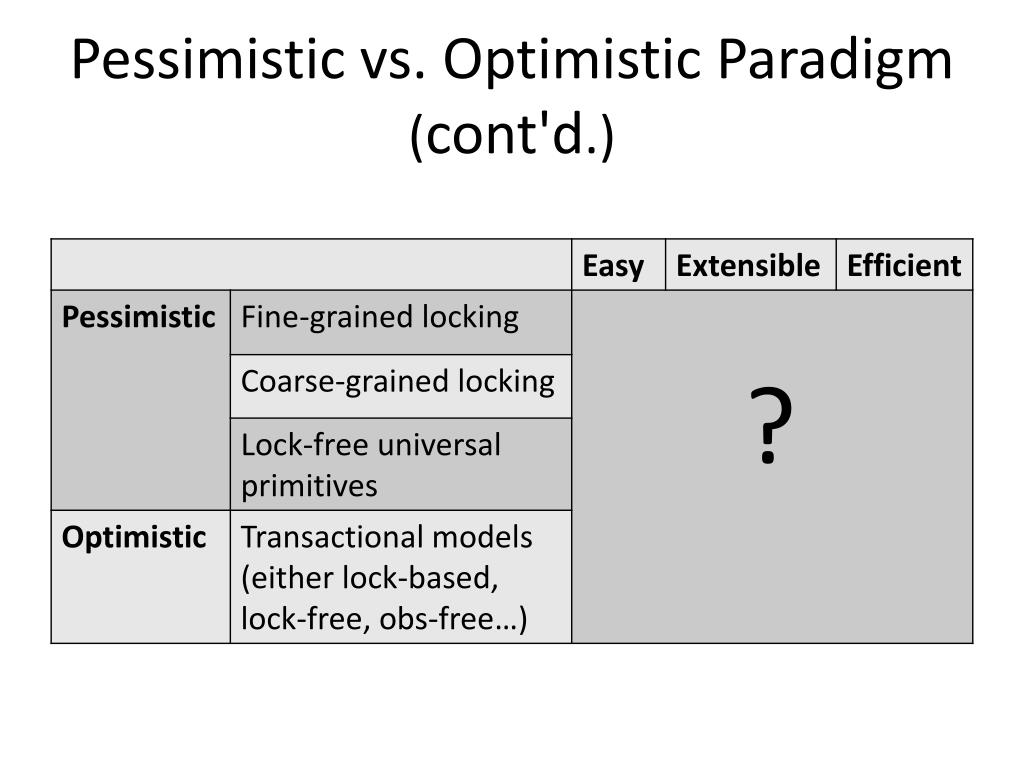

  5. Pessimistic vs. Optimistic Paradigm(cont'd.)

  6. Bucket Hash Table Example @ = Hash(x) one sorted linked list x y max max … z max

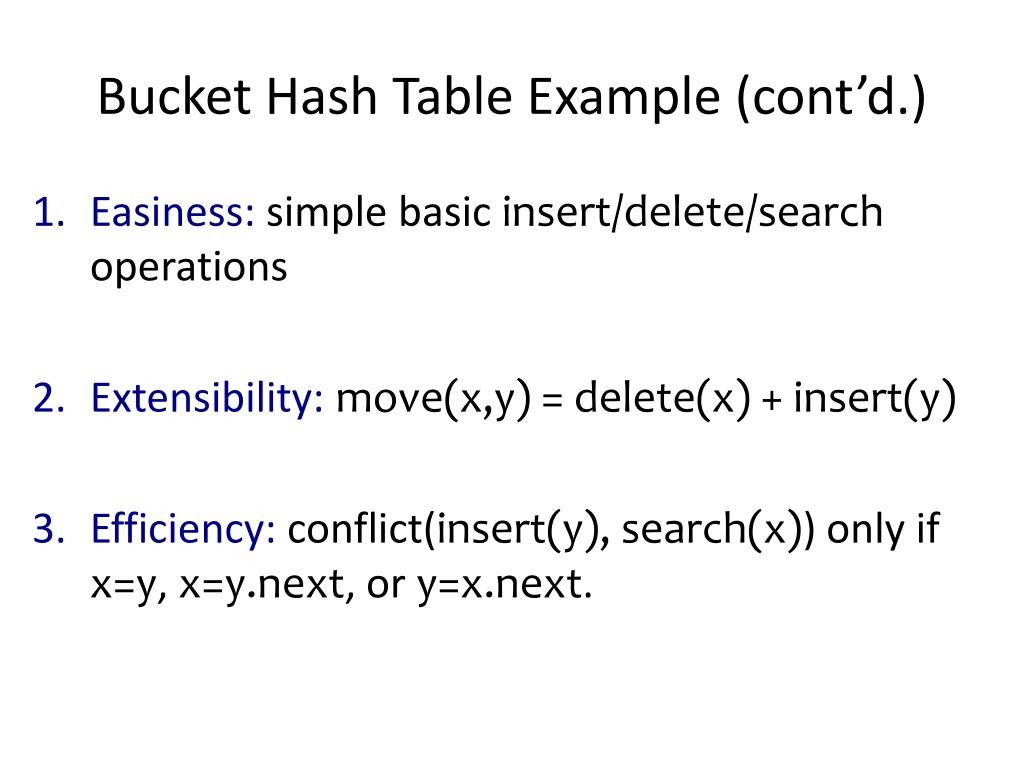

  7. Bucket Hash Table Example (cont’d.) • Easiness: simple basic insert/delete/search operations • Extensibility: move(x,y) = delete(x) + insert(y) • Efficiency: conflict(insert(y), search(x)) only if x=y, x=y.next, or y=x.next.

  8. Coarse-grained Locking • Coarse-grained: inefficient Insert(t) x y max max … z max

  9. Coarse-grained Locking • Coarse-grained: inefficient t Insert(t) x y max max … z max conflict(insert(t), search(y)) whereas y≠t, y≠t.next, and t≠y.next.

  10. Fine-grained locking • Lazy alg. [Heller et al. OPODIS05]: Uneasy P2 delete x y max max … P1 delete z max

  11. Fine-grained locking • Lazy alg. [Heller et al. OPODIS05]: Uneasy P1 would like to insert P2 delete x y max max … P1 delete z max P2 would like to insert DEADLOCK!

  12. Lock-free universal primitives • Harris-Michael [DISC01,SPAA02]: Non-extensible P1 deletes Compare&Swap x y max max … z max

  13. Lock-free universal primitives • Harris-Michael [DISC01,SPAA02]: Non-extensible P1 deletes Compare&Swap x y max max … P1 inserts z max Compare&Swap u move(y,u) ≠ delete(y) + insert(u)

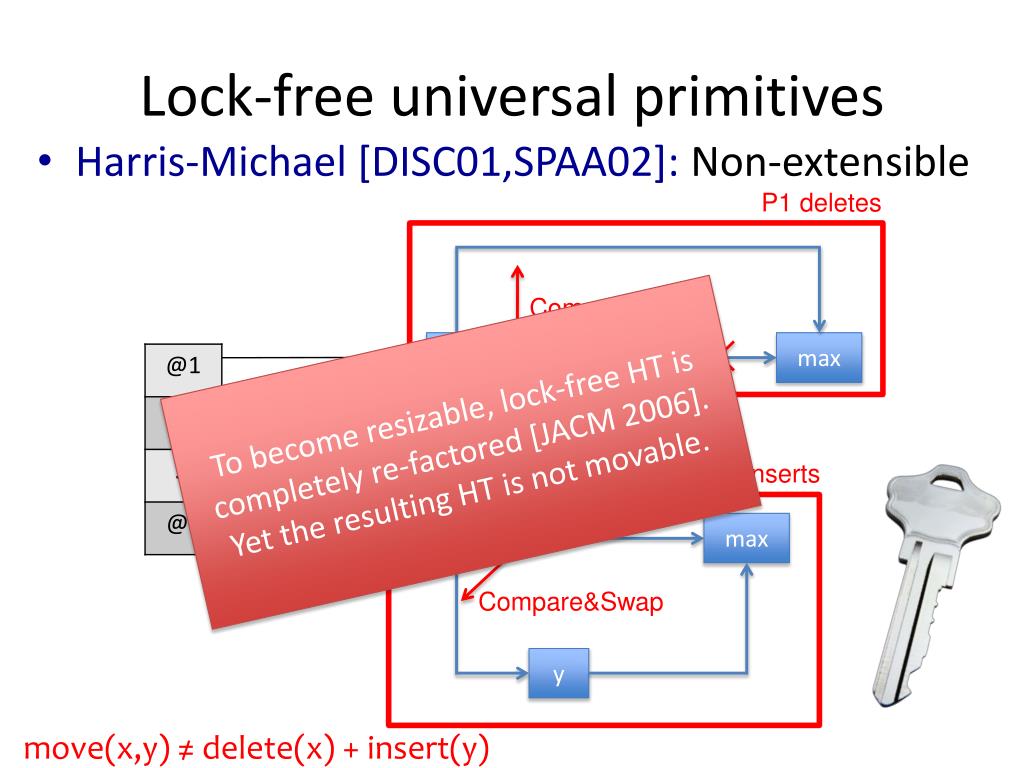

  14. Lock-free universal primitives • Harris-Michael [DISC01,SPAA02]: Non-extensible P1 deletes Compare&Swap x y max To become resizable, lock-free HT is completely re-factored [JACM 2006]. Yet the resulting HT is not movable. max … P1 inserts z max Compare&Swap y move(x,y) ≠ delete(x) + insert(y)

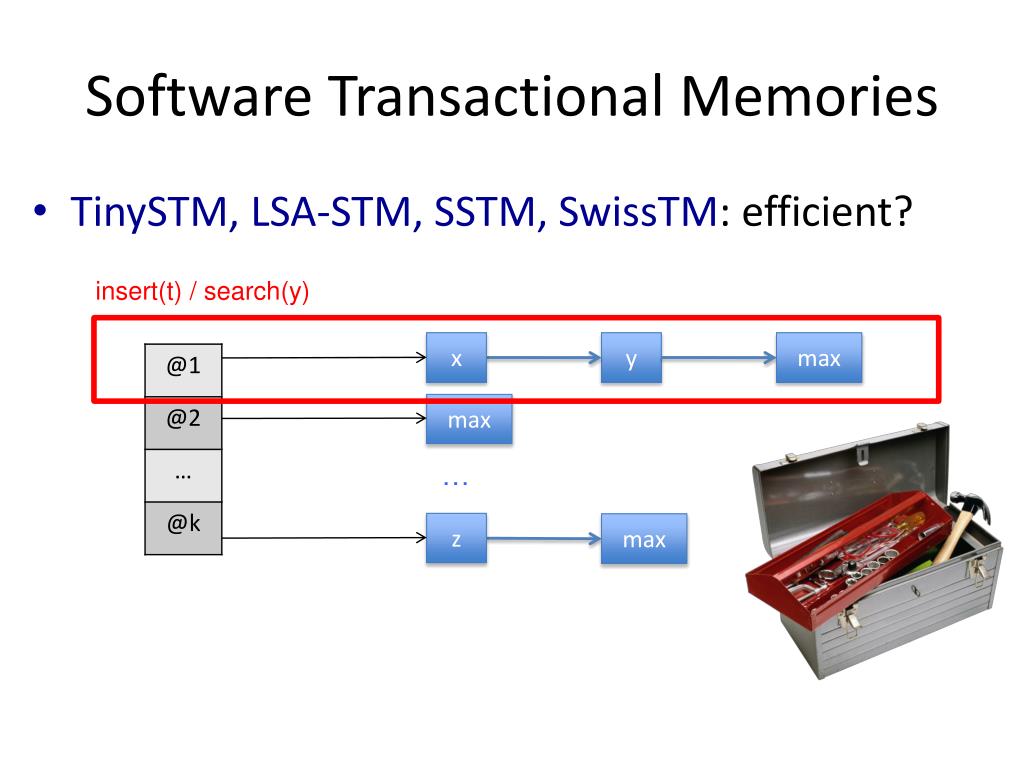

  15. Software Transactional Memories • TinySTM, LSA-STM, SSTM, SwissTM: efficient? insert(t) / search(y) x y max max … z max

  16. Software Transactional Memories • TinySTM, LSA-STM, SSTM, SwissTM: efficient? t insert(t) / search(y) x y max max … z max conflict(insert(t), search(y)) whereas y≠t, y≠t.next, or t≠y.next.

  17. Elastic Transactional Memory (ε-STM) • Elastic transactions: weaker than normal ones t insert(t) / search(y) x y max max … z max

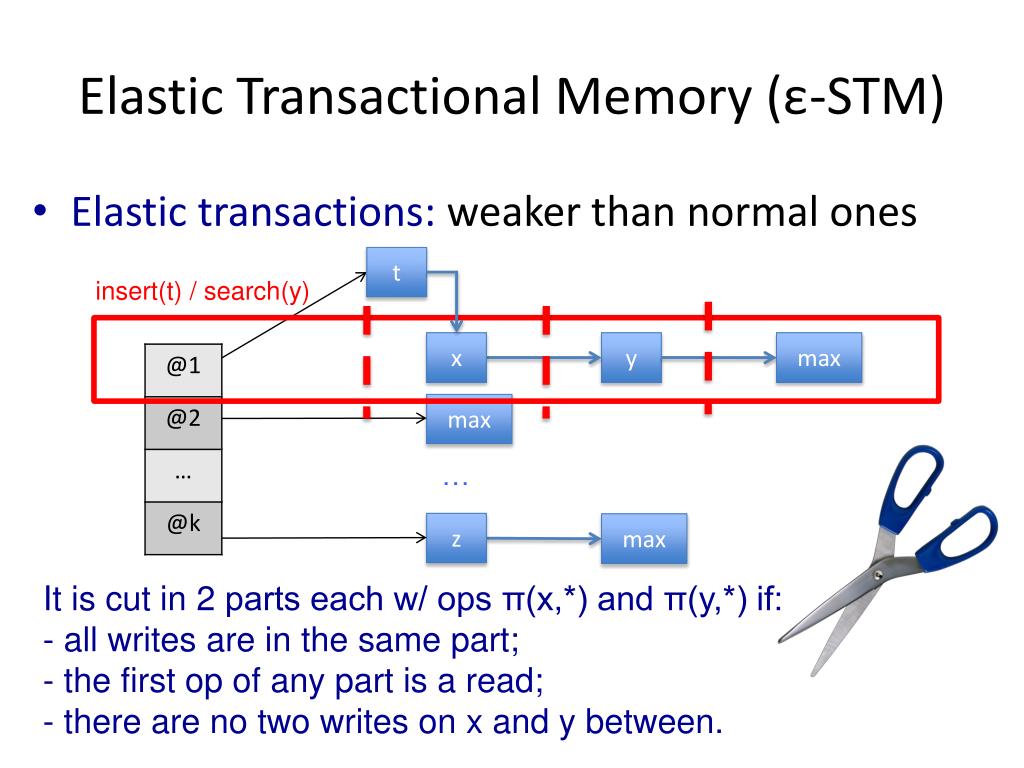

  18. Elastic Transactional Memory (ε-STM) • Elastic transactions: weaker than normal ones t insert(t) / search(y) x y max max … z max • It is cut in 2 parts each w/ ops π(x,*) and π(y,*) if: • all writes are in the same part; • the first op of any part is a read; • there are no two writes on x and y between.

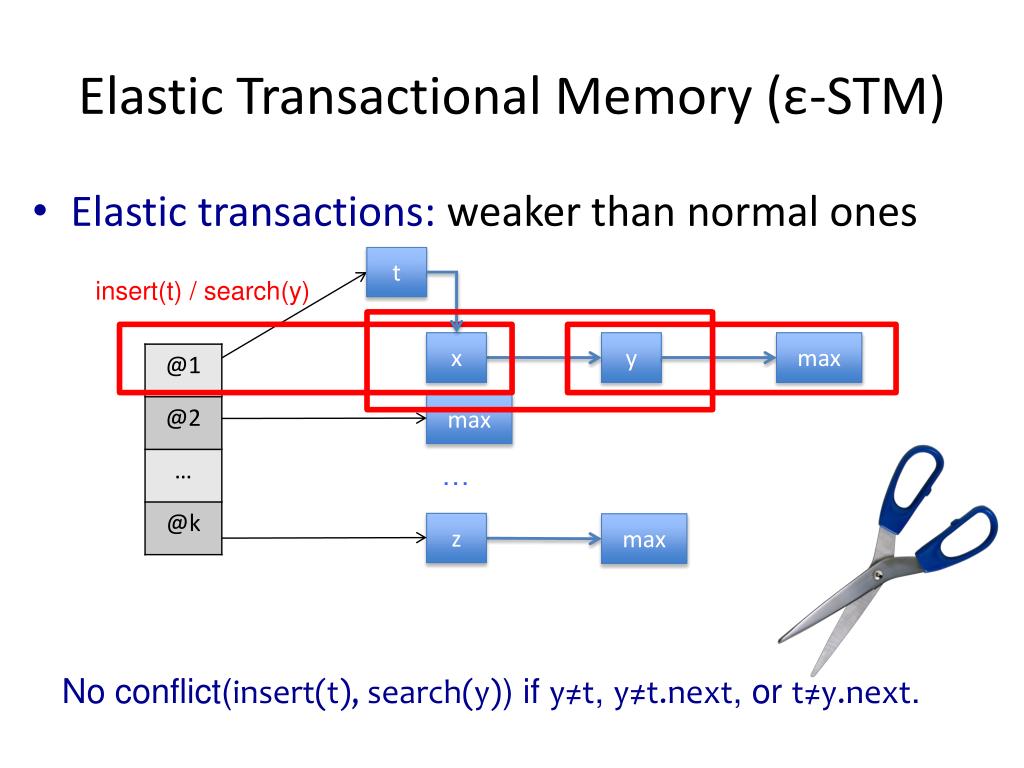

  19. Elastic Transactional Memory (ε-STM) • Elastic transactions: weaker than normal ones t insert(t) / search(y) x y max max … z max No conflict(insert(t), search(y)) if y≠t, y≠t.next, or t≠y.next.

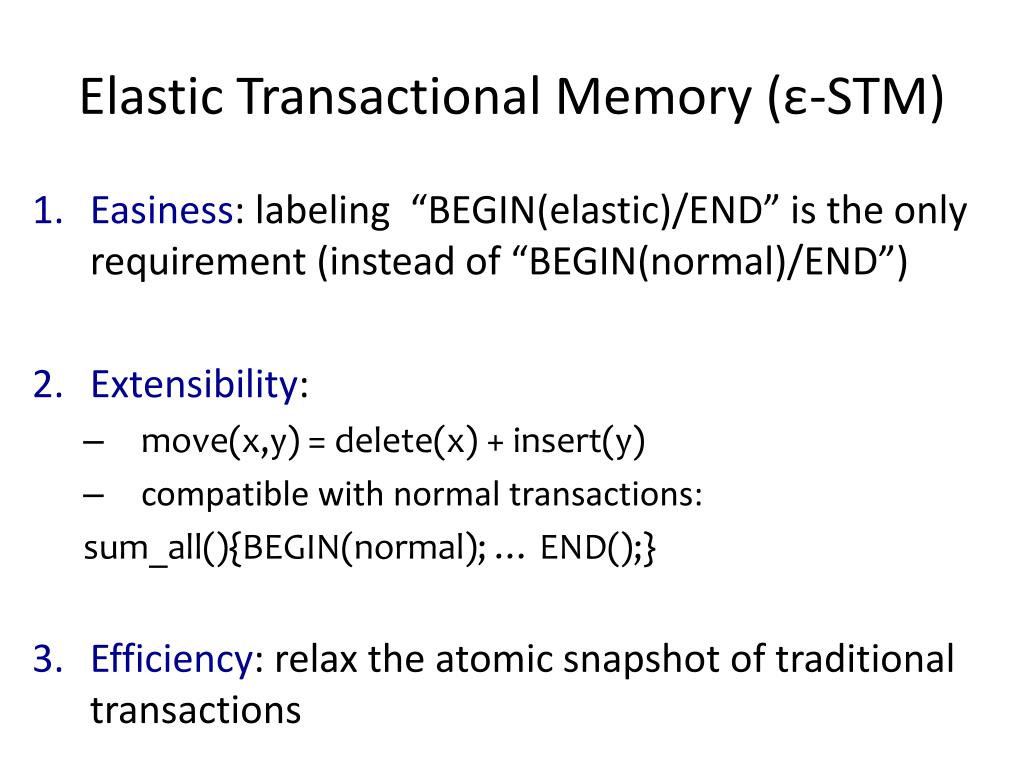

  20. Elastic Transactional Memory (ε-STM) • Easiness: labeling “BEGIN(elastic)/END” is the only requirement (instead of “BEGIN(normal)/END”) • Extensibility: • move(x,y) = delete(x) + insert(y) • compatible with normal transactions: sum_all(){BEGIN(normal); … END();} • Efficiency: relax the atomic snapshot of traditional transactions

  21. μBenchmarks

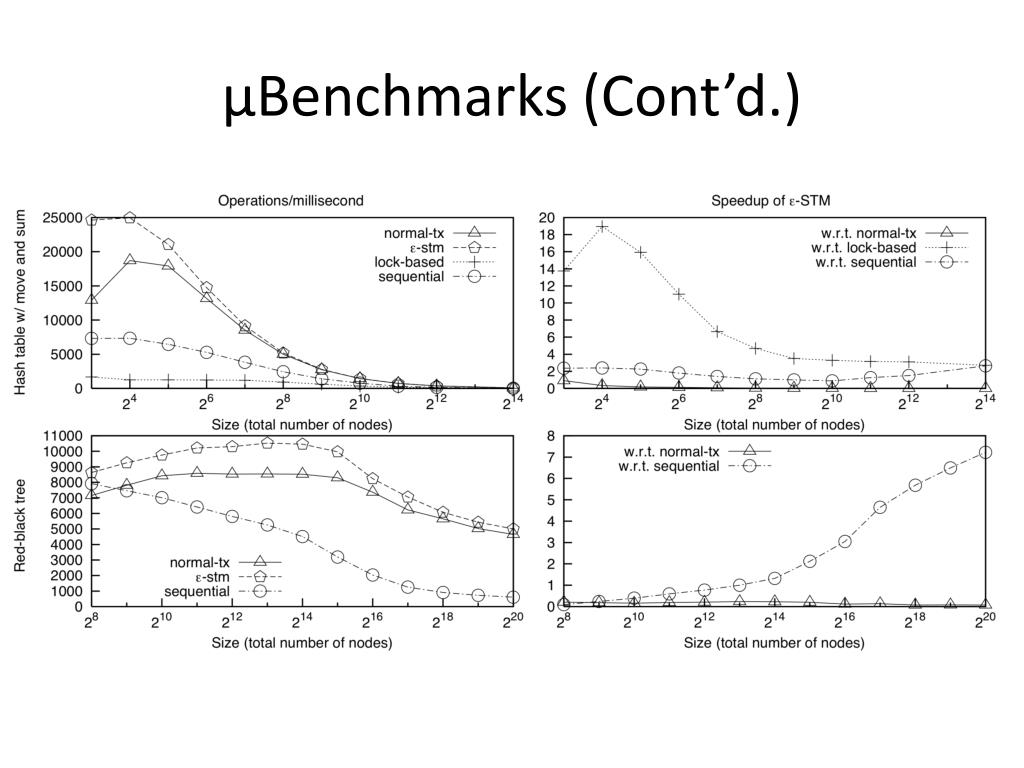

  22. μBenchmarks (Cont’d.)

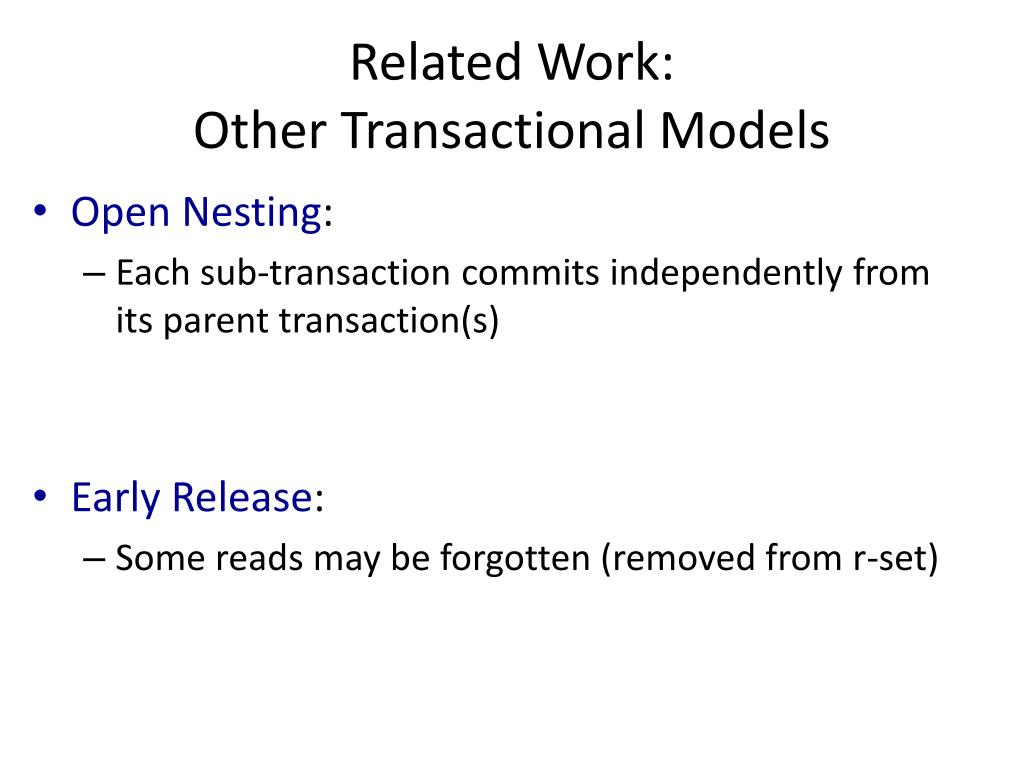

  23. Related Work: Other Transactional Models • Open Nesting: • Each sub-transaction commits independently from its parent transaction(s) • Early Release: • Some reads may be forgotten (removed from r-set)

  24. Related Work: Other Transactional Models • Open Nesting: • Each sub-transaction commits independently from its parent transaction(s) • Programmer must identify commutative operations • Programmer must define inverse operations • Early Release: • Some reads may be forgotten (release() method) • Programmer must carefully identify when and what should be released

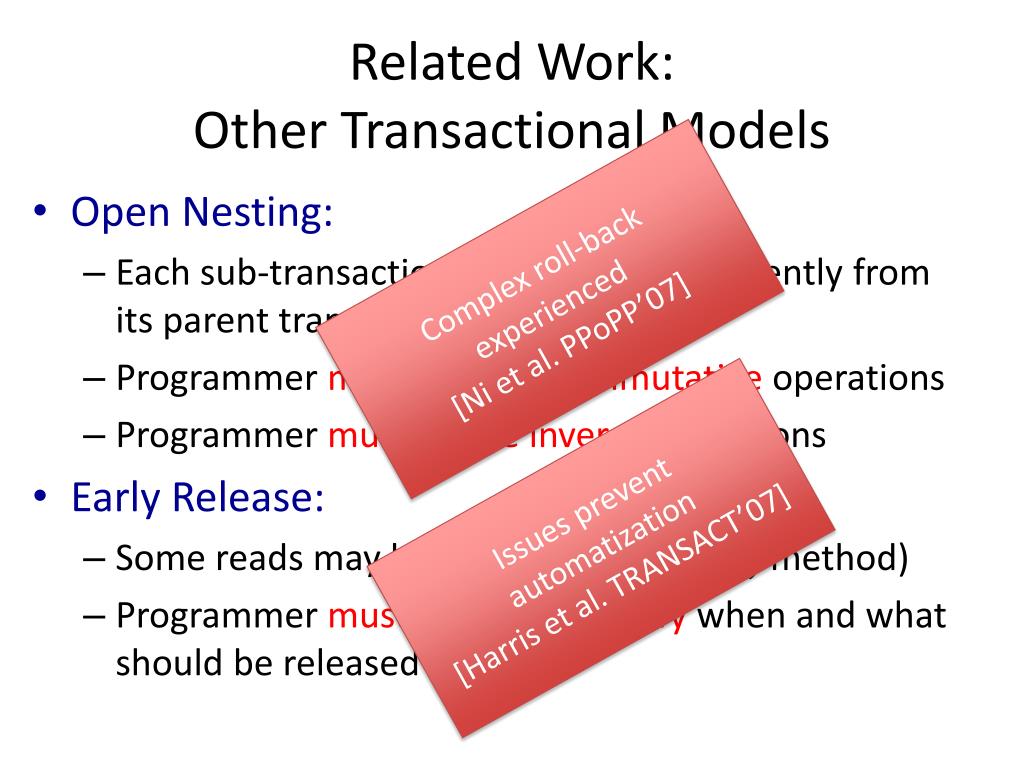

  25. Related Work: Other Transactional Models • Open Nesting: • Each sub-transaction commits independently from its parent transaction(s) • Programmer must identify commutative operations • Programmer must define inverse operations • Early Release: • Some reads may be forgotten (release() method) • Programmer must carefully identify when and what should be released Complex roll-back experienced [Ni et al. PPoPP’07] Issues prevent automatization [Harris et al. TRANSACT’07]

  26. Conclusion

  27. ε-STM http://lpd.epfl.ch/gramoli/php/estm
