CIS 4930 Application Development Using C++ Dr. Kun Suk Kim CISE Department, University of Florida

1. CIS 4930Application Development Using C++Dr. Kun Suk KimCISE Department, University of Florida Maps and Multimaps

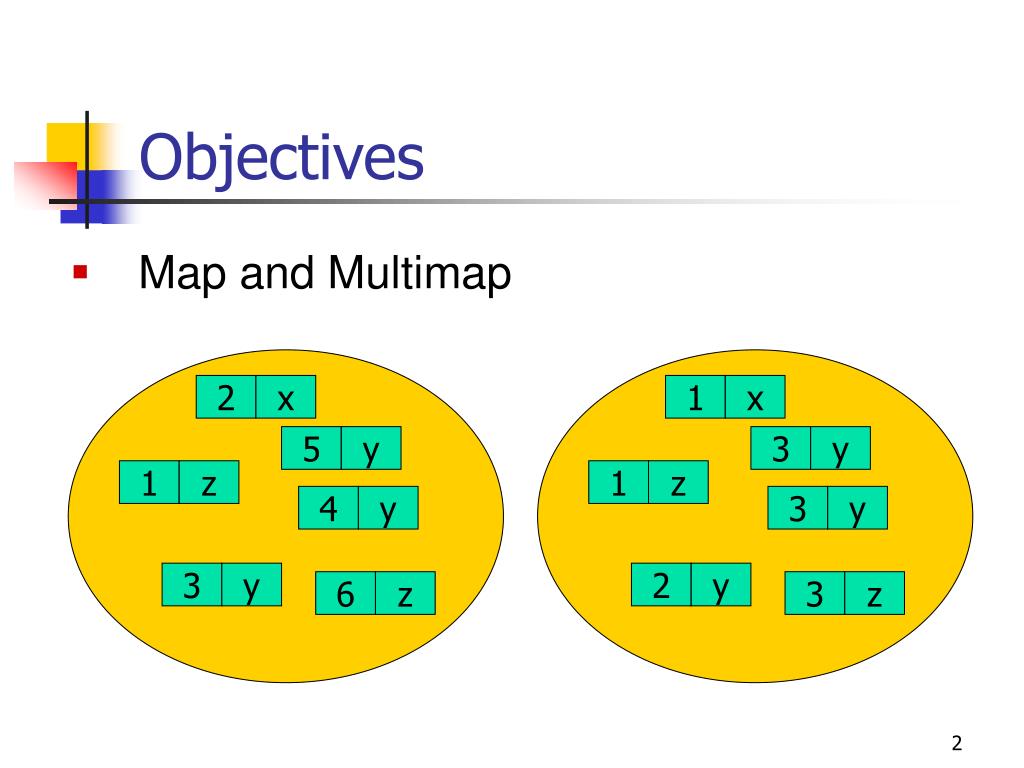

2. 3 3 1 2 6 4 1 1 5 3 2 3 y x x y z z z y y z y y Objectives • Map and Multimap

3. Description • Map is a Sorted Associative Container • Associates objects of type Key with objects of type Data • Map is a Pair Associative Container • Its value type is pair<const Key, Data> • Map is a Unique Associative Container • No two elements have the same key • Whereas multimap allows duplicates

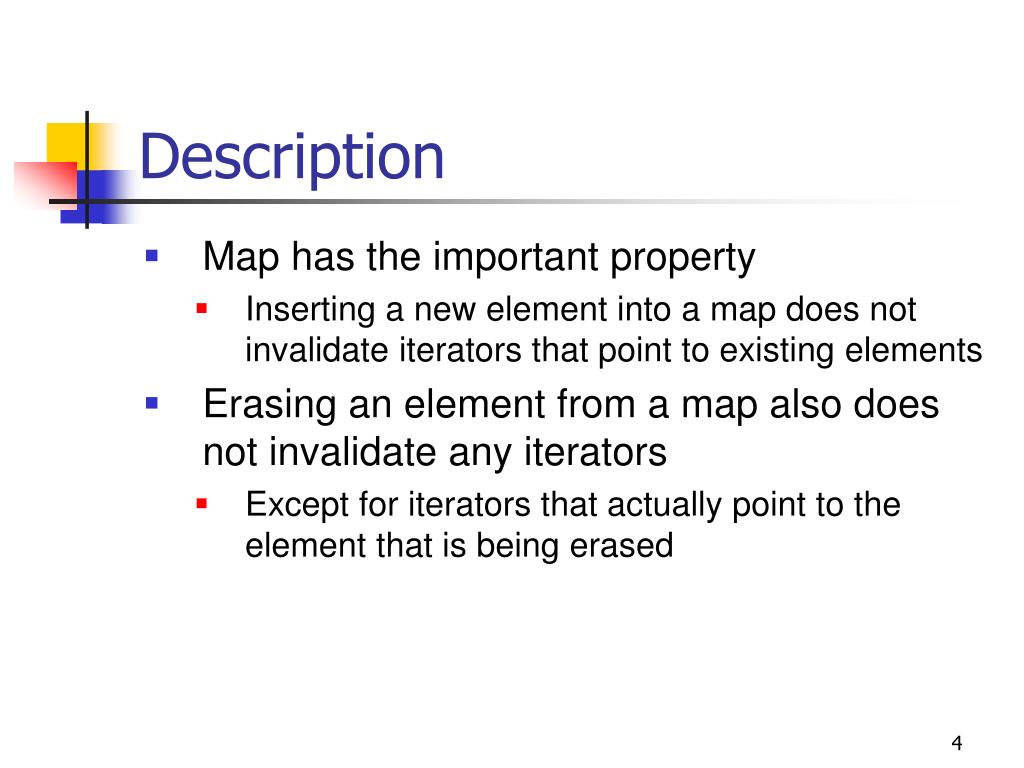

4. Description • Map has the important property • Inserting a new element into a map does not invalidate iterators that point to existing elements • Erasing an element from a map also does not invalidate any iterators • Except for iterators that actually point to the element that is being erased

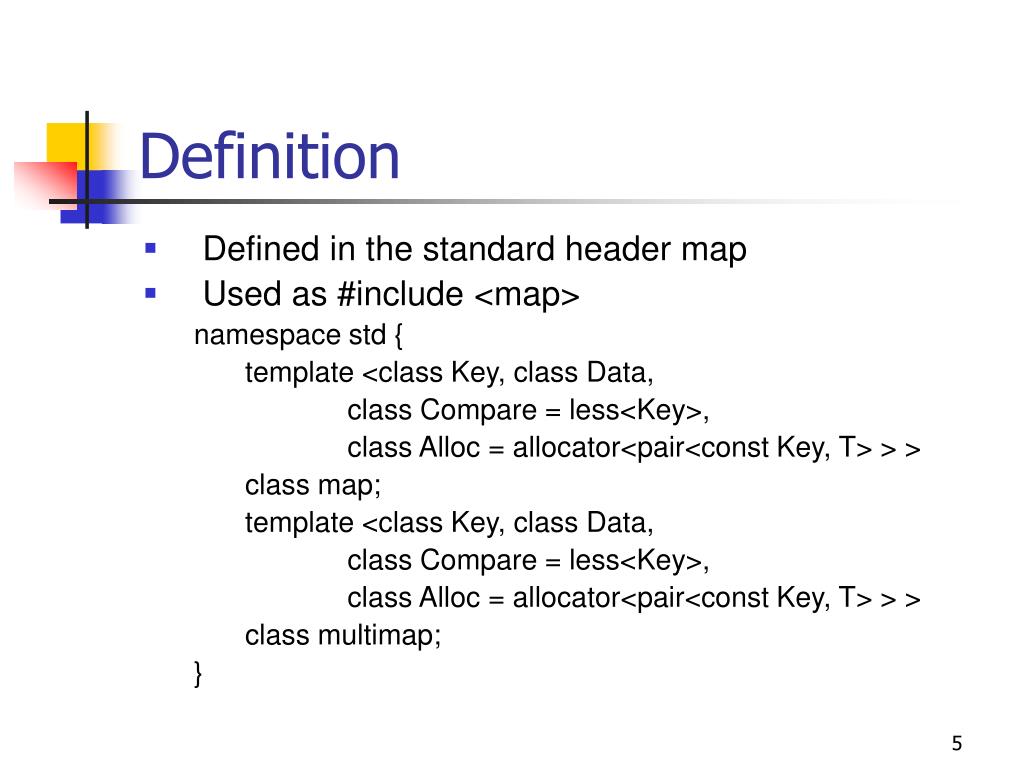

5. Definition • Defined in the standard header map • Used as #include <map> namespace std { template <class Key, class Data, class Compare = less<Key>, class Alloc = allocator<pair<const Key, T> > > class map; template <class Key, class Data, class Compare = less<Key>, class Alloc = allocator<pair<const Key, T> > > class multimap; }

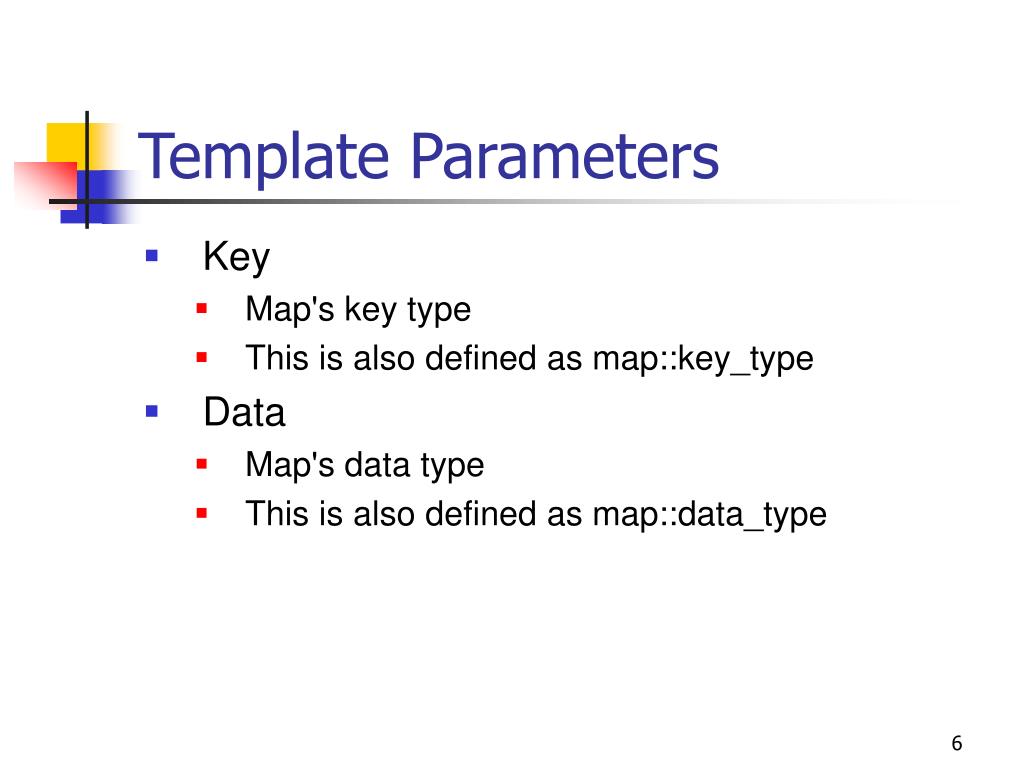

6. Template Parameters • Key • Map's key type • This is also defined as map::key_type  • Data • Map's data type • This is also defined as map::data_type

7. Template Parameters • Compare • Key comparison function, a Strict Weak Ordering whose argument type is key_type • It returns true if its first argument is less than its second argument, and false otherwise • This is also defined as map::key_compare • Default: less<Key> • Alloc • Map's allocator • Used for all internal memory management

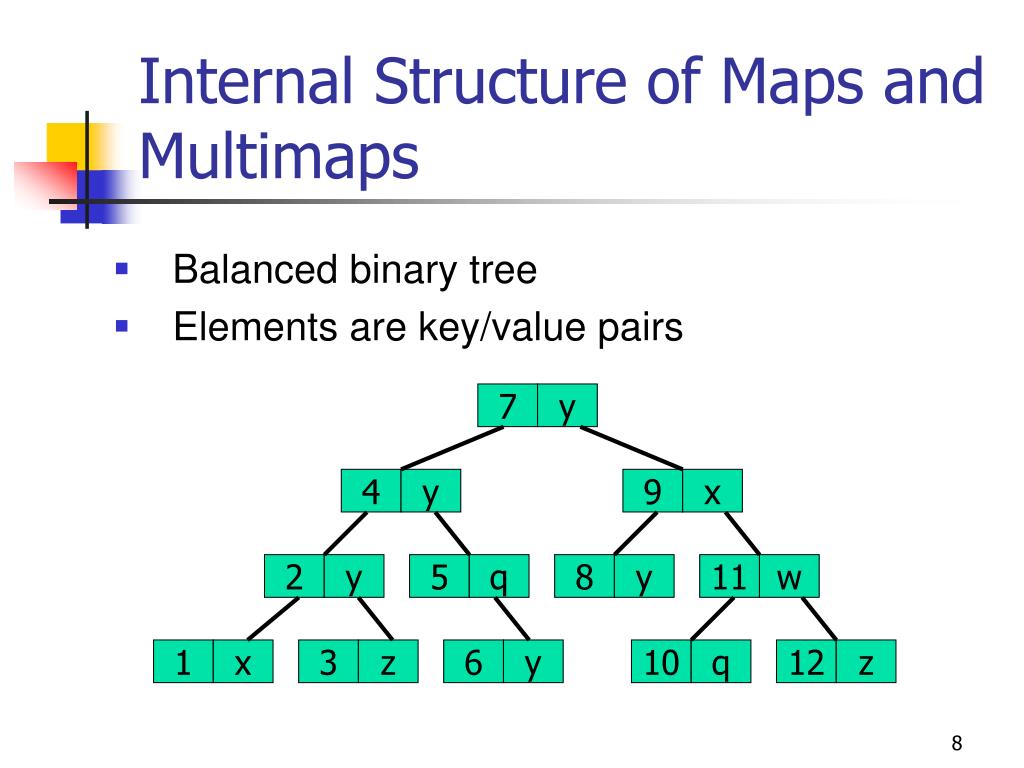

8. 3 4 2 9 12 6 1 5 8 11 10 7 q z w y y x y z q y x y Internal Structure of Maps and Multimaps • Balanced binary tree • Elements are key/value pairs

9. Abilities of Maps and Multimaps • Sort their elements automatically according to the element’s keys • Good performance when searching for elements that have a certain key • Bad performance when searching for elements that have a certain value • May not change the key of an element directly • This might compromise the correct order • A direct modification of the value of the element is possible (provided the type of the value is not constant)

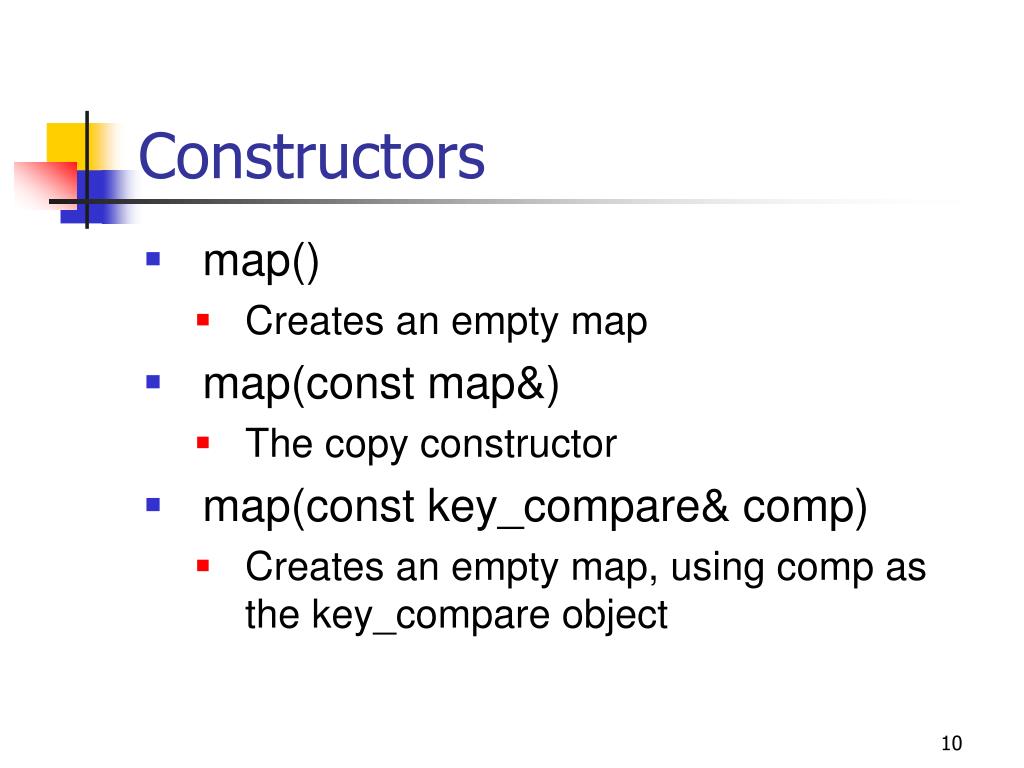

10. Constructors • map() • Creates an empty map • map(const map&) • The copy constructor • map(const key_compare& comp) • Creates an empty map, using comp as the key_compare object

11. Constructors • template <class InputIterator> map(InputIterator f, InputIterator l) • Creates a map with a copy of a range • template <class InputIterator> map(InputIterator f, InputIterator l, const key_compare& comp) • Creates a map with a copy of a range, using comp as the key_compare object

12. Non-Modifying Operations • size_type size() const • Returns the size of the map • size_type max_size() const • Returns the largest possible size of the map • bool empty() const • True if the map's size is 0

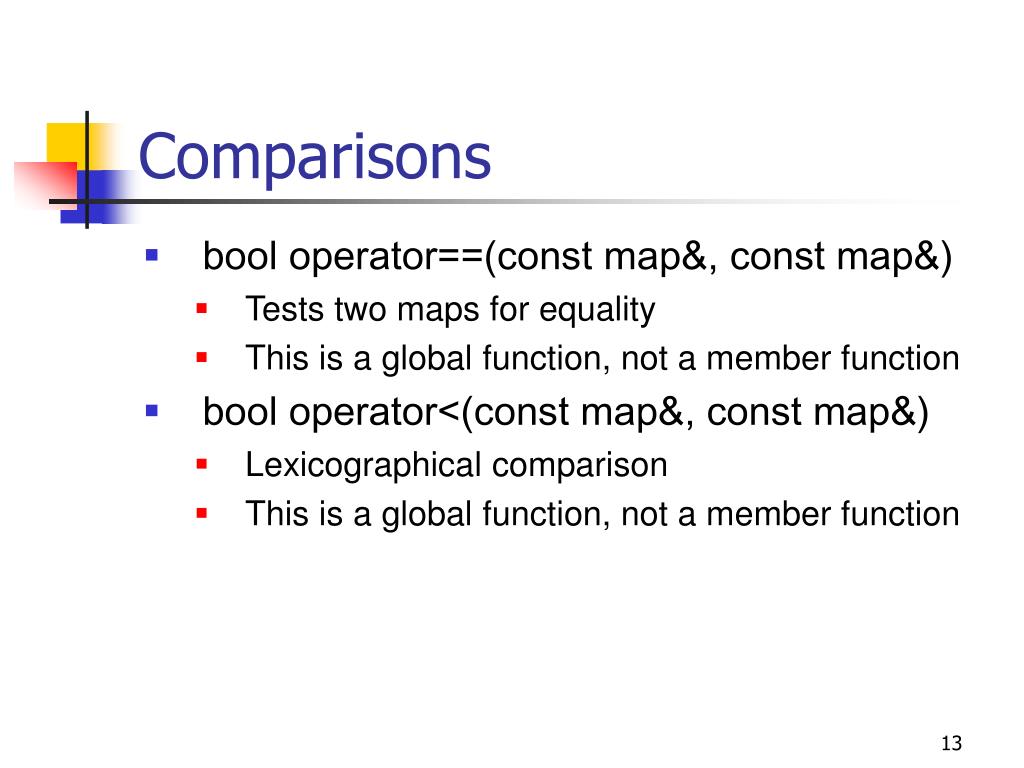

13. Comparisons • bool operator==(const map&, const map&) • Tests two maps for equality • This is a global function, not a member function • bool operator<(const map&, const map&) • Lexicographical comparison • This is a global function, not a member function

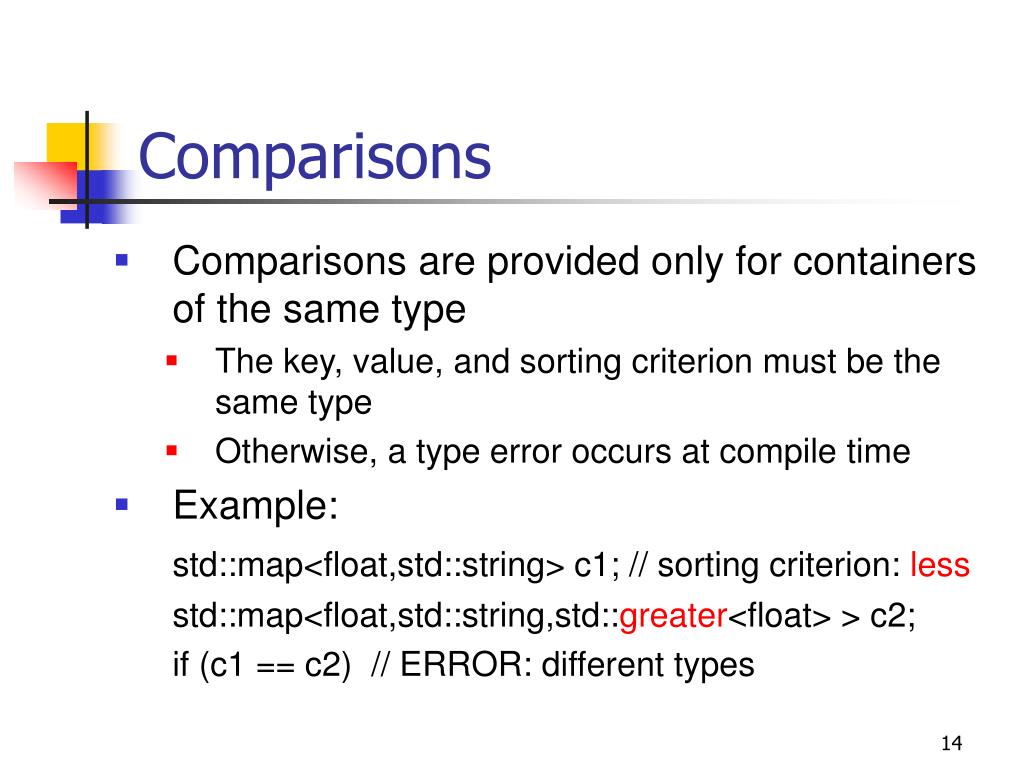

14. Comparisons • Comparisons are provided only for containers of the same type • The key, value, and sorting criterion must be the same type • Otherwise, a type error occurs at compile time • Example: std::map<float,std::string> c1; // sorting criterion: less std::map<float,std::string,std::greater<float> > c2; if (c1 == c2) // ERROR: different types

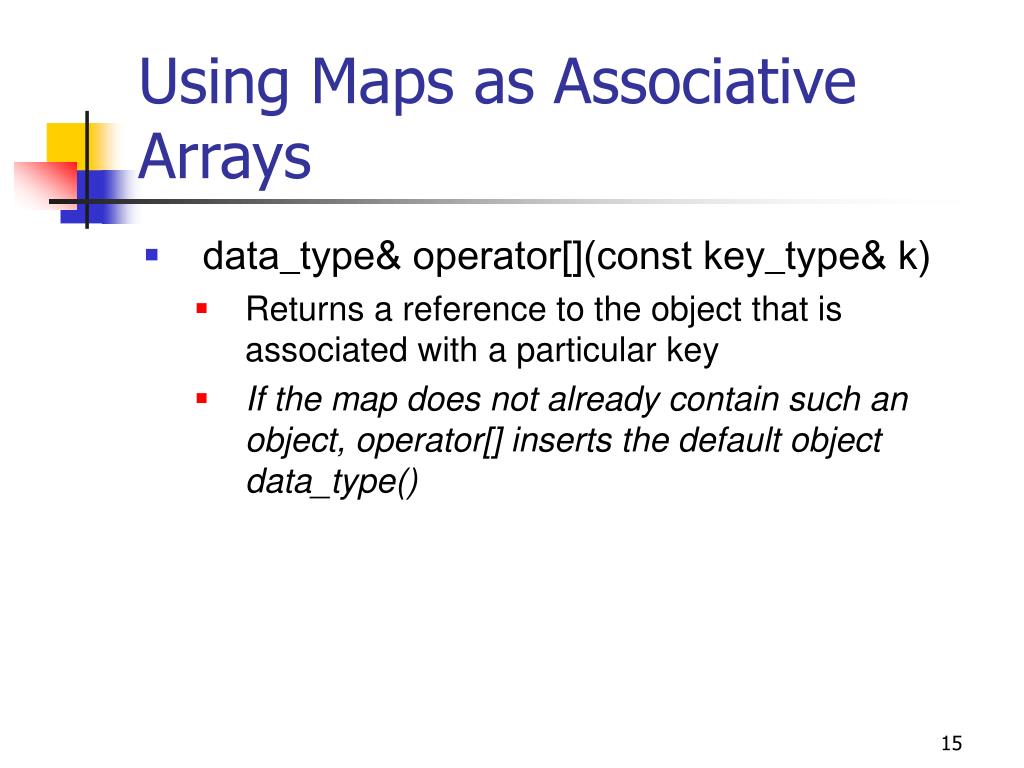

15. Using Maps as Associative Arrays • data_type& operator[](const key_type& k) • Returns a reference to the object that is associated with a particular key • If the map does not already contain such an object, operator[] inserts the default object data_type()

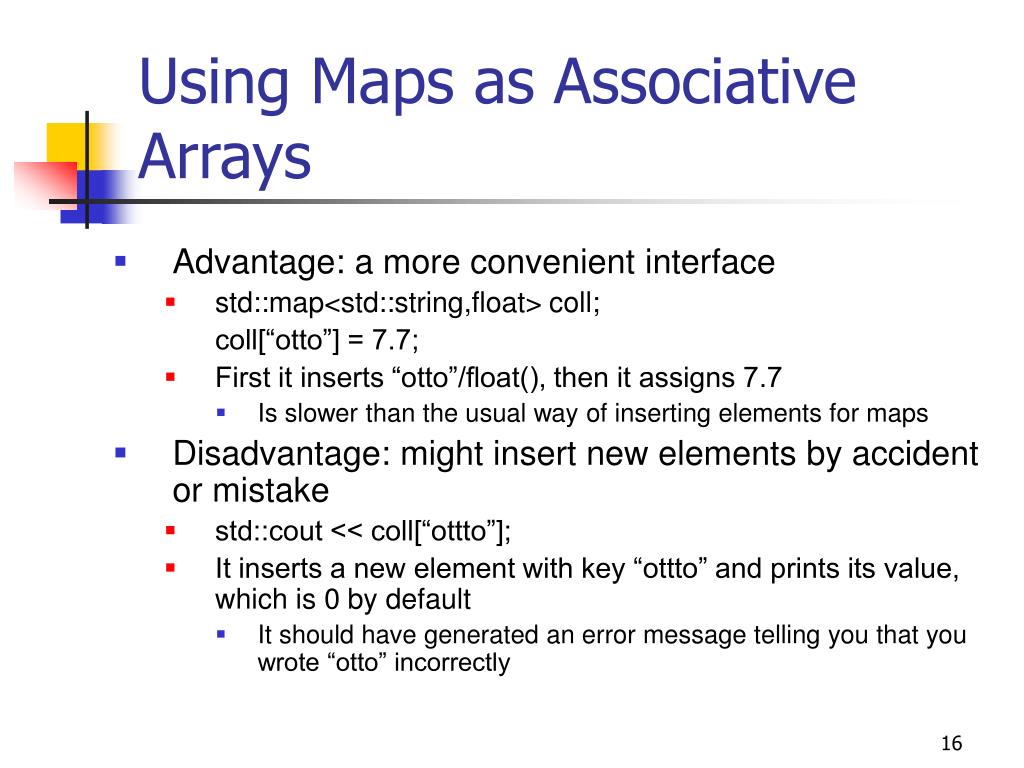

16. Using Maps as Associative Arrays • Advantage: a more convenient interface • std::map<std::string,float> coll; coll[“otto”] = 7.7; • First it inserts “otto”/float(), then it assigns 7.7 • Is slower than the usual way of inserting elements for maps • Disadvantage: might insert new elements by accident or mistake • std::cout << coll[“ottto”]; • It inserts a new element with key “ottto” and prints its value, which is 0 by default • It should have generated an error message telling you that you wrote “otto” incorrectly

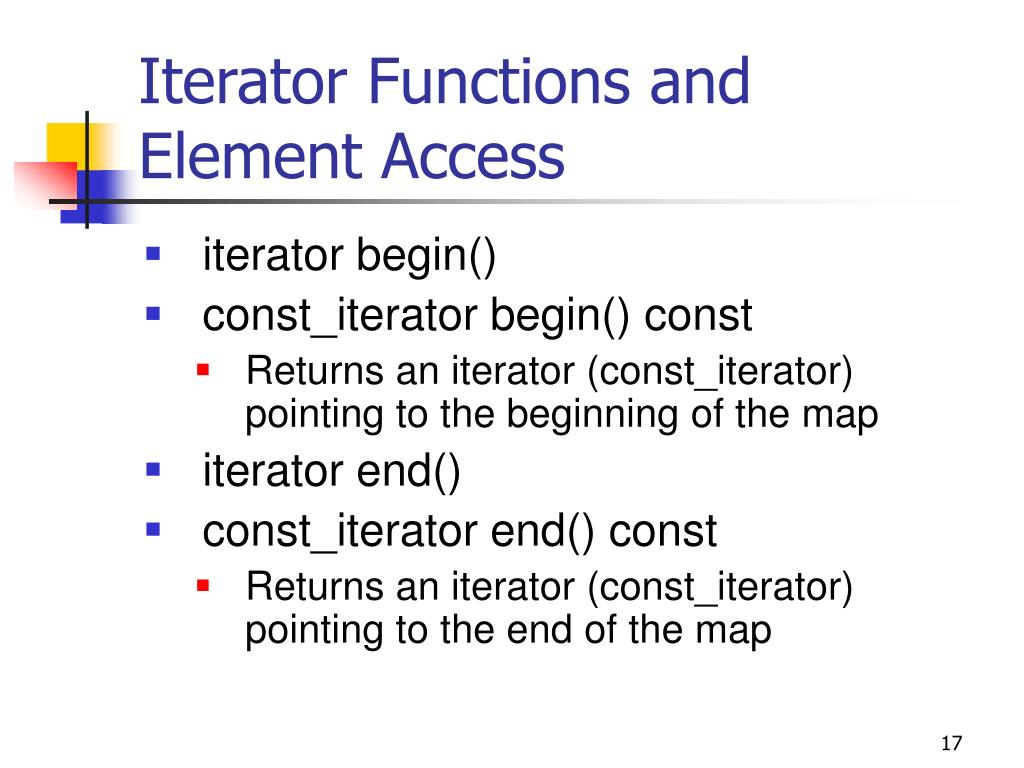

17. Iterator Functions and Element Access • iterator begin() • const_iterator begin() const • Returns an iterator (const_iterator) pointing to the beginning of the map • iterator end() • const_iterator end() const • Returns an iterator (const_iterator) pointing to the end of the map

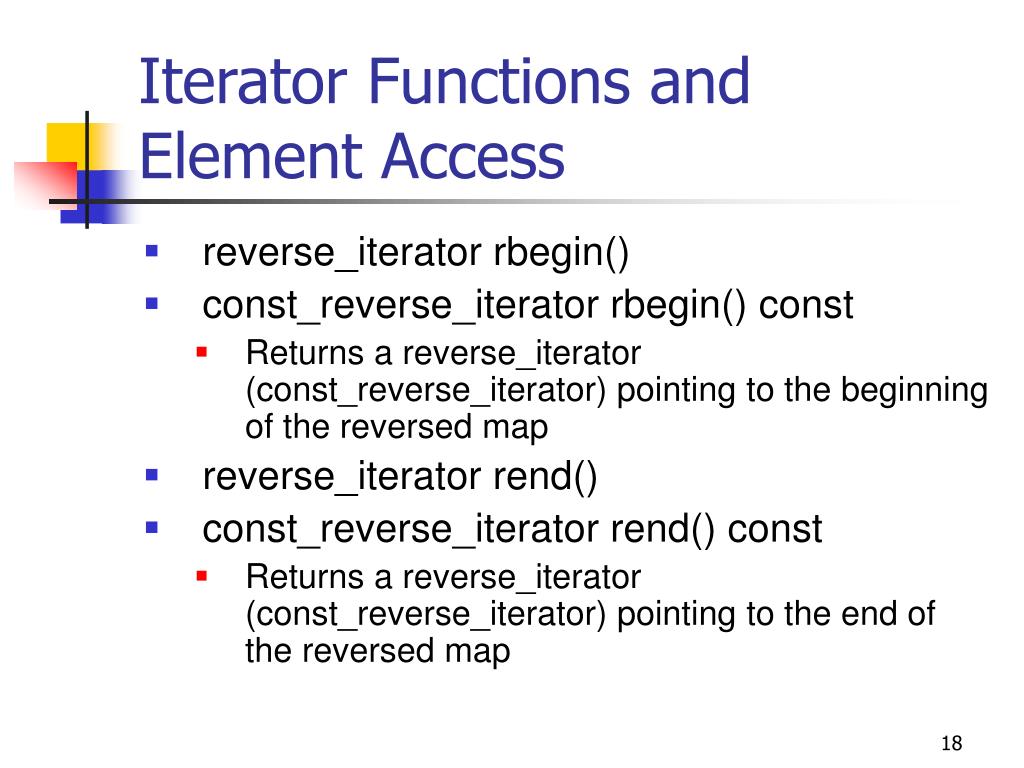

18. Iterator Functions and Element Access • reverse_iterator rbegin() • const_reverse_iterator rbegin() const • Returns a reverse_iterator (const_reverse_iterator) pointing to the beginning of the reversed map • reverse_iterator rend() • const_reverse_iterator rend() const • Returns a reverse_iterator (const_reverse_iterator) pointing to the end of the reversed map

19. Example of the Use of Iterators • std::map<std::string,float> coll; … std::map<std::string,float>::iterator pos; for (pos = coll.begin(); pos != coll.end(); ++pos) std::cout << “key: “ << pos->first << “ ” << “value: “ << pos->second << std:endl; • pos->first = “hello”; // ERROR at compile time pos->second = 13.5; // OK

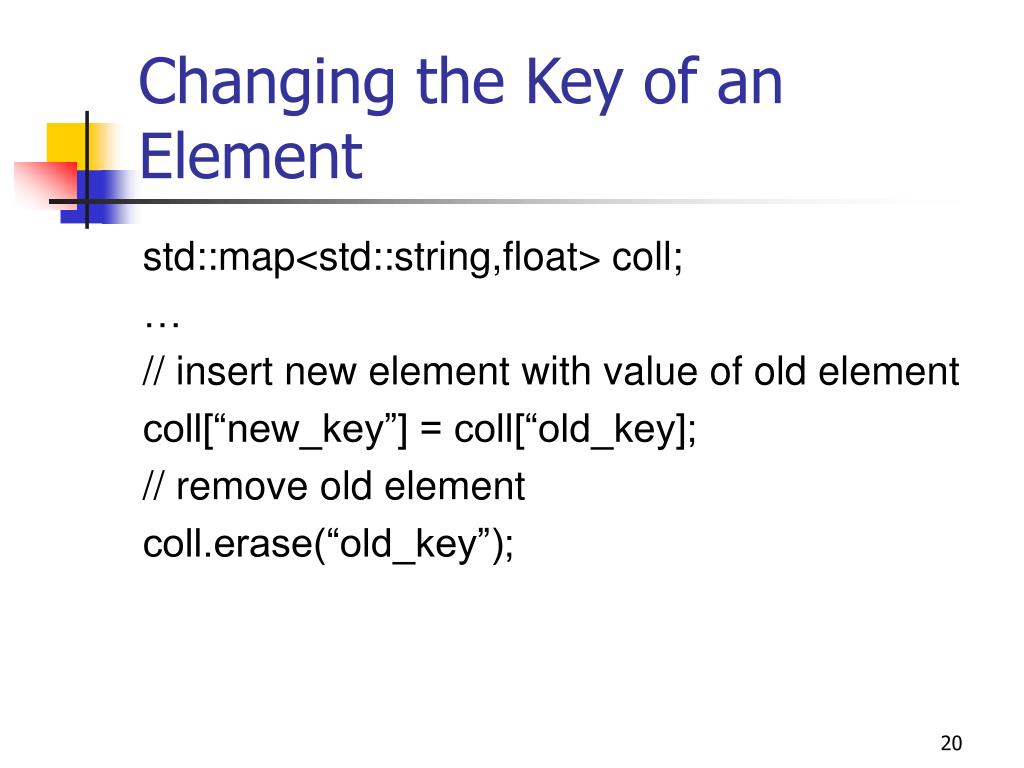

20. Changing the Key of an Element std::map<std::string,float> coll; … // insert new element with value of old element coll[“new_key”] = coll[“old_key]; // remove old element coll.erase(“old_key”);

21. Example for (pos = stocks.begin(); pos != stocks.end(); ++pos) cout << "stock: " << pos->first << "\t“ << "price: " << pos->second << endl; cout << endl; #include <iostream> #include <map> #include <string> using namespace std; int main(){ typedef map<string,float> StringFloatMap; StringFloatMap stocks; stocks["BASF"] = 369.50; stocks["VW"] = 413.50; stocks["Daimler"] = 819.00; stocks["BMW"] = 834.00; stocks["Siemens"] = 842.20; StringFloatMap::iterator pos; stock: BASF price: 369.5 stock: BMW price: 834 stock: Daimler price: 819 stock: Siemens price: 842.2 stock: VW price: 413.5

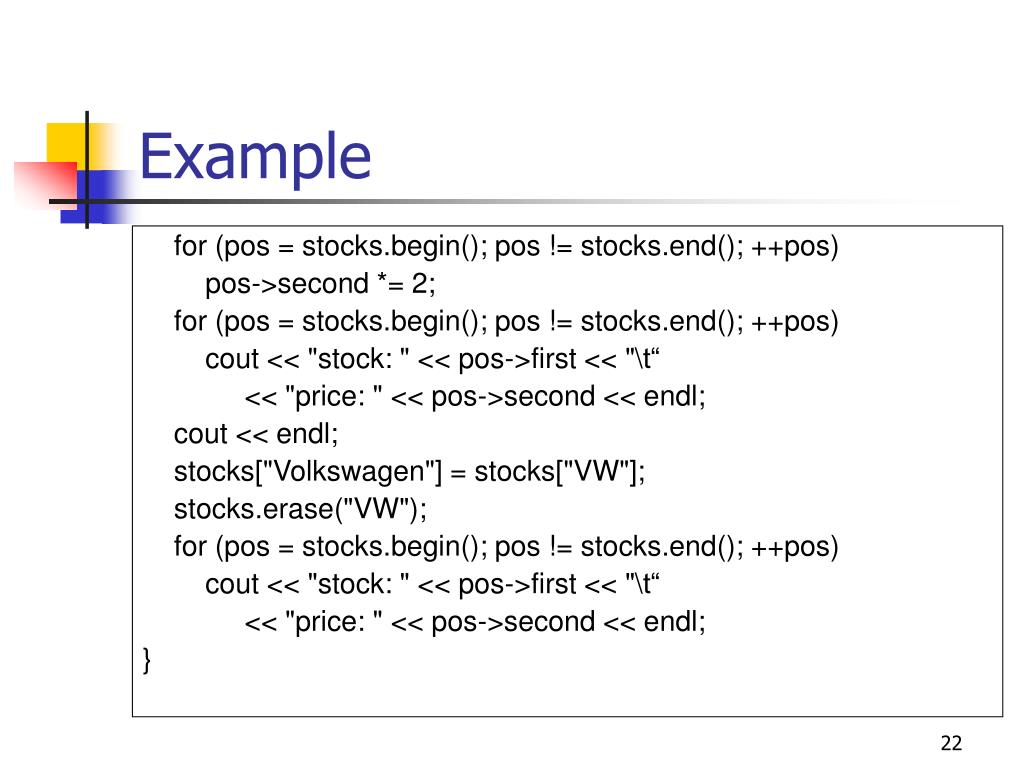

22. Example for (pos = stocks.begin(); pos != stocks.end(); ++pos) pos->second *= 2; for (pos = stocks.begin(); pos != stocks.end(); ++pos) cout << "stock: " << pos->first << "\t“ << "price: " << pos->second << endl; cout << endl; stocks["Volkswagen"] = stocks["VW"]; stocks.erase("VW"); for (pos = stocks.begin(); pos != stocks.end(); ++pos) cout << "stock: " << pos->first << "\t“ << "price: " << pos->second << endl; }

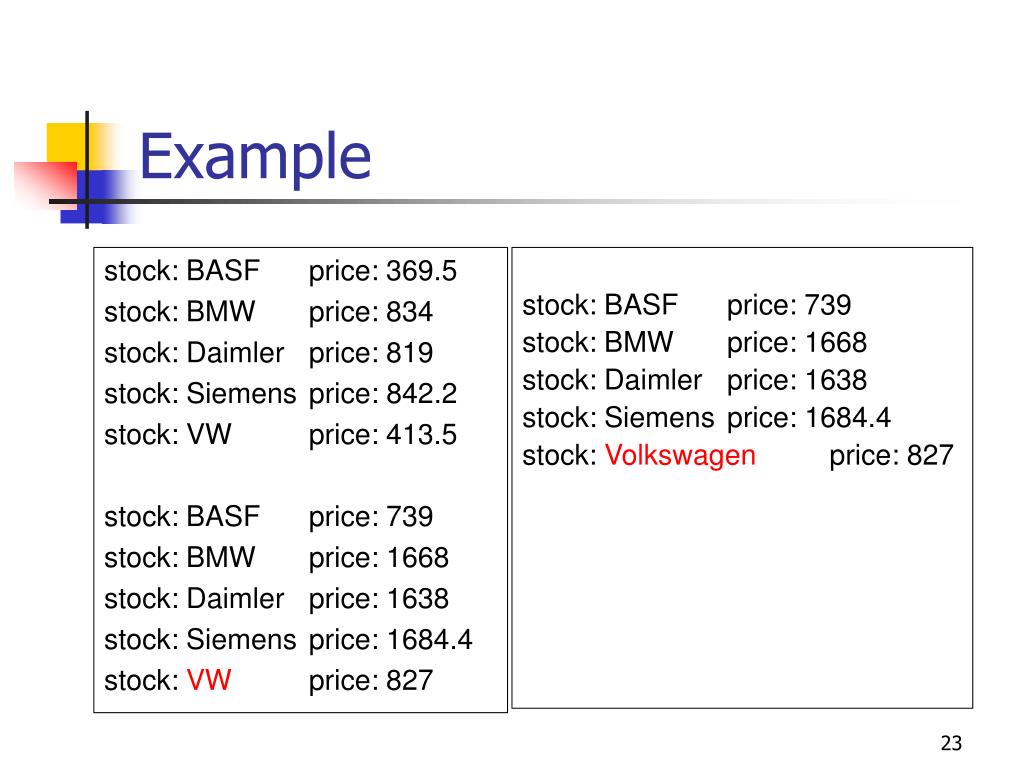

23. Example stock: BASF price: 369.5 stock: BMW price: 834 stock: Daimler price: 819 stock: Siemens price: 842.2 stock: VW price: 413.5 stock: BASF price: 739 stock: BMW price: 1668 stock: Daimler price: 1638 stock: Siemens price: 1684.4 stock: VW price: 827 stock: BASF price: 739 stock: BMW price: 1668 stock: Daimler price: 1638 stock: Siemens price: 1684.4 stock: Volkswagen price: 827

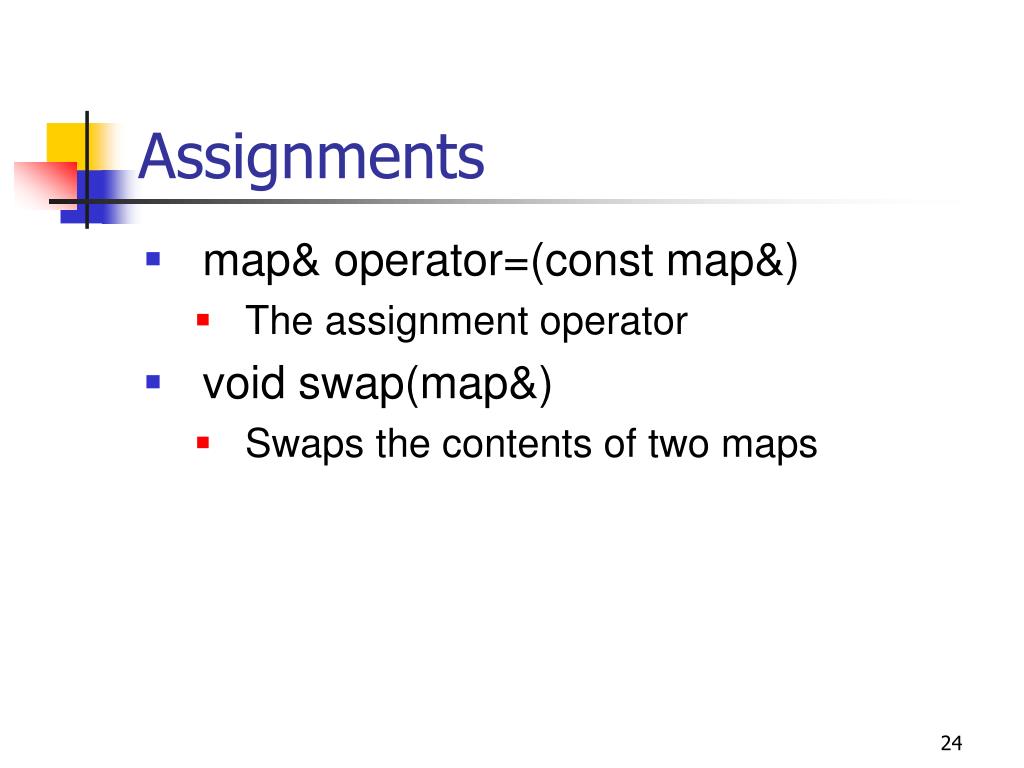

24. Assignments • map& operator=(const map&) • The assignment operator • void swap(map&) • Swaps the contents of two maps

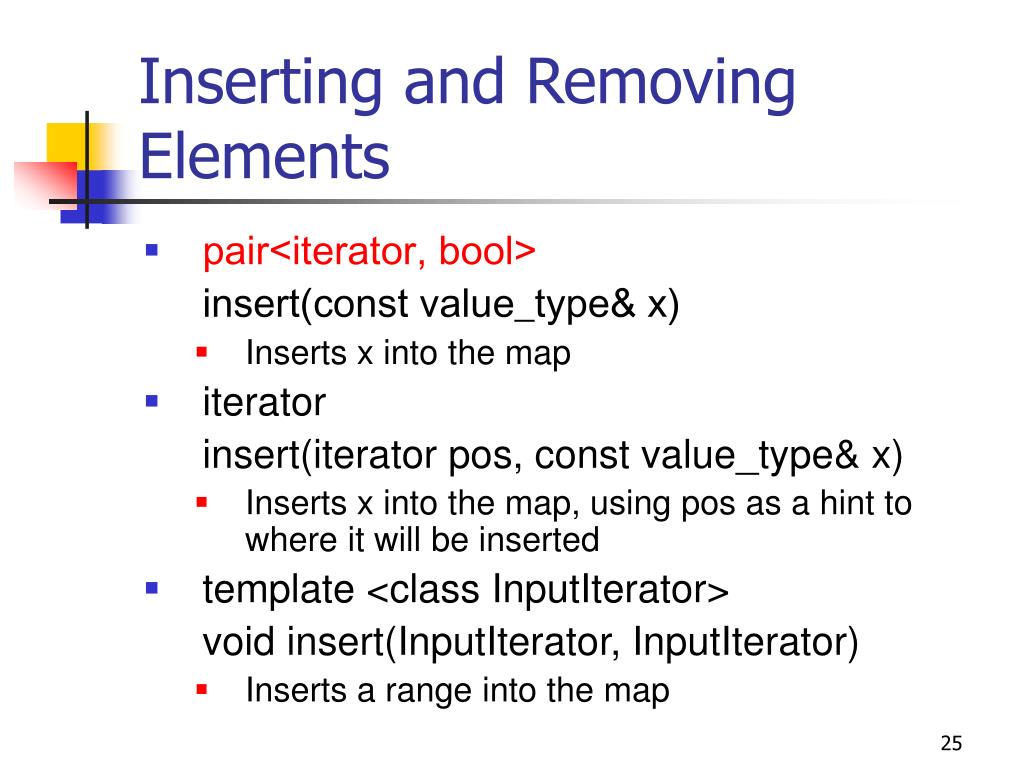

25. Inserting and Removing Elements • pair<iterator, bool> insert(const value_type& x) • Inserts x into the map • iterator insert(iterator pos, const value_type& x) • Inserts x into the map, using pos as a hint to where it will be inserted • template <class InputIterator> void insert(InputIterator, InputIterator) • Inserts a range into the map

26. Inserting and Removing Elements • void erase(iterator pos) • Erases the element pointed to by pos • size_type erase(const key_type& k) • Erases the element whose key is k • Return the number of removed elements • void erase(iterator first, iterator last) • Erases all elements in a range • void clear() • Erases all of the elements

27. Passing a Value into a Map • Use value_type • Provide correct type • std::map<std::string,float> coll; coll.insert(std::map<std::string,float>::value_type(“otto”, 22.3)); • Use pair<> • std::map<std::string,float> coll; // use implicit conversion coll.insert(std::pair<std::string,float>(“otto”, 22.3)); // use no implicit conversion coll.insert(std::pair<const std::string,float>(“otto”, 22.3));

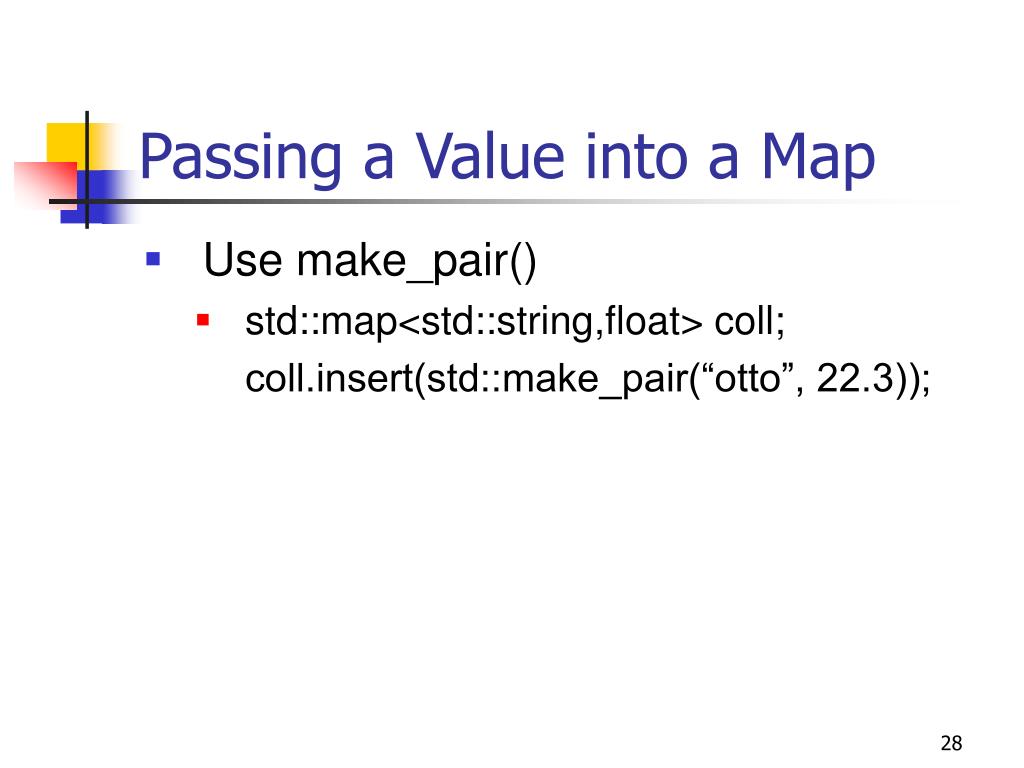

28. Passing a Value into a Map • Use make_pair() • std::map<std::string,float> coll; coll.insert(std::make_pair(“otto”, 22.3));

29. Example of the Insertion std::map<std::string,float> coll; … if (coll.insert(std::make_pair(“otto”, 22.3)).second) std::cout << “OK, could insert otto/22.3” << std::endl; else std::cout << “Oops, could not insert otto/22.3” << std::endl;

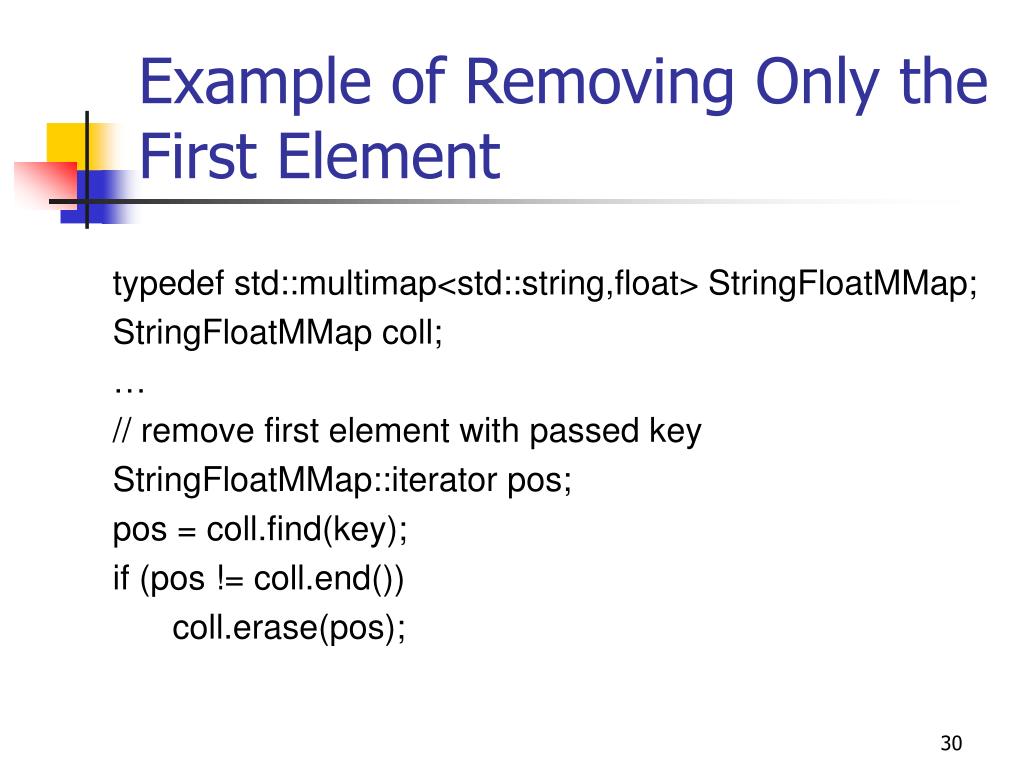

30. Example of Removing Only the First Element typedef std::multimap<std::string,float> StringFloatMMap; StringFloatMMap coll; … // remove first element with passed key StringFloatMMap::iterator pos; pos = coll.find(key); if (pos != coll.end()) coll.erase(pos);

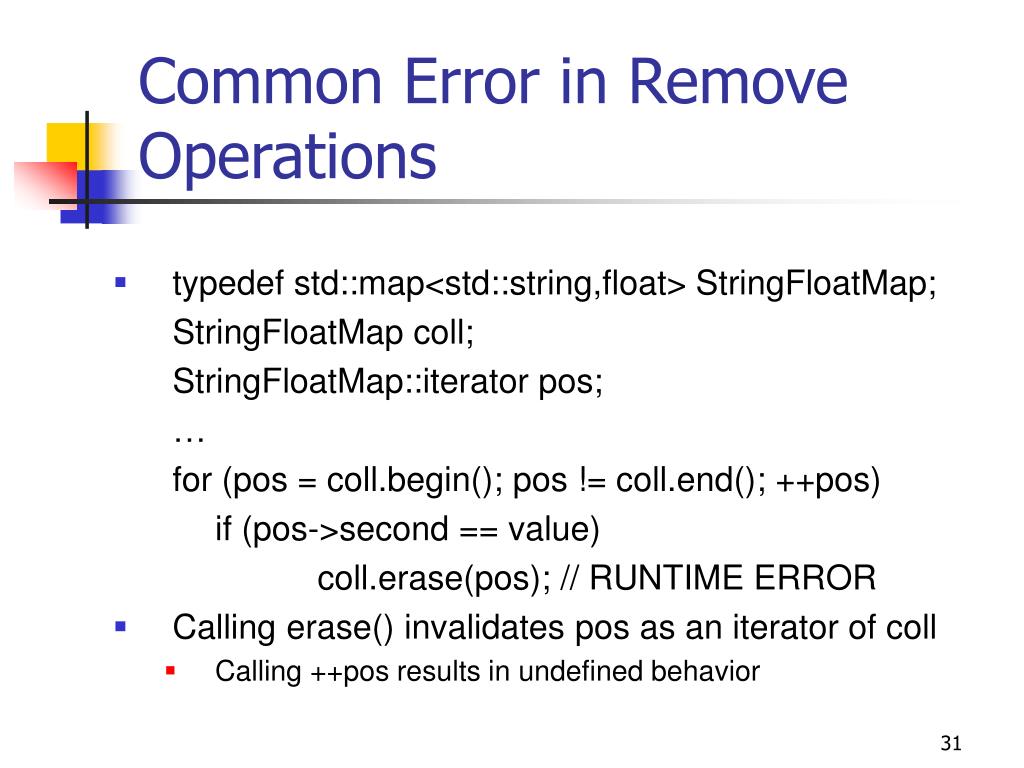

31. Common Error in Remove Operations • typedef std::map<std::string,float> StringFloatMap; StringFloatMap coll; StringFloatMap::iterator pos; … for (pos = coll.begin(); pos != coll.end(); ++pos) if (pos->second == value) coll.erase(pos); // RUNTIME ERROR • Calling erase() invalidates pos as an iterator of coll • Calling ++pos results in undefined behavior

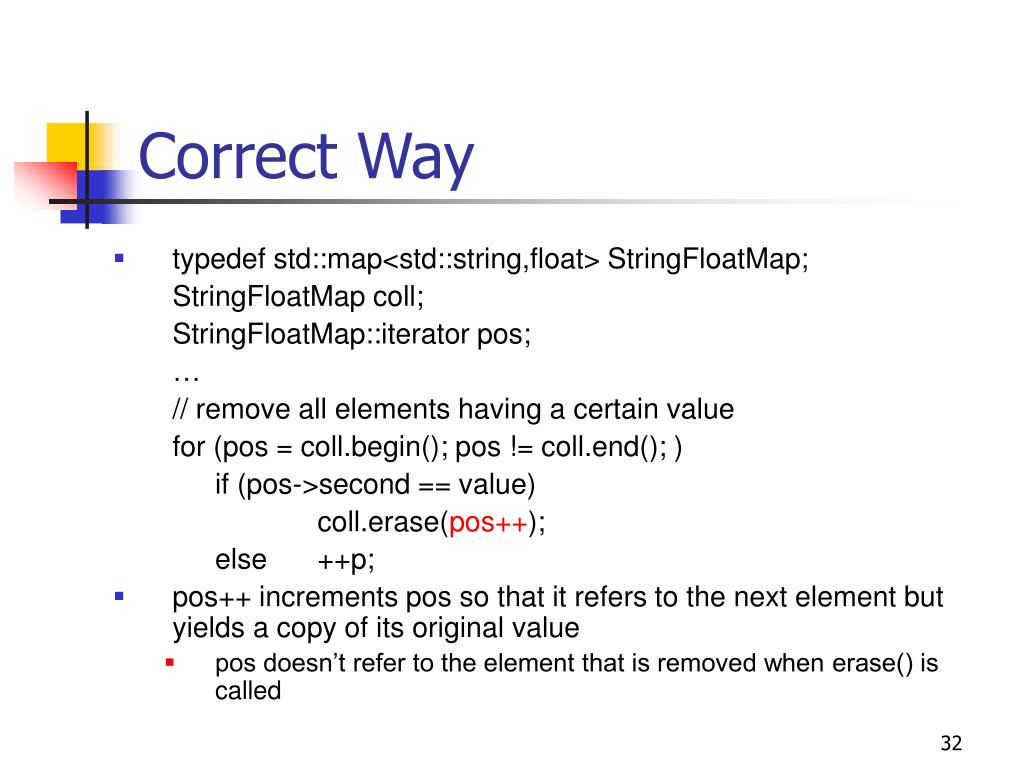

32. Correct Way • typedef std::map<std::string,float> StringFloatMap; StringFloatMap coll; StringFloatMap::iterator pos; … // remove all elements having a certain value for (pos = coll.begin(); pos != coll.end(); ) if (pos->second == value) coll.erase(pos++); else ++p; • pos++ increments pos so that it refers to the next element but yields a copy of its original value • pos doesn’t refer to the element that is removed when erase() is called

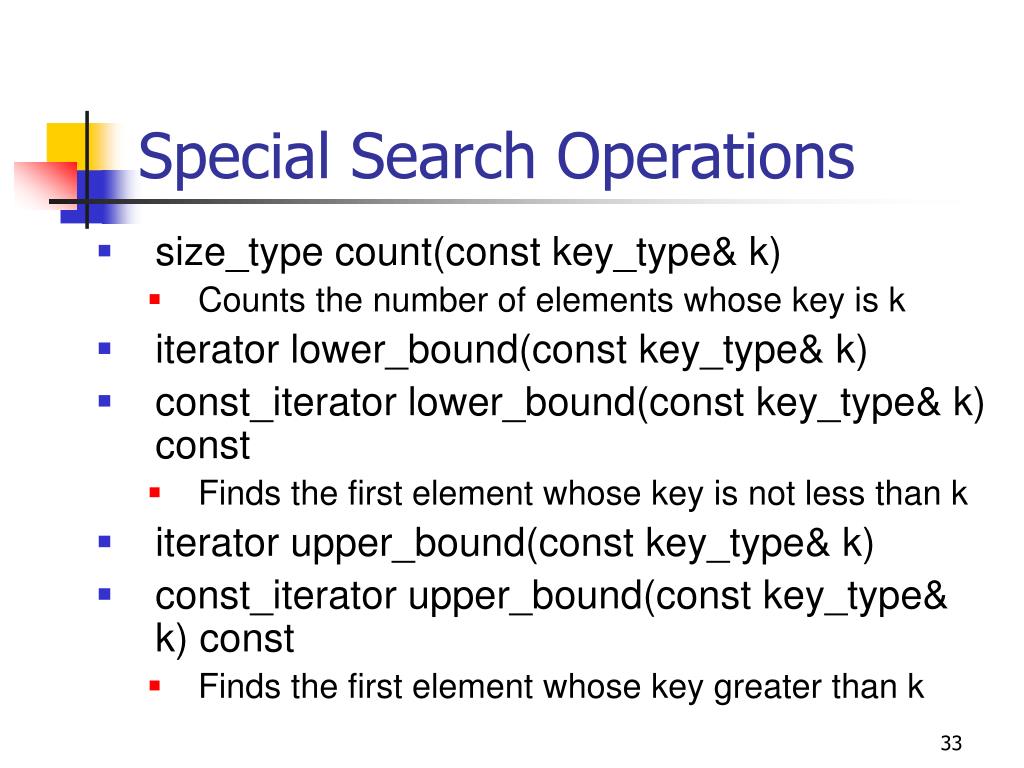

33. Special Search Operations • size_type count(const key_type& k) • Counts the number of elements whose key is k • iterator lower_bound(const key_type& k) • const_iterator lower_bound(const key_type& k) const • Finds the first element whose key is not less than k • iterator upper_bound(const key_type& k) • const_iterator upper_bound(const key_type& k) const • Finds the first element whose key greater than k

34. Special Search Operations • pair<iterator, iterator> equal_range(const key_type& k) • pair<const_iterator, const_iterator> equal_range(const key_type& k) const • Finds a range containing all elements whose key is k • iterator find(const key_type& k) • const_iterator find(const key_type& k) const • Finds an element whose key is k

35. Example #include <iostream> #include <map> #include <string> #include <iomanip> using namespace std; int main(){ typedef multimap<string,string> StrStrMMap; StrStrMMap dict; dict.insert(make_pair(string("day"),string("Tag"))); dict.insert(make_pair(string("strange"),string("fremd"))); dict.insert(make_pair(string("car"),string("Auto"))); dict.insert(make_pair(string("smart"),string("elegant"))); dict.insert(make_pair(string("trait"),string("Merkmal"))); dict.insert(make_pair(string("strange"),string("seltsam"))); dict.insert(make_pair(string("smart"),string("raffiniert")));

36. Example dict.insert(make_pair(string("smart"),string("klug"))); dict.insert(make_pair(string("clever"),string("raffiniert"))); StrStrMMap::iterator pos; cout.setf (ios::left, ios::adjustfield); cout << ' ' << setw(10) << "english " << "german " << endl; cout << setfill('-') << setw(20) << "" << setfill(' ') << endl; for (pos = dict.begin(); pos != dict.end(); ++pos) cout << ' ' << setw(10) << pos->first << pos->second << endl; cout << endl; string word("smart"); cout << word << ": " << endl; for (pos = dict.lower_bound(word); pos != dict.upper_bound(word); ++pos) cout << " " << pos->second << endl; word = ("raffiniert");

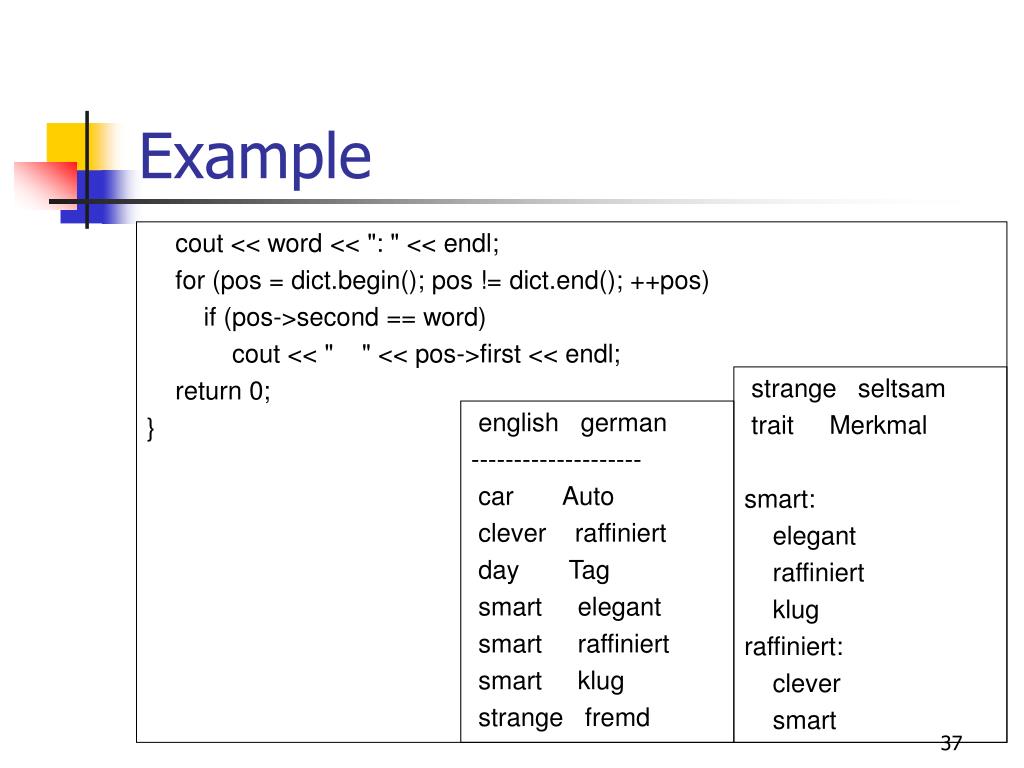

37. Example cout << word << ": " << endl; for (pos = dict.begin(); pos != dict.end(); ++pos) if (pos->second == word) cout << " " << pos->first << endl; return 0; } strange seltsam trait Merkmal smart: elegant raffiniert klug raffiniert: clever smart english german -------------------- car Auto clever raffiniert day Tag smart elegant smart raffiniert smart klug strange fremd
