Understanding C Function Types and Their Applications

baba avatar
baba
21 diapositives · 408 Views · Aug 30, 2014

This guide covers the essential concepts of functions in C programming, comparing them to mathematical functions. It discusses various types of functions in C: void functions (no return value), functions that return values, and how to handle input arguments. You'll learn about actual arguments versus formal parameters and how to maintain organization using function prototypes. The importance of code reuse and procedural abstraction is also highlighted, along with practical examples and best practices for using multiple source files efficiently.

Understanding C Function Types and Their Applications - slide 1
01 / 21Understanding C Function Types and Their Applications
1 / 17

Télécharger la présentation

Understanding C Function Types and Their Applications
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

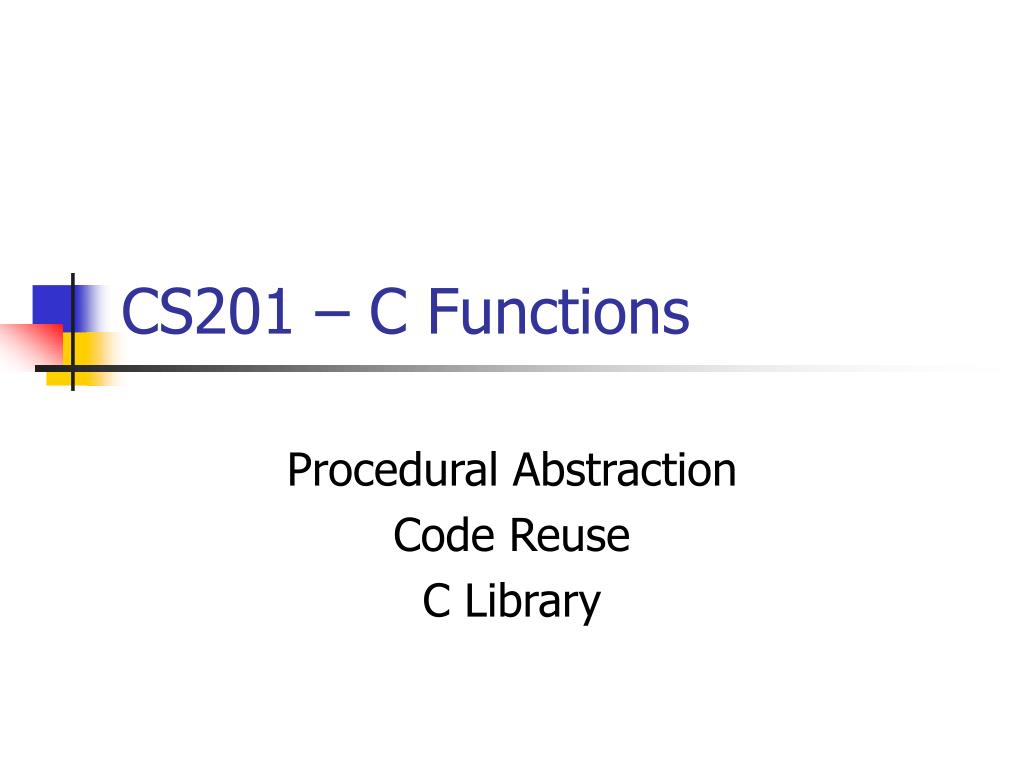

  1. CS201 – C Functions Procedural Abstraction Code Reuse C Library

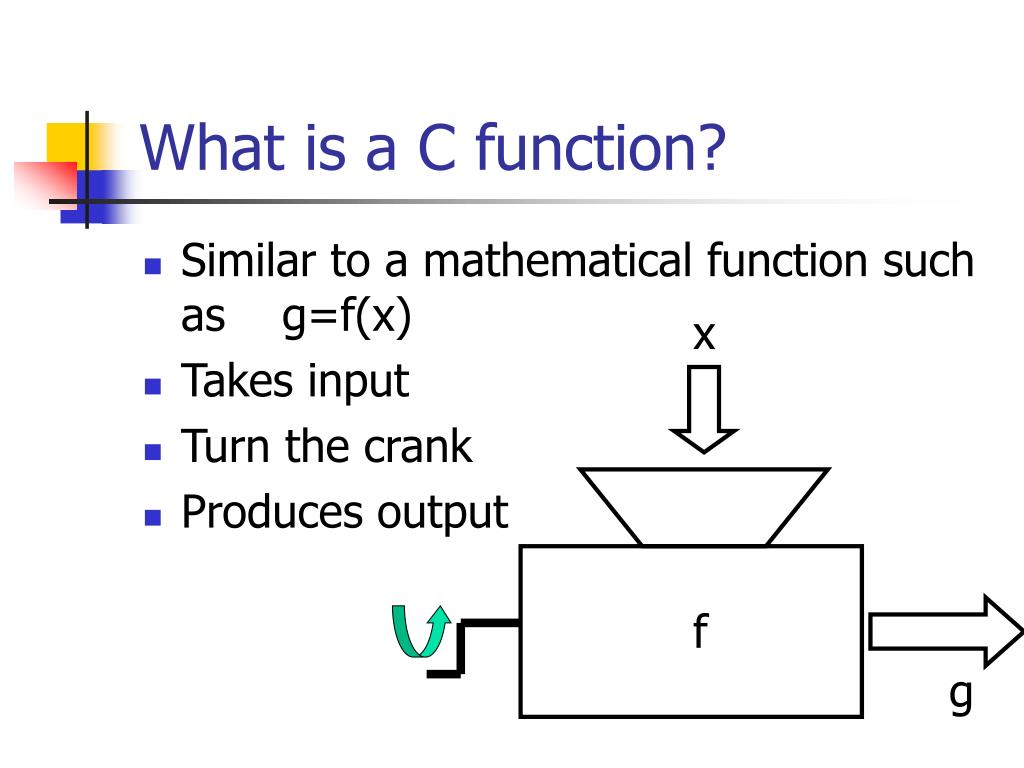

  2. What is a C function? • Similar to a mathematical function such as g=f(x) • Takes input • Turn the crank • Produces output x f g

  3. Kinds of Functions • No input arguments, no value returned • Output to some place else (screen) • Input arguments, no value returned • Void functions (sub-programs) • No input arguments, value returned • Values come from some place else (library) • Input arguments, value returned • Normal typed functions

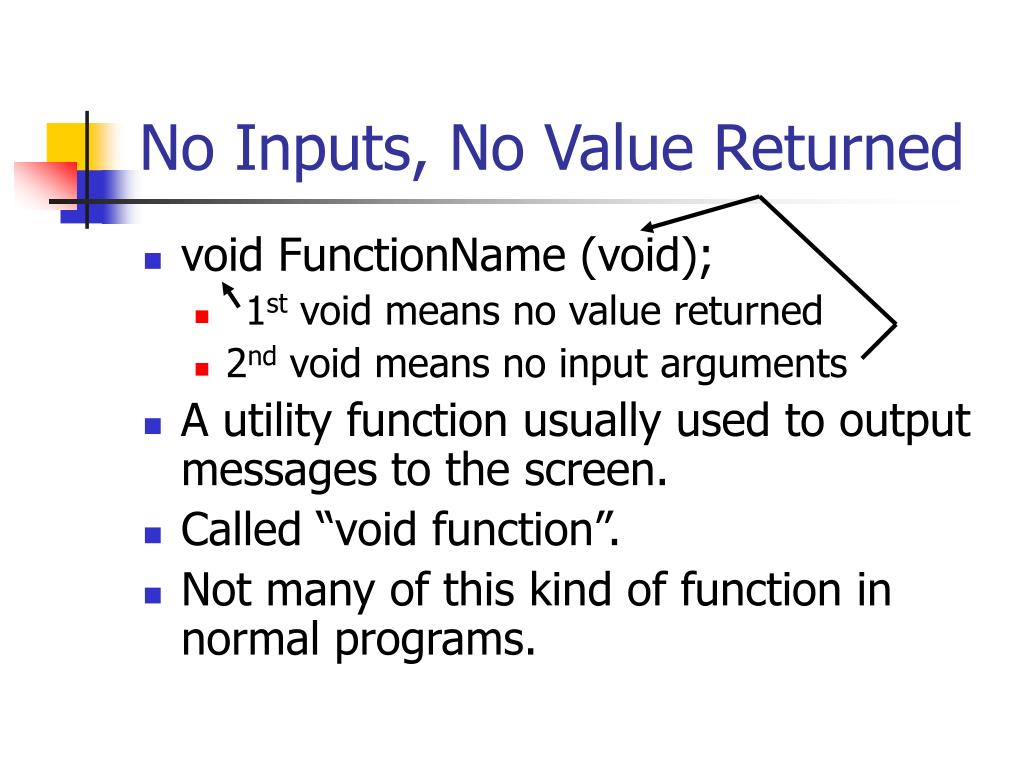

  4. No Inputs, No Value Returned • void FunctionName (void); • 1st void means no value returned • 2nd void means no input arguments • A utility function usually used to output messages to the screen. • Called “void function”. • Not many of this kind of function in normal programs.

  5. Inputs, No value returned • void FunctionName (arguments); • void indicates no value returned. • arguments are input arguments. • A void function. • Gets its data from the arguments. • Outputs values some place else. • Often used to output data to the screen.

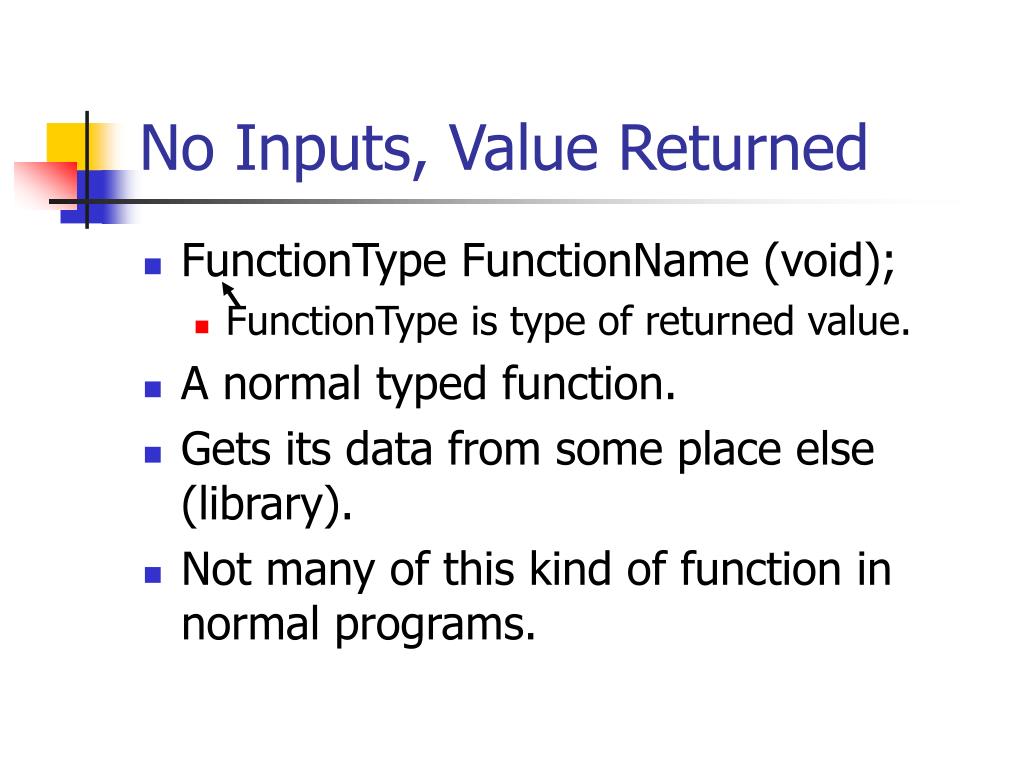

  6. No Inputs, Value Returned • FunctionType FunctionName (void); • FunctionType is type of returned value. • A normal typed function. • Gets its data from some place else (library). • Not many of this kind of function in normal programs.

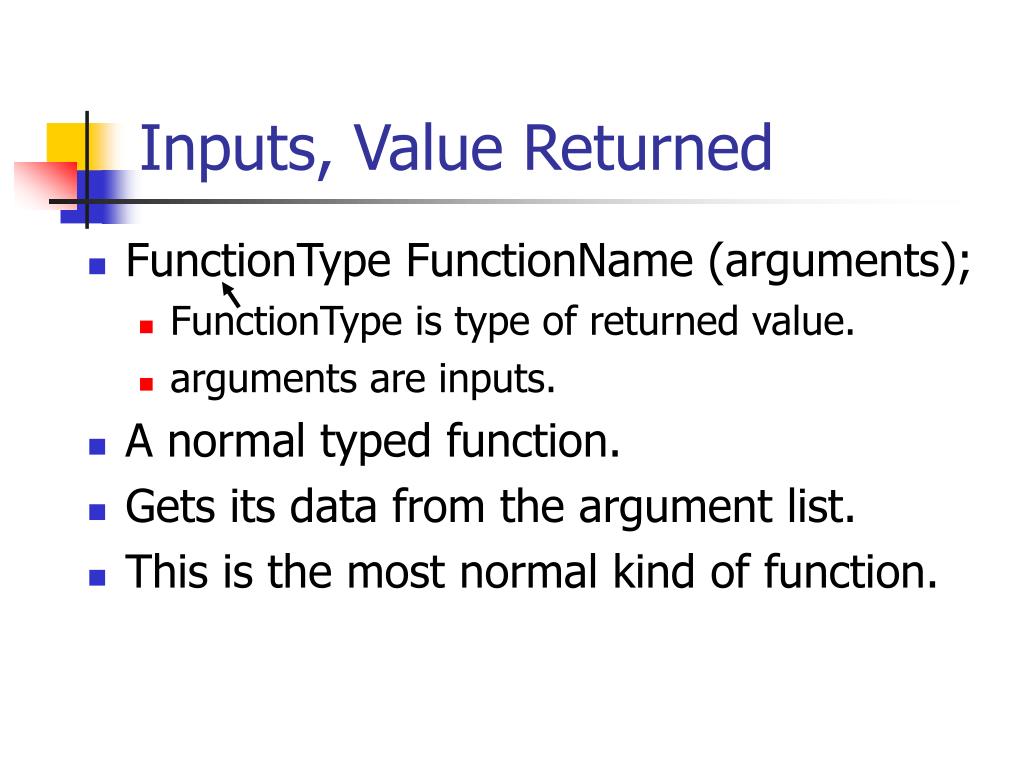

  7. Inputs, Value Returned • FunctionType FunctionName (arguments); • FunctionType is type of returned value. • arguments are inputs. • A normal typed function. • Gets its data from the argument list. • This is the most normal kind of function.

  8. When do you use a function? • If you find yourself retyping the same code lines more than once. • If you want to share your code with another programmer. • Anytime you need to implement a procedural abstraction. (defer implementation details)

  9. Actual Arguments • The name given to the arguments placed in parentheses after a function call. • Must have values before function is called. • Must agree in number, order, and type of the function definition.

  10. Formal Parameters • Name given to the parameters inside the parentheses after a function definition. • Used to receive values from the calling program. • Must agree in number, order and type of the actual arguments.

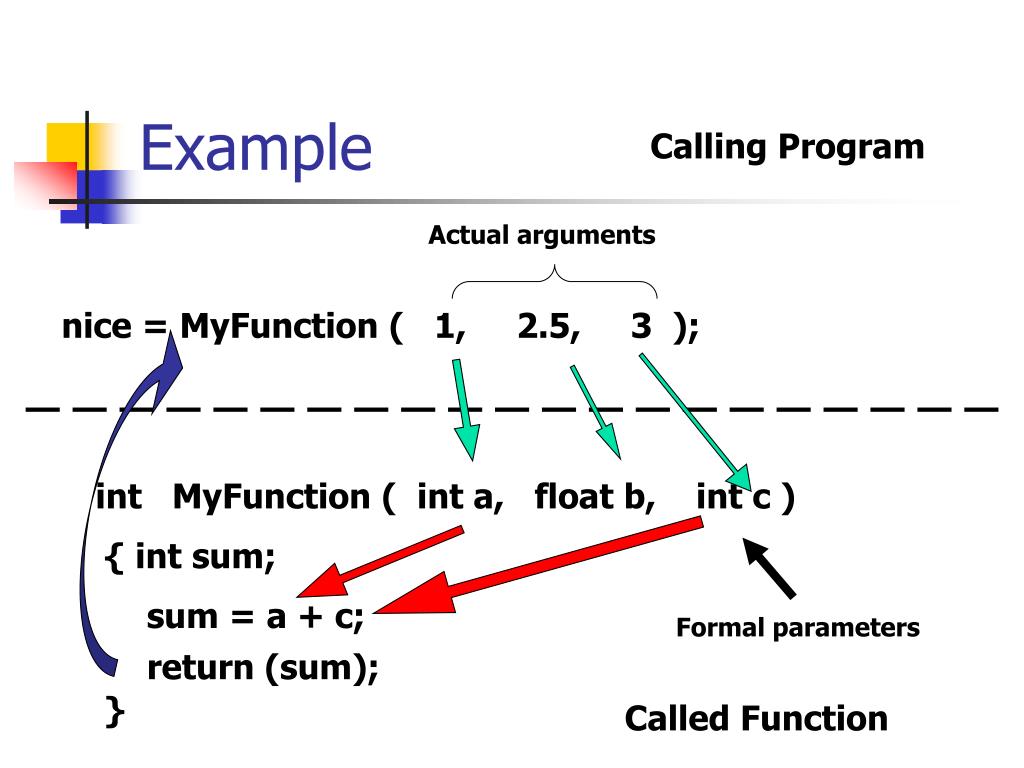

  11. Example Calling Program Actual arguments nice = MyFunction ( 1, 2.5, 3 ); int MyFunction ( int a, float b, int c ) { int sum; sum = a + c; Formal parameters return (sum); } Called Function

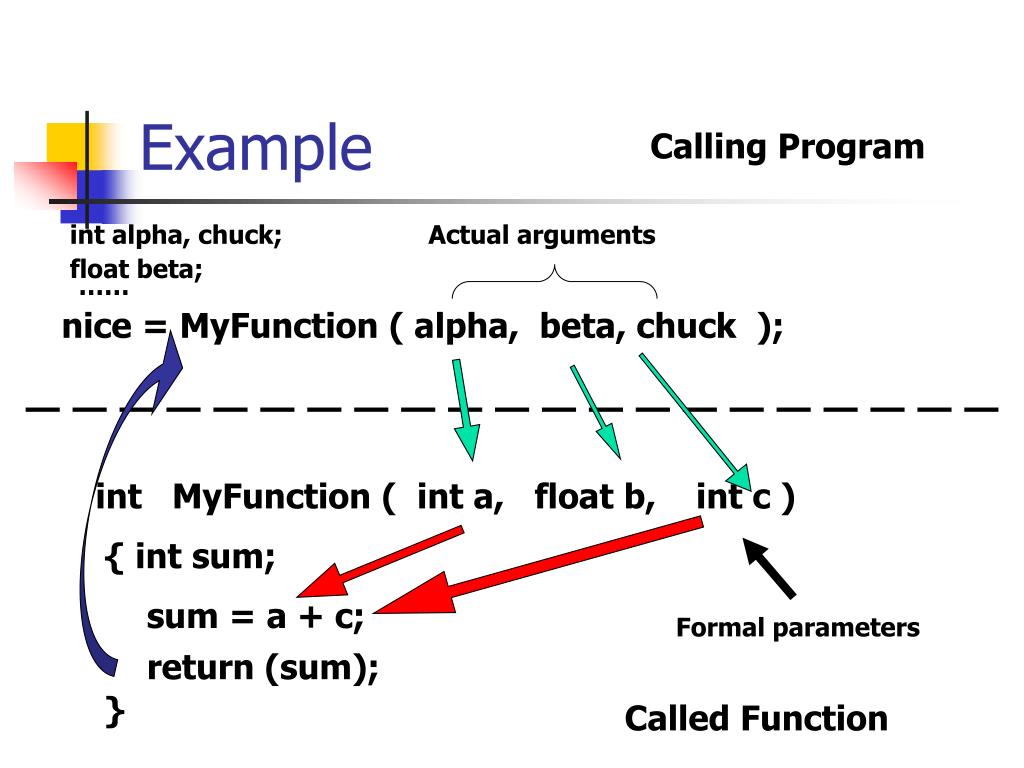

  12. Example Calling Program int alpha, chuck; Actual arguments float beta; …… nice = MyFunction ( alpha, beta, chuck ); int MyFunction ( int a, float b, int c ) { int sum; sum = a + c; Formal parameters return (sum); } Called Function

  13. Local Data • All formal parameters and any other variables defined within a function have a value ONLY when the function has been activated. • After the call, these variables become undefined. (There is a way to avoid this, but for now, just think of them as only used during the function use.)

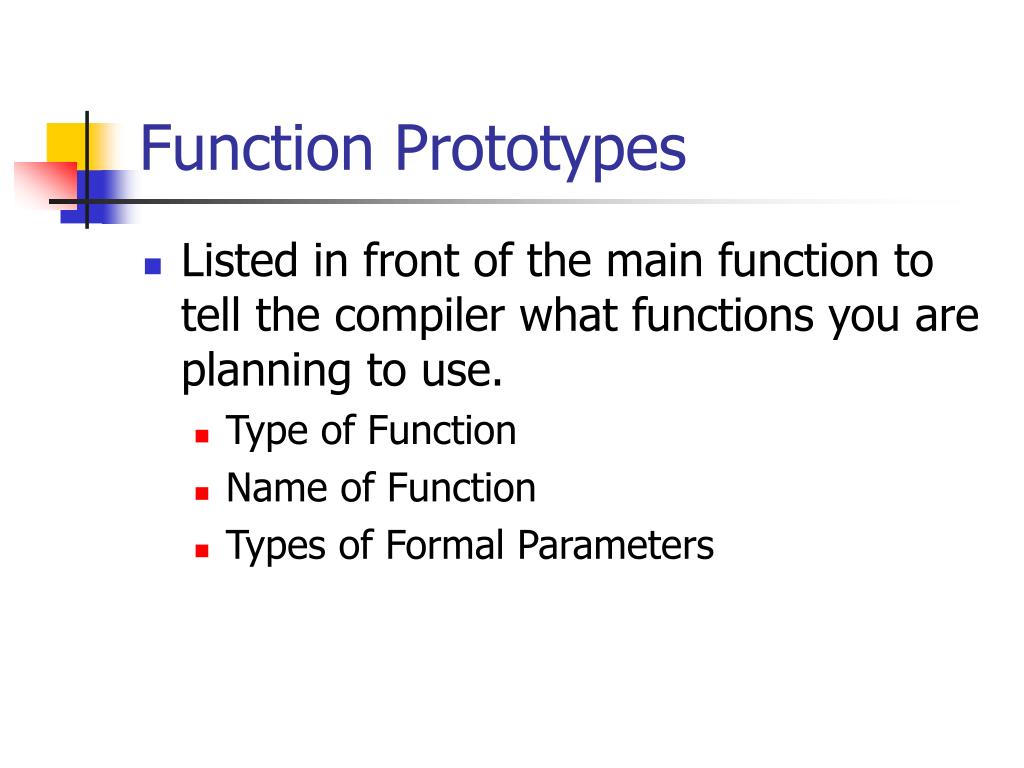

  14. Function Prototypes • Listed in front of the main function to tell the compiler what functions you are planning to use. • Type of Function • Name of Function • Types of Formal Parameters

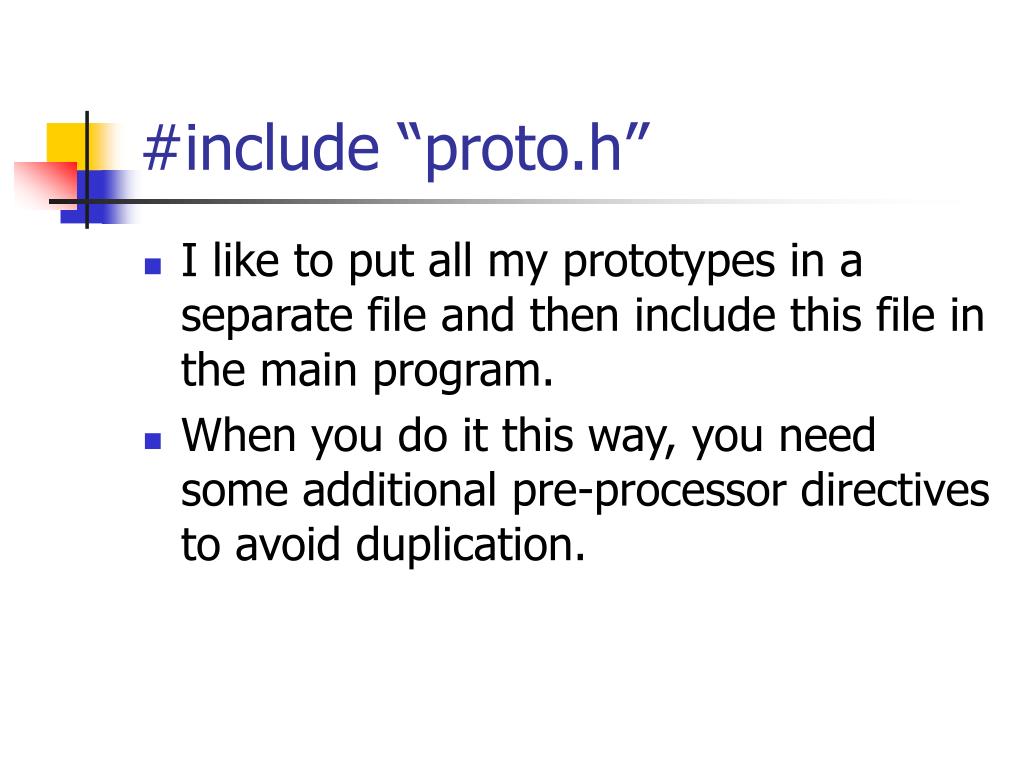

  15. #include “proto.h” • I like to put all my prototypes in a separate file and then include this file in the main program. • When you do it this way, you need some additional pre-processor directives to avoid duplication.

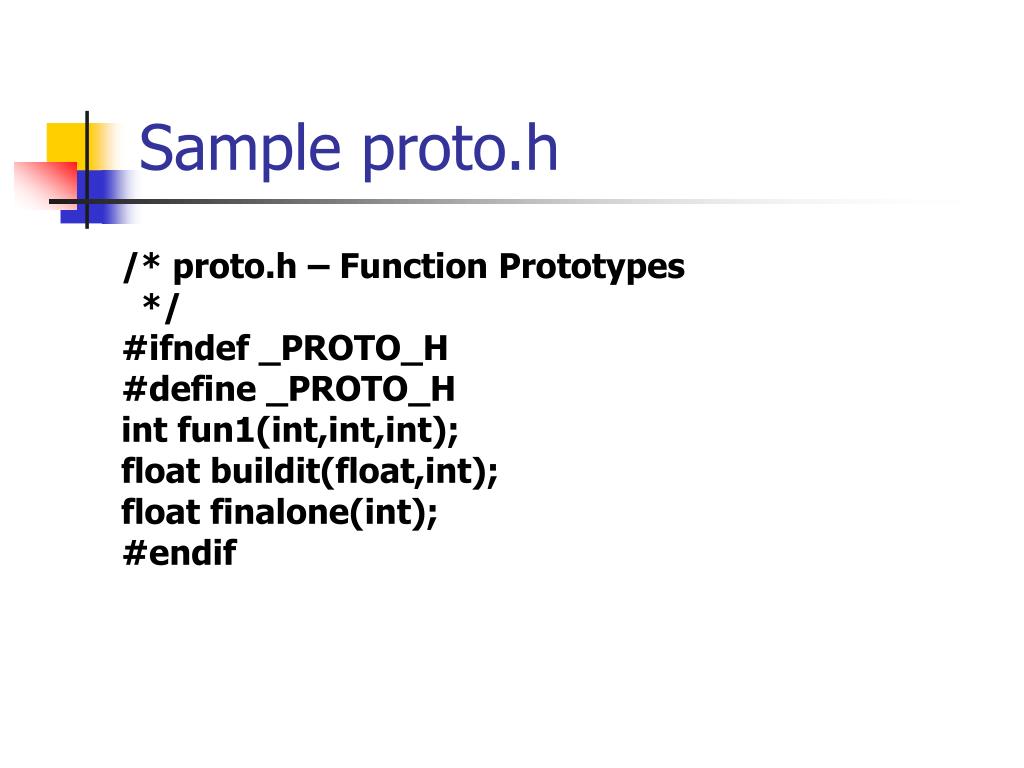

  16. Sample proto.h /* proto.h – Function Prototypes */ #ifndef _PROTO_H #define _PROTO_H int fun1(int,int,int); float buildit(float,int); float finalone(int); #endif

  17. Avoids Duplication • First it checks to see if the variable _PROTO_H is defined. • If it IS defined, the entire file is skipped. • If it ISN’T defined, the first thing done is to define it. • Then the rest of the file is processed. • If this file is included twice, the compiler will only see one copy of it!

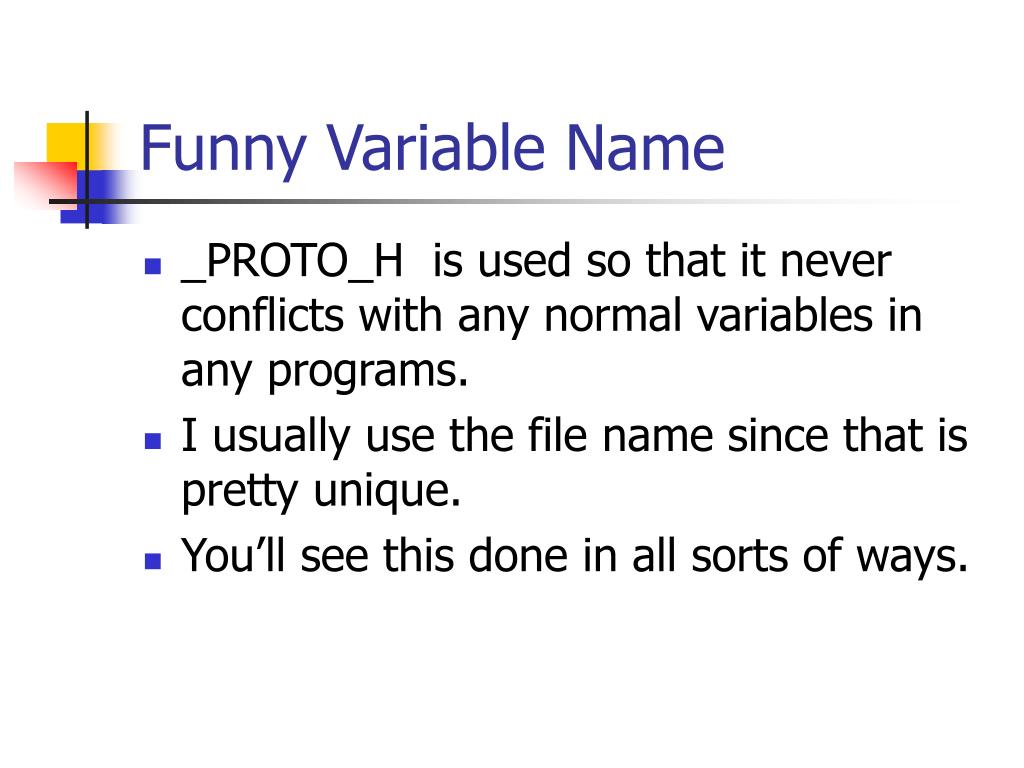

  18. Funny Variable Name • _PROTO_H is used so that it never conflicts with any normal variables in any programs. • I usually use the file name since that is pretty unique. • You’ll see this done in all sorts of ways.

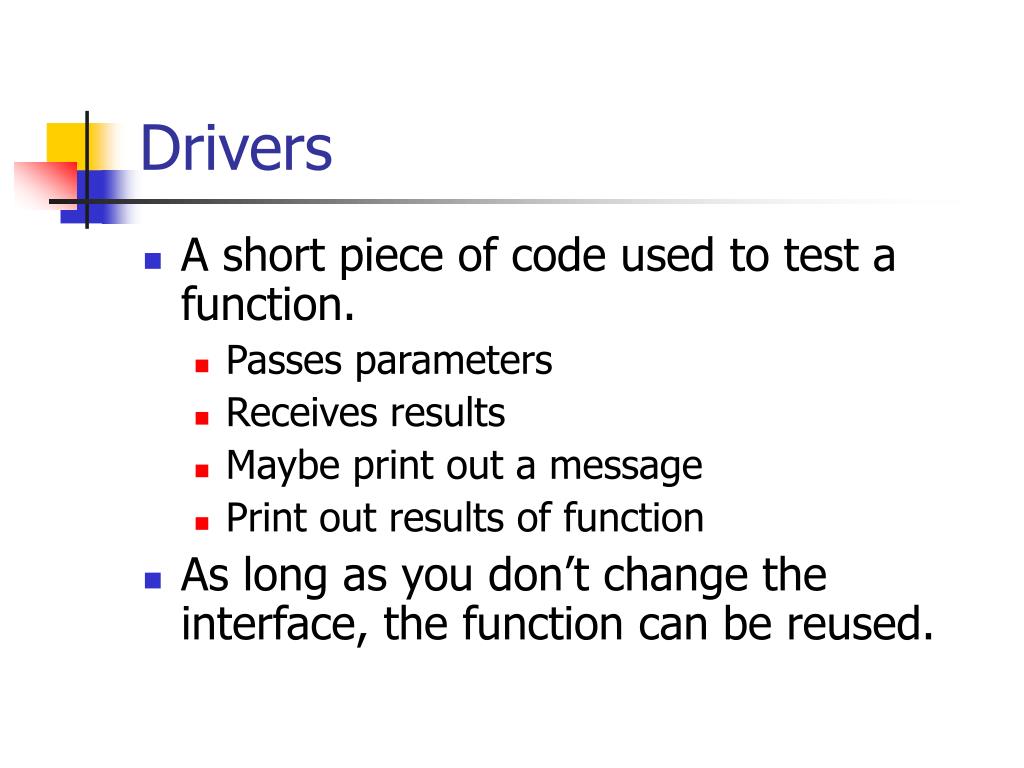

  19. Drivers • A short piece of code used to test a function. • Passes parameters • Receives results • Maybe print out a message • Print out results of function • As long as you don’t change the interface, the function can be reused.

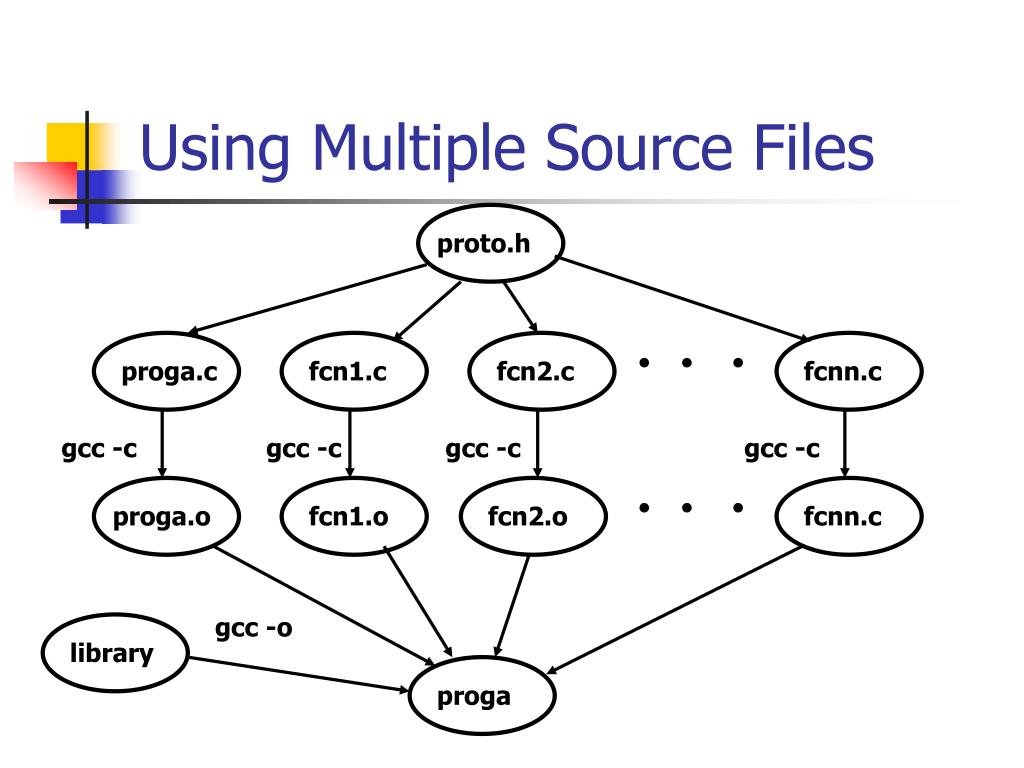

  20. Using Multiple Source Files proto.h proga.c fcn1.c fcn2.c fcnn.c gcc -c gcc -c gcc -c gcc -c proga.o fcn1.o fcn2.o fcnn.c gcc -o library proga

  21. Example Makefile # Makefile for multipl file example # CS201 S'05 Ray S. Babcock # fire: fire.o fun1.o fun2.o fun3.o gcc -o fire fire.o fun1.o fun2.o fun3.o fire.o: fire.c proto.h gcc -c fire.c fun1.o: fun1.c gcc -c fun1.c fun2.o: fun2.c proto.h gcc -c fun2.c fun3.o: fun3.c gcc -c fun3.c clean: rm *.o fire
