  1. SharePoint 2010 Client Object Model Overview & Capabilities Mark Nischalke, MCPD, MCSD, MCAD SharePoint Architect Prequel Solutions

  2. What is the Client Object Model Supported environments Architecture How to use it SharePoint context Accessing objects Efficient queries Add/Update/Delete Agenda

  3. Been involved in Software Development over 15 years • Master of Information Systems • Multiple Microsoft certifications • Frequent contributor and MVP for Code Project About Me

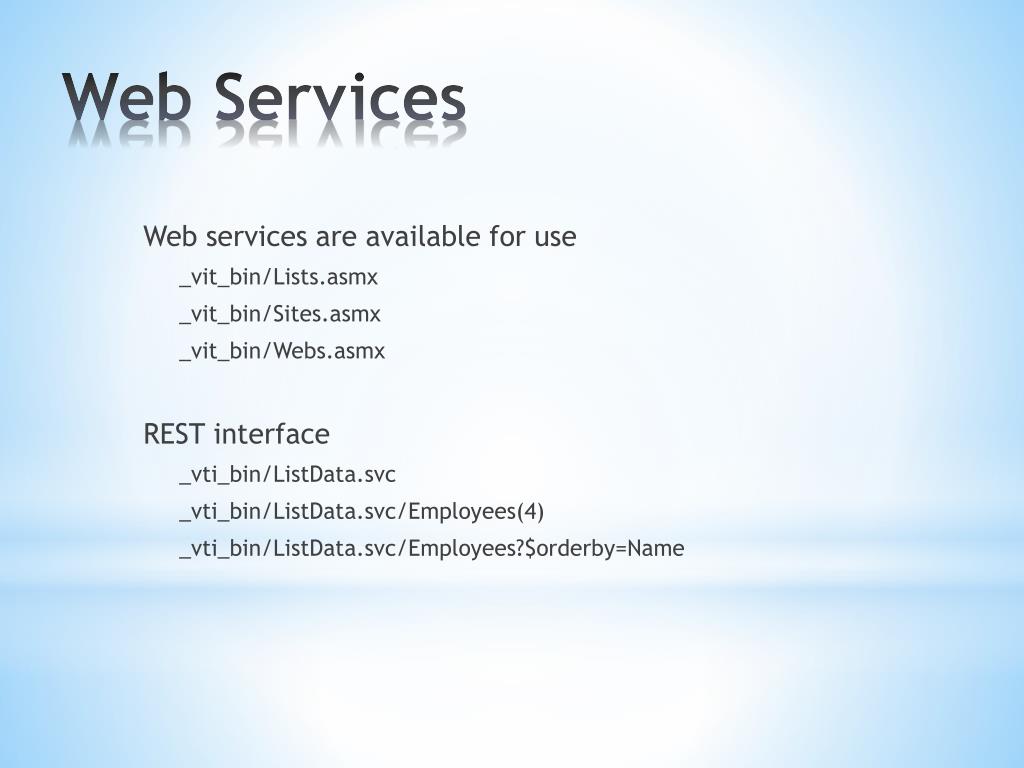

  4. Web services are available for use _vit_bin/Lists.asmx _vit_bin/Sites.asmx _vit_bin/Webs.asmx REST interface _vti_bin/ListData.svc _vti_bin/ListData.svc/Employees(4) _vti_bin/ListData.svc/Employees?$orderby=Name Web Services

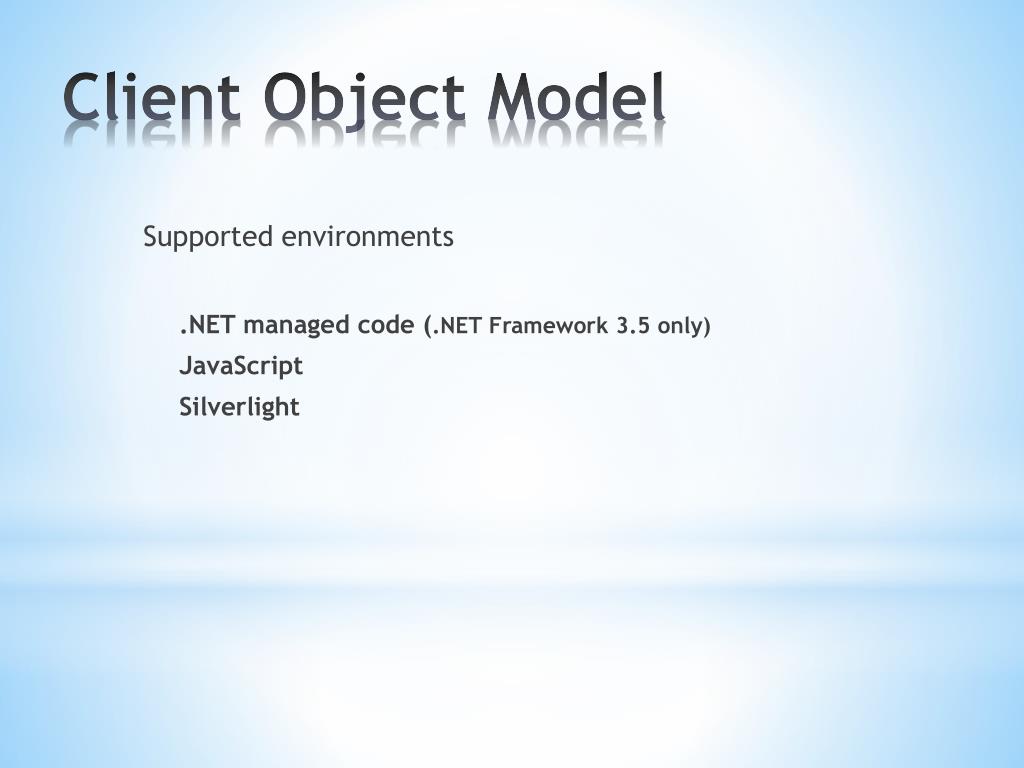

  5. Supported environments .NET managed code (.NET Framework 3.5 only) JavaScript Silverlight Client Object Model

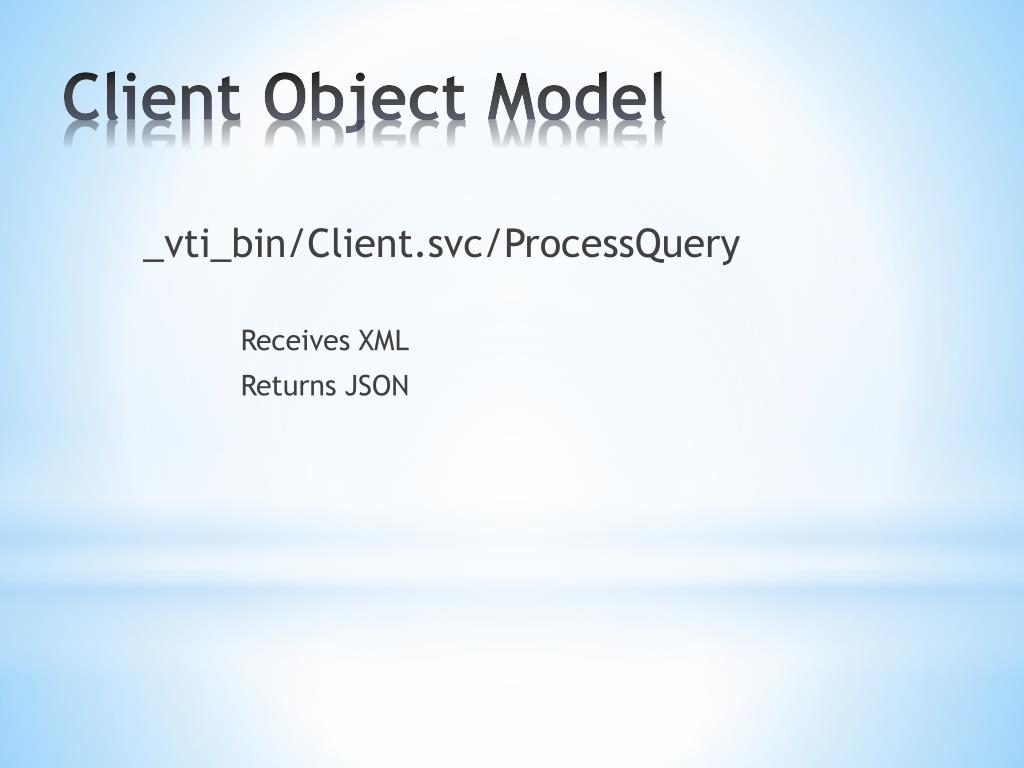

  6. _vti_bin/Client.svc/ProcessQuery Receives XML Returns JSON Client Object Model

  7. .NET managed code (<%SharePoint Root%>\ISAPI) Microsoft.SharePoint.Client.dll (282kb) Microsoft.SharePoint.Client.Runtime.dll (146kb) JavaScript SP.js (381kb) * SP.Runtime.js (67kb) Silverlight (<%SharePoint Root%>\TEMPLATE\LAYOUTS\ClientBin) Microsoft.SharePoint.Client.Silverlight.dll (266kb) Microsoft.SharePoint.Client.Runtime.Silverlight.dll (142kb) Reference assemblies

  8. Most server objects are represented in the Client OM Client Object Model

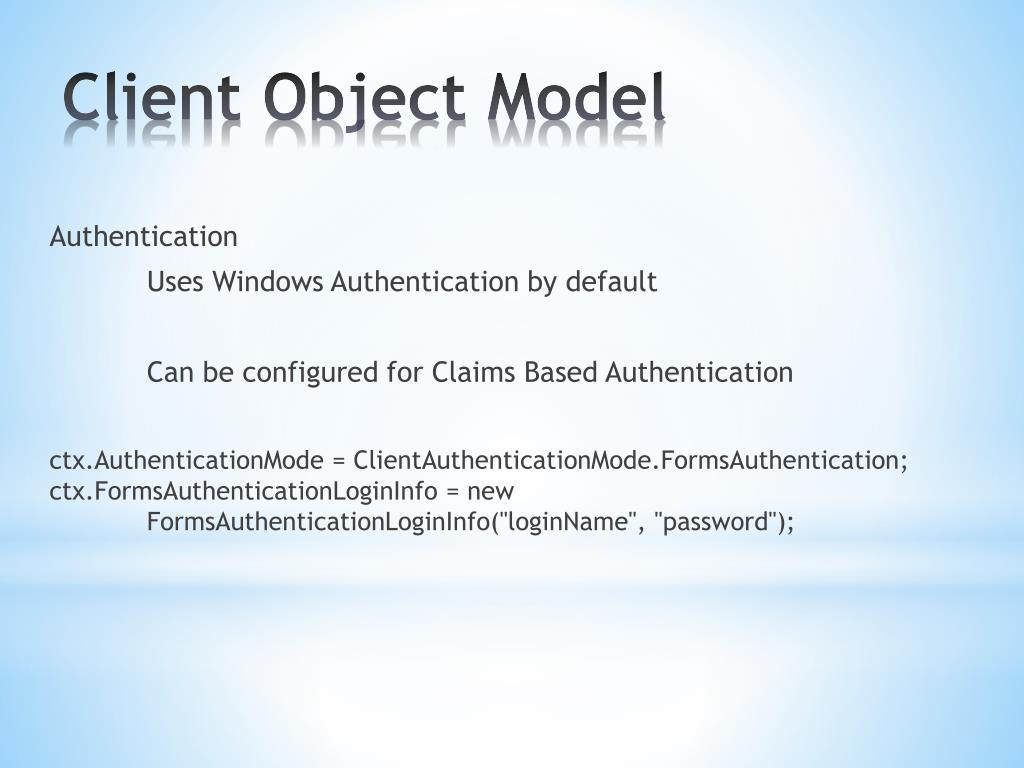

  9. Authentication Uses Windows Authentication by default Can be configured for Claims Based Authentication ctx.AuthenticationMode = ClientAuthenticationMode.FormsAuthentication; ctx.FormsAuthenticationLoginInfo = new FormsAuthenticationLoginInfo("loginName", "password"); Client Object Model

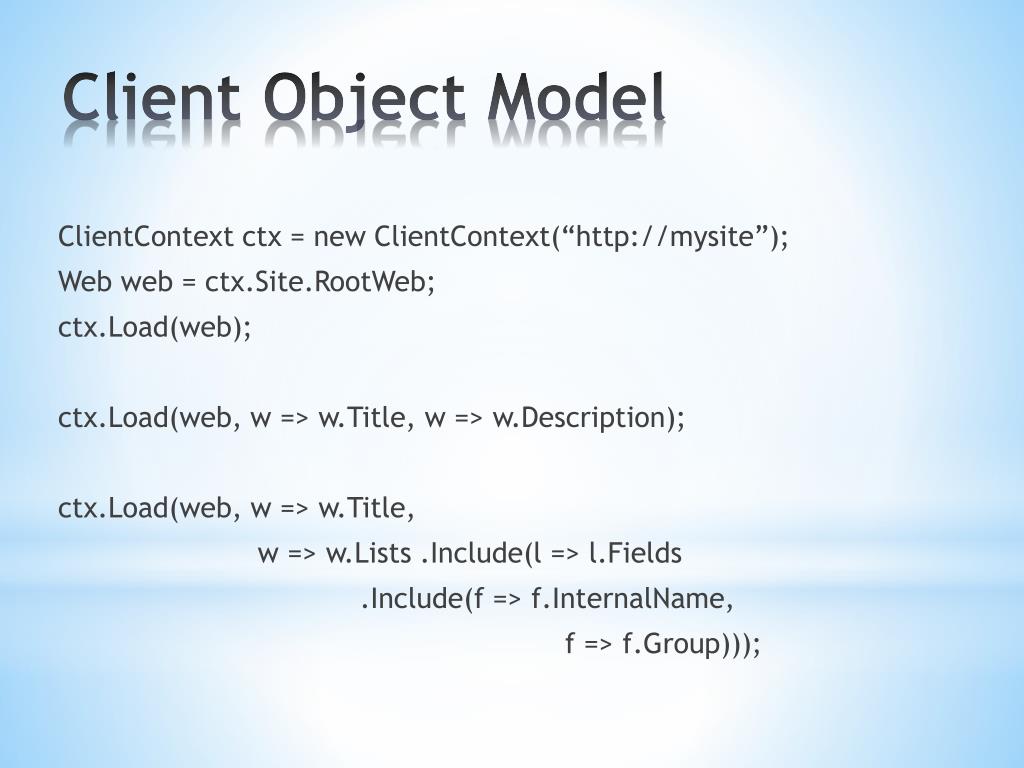

  10. ClientContextctx = new ClientContext(“http://mysite”); Web web = ctx.Site.RootWeb; ctx.Load(web); ctx.Load(web, w => w.Title, w => w.Description); ctx.Load(web, w => w.Title, w => w.Lists .Include(l => l.Fields .Include(f => f.InternalName, f => f.Group))); Client Object Model

  11. ClientContextctx = new ClientContext(“http://mysite”); Web web = ctx.Site.RootWeb; var lists = ctx.LoadQuery(web.Lists); var lists = ctx.LoadQuery(web.Lists.Include(l => l.Title)); var query = from l in web.Lists .Include(l => l.Title) select l; varlists = ctx.LoadQuery(query); Client Object Model

  12. Demo

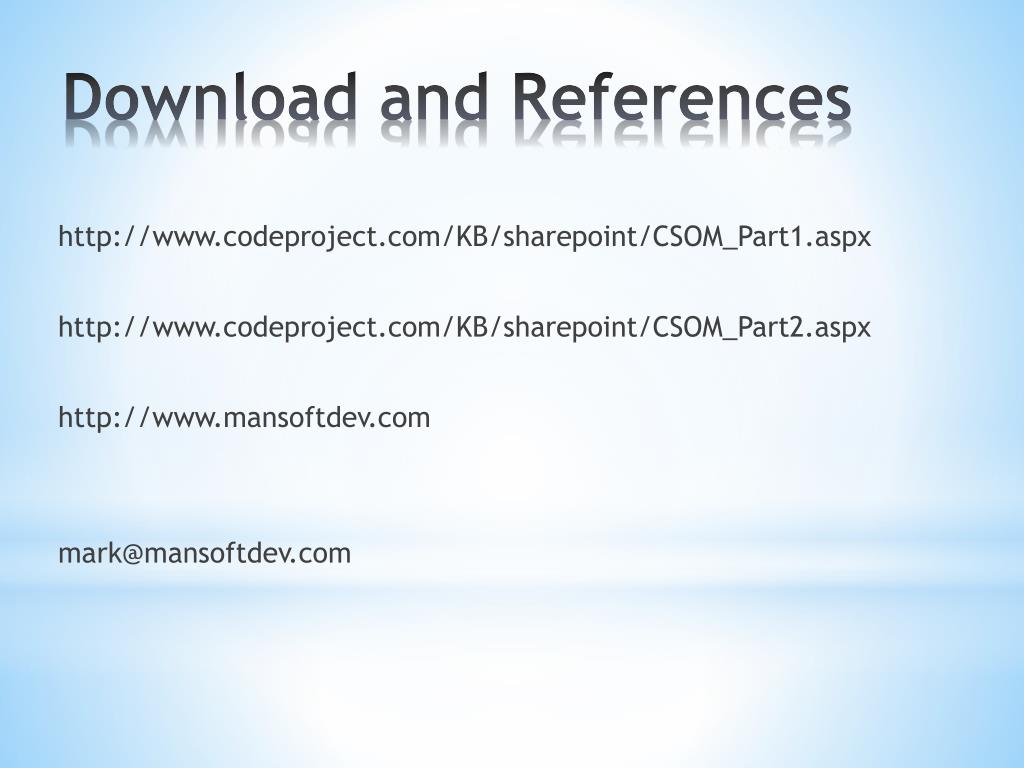

  13. http://www.codeproject.com/KB/sharepoint/CSOM_Part1.aspx http://www.codeproject.com/KB/sharepoint/CSOM_Part2.aspx http://www.mansoftdev.com mark@mansoftdev.com Download and References

  14. Q & A

  15. www.prequelsolutions.com mnischalke@prequelsolutions.com
