  1. S.W.A.T(Security Watching All the Time) Jeff Shin Tyler Stubbs Paul Kasemir Pavel Mayyak

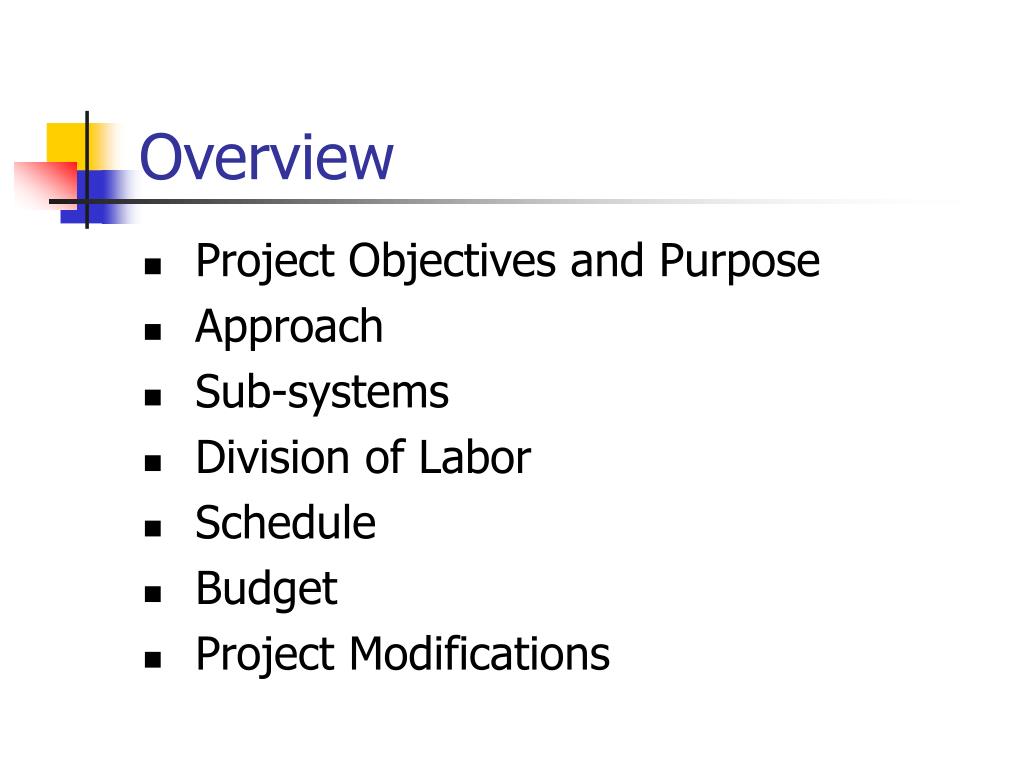

  2. Overview • Project Objectives and Purpose • Approach • Sub-systems • Division of Labor • Schedule • Budget • Project Modifications

  3. Project Statement • Home Security and Safety • Detection of intruders • Intruder prevention by alarms and lights • Recording of home activity • Generate reports (logs) • Allow remote access

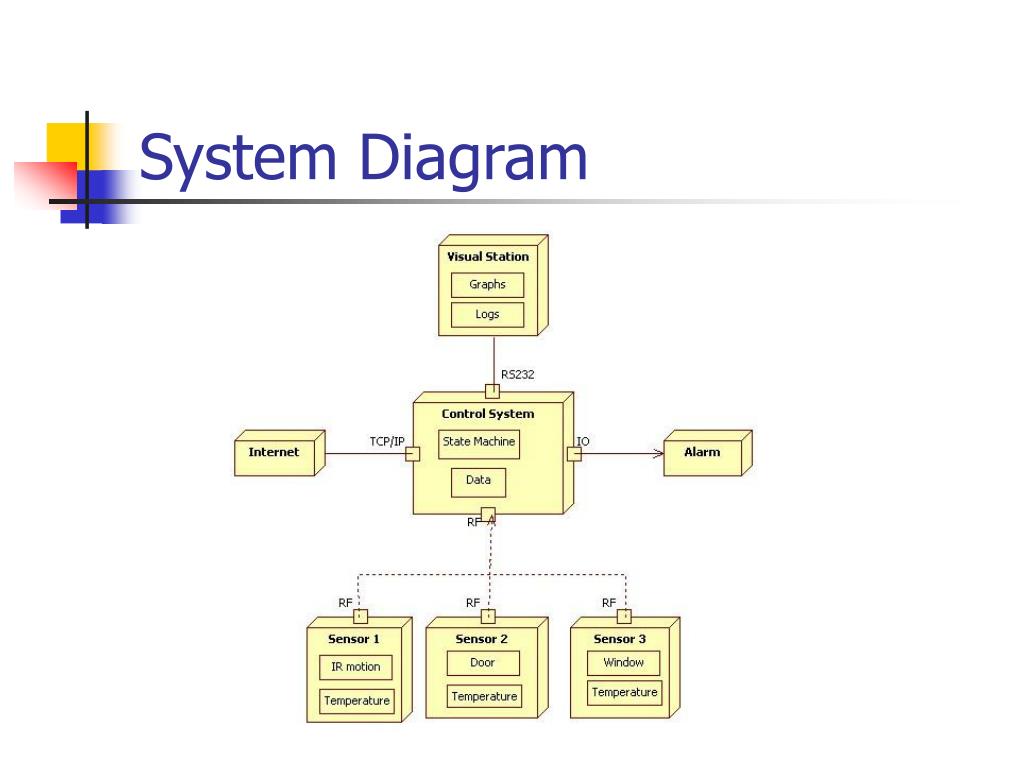

  4. System Diagram

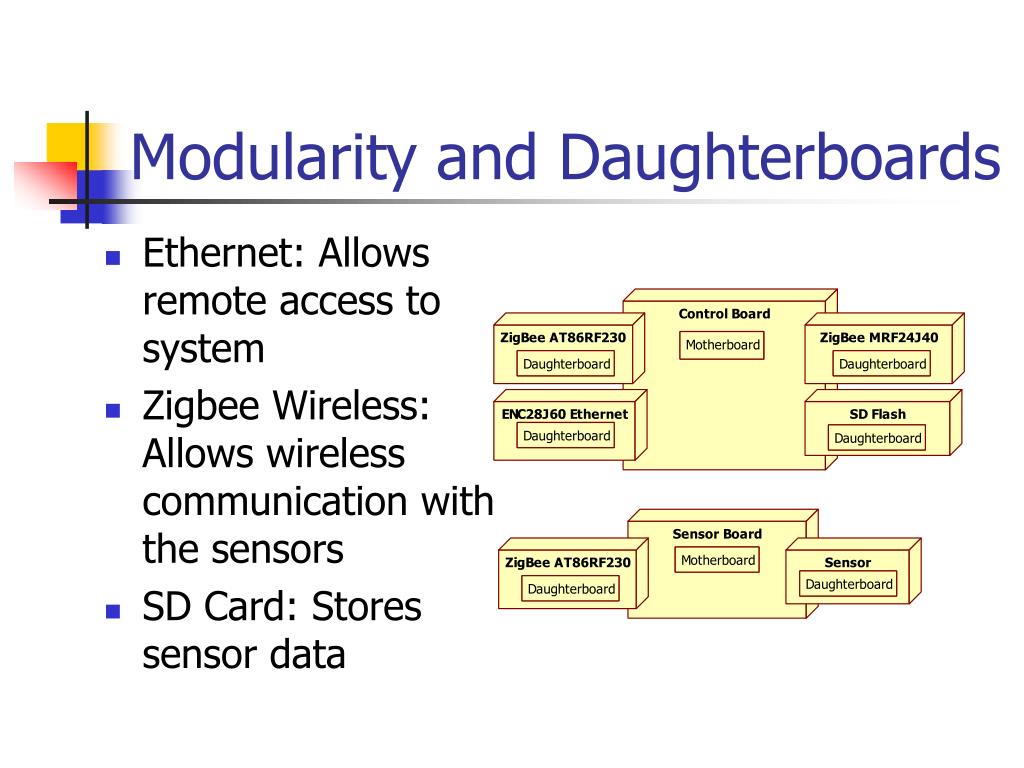

  5. Ethernet: Allows remote access to system Zigbee Wireless: Allows wireless communication with the sensors SD Card: Stores sensor data Modularity and Daughterboards

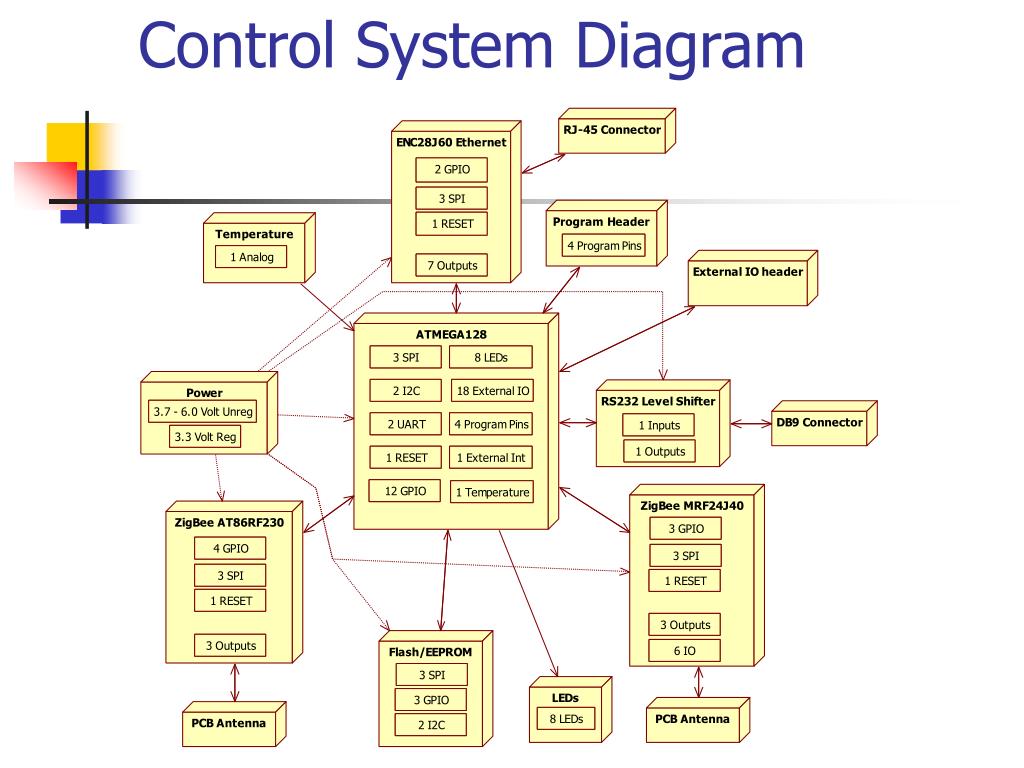

  6. Control System Diagram

  7. Flash/EEPROM: Memory to store the data from sensors. (1 Meg each) LEDs: 8 LEDs, used primarily for debugging purposes RS232 Shifter: Interfaces to the serial port on the Visual Station DB9 Connector: Serial cable to the Visual Station Power: One 6 Volt DC source powering board Program Header: Allows STK500 to program the microcontroller External IO Header: Controls alarm triggering Control System Motherboard

  8. Control System Schematic

  9. Control Board

  10. Control System • Main control processor: ATMega128 • RF link: • AT86RF230 • MRF24J40 • Internet: ENC28J60 • Data Storage: SD cards • Alarm Trigger: Standard IO • Serial link: MAX3232 • Programming: C/C++ using Eclipse

  11. Sensor System Diagram

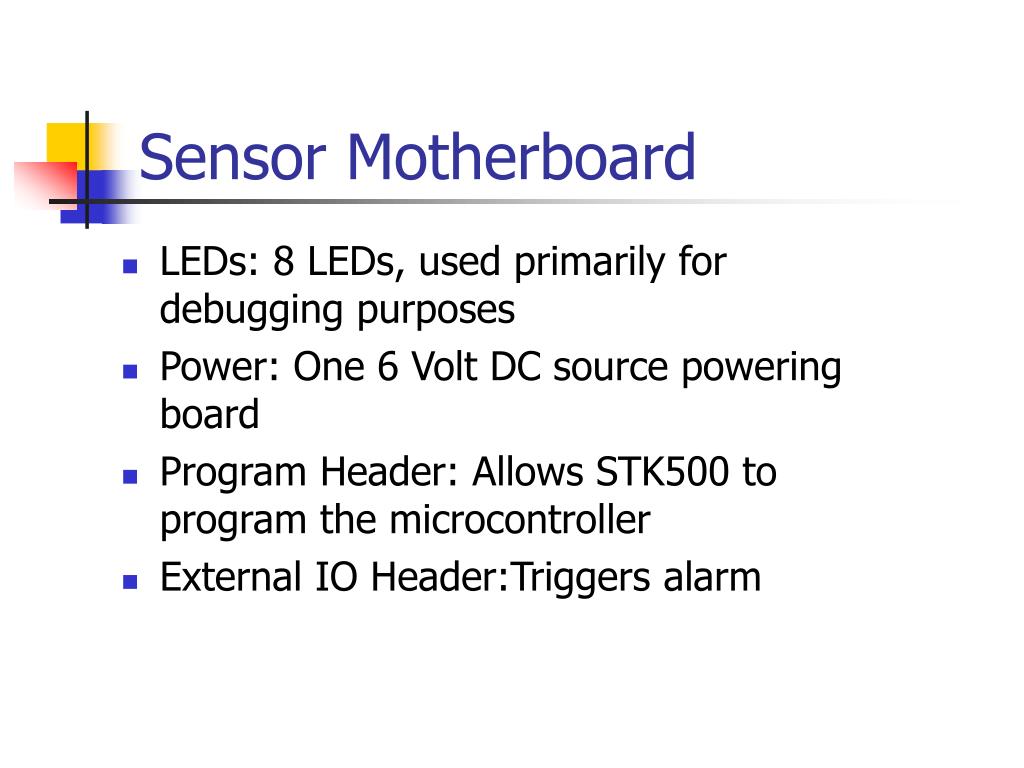

  12. LEDs: 8 LEDs, used primarily for debugging purposes Power: One 6 Volt DC source powering board Program Header: Allows STK500 to program the microcontroller External IO Header:Triggers alarm Sensor Motherboard

  13. Zigbee Wireless: Allows wireless communication with the sensors PIR325: Infared motion sensor AH180: Magnetic sensor for Doors Glass Break Sensor: Tests integrity of Glass MAX6607: Temperature sensor Sensor Daughterboards

  14. Sensor Schematic

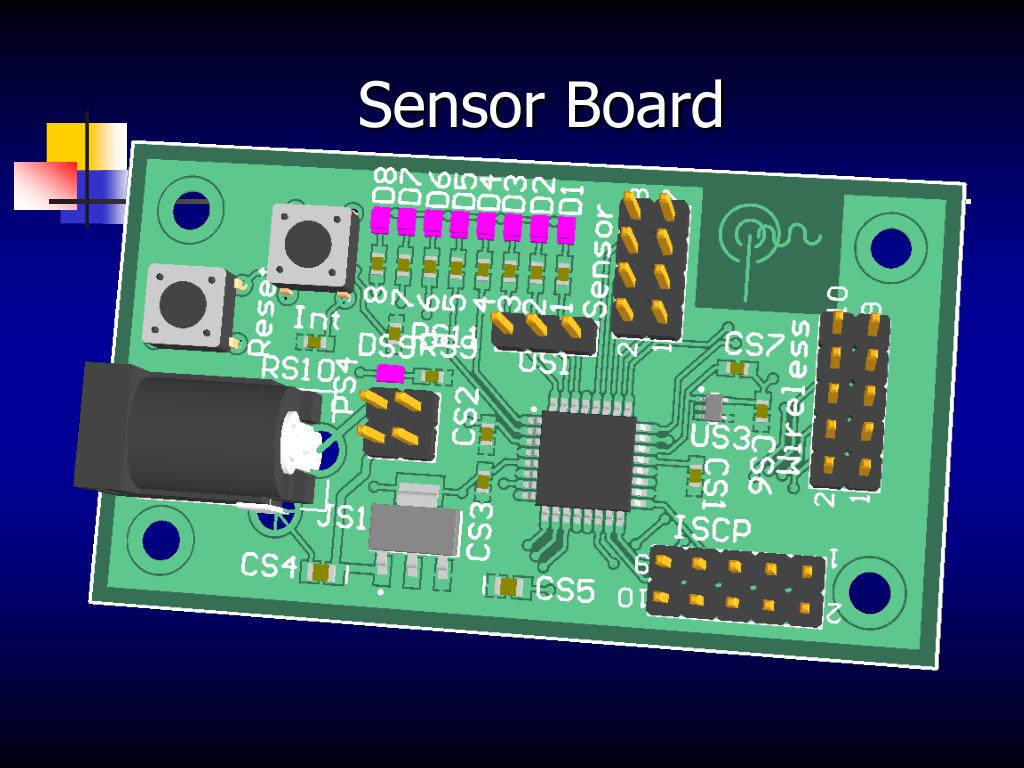

  15. Sensor Board

  16. Sensors • Simple control processor: ATMega88/168 • RF link: ZigBee Wireless • AT86RF230 • MRF24J40 • Magnetic sensors: AH180 • Glass Integrity: TBD • Temperature: MAX6607 • Infrared Sensor: PIR325

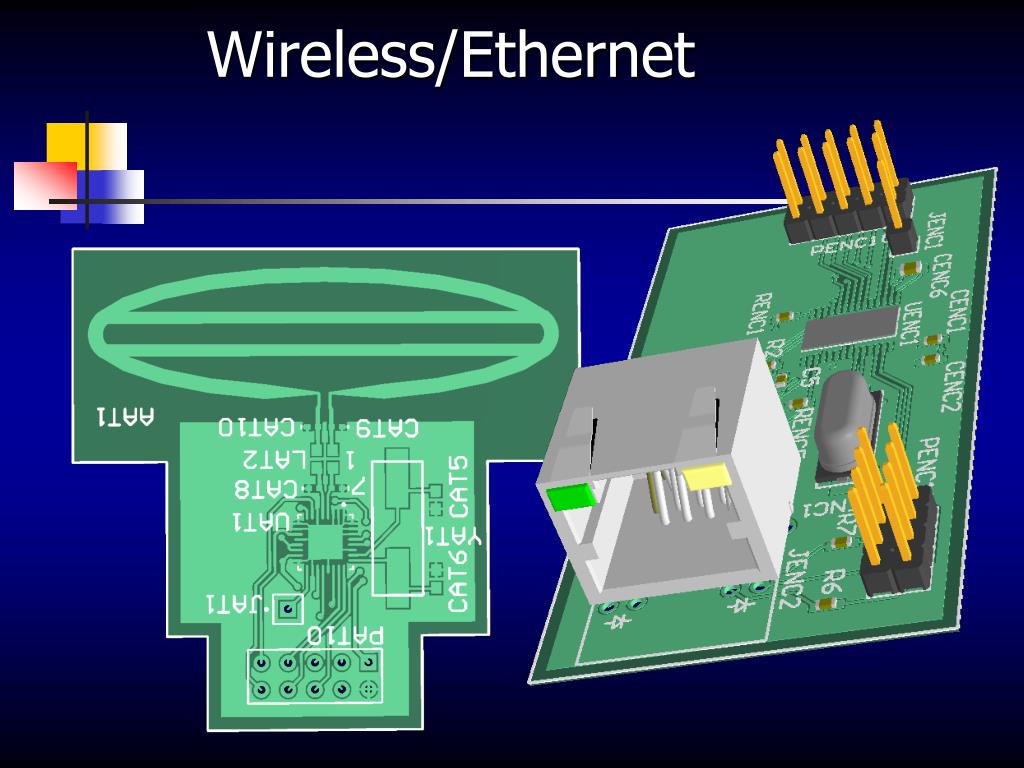

  17. Wireless/Ethernet

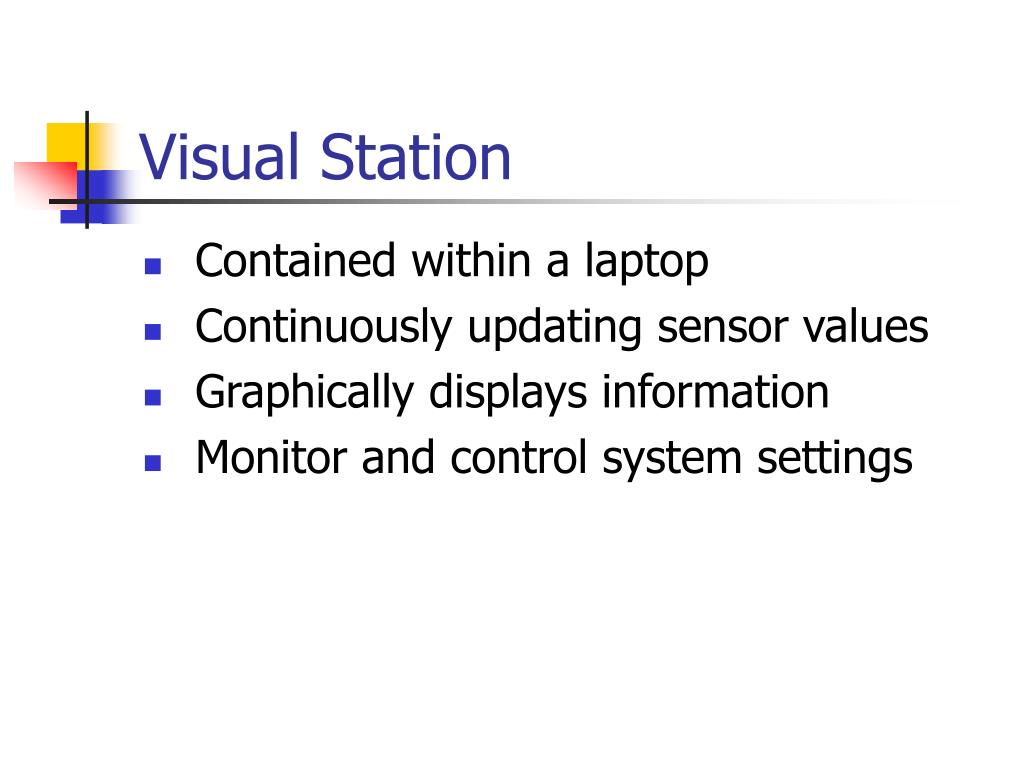

  18. Visual Station • Contained within a laptop • Continuously updating sensor values • Graphically displays information • Monitor and control system settings

  19. Alarms • Lights • Noise (siren) • Email

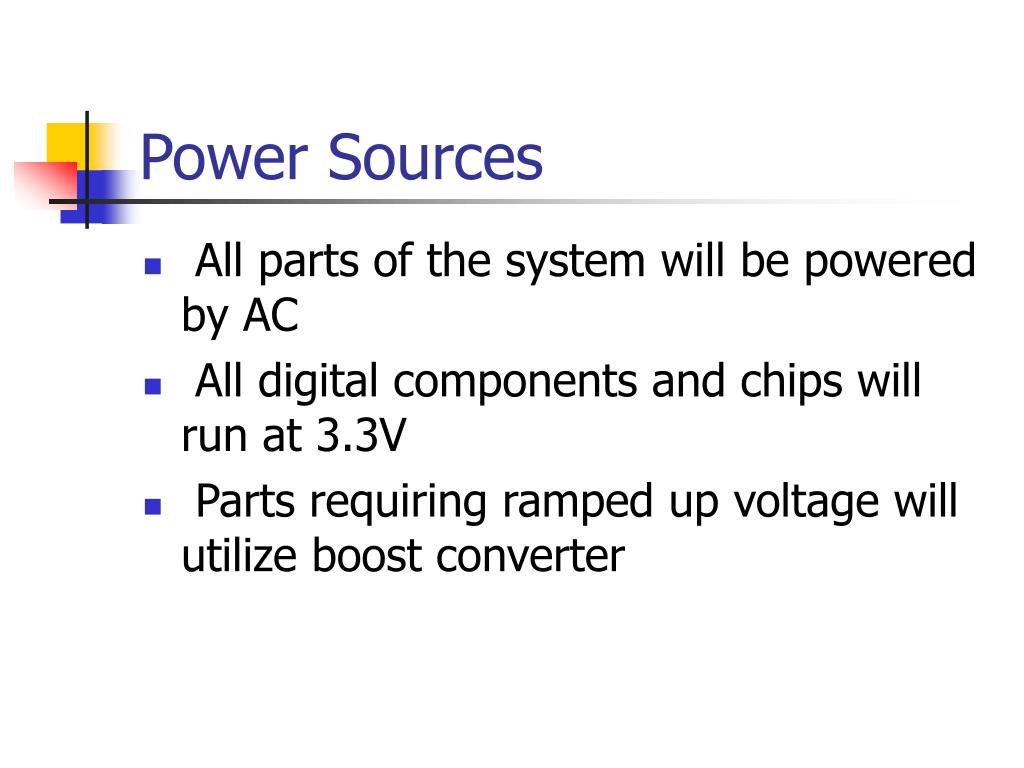

  20. Power Sources • All parts of the system will be powered by AC • All digital components and chips will run at 3.3V • Parts requiring ramped up voltage will utilize boost converter

  21. Programming • Environment • Eclipse • C or C++ • WinAVR • Programmer • STK500 • AVR Studio 4

  22. Division of Labor • Programming: Pavel and Paul • PCB Designs: Paul • Analog Circuitry: Jeff and Tyler • Sensor Construction and Implementation: Jeff and Tyler • Documentation and Testing: All

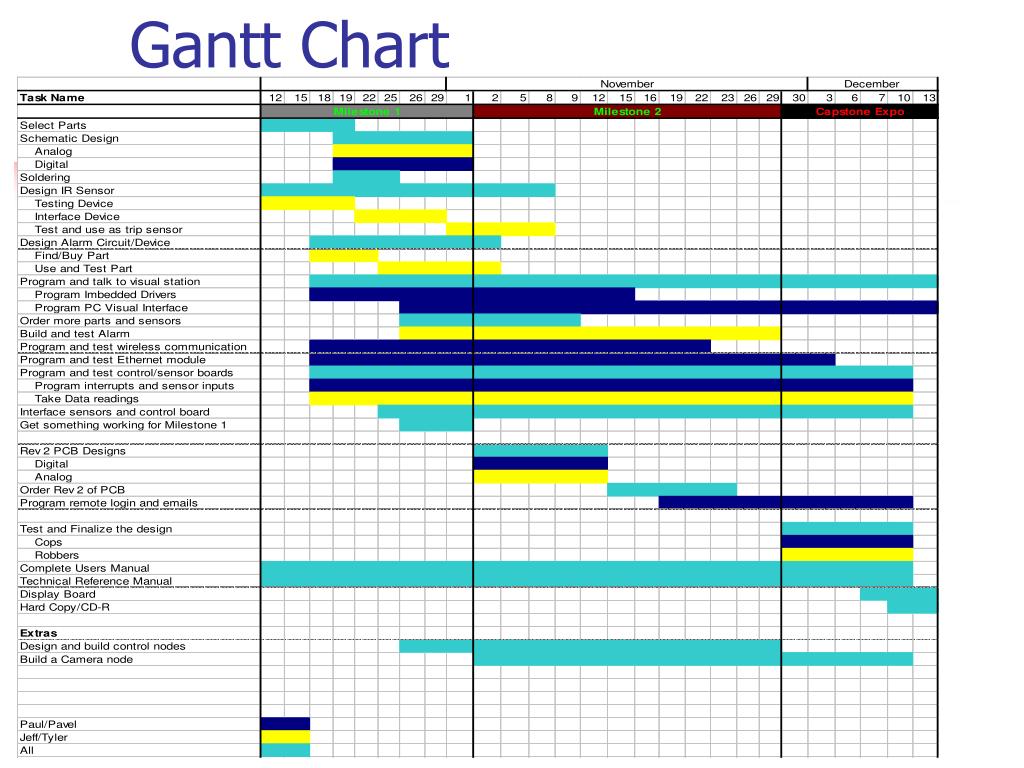

  23. Gantt Chart

  24. Milestone Objectives • Milestone 1 • Have control and sensor boards soldered • Have basic code executing • Have communication to the PC on serial • Hope to have wireless link established • Get the self built IR sensor working

  25. Milestone Objectives • Milestone 2 • Have all hardware tested and working • Have a visual station program running • Have communications for wireless and serial seamlessly working • Have remote login capability

  26. STK 500 Programmer ATMega128 ATMega 8 ZigBee Chips Temperature Sensor IR Sensor Components Magnetic Sensor Broken Glass Sensor PCB Passives (Capacitors, Resistors, Inductors) Connectors/Jacks Power Supplies Alarm Lights Alarm Siren Buffer Budget TOTAL $85 Sampled Sampled Sampled Sampled $24 $5 $90 $200 $60 $25 $35 $15 $10 $450 $850 Budget

  27. Project Modifications • Main types of sensing are daughter boards rather than all on one motherboard *Easier to break down piece by piece *Easier to debug • We have purchased power supplies rather than building them*For convenience *Time constraints *New allowance in budget

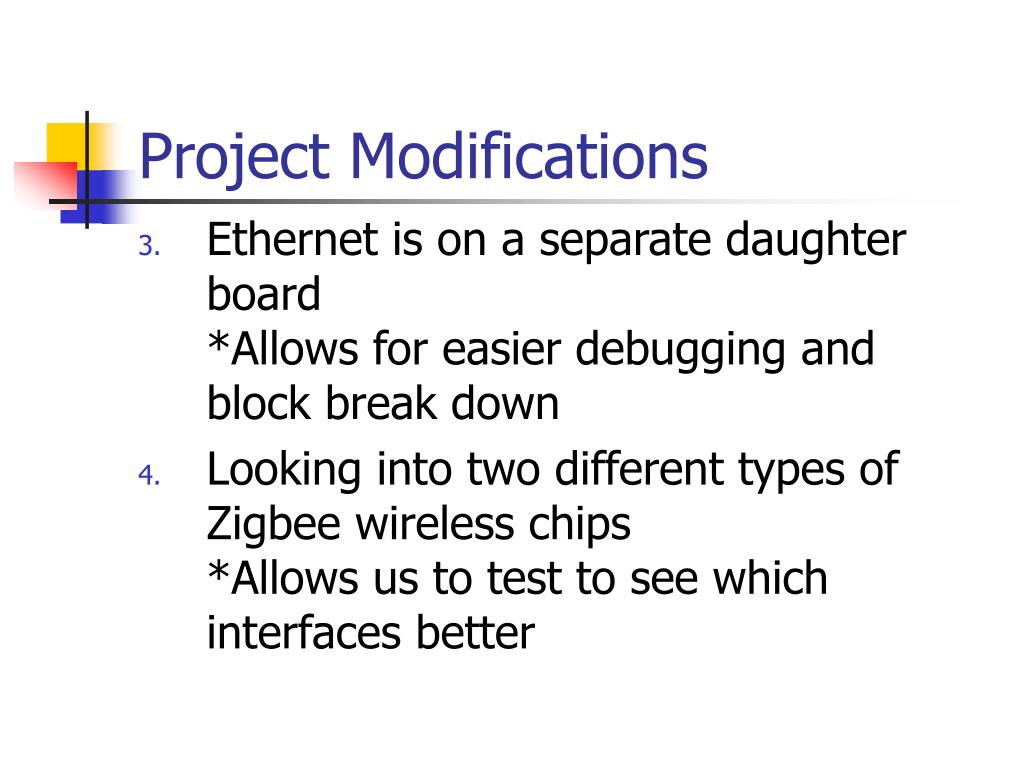

  28. Project Modifications • Ethernet is on a separate daughter board*Allows for easier debugging and block break down • Looking into two different types of Zigbee wireless chips*Allows us to test to see which interfaces better

  29. Questions?? Security Watching All the Time
