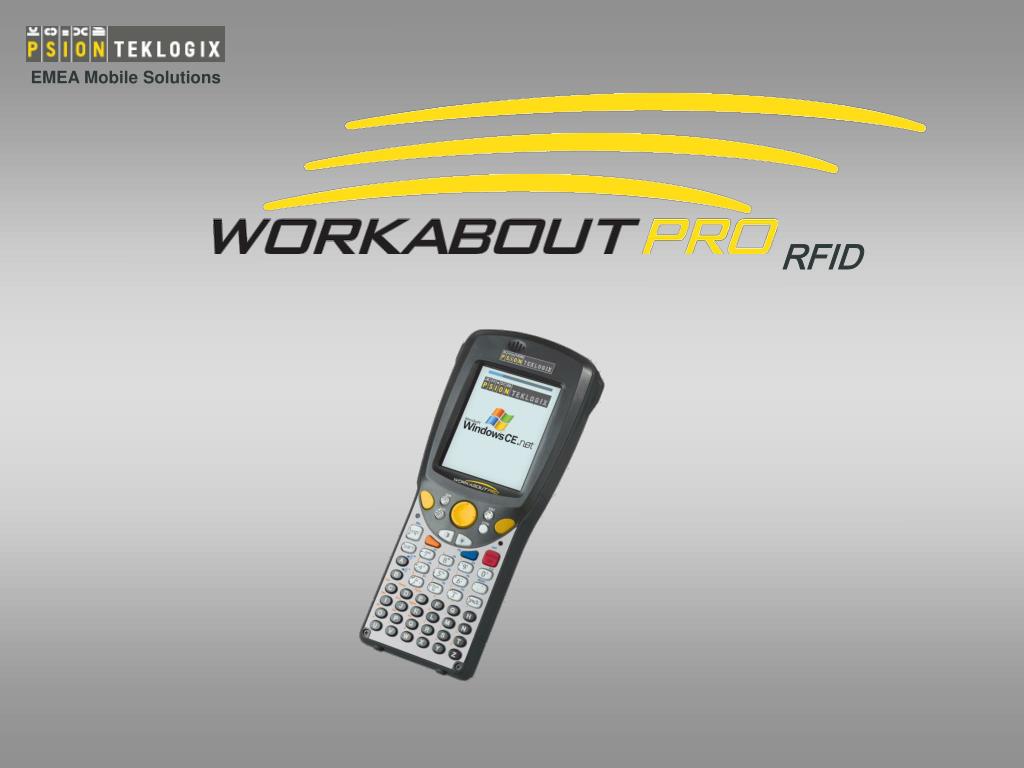

  1. RFID

  2. RFID Workabout PRO – Integrated RFID • OPTIONS: • High Frequency (HF) 13.56MHz • Low Frequency (LF) 125 – 134.2KHz • MIFARE 13.56MHz

  3. RFID Integrated RFID Option • RFID reader integrated into Workabout PRO via 100pin connector. • Compact Flash slot remains available for WIFI Radio • Reading range from back of Workabout Pro varies by tag type and size. • Max: 7cm (HF) • Max: 2cm (Mifare) RFID Module (100pin) Read Range Antenna Board

  4. RFID Integrated RFID Option • Industrial integration • Two piece design (future antenna improvements / endcaps) • Metal plate antenna backplane to protect from WIFI interference • Scanner support still available

  5. RFID RFID Module Specifications • HF module • Frequency : 13.56 MHz • Tags supported : ISO 15693, Philips I-Code™; TI Tag-It™; Tagsys (C210,C220, C240, C270) • Read/write range up to : 70 mm • MIFARE module • Frequency : 13.56 MHz • Tags supported : ISO 14443 A&B, Mifare standard; • Read/write range up to : 50 mm • LF module • Frequency : 125 KHz; 134.2 KHz • Tags supported : EM 4x0x; EM 4x50; Hitag1; Hitag2; ISO 11-784,-785 (FDXB) • Read/write range up to : 70 mm

  6. RFID Demo Application Provided • Demo program provided to support all readers. • Select tag type • Read/write capability

  7. RFID Miscellaneous Information • RFID Antenna board affects the WIFI coverage of the CF card. • GPRS option not supported. (100pin slot taken by reader. No room for CF card with integrated antenna) • Future endcaps will allow for improved antenna mounting (better range, GPRS support) • EMEA List Price for HF option = 550 Euros. Other modules should be approximately the same price.

  8. WorkAbout Pro LF RFID Reader Supported Tags: EM 41x2 EM 4x5x Hitag 1, 2, S FDX-B • Integrated in the standard end cap • Ferrite antenna, for reading on metal • Use the 100 pin X mod connector • CF slot remains free (WiFi card, …) • Reading distance < 5 cm

  9. Work About Pro ISO15693 HF RFID Reader Supported Tags: ISO15693 Philips ICode TI Tag-it Tagsys C210, C220, C240, C270, C370 • Multi purpose industrial applications • Integrated in the standard end cap • Use the 100 pin X mod connector • CF slot remains free (WiFi card,…) • Reading distance < 10 cm

  10. Work About Pro HF Mifare RFID Reader Supported Tags: ISO14443 type A&B Mifare full compliant SmartMX SLE 55Rxx SLE 66CL160S / CLX320P SR176 / SRIX4K Sharp B ASK GTML2ISO • Ticketing, access control, e-passport • Integrated in the standard end cap • Use the 100 pin X mod connector • CF slot remains free (WiFi card,…) • Reading distance < 2.5 cm
