  1. An Overlay MAC Layer for 802.11 Networks Ananth Rao, Ion Stoica OASIS Retreat, Jun 2004

  2. Motivation • 802.11 hardware provides initial ease of deployability for many applications • Mesh networks • Long haul links • Large Infrastructure Networks • Are these apps stretching 802.11 beyond its design goals (Wireless LANs)? Internet Gateway

  3. Problem 1: Different Data Rates R A B

  4. Problem 2: Unpredictability 1 2 3 4 5

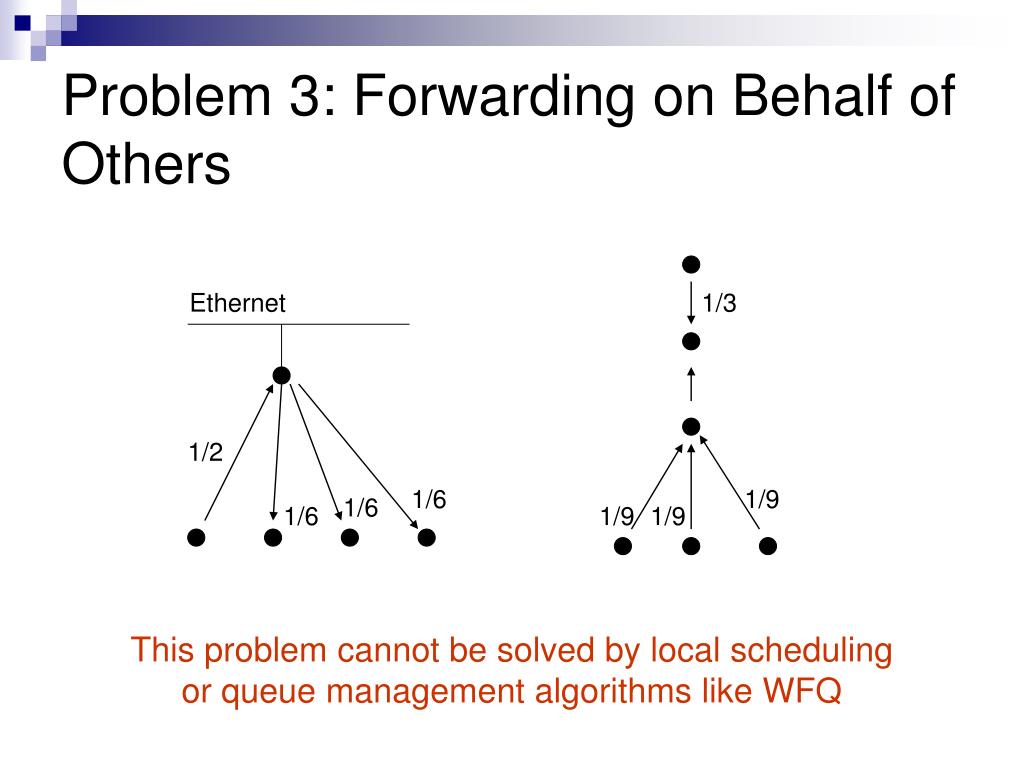

  5. Problem 3: Forwarding on Behalf of Others Ethernet 1/3 1/2 1/6 1/9 1/6 1/6 1/9 1/9 This problem cannot be solved by local scheduling or queue management algorithms like WFQ

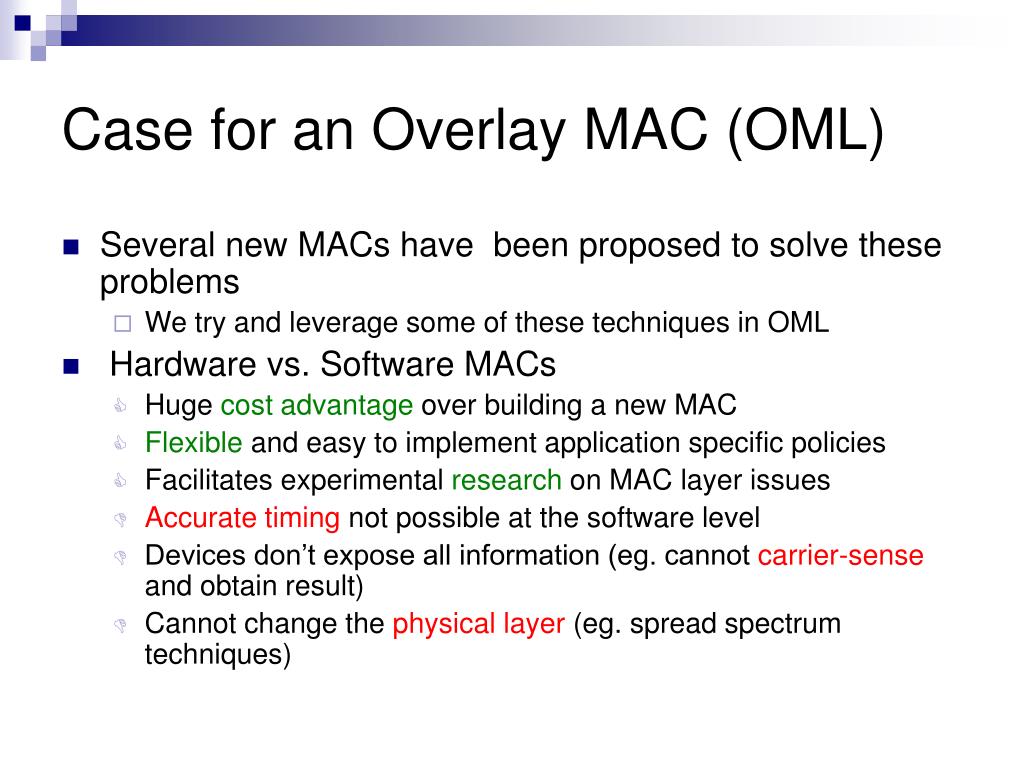

  6. Case for an Overlay MAC (OML) • Several new MACs have been proposed to solve these problems • We try and leverage some of these techniques in OML • Hardware vs. Software MACs • Huge cost advantage over building a new MAC • Flexible and easy to implement application specific policies • Facilitates experimental research on MAC layer issues • Accurate timing not possible at the software level • Devices don’t expose all information (eg. cannot carrier-sense and obtain result) • Cannot change the physical layer (eg. spread spectrum techniques)

  7. Constraints • Do not want to modify the MAC protocol • We have no control over a packet once it is in the card’s buffer • It may be queued behind another packet • Solution: Disable buffering in the lower layers • There may be some back-off and retransmission • Solution: Ensure that with high probability, there will be no back off or retransmissions Use reservation-based time slots to schedule transmissions

  8. Time Slots • Assume local synchronization of clocks • Use coarse-grained (compared to packet transmission times) time slots • 20ms slots, 2ms to transmit an MTU sized packet • Clocks are synchronized by estimating the 1-way delay of packets • Assume back-off is negligible and there are no retransmissions at the MAC layer • Use the minimum delay from the previous 20 packets to reduce errors

  9. Weighted Slot Allocation • Algorithm to allocate time-slots to competing nodes • Only requires knowledge of the IDs of other competing nodes – no additional signaling • Uses a pseudo-random hash function • For ease of explanation • Stage 1: Assume the diameter of the network is one • Stage 2: Multi-hop networks of larger diameter

  10. WSA – Diameter One Network • Each node keeps track of an active_list, the set of nodes with active flows • Each packet includes the current queue length in the OML header • Use a pseudorandom hash function to decide the winner • The node with the highest Hi is allowed to transmit

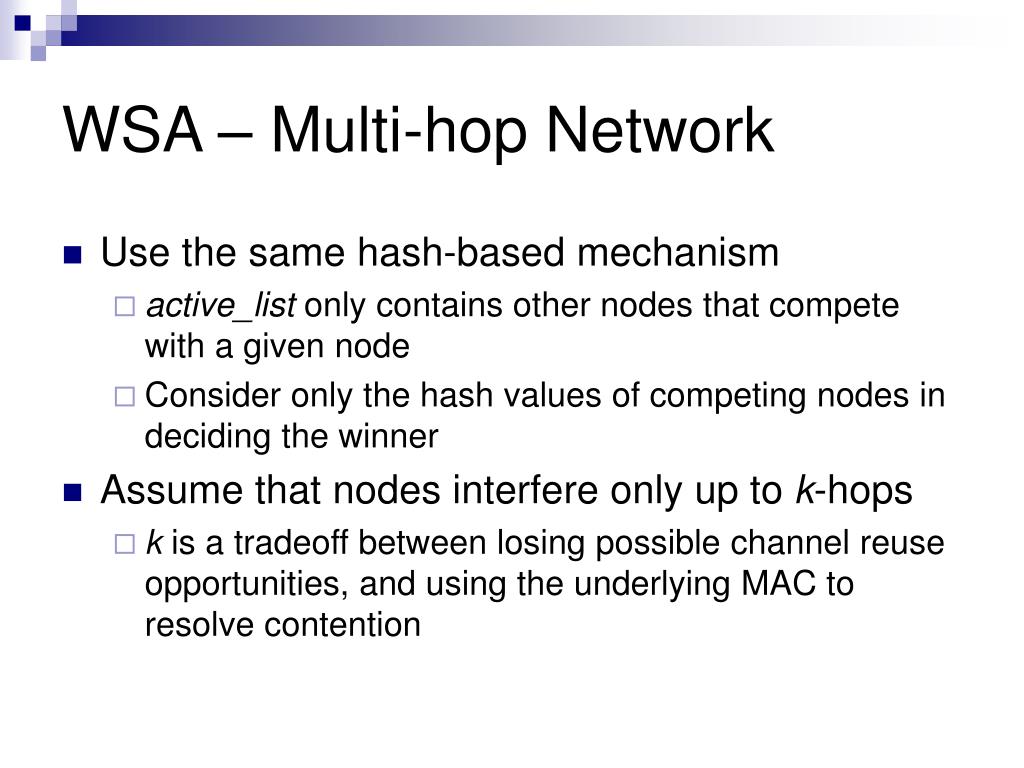

  11. WSA – Multi-hop Network • Use the same hash-based mechanism • active_list only contains other nodes that compete with a given node • Consider only the hash values of competing nodes in deciding the winner • Assume that nodes interfere only up to k-hops • k is a tradeoff between losing possible channel reuse opportunities, and using the underlying MAC to resolve contention

  12. Partially Overlapping Contention Regions Contention region of j Hi > Hj > Hk • 1-hop neighbors of the winner initiate an “inactivity timer” to detect when this happens • If i is more than 1-hop away from j, it is notified using a control message k j i Contention region of k

  13. Persistent Allocation of Slots Time • Slots maybe • Available for contention • Assigned to a particular node • If the nodes queue goes empty, the rest of the slot is used by the node with the next highest hash 1 2 3 4 5 6 7 8 0 ms 24 ms 48 ms 72 ms Groups of 8 slots each of length 3ms

  14. C C C C C C C C C C C Amortize the Cost of Contention Resolution • Nodes that transmitted successfully in the previous slot with index “i” own the slot with probability (1-p) • Cost is amortized because • A time-slot is much longer than a packet transmission • Nodes compete for an average of 1/p slots at a time • Orthogonal to method used to resolve contention for a slot Time 1 2 3 4 5 6 7 8 C C C 0 ms C C 24 ms 48 ms 72 ms

  15. More Details • The protocol is “optimistic” in assigning a slot to a node • If a slot is assigned to more than 1 node, 802.11 will still do its best to resolve contention • If this happens very often, resource allocation goals may not be met • Queues vs. Flows • Because of TCP congestion control, queues become empty and full very often • If the queue is empty, a node will signal that other nodes may send in that slot

  16. Simulation Results • Qualnet Network Simulator • Commercial software from www.scalable-networks.com • Packet level simulator similar to ns2, but faster and more scalable • Models collisions, interference and contention • Use 802.11a at 54 Mbps • 20 slots of 20 ms each, p=0.05

  17. The disparity between 1-hop and 4-hop flows is reduced from 8 to 2 when using OML Nearly 40% of the flows receive less that 100 kbps, while others receive up to 3 Mbps without OML Fairness in a Multi-hop network

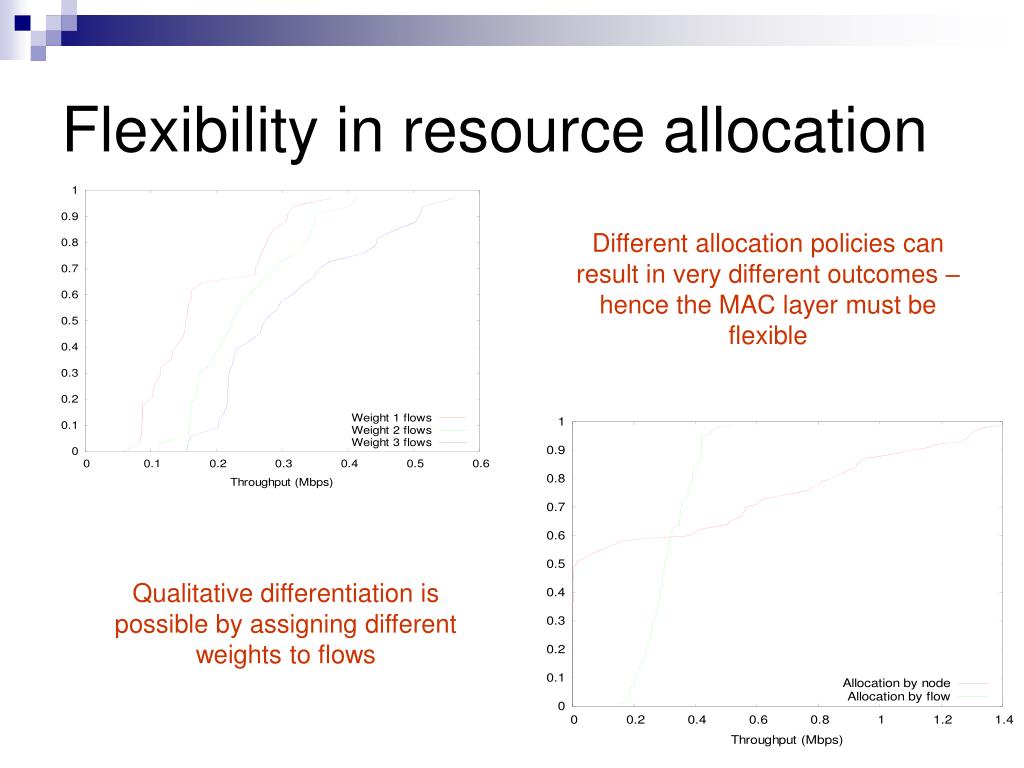

  18. Flexibility in resource allocation Different allocation policies can result in very different outcomes – hence the MAC layer must be flexible Qualitative differentiation is possible by assigning different weights to flows

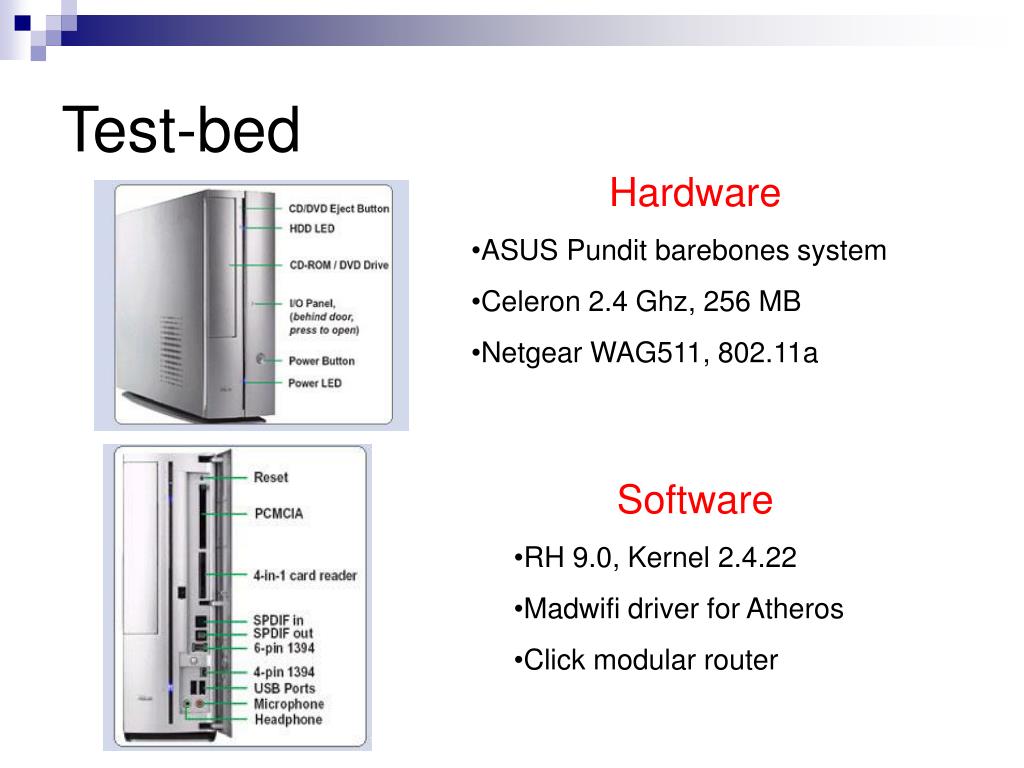

  19. Test-bed • Hardware • ASUS Pundit barebones system • Celeron 2.4 Ghz, 256 MB • Netgear WAG511, 802.11a • Software • RH 9.0, Kernel 2.4.22 • Madwifi driver for Atheros • Click modular router

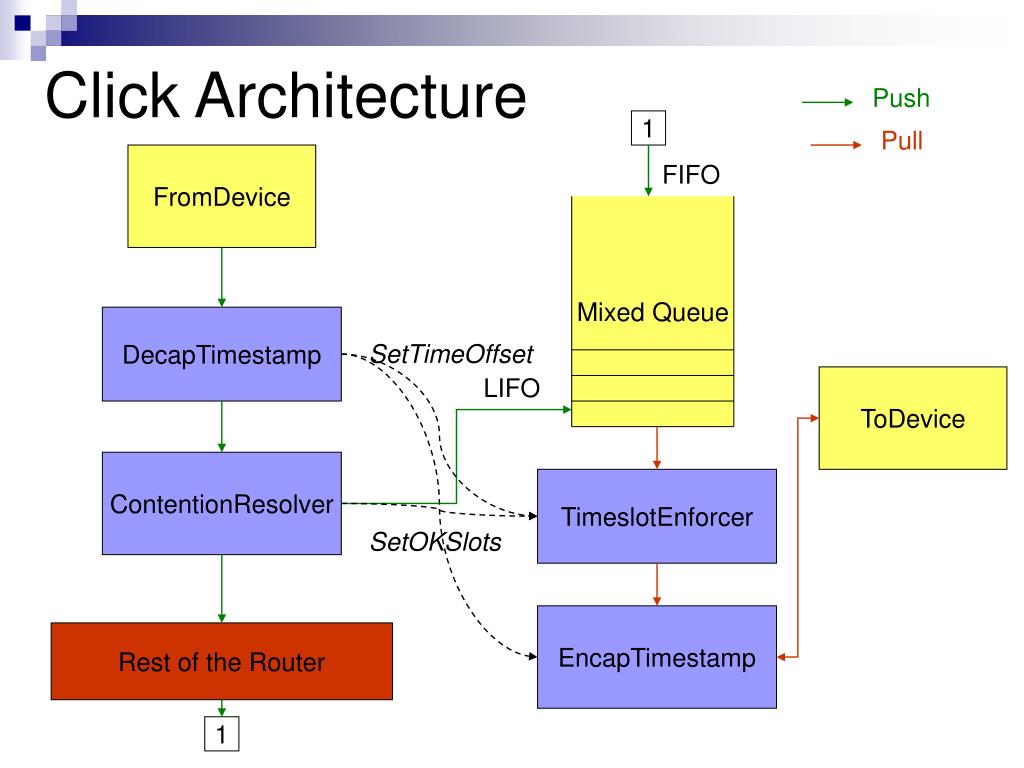

  20. Mixed Queue FIFO SetTimeOffset LIFO SetOKSlots Click Architecture Push 1 Pull FromDevice DecapTimestamp ToDevice ContentionResolver TimeslotEnforcer EncapTimestamp Rest of the Router 1

  21. Results (Test-bed – Data Rates) Equal throughput – default 802.11 Equal channel access time - OML OML can achieve fairness in terms of transmission time, or in terms of throughput

  22. Results (Testbed – Fairness, Flexibility) • In 26% of the experiments, one flow was completely shut out by the other • k=2 leads to underutilization of the channel in some cases When all nodes can hear each other, WSA guarantees weighted fairness

  23. Results (Test-bed) C A B

  24. Conclusions and Future Work • Coarse-grained scheduling on top of 802.11 is a very powerful technique to • alleviate inefficiencies of the MAC protocol in resolving contention • overcome the lack of flexibility of assigning priorities to senders • Future work • Understand performance problems better though more measurements on the test-bed • More benchmarks of OML
