Querying XML Views

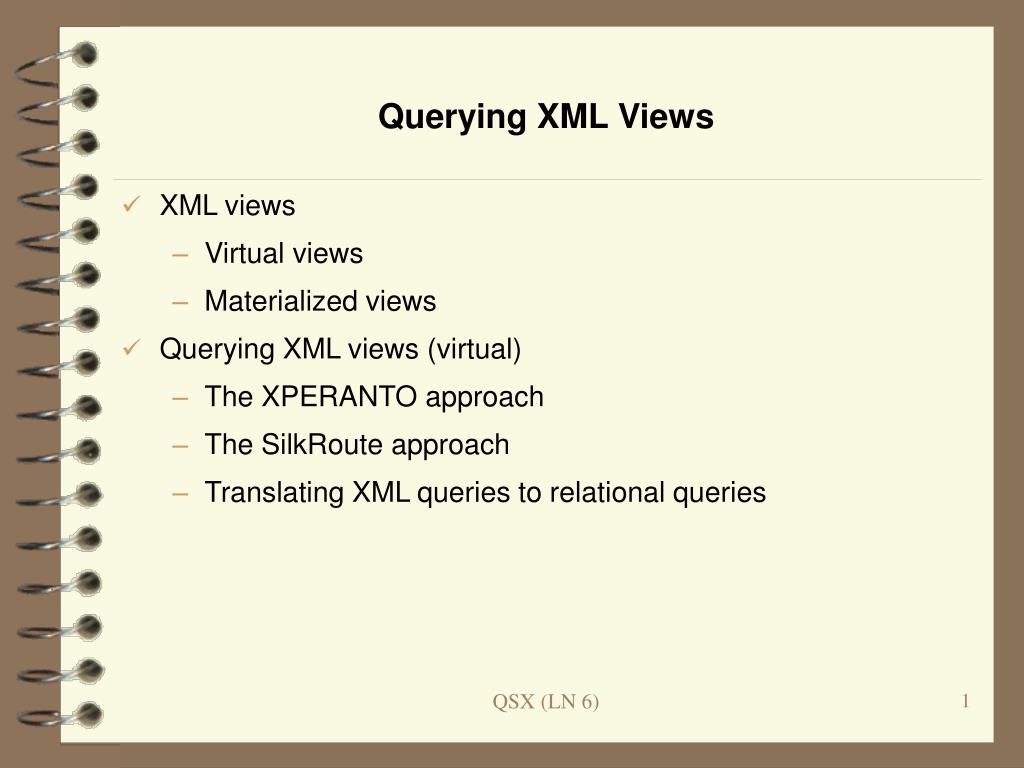

1. Querying XML Views • XML views • Virtual views • Materialized views • Querying XML views (virtual) • The XPERANTO approach • The SilkRoute approach • Translating XML queries to relational queries QSX (LN 6)

2. query answer XML View query translation middleware DBMS updates RDB XML Views • Materialized views: store data in the views • Query support: straightforward and efficient • Consistency: the views should be updated in response to changes to the underlying database • Virtual views: do not store data • Query support: view queries should be translated to equivalent ones over the underlying data • Updates: not an issue QSX (LN 6)

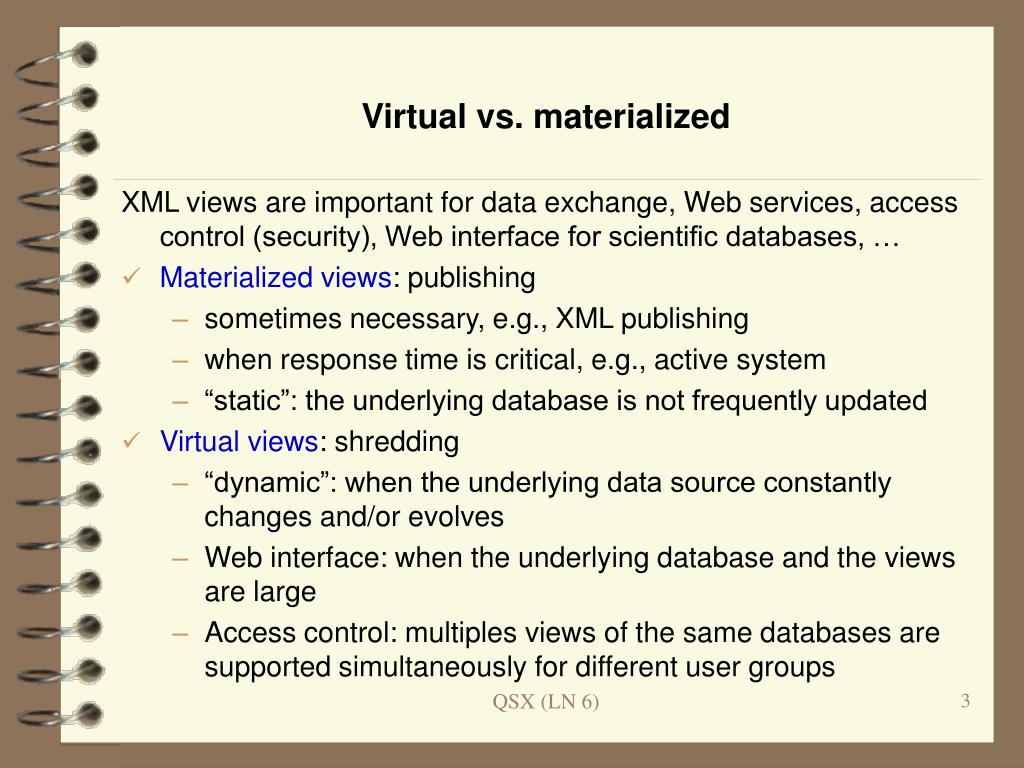

3. Virtual vs. materialized XML views are important for data exchange, Web services, access control (security), Web interface for scientific databases, … • Materialized views: publishing • sometimes necessary, e.g., XML publishing • when response time is critical, e.g., active system • “static”: the underlying database is not frequently updated • Virtual views: shredding • “dynamic”: when the underlying data source constantly changes and/or evolves • Web interface: when the underlying database and the views are large • Access control: multiples views of the same databases are supported simultaneously for different user groups QSX (LN 6)

4. db * book title * * * author chapter ref * * text section Nonrecursive query translation A query in XQuery posted on the original XML document: Q1: Find titles and authors of all books authored by “Bush”. for $book in /db/book where $book/author =`Bush’ return <book> <title> {$book/title } </title>, for $author in $book/author return <author> {$author } </author> </book> For XML data stored inrelations QSX (LN 6)

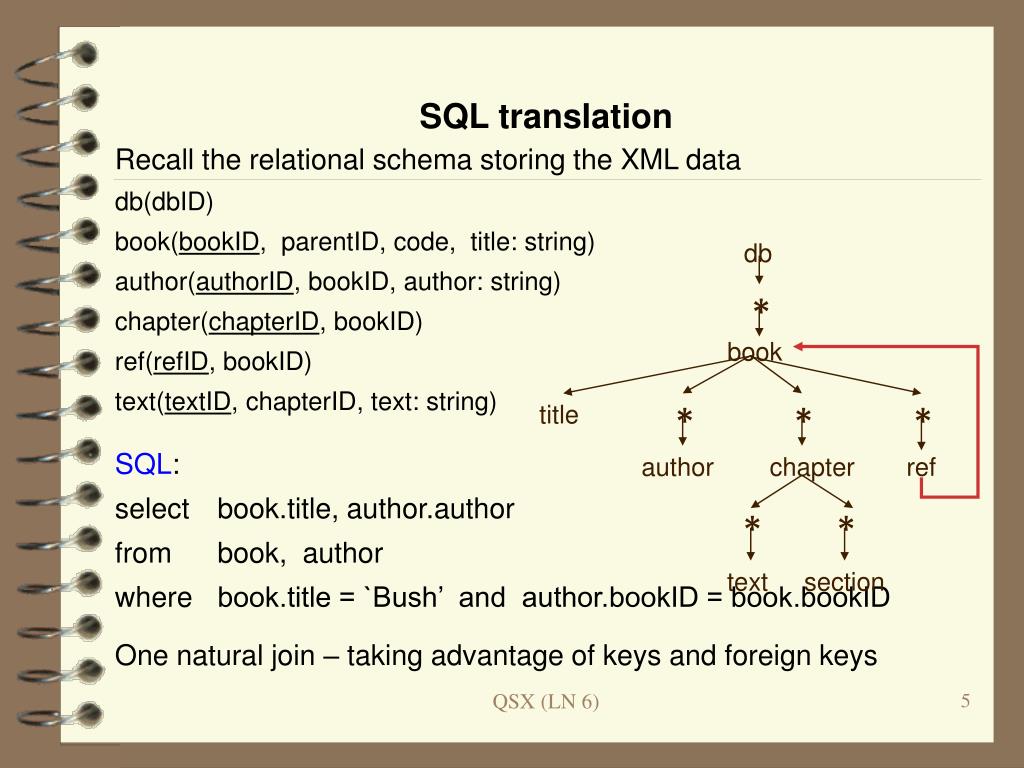

5. db * book title * * * author chapter ref * * text section SQL translation Recall the relational schema storing the XML data db(dbID) book(bookID, parentID, code, title: string) author(authorID, bookID, author: string) chapter(chapterID, bookID) ref(refID, bookID) text(textID, chapterID, text: string) SQL: select book.title, author.author from book, author where book.title = `Bush’ and author.bookID = book.bookID One natural join – taking advantage of keys and foreign keys QSX (LN 6)

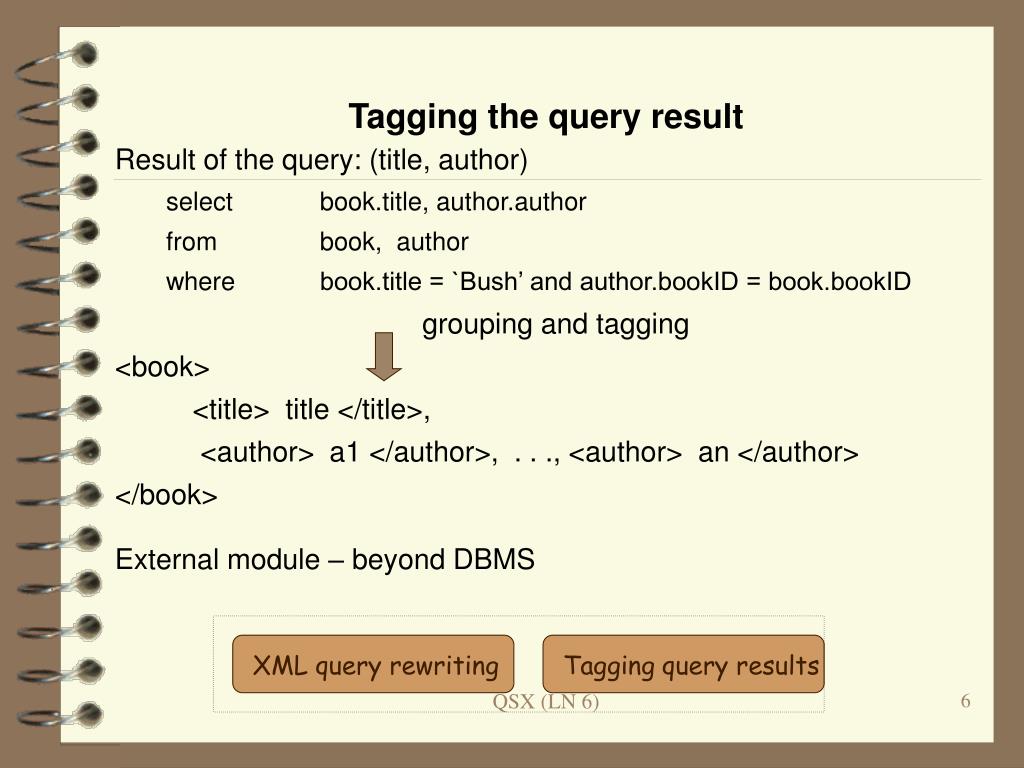

6. XML query rewriting Tagging query results Tagging the query result Result of the query: (title, author) select book.title, author.author from book, author where book.title = `Bush’ and author.bookID = book.bookID grouping and tagging <book> <title> title </title>, <author> a1 </author>, . . ., <author> an </author> </book> External module – beyond DBMS QSX (LN 6)

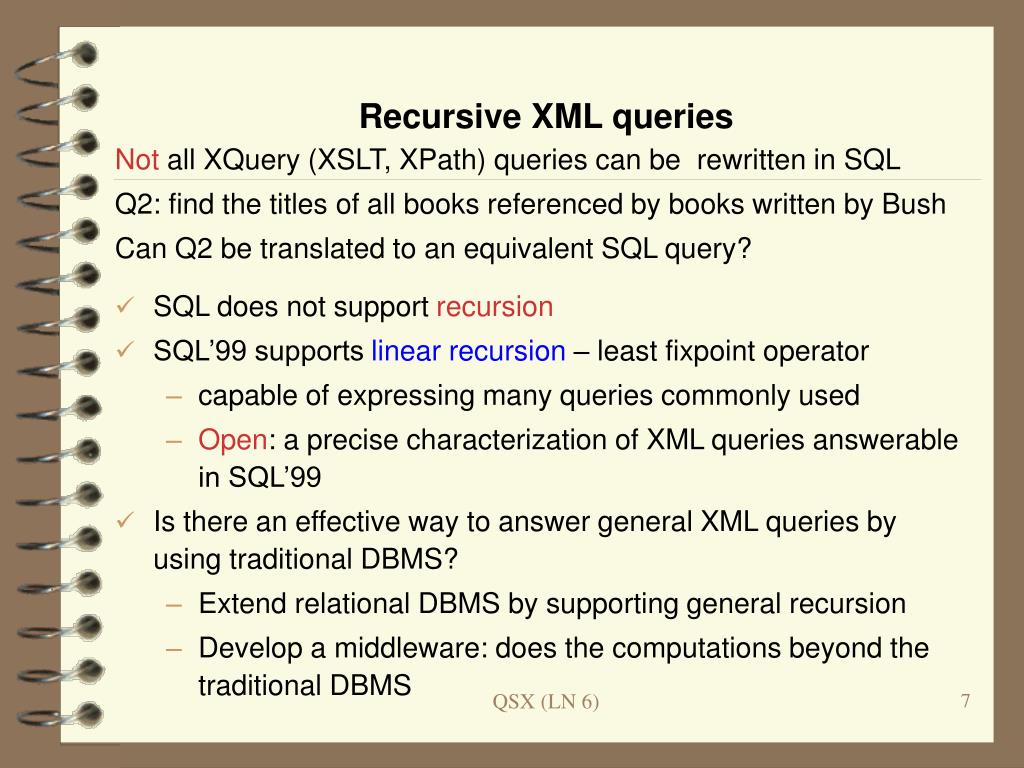

7. Recursive XML queries Not all XQuery (XSLT, XPath) queries can be rewritten in SQL Q2: find the titles of all books referenced by books written by Bush Can Q2 be translated to an equivalent SQL query? • SQL does not support recursion • SQL’99 supports linear recursion – least fixpoint operator • capable of expressing many queries commonly used • Open: a precise characterization of XML queries answerable in SQL’99 • Is there an effective way to answer general XML queries by using traditional DBMS? • Extend relational DBMS by supporting general recursion • Develop a middleware: does the computations beyond the traditional DBMS QSX (LN 6)

8. query answer XML View Middleware: view query rewriting DBMS RDB Middleware approach Query answering/rewriting with views has been extensively studied • Derive the inverse of shred mapping – lossless • Treat the inverse as a virtual view of the relational data • Make use of techniques for view query rewriting inverse XML store QSX (LN 6)

9. Querying and Maintaining XML Views • XML views • Virtual views • Materialized views • Querying XML views (virtual) • The XPERANTO approach • The SilkRoute approach • Translating XML queries to relational queries QSX (LN 6)

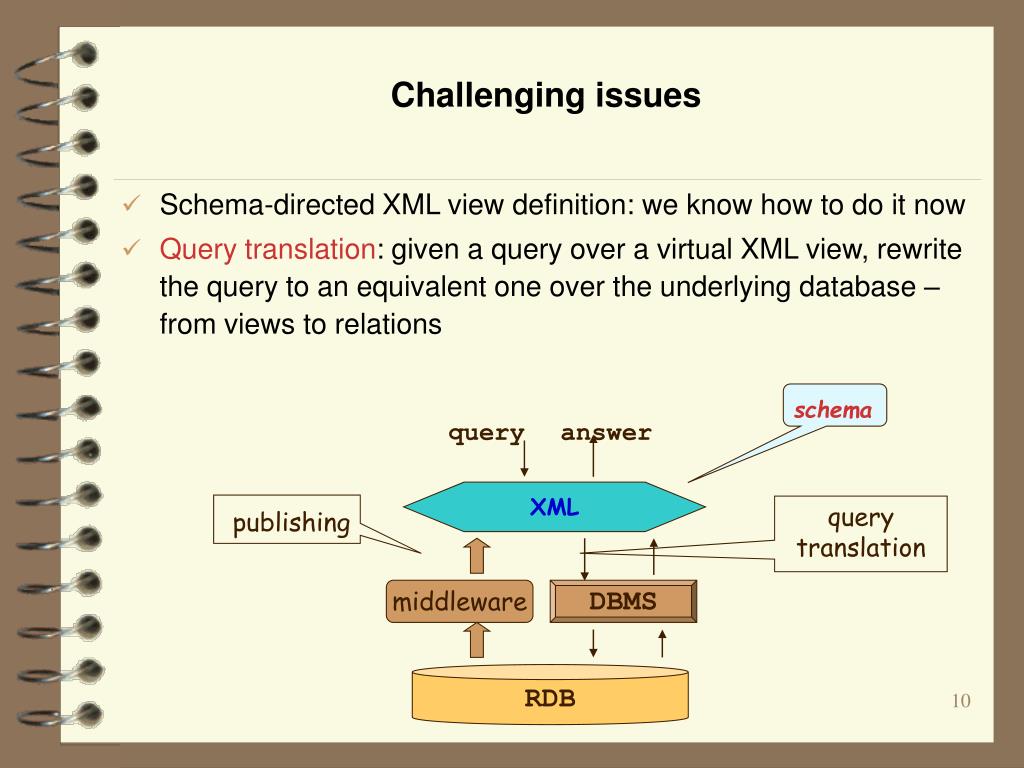

10. Challenging issues • Schema-directed XML view definition: we know how to do it now • Query translation: given a query over a virtual XML view, rewrite the query to an equivalent one over the underlying database – from views to relations schema query answer XML query translation publishing middleware DBMS RDB QSX (LN 6)

11. Request (XQuery) Composed XQuery SQL Queries Result Tables ? ? ? Querying a View The middleware must respond to view queries/requests by generating SQL queries/requests at runtime, composing and tagging the results View Definition Query-cost Estimates Source Capabilities SQL Generator Query Composer Tagger QSX (LN 6)

12. query answer XML View Middleware: view query rewriting DBMS RDB The XPERANTO approach Middleware: • A library of XQuery functions • Transformation rules (algebra) • A cost model and optimization techniques An intermediate language -- middleware • accept an XML query • rewrite the query with the rules and library • push work down to the underlying DBMS • conduct computations that DBMS cannot do • optimize the rewritten queries • compose query results from DBMS and middleware to build the answer to the XML query QSX (LN 6)

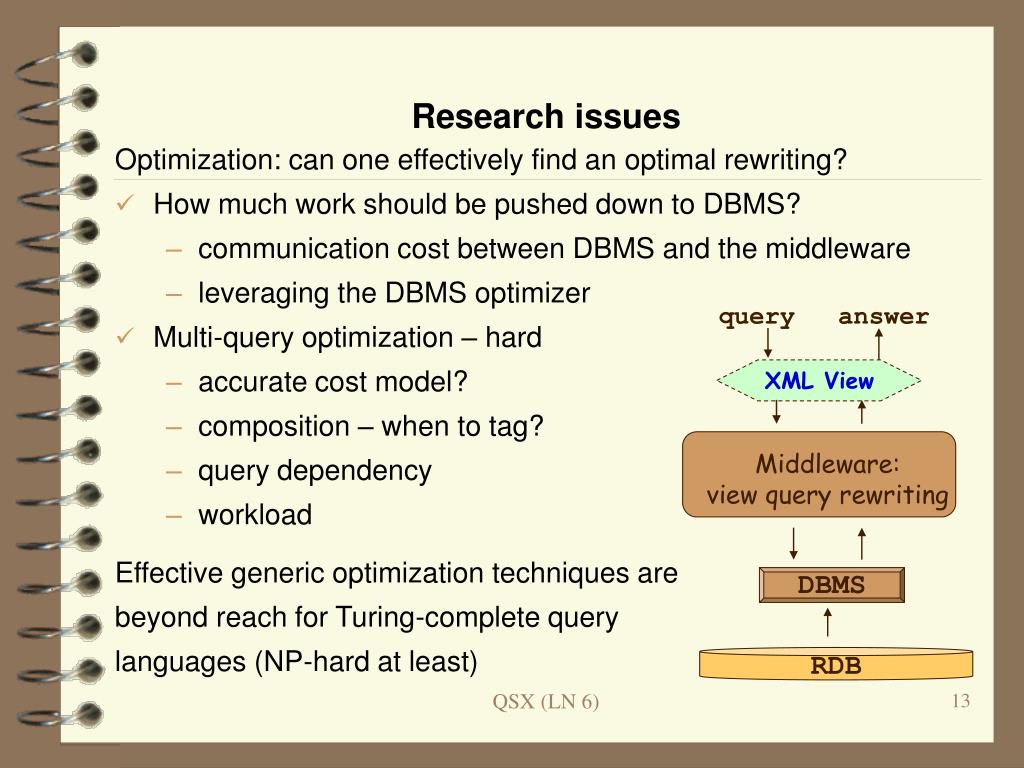

13. query answer XML View Middleware: view query rewriting DBMS RDB Research issues Optimization: can one effectively find an optimal rewriting? • How much work should be pushed down to DBMS? • communication cost between DBMS and the middleware • leveraging the DBMS optimizer • Multi-query optimization – hard • accurate cost model? • composition – when to tag? • query dependency • workload Effective generic optimization techniques are beyond reach for Turing-complete query languages (NP-hard at least) QSX (LN 6)

14. Request (XQuery) Query Generator Query Composer ? The SilkRoute Approach Advantage of XQuery view specs: easy to compose query with view Running example: relations  canonical XML DB Actor Appear Movie * * * Actor (aid, lname, fname) ActorRow AppearRow MovieRow Appearance (mid, aid) @year @mid @aid @lname @fname @aid @mid Movie (mid, title, year) QSX (LN 6) @title

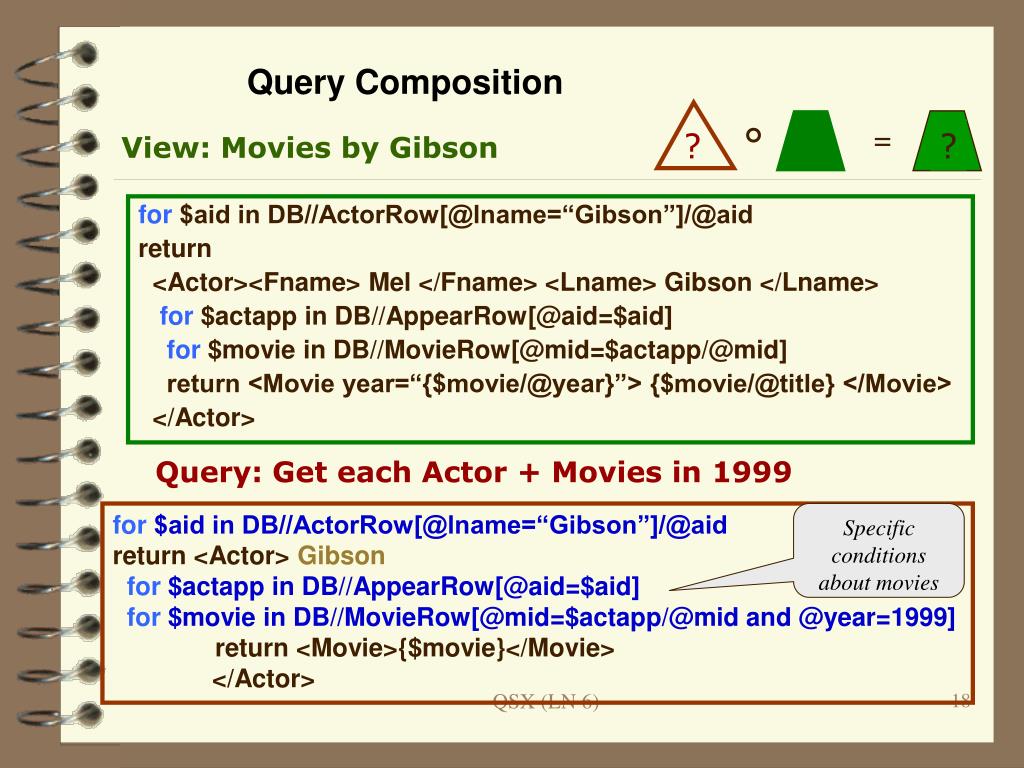

15. ° = ? ? Query Composition View: Movies by Gibson for $aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor><Fname> Mel </Fname> <Lname> Gibson </Lname> for $actapp in DB//AppearRow[@aid=$aid] for $movie in DB//MovieRow[@mid=$actapp/@mid] return <Movie year=“{$movie/@year}”> {$movie/@title} </Movie> </Actor> Query: Get each Actor + Movies in 1999 for $act in //Actor return <Actor> {$act/Lname} for$movie in $act/Movie[@year=1999] return <Movie>{$movie}</Movie> </Actor> Composed Query: Movies by Gibson in 1999 QSX (LN 6)

16. ° = ? ? Query Composition View: Movies by Gibson for $aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor><Fname> Mel </Fname> <Lname> Gibson </Lname> for $actapp in DB//AppearRow[@aid=$aid] for $movie in DB//MovieRow[@mid=$actapp/@mid] return <Movie year=“{$movie/@year}”> {$movie/@title} </Movie> </Actor> Query: Get each Actor + Movies in 1999 for$aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor> {$act/Lname} for$movie in //Movie[@year=1999] return <Movie>{$movie}</Movie> </Actor> Instantiate name QSX (LN 6)

17. ° = ? ? Query Composition View: Movies by Gibson for $aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor><Fname> Mel </Fname> <Lname> Gibson </Lname> for $actapp in DB//AppearRow[@aid=$aid] for $movie in DB//MovieRow[@mid=$actapp/@mid] return <Movie year=“{$movie/@year}”> {$movie/@title} </Movie> </Actor> Query: Get each Actor + Movies in 1999 for$aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor> Gibson for$movie in //Movie[@year=1999] return <Movie>{$movie}</Movie> </Actor> Instantiate name QSX (LN 6)

18. ° = ? ? Query Composition View: Movies by Gibson for $aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor><Fname> Mel </Fname> <Lname> Gibson </Lname> for $actapp in DB//AppearRow[@aid=$aid] for $movie in DB//MovieRow[@mid=$actapp/@mid] return <Movie year=“{$movie/@year}”> {$movie/@title} </Movie> </Actor> Query: Get each Actor + Movies in 1999 for$aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor> Gibson for$actapp in DB//AppearRow[@aid=$aid] for$movie in DB//MovieRow[@mid=$actapp/@mid and @year=1999] return <Movie>{$movie}</Movie> </Actor> Specific conditions about movies QSX (LN 6)

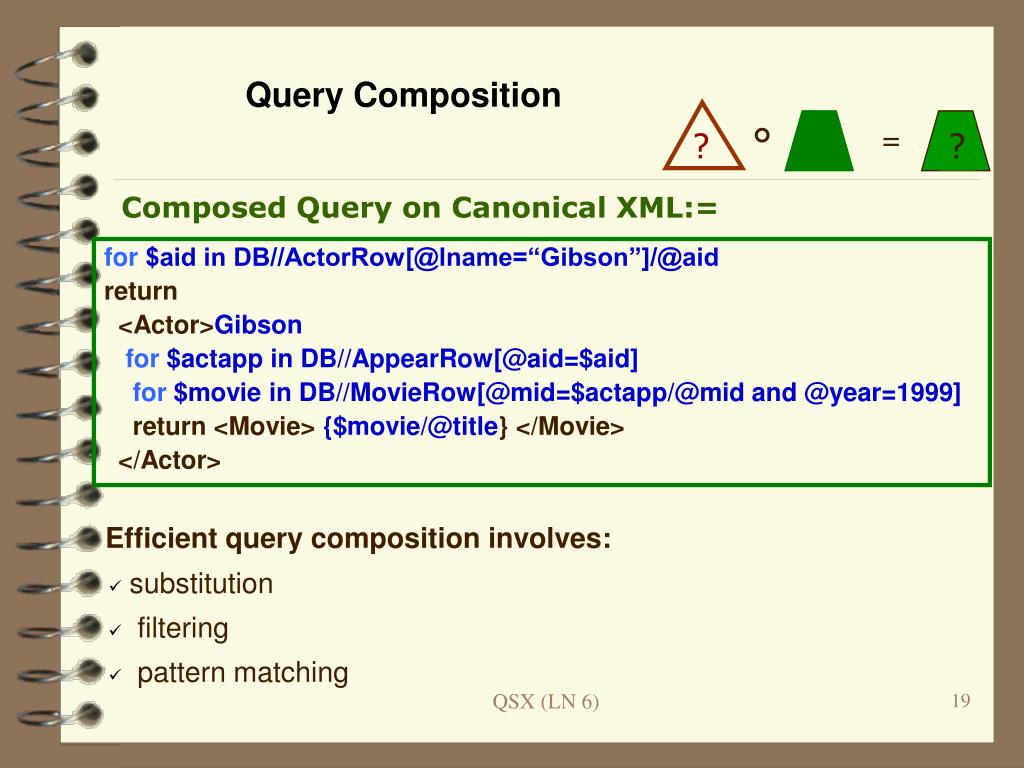

19. ? Query Composition ° = ? Composed Query on Canonical XML:= for$aid in DB//ActorRow[@lname=“Gibson”]/@aid return <Actor>Gibson for$actapp in DB//AppearRow[@aid=$aid] for$movie in DB//MovieRow[@mid=$actapp/@mid and @year=1999] return <Movie> {$movie/@title} </Movie> </Actor> Efficient query composition involves: • substitution • filtering • pattern matching QSX (LN 6)

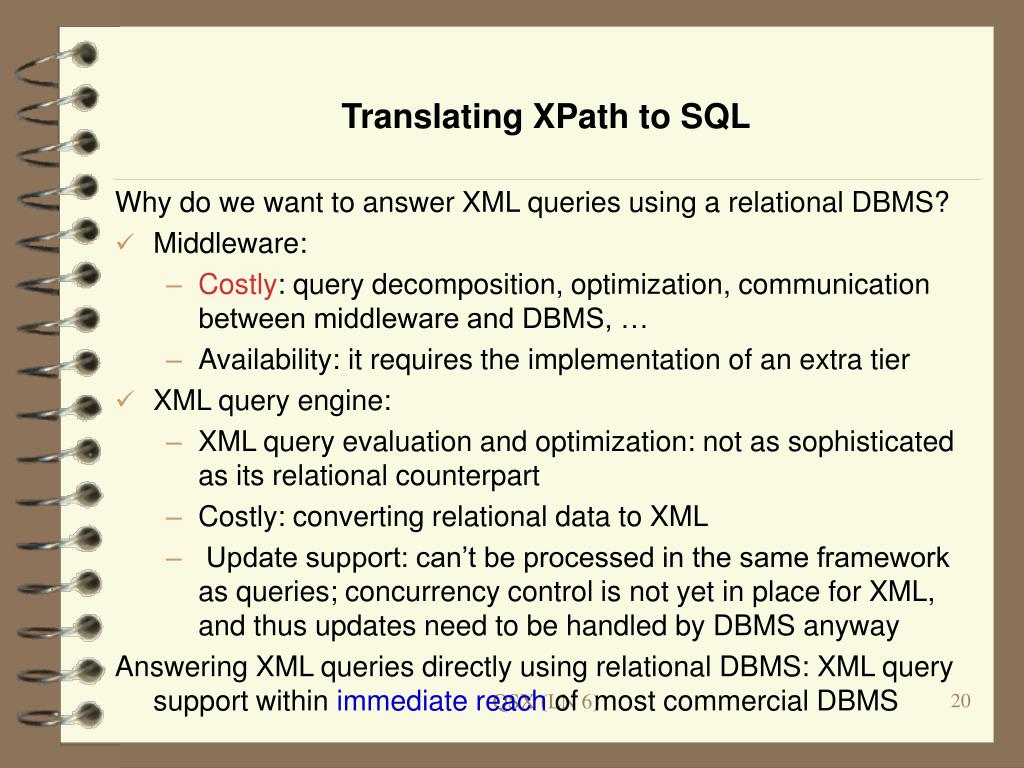

20. Translating XPath to SQL Why do we want to answer XML queries using a relational DBMS? • Middleware: • Costly: query decomposition, optimization, communication between middleware and DBMS, … • Availability: it requires the implementation of an extra tier • XML query engine: • XML query evaluation and optimization: not as sophisticated as its relational counterpart • Costly: converting relational data to XML • Update support: can’t be processed in the same framework as queries; concurrency control is not yet in place for XML, and thus updates need to be handled by DBMS anyway Answering XML queries directly using relational DBMS: XML query support within immediate reach of most commercial DBMS QSX (LN 6)

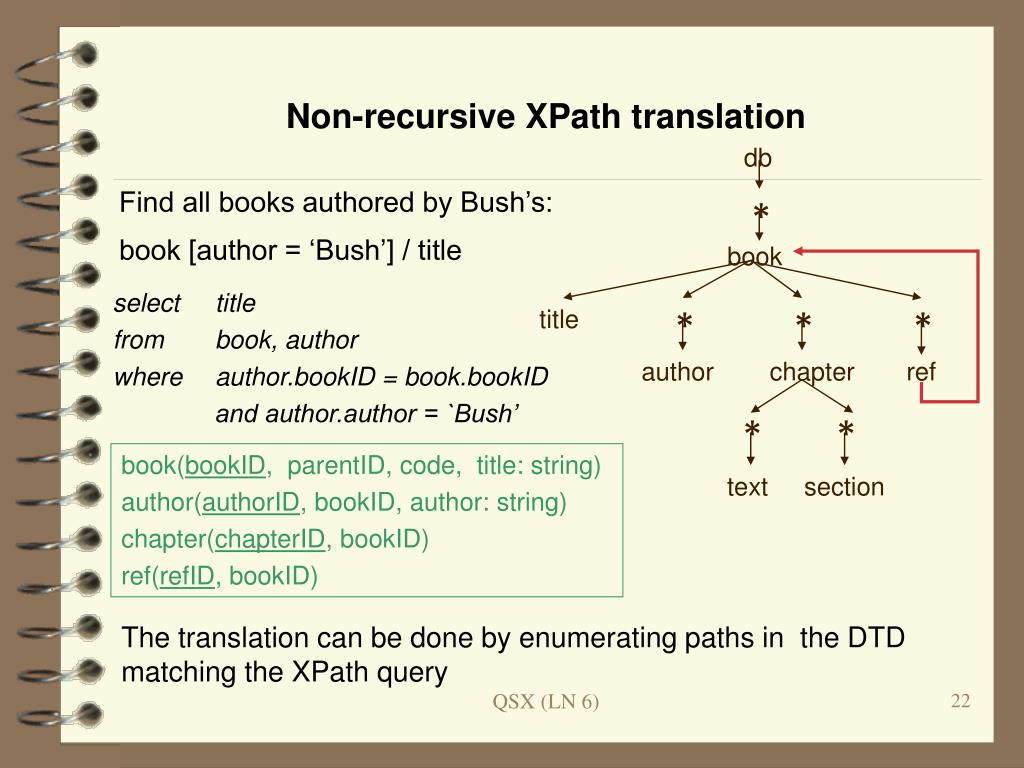

21. XPath What XML queries can be answered by using a relational DBMS? XPath: essential to XQuery and XSLT Q ::=  | A | * | Q/Q | Q ∪ Q | //Q | Q[q] q ::= Q | Q = ‘c’ | | q ∧ q | q ∨ q | not q • : empty path • *: wildcard that matches any label • A: either a tag (label) • /, ∪: concatenation (child), union • //: descendants or self, “recursion” • [q]: qualifier (filter, predicate) • c: constant (integer) • ∧, ∨, not( ): conjunction, disjunction, negation Existential semantics: class[//prereq] QSX (LN 6)

22. db * book title * * * author chapter ref * * section text Non-recursive XPath translation Find all books authored by Bush’s: book [author = ‘Bush’] / title select title from book, author where author.bookID = book.bookID and author.author = `Bush’ book(bookID, parentID, code, title: string) author(authorID, bookID, author: string) chapter(chapterID, bookID) ref(refID, bookID) The translation can be done by enumerating paths in the DTD matching the XPath query QSX (LN 6)

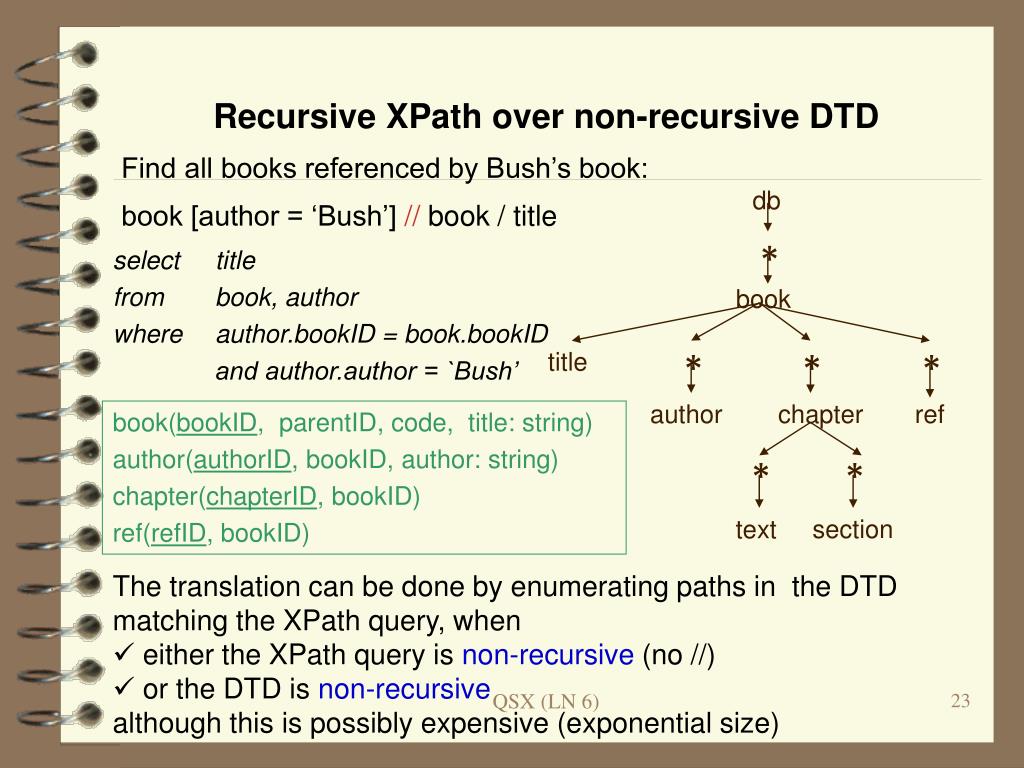

23. Recursive XPath over non-recursive DTD Find all books referenced by Bush’s book: book [author = ‘Bush’] // book / title db * select title from book, author where author.bookID = book.bookID and author.author = `Bush’ book title * * * author chapter ref book(bookID, parentID, code, title: string) author(authorID, bookID, author: string) chapter(chapterID, bookID) ref(refID, bookID) * * section text • The translation can be done by enumerating paths in the DTD • matching the XPath query, when • either the XPath query is non-recursive (no //) • or the DTD is non-recursive although this is possibly expensive (exponential size) QSX (LN 6)

24. db * book title * * * author chapter ref * * section text Recursive XPath over recursive DTD Find all books referenced by Bush’s book: book [author = ‘Bush’] // book / title book(bookID, parentID, code, title: string) author(authorID, bookID, author: string) chapter(chapterID, bookID) ref(refID, bookID) • Impossible to enumerate all matching paths • in the DTD -- infinitely many • the interaction between DTD recursion and XPath query recursion (//) • extension of SQL to handle recursion QSX (LN 6)

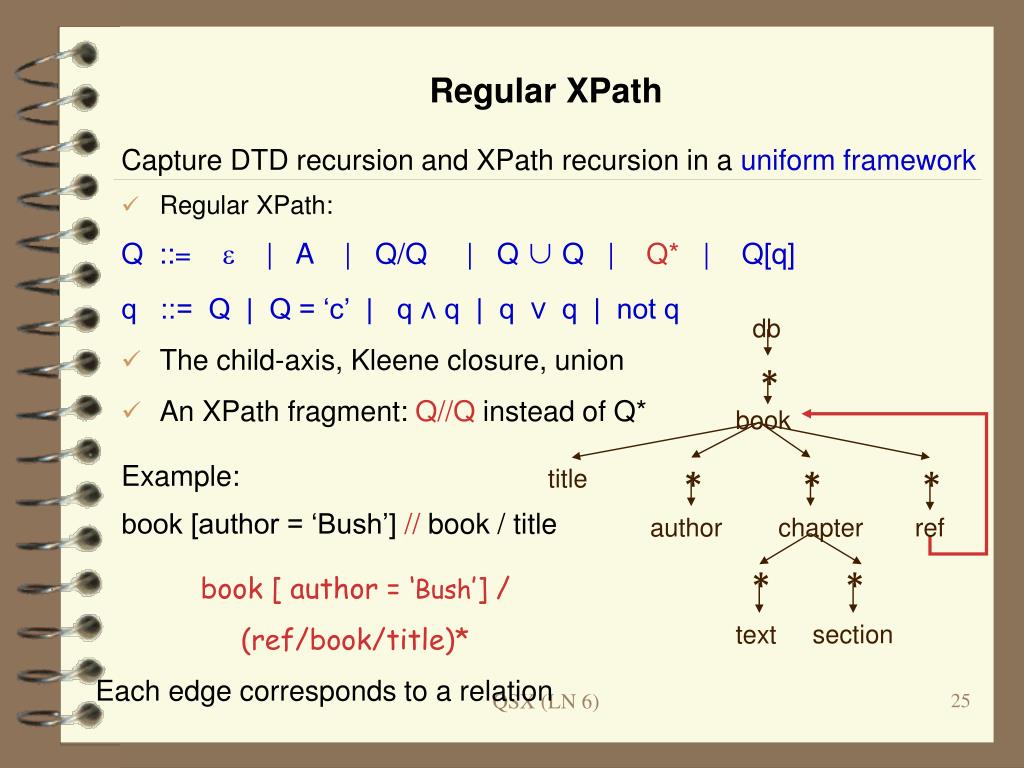

25. db * book title * * * author chapter ref * * section text Regular XPath Capture DTD recursion and XPath recursion in a uniform framework • Regular XPath: Q ::=  | A | Q/Q | Q ∪ Q | Q* | Q[q] q ::= Q | Q = ‘c’ | q ∧ q | q ∨ q | not q • The child-axis, Kleene closure, union • An XPath fragment: Q//Q instead of Q* Example: book [author = ‘Bush’] // book / title book [ author = ‘Bush’] / (ref/book/title)* Each edge corresponds to a relation QSX (LN 6)

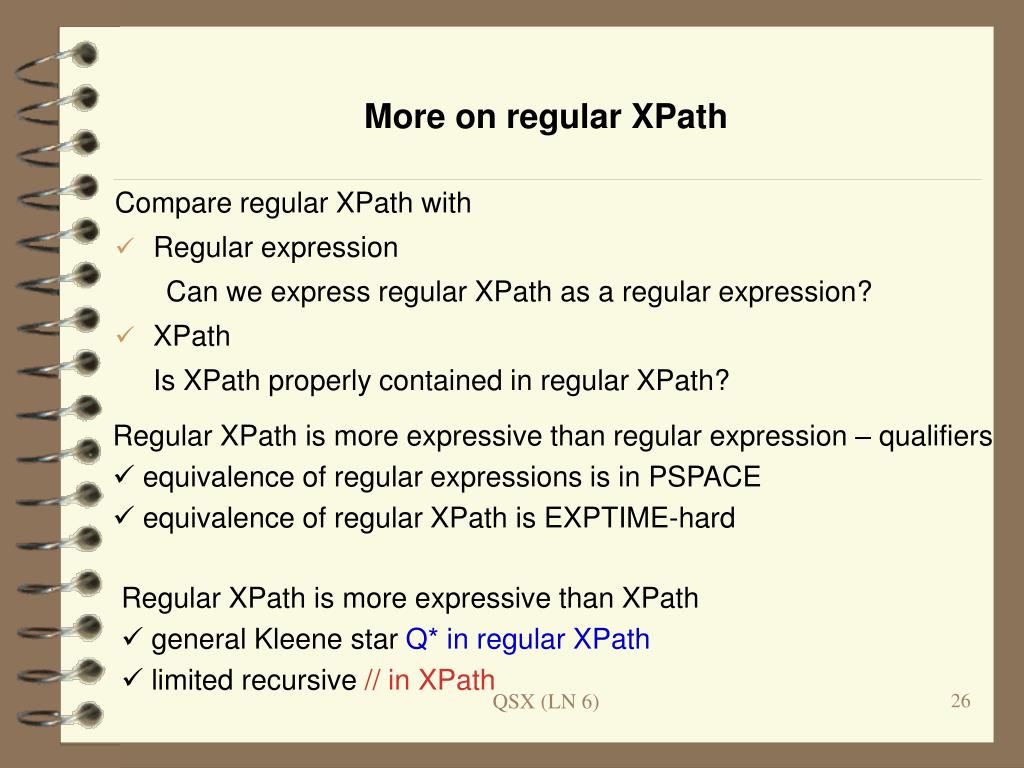

26. More on regular XPath Compare regular XPath with • Regular expression Can we express regular XPath as a regular expression? • XPath Is XPath properly contained in regular XPath? • Regular XPath is more expressive than regular expression – qualifiers • equivalence of regular expressions is in PSPACE • equivalence of regular XPath is EXPTIME-hard • Regular XPath is more expressive than XPath • general Kleene star Q* in regular XPath • limited recursive // in XPath QSX (LN 6)

27. db * book title * * * author chapter ref * * section text Capture both DTD recursion and XPath recursion Step 1: Rewrite XPath queries over recursive DTDs into equivalent regular XPath queries book [author = ‘Bush’] // book / title => book [ author = ‘Bush’] / (ref/book/title)* • Always possible? • Complexity: low polynomial if the regular XPath query F(Q) is represented as a graph (similar to finite state automata) • Theorem. There is a computable • function F that, given any XPath • query Q over a (possibly) recursive • DTD D, rewrites Q into an • equivalent regular XPath query F(Q) • equivalent: for any XML tree T of D, Q(T) = F(Q) (T) QSX (LN 6)

28. Translate regular XPath to SQL Step 2: rewrite regular XPath query Qr to an equivalent “SQL” query Qs Equivalent: let M be the mapping from XML to relations. Then for any XML data T of the DTD D, Qr(T) = Qs( M(T) ) Question: how to handle recursion in Qr? Extension of SQL with recursion support • SQL’99: linear recursion: supported by IBM DB2 (connect-by) but not by other commercial systems (Oracle, Microsoft) • Fixpoint operator: Supported by • Oracle (connect-by) • IBM DB2 (with recursion) • Microsoft SQL Server 2005 (common table) QSX (LN 6)

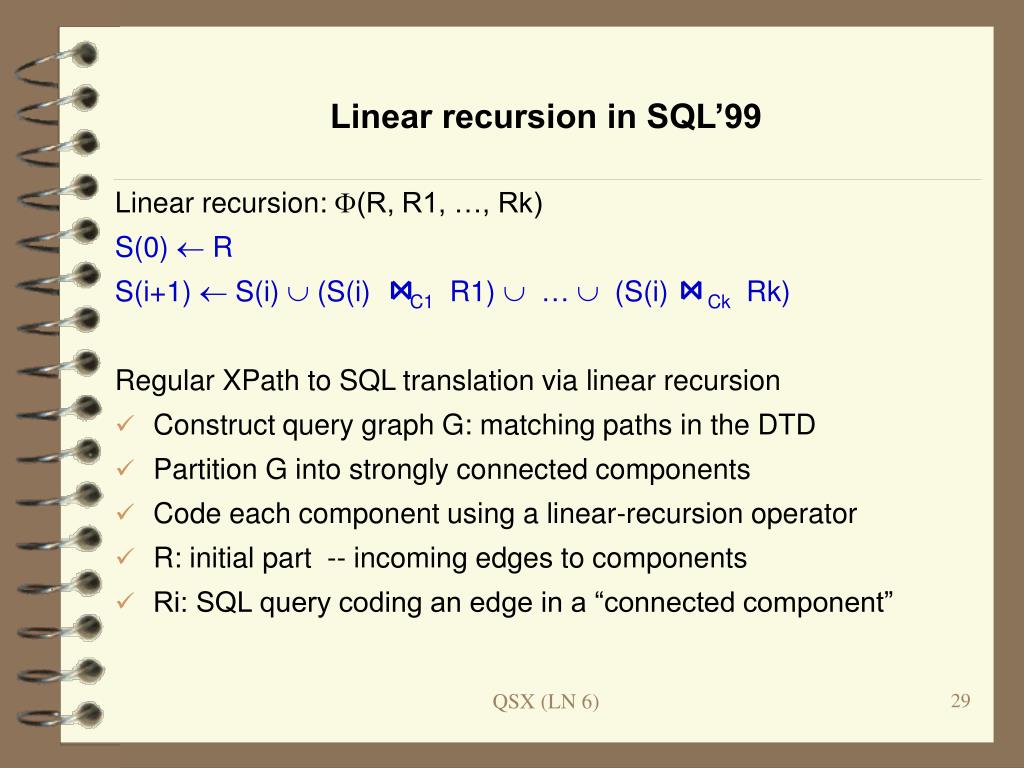

29. Linear recursion in SQL’99 Linear recursion: (R, R1, …, Rk) S(0)  R S(i+1)  S(i)  (S(i) C1 R1)  …  (S(i) Ck Rk) Regular XPath to SQL translation via linear recursion • Construct query graph G: matching paths in the DTD • Partition G into strongly connected components • Code each component using a linear-recursion operator • R: initial part -- incoming edges to components • Ri: SQL query coding an edge in a “connected component” QSX (LN 6)

30. db * book title * * * author chapter ref * * section text Translate regular XPath to SQL – SQL’99 book [ author = ‘Bush’] / (ref/book/title)* with recursive S(from, to, title) as (R0 union S temp ) select title from S Temp: selectref.refID as from, book.bookID as to, book.title as title from ref, book where ref.bookID = book.bookID book(bookID, parentID, code, title: string) author(authorID, bookID, author: string) chapter(chapterID, bookID) ref(refID, bookID) QSX (LN 6)

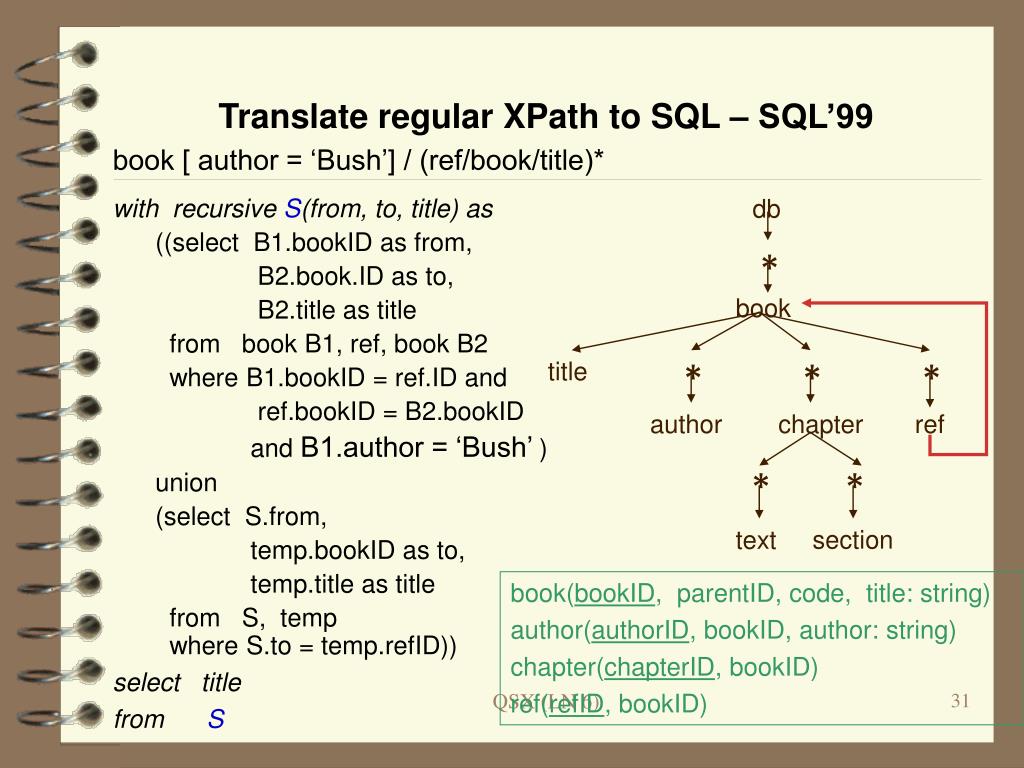

31. db * book title * * * author chapter ref * * section text Translate regular XPath to SQL – SQL’99 book [ author = ‘Bush’] / (ref/book/title)* with recursive S(from, to, title) as ((selectB1.bookID as from, B2.book.ID as to, B2.title as title from book B1, ref, book B2 where B1.bookID = ref.ID and ref.bookID = B2.bookID and B1.author = ‘Bush’) union (select S.from, temp.bookID as to, temp.title as title from S, temp where S.to = temp.refID)) select title from S book(bookID, parentID, code, title: string) author(authorID, bookID, author: string) chapter(chapterID, bookID) ref(refID, bookID) QSX (LN 6)

32. db * book title * * * author chapter ref * * section text Fixpoint operator (R) Single input relation: S(0)  R S(i+1)  S(i)  (S(i) C R) R  selectrefID as from, ref.bookID as to, title as title from ref, book where book.bookID = ref.bookID (R)  select from, to, title from R connect by from = prior to and prior from in R0 R0  selectref.refID as from, B2.bookID as to, B2.title as title from ref, book B1, book B2 where B1.bookID = ref.refID and ref.bookID = B2.bookID and B1.author = ‘Bush’ QSX (LN 6)

33. Fixpoint operator vs. Linear Recursion • Single input relation vs multiple • More efficient • Supported by most commercial systems Theorem. Any regular expression query can be expressed as an equivalent SQL + fixpoint ((R)) query. • Theoretically, in the worst case, explicit regular XPath translation is exponentially large. This can be avoided by using automaton or equation representations • In practice, SQL+ fixpoint is more efficient than linear-recursion, because XML documents in real-life have a small depth Research: • Translate FLWR XQuery expressions to SQL + fixpoint • What XSLT queries can be expressed as SQL + fixpoint? QSX (LN 6)

34. Region index approach • Each node v in an XML tree carries a pair (order, range), where • order: the position of v in the preorder traversal of the tree • range: the number of descendants of v • Node v is an ancestor of w iff • order_v < order_w • order_w < order_v + range_v • An efficient method to evaluate // Problem: updates are expensive maintain the annotation when inserts/deletes are carried out Research: translating XPath to SQL by using range index QSX (LN 6)

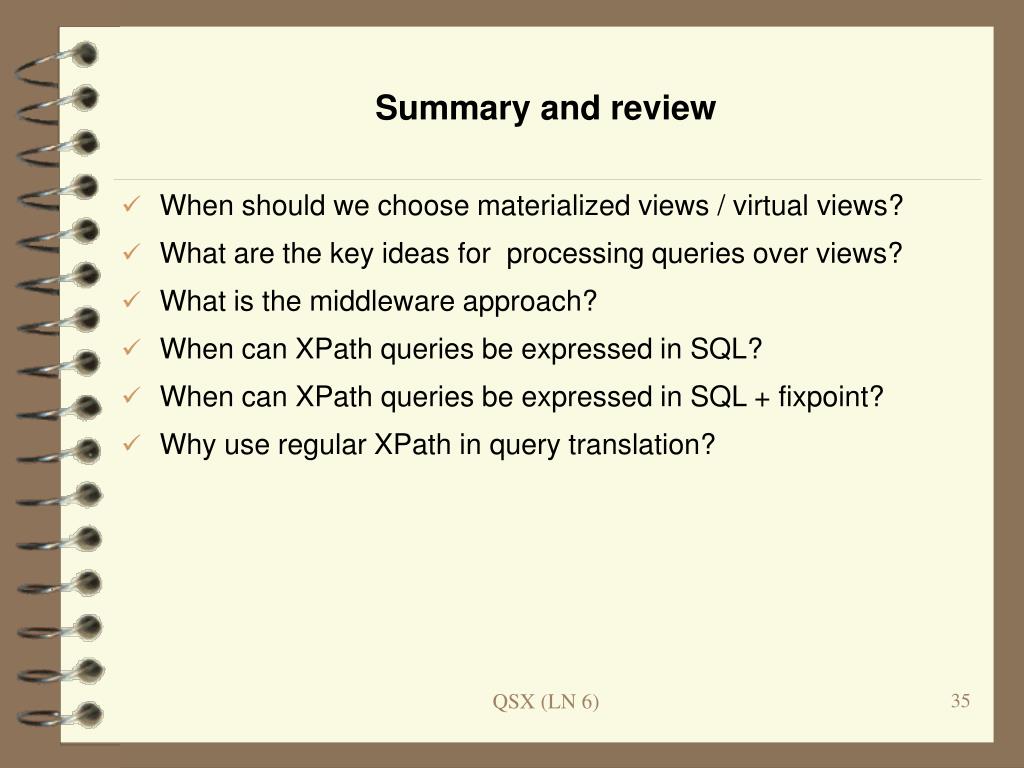

35. Summary and review • When should we choose materialized views / virtual views? • What are the key ideas for processing queries over views? • What is the middleware approach? • When can XPath queries be expressed in SQL? • When can XPath queries be expressed in SQL + fixpoint? • Why use regular XPath in query translation? QSX (LN 6)
