  1. COP 3540 Data Structures with OOP Chapter 4 Stacks and Queues

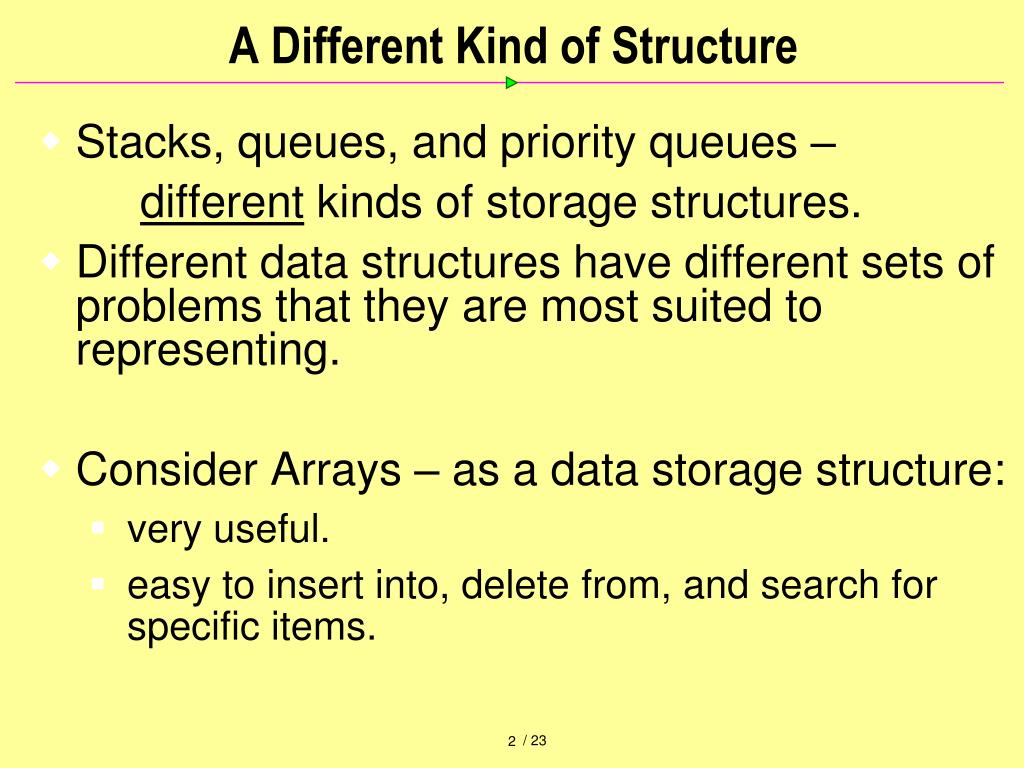

  2. A Different Kind of Structure • Stacks, queues, and priority queues – different kinds of storage structures. • Different data structures have different sets of problems that they are most suited to representing. • Consider Arrays – as a data storage structure: • very useful. • easy to insert into, delete from, and search for specific items.

  3. Access (interface) • Arrays: theoretically, access is immediate via index or by searching through cells sequentially. • If ordered, can access more quickly via binary search • Only one item can be accessed. • ‘That’ is the interface.’ • In abstractdatastructures (stacks, queues, trees, priority queues), realaccess (that is, how do we get to it…) is: • defined a bit differently and is • controlled by an interface that is normally not visible to the user.

  4. Stacks • Stacks - access to only one item at a time. • Think of a stack of dishes. • It is a LIFO data structure. • Extremely useful tool in programming: • Evaluate parenthesized expressions, • Evaluate arithmetic expressions even with lots of parentheses, • Traversing binary trees, • Searching vertices of a graph, and much more. • Consider stacked-based architecture and calling sequences / return addresses….

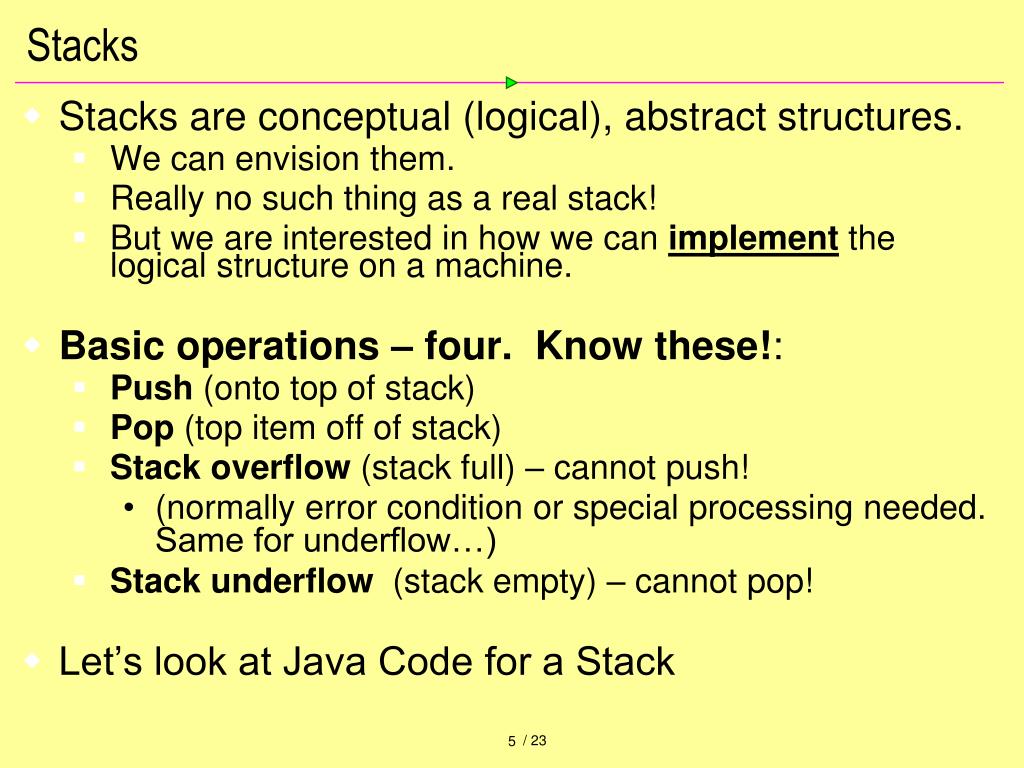

  5. Stacks Stacks are conceptual (logical), abstract structures. We can envision them. Really no such thing as a real stack! But we are interested in how we can implementthe logical structure on a machine. Basic operations – four. Know these!: Push (onto top of stack) Pop (top item off of stack) Stackoverflow (stack full) – cannot push! (normally error condition or special processing needed. Same for underflow…) Stackunderflow (stack empty) – cannot pop! Let’s look at Java Code for a Stack

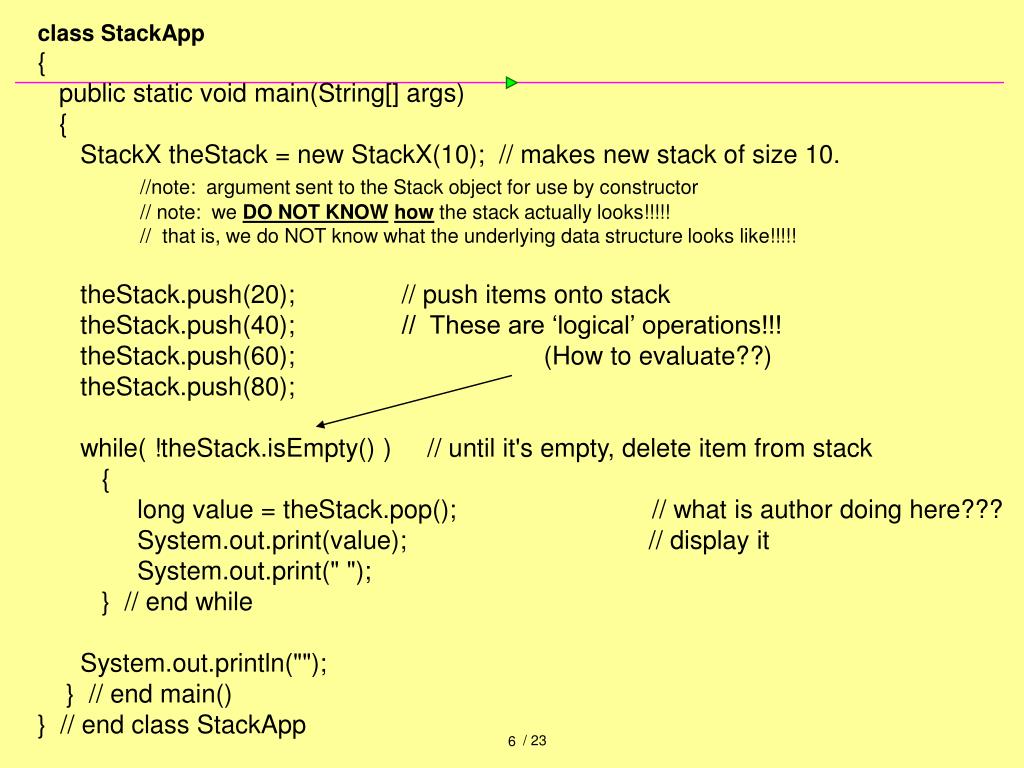

  6. class StackApp { public static void main(String[] args) { StackX theStack = new StackX(10); // makes new stack of size 10. //note: argument sent to the Stack object for use by constructor // note: we DO NOT KNOWhow the stack actually looks!!!!! // that is, we do NOT know what the underlying data structure looks like!!!!! theStack.push(20); // push items onto stack theStack.push(40); // These are ‘logical’ operations!!! theStack.push(60); (How to evaluate??) theStack.push(80); while( !theStack.isEmpty() ) // until it's empty, delete item from stack { long value = theStack.pop(); // what is author doing here??? System.out.print(value); // display it System.out.print(" "); } // end while System.out.println(""); } // end main() } // end class StackApp

  7. // stack.java demonstrates stacks Note: I have taken liberties with the ‘{‘ to fit this code on one page. class StackX { private int maxSize; // size of stack array private long[] stackArray; // recall: ‘instance variables’ private int top; // top of stack //-------------------------------------------------------------- public StackX(int s) // constructor // (How can you tell this is the Constructor??) { // ONLY NOW CAN WE SEE STACK IS IMPLEMENTED AS AN ARRAY ! maxSize = s; // set array size // Recall: ‘ local variables’ Where are they known?? stackArray = new long[maxSize]; // Create array; ARRAY IS OF ‘LONGS’ //’long’ is a primitive data structure; how longs are implemented and // accessed are defined in system. No need for separate class for this. top = -1; // no items yet } // end StackX() DISCUSS //-------------------------------------------------------------- public void push(long j) { // put item on top of stack stackArray[++top] = j; // increment top, insert item //  tell me exactly how this works!! } // end push() // How many operators do you see? //-------------------------------------------------------------- public long pop() { // take item from top of stack return stackArray[top--]; // access item, decrement top // tell me exactly how this works!! }// end pop () //recall: What is the ‘other kind’ of variable????? //-------------------------------------------------------------- public long peek() { // peek at top of stack return stackArray[top]; // when we come into this object, the pointer is } // end peek() // pointing to the topmost element. //-------------------------------------------------------------- public boolean isEmpty() { // true if stack is empty return (top == -1); // tell me exactly how this works!! } // end isEmpty() //-------------------------------------------------------------- public boolean isFull() { // true if stack is full //Ah ha! We see (above) that the Stack is ‘implemented’ as return (top == maxSize-1); // an array! But it doesn’t have to be!!!!! } } // end class StackX // Storage structure transparent to client. Good!!! Why???

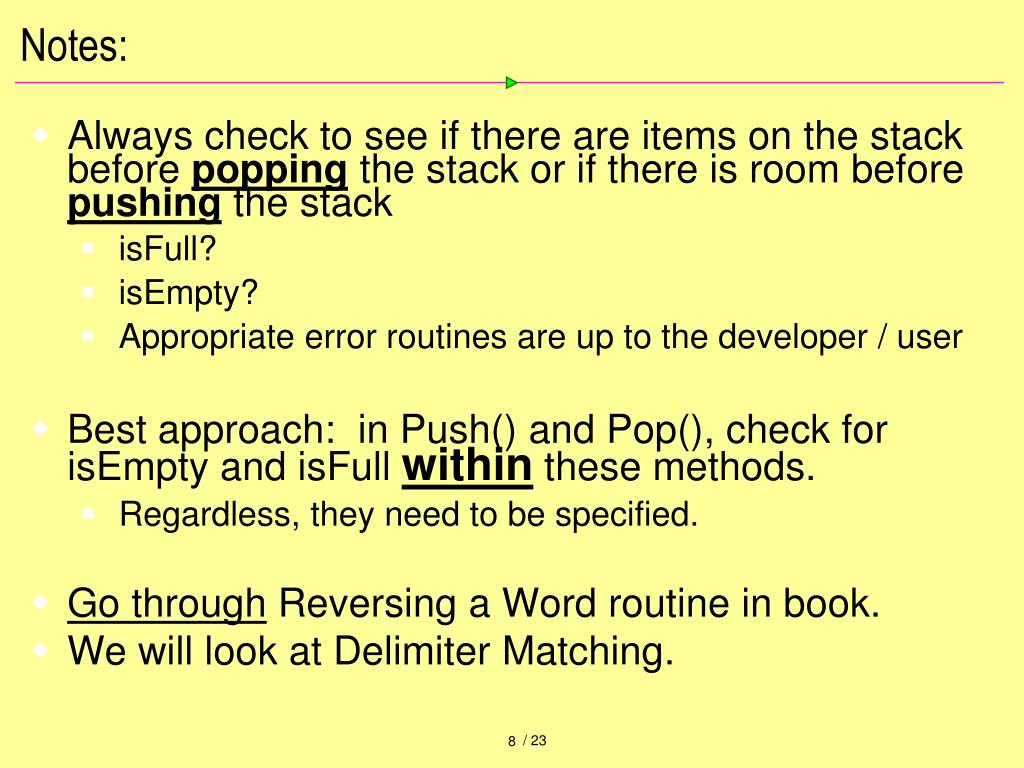

  8. Notes: • Always check to see if there are items on the stack before popping the stack or if there is room before pushing the stack • isFull? • isEmpty? • Appropriate error routines are up to the developer / user • Best approach: in Push() and Pop(), check for isEmpty and isFull within these methods. • Regardless, they need to be specified. • Go through Reversing a Word routine in book. • We will look at Delimiter Matching.

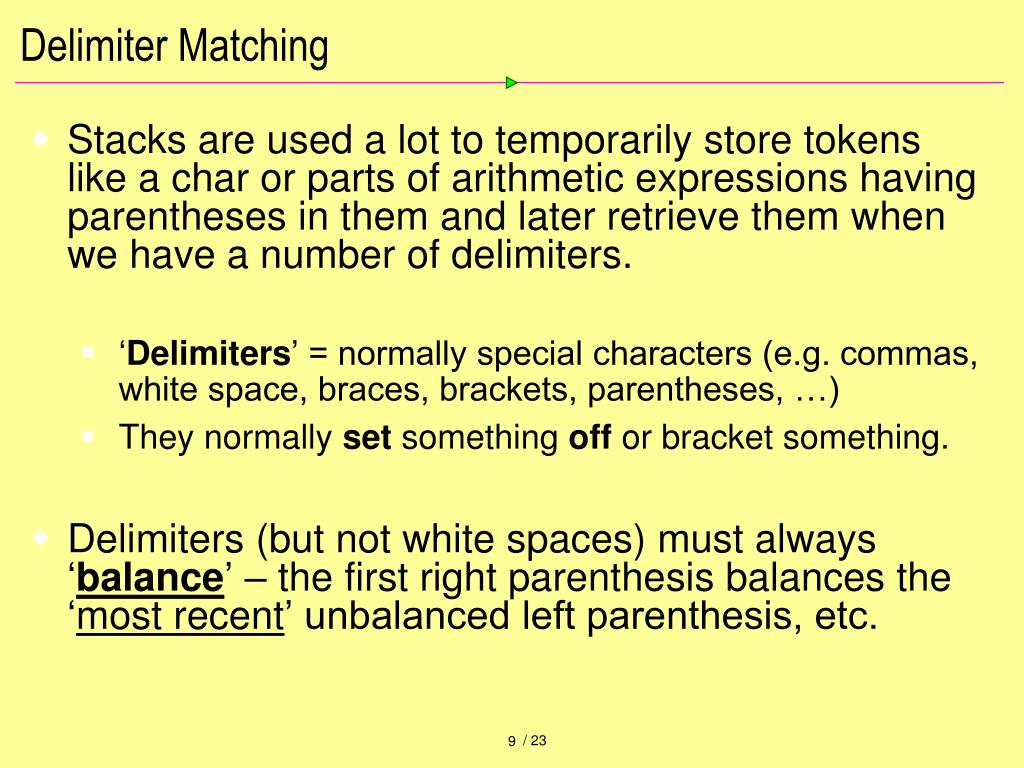

  9. Delimiter Matching • Stacks are used a lot to temporarily store tokens like a char or parts of arithmetic expressions having parentheses in them and later retrieve them when we have a number of delimiters. • ‘Delimiters’ = normally special characters (e.g. commas, white space, braces, brackets, parentheses, …) • They normally set something off or bracket something. • Delimiters (but not white spaces) must always ‘balance’ – the first right parenthesis balances the ‘most recent’ unbalanced left parenthesis, etc.

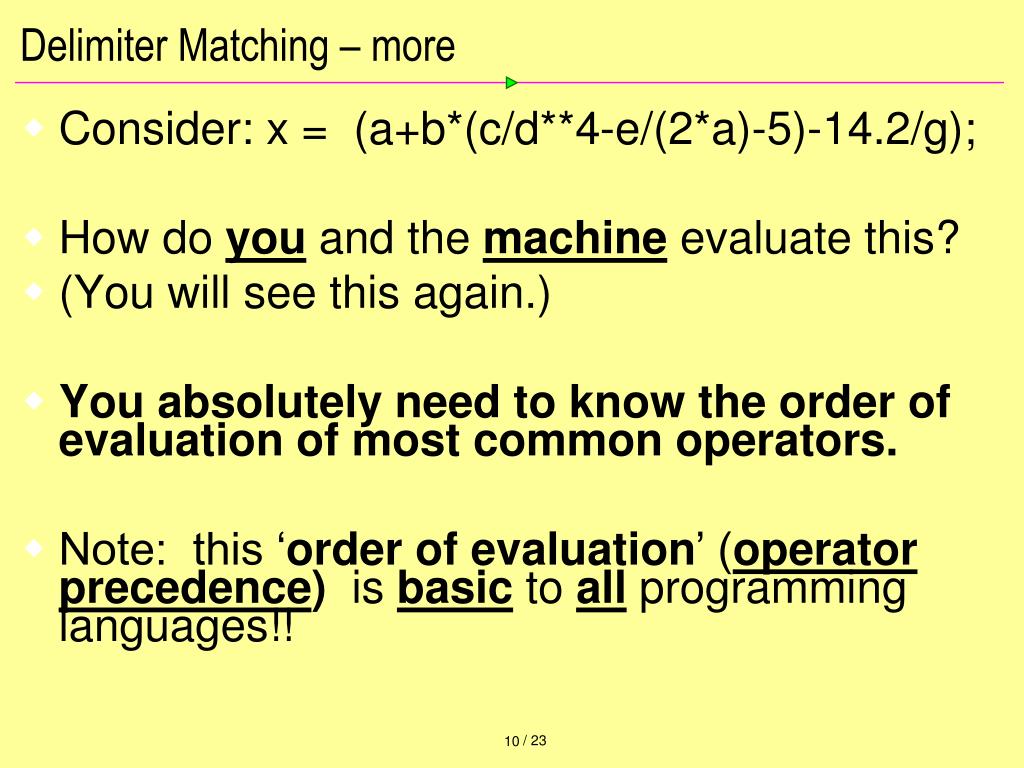

  10. Delimiter Matching – more • Consider: x = (a+b*(c/d**4-e/(2*a)-5)-14.2/g); • How do youand the machine evaluate this? • (You will see this again.) • You absolutely need to know the order of evaluation of most common operators. • Note: this ‘order of evaluation’ (operatorprecedence) is basic to all programming languages!!

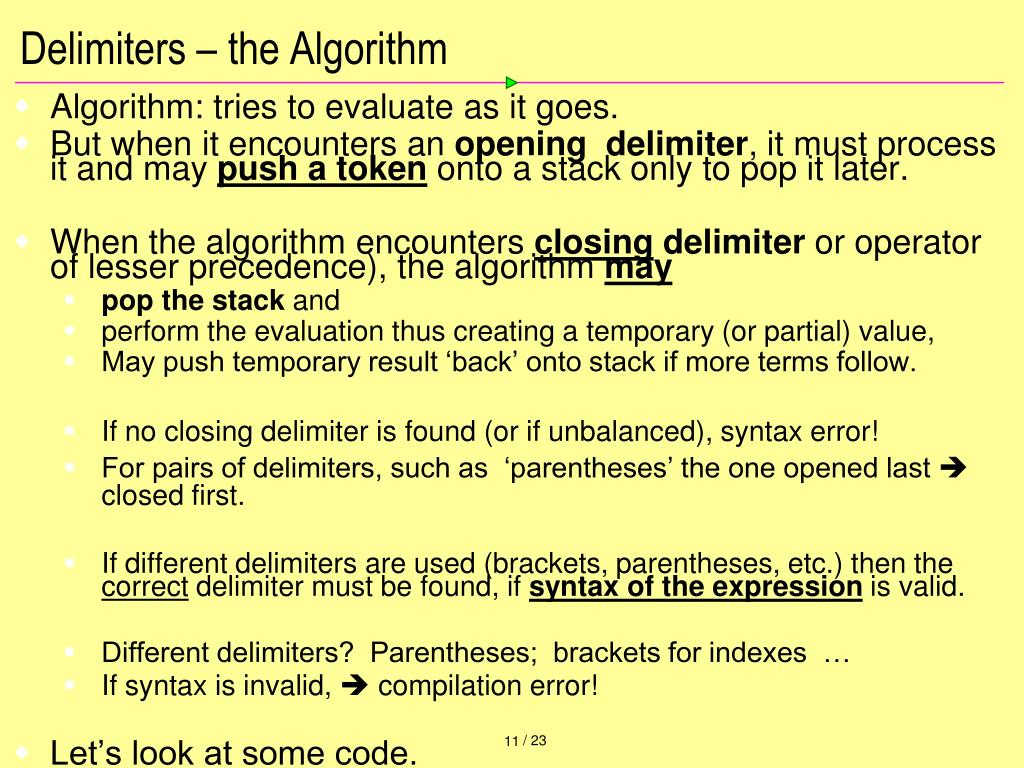

  11. Delimiters – the Algorithm • Algorithm: tries to evaluate as it goes. • But when it encounters an opening delimiter, it must process it and may push a token onto a stack only to pop it later. • When the algorithm encounters closingdelimiter or operator of lesser precedence), the algorithm may • popthestack and • perform the evaluation thus creating a temporary (or partial) value, • May push temporary result ‘back’ onto stack if more terms follow. • If no closing delimiter is found (or if unbalanced), syntax error! • For pairs of delimiters, such as ‘parentheses’ the one opened last  closed first. • If different delimiters are used (brackets, parentheses, etc.) then the correct delimiter must be found, if syntax of the expression is valid. • Different delimiters? Parentheses; brackets for indexes … • If syntax is invalid,  compilation error! • Let’s look at some code.

  12. // brackets.java // Discuss: stack for handling string input / evaluations… import java.io.*; // for I/O // Discuss each method briefly. class StackX { private int maxSize; //Here’s my ‘instance’ data, right? private char[] stackArray; //declares a pointer (reference), stackArray, to a char array private int top; // where the array itself is not yet allocated / built. //-------------------------------------------------------------- public StackX(int s) // constructor { // when object of class StackX is created in its client, maxSize = s; // BracketChecker, size of the stack is passed to this Constructor stackArray = new char[maxSize]; // Constructor uses this parameter to determine size of array object. top = -1; // Stack object, just created, is empty, so top of stack is set to -1, an invalid array reference. } // end StackX() //-------------------------------------------------------------- public void push(char j) // put item on top of stack no change { stackArray[++top] = j; // Exactly how does this work for first item? Values of top? }//end push() //-------------------------------------------------------------- public char pop() // take item from top of stack { return stackArray[top--]; // Note top is decremented AFTER item is popped! } // end pop() //-------------------------------------------------------------- public char peek() { // peek at top of stack // note: encapsulation; see stack and // methods that process. return stackArray[top]; } // end peek() //-------------------------------------------------------------- public boolean isEmpty // cut off for space…

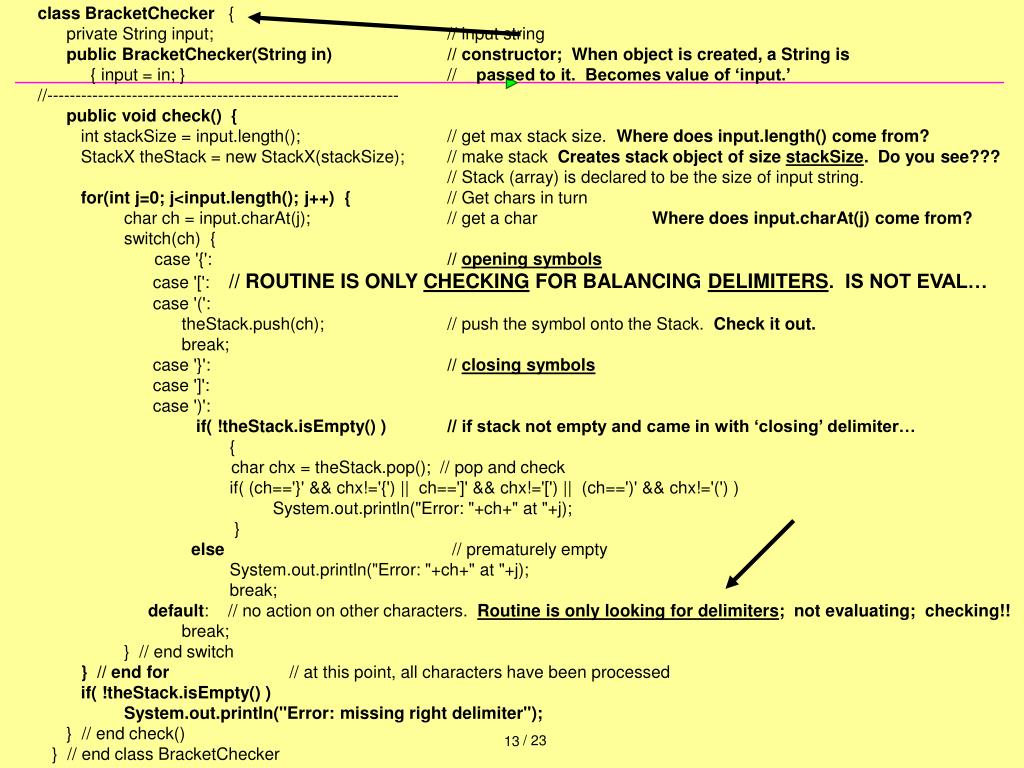

  13. class BracketChecker { private String input; // input string public BracketChecker(String in)// constructor; When object is created, a String is { input = in; } // passed to it. Becomes value of ‘input.’ //-------------------------------------------------------------- public void check() { int stackSize = input.length(); // get max stack size. Where does input.length() come from? StackX theStack = new StackX(stackSize); // make stack Creates stack object of size stackSize. Do you see??? // Stack (array) is declared to be the size of input string. for(int j=0; j<input.length(); j++) { // Get chars in turn char ch = input.charAt(j); // get a char Where does input.charAt(j) come from? switch(ch) { case '{': // opening symbols case '[': // ROUTINE IS ONLY CHECKING FOR BALANCING DELIMITERS. IS NOT EVAL… case '(': theStack.push(ch); // push the symbol onto the Stack. Check it out. break; case '}': // closing symbols case ']': case ')': if( !theStack.isEmpty() )// if stack not empty and came in with ‘closing’ delimiter… { char chx = theStack.pop(); // pop and check if( (ch=='}' && chx!='{') || ch==']' && chx!='[') || (ch==')' && chx!='(') ) System.out.println("Error: "+ch+" at "+j); } else // prematurely empty System.out.println("Error: "+ch+" at "+j); break; default: // no action on other characters. Routine is only looking for delimiters; not evaluating; checking!! break; } // end switch } // end for // at this point, all characters have been processed if( !theStack.isEmpty() ) System.out.println("Error: missing right delimiter"); } // end check() } // end class BracketChecker

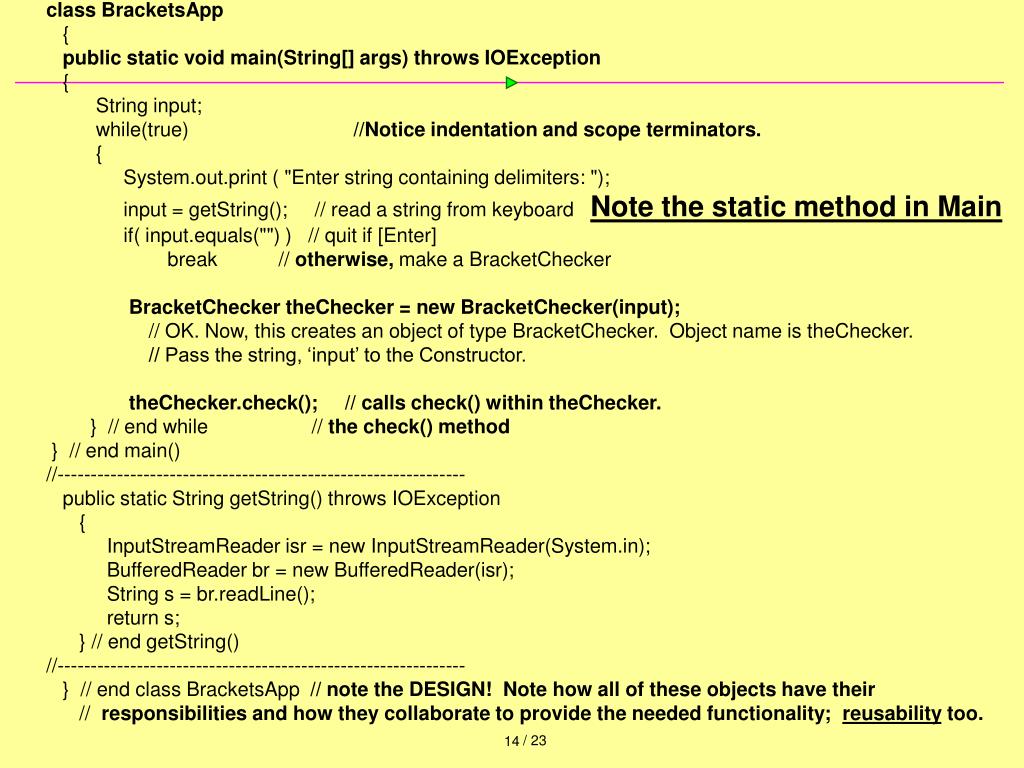

  14. class BracketsApp { public static void main(String[] args) throws IOException { String input; while(true) //Notice indentation and scope terminators. { System.out.print ( "Enter string containing delimiters: "); input = getString(); // read a string from keyboard Note the static method in Main if( input.equals("") ) // quit if [Enter] break // otherwise, make a BracketChecker BracketChecker theChecker = new BracketChecker(input); // OK. Now, this creates an object of type BracketChecker. Object name is theChecker. // Pass the string, ‘input’ to the Constructor. theChecker.check();// calls check() within theChecker. } // end while // the check() method } // end main() //-------------------------------------------------------------- public static String getString() throws IOException { InputStreamReader isr = new InputStreamReader(System.in); BufferedReader br = new BufferedReader(isr); String s = br.readLine(); return s; } // end getString() //-------------------------------------------------------------- } // end class BracketsApp // note the DESIGN! Note how all of these objects have their // responsibilities and how they collaborate to provide the needed functionality; reusability too.

  15. Stack as a Conceptual Aid • The notion (vision) of a stack is simple. • Once a Stack (very reusable) is set up, you don’t have to keep track of indices • But there is limited access to the stack elements via push() and pop() • Efficiency: • Push() and pop() take O(1) time – a constant. Why?? • No dependency on number of items in stack. • No comparisons or moves necessary. • For many applications, this is a very convenient logical data structure.

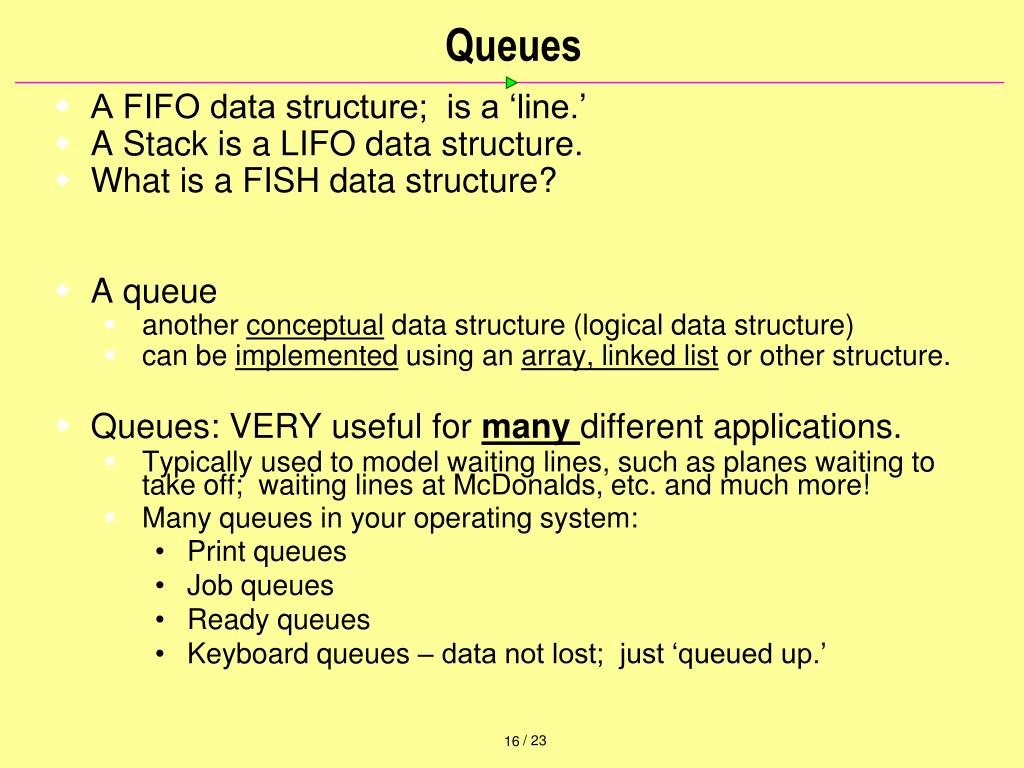

  16. Queues • A FIFO data structure; is a ‘line.’ • A Stack is a LIFO data structure. • What is a FISH data structure? • A queue • another conceptual data structure (logical data structure) • can be implemented using an array, linked list or other structure. • Queues: VERY useful for many different applications. • Typically used to model waiting lines, such as planes waiting to take off; waiting lines at McDonalds, etc. and much more! • Many queues in your operating system: • Print queues • Job queues • Ready queues • Keyboard queues – data not lost; just ‘queued up.’

  17. Queues - terminology • Queues • data entered in one end • Data extracted from the other end, as envisioned. • Thus, our queue operations are • insert() and remove() • insert() at the rear (back or tail) of the queue • remove() at the front (head) of the queue. • These are reasonably common terms. • Rear of queue is the tail (back or tail or end) • Front of queue is head. • We will use: insert, remove, front and rear.

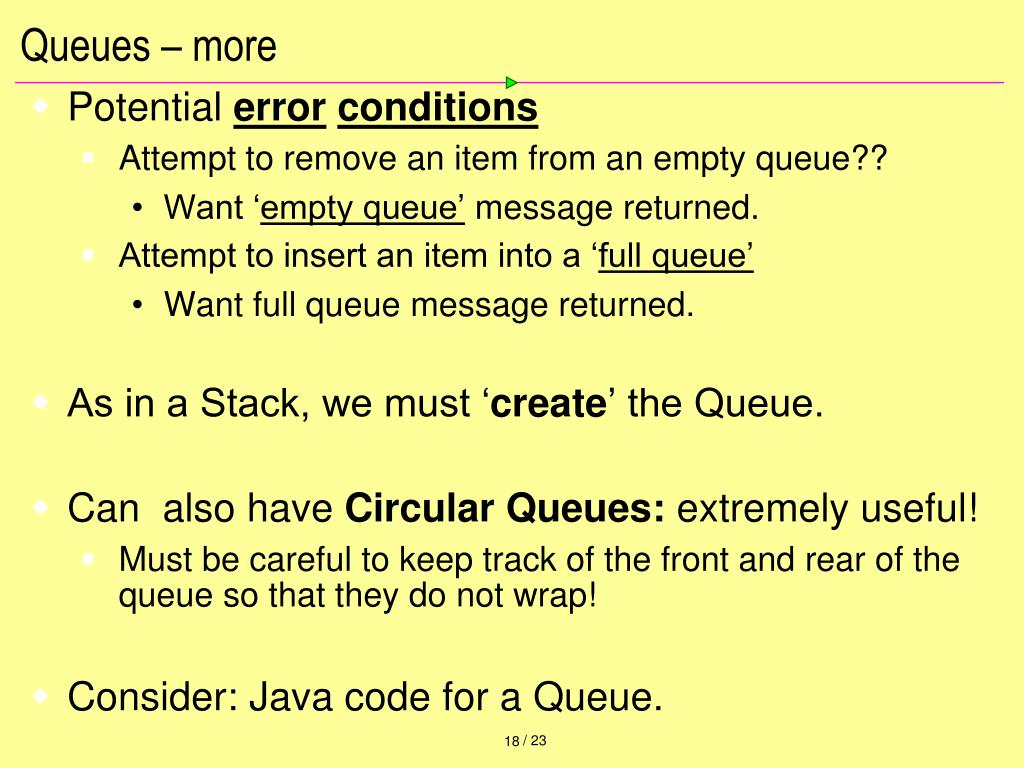

  18. Queues – more • Potential errorconditions • Attempt to remove an item from an empty queue?? • Want ‘empty queue’ message returned. • Attempt to insert an item into a ‘full queue’ • Want full queue message returned. • As in a Stack, we must ‘create’ the Queue. • Can also have Circular Queues: extremely useful! • Must be careful to keep track of the front and rear of the queue so that they do not wrap! • Consider: Java code for a Queue.

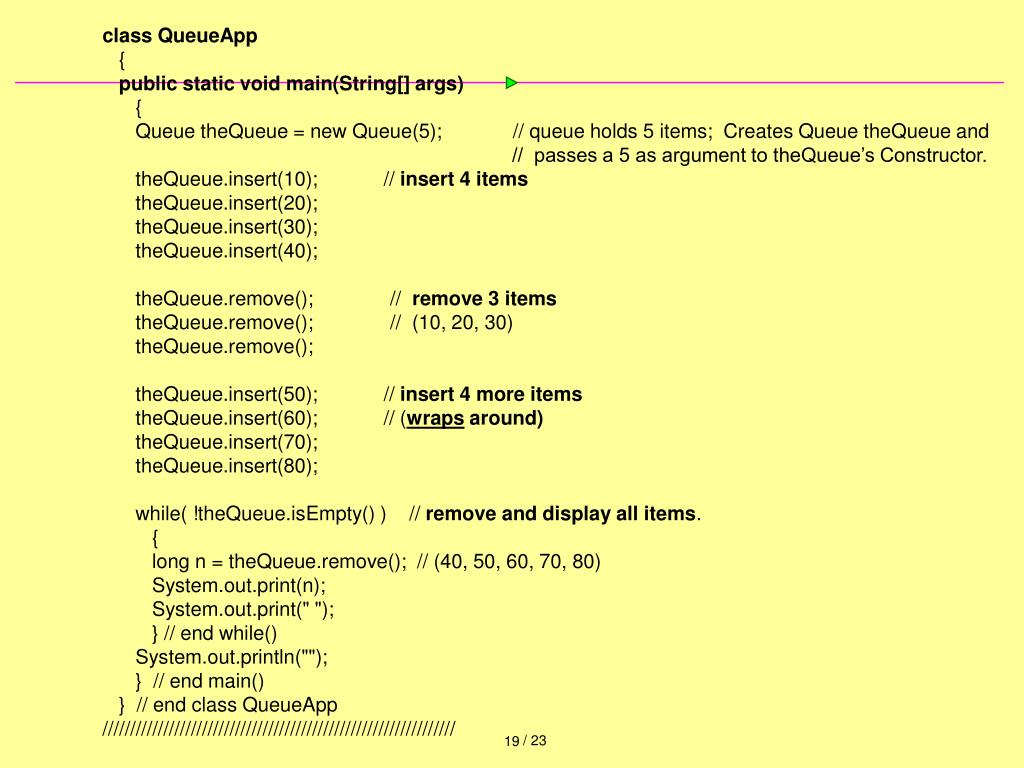

  19. class QueueApp { public static void main(String[] args) { Queue theQueue = new Queue(5); // queue holds 5 items; Creates Queue theQueue and // passes a 5 as argument to theQueue’s Constructor. theQueue.insert(10); // insert 4 items theQueue.insert(20); theQueue.insert(30); theQueue.insert(40); theQueue.remove(); // remove 3 items theQueue.remove(); // (10, 20, 30) theQueue.remove(); theQueue.insert(50); // insert 4 more items theQueue.insert(60); // (wraps around) theQueue.insert(70); theQueue.insert(80); while( !theQueue.isEmpty() ) // remove and display all items. { long n = theQueue.remove(); // (40, 50, 60, 70, 80) System.out.print(n); System.out.print(" "); } // end while() System.out.println(""); } // end main() } // end class QueueApp ////////////////////////////////////////////////////////////////

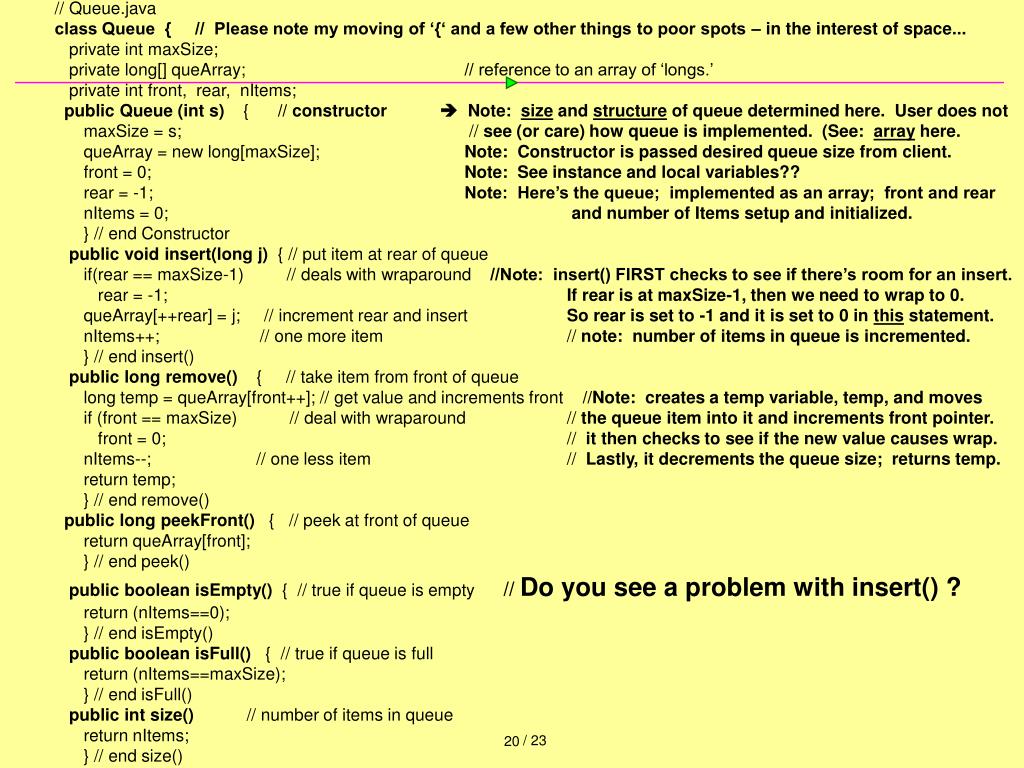

  20. // Queue.java class Queue { // Please note my moving of ‘{‘ and a few other things to poor spots – in the interest of space... private int maxSize; private long[] queArray; // reference to an array of ‘longs.’ private int front, rear, nItems; public Queue (int s) { // constructor  Note: size and structure of queue determined here. User does not maxSize = s; // see (or care) how queue is implemented. (See: array here. queArray = new long[maxSize]; Note: Constructor is passed desired queue size from client. front = 0; Note: See instance and local variables?? rear = -1; Note: Here’s the queue; implemented as an array; front and rear nItems = 0; and number of Items setup and initialized. } // end Constructor public void insert(long j) { // put item at rear of queue if(rear == maxSize-1) // deals with wraparound //Note: insert() FIRST checks to see if there’s room for an insert. rear = -1; If rear is at maxSize-1, then we need to wrap to 0. queArray[++rear] = j; // increment rear and insert So rear is set to -1 and it is set to 0 in this statement. nItems++; // one more item // note: number of items in queue is incremented. } // end insert() public long remove() { // take item from front of queue long temp = queArray[front++]; // get value and increments front //Note: creates a temp variable, temp, and moves if (front == maxSize) // deal with wraparound // the queue item into it and increments front pointer. front = 0; // it then checks to see if the new value causes wrap. nItems--; // one less item // Lastly, it decrements the queue size; returns temp. return temp; } // end remove() public long peekFront() { // peek at front of queue return queArray[front]; } // end peek() public boolean isEmpty() { // true if queue is empty // Do you see a problem with insert() ? return (nItems==0); } // end isEmpty() public boolean isFull() { // true if queue is full return (nItems==maxSize); } // end isFull() public int size() // number of items in queue return nItems; } // end size() } // end class Queue

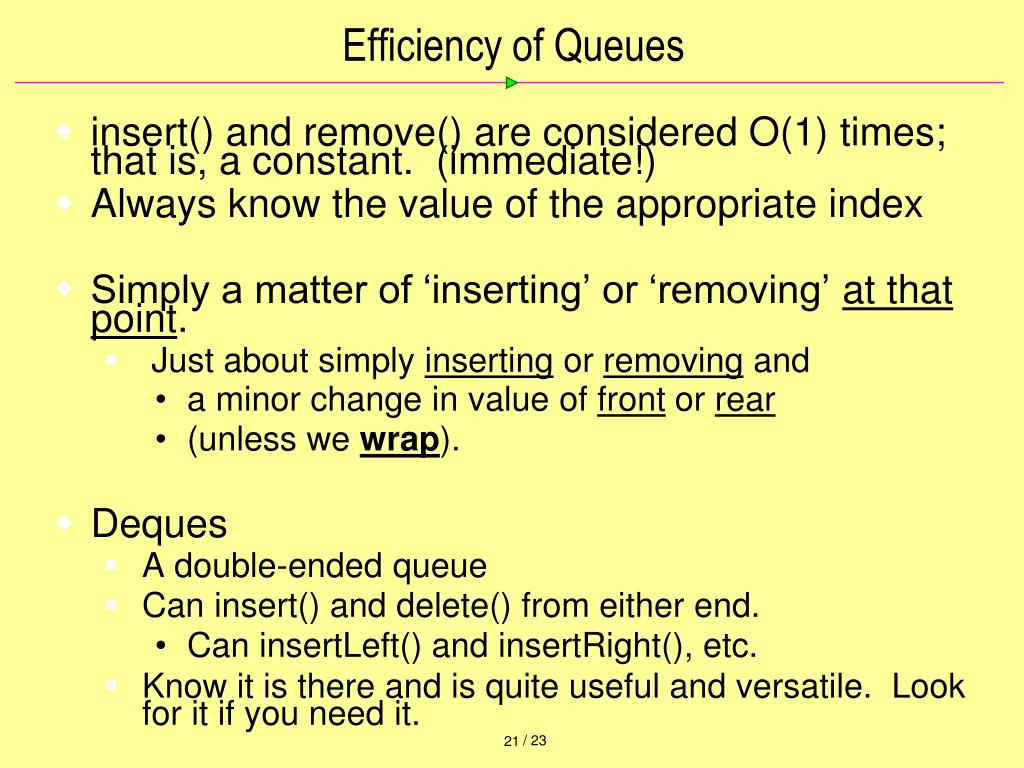

  21. Efficiency of Queues • insert() and remove() are considered O(1) times; that is, a constant. (immediate!) • Always know the value of the appropriate index • Simply a matter of ‘inserting’ or ‘removing’ at that point. • Just about simply inserting or removing and • a minor change in value of front or rear • (unless we wrap). • Deques • A double-ended queue • Can insert() and delete() from either end. • Can insertLeft() and insertRight(), etc. • Know it is there and is quite useful and versatile. Look for it if you need it.

  22. Questions?
