Refraction is the bending of a wave when it enters a substance where its speed is different.

Refraction is the bending of a wave when it enters a substance where its speed is different. . angle of incidence. incident ray. normal. air. glass. refracted ray. angle of refraction. air. glass. From a less dense to a denser substance. e.g. from air to glass. normal.

barr
Télécharger la présentation

Refraction is the bending of a wave when it enters a substance where its speed is different.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Refraction is the bending of a wave when it enters a substance where its speed is different.

  2. angle of incidence incident ray normal air glass refracted ray angle of refraction

  3. air glass From a less dense to a denser substance • e.g. from air to glass normal incident ray refracted ray • Light is benttowards the normal.

  4. water air From a denser to a less dense substance • e.g. from water to air normal incident ray refracted ray • Light is bentaway from the normal.

  5. When light hits a different surface than what it had been traveling in, some light is reflected and some is refracted (bent). • Light passes through substances at different speeds, causing it to bend.

  6. The index of refraction measures the speed at which light moves through the substance.   • The more that light is bent (refracted) as it passes through a substance, the higher the index of refraction of the substance.

  7. Stirring Rod in Oil Oil n = 1.474 Pyrex n = 1.470 Stirring Rod in Water Water n = 1.3330 Pyrex n = 1.470

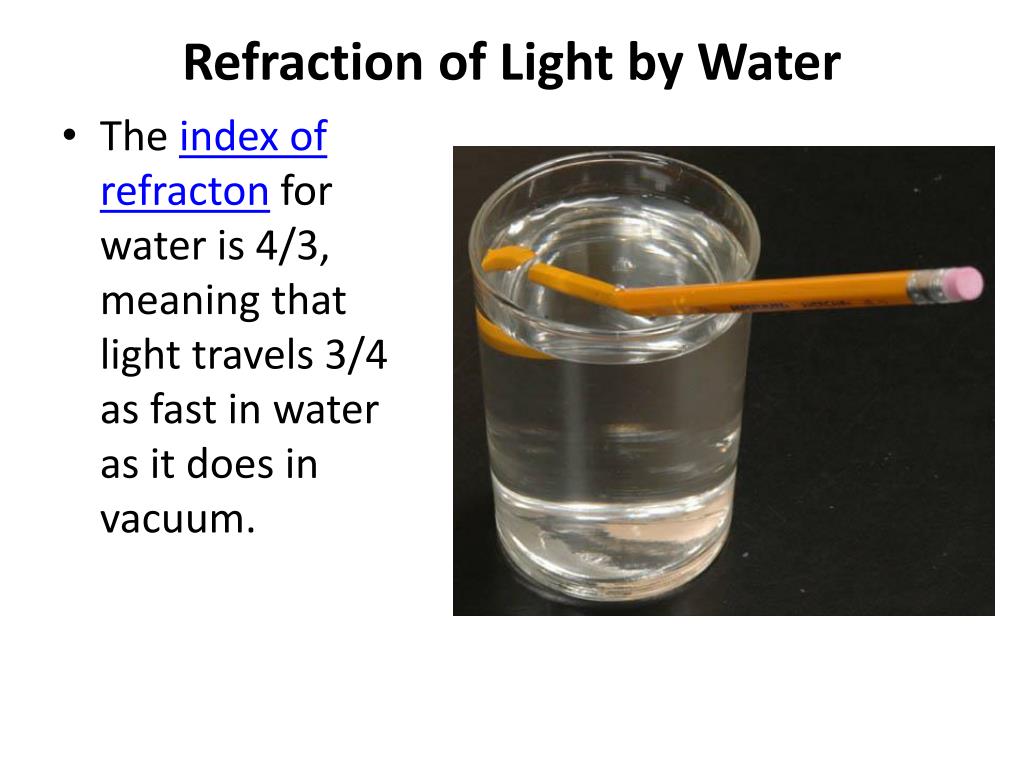

  8. Refraction of Light by Water • The index of refracton for water is 4/3, meaning that light travels 3/4 as fast in water as it does in vacuum.

  9. Bent chopstick

  10. Air C Water Line B A

  11. Examples of refraction of light real depth I O Shallower in water

  12. No, because the fish is actually located somewhere else. Yes, of course. No, because size of objects changes when they are put under water. ‘When hunting a fish under water, you should aim your spear directly at the fish.’ Do you agree?

  13. A boy shines a torch under water as shown. Which one shows the correct path of the light ray?
