WEATHERING

WEATHERING. Weathering is the breaking down of earth rocks and matter. Weathering is. Breaking of rocks into smaller particles by mechanical and chemical processes.

bart
Télécharger la présentation

WEATHERING

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

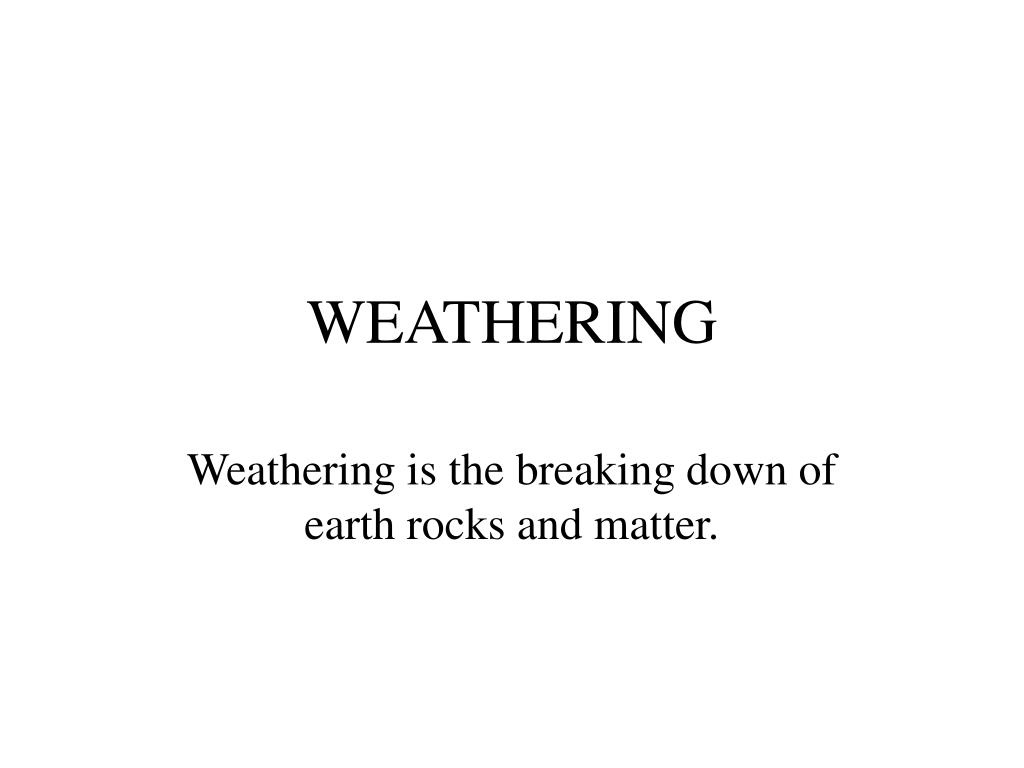

  1. WEATHERING Weathering is the breaking down of earth rocks and matter.

  2. Weathering is • Breaking of rocks into smaller particles by mechanical and chemical processes. • Not the same thing as erosion. The two processes of weathering (wxing) and erosion work together. We will look at erosion in more detail later, but for now will define erosion as the movement of weathered materials.

  3. Mechanical Weathering • Sometimes called Physical Weathering, also known as Disintegration. • Breaks rocks into pieces which become sediments. • Some types include frost wedging, root pry, exfoliation, and abrasion by wind blown sand, water borne sediments, and glacial gouging. .

  4. Types of Mechanical Weathering • Exfoliation is caused by the expansion and contraction of surface rocks exposed to sunlight during the day and cool nights. • Exfoliation causes the surface of rocks to peel off in sheets.

  5. Exfoliated granite, Petersburg VA

  6. Edge of Exfoliated Granite

  7. Mech Wxing, continued • Frost Wedging occurs when liquid water collects in small openings in rocks, freezes and expands to push them apart a bit. • The enlarged opening allows more water to collect for the next cycle. • Frost Wedging is most effective in temperate (moderate) climates.

  8. Melted Snow runs into crack to enlarge what could become a pothole.

  9. Lichen and Frost Wedging Attacking a Rock’s Surface, Christiansburg VA

  10. Mech Wxing: Frost Wedging • Root Pry is a slow, but powerful process where plant roots grow into cracks in rocks and enlarge them.

  11. Plants will grow in surprising places

  12. Plant Roots displaced a sidewalk, LongBranch Drive

  13. Lifted Corner of house actually cracked a window

  14. Impressive Root Pry, Huckleberry Trail, Montgomery County VA

  15. Mech Wxing: Abrasion • Abrasion is caused by wind blowing particles onto exposed rocks. It is similar to the process of sand blasting. • Running water and waves have a similar effect. Particles scour away rocks. • Glaciers carry rocks which stick out the edges and rasp away grooves called striae.

  16. Running water has worn down this big rock

  17. No Glaciers in VA, but you can see that ice will move and flow – Rock Road, Radford

  18. Chemical Weathering • Chemical Weathering is also called Decomposition. • The products of chemical wxing are ions, electrically charges particles. • Chemical wxing requires liquid water. It is also more powerful in warmer temperatures. So chemical weathering is most effective in tropical climates.

  19. Agents of Chemical Wxing • Rain is naturally acidic, but not very strong. Carbon dioxide (CO2) dissolves in raindrops to form carbonic acid, HCO3 • Sulfur Dioxide (SO2)from coal power plants and volcanoes dissolves into water to make sulfuric acid, H2SO4. • Decaying plant matter (humus) makes Humic acid. • Oxidation is chemical change that occurs when O2 reacts with rocks; water helps this.

  20. VA Tech Power Plant, Blacksburg VA, 1973

  21. This building has been exposed to acid rain from coal fires for centuries. The Tower of London.

  22. Less than 100 years old, Memorial to Wright Brothers’ Flight, Kitty Hawk, NC

  23. Chemical Wxing, cont’d. • Acids react with rocks to separate atoms and ions which dissolve in water and are carried away. • Carbonate rocks, such as our local limestones, are particularly affected by acids, which is why we have caves. Tougher rocks stick out of the ground, giving us our karst terrain (caverns, sinkholes, disappearing streams.)

  24. Natural Tunnel, VA

  25. A cavern collapsed and this sinkhole developed in Orlando FA. It swallowed a house and an exotic car dealership. No lives lost.

  26. Luray Caverns, Underground Lake

  27. The Importance of Weathering • Weathering is an important part of the rock cycle. • Weathering helps build new soil, so fresh nutrients are available for plant growth. Plants are the main base of our food web.

  28. Acid Soils in Great Smokey Mountains
