Lazy Abstraction

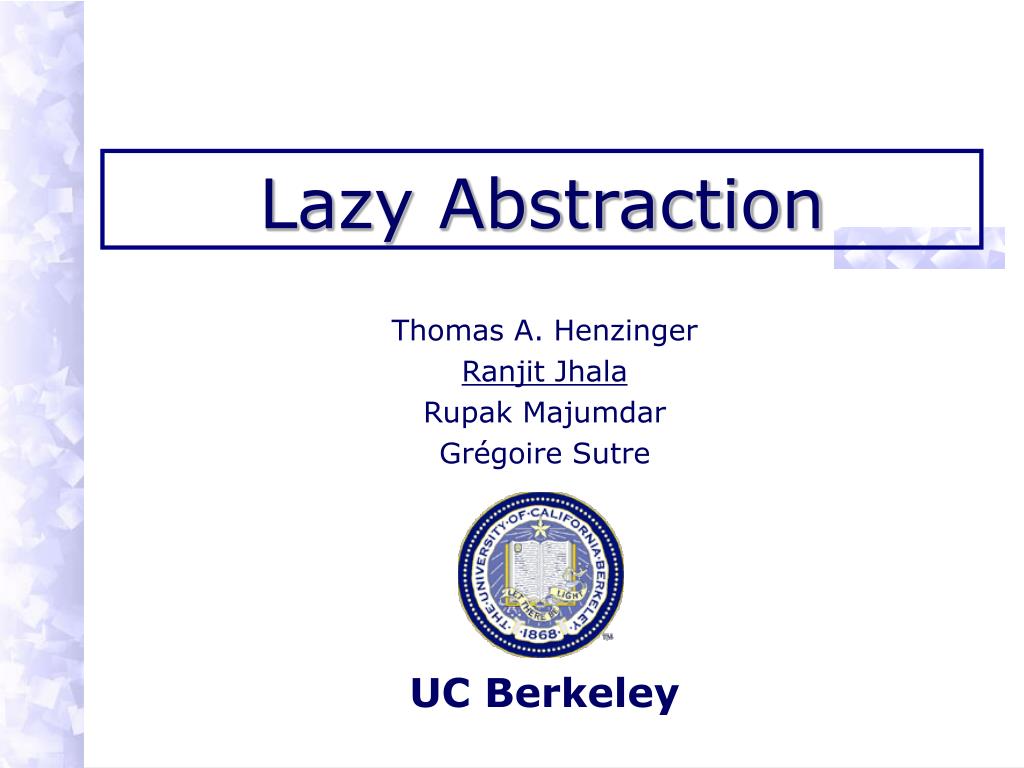

1. Lazy Abstraction Thomas A. Henzinger Ranjit Jhala Rupak Majumdar Grégoire Sutre UC Berkeley

2. Motivation • Verification of systems code • Locking disciplines • Interface specifications • Essential for correct operation • High rate of bugs • Temporal properties • Require path-sensitive analysis • Swamped by false positives • Really hard to check

3. Model Checking • Doesn’t scale to low level implementations • Can only model check “abstractions” • Requires human intervention … • Abstract – Check – Refine Loop • Microsoft SLAM Project • [Clarke et. al. 00], [Saidi 00]

4. Abstraction Seed Abstraction • Program • NO • YES (Trace) SAFE • Feasible • Explanation BUG ??? Abstract-Check-Refine Loop Abstract Is model unsafe ? Check Refine Why infeasible ? Infeasible

5. Model Checking 101 • Keep searching successors until … • Hit error states: report “bug” ! • Add no new successors: report “safe” • Could take a long time … Init ERROR STATES SYSTEM’S STATE SPACE

6. Init ERROR STATES Model Checking & Abstraction • Problem: Far too many states • Iterations don’t terminate ! • Solution: Abstract …

7. Model Checking & Abstraction • Problem: Abstraction too coarse • Solution: Refine abstraction • Make boxes smaller Init ERROR STATES

8. Model Checking & Abstraction • Problem: Abstraction too coarse • Solution: Refine abstraction • Make boxes smaller Init ERROR STATES

9. Reachable States Abstract Only Where Required • Abstraction is very expensive • Why abstract regions that are never visited ? • On-the-fly abstraction: driven by the search Init ERROR STATES

10. Refine Only Where Required • Why be precise everywhere ? • Don’t refine error-free regions Init ERROR STATES ERROR FREE

11. Refine Only Where Required • Why be precise everywhere ? • Don’t refine error-free regions • Different precision for different regions • Local Refinement : driven by the search Init ERROR STATES ERROR FREE

12. How to improve • Abstract only where required • Reachable state space is very sparse • Construct the abstraction on-the-fly • Use greater precision only where required • Different precisions/abstractions for different regions • Refine locally • Reuse work from earlier phases • Batch-oriented ) lose work from previous runs • Integrate the three phases • Exploit control flow structure

13. lock() unlock() unlock() lock() Example Example ( ) { 1: if (*) { 7: do { got_lock = 0; 8: if (*) { 9: lock(); got_lock ++; } 10: if (got_lock) { 11: unlock(); } 12: } while (*) ; } 2: do { lock(); old = new; 3: if (*) { 4: unlock(); new ++; } 5: } while ( new != old); 6: unlock (); return; } Q: Is Error Reachable ?

14. [>] [>] 2 7 lock(); old = new 3 [>] [>] 4 [new!=old] 5 unlock() new++ [new==old] 6 unlock() ret Example:CFA 1 Example ( ) { 1: if (*) { 7: do { got_lock = 0; 8: if (*) { 9: lock(); got_lock ++; } 10: if (got_lock) { 11: unlock(); } 12: } while (*) ; } 2: do { lock(); old = new; 3: if (*) { 4: unlock(); new ++; } 5: } while ( new != old); 6: unlock (); return; }

15. 1 2 7 3 8 4 9 5 10 11 6 12 ret Example:CFA Example ( ) { 1: if (*) { 7: do { got_lock = 0; 8: if (*) { 9: lock(); got_lock ++; } 10: if (got_lock) { 11: unlock(); } 12: } while (*) ; } 2: do { lock(); old = new; 3: if (*) { 4: unlock(); new ++; } 5: } while ( new != old); 6: unlock (); return; } got_lock=0 [>] [>] lock(); got_lock++ [got_lock != 0] [got_lock == 0] unlock() [>] [>]

16. 1 2 7 lock() 3 8 4 9 unlock() unlock() 5 lock() 10 11 6 12 ret Example:CFA Example ( ) { 1: if (*) { 7: do { got_lock = 0; 8: if (*) { 9: lock(); got_lock ++; } 10: if (got_lock) { 11: unlock(); } 12: } while (*) ; } 2: do { lock(); old = new; 3: if (*) { 4: unlock(); new ++; } 5: } while ( new != old); 6: unlock (); return; } Q: Is Error Reachable ?

17. 1 LOCK=0 1 2 2 7 LOCK=0 3 8 4 9 3 LOCK=1 5 10 11 4 LOCK=1 6 12 ret 5 LOCK=0 6 LOCK=0 Err LOCK=0 Step 1: Search [>] lock(); old = new [>] unlock() new++ [new==old] Set of predicates: LOCK=0, LOCK=1 unlock()

18. 1 LOCK=0 1 2 2 7 LOCK=0 3 8 4 9 3 LOCK=1 5 10 11 4 LOCK=1 6 12 ret 5 LOCK=0 6 LOCK=0 ops Err LOCK=0 n Err Step 2:Analyze Counterexample Q: When can: States that can = wp( >,ops) States at node n = Rn ) check: RnÆ wp( >,ops) = ? ?

19. 1 LOCK=0 1 2 2 7 LOCK=0 3 8 4 9 3 LOCK=1 5 10 11 4 LOCK=1 6 12 ret 5 LOCK=0 6 LOCK=0 Err LOCK=0 Step 2:Analyze Counterexample LOCK=0 Ænew+1 = new lock(); old = new LOCK=1 Æ new+1 = old [>] LOCK=1 Æ new +1 = old unlock(); new++ LOCK=0 Æ new = old [new==old] LOCK=0 unlock() LOCK=0 RnÆ wp (>,ops) = ? ?

20. 1 LOCK=0 1 2 2 7 LOCK=0 3 8 4 9 3 LOCK=1 5 10 11 4 LOCK=1 6 12 ret 5 LOCK=0 6 LOCK=0 Err LOCK=0 Step 2:Analyze Counterexample LOCK=0 Ænew+1 = new lock(); old = new LOCK=1 Æ new+1 = old [>] LOCK=1 Æ new +1 = old unlock(); new++ LOCK=0 Æ new = old Track the predicate: new = old [new==old] LOCK=0 unlock() LOCK=0

21. 1 2 2 7 LOCK=0 3 8 4 9 3 LOCK=1 Æ new = old 5 10 11 4 LOCK=1 Æ new = old 6 12 ret 5 LOCK=0 Æ: new = old 6 2 ? LOCK=0 Æ: new = old µ LOCK =0 Step 3: Resume search 1 LOCK=0 lock(); old = new [>] unlock() new++ Set of predicates: LOCK=0, LOCK=1 [new!=old] [new==old] New predicate: new = old,

22. 1 LOCK=0 1 2 2 7 LOCK=0 3 8 4 9 3 LOCK=1 Æ new = old 5 10 11 4 LOCK=1 Æ new = old 6 12 ret LOCK=1 Æ new=old 5 5 LOCK=0 Æ: new = old 6 2 6 1 ? ? ret LOCK=0Æ new=old Step 3: Resume search [>] [new!=old] [new==old] Set of predicates: LOCK=0, LOCK=1 unlock() LOCK=0 Æ: new = old New predicate: new = old

23. 1 2 7 3 8 4 9 5 10 11 6 12 ret Example:CFA Example ( ) { 1: if (*) { 7: do { got_lock = 0; 8: if (*) { 9: lock(); got_lock ++; } 10: if (got_lock) { 11: unlock(); } 12: } while (*) ; } 2: do { lock(); old = new; 3: if (*) { 4: unlock(); new ++; } 5: } while ( new != old); 6: unlock (); return; } got_lock=0 [>] [>] lock(); got_lock++ [got_lock != 0] [got_lock == 0] unlock() [>] [>]

24. 1 LOCK=0 [>] [>] 1 2 7 2 7 LOCK=0 LOCK=0 3 8 4 9 5 10 11 6 12 ret Err Step 4: Search Right Branch Set of predicates: LOCK=0, LOCK=1 New predicate: (from trace) got_lock = 0

25. 1 LOCK=0 1 2 7 2 7 LOCK=0 LOCK=0 3 8 4 9 5 10 11 6 12 ret 2 2 2 Leaves Covered (Reuse work) Leaves covered: Avoid repeating search when paths merge LOCK=0 Æ … COVERED !

26. 1 1 2 7 2 7 3 8 4 9 5 10 11 6 12 ret Different Abstractions Different predicates for different parts of state space Local refinement: Preserves work on left tree new = old got_lock = 0

27. 2 LOCK=0 Ænew+1 = new LOCK=0 lock(); old = new 3 LOCK=1 [>] unlock(); new++ 4 LOCK=1 [new==old] 5 LOCK=0 unlock() 6 LOCK=0 Err LOCK=0 Predicate Discovery • Information lost in substitution • Keep substitutions explicit • Ask a proof of unsatisfiability • Pick predicates appearing in proof

28. 2 LOCK=0 Ænew+1 = new LOCK=0 lock(); old = new 3 LOCK=1 [>] unlock(); new++ 4 LOCK=1 [new==old] 5 LOCK=0 unlock() 6 LOCK=0 Err LOCK=0 Predicate Discovery Weakest Precondition: wp(Y, x=e) ´Y [e/x] Explicit WP: wp(Y, x=e) ´9 x’. x’ = e ÆY [x’/x] LOCK = 0 Æ 9 old’ new’ LOCK’. old’ = new Æ LOCK’=0 Æ new’ = old’ Æ new’ = new’ + 1 New Predicates from proof of unsatisfiability old’ = new, new’ = old’, new’ = new + 1

29. Lazy abstraction • For any system, require: • Region representation • Boolean operations: [, Å, : • “Covering” check: µ • post#: Region ! Approx. succ. Region • Forward Search • pre: Region ! Exact pred. Region • Backward counterexample analysis • focus : why a trace is infeasible

30. CIL (C ! CFA) REGION STRUCTURE Vampyre (focus) Simplify (Post#) BDD Engine (Boolean ops) BLAST • Berkeley Lazy Abstraction Software verification Tool • 10K Lines of Ocaml • Analyze Linux/Windows Device Drivers LAZY ABSTRACTION

31. Experiments [Not in POPL paper] • Linux Device Drivers (Locking protocol) • Windows Drivers (IRP Spec – 22 states)

32. Why Abstract Lazily ? • Reach set is very sparse • Abstract on-the-fly • Only the reachable region • Requires very fast post# • Exploit Control-Flow Structure • Free partitioning of state space • Partition preds: different abstractions • Refine locally: don’t repeat old work

33. Problems/Future work • Monolithic vs. Multi-model abstractions • How to partition predicates ? • Predicate-flow analyses ? • Recursion • Summaries tricky with on-the-fly search • Smarter abstractions • Heap data structures ?

34. :P3 :P4 :P3 P4 P3 P4 P3 :P4 :P1,:P2 P1 : x = y P2 : z = t + y :P1, P2 P1, P2 P3 : x  z+1 P4 : *u = x P1, :P2 Karnaugh Map Predicate Abstraction Region Representation: formulas over predicates Set of states Abstract Set: P1P2P4Ç: P1 P2 P3 P4

35. :P3 :P4 :P3 P4 P3 P4 P3 :P4 :P1,:P2 P1 : x = y P2 : z = t + y :P1, P2 P1, P2 P3 : x  z+1 P4 : *u = x P1, :P2 Karnaugh Map Predicate Abstraction • Box: abstract variable valuation • BoxCover(S): Set of boxes covering S • Theorem prover used to compute BoxCover

36. :P3 :P4 :P3 P4 P3 P4 P3 :P4 :P1,:P2 :P1, P2 P1, P2 P1, :P2 S Post#, Pre • pre(S,op) = { s | 9s’2S. s !op s’} (Weakest Precondition) • post(S,op) = { s | 9s’2S. s’!op s} (Strongest Postcondition) • Abstract Operators: post# post(S,op) µ post#(S,op) • Concrete Operators: pre Classical Weakest Precondition post post(S) post#(S)
