  1. Network coding A.J. Han Vinck updated Jan. 10, 2013

  2. Network coding • Coding for lost packets or packets in error based on error correcting codes • Famous example network coding for better routing

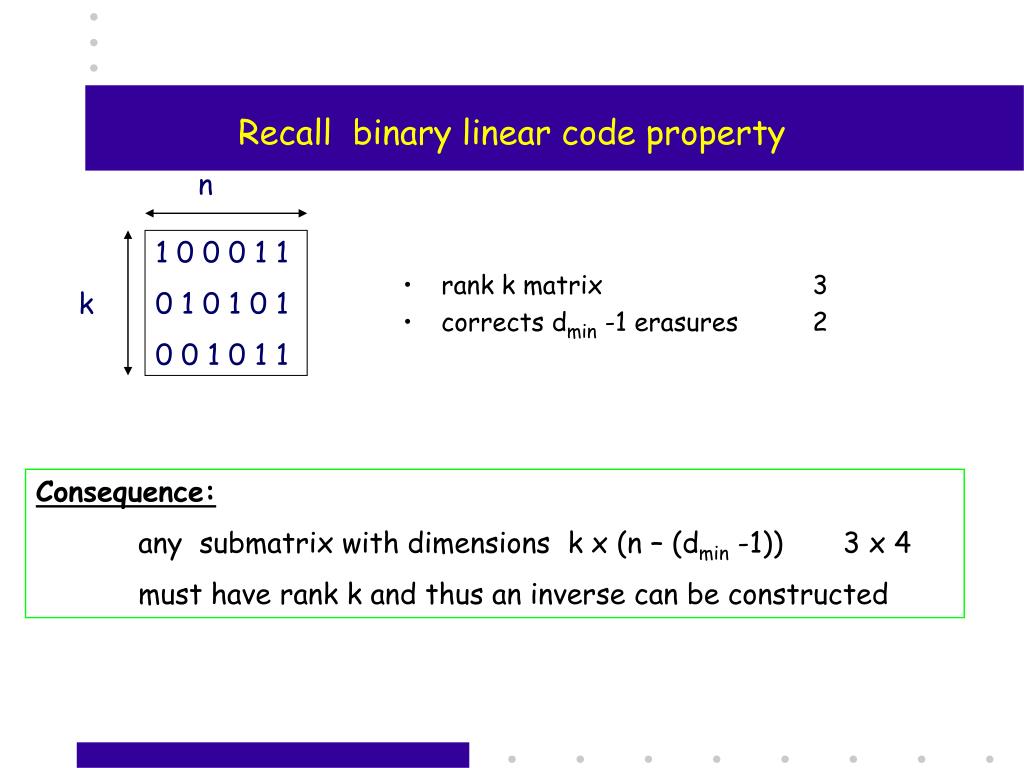

  3. Recall binary linear code property n 1 0 0 0 1 1 0 1 0 1 0 1 0 0 1 0 1 1 • rank k matrix 3 • corrects dmin -1 erasures 2 k Consequence: any submatrix with dimensions k x (n – (dmin -1)) 3 x 4 must have rank k and thus an inverse can be constructed

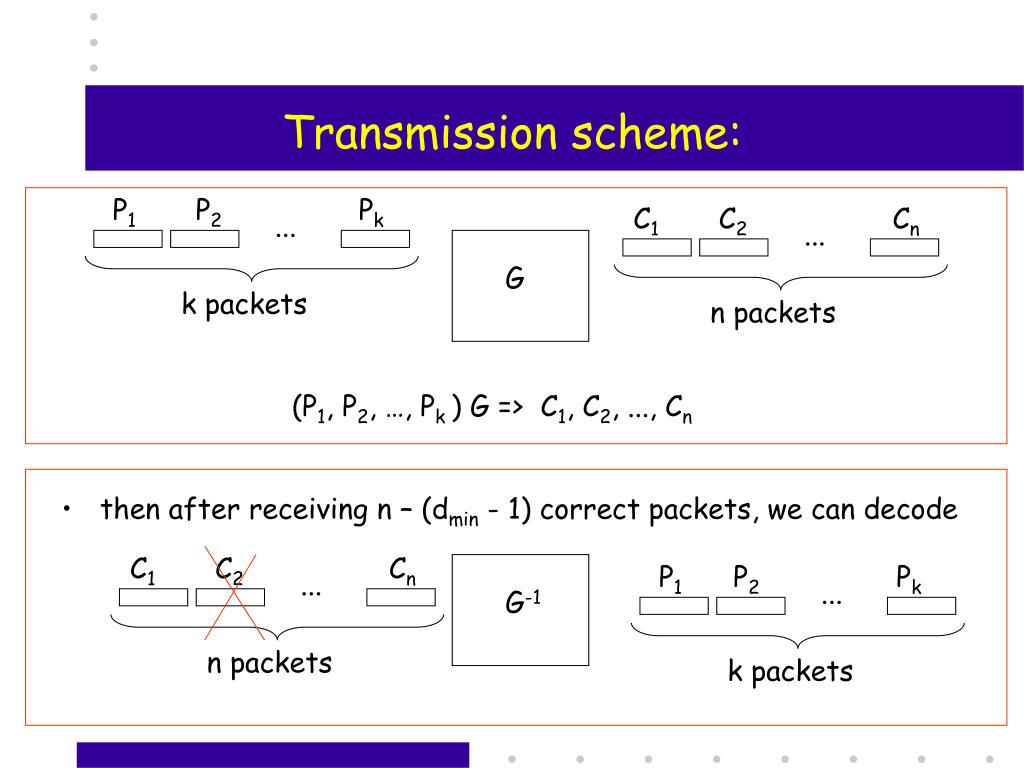

  4. Transmission scheme: P1 P2 Pk C1 C2 Cn ··· ··· G k packets n packets (P1, P2, …, Pk ) G => C1, C2, ..., Cn • then after receiving n – (dmin - 1) correct packets, we can decode C1 C2 Cn P1 P2 Pk ··· G-1 ··· n packets k packets

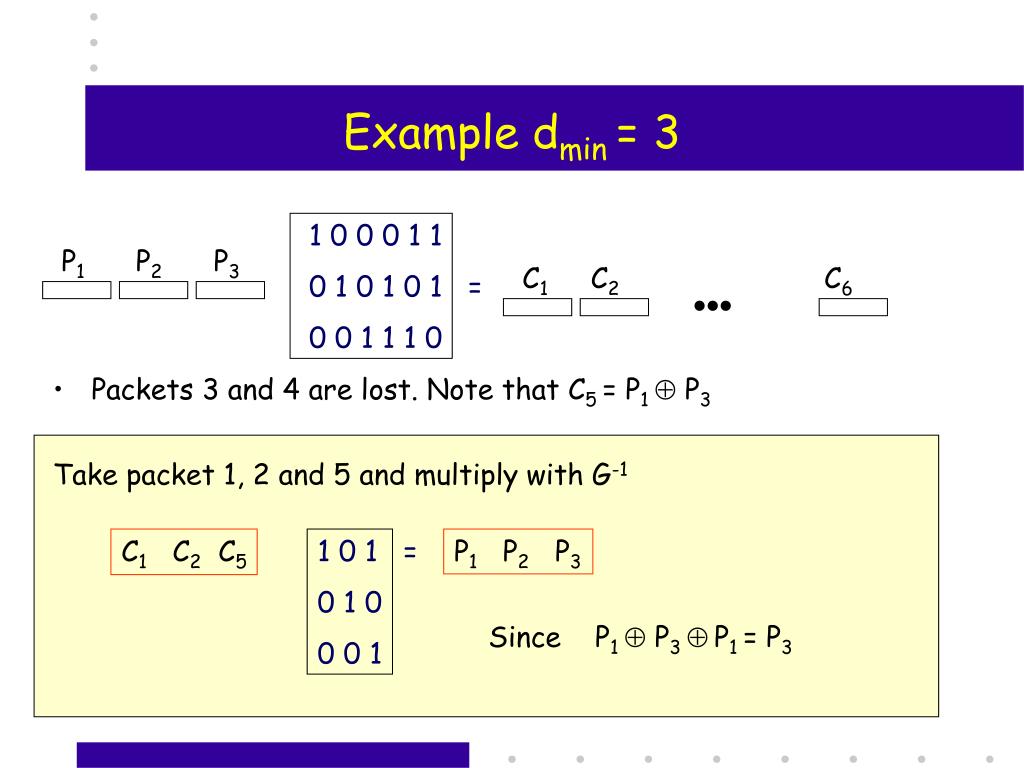

  5. Example dmin = 3 1 0 0 0 1 1 0 1 0 1 0 1 = 0 0 1 1 1 0 P1 P2 P3 C1 C2 C6  • Packets 3 and 4 are lost. Note that C5 = P1  P3 Take packet 1, 2 and 5 and multiply with G-1 C1 C2 C5 1 0 1 = 0 1 0 0 0 1 P1 P2 P3 Since P1  P3 P1 =P3

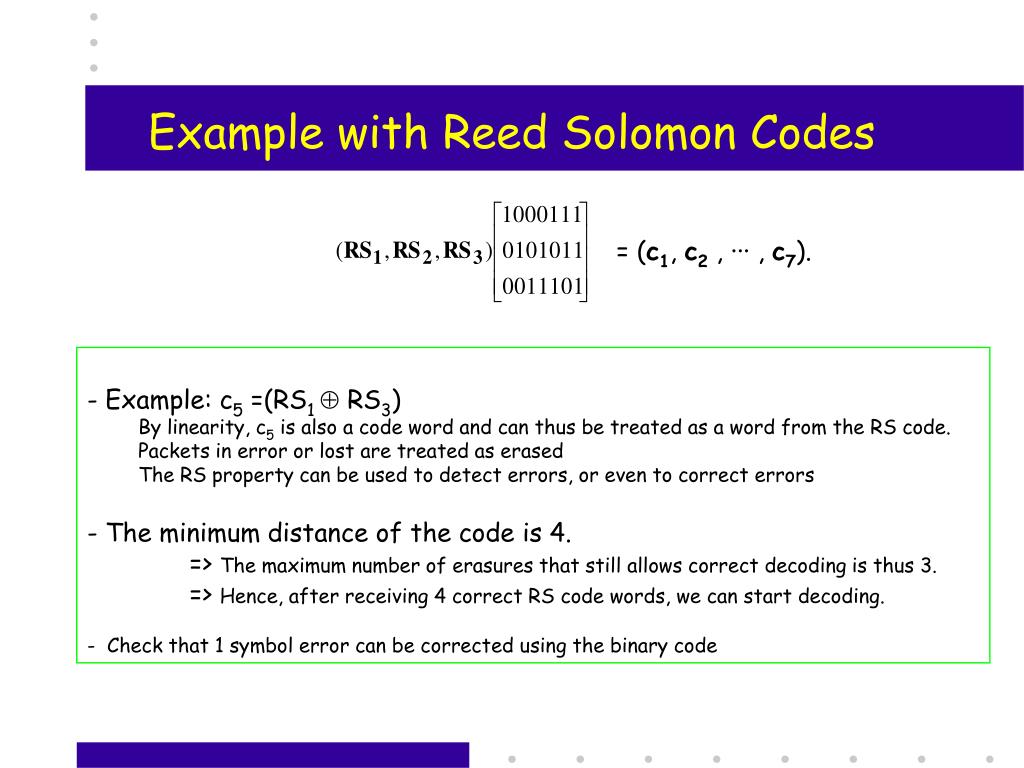

  6. Example with Reed Solomon Codes (RS1, RS2, RS3) G = = (c1, c2 , ··· , c7). - Example: c5 =(RS1 RS3) By linearity, c5 is also a code word and can thus be treated as a word from the RS code. Packets in error or lost are treated as erased The RS property can be used to detect errors, or even to correct errors - The minimum distance of the code is 4. => The maximum number of erasures that still allows correct decoding is thus 3. => Hence, after receiving 4 correct RS code words, we can start decoding. - Check that 1 symbol error can be corrected using the binary code

  7. coding • Use error correcting property of k RS-code words  n-coded correct correct Lost packet PERFORMANCE: # erased packets < dmin In the example: dmin = 2

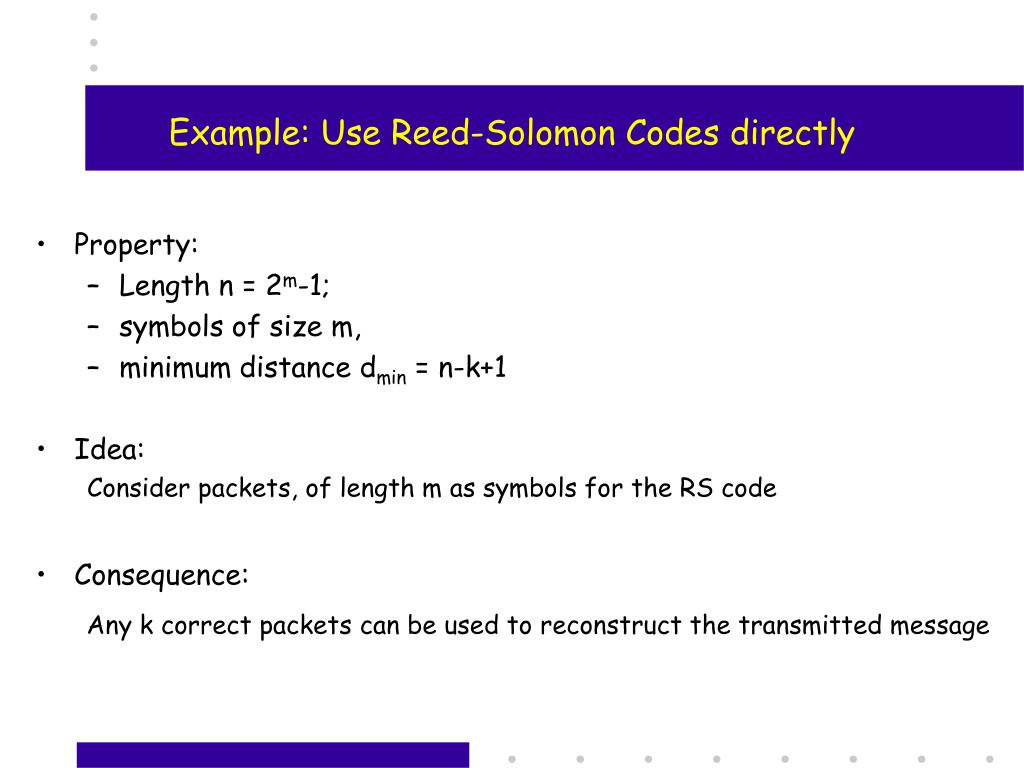

  8. Example: Use Reed-Solomon Codes directly • Property: • Length n = 2m-1; • symbols of size m, • minimum distance dmin = n-k+1 • Idea: Consider packets, of length m as symbols for the RS code • Consequence: Any k correct packets can be used to reconstruct the transmitted message

  9. Interleaving + coding • Use error correcting property of RS codes: assume n packets with n symbols 3 RS code words Lost packet Packet 1 PERFORMANCE: all words can be reconstructed if # erased packets < dmin

  10. Aloha (one simple version) • U users transmit a packet with probability P in a time slot • More than one packet is detected as collision • Receivers sends Ack or Nack to all U transmitters • After NACK, the old packet is repeated with probability P • After ACK, a new packet is generated with probability P • Hence, the probability of successful transmission is Prob(1 packet generated in a slot) = pU x (1-p)U-1 for P = 1/U, the Throughput R => e-1 • Note: consider the assumptions that are necessary to have a correct derivation of this result!

  11. Aloha (one simple version) Users send packet with probability P • The probability that no collision occurs is pU(1-p)U-1. • Throughput R for P = 1/U R => e-1 Multi Access channel collision U users 1 >1 idle 1 >1 Ack or Nack to all U transmitters

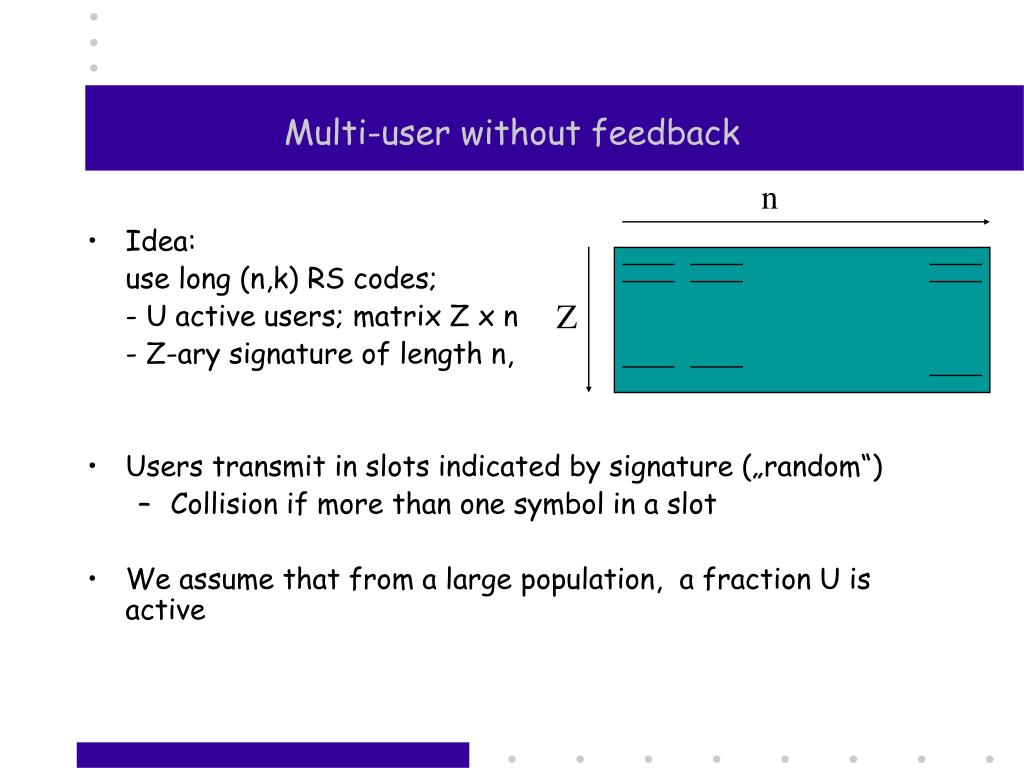

  12. Multi-user without feedback n • Idea: use long (n,k) RS codes; - U active users; matrix Z x n - Z-ary signature of length n, • Users transmit in slots indicated by signature („random“) • Collision if more than one symbol in a slot • We assume that from a large population, a fraction U is active Z

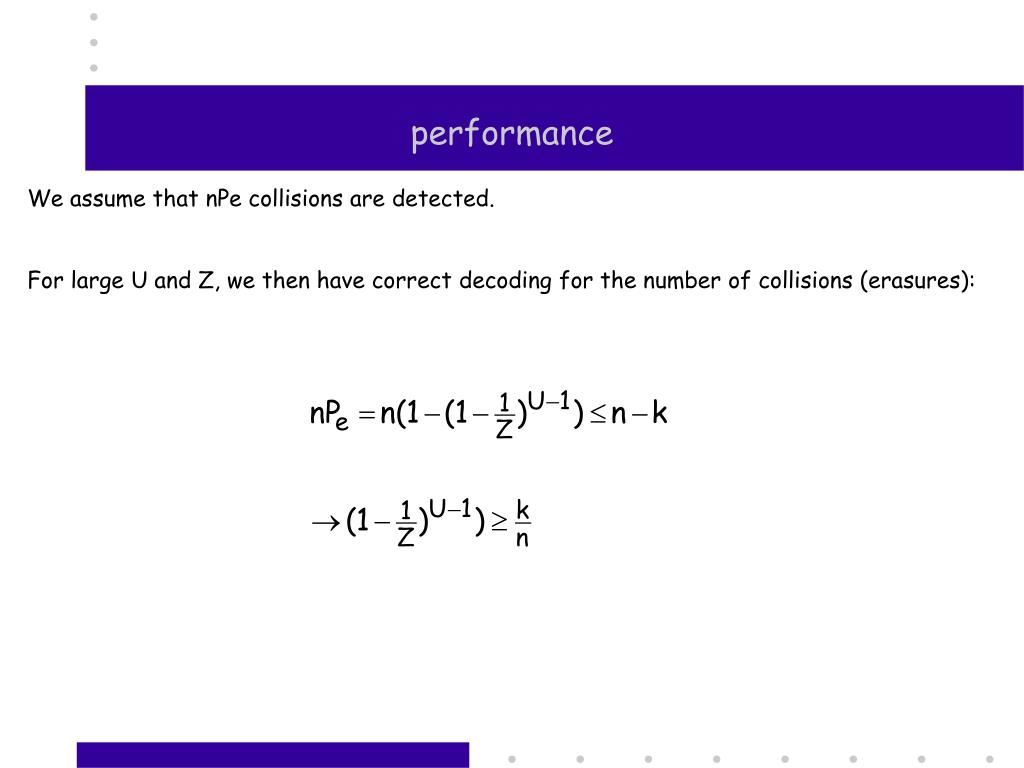

  13. performance We assume that nPe collisions are detected. For large U and Z, we then have correct decoding for the number of collisions (erasures):

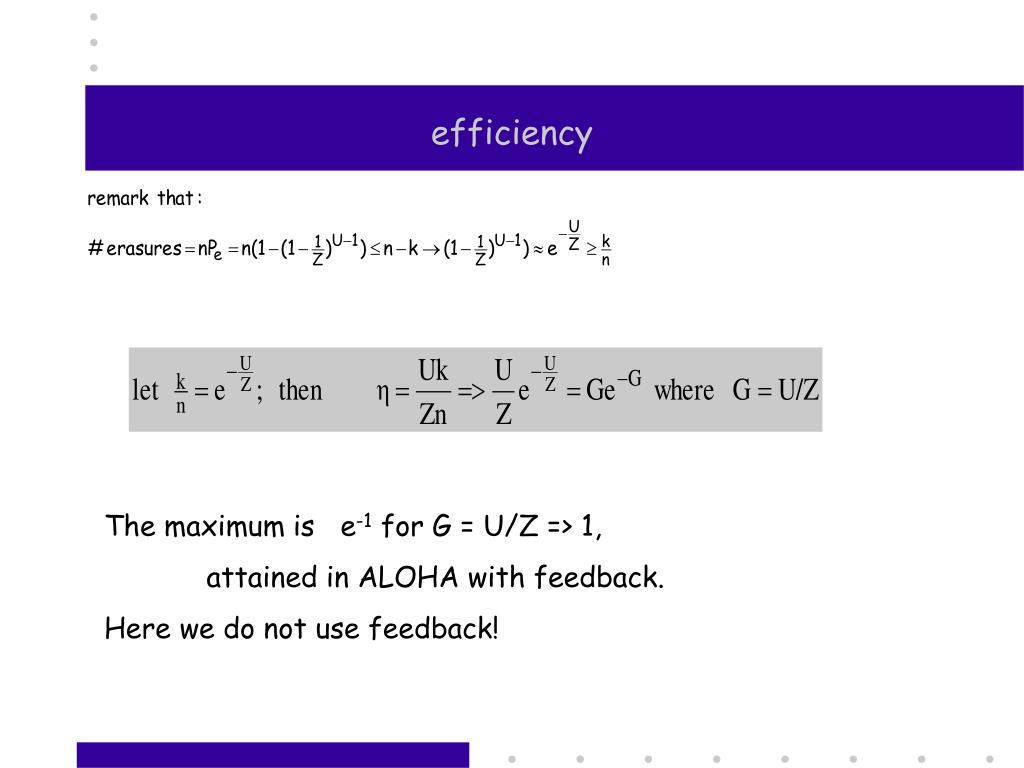

  14. efficiency The maximum is e-1 for G = U/Z => 1, attained in ALOHA with feedback. Here we do not use feedback!

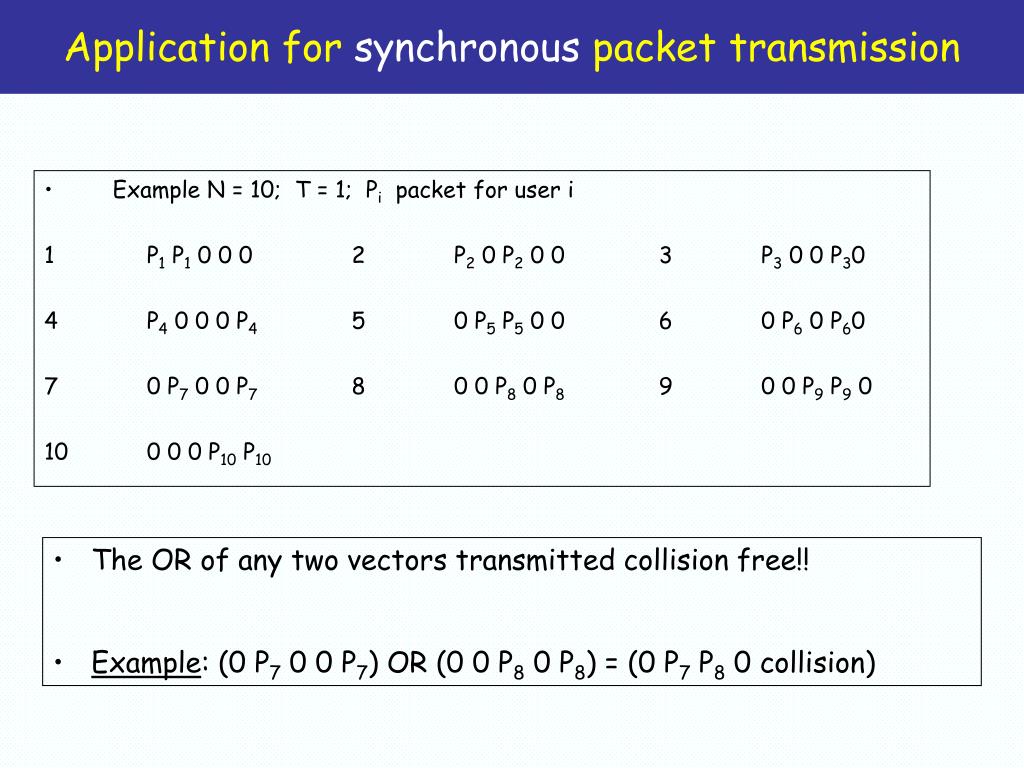

  15. Application for synchronous packet transmission • Example N = 10; T = 1; Pi packet for user i 1 P1 P1 0 0 0 2 P2 0 P2 0 0 3 P3 0 0 P30 4 P4 0 0 0 P4 5 0 P5 P5 0 0 6 0 P6 0 P60 7 0 P7 0 0 P7 8 0 0 P8 0 P8 9 0 0 P9 P9 0 10 0 0 0 P10 P10 • The OR of any two vectors transmitted collision free!! • Example: (0 P7 0 0 P7) OR (0 0 P8 0 P8) = (0 P7 P8 0 collision)

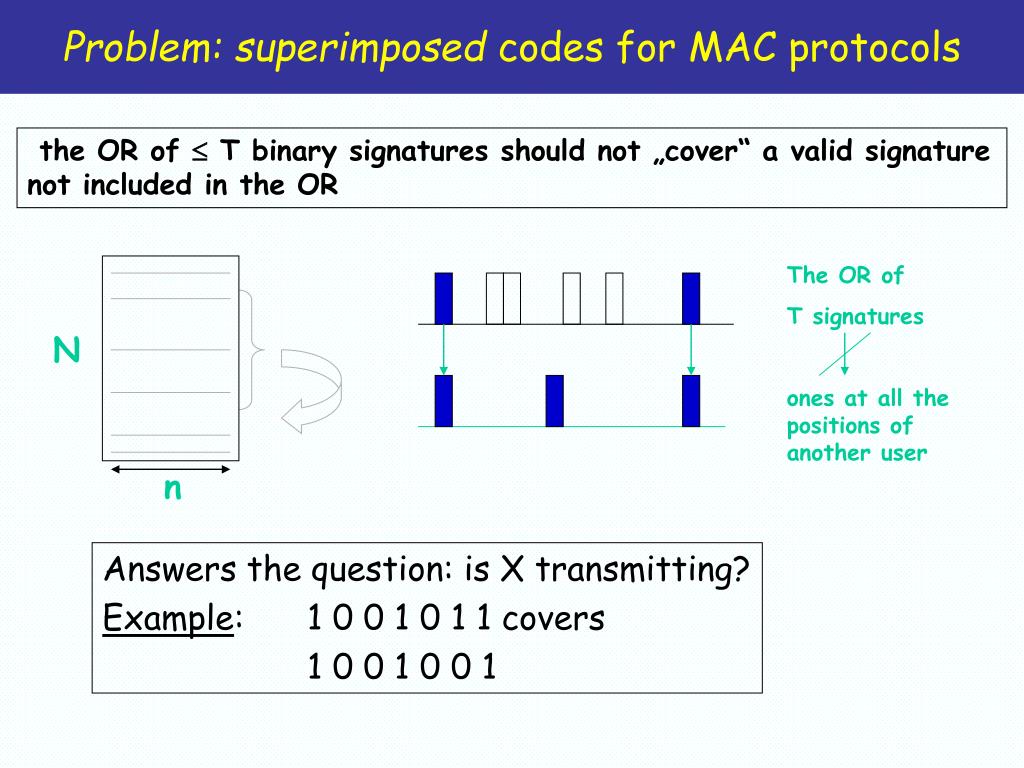

  16. Problem: superimposed codes for MAC protocols the OR of  T binary signatures should not „cover“ a valid signature not included in the OR The OR of T signatures ones at all the positions of another user N n Answers the question: is X transmitting? Example: 1 0 0 1 0 1 1 covers 1 0 0 1 0 0 1

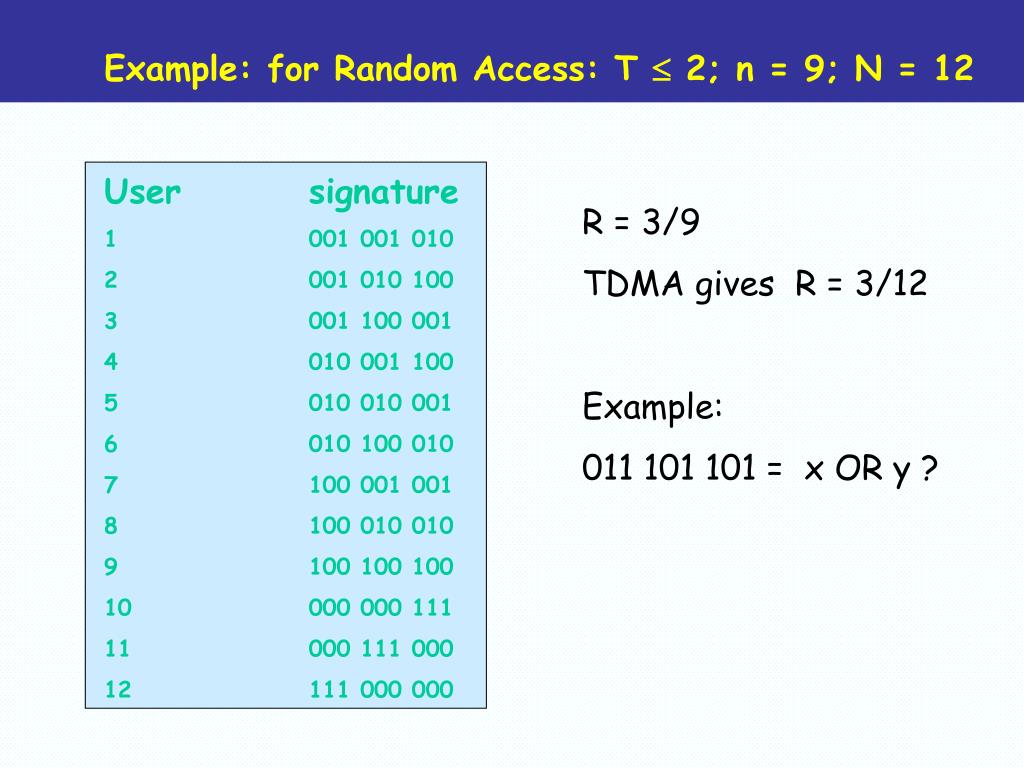

  17. Example: for Random Access: T  2; n = 9; N = 12 User signature 1 001 001 010 2 001 010 100 3 001 100 001 4 010 001 100 5 010 010 001 6 010 100 010 7 100 001 001 8 100 010 010 9 100 100 100 10 000 000 111 11 000 111 000 12 111 000 000 R = 3/9 TDMA gives R = 3/12 Example: 011 101 101 = x OR y ?

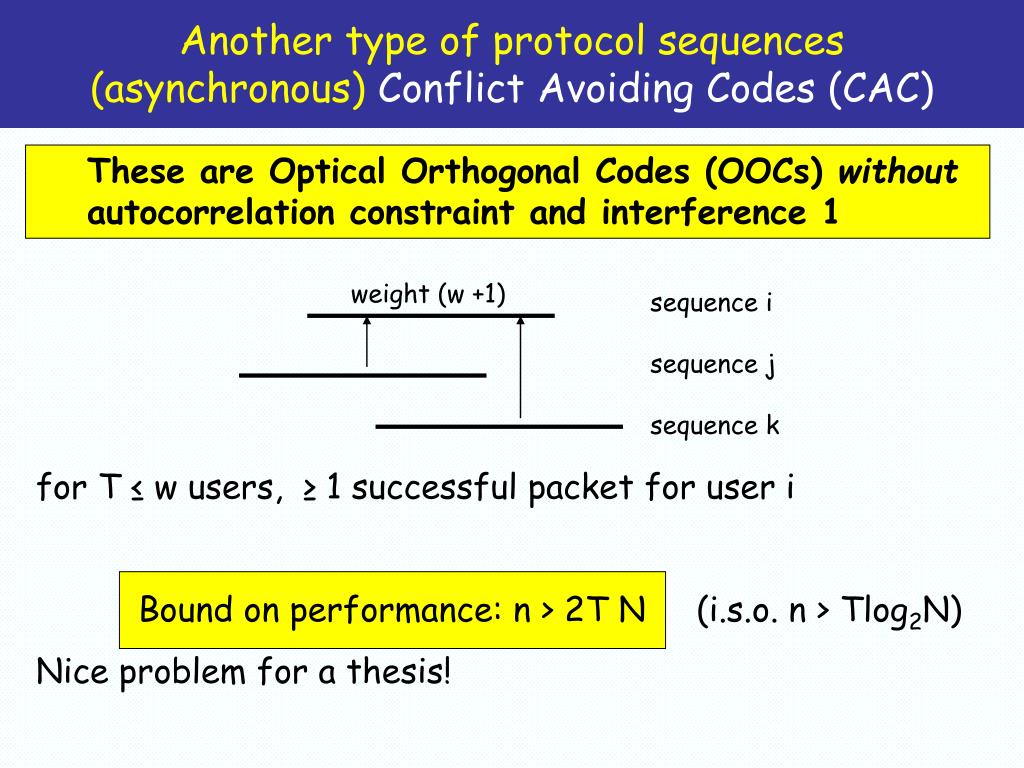

  18. Another type of protocol sequences(asynchronous) Conflict Avoiding Codes (CAC) These are Optical Orthogonal Codes (OOCs) without autocorrelation constraint and interference 1 weight (w +1) sequence i sequence j sequence k for T ≤ w users, ≥ 1 successful packet for user i Bound on performance: n > 2T N (i.s.o. n > Tlog2N) Nice problem for a thesis!

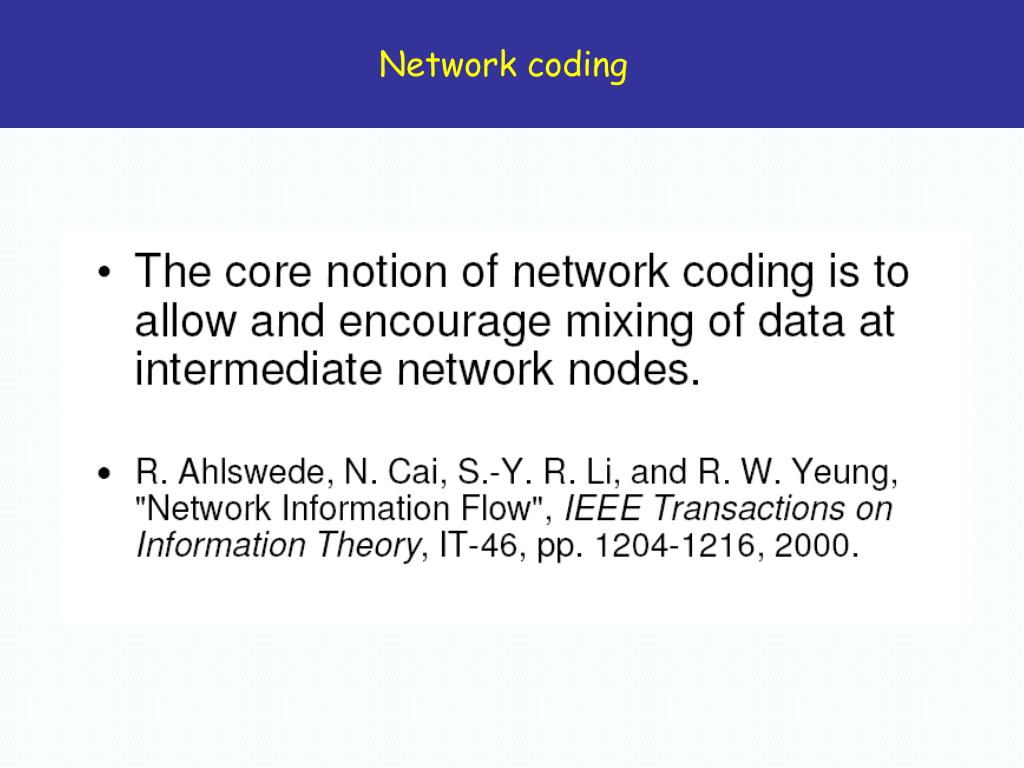

  19. Network coding

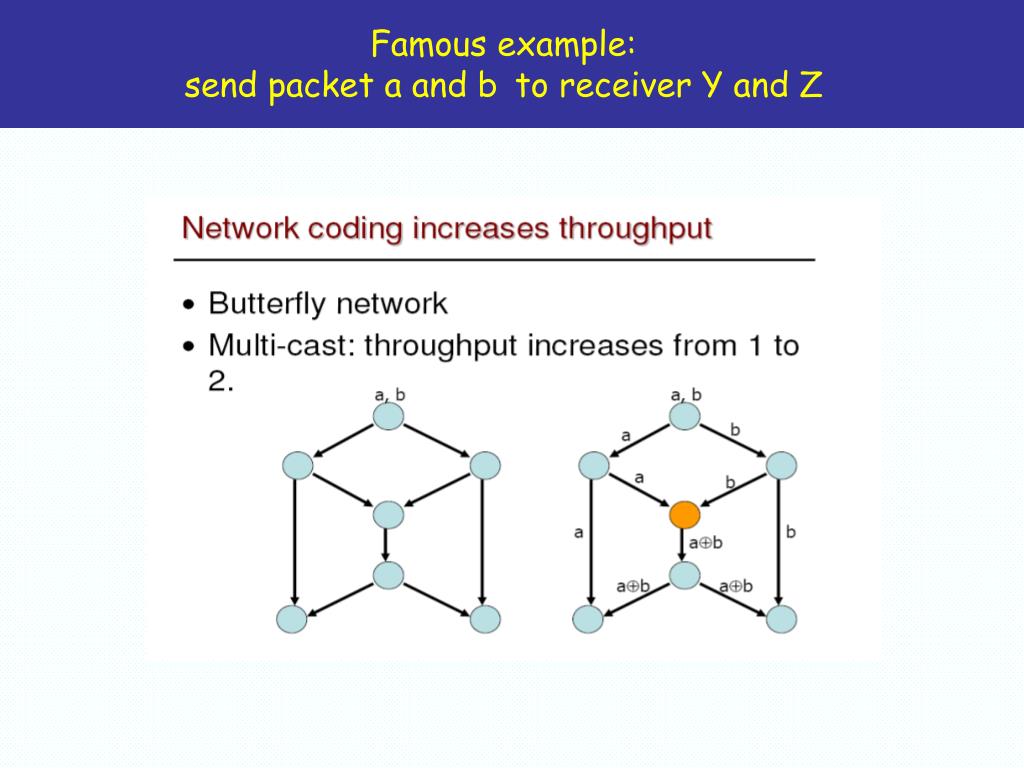

  20. Famous example: send packet a and b to receiver Y and Z

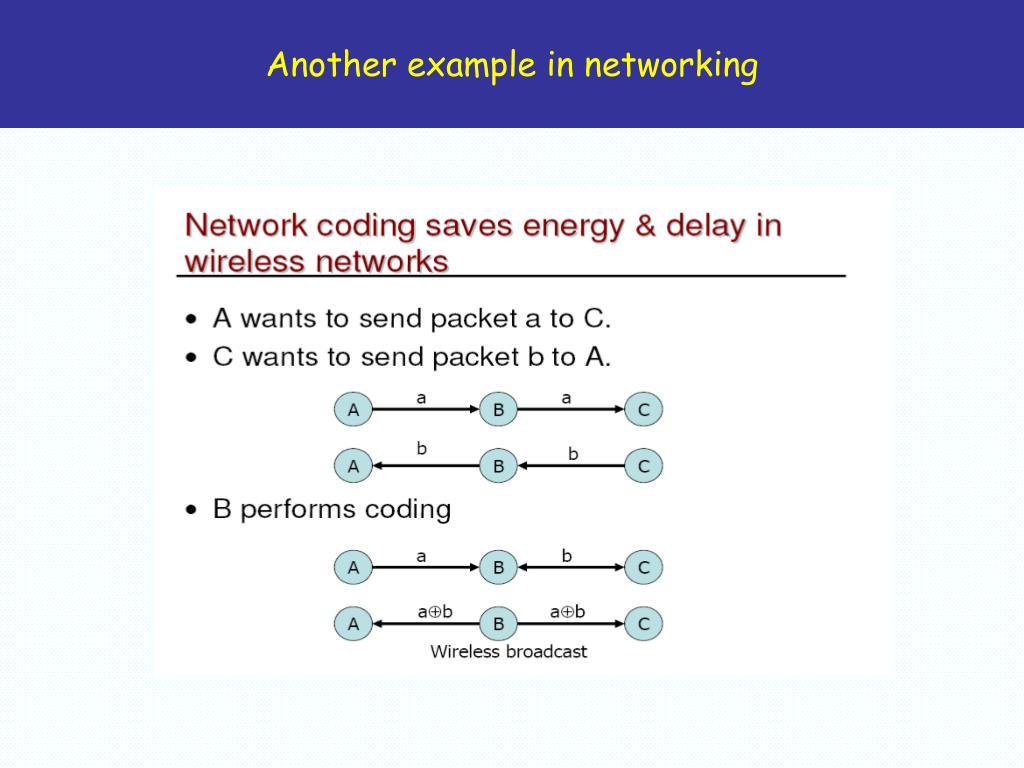

  21. Another example in networking
