  1. Enterprise aplikatsiooni deploy IBM WebSphere 5.0 serverile Ivo Mägi

  2. Aplikatsiooni struktuur applications/<appname>/ META-INF/ application.xml <ejb_module> EJB klassid META-INF/ ejb-jar.xml <web_module>/ index.html JSP pages WEB-INF/ web.xml classes/ Servleti klassid

  3. application.xml ?xml version="1.0" encoding="UTF-8"?> <application id="Application_ID"> <display-name>PetStoreEAR</display-name> <description>The BluePrints Petstore Built On top of the Web Application Framework.</description> <module id="EjbModule_1"> <ejb>petstore-ejb.jar</ejb> </module> <module id="WebModule_1"> <web> <web-uri>petstore.war</web-uri> <context-root>petstore</context-root> </web> </module> </application>

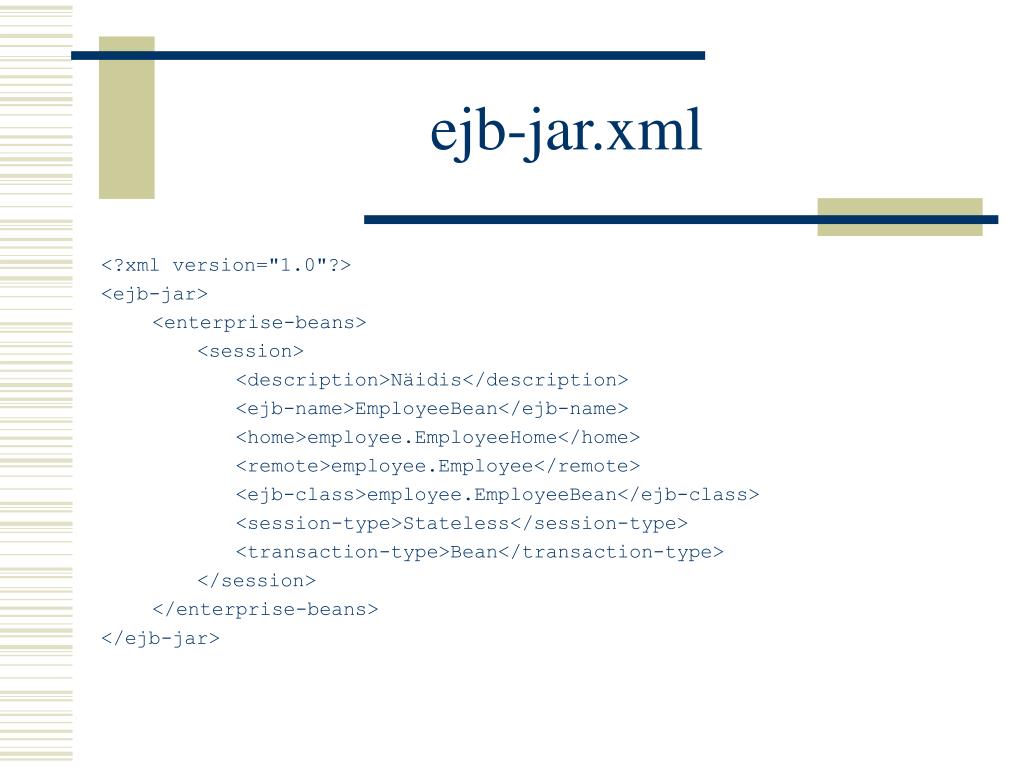

  4. ejb-jar.xml <?xml version="1.0"?> <ejb-jar> <enterprise-beans> <session> <description>Näidis</description> <ejb-name>EmployeeBean</ejb-name> <home>employee.EmployeeHome</home> <remote>employee.Employee</remote> <ejb-class>employee.EmployeeBean</ejb-class> <session-type>Stateless</session-type> <transaction-type>Bean</transaction-type> </session> </enterprise-beans> </ejb-jar>

  5. web.xml <?xml version="1.0"?> <web-app> <servlet> <servlet-name>psmain</servlet-name> <servlet-class>ee.et.ps.web.controller.PSServlet</servlet-class> <init-param> <param-name>templates-inlining</param-name> <param-value>false</param-value> </init-param> <servlet-mapping> <servlet-name>psmain</servlet-name> <url-pattern>/psmain</url-pattern> </servlet-mapping> <ejb-ref> <ejb-ref-name>EmployeeBean</ejb-ref-name> <ejb-ref-type>Session</ejb-ref-type> <home>employee.EmployeeHome</home> <remote>employee.Employee</remote> </ejb-ref> </servlet> </web-app>

  6. WebSphere spetsiifika <appname> META-INF/ ibm-application-bnd.xmi ibm-application-ext.xmi <ejb-module> ibm-ejb-jar-bnd.xmi ibm-ejb-jar-ext.xmi <web-module> ibm-web-bnd.xmi ibm-web-ext.xmi

  7. Paketistruktuuri koostamine • AAT(Application Assembly Tool) • ANT(taskid javac+jar)

  8. Deploy • Administration console • Shelli skriptid
