  1. C2 to the Tactical Edge ASNE Day 2011 Joe Famme Bryan Price Ted Raitch Jim Davison February 10, 2011 r10 ASNE Day 2011

  2. C2 to the Tactical Edge C2 Joe Famme Bryan Price Ted Raitch Jim Davison ASNE February 10, 2011 ASNE Day 2011

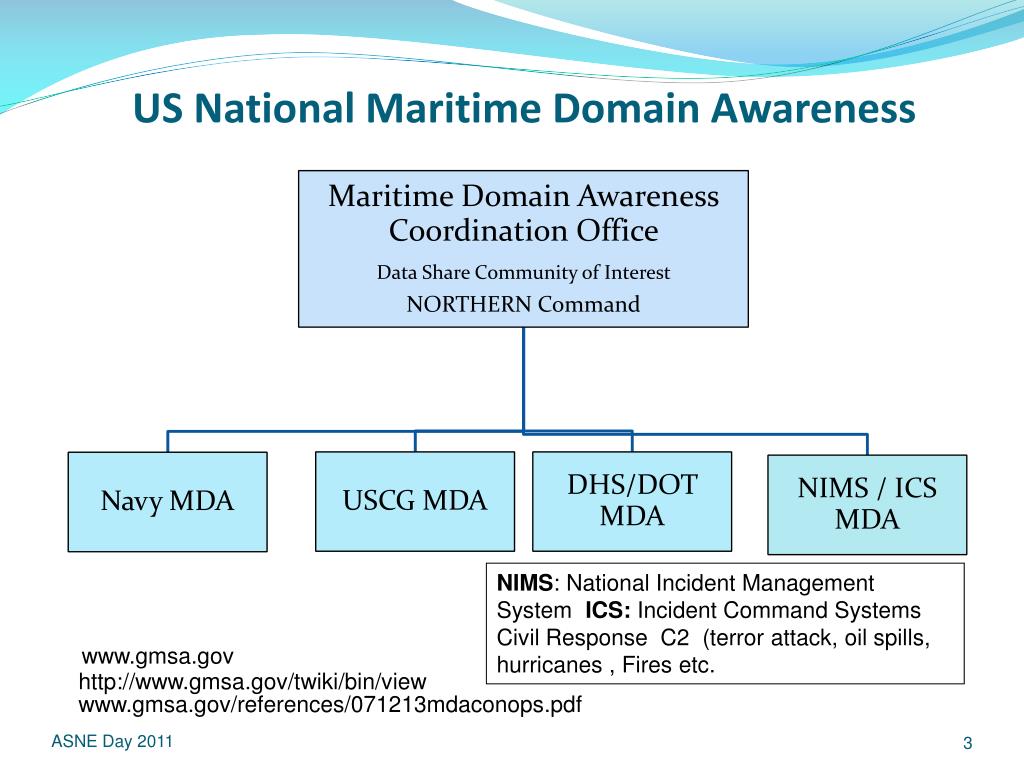

  3. US National Maritime Domain Awareness NIMS: National Incident Management System ICS: Incident Command Systems Civil Response C2 (terror attack, oil spills, hurricanes , Fires etc. www.gmsa.gov http://www.gmsa.gov/twiki/bin/view www.gmsa.gov/references/071213mdaconops.pdf ASNE Day 2011

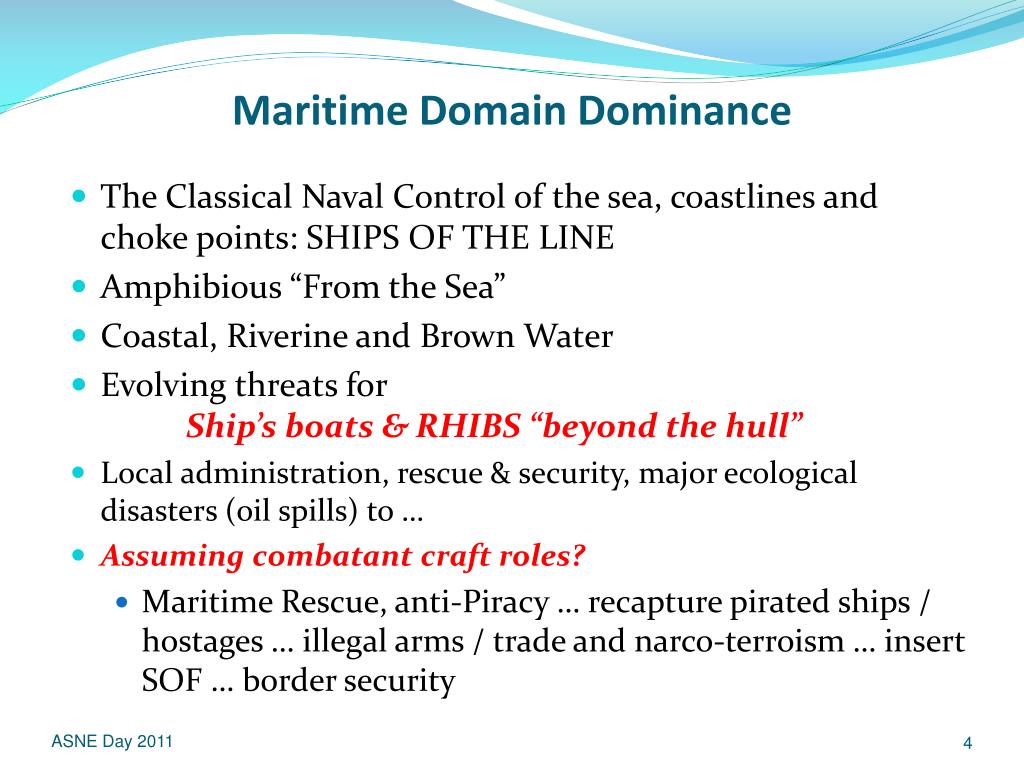

  4. Maritime Domain Dominance • The Classical Naval Control of the sea, coastlines and choke points: SHIPS OF THE LINE • Amphibious “From the Sea” • Coastal, Riverine and Brown Water • Evolving threats for Ship’s boats & RHIBS “beyond the hull” • Local administration, rescue & security, major ecological disasters (oil spills) to … • Assuming combatant craft roles? • Maritime Rescue, anti-Piracy … recapture pirated ships / hostages … illegal arms / trade and narco-terroism … insert SOF … border security ASNE Day 2011

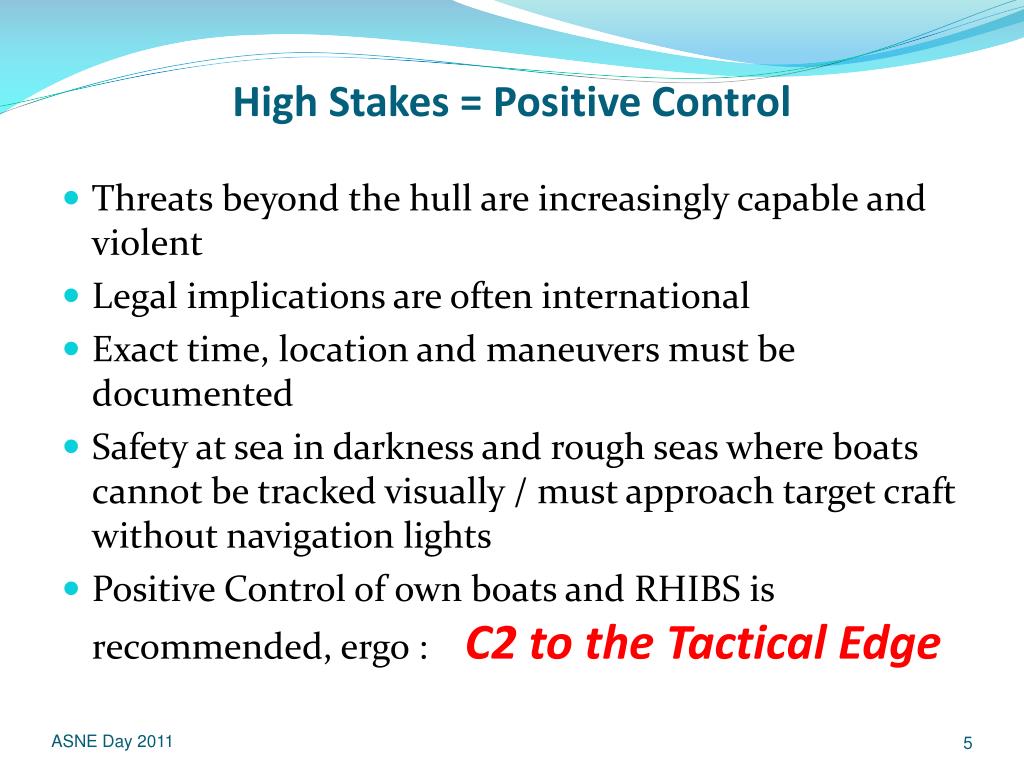

  5. High Stakes = Positive Control Threats beyond the hull are increasingly capable and violent Legal implications are often international Exact time, location and maneuvers must be documented Safety at sea in darkness and rough seas where boats cannot be tracked visually / must approach target craft without navigation lights Positive Control of own boats and RHIBS is recommended, ergo : C2 to the Tactical Edge ASNE Day 2011

  6. C2 for Tactical Response Beyond the HullAnti-pirates, terror, drugs, illegal trade … border & port securityHazardous navigation, darkness & high sea states…International law / legal implications – often violent encounters Where is the boat? Condition? Execute Tactical Exchange ASNE Day 2011

  7. The Tactical Edge That location where responsible personnel with the correct preparation, including updates in route, arrive and gain understanding of the assistance needed or the threat, continuously exchanging their situation with their control ship via direct or C2 relay via other ships, & air to achieve an immediate and appropriate response with force as needed. The C2 requirement is for an affordable capability that is flexible, adaptive and agile, and interoperable with U.S. and allied coalition forces. ASNE Day 2011

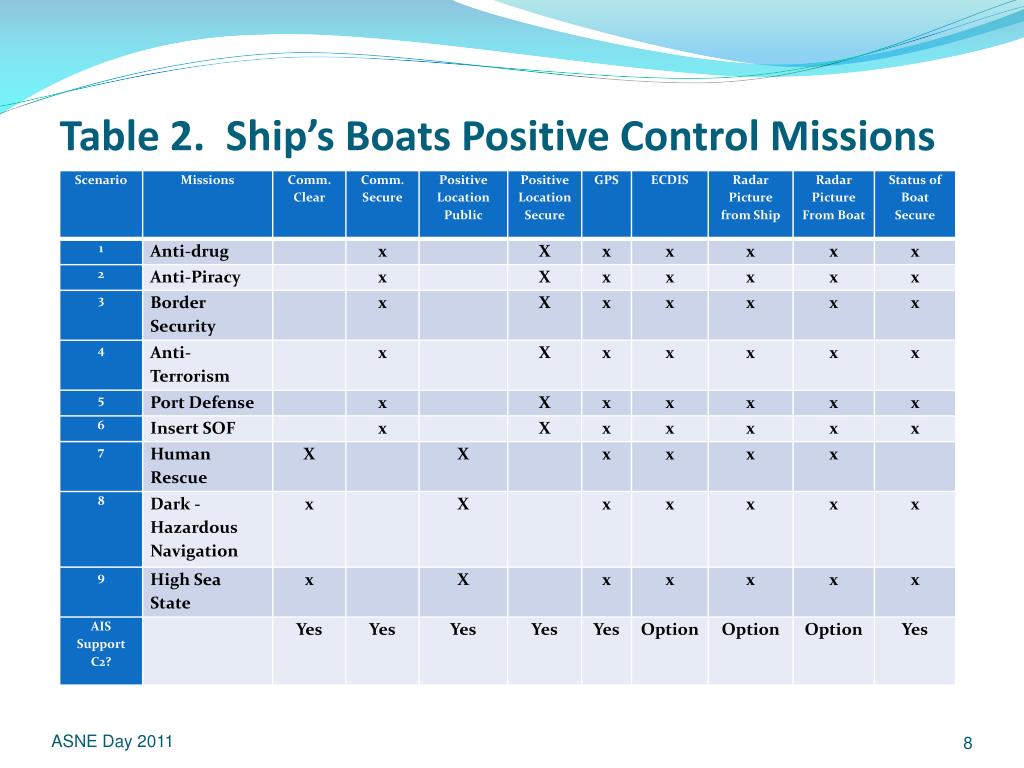

  8. Table 2. Ship’s Boats Positive Control Missions ASNE Day 2011

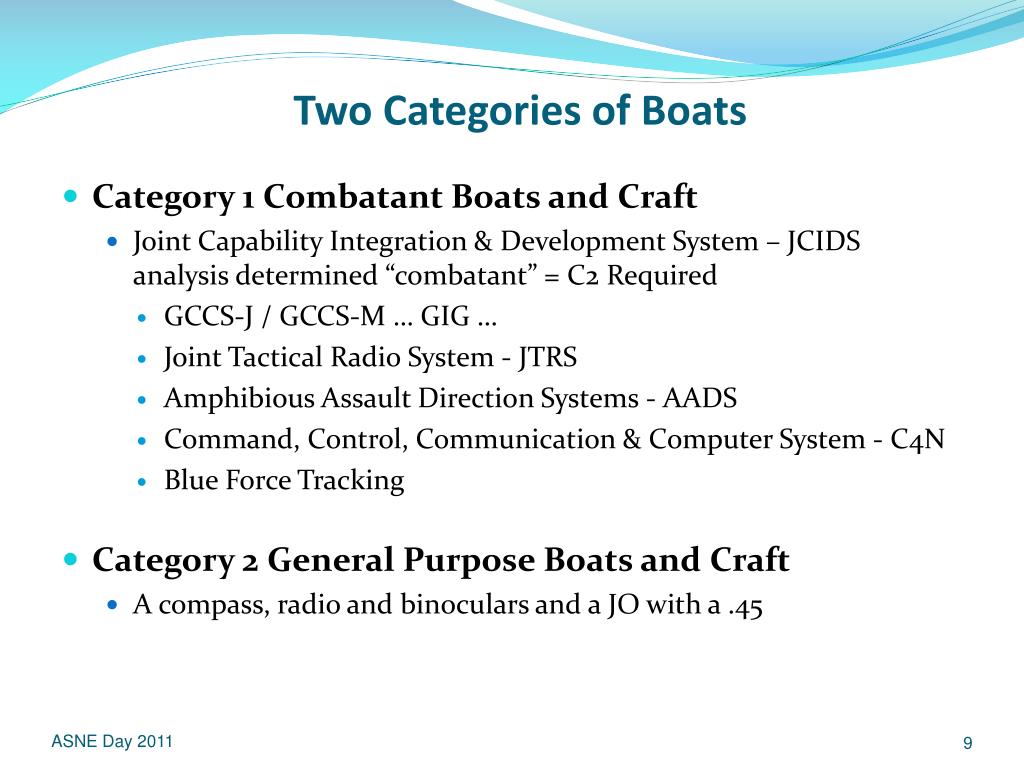

  9. Two Categories of Boats • Category 1 Combatant Boats and Craft • Joint Capability Integration & Development System – JCIDS analysis determined “combatant” = C2 Required • GCCS-J / GCCS-M … GIG … • Joint Tactical Radio System - JTRS • Amphibious Assault Direction Systems - AADS • Command, Control, Communication & Computer System - C4N • Blue Force Tracking • Category 2 General Purpose Boats and Craft • A compass, radio and binoculars and a JO with a .45 ASNE Day 2011

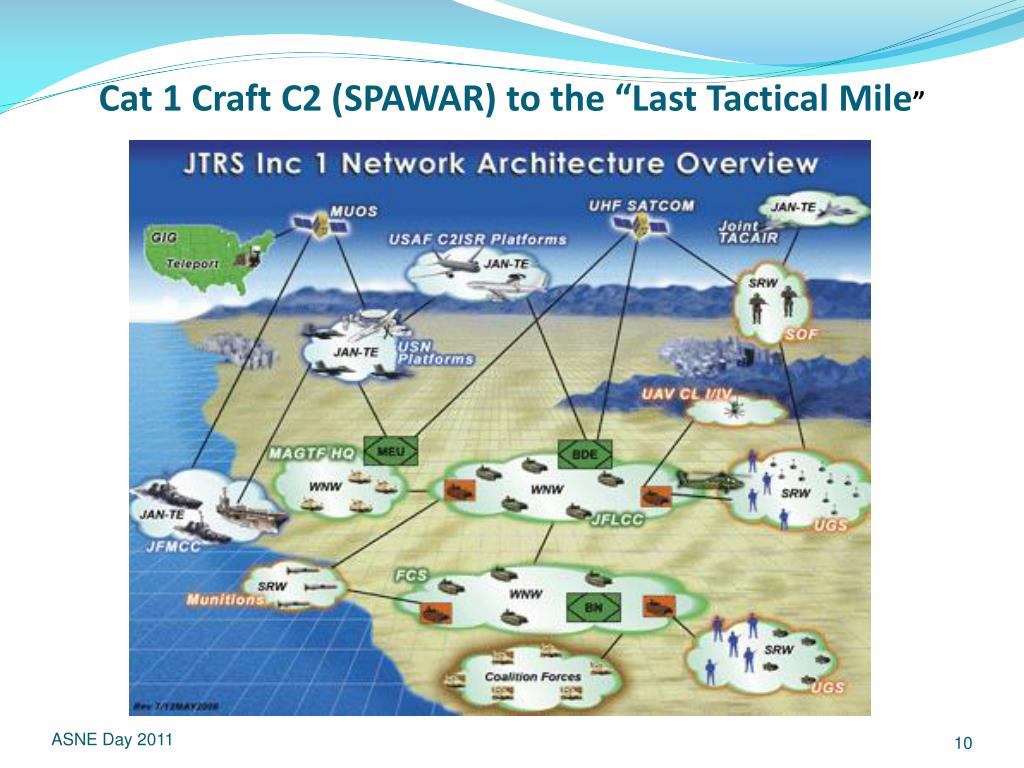

  10. Cat 1 Craft C2 (SPAWAR) to the “Last Tactical Mile” ASNE Day 2011

  11. RADIO RELAY • GROUP • RRG • Airborne Relay • USER TERMINAL • GROUP • UTG – LCAC/LCU • Provides PLI • PRIMARY • CONTROL GROUP • PCG • Directs Ship-to-Shore Movement • Mission Changes • Dynamic Reference Unit • SECONDARY • CONTROL GROUP • SCG • Backup to PCG • Dynamic Reference Unit • AMPHIBIOUS • COMMAND GROUP • ACG • Controls EPLRS Net Cat 1 C2 Amphibious Assault Direction System - AADS • Description • Amphibious Assault Direction System, AN/KSQ-1 with Enhanced Position Location Reporting System (EPLRS), integrates the NAVSTAR Global Positioning System (GPS) to form a jam / intercept resistant, friendly force tracking and command and control system that supports the surface assault ship-to-shore movement in amphibious operations Provides • Capability to Launch, Monitor, Track and Control Surface or Combined Surface and Air Amphibious Assaults up to 100 NM OTH • Seamless Integration with USMC S-T-O-M • Perform OTH Operations • Integration with GCCS-M Sub-Systems • AN/KSQ-1 • EPLRS Programmatic • ACAT III • ORD Signed (Requirement) May 89 • MS III Dec 95 • OPEVAL Apr 95 • IOC Mar 97 • FSTR Strategy Approved Jul 02 ASNE Day 2011

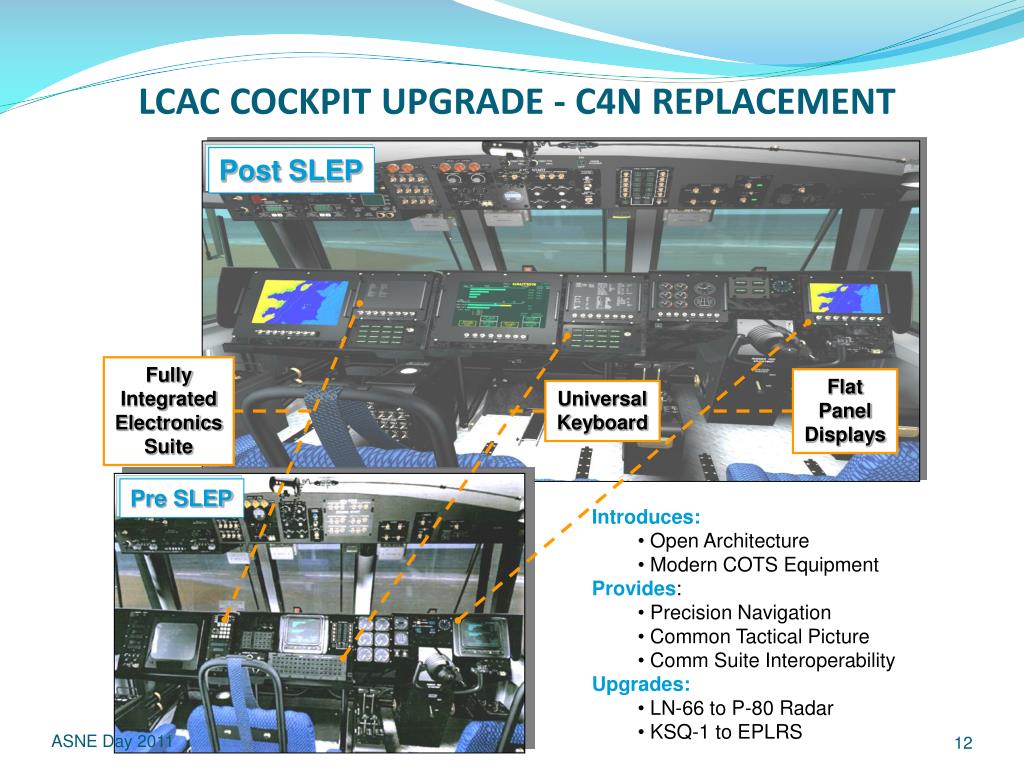

  12. Post SLEP Fully Integrated Electronics Suite Flat Panel Displays Universal Keyboard Pre SLEP • Introduces: • Open Architecture • Modern COTS Equipment • Provides: • Precision Navigation • Common Tactical Picture • Comm Suite Interoperability • Upgrades: • LN-66 to P-80 Radar • KSQ-1 to EPLRS LCAC COCKPIT UPGRADE - C4N REPLACEMENT ASNE Day 2011

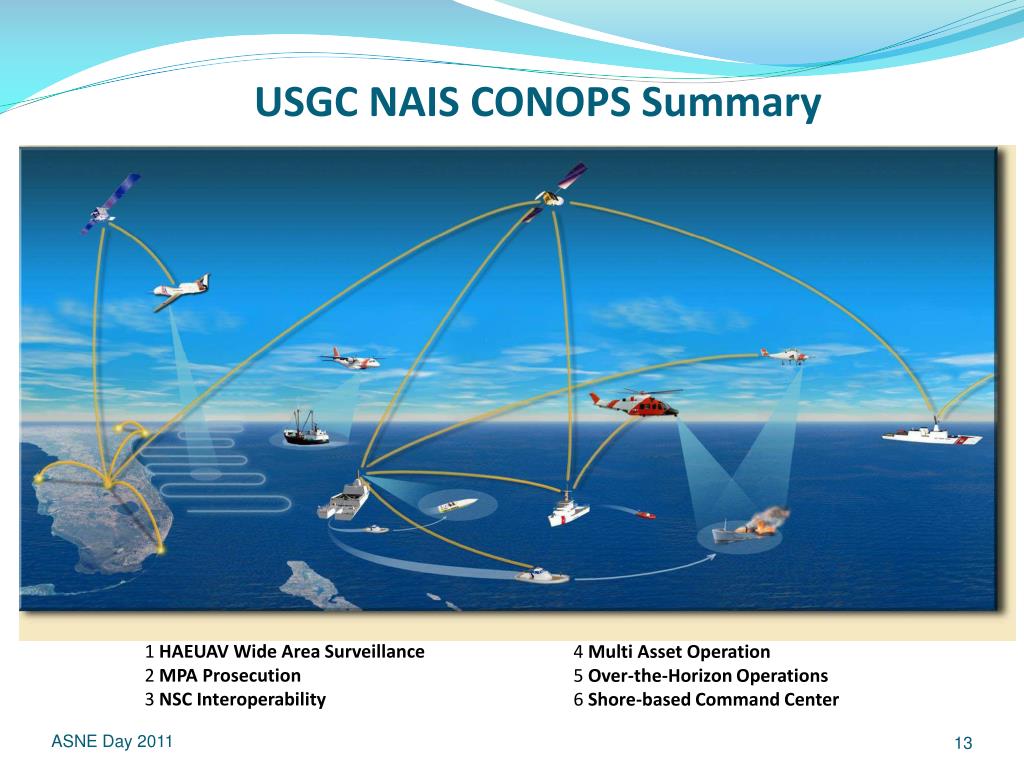

  13. USGC NAIS CONOPS Summary 1 HAEUAV Wide Area Surveillance 2 MPA Prosecution 3 NSC Interoperability 4 Multi Asset Operation 5 Over-the-Horizon Operations 6 Shore-based Command Center ASNE Day 2011

  14. AIS is International Gibraltar http://www.marinetraffic.com/ais/# ASNE Day 2011

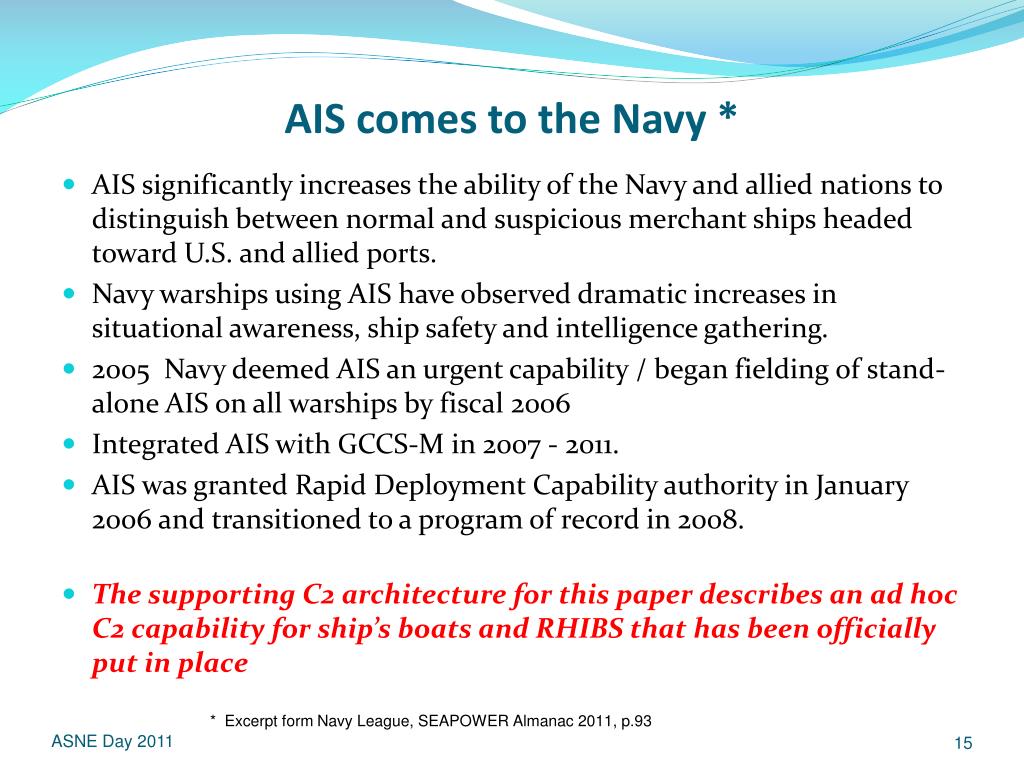

  15. AIS comes to the Navy * * Excerpt form Navy League, SEAPOWER Almanac 2011, p.93 AIS significantly increases the ability of the Navy and allied nations to distinguish between normal and suspicious merchant ships headed toward U.S. and allied ports. Navy warships using AIS have observed dramatic increases in situational awareness, ship safety and intelligence gathering. 2005 Navy deemed AIS an urgent capability / began fielding of stand­alone AIS on all warships by fiscal 2006 Integrated AIS with GCCS-M in 2007 - ­2011. AIS was granted Rapid Deployment Capability authority in January 2006 and transitioned to a program of record in 2008. The supporting C2 architecture for this paper describes an ad hoc C2 capability for ship’s boats and RHIBS that has been officially put in place ASNE Day 2011

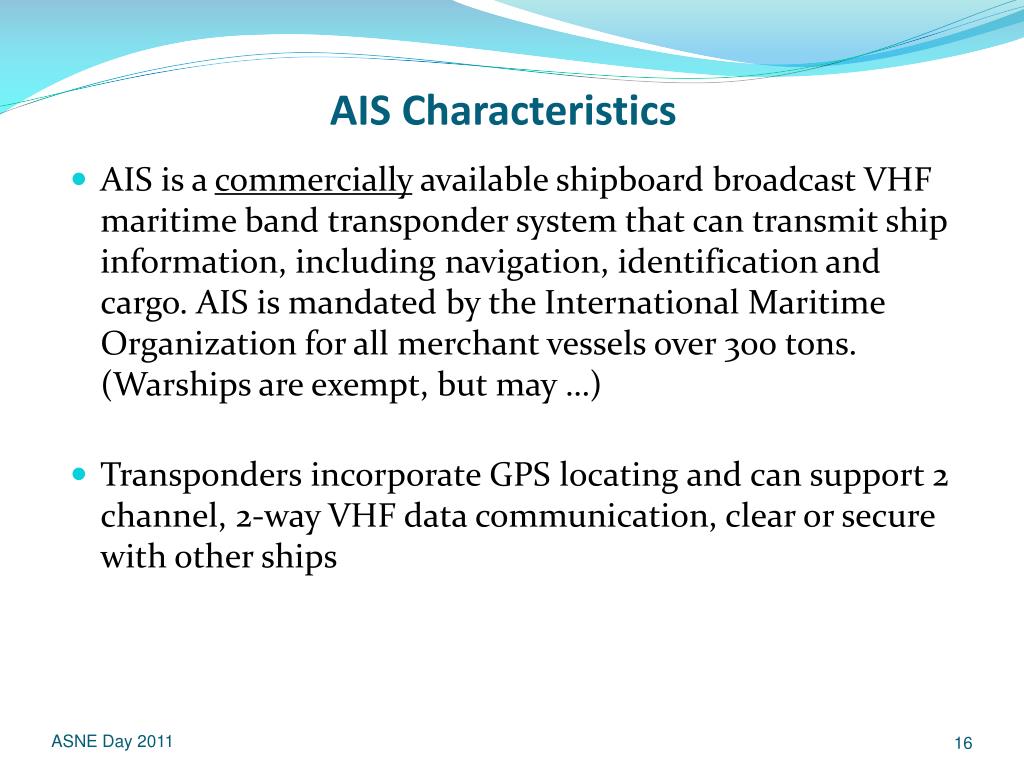

  16. AIS Characteristics AIS is a commercially available shipboard broad­cast VHF maritime band transponder system that can transmit ship information, including navigation, identification and cargo. AIS is mandated by the International Maritime Organization for all merchant vessels over 300 tons. (Warships are exempt, but may …) Transponders incorporate GPS locating and can support 2 channel, 2-way VHF data communication, clear or secure with other ships ASNE Day 2011

  17. DOD Policy: New IT / C2 Capability Without Risk Recommend AIS Based Small Boat C2 : Discussion NAVSEA guidance for new IT & C2 Systems.* Link 16 is currently BW Limited New systems must be mature (TLR 8 or 9) “State of the Shelf” Therefore what C2 systems areavailable ? Which C2 base to use for ship’s boats & RHIBS ? CAT 1 : GCCS Family of Systems ? Cat 2 : AIS based C2 capabilities ? ASNE Day 2011 * AFCEA Conference 22 Oct 10, Pentagon City

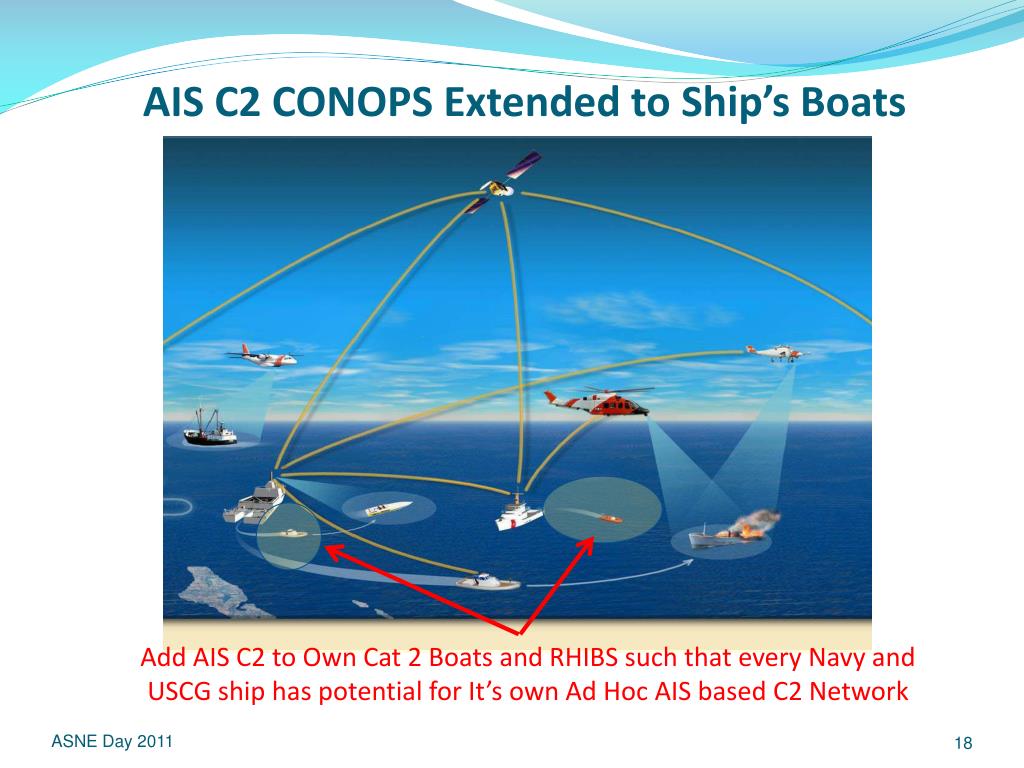

  18. AIS C2 CONOPS Extended to Ship’s Boats Add AIS C2 to Own Cat 2 Boats and RHIBS such that every Navy and USCG ship has potential for It’s own Ad Hoc AIS based C2 Network ASNE Day 2011

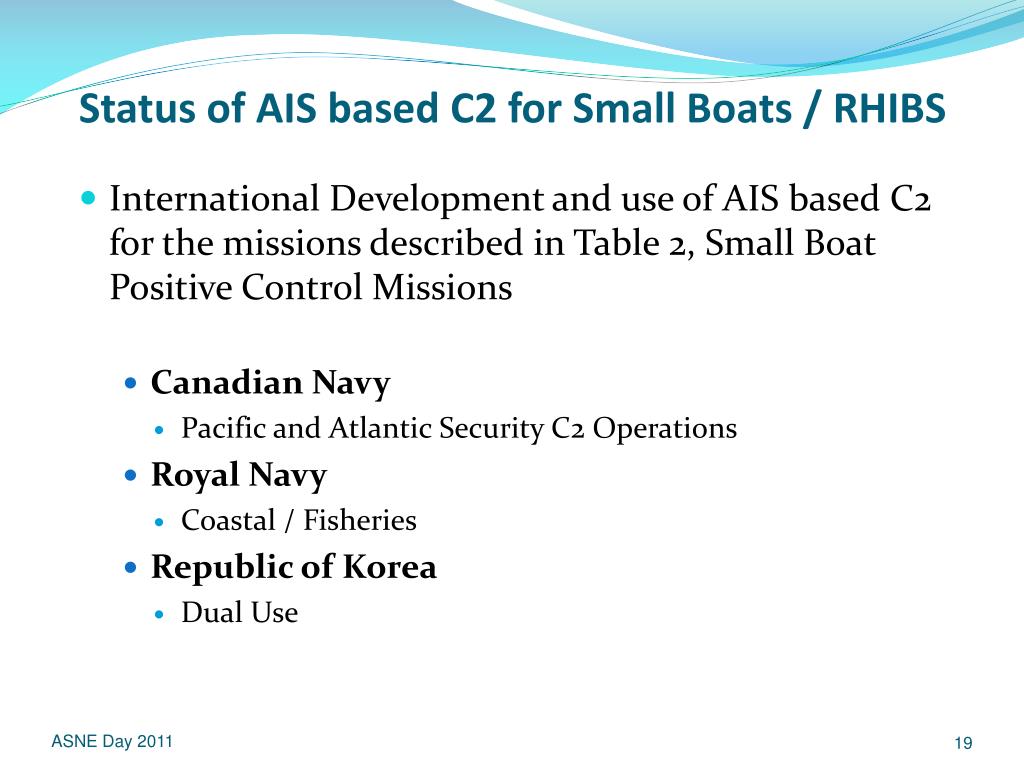

  19. Status of AIS based C2 for Small Boats / RHIBS • International Development and use of AIS based C2 for the missions described in Table 2, Small Boat Positive Control Missions • Canadian Navy • Pacific and Atlantic Security C2 Operations • Royal Navy • Coastal / Fisheries • Republic of Korea • Dual Use ASNE Day 2011

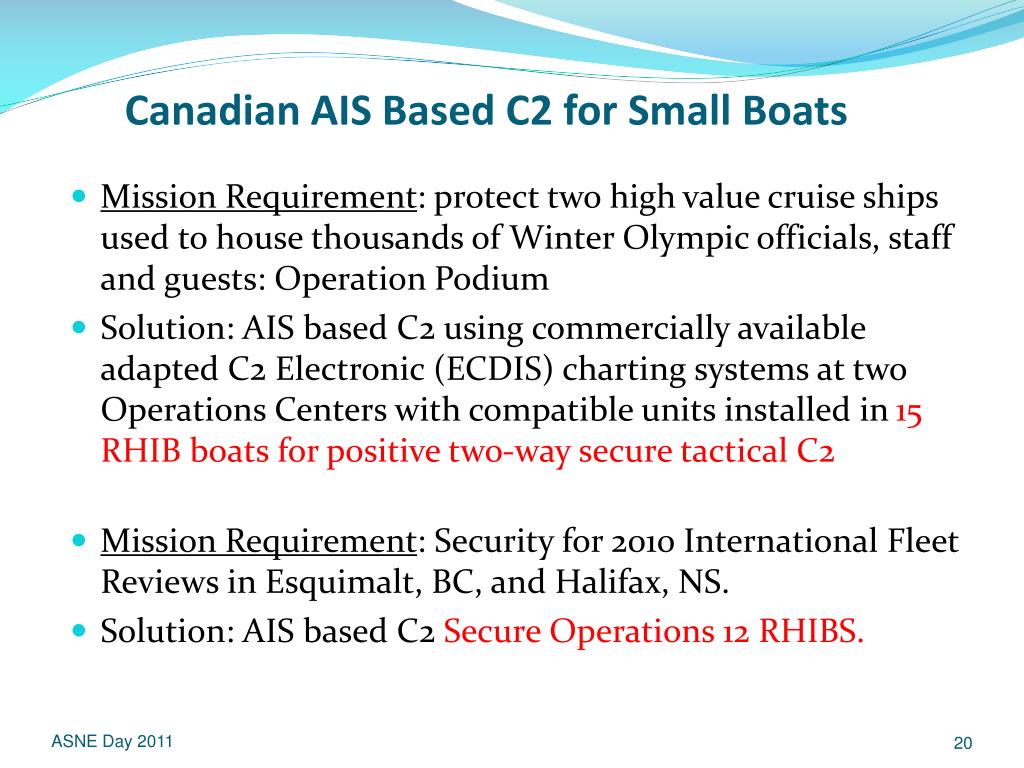

  20. Canadian AIS Based C2 for Small Boats Mission Requirement: protect two high value cruise ships used to house thousands of Winter Olympic officials, staff and guests: Operation Podium Solution: AIS based C2 using commercially available adapted C2 Electronic (ECDIS) charting systems at two Operations Centers with compatible units installed in 15 RHIB boats for positive two-way secure tactical C2 Mission Requirement: Security for 2010 International Fleet Reviews in Esquimalt, BC, and Halifax, NS. Solution: AIS based C2 Secure Operations 12 RHIBS. ASNE Day 2011

  21. Canadian Operations Vancouver Olympics * Esquimalt 2010 ASNE Day 2011

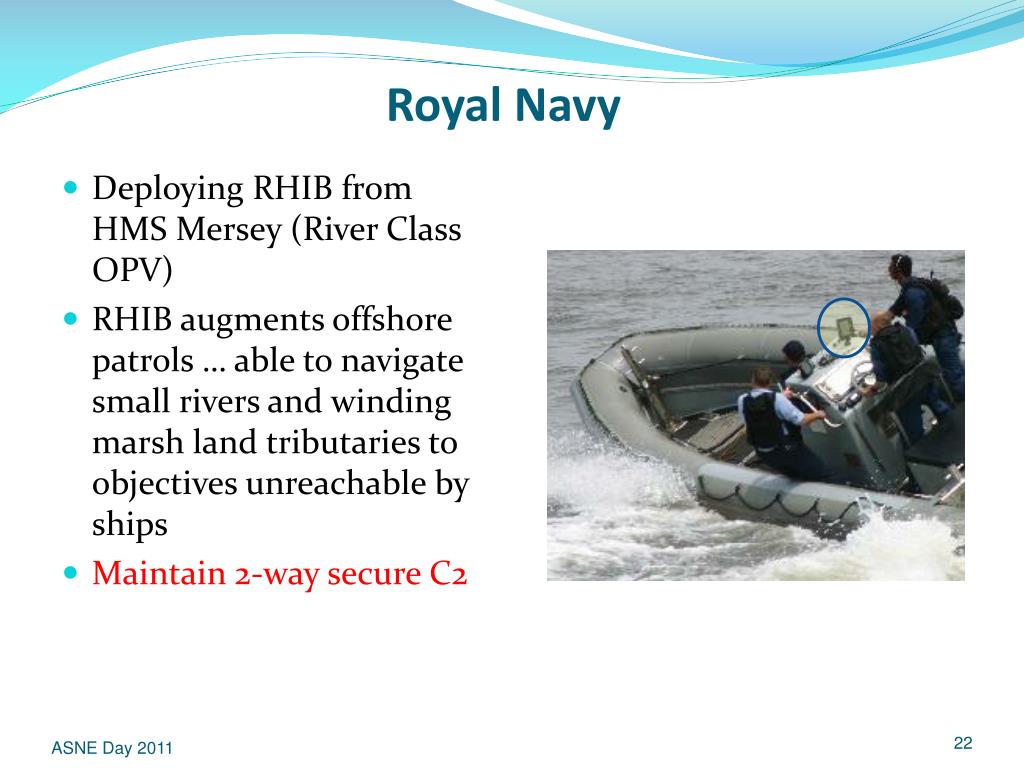

  22. Royal Navy • Deploying RHIB from HMS Mersey (River Class OPV) • RHIB augments offshore patrols … able to navigate small rivers and winding marsh land tributaries to objectives unreachable by ships • Maintain 2-way secure C2 ASNE Day 2011

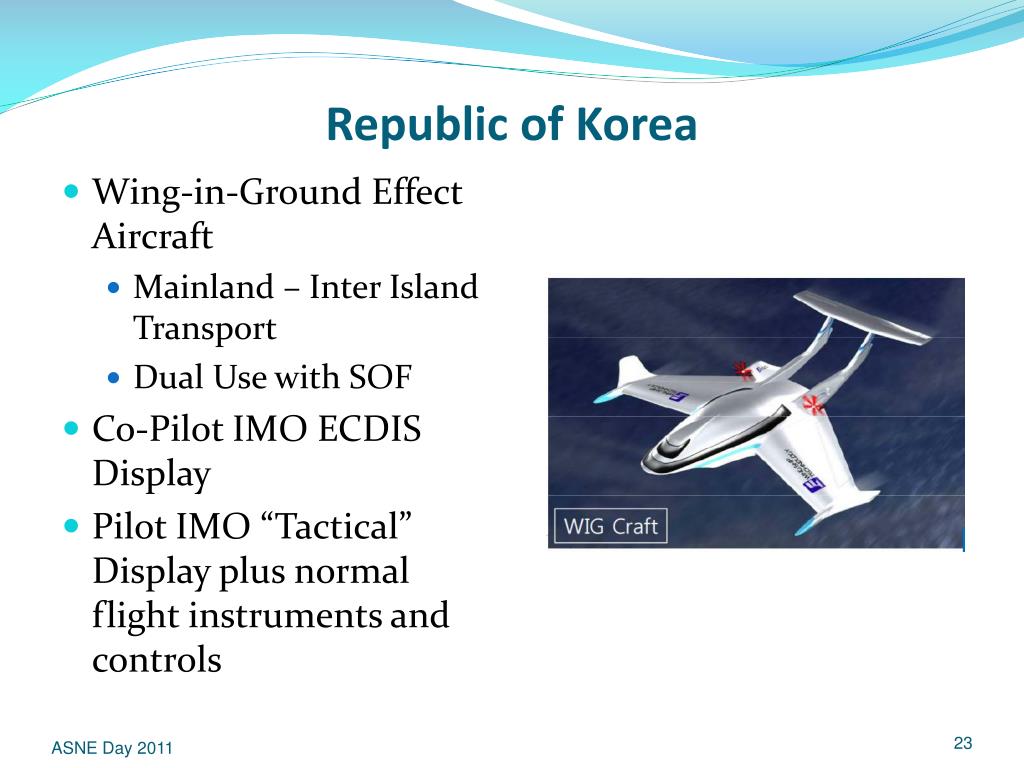

  23. Republic of Korea • Wing-in-Ground Effect Aircraft • Mainland – Inter Island Transport • Dual Use with SOF • Co-Pilot IMO ECDIS Display • Pilot IMO “Tactical” Display plus normal flight instruments and controls ASNE Day 2011

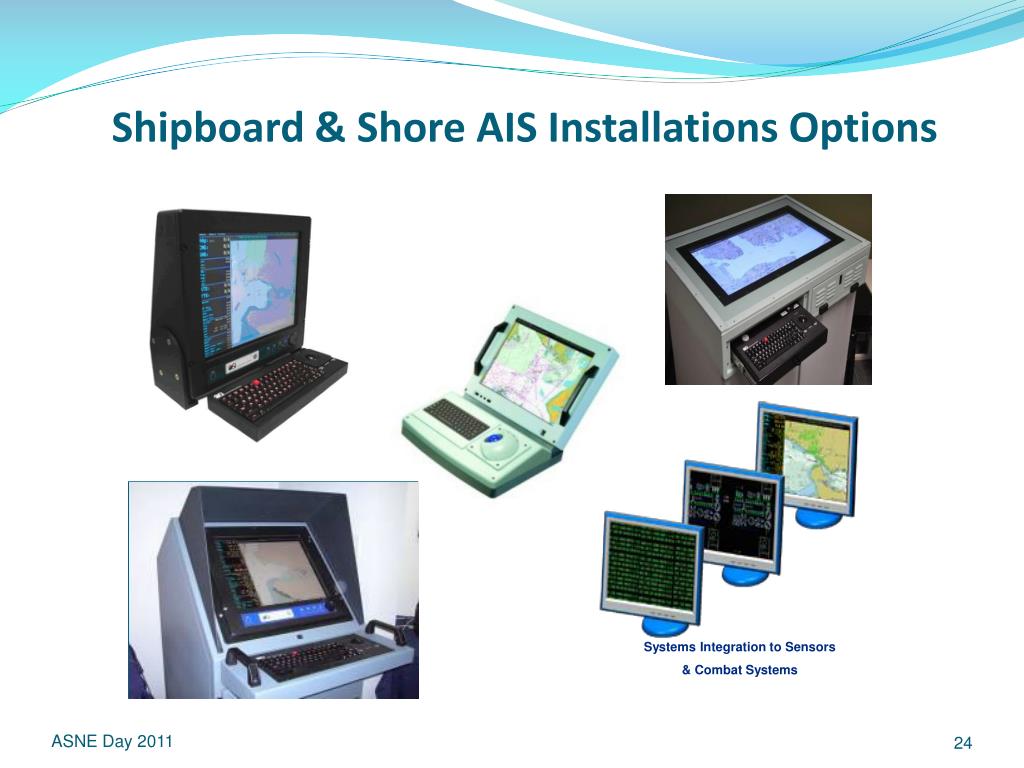

  24. Shipboard & Shore AIS Installations Options Systems Integration to Sensors & Combat Systems ASNE Day 2011

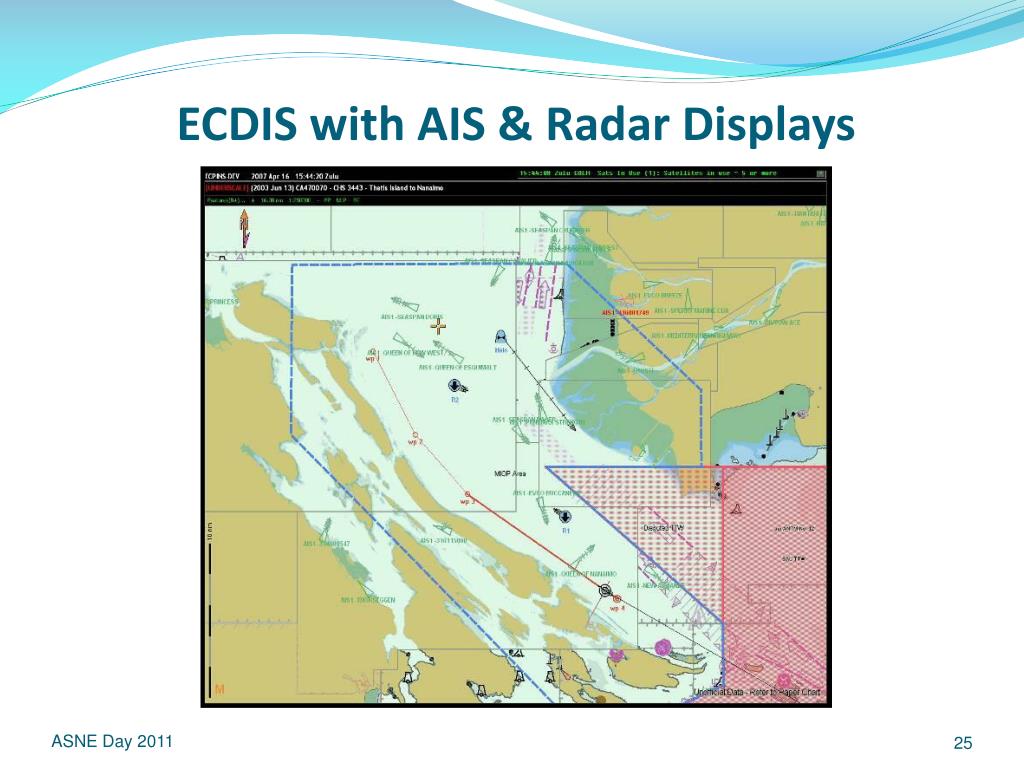

  25. ECDIS with AIS & Radar Displays ASNE Day 2011

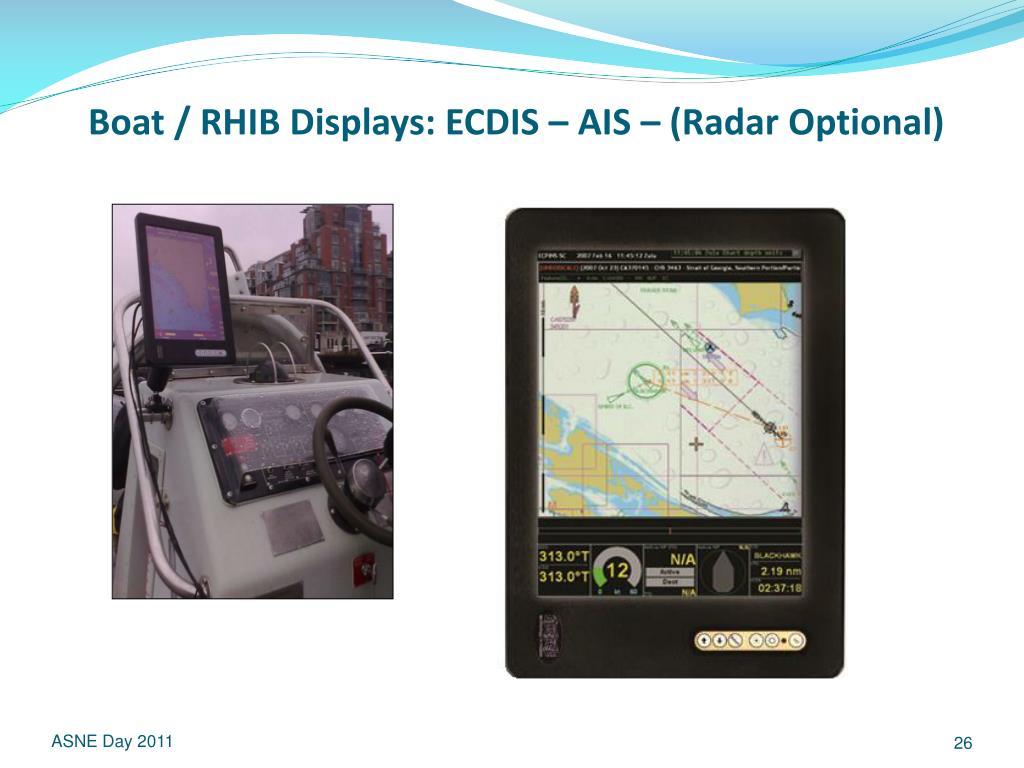

  26. Boat / RHIB Displays: ECDIS – AIS – (Radar Optional) ASNE Day 2011

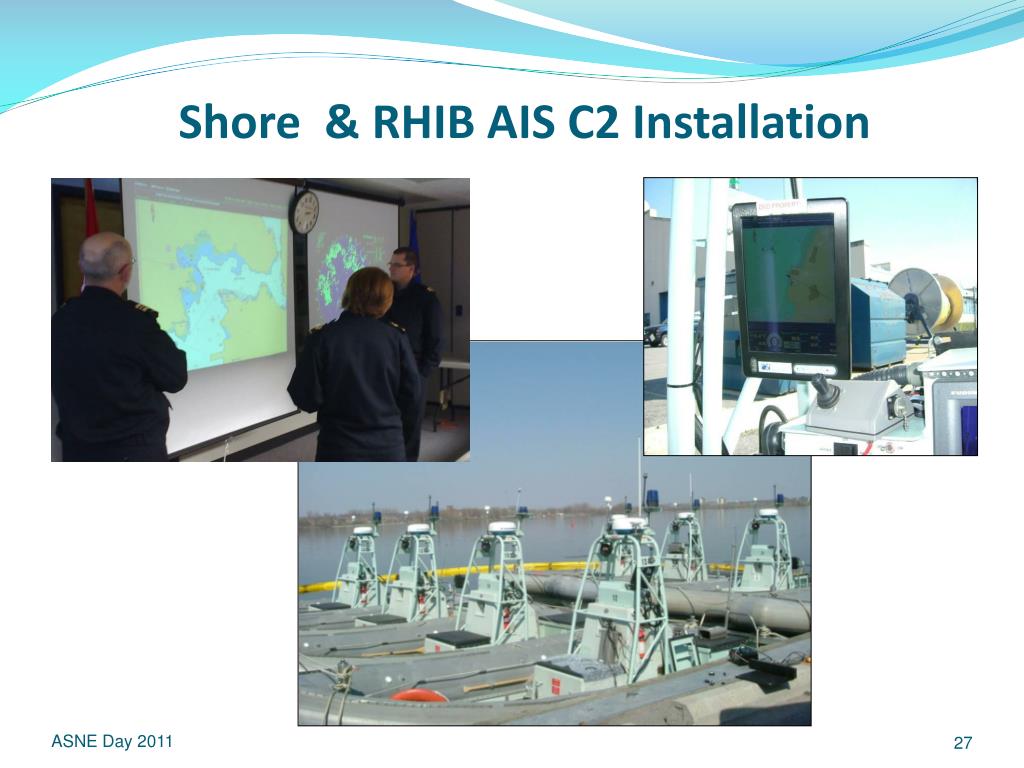

  27. Shore & RHIB AIS C2 Installation ASNE Day 2011

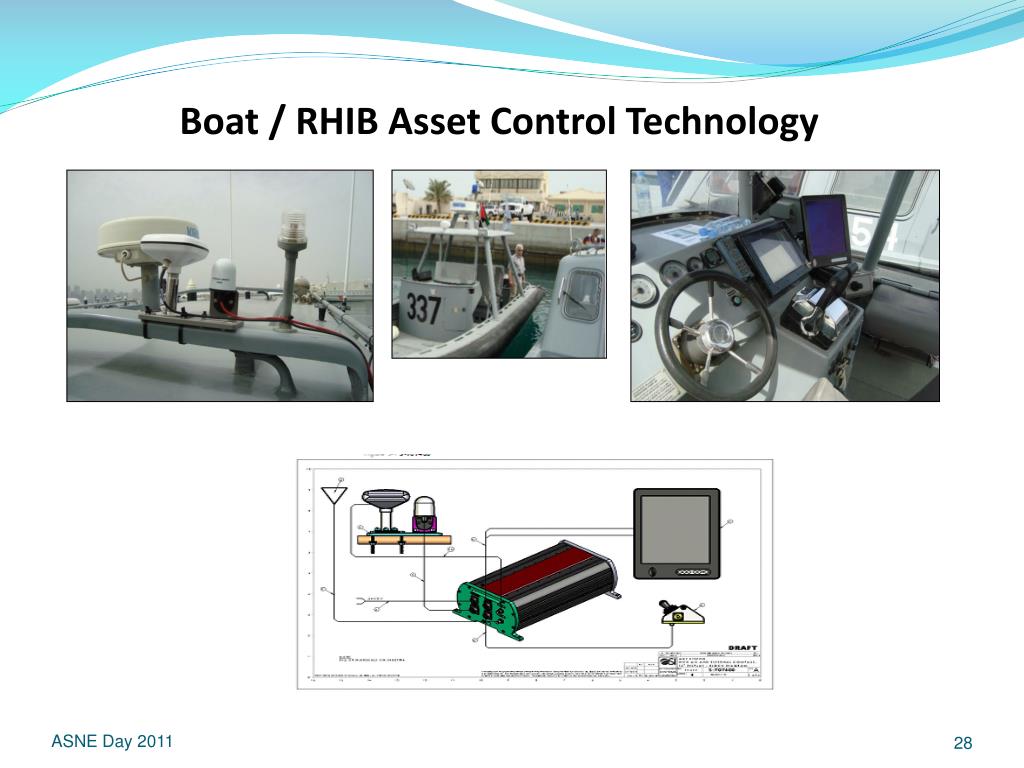

  28. Boat / RHIB Asset Control Technology ASNE Day 2011

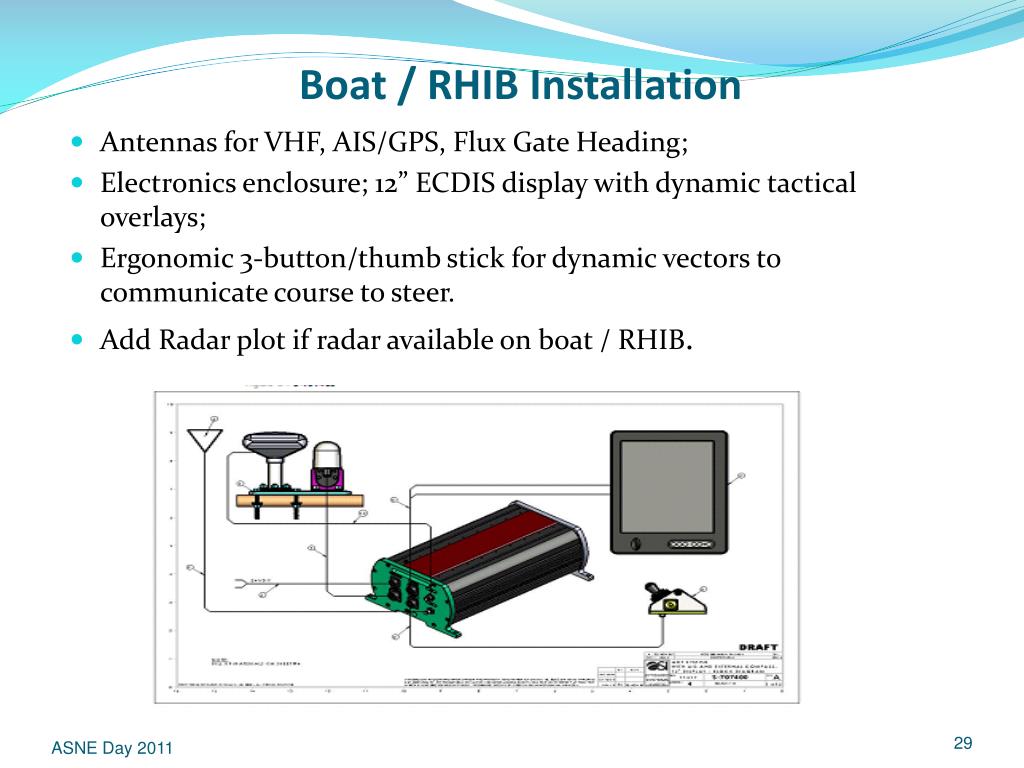

  29. Boat / RHIB Installation • Antennas for VHF, AIS/GPS, Flux Gate Heading; • Electronics enclosure; 12” ECDIS display with dynamic tactical overlays; • Ergonomic 3-button/thumb stick for dynamic vectors to communicate course to steer. • Add Radar plot if radar available on boat / RHIB. ASNE Day 2011

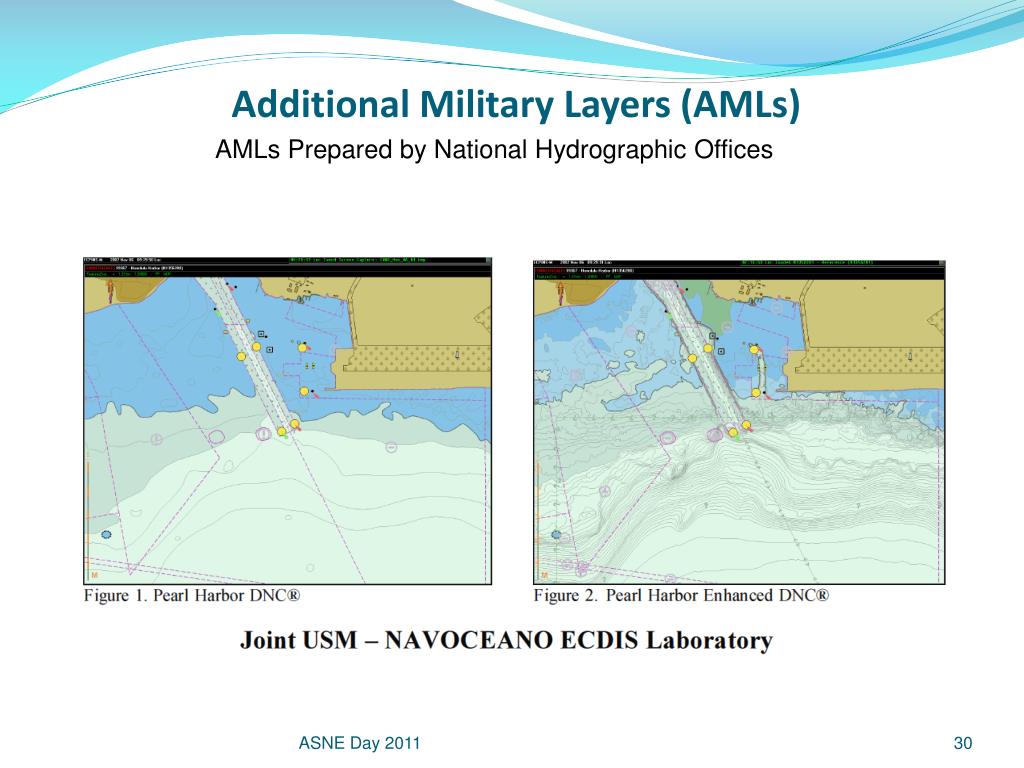

  30. Additional Military Layers (AMLs) AMLs Prepared by National Hydrographic Offices ASNE Day 2011

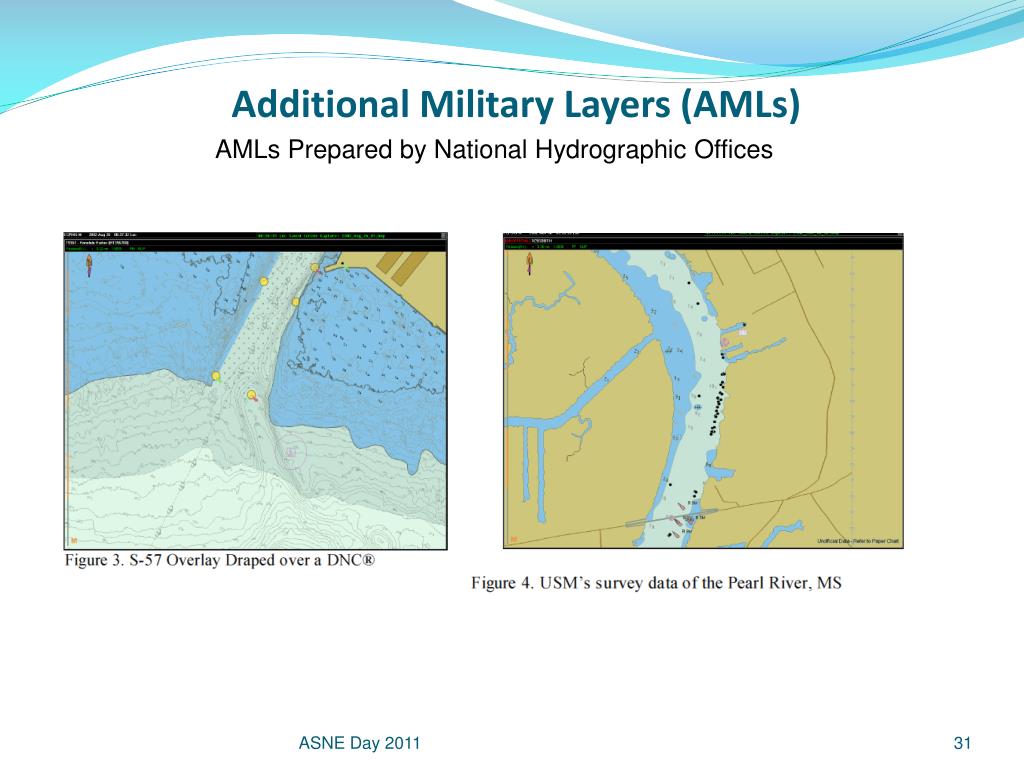

  31. Additional Military Layers (AMLs) AMLs Prepared by National Hydrographic Offices ASNE Day 2011

  32. Additional Military Layers (AMLs) AMLs Prepared by National Hydrographic Offices ASNE Day 2011

  33. AML Details ASNE Day 2011

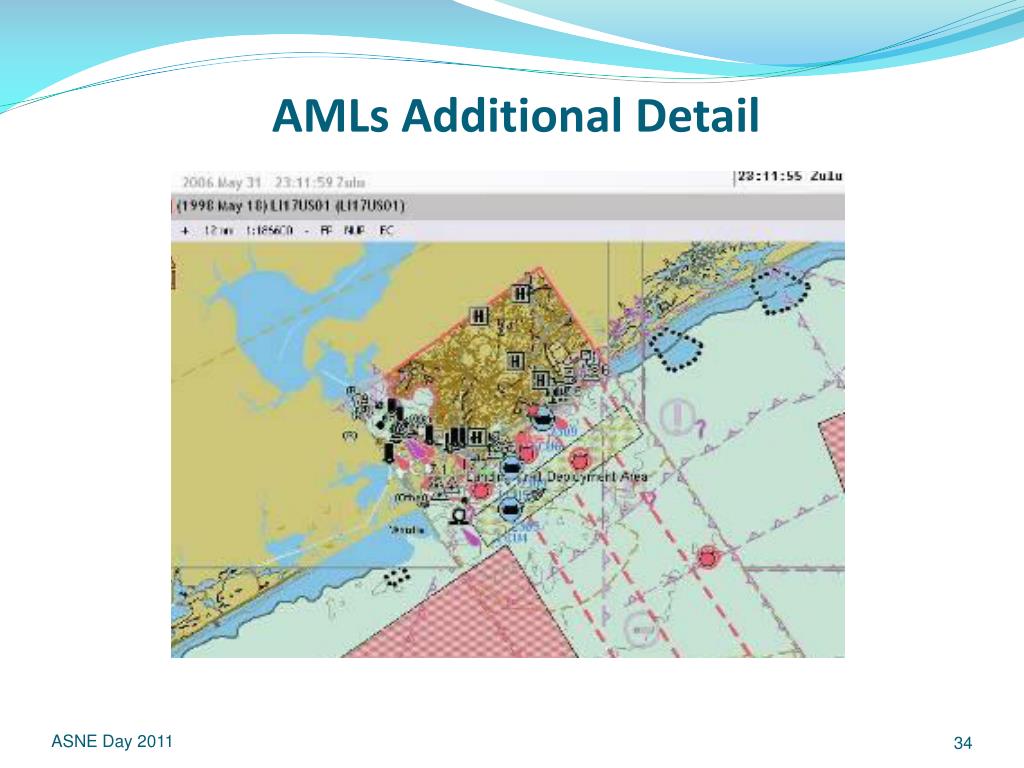

  34. AMLs Additional Detail ASNE Day 2011

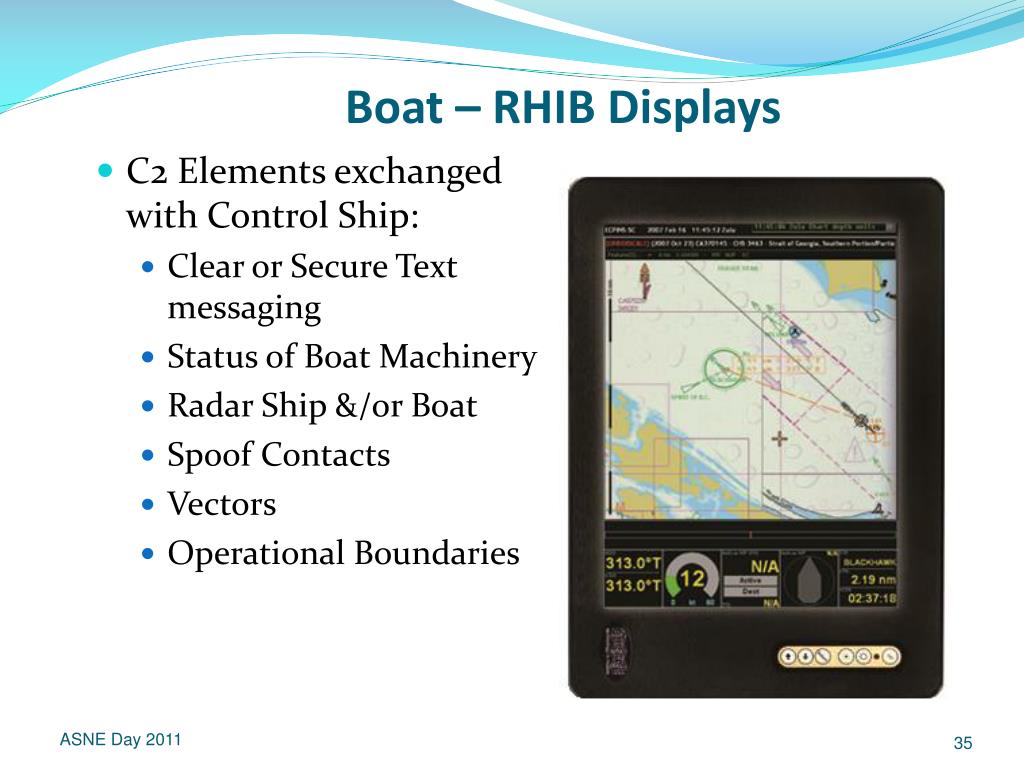

  35. Boat – RHIB Displays • C2 Elements exchanged with Control Ship: • Clear or Secure Text messaging • Status of Boat Machinery • Radar Ship &/or Boat • Spoof Contacts • Vectors • Operational Boundaries ASNE Day 2011

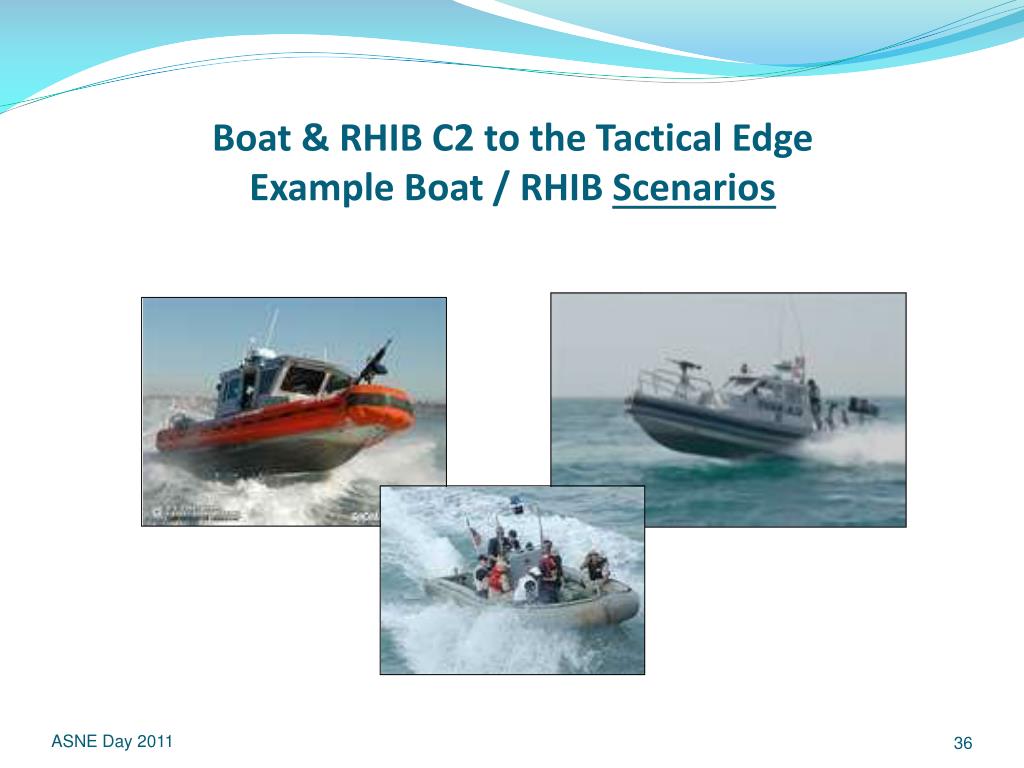

  36. Boat & RHIB C2 to the Tactical EdgeExample Boat / RHIB Scenarios ASNE Day 2011

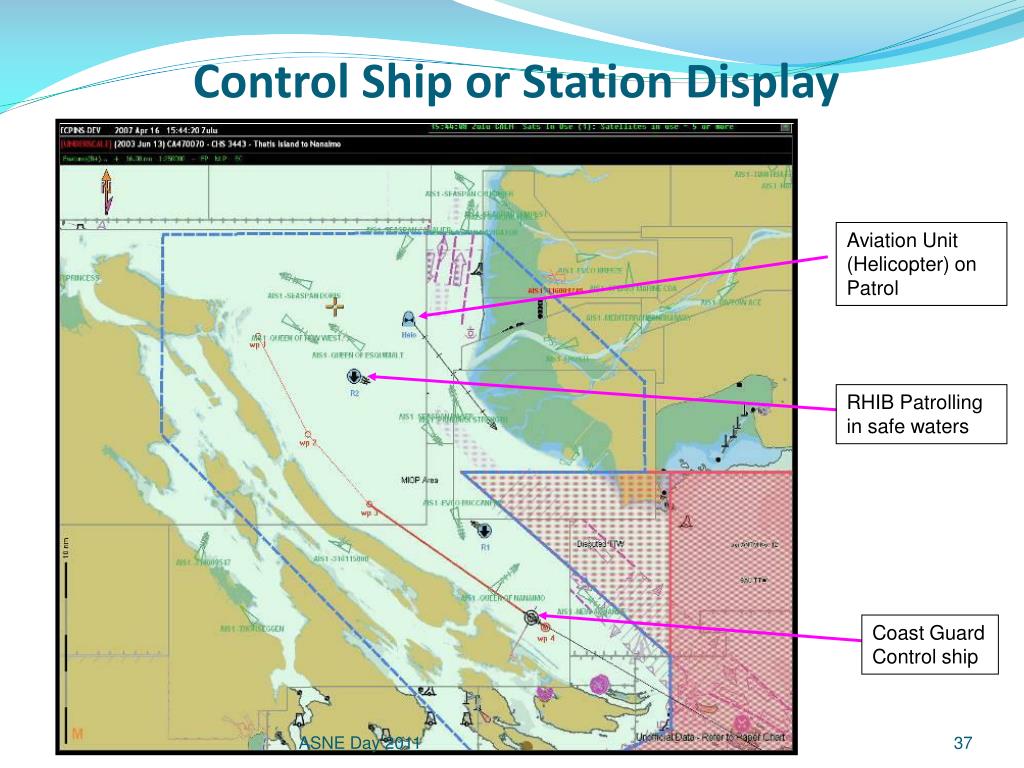

  37. Control Ship or Station Display Aviation Unit (Helicopter) on Patrol RHIB Patrolling in safe waters Coast Guard Control ship ASNE Day 2011

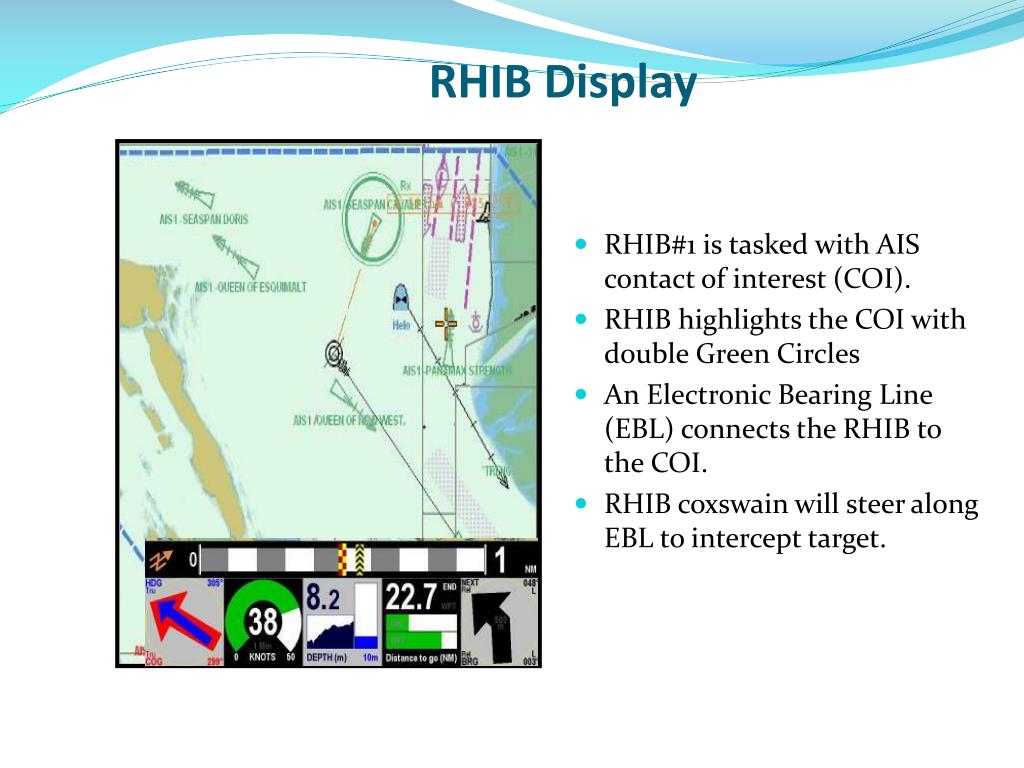

  38. RHIB Display • RHIB#1 is tasked with AIS contact of interest (COI). • RHIB highlights the COI with double Green Circles • An Electronic Bearing Line (EBL) connects the RHIB to the COI. • RHIB coxswain will steer along EBL to intercept target.

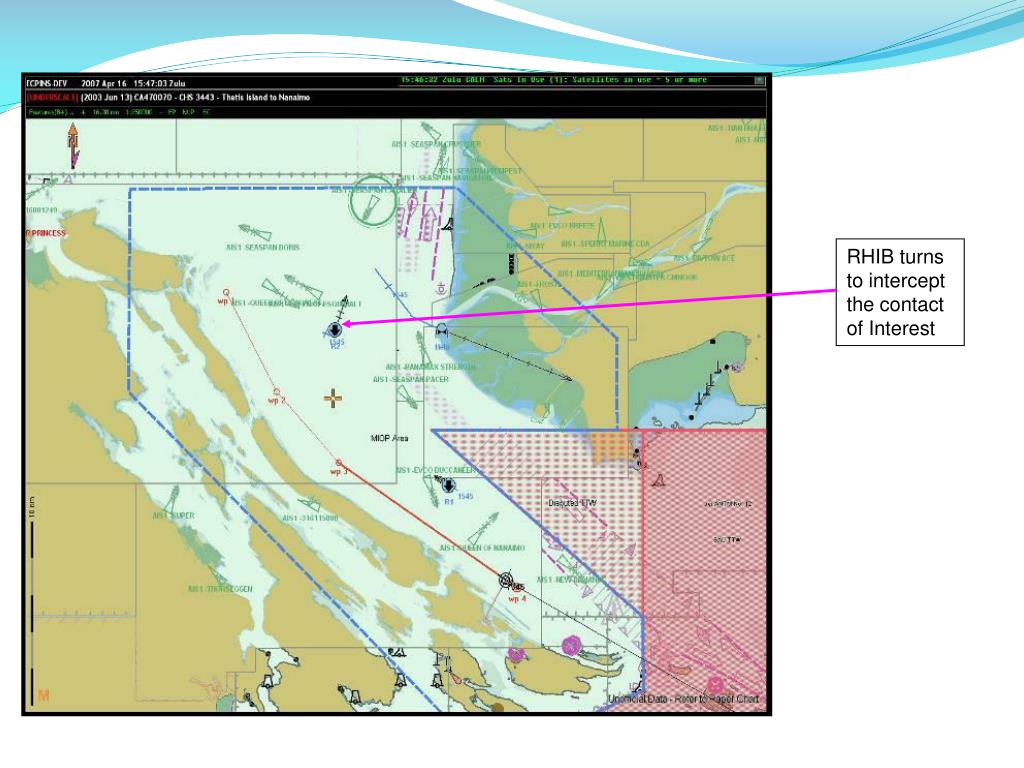

  39. RHIB turns to intercept the contact of Interest

  40. Control Ship has sent a Contact of Interest message to RHIB #2 RHIB #2 is already proceeding on an intercept course. This Intercept course will take RHIB through disputed waters. Control ship must alert RHIB to avoid area.

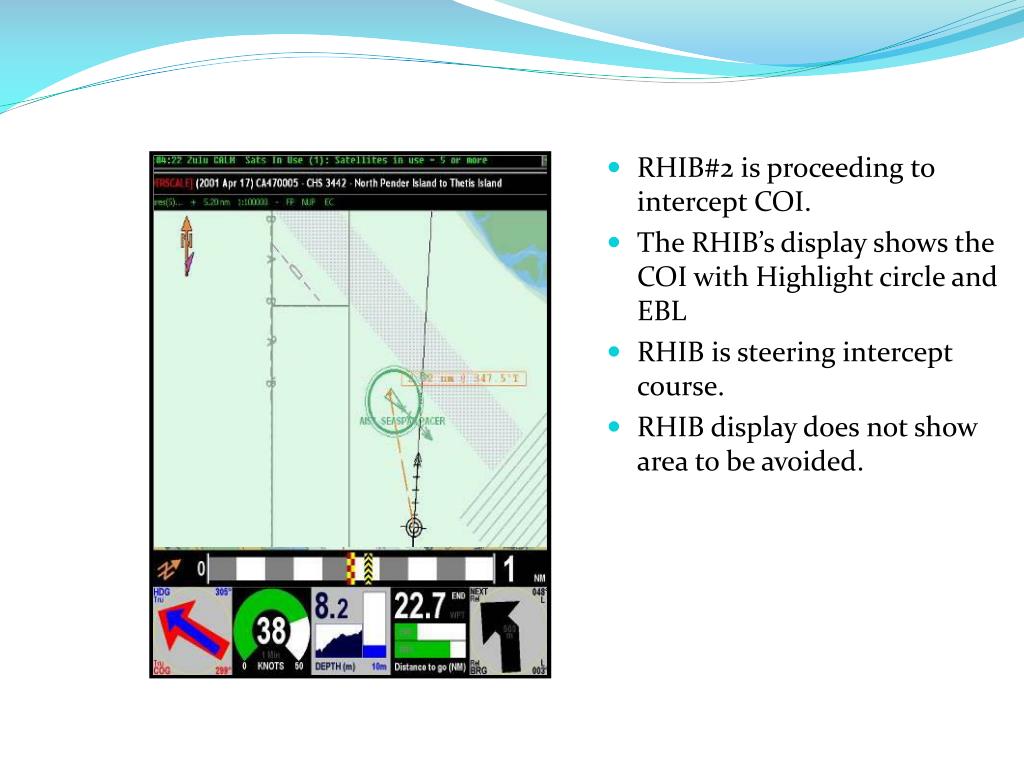

  41. RHIB#2 is proceeding to intercept COI. • The RHIB’s display shows the COI with Highlight circle and EBL • RHIB is steering intercept course. • RHIB display does not show area to be avoided.

  42. Control ship advises RHIB#2 to come about immediately via text message. • Danger area is presented at same time to reinforce urgency and to provide the “whole picture”. • RHIB #2 has information required to make safe choice.

  43. RHIB has turned away from disputed area – Incident avoided!

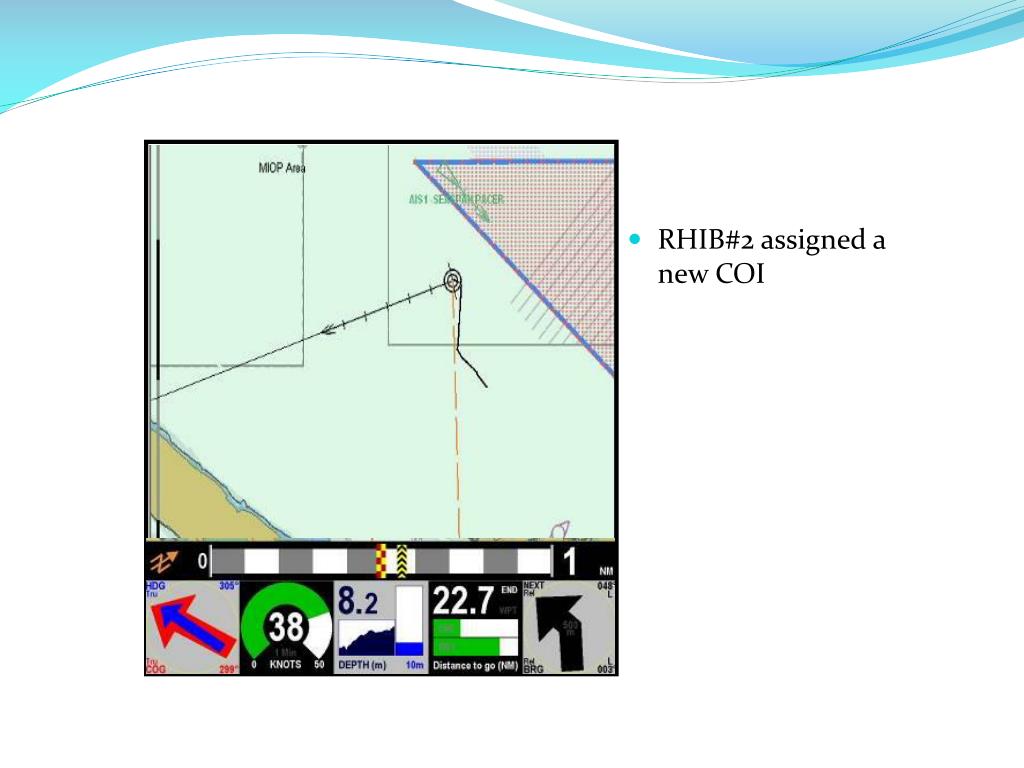

  44. RHIB#2 assigned a new COI

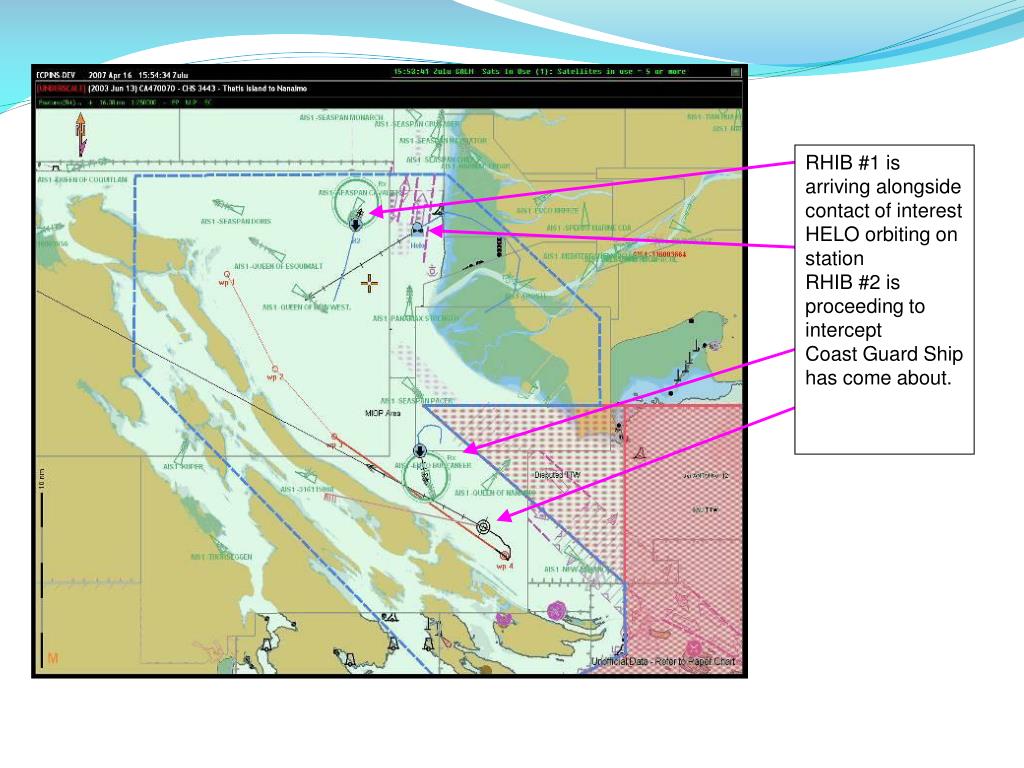

  45. RHIB #1 is arriving alongside contact of interest HELO orbiting on station RHIB #2 is proceeding to intercept Coast Guard Ship has come about.

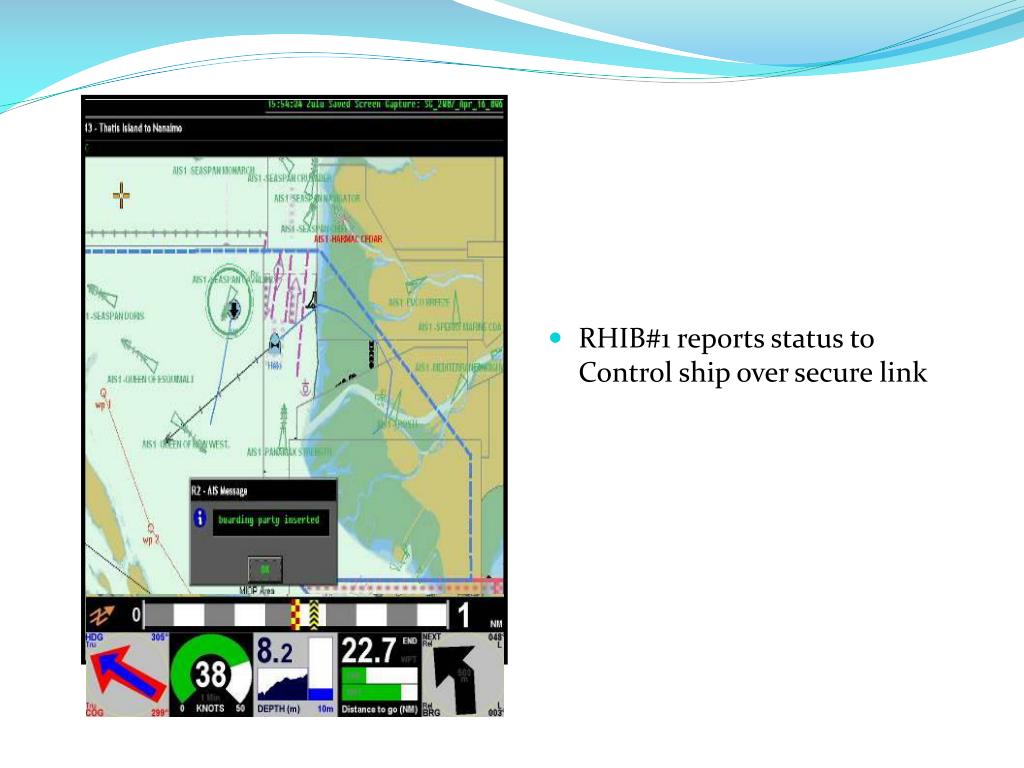

  46. RHIB#1 reports status to Control ship over secure link

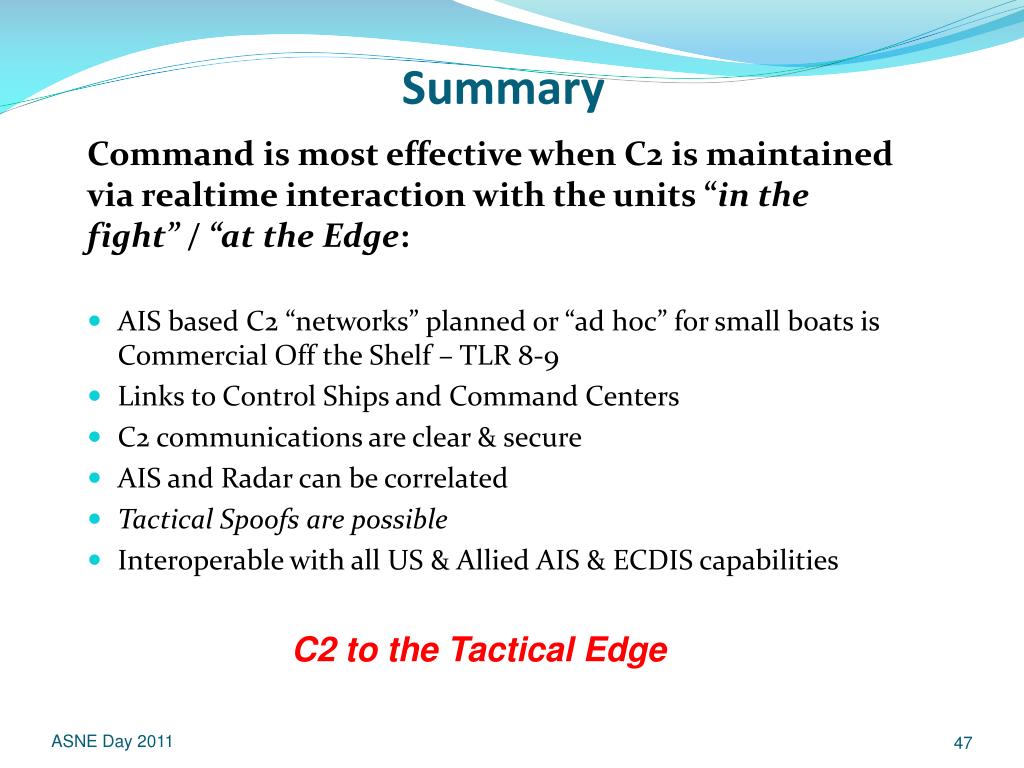

  47. Summary C2 to the Tactical Edge Command is most effective when C2 is maintained via realtime interaction with the units “in the fight” / “at the Edge: AIS based C2 “networks” planned or “ad hoc” for small boats is Commercial Off the Shelf – TLR 8-9 Links to Control Ships and Command Centers C2 communications are clear & secure AIS and Radar can be correlated Tactical Spoofs are possible Interoperable with all US & Allied AIS & ECDIS capabilities ASNE Day 2011

  48. C2 to the Tactical Edge AIS Joe Famme Bryan Price Ted Raitch Jim Davison ASNE February 10, 2011 ASNE Day 2011

  49. Fair Winds and Following Seas! CDR Joseph Famme, USN (ret) Lt Brian Price Canadian Navy Mr. Ted Raitch (former USAF) Lt Cdr. Jim Davison Royal Navy (ret) C2 to the Tactical Edge ASNE Day 2011

  50. Backup Slides ASNE Day 2011
